24-103
System in Basic Setting 34
1
2
3
4
When indicated on display:
Note:
This process can take a few minutes. - Adjust engine speed using VAG1788/10 to 2800 - 3200 RPM.
- Continue test as soon as display field 2 indicates an exhaust
temperature of more than 320 C. - Press -C- button.
- Adjust engine speed using VAG1788/10 to 1900 - 2200 RPM.
Basic Settin
g
Q
Input displa
y group number XXX
When indicated on display:
- Press buttons -0-, -3- and -0- to select "display group number 030" and
press -Q- button to confirm input.
System in Basic Setting 30
1
2
3
4
When indicated on display:
Note:
"Oxygen sensor status" indicates status of oxygen sensor control and
oxygen sensor. - Check oxygen sensor status for oxygen sensor behind catalytic
converter in display field 2.
Pa
ge 26 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2
Page 27 of 61
24-104
Display fields
1 2 3 4
Display group 030: Oxygen sensor status with engine at idle
Display X X X
X X X X X X
X X X
Indicated Oxygen sensor status,
bank 1, sensor 1 Oxygen sensor status
bank 1, sensor 2 Oxygen sensor status,
bank 2, sensor 1 Oxygen sensor status
bank 2, sensor 2
Working
area 0 = off
1 = on 0 = off
1 = on 0 = off
1 = on 0 = off
1 = on
Specified
value: 1 1 1
1 1 1 1 1 1
1 1 1
Note:
Significance of display Page 24
-105
If specified value is not obtained:
Check oxygen sensor signal wire and activation Page 24
-122
Check oxygen sensor heater Page 24
-114
Notes:
Oxygen sensor control of oxygen sensor behind catalytic converter (Bank 1-Sensor 2 and Bank 2 -Sensor 2) is not active
without engine load.
The first position of the 3 digit indication (heater) fluctuates between 0 and 1.
Pa
ge 27 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2
Page 29 of 61
24-105
Significance of 3 digit indication in Display Group 030 1
1
1
Display fields 1 to 4
X Oxygen sensor control
0= inactive
1= active
X Operational readiness of oxygen sensor
0= inactive
1= active
X Condition of oxygen sensor heater
0= inactive
1= active
- Press -C- button.Basic Setting
Q
Input displa
y group number XXX
When indicated on display
Test requirements - Press buttons -0-, -4- and -3- to select "display group number 043" and press -Q-
button to confirm input.
Engine runs at 1900 - 2200 RPM
Pa
ge 29 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2
Page 30 of 61
System in Basic Setting 43
1
2
3
4
When indicated on display
- Check specified value in display field 4.
Pa
ge 30 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2
Page 31 of 61
24-106
Display fields
1 2 3
4
Display group 043: Oxygen sensor aging oxygen sensor behind catalytic converter (Bank 1)
Display xxxx/RPM
xxx C
x.xxx V
Test ON
Indicated Engine speed
(RPM) Exhaust
temperature Voltage of oxygen sensor
behind CAT, Bank 1 Diagnostic condition
Work range 0 - 6800/RPM
70 - 850 C
0.000 - 1.000 Volt
Test OFF
Test ON
B1-S2 OK
B1-S2 not OK
Specified
value 1900 -
2200/RPM greater than 320
C 0.000 - 1.000 Volt
B1-S2 OK
Note
If specified value is not reached. Check
oxygen sensor heater Page 24
-114
If the specified value of "B1-S2 OK" is reached:
- Press -C- button.
Test requirements
Engine runs at 1900 - 2200 RPM
Pa
ge 31 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2

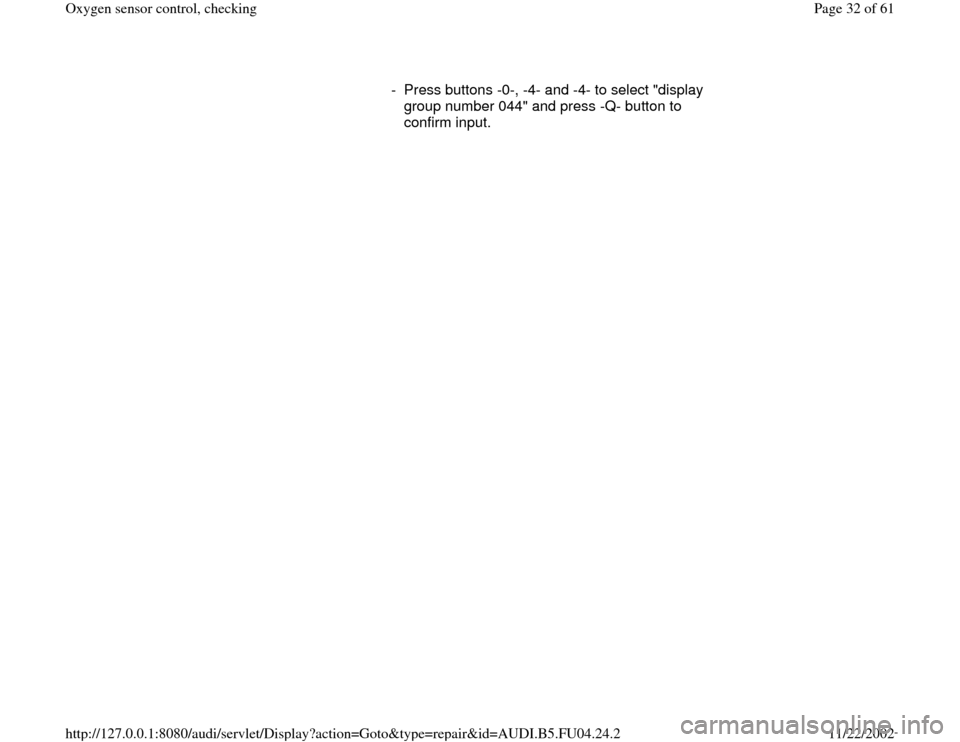

Page 32 of 61
- Press buttons -0-, -4- and -4- to select "display
group number 044" and press -Q- button to
confirm input.
Pa
ge 32 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2
Page 33 of 61
24-107
Display fields
1 2 3
4
Display group 044: Oxygen sensor aging oxygen sensor behind catalytic converter (Bank 2)
Display xxxx/RPM
xxx C
x.xxx V
Test ON
Indicated Engine speed
(RPM) Exhaust
temperature Voltage of oxygen sensor
behind CAT, Bank 1 Diagnostic condition
Work range 0 - 6800/RPM
70 - 850 C
0.000 - 1.000 Volt
Test OFF
Test ON
B2-S2 OK
B2-S2 not OK
Specified
value 1900 -
2200/RPM greater than 320
C 0.000 - 1.000 Volt
B1-S2 OK
Note
If specified value is not reached. Check
oxygen sensor heater Page 24
-114
If the specified value of "B2-S2 OK" is reached:
- Press -C- button.
Pa
ge 33 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2
Page 34 of 61
24-108
Checking oxygen sensor control behind
catalytic converter
- Carry out road test for approx.: 10 minutes.Basic Setting
Q
Input displa
y group number XXX
Indicated on display
- Press buttons -0-, -3- and -7- to select "display group number 037" and
press -Q- button to confirm input.
System in Basic Setting 37
1
2
3
4
Indicated on display
- Check oxygen sensor voltage in display field 2.
- Check dwell time (hold up) between oxygen sensor 1 before catalytic
converter and oxygen sensor 2 behind catalytic converter in display
field 3 and diagnostic result in display field 4.
Pa
ge 34 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2
Page 35 of 61
24-109
Display fields
1 2 3 4
Display group 037: Diagnostic oxygen sensor control (Bank 1)
Display xxx % x.xxx Volt xxx ms
Test ON
Indicated Engine
load Oxygen sensor voltage behind
catalytic converter, Bank 1 Correction value between
oxygen sensor 1 and sensor
2, bank 1 Diagnostic condition
Work
range 15.0 -
175.0 % 0.000 - 1.000 V -1200 - 1200 ms
Test OFF
Test ON
SYST. OK
SYST. not OK
Specified
value 15.0 -
25.0 % 0.000 - 1.000 V -500 - 500 ms
SYST. OK
Note
If specified value is not
obtained: Evaluation display
field 2 Page 24
-112
If specified value is
obtained: Continuation
Page 24
-113
If "SYST. not OK" is
displayed: Check DTC
memory Page 01
-15
or Continue Page 24-113
Note for display field 3:
Oxygen sensor control behind catalytic converter is superior to oxygen sensor control before catalytic converter and is the
primary control. It corrects slight changes in the mixture (i.e. enrichment or thinning) by holding the oxygen sensor control
before catalytic converter at its higher or lower point for a specific time (duration). If this time is in the positive range (i.e. 50
ms), mixture is shifted in the -enrich- direction. If this time is in the negative range (i.e. 50 ms), mixture is shifted in the -lean-
Pa
ge 35 of 61 Ox
yg
en sensor control, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.2
Page 37 of 61
24-110
- Press -C- button.
- Press buttons -0-, -3- and -8- to select "display
group number 038" and press -Q- button to
confirm input. System in Basic Setting 38
1
2
3
4
Indicated on display: (1 - 4 display fields)
