suspension AUDI A4 1996 B5 / 1.G Suspension Rear Axle All Wheel Drive Workshop Manual

42-39


Rear axle, servicing (all-wheel-
drive vehicles) WARNING!
CAUTION!
Do not attempt to move a vehicle from which
the drive axle has been removed. Otherwise
wheel bearing damage will result. If the vehicle
must be moved, install an outer CV joint in
place of the drive axle.
Do not attempt to weld or straighten the load-
bearing or wheel locating components of the
rear suspension.
Do not re-use fasteners that are worn or
deformed in normal use.
Some fasteners are designed to be used only
once, and are unreliable and may fail if used
a second time. This includes, but is not
limited to, nuts, bolts, washers, circlips and
cotter pins. Always follow recommendations
in this manual-replace these fasteners with
new parts where indicated, and any other
time it is deemed necessary by inspection.
Pa
ge 1 of 32 Rear axle, servicin
g (all-wheel-drive vehicles
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.3

42-42


11 -
Suspension strut
Removing and installing page 42
-65
Servicing page 42
-68
12 -
Wheelhousing
13 -
Bolt + washer
55 Nm (41 ft lb)
14 -
Bolt Always replace
15 -
Bolt Always replace
16 -
Upper control arm Removing and installing page 42
-65
Servicing page 42
-81
17 -
Wheel bearing housing
18 -
Washer
Always replace
19 -
Self-locking nut Always replace50 Nm (37 ft lb) + 1/4-turn (90 )
20 -
Self-locking nut
Pa
ge 4 of 32 Rear axle, servicin
g (all-wheel-drive vehicles
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.3

42-44


27 -
Stabilizer bar
Different versions depending on
suspension version Before replacing, refer to vehicle data label
to determine correct version page 42
-37

Suspension codes on data label:
1BA = Standard suspension1BC = Special purpose suspension1BP = Heavy duty suspension1BE = Sports suspension1BB = Heavy duty suspension1BD = Audi S41BT = Heavy duty suspension
28 -
Bushing Different versions depending on
suspension version Before replacing, refer to vehicle data label
to determine correct version page 42
-37

Suspension codes on vehicle data label:
1BA = Standard suspension1BC = Special purpose suspension
Pa
ge 7 of 32 Rear axle, servicin
g (all-wheel-drive vehicles
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.3

1BP = Heavy duty suspension1BE = Sports suspension1BB = Heavy duty suspension1BD = Audi S41BT = Heavy duty suspension
Pa
ge 8 of 32 Rear axle, servicin
g (all-wheel-drive vehicles
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.3

42-46

Information on weight codes (code number)

From model year 1998 , spring/shock
assemblies will be classified according to weight
codes (code number) so that suspension
components can be matched easily. The spring/shock assembly installed in the
vehicle is indicated by the weight code on the
vehicle data label.

Example of vehicle data label
The vehicle data label is located in the spare wheel well and in the vehicle
Maintenance booklet.
The weight codes can be used to identify the correct spring/shock
assemblies on the parts catalog microfiche. A - Weight code for front suspension
B - Weight code for rear suspension
Pa
ge 10 of 32 Rear axle, servicin
g (all-wheel-drive vehicles
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.3

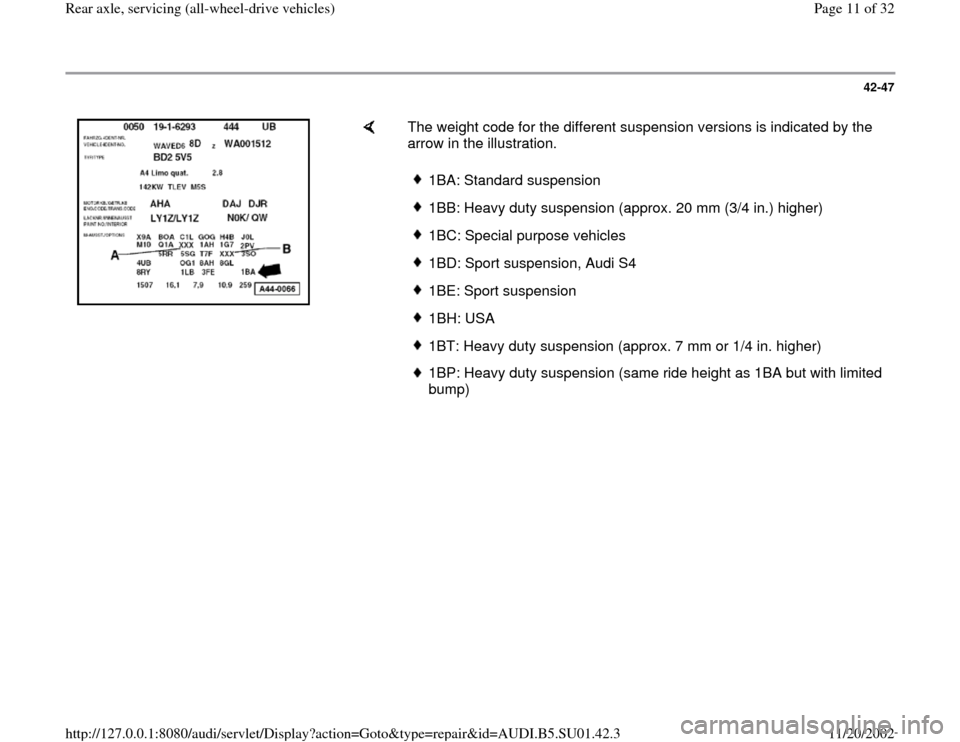

42-47


The weight code for the different suspension versions is indicated by the
arrow in the illustration.
1BA: Standard suspension1BB: Heavy duty suspension (approx. 20 mm (3/4 in.) higher)1BC: Special purpose vehicles1BD: Sport suspension, Audi S41BE: Sport suspension 1BH: USA1BT: Heavy duty suspension (approx. 7 mm or 1/4 in. higher)1BP: Heavy duty suspension (same ride height as 1BA but with limited
bump)
Pa
ge 11 of 32 Rear axle, servicin
g (all-wheel-drive vehicles
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.3

42-48


Headlight range control, removing and
installing

As a running change in m.y. 1998 vehicles with
xenon headlights may have a connection for the
headlight range control installed in the left-rear of
the headlight.
1 -
Subframe
2 -
Suspension strut
3 -
Lower control arm
4 -
Linkage for headlight range control
5 -
Self-locking nuts
10 Nm (7 ft lb)
6 -
Nut 3 Nm +1/-0 Nm (27 in. lb +9/-0 in. lb)Observe Note page 42
-49
7 -
Sensor for headlight range control
8 -
Mounting bracket
Pa
ge 12 of 32 Rear axle, servicin
g (all-wheel-drive vehicles
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.3

42-61


CAUTION!
Be careful not to damage the edge of the wheelhousing. - While coil spring is still compressed, remove bolts (arrows) from
suspension strut mounting bracket.
- Swivel suspension strut outward at top and relieve coil spring tension.
- Using above procedure, remove suspension strut from opposite side.
- Remove exhaust system bracket from rear final drive.

CAUTION!
Be careful not to damage the fuel tank. - Support final drive using VAG1383A engine/transmission lifter and
VAG1359/2 universal mount.
- Secure rear final drive with strap.
Pa
ge 27 of 32 Rear axle, servicin
g (all-wheel-drive vehicles
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.3

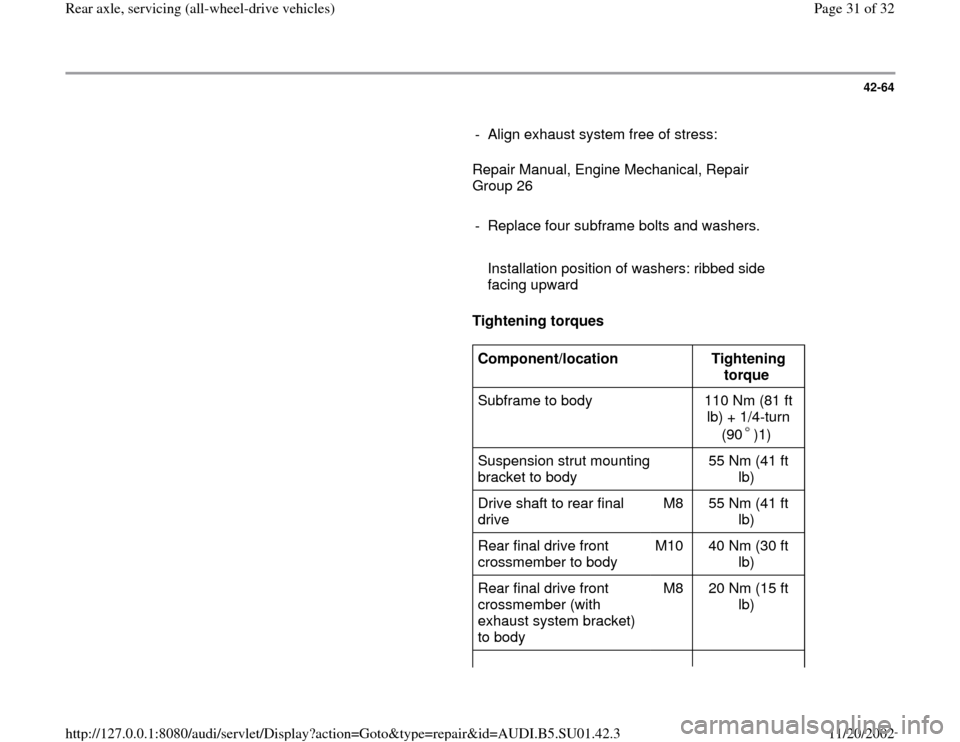

42-64

- Align exhaust system free of stress:
Repair Manual, Engine Mechanical, Repair
Group 26

- Replace four subframe bolts and washers.

Installation position of washers: ribbed side
facing upward

Tightening torques

Component/location
Tightening
torque
Subframe to body 110 Nm (81 ft
lb) + 1/4-turn
(90 )1) Suspension strut mounting
bracket to body 55 Nm (41 ft
lb)
Drive shaft to rear final
drive M8 55 Nm (41 ft
lb)
Rear final drive front
crossmember to body M10 40 Nm (30 ft
lb)
Rear final drive front
crossmember (with
exhaust system bracket)
to body M8 20 Nm (15 ft
lb)
