Page 11 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-27


Note
If 3282 transmission support is not available, transmission can be
removed and installed using VAG1383A transmission jack and
VAG1359/2 universal mount.  -  Roll VAG1383A transmi

Page 12 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-28

4-cylinder engine

-  Remove left transmission support from bonded rubber mount -2-.

6-cylinder engine
-  Remove left and right transmission supports complete with bonded
rubb

Page 13 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-29

All models

CAUTION!
When lowering the transmission, make sure the hydraulic line/hose
to clutch slave cylinder is not damaged.  -  Remove remaining engine/transmission mounting bo

Page 14 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-30

Securing transmission to assembly stand

Special tools and equipment

VW309 holding plate
     VW353 transmission support

-  Secure transmission to assembly stand using

Page 15 of 21

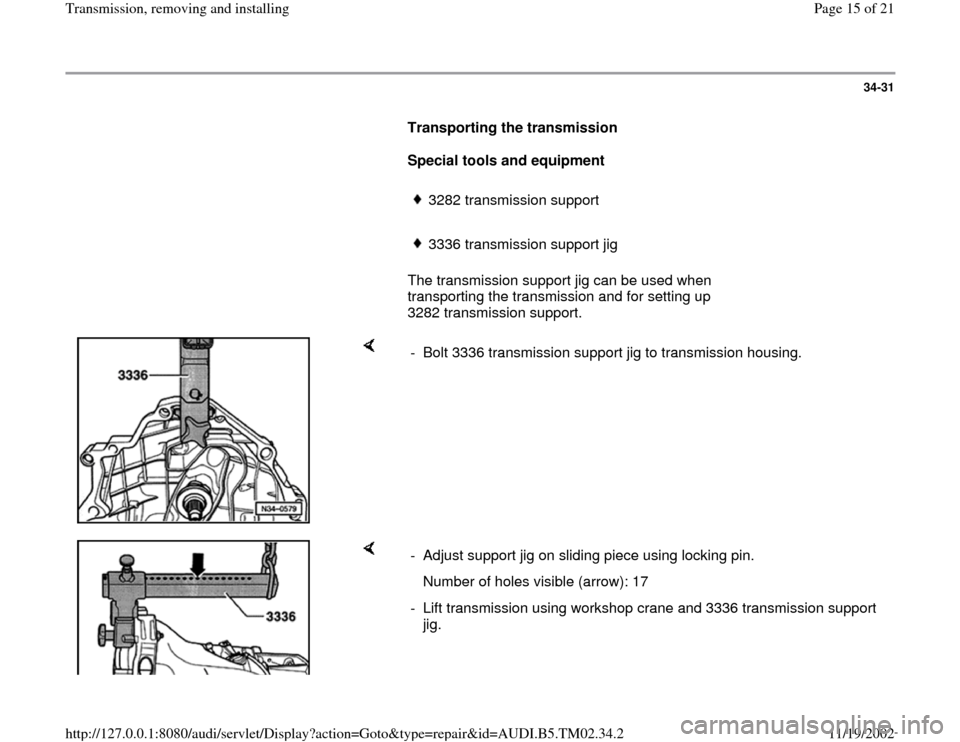

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-31

Transporting the transmission

Special tools and equipment

3282 transmission support
     3336 transmission support jig
      The transmission support jig can be used when

Page 16 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-32

Installing
      Install in reverse order of removal, note the
following:

-  Clean input shaft splines and (in case of used
clutch plates) hub splines. Remove corrosion
and a

Page 17 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-33


-  Lift up transmission until clutch slave cylinder with mounting bracket for
line/hose can be installed (arrow).
-  Install intermediate plate (if applicable) between transmission and

Page 18 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-34

-  Align exhaust system free of stress.
       Repair Manual, Engine Mechanical, Repair
Group 26
-  Check transmission oil level   Page 34
-38
 .

- After
connecting
batter

Page 19 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-35

Tightening torques

Transmission to engine (4-cylinder)
A: Dowel sleeves  Item No.
Bolt
Tightening torque
1, 3, 4   M12 x 67   65 Nm (48 ft lb)
2, 6   M12 x 90   65 Nm (48

Page 20 of 21

AUDI A4 1997 B5 / 1.G 01A Transmission Remove And Install User Guide 34-36


Transmission to engine (6-cylinder)
A: Dowel sleeves  Item No.
Bolt
Qty.
Tightening torque
1   M12 x 67   3   65 Nm (48 ft lb)
2   M12 x 90   1   65 Nm (48 ft lb)
3   M12 x
