display AUDI A4 1997 B5 / 1.G AHA Engine Multiport Fuel Injection And Ignition System Workshop Manual

24-18

Checking

- Connect VAG1551 or VAG1552 scan tool and
press buttons -0- and -1- to insert "Engine
Electronics" address word 01 (with engine
running at idle) page 01
-8 .
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -4- to select "Basic Setting" function 04, and
press -Q- button to confirm input.
System in Basic Settin
g
HELP
Input displa
y group number XXX

Indicated on display
- Press buttons -0-, -0- and -1- to input display group number 1 (001),
and press -Q- button to confirm input.
System in Basic Setting 1 1 2 3 4

Indicated on display (1-4 = display fields)
Note:
After selecting function 04, the ECM initiates the following:
EVAP canister purge regulator valve is closedA/C compressor is switched of
f
- Briefly raise engine speed (acceleration burst) and let engine run at idle
for another 2 minutes.
Pa
ge 23 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-19

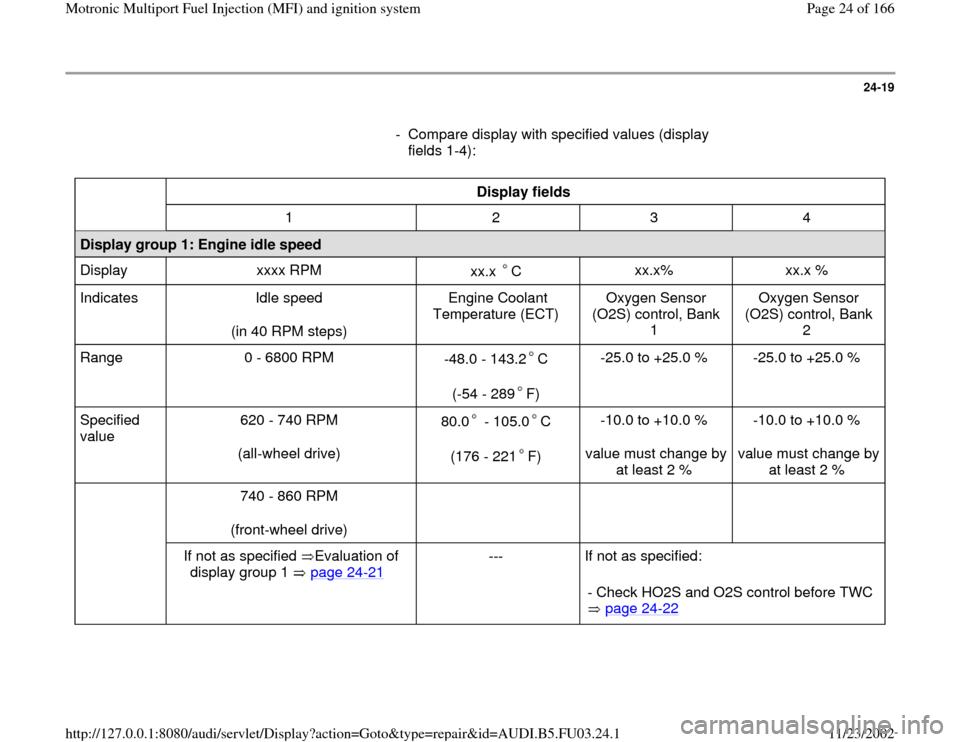

- Compare display with specified values (display
fields 1-4):

Display fields

1 2 3 4
Display group 1: Engine idle speed
Display xxxx RPM
xx.x C
xx.x% xx.x %
Indicates Idle speed
(in 40 RPM steps) Engine Coolant
Temperature (ECT) Oxygen Sensor
(O2S) control, Bank
1 Oxygen Sensor
(O2S) control, Bank
2
Range 0 - 6800 RPM
-48.0 - 143.2 C
(-54 - 289 F)
-25.0 to +25.0 % -25.0 to +25.0 %
Specified
value 620 - 740 RPM
(all-wheel drive) 80.0 - 105.0 C
(176 - 221 F) -10.0 to +10.0 %
value must change by
at least 2 % -10.0 to +10.0 %
value must change by
at least 2 %
740 - 860 RPM
(front-wheel drive)

If not as specified Evaluation of
display group 1 page 24
-21

--- If not as specified:
- Check HO2S and O2S control before TWC
page 24
-22

Pa
ge 24 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-20
If displayed values are OK (as specified):

-
Press button.
- Press buttons -0- and -6- to insert "End Output"
address word 06, and press -Q- button to
confirm input.

- Check readiness code page 01
-70
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code page 01
-73
.

Note:
The increased idle speed for vehicles with front-
wheel drive is achieved if there is voltage (from
terminal 15er) supplied to terminal 10 of the
Engine Control Module (ECM).
Pa
ge 25 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-21
Evaluation of display group 1 Display
Group: 1


Display
field: 1
Possible malfunction cause
Corrective action
less than
620
(all-wheel
drive)
or
less than
740
(front-wheel
drive)
Driving mode engaged
Adaptation of throttle valve control module -J338- to
engine control module cannot be conducted
Throttle valve control module malfunction- Move selector lever into "P" or "N" position
- Carry out adaptation of throttle valve control
module -J338- to ECM page 24
-150

- Check -J338- page 24
-128
less than
740
(front-wheel
drive)
B+ (15) to terminal 10 of ECM missing- Check voltage supply to terminal 10 on ECM
per wiring diagram
greater than
740
(all-wheel
drive) Adaptation of throttle valve control module -J338- to
engine control module cannot be conducted
Closed Throttle Position (CTP) switch open
Throttle valve control module malfunction- Carry out adaptation of throttle valve control
module -J338- to ECM page 24
-150

- Check -J338- page 24
-128
Pa
ge 26 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-23

Checking

- Connect VAG1551 or VAG1552 scan tool and
press buttons -0- and -1- to insert "Engine
Electronics" address word 01 (with engine
running at idle) page 01
-8 .
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select "Read Measuring Value Block"
function 08, and press -Q- button to confirm input.
Read Measurin
g Value Block
HELP
Input displa
y group number XXX

Indicated on display
- Press buttons -0-, -3- and -2- to input display group number 32 (032),
and press -Q- button to confirm input.
Read Measuring Value Block 32 1 2 3 4

Indicated on display (1-4 = display fields)
Pa
ge 30 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-24

- Check learning values for Oxygen Sensor (O2S)
control before TWC (display fields 1-4):

Display fields

1 2 3 4
Display group 32: Oxygen Sensor (O2S) control learning values (before TWC)
Display xx.x % xx.x % xx.x % xx.x %
Indicates O2S control learning
value at idle (additive)
(before TWC)
Bank 1, Sensor 1 O2S control learning value at
part load (multiplicative)
(before TWC)
Bank 1, Sensor 1 O2S control learning
value at idle (additive)
(before TWC)
Bank 2, Sensor 1 O2S control learning value at
part load (multiplicative)
(before TWC)
Bank 2, Sensor 1
Range -25.0 to +25.0 % -25.0 to +25.0 % -25.0 to +25.0 % -25.0 to +25.0 %
Specified
value -10.0 to +10.0 %
(can vary slightly) -10.0 to +10.0 %
(can vary slightly) -10.0 to +10.0 %
(can vary slightly) -10.0 to +10.0 %
(can vary slightly)
If not as specified Evaluation of display group 32, page 24
-27

If displayed values are OK (as specified):

- Press -C- button.

- Press buttons -0-, -3- and -3- to input display
group number 33, and press -Q- button to
confirm input.
Pa
ge 31 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

Read Measuring Value Block 33 1 2 3 4

Indicated on display (1-4 = display fields)
Pa
ge 32 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-25

- Check Oxygen Sensor (O2S) control before
TWC (display fields 1-4):

Display fields

1 2 3 4
Display group 33: Oxygen Sensor (O2S) control (before TWC)
Display xx.x % x.xxx V xx.x % x.xxx V
Indicates O2S control
Bank 1, Sensor 1
(before TWC) O2S voltage
Bank 1, Sensor 1
(before TWC) O2S control
Bank 2, Sensor 1
(before TWC) O2S voltage
Bank 1, Sensor 1
(before TWC)
Range -25.0 to +25.0 % 0.000-1.000 V -25.0 to +25.0 % 0.000-1.000 V
Specified
value -10.0 to +10.0 %
value must change by
at least 2 % 0.000 to 1.000 V
value must fluctuate at least
30 times per minute, and
change by at least 0.3 volts -10.0 to +10.0 %
value must change by
at least 2 % 0.000 to 1.000 V
value must fluctuate at least
30 times per minute, and
change by at least 0.3 volts

If not as specified
page 24
-26
,
Continuation
If not as specified page 24
-
28
, Evaluation of display
group 33
If not as specified
page 24
-26
,
Continuation
If not as specified page 24
-
28
, Evaluation of display
group 33
Pa
ge 33 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-26

Continuation
If the value in either display field 1 or 3 is NOT
OK, or if the value does not fluctuate by at least 2
%:

- Road test to condition oxygen sensor(s)
(eliminate possible contamination) and repeat
test.
If the value in either display field 1 or 3 is still
NOT OK, or if it still does not fluctuate by at least
2 %:

- Check Oxygen Sensor (O2S) heater(s) page
24
-34
.
If the value in either display field 1 or 3 remains
constant:

- Check oxygen sensor voltage(s) (display fields 2
and 4).

-
Press button.
- Press buttons -0- and -6- to select "End Output"
function 06, and press -Q- button to confirm
input.

Pa
ge 34 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-27
Evaluation of display group 32 Display group:
32


Display fields:
1-4
Possible malfunction cause
Corrective action
O2S control
learning value:
-25.0 to -10.0
%
Engine oil dilution (when part load learning value is
normal display fields 2 and 4)
- Change engine oil, or carry out extensive
road test and check again


Fuel pressure too high- Check fuel pressure regulator page 24
-
111



Fuel injector leaking- Check fuel injectors page 24
-102


Oxygen Sensor (O2S) heater malfunction- Check O2S heater page 24
-34
O2S control
learning value:
10.0 to 25.0 %
Intake air leaks ("false air") or exhaust manifold leaks
(when partial load learning value is normal display
fields 2 and 4)
- Check intake air system for leaks page 24
-126

- Check exhaust system for leaks Repair
Manual, 2.8 Liter V6 5V General, Engine,
Repair Group 26


Fuel pressure too low- Check fuel pressure regulator page 24
-
111



Oxygen Sensor (O2S) heater malfunction- Check O2S heater page 24
-34
