Page 11 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-11 Exhaust system, aligning free of stress Align the exhaust system as follows to avoid stresses in the system and prevent the transmission of noise into the body: Notes:

Page 12 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-12 Vehicles without clamp between center and rear muffler - Loosen screws of front clamp between catalytic converter and center muffler. - Push exhaust system far enough for

Page 13 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-13 Vehicles with clamp between front muffler and rear muffler Note: It is only necessary to additionally align the front muffler on vehicles with clamp fitted between front

Page 14 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-14 Aligning tailpipes - Push rear muffler toward front of vehicle -arrow- so that rear right mounting on rear muffler is pre-loaded by a = 9 ... 11 mm. - Tighten bolted connections on r

Page 15 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-15 Installation position of double clamp at front The ends of the bolts must not project below the bottom of the clamp. Installation position of double clamp at rear The ends

Page 16 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-16 Exhaust system, checking for leaks - Start engine and run at idling speed. - Plug tailpipe (e. g. with rag or stopper) and leave plugged until check is complete. -

Page 17 of 30

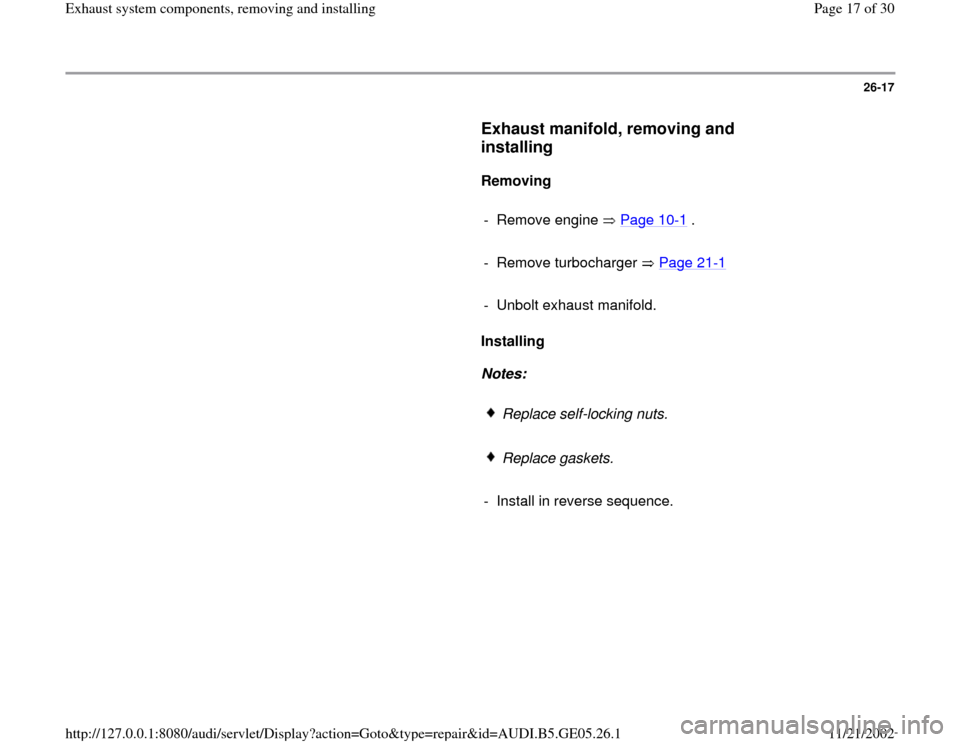

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-17 Exhaust manifold, removing and installing Removing - Remove engine Page 10 -1 . - Remove turbocharger Page 21 -1 - Unbolt exhaust manifold. Installi

Page 18 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-18 Tightening torques Bolted mountings Tightening torques Exhaust pipe between exhaust manifold and turbocharger 25 Nm Exhaust pipe with catalytic converter to turbochar

Page 19 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-19 Exhaust gas temperature sensor, checking for function Special tools and equipment Test requirement: WARNING! VAS 5051 with VAG 5051/1 orVAG 1551 with VAG 1551/3ACoola

Page 20 of 30

AUDI A4 1997 B5 / 1.G APB Engine Exhaust System Components User Guide 26-20 Test sequence - Connect VAS 5051 tester or VAG 1551 scan tool and select control module for engine electronics using "address word" 01. Engine must run at idle for this.
