Description of work

Engine oil level, checking

After turning engine OFF, wait approximately 3
minutes to allow oil to flow back into oil pan.

- Remove dipstick, wipe with a lint free cloth, and
re-insert fully.

Note:
Please observe waste disposal requirements!

- Remove dipstick and read oil level:

Marking ranges on dipstick.
CAUTION!
If oil level is above -a - there is risk of damage to Three Way
Catalytic Converter.
a - Oil level must be at top edge of shaded area but under no condition
above.
b - Oil may be topped off.
c - Oil must be topped off.
Pa
ge 1 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

14

Cooling system antifreeze protection
and coolant level, checking


CAUTION!

Part numbers are for reference only. Always
check with your Parts Dept. for the latest
parts information.
Coolant antifreeze, Part No. G 11 prevents frost
and corrosion damage, lime deposits, and also
raises the boiling temperature. Cooling system
must be filled year round with antifreeze and
corrosion protection agent.
Concentration of coolant must not be reduced by
adding wa ter, even during summer or in warmer
climates. Coolant antifreeze percentage must be
at least 40%.
Because of its high boiling point, coolant
contributes to safe operation at high engine load,
especially in warmer climates.

- Check concentration of coolant antifreeze.

Antifreeze protection must be approximately
-25 C (-13 F) for US and -35 C (-31 F)
for Canada.

For antifreeze protection down to
Pa
ge 6 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

31

All models

- Start engine and check belt running.

- Check again to ensure that bolts for coolant
pump pulley are tightened to correct torque.
Pa
ge 25 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

38

6-spd. manual transmission 01E all wheel
drive

Note:

For checking oil level the vehicle must be
stationary and on a level surface (e.g engine
off, standing on an alignment lift).
The oil level must be kept at the specified level.
The transmission may be damaged by over-
filling.

CAUTION!
If the oil level is too low, the transmission must be checked for leaks
and repaired. It is not sufficient to just top off oil.
CAUTION!
Part numbers are for reference only. Always check with your Parts
Dept. for the latest parts information. - Remove filler plug -B-, on differential cover, in front of drive axle flange.
- Check oil level using tool such as angled wire.
Specification: level 1 mm below bottom of oil filler hole.
- If there are no leaks, top up with gear oil: SAE 75 W 90 (synthetic oil),
part number G 052 145 S2 (1 liter).
Pa
ge 33 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

39

Automatic Transmission Fluid (ATF),
checking (01V transmission)


Requirements for check:

Vehicle standing on level surface.
Transmission must not be in fail-safe mode.
Shift lever in "P" position, parking brake
applied.
Engine idling.
Air Conditioner and heater OFF.
ATF temperature must not exceed 40 C
(104 F) at start of test.

CAUTION!

Part numbers are for reference only. Always
check with your Parts Dept. for the latest
parts information.

Notes:

Only ATF with designation ESSO LT 71 141
Pa
ge 35 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

40

CAUTION!

Too much or too liffle ATF will affect the
operation of the transmission. The ATF level
must be checked at regular intervals.

The oil level is correct if only a slight amount of oil runs out when ATF
temperature is between 30 C (86 F) and 45 C
1) (113 F) (caused by
increase of oil level when heated).
WARNING!
Wear protective glasses.

The ATF temperature is measured temperature using the VAG 1551 Scan
Tool. - Hang filled ATF reservoir VAG 1924 as high as possible (example:
radiator grill).
- Shift lever in "P", engine running at idle.
- Place oil drip pan under transmission oil pan.
- Connect VAG 1551 as described on Page 19
.
- Press key -1- for " Rapid Data Transfer " mode.
Pa
ge 37 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

44

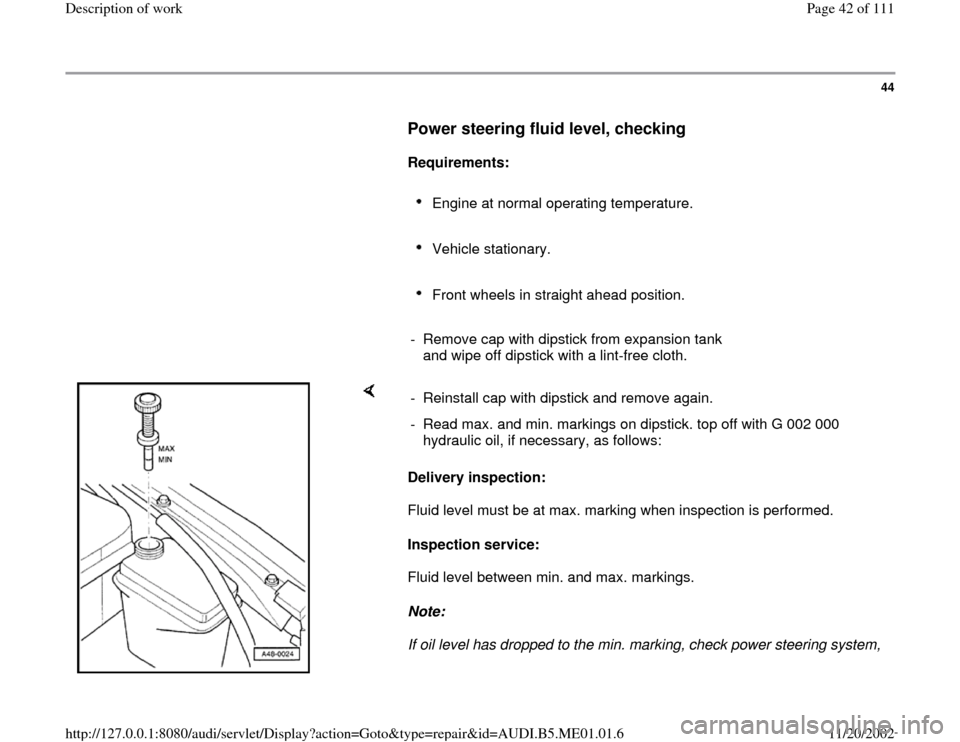

Power steering fluid level, checking


Requirements:

Engine at normal operating temperature.
Vehicle stationary.
Front wheels in straight ahead position.

- Remove cap with dipstick from expansion tank
and wipe off dipstick with a lint-free cloth.

Delivery inspection:
Fluid level must be at max. marking when inspection is performed.
Inspection service:
Fluid level between min. and max. markings.
Note:
If oil level has dropped to the min. marking, check power steering system, - Reinstall cap with dipstick and remove again.
- Read max. and min. markings on dipstick. top off with G 002 000
hydraulic oil, if necessary, as follows:
