automatic transmission AUDI A4 1998 B5 / 1.G 01V Transmission Remove And Install Workshop Manual

37-83

Continuation for all vehicles

Use 3282/19 adjustment plate to position the 3282 transmission support
for Automatic Transmission 01V.
The symbols on the adjustment plate indicate the necessary mounts and
the arrow points toward front of vehicle. - Position 3282 transmission support.

Automatic Transmission 01V with All Wheel Drive is supported at the
same positions as the Front Wheel Drive version. - Roll VAG1383A engine/transmission hoist with 3282 transmission
support under transmission and support transmission.
- Align adjustment plate parallel to transmission.
- Secure transmission on 3282 transmission support using bolt -A-.
- Remove left and right transmission support with transmission mount
page 37
-125

Pa
ge 13 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-91


For 6 cylinder TDI engines
Item A = bushings

Use 3282/19 adjustment plate to position the 3282 transmission support
for Automatic Transmission 01V.
The symbols on the adjustment plate indicate the necessary mounts and
the arrow points toward front of vehicle. - Position 3282 transmission support.
Pa
ge 21 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-98


Continuation for all vehicles
Radio operating manual
Tightening torque table Page 37
-119
onward. - Bolt heat shield -B- for driveshaft to Torsen differential cover (arrows) if
installed.
- Install heat shield -A- above driveshaft.
- Install bracket for noise insulation panel.
- Install noise insulation panel.
- Install front wheels.
- Connect battery Ground (GND) strap.
- Check adjustment of selector lever cable page 37
-45
.
- Check gear oil in final drive with transmission installed page 39
-1 .
- Then check ATF level and top off Page 37
-133
onward.
- After connecting battery, enter anti-theft code for radio.- Fully close power windows to stop.
- Then activate all power window switches ("up") for at least one second
to activate automatic window raising/lowering.
- Set clock to correct time.
Pa
ge 28 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-105

For vehicles with the illustrated vertical headlight
aim control system, notes in the following repair
manuals must be observed before lowing
subframe;
Repair Manual, Suspension, Wheels, Steering,
Repair Group 40; control arm removing and installing; sensor for vehicle leveling in vehicles with automatic vertical headlight aim control regulation.

Otherwise the sensor may be destroyed.
Pa
ge 35 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-106

- Loosen left and right transmission mounts from
subframe page 37
-125


Note:
When installing, make sure that locating sleeves -2- engage again. - Mark installation positions for threaded assemblies -1- and positioning
sleeves -2-.
- Remove nuts -1- on left and right engine mounts.

Use 3282/19 adjustment plate to position the 3282 transmission support
for Automatic Transmission 01V.
The symbols on the adjustment plate indicate the necessary mounts and
the arrow points toward front of vehicle. - Position 3282 transmission support.
Pa
ge 36 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-107


Automatic Transmission 01V with All Wheel Drive is supported at the
same positions as the Front Wheel Drive version.
WARNING!
When working on the subframe, all precautions and notes which are
listed in Repair Manual, Suspension, Wheels, Steering must be
must be observed. - Roll VAG1383A engine/transmission hoist with 3282 transmission
support under transmission and support transmission.
- Align adjustment plate parallel to transmission.
- Secure transmission on 3282 transmission support using bolt -A-.

Repair Manual, Suspension, Wheels, Steering, Repair Group 40;
Subframe, removing and installing
- Before loosening carrier, special tool 3393 must be used to check
whether holes -1- and -2- line up.
- Completely lower subframe at rear and front.
Pa
ge 37 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-114


Use 3282/19 adjustment plate to position the 3282 transmission support
for Automatic Transmission 01V.
The symbols on the adjustment plate indicate the necessary mounts and
the arrow points toward front of vehicle. - Position 3282 transmission support.
- Place transmission onto transmission support.

During this, the subframe is lowered approx. 150 mm at rear page 37
-
88
, illustration A37-0067. - Secure transmission on 3282 transmission support using bolt -A-.
- Move transmission into position between the lowered subframe and
vehicle floor.
- Align transmission properly to engine.
Pa
ge 44 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

- Then activate all power window switches ("up")
for at least one second to activate automatic
window raising/lowering.

- Set clock to correct time.
Pa
ge 49 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

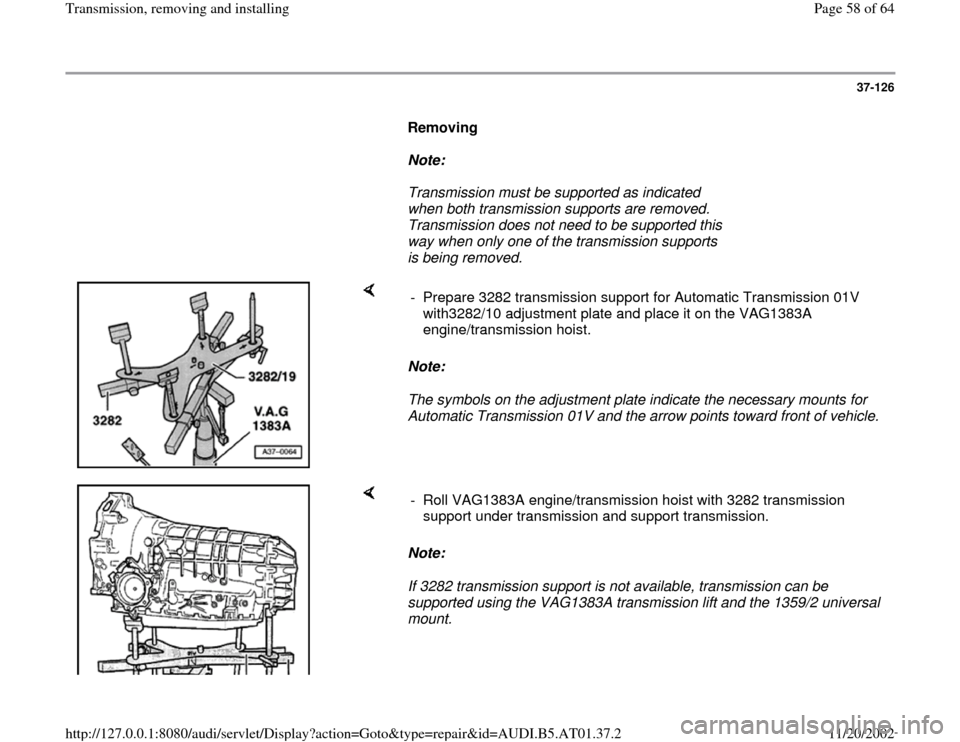

37-126

Removing

Note:
Transmission must be supported as indicated
when both transmission supports are removed.
Transmission does not need to be supported this
way when only one of the transmission supports
is being removed.

Note:
The symbols on the adjustment plate indicate the necessary mounts for
Automatic Transmission 01V and the arrow points toward front of vehicle. - Prepare 3282 transmission support for Automatic Transmission 01V
with3282/10 adjustment plate and place it on the VAG1383A
engine/transmission hoist.

Note:
If 3282 transmission support is not available, transmission can be
supported using the VAG1383A transmission lift and the 1359/2 universal
mount. - Roll VAG1383A engine/transmission hoist with 3282 transmission
support under transmission and support transmission.
Pa
ge 58 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-130

Automatic transmission, transporting


Special tools and equipment

The 3457 attachment and holding rig can be used when transporting the
transmission and for setting up the 3282 transmission support.
3457 attachment and holding rig

- Attach the 3457 attachment and holding rig at the transmission housing
mounts and secure.
