37-78


- Disconnect engine speed (RPM) sensor -G28- (arrow B) from
transmission at front left (if installed).
- Remove connector for speedometer (arrow -A-) from transmission.

- Remove noise insulation bracket -1-.
- Swing securing lever -4-, disconnect connector for transmission wiring
harness.
- Disconnect connector -2- of wire for multi-function switch.
- Unbolt bracket -3- for harness connector.
Pa
ge 8 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-84


- Unbolt multi-function Transmission Range (TR) switch -F125- for
protection against damage (arrows) and expose wiring harness.

- Mark position of mounting bracket for selector lever cable to
transmission housing for re-installation, unbolt mounting bracket
(arrows).
Pa
ge 14 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

37-97


- Bolt in bolts at mounting bracket of selector lever cable, install selector
lever cable and if necessary, adjust.

All-wheel-drive vehicles - Connect connector of multi-function Transmission Range (TR) switch -
1-.
- Connect connector for transmission wiring harness and secure using
securing lever -2-.
- Install shielding plate/selector lever cable
- Bolt driveshaft to transmission flange page 39
-79
, Driveshaft,
removing and installing.
Pa
ge 27 of 64 Transmission, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.2

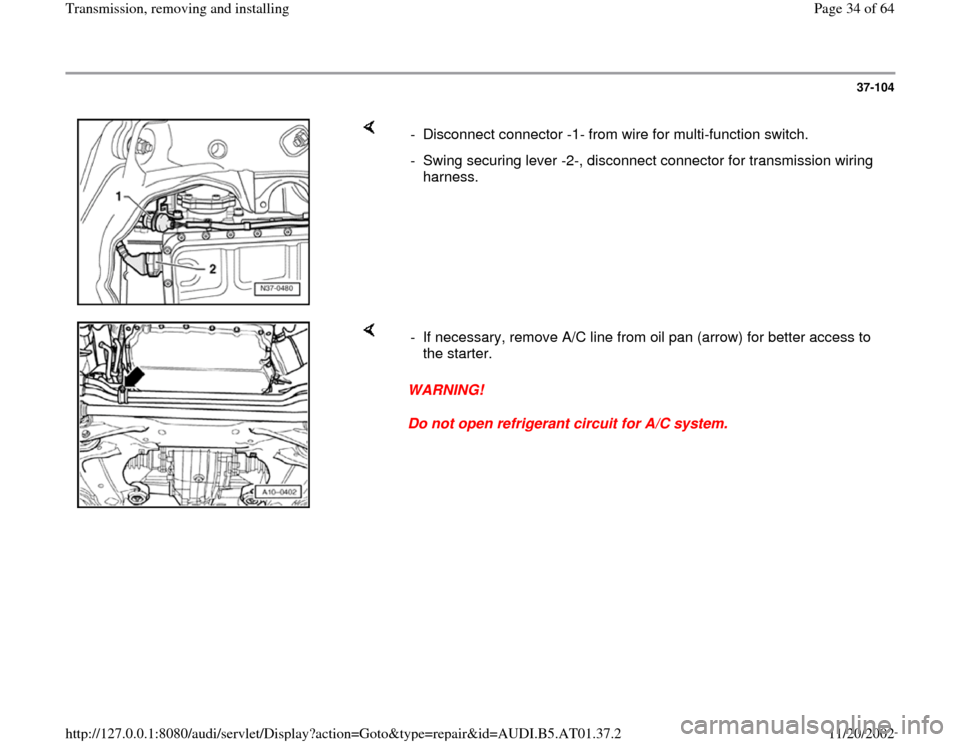

37-104


- Disconnect connector -1- from wire for multi-function switch.
- Swing securing lever -2-, disconnect connector for transmission wiring
harness.

WARNING!
Do not open refrigerant circuit for A/C system. - If necessary, remove A/C line from oil pan (arrow) for better access to
the starter.
