fuel AUDI A4 1998 B5 / 1.G AWM Engine Motronic Injection System Servicing Owner's Manual

24-44


Repair Manual, 1.8 Liter 4
-Cyl. 5V Engine
Mechanical, Engine Code(s): AWM, Repair Group 15; Cylinder head, removing and installing; Intake manifold, removing and installing
11 -
O-ring
Always replace
12 -
O-ring Always replace
13 -
Retaining clip For fuel pressure regulator
14 -
Retaining clip Make sure clip is correctly seated on fuel
injector and fuel rail
15 -
Intake manifold With throttle valve control module -J338-with Intake Air Temperature (IAT) sensor -
G42- Removing
Pa
ge 48 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

24-45

Fuel injectors, removing and installing


- Remove engine cover (arrows).
- Disconnect wiring/connectors at:
- Fuel injectors -N30-, -N31-, -N32-, -N33-
- Intake Air Temperature (IAT) sensor -G42-
- Camshaft Position (CMP) sensor 2 -G40-
- Throttle valve control module -J338-

- Remove retaining bolts for fuel supply rail and disconnect vacuum line
at fuel pressure regulator (arrows).
Pa
ge 49 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

24-46

- Disconnect fuel distributor with injectors from
intake plenum and set aside in rear of engine
compartment on a clean cloth.

WARNING!

Fuel system is under pressure! Before
opening system, place rags around the
connection point. Then release pressure by
carefully loosening connection.

- Disengage retaining clip and remove fuel
injector.

Note:
Fuel lines must be removed before replacing fuel
distributor.
Installation is reverse of removal, noting the
following:

Remove O-rings at all opened connections.
(Never remove plastic cap from valve head
ro replace front O-ring - pry O-ring off over
plastic cap).
Lightly lubricate O-rings with clean engine
oil.
Pa
ge 50 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

24-47

Make sure fuel injectors are in place and
seated correctly
Check clip for unobstructed fitting.
Place fuel rail with secured fuel injectors
onto intake manifold, and apply uniform
pressure to press it in.

Tightening torque

Component

Nm
Fuel distributor at intake manifold 10
Pa
ge 51 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

24-48

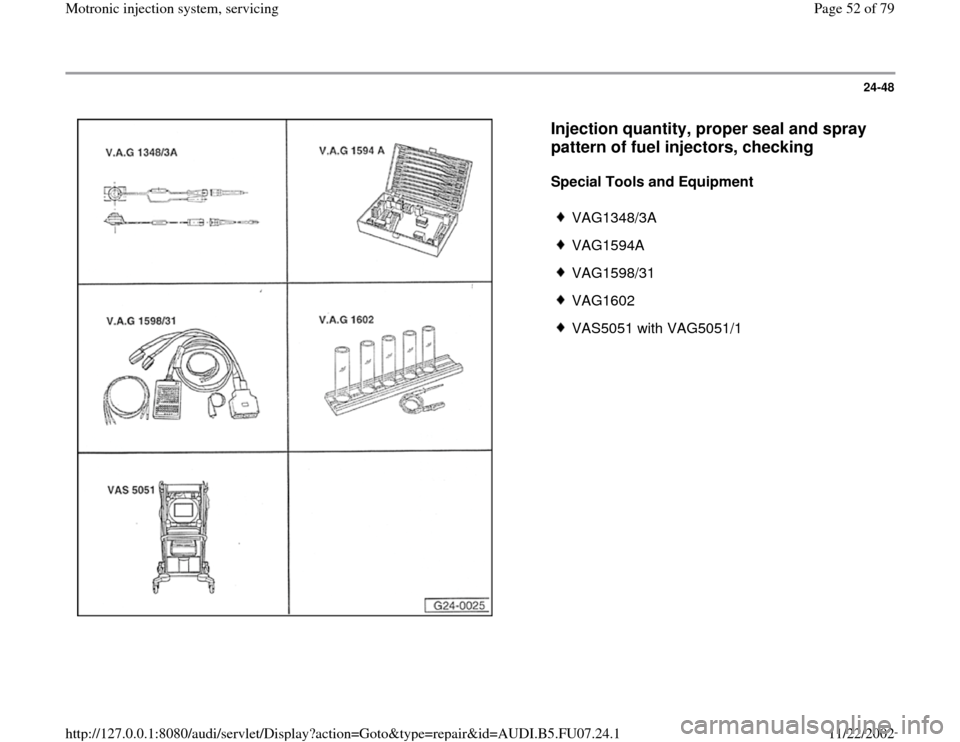

Injection quantity, proper seal and spray
pattern of fuel injectors, checking

Special Tools and Equipment

VAG1348/3A
VAG1594A
VAG1598/31
VAG1602
VAS5051 with VAG5051/1
Pa
ge 52 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

24-49

Test requirement:

Fuel pressure OK, checking Page 24
-32
.

Test sequence

- Remove fuel distributor including fuel injectors
from intake manifold Page 24
-45
. Fuel lines
remain connected.

- Connect VAG1598/31 test box at wiring harness
to Engine Control Module (ECM), do not connect
ECM Page 24
-19
.

Checking Proper Seal

- Bridge terminals 1 and 65 at test box using wires
from VAG1594A adapter test kit.

- Switch ignition on.


Fuel Pump (FP) must run.

- Check proper seal of fuel injectors (visual
inspection). With Fuel Pump (FP) running, only 1
to 2 drops per minute may drip out per injector.

-
If fuel loss is greater, stop Fuel Pump (FP) from
Pa
ge 53 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

running (switch off ignition) and replace faulty
fuel injector Page 24
-45
.
Pa
ge 54 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

24-50

Checking Injection Quantity

- Insert fuel injector to be tested in a measuring
glass from VAG1602 injection quantity test
device.

- Connect one terminal of fuel injector to engine Ground (GND) using an
adapter cable and an alligator clip from VAG1594A connector test kit.
- Connect the second terminal of fuel injector to B+ using VAG1348/3A
remote control, VAG1348/3-2 adapter cable and assisting cable.
- Bridge terminals 1 and 65 at test box using wires from VAG1594A
adapter test kit.
- Bridge terminals 1 and 65 at test box using wires from VAG1594A
adapter test kit.
- Switch ignition on.

Fuel Pump (FP) must run.
- Activate VAG1348/3A remote control for 30 seconds.
- Perform measurement on all fuel injectors.
Pa
ge 55 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

24-51

- After all four fuel injectors have been activated,
place measuring glasses on an even surface.


Specified value for each fuel injector: 135
10 ml

- If measured value of one or more fuel injectors
is outside of specified range, switch Fuel Pump
(FP) off (switch ignition off) and replace faulty
fuel injector Page 24
-45
.

- If the measured values of all fuel injectors are
outside the specified range, check fuel pressure
Page 24
-32
.

Note:
Also check spray pattern when checking injection
quantity. Spray pattern must be the same for all
injectors

- Install fuel injectors together with fuel distributor
Page 24
-46
.
Pa
ge 56 of 79 Motronic in
jection s
ystem, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU07.24.1

24-52


Fuel Pump (FP) relay -J17- and activation,
checking

Special Tools and Equipment

VAG1526A
VAG1594A
VAG1598/31
VAS5051 with VAG5051/1
