Note:
Always replace instrument panel after passenger
airbag has deployed.
Pa
ge 11 of 13 Instrument
panel
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.3

70-47


Installing:
Installation is the reverse of removal
Adjusting:Instrument panel must be centered in
vehicle
2 -
Bolt 5 Nm (44 ft lb)
3 -
Bolts (3x) 5 Nm (44 ft lb)
4 -
Brackets (2x) With felt base
5 -
Bolts (2x) 5 Nm (44 ft lb)
6 -
Bolts (2x)
- Remove bolts on left and right-side of
instrument panel. 5 Nm (44 ft lb)
7 -
Bolts (2x) 5 Nm (44 ft lb)
Pa
ge 12 of 13 Instrument
panel
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.3

70-48

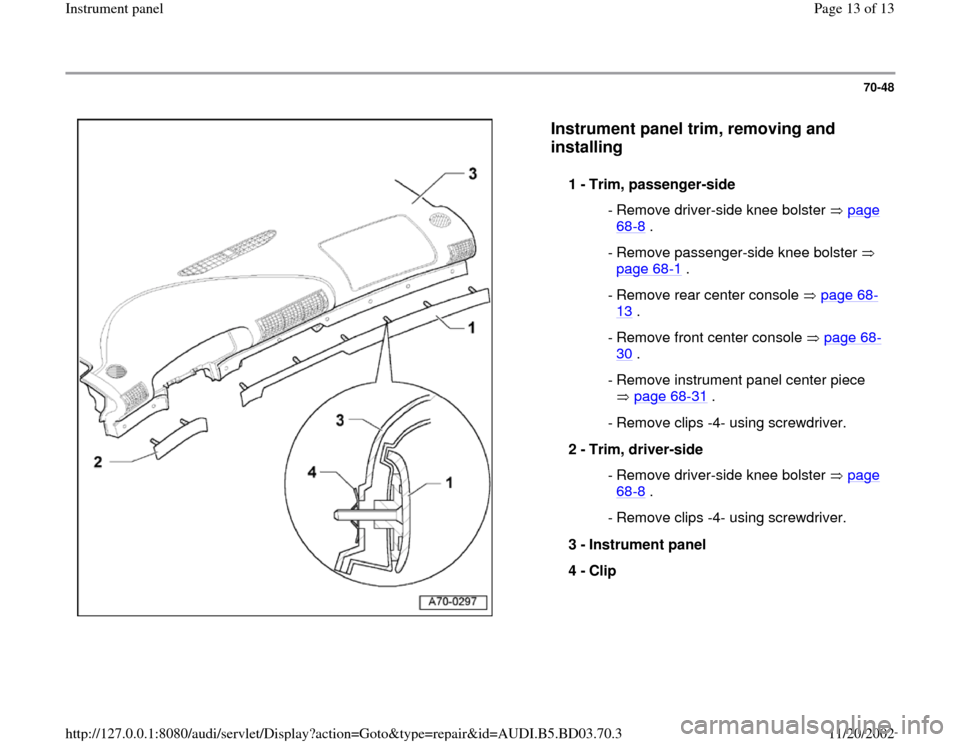

Instrument panel trim, removing and
installing

1 -
Trim, passenger-side
- Remove driver-side knee bolster page 68
-8 .
- Remove passenger-side knee bolster
page 68
-1 .
- Remove rear center console page 68
-
13
.
- Remove front center console page 68
-
30
.
- Remove instrument panel center piece
page 68
-31
.
- Remove clips -4- using screwdriver.
2 -
Trim, driver-side
- Remove driver-side knee bolster page
68
-8 .
- Remove clips -4- using screwdriver.
3 -
Instrument panel
4 -
Clip
