sensor AUDI A4 1998 B5 / 1.G Seatbelts Workshop Manual

69-16


Note:
The igniter wire -11- must not be located near the
belt webbing. Vehicles with CD player and/or subwoofer or
similar:
- Remove side trunk trim page 70
-87
.
Vehicles with belt tensioners:
- Unclip igniter wire -11- at clip -10-.
- Detach harness connector for igniter wire
at clip -9-.
- Remove bolt -6- (1x).
- Detach seat belt against direction of
arrow.
Installing:
Make sure harness connector for igniter
wire -11- engages
- Clip igniter wire -11- into clip -10-.For vehicles with belt tensioner, check belt-
fastened sensor page 69
-38

After installing rear three-point seat belt,
check belt function for child seat page 69
-37

Pa
ge 20 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

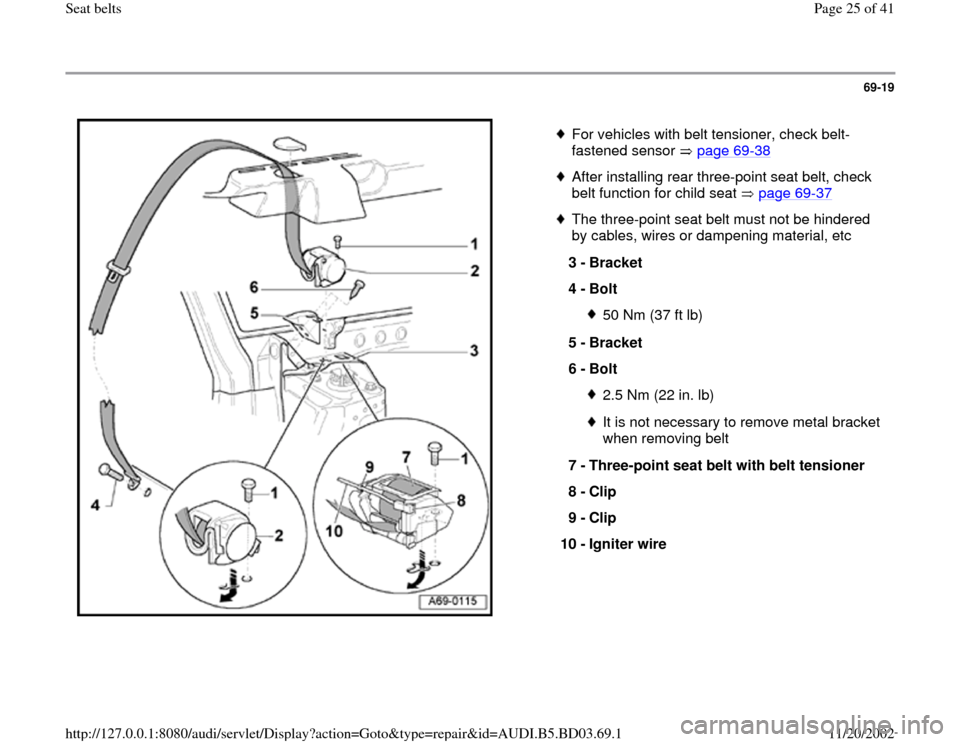

69-19



For vehicles with belt tensioner, check belt-
fastened sensor page 69
-38

After installing rear three-point seat belt, check
belt function for child seat page 69
-37

The three-point seat belt must not be hindered
by cables, wires or dampening material, etc
3 -
Bracket
4 -
Bolt
50 Nm (37 ft lb)
5 -
Bracket
6 -
Bolt 2.5 Nm (22 in. lb)It is not necessary to remove metal bracket
when removing belt
7 -
Three-point seat belt with belt tensioner
8 -
Clip
9 -
Clip
10 -
Igniter wire
Pa
ge 25 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

69-23


Installing
Vehicles with belt tensioner:
Notes:
Check the following after full backrest installation: - Remove nut -2- (1x) and third rear three-point
seat belt tensioner -3-.
- To install belt guide trim -6-, first attach retaining
tab -10- and insert, then turn retaining tab -11-
inward making sure metal piece -12- is inserted
into cutout -13- of belt guide trim -6- (arrow -B- in
inset).
- Tap lightly on belt guide trim -6- in direction of
arrow -C- to engage.
- Check belt-fastened sensor page 69
-38
.
The anti-twist stop -4- and belt webbing -5-
must not touch or rub against any foam or cover
components.
Anti-twist stop -4- must follow all movements of
belt webbing.
Belt webbing -5- must move freely in all
directions.
