Page 15 of 96

01-369
Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
00301
Continuation:
ABS return flow pump -
V39 -
Implausible signal
Open circuit or short circuit to Ground (GND) from ABS
return flow pump relay -J105- (terminal 87) to the ABS
control module -J104- (terminal 20) and the ABS hydraulic
unit -N55- (terminal 14).
Open circuit or short circuit to B+ in the Ground (GND)
supply of the ABS return flow pump. Electrical Wiring Diagrams,
Troubleshooting & Component
Locations - Carry out "Electrical test",
step 24 page 01
-323
.
- Fix the wiring problem.
Pa
ge 15 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
Page 18 of 96

01-372
Printed output from
VAG1551 Scan Tool (ST) Possible cause
Corrective action
DTC
00526
Brake light switch -F-
Open circuit
Left brake light -M9- or right brake light -
M10- malfunctioning. Open circuit in wiring between brake lights
and the ABS control module -J104-. Electrical Wiring Diagrams,
Troubleshooting & Component Locations - Check the wiring. Carry out "Electrical
test", step 26 page 01
-323
.
- Replace bulbs.
See continuation on next
page
ABS control module -J104- malfunctioning
Repair Manual, Brake System, Repair
Group 45
- If the malfunction cannot be fixed,
replace the ABS control module -J104-.
Pa
ge 18 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
Page 21 of 96

01-375
DTC table; DTCs from 00532 to 01421
Printed output from VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
00532
Voltage supply
See continuation on next page
This malfunction affects the voltage supply
of the control module.
This DTC is only stored, if it occurs the first
time the vehicle exceeds 6 km/h.
As soon as the supply voltage is again
within the valid voltage range, the system
is switched back on and the warning lights
turn off.
Open circuit or resistance too high
between voltage supply of terminal 15
and ABS control module -J104-
(terminal 1). Open circuit or resistance too high in
the Ground (GND) supply to ABS
control module -J104- (terminals 28
and 29). Voltage jumps in vehicle system. Electrical Wiring Diagrams,
Troubleshooting & Component
Locations
Electrical Wiring Diagrams,
Troubleshooting & Component
Locations
Repair Manual, Electrical
Equipment, Repair Group 27, Battery
- "Read measuring value block"
function 08 page 01
-256
,
display group 6.
- Carry out "Electrical test",
step 21 page 01
-323
- Check Generator (GEN) and
Voltage Regulator (VR). - Check battery
Pa
ge 21 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
Page 22 of 96

01-376
Printed output from VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
00532
Continuation:
Voltage supply
Signal too small
This malfunction affects the voltage supply
of the control module.
This DTC is only stored, if it occurs the first
time the vehicle exceeds 6 km/h.
As soon as the supply voltage is again
within the valid voltage range, the system
is switched back on and the warning lights
turn off.
Open circuit or resistance too high
between voltage supply of terminal 15
and ABS control module -J104-
(terminal 1). Open circuit or resistance too high in
the Ground (GND) supply to ABS
control module -J104- (terminals 28
and 29). Voltage jumps in vehicle system. Electrical Wiring Diagrams,
Troubleshooting & Component
Locations
Electrical Wiring Diagrams,
Troubleshooting & Component
Locations
Repair Manual, Electrical
Equipment, Repair Group 27, Battery
- "Read measuring value block"
function 08 page 01
-256
,
display group 6.
- Carry out "Electrical test",
step 21 page 01
-323
- Check Generator (GEN) and
Voltage Regulator (VR). - Check battery
Pa
ge 22 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
Page 28 of 96

01-382
Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01203
ABS / instrument
cluster electrical
connection
Open circuit/short
circuit to Ground
(GND)
See continuation on
next page
Open circuit in wire from instrument
cluster combination processor -J218- to
ABS control module -J104-
Short circuit to Ground (GND) in wire
from instrument cluster combination
processor -J218- to ABS control module -
J104- Electrical Wiring Diagrams, Troubleshooting &
Component Locations
- Check wires between instrument cluster
combination processor -J218- (green connector,
terminal 11) and the ABS control module -J104-
(terminal 32).
Pa
ge 28 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
Page 31 of 96

01-385
Printed output
from VAG1551
Scan Tool (ST) Possible cause
Corrective action
DTC
01203
Continuation:
ABS / instrument
cluster electrical
connection
No signal
Short circuit to B+ in wire from
instrument cluster
combination processor -J218-
to ABS control module -J104-
Electrical Wiring Diagrams, Troubleshooting & Component
Locations - Check wires between instrument cluster combination processor
-J218- (green connector, terminal 11) and the ABS control
module -J104- (terminal 32).
See continuation
on next page Note: Only replace the control
module as a last resort.
ABS control module -J104-
malfunctioning.
Repair Manual, Heating & Air Conditioning, Repair Group 01
- For vehicles with automatic climate control: if wiring is OK,
check the TIM signal (standing time signal) with the ABS control
module connected and disconnected using the measuring value
blocks for the A/C control module -J301-. If the signal is
recognized by the A/C control module -J301-, replace the ABS
control module -J104-.
Pa
ge 31 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
Page 38 of 96

01-390
DTC table; DTCs from 01422 to 01425
Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01422
Hydraulic pump for
traction control -V156-
Insufficient voltage supply to hydraulic pump
for traction control -V156-. - Carry out "electrical test", step 25 page
01
-323
.
Short circuit to Ground (GND) in wiring
between hydraulic pump for traction control -
V156- and ABS control module -J104-.
Open circuit in voltage supply to ABS control
module -J104-.
Electrical Wiring Diagrams, Troubleshooting
& Component Locations - Check wiring between hydraulic pump for
traction control -V156- and ABS control
module -J104- for short to Ground (GND).
- Check the voltage supply lines to ABS
control module -J104-.
See continuation on
next page
Fuse malfunctioning.
Electrical Wiring Diagrams, Troubleshooting
& Component Locations - Replace fuse 42.
Pa
ge 38 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

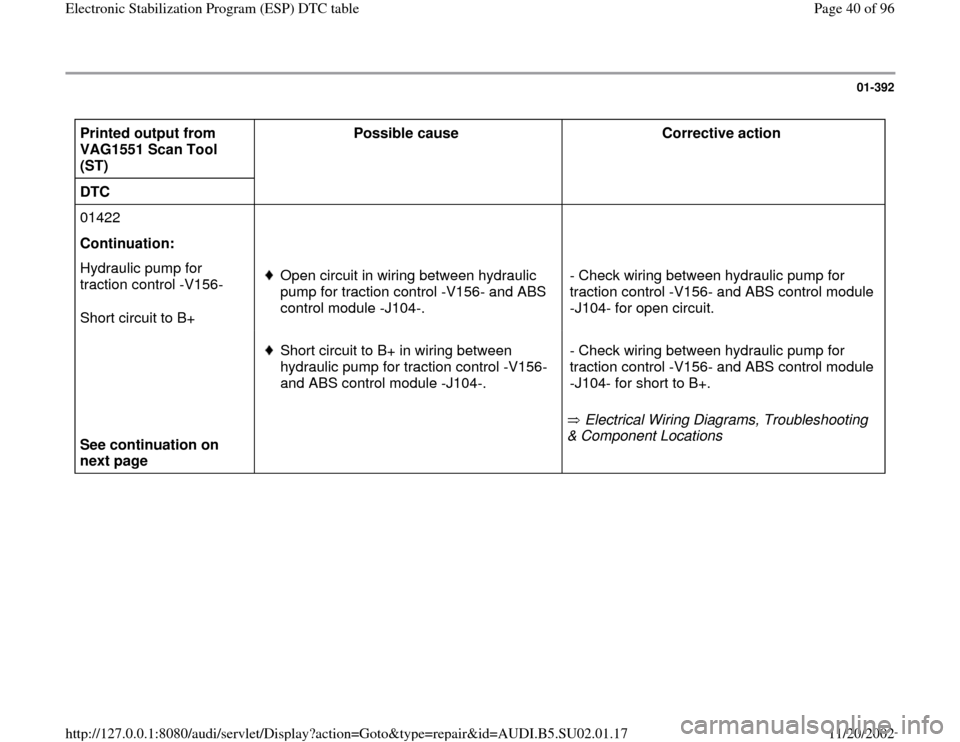

Page 40 of 96

01-392
Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01422
Continuation:
Hydraulic pump for
traction control -V156-
Short circuit to B+
Open circuit in wiring between hydraulic
pump for traction control -V156- and ABS
control module -J104-. - Check wiring between hydraulic pump for
traction control -V156- and ABS control module
-J104- for open circuit.
See continuation on
next page Short circuit to B+ in wiring between
hydraulic pump for traction control -V156-
and ABS control module -J104-.
Electrical Wiring Diagrams, Troubleshooting
& Component Locations - Check wiring between hydraulic pump for
traction control -V156- and ABS control module
-J104- for short to B+.
Pa
ge 40 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

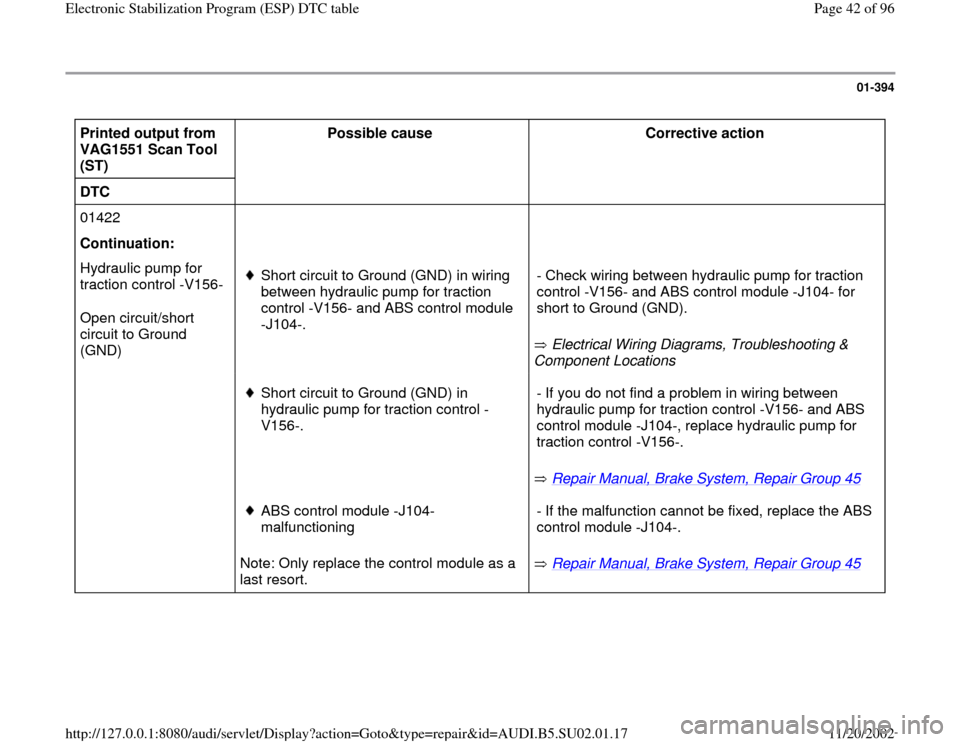

Page 42 of 96

01-394
Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01422
Continuation:
Hydraulic pump for
traction control -V156-
Open circuit/short
circuit to Ground
(GND)
Short circuit to Ground (GND) in wiring
between hydraulic pump for traction
control -V156- and ABS control module
-J104-.
Electrical Wiring Diagrams, Troubleshooting &
Component Locations - Check wiring between hydraulic pump for traction
control -V156- and ABS control module -J104- for
short to Ground (GND).
Short circuit to Ground (GND) in
hydraulic pump for traction control -
V156-.
Repair Manual, Brake System, Repair Group 45
- If you do not find a problem in wiring between
hydraulic pump for traction control -V156- and ABS
control module -J104-, replace hydraulic pump for
traction control -V156-.
Note: Only replace the control module as a
last resort.
ABS control module -J104-
malfunctioning
Repair Manual, Brake System, Repair Group 45
- If the malfunction cannot be fixed, replace the ABS
control module -J104-.
Pa
ge 42 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
Page 43 of 96

01-395
Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC WARNING!
This is only valid for control modules with no.: 4B0 907 389
01423
Sensor for transverse
acceleration -G200-
Sensor for transverse acceleration -
G200- not installed correctly.
Repair Manual, Brake System, Repair Group 45
- Check the installation position of the sensor for
transverse acceleration -G200-.
See continuation on
next page
There is an open circuit in one of the
supply wires for the sensor for
transverse acceleration -G200-.
Electrical Wiring Diagrams, Troubleshooting &
Component Locations - Check Ground (GND) between sensor for
transverse acceleration -G200 (terminal 1) and ABS
control module -J104- (terminal 19).
- Check voltage supply between sensor for
transverse acceleration -G200 (terminal 3) and -
J104- ABS control module (terminal 75).
Pa
ge 43 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
