45-29


Rear suspension ABS components for
FWD models, removing and installing

WARNING!

Do not re-use any fasteners that are worn or
deformed in normal use.
Some fasteners are designed to be used only
once, and are unreliable and may fail if used
a second time. This includes, but is not
limited to, nuts, bolts, washers, circlips and
cotter pins. Always follow the
recommendations in this manual-replace
these fasteners with new parts where
indicated, and any other time it is deemed
necessary by inspection.
1 -
ABS wheel speed sensor
Identical part on left and rightRemoving and installing page 45
-31
Release harness connector of ABS speed
sensor cable and separate. Unclip speed
sensor cable.
Pa
ge 7 of 20 Sus
pension mounted ABS com
ponents
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU03.45.4

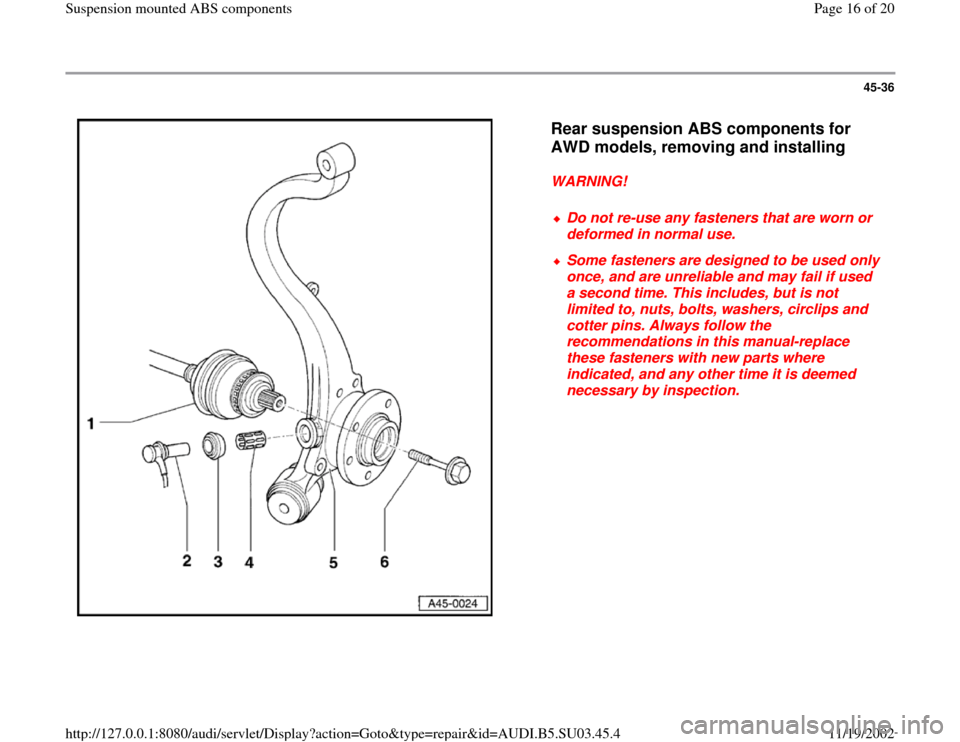

45-36


Rear suspension ABS components for
AWD models, removing and installing

WARNING!

Do not re-use any fasteners that are worn or
deformed in normal use.
Some fasteners are designed to be used only
once, and are unreliable and may fail if used
a second time. This includes, but is not
limited to, nuts, bolts, washers, circlips and
cotter pins. Always follow the
recommendations in this manual-replace
these fasteners with new parts where
indicated, and any other time it is deemed
necessary by inspection.
Pa
ge 16 of 20 Sus
pension mounted ABS com
ponents
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU03.45.4
