WARNING!
The vehicle must be standing on its wheels
when loosening or tightening. Otherwise the
risk of an accident exists. 7 -
Collar bolt
Always replaceSwitching from or mixing old and new bolts
is permissible M14 bolt: 115 Nm (85 ft lb) + 1/2-turn
(180 )
8 -
Self-locking nut
Always replace70 Nm (52 ft lb) + 1/4-turn (90 )
9 -
Washer
Always replace
10 -
Bolt Always replace
Pa
ge 2 of 15 Rear drive axle, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.7

42-95

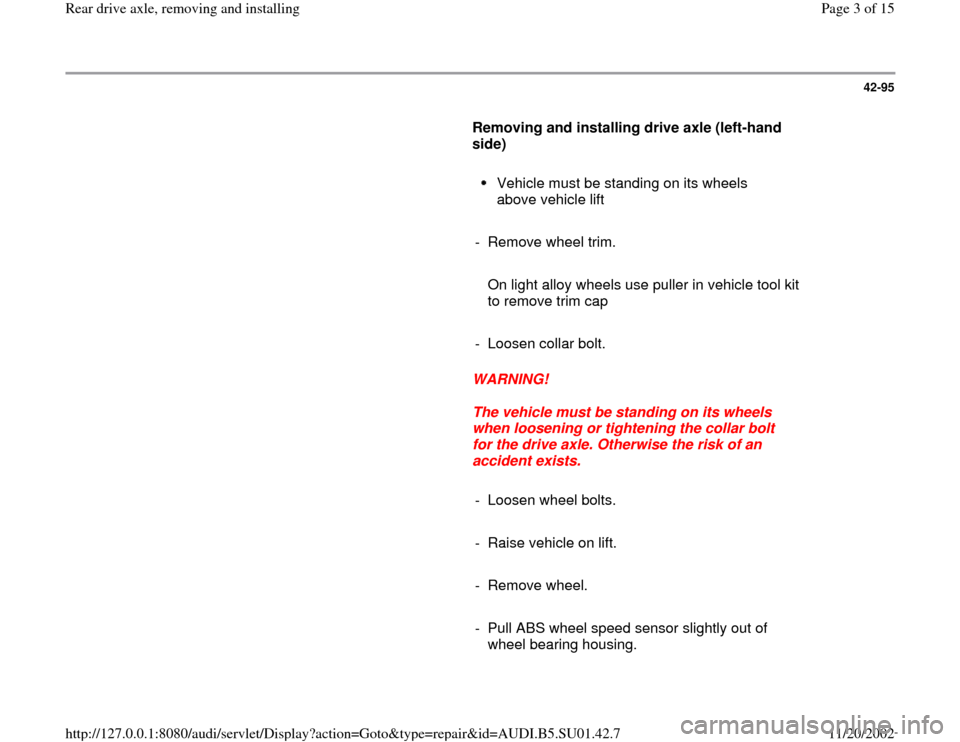

Removing and installing drive axle (left-hand
side)

Vehicle must be standing on its wheels
above vehicle lift

- Remove wheel trim.

On light alloy wheels use puller in vehicle tool kit
to remove trim cap

- Loosen collar bolt.

WARNING!

The vehicle must be standing on its wheels
when loosening or tightening the collar bolt
for the drive axle. Otherwise the risk of an
accident exists.

- Loosen wheel bolts.

- Raise vehicle on lift.

- Remove wheel.

- Pull ABS wheel speed sensor slightly out of
wheel bearing housing.
