service AUDI A4 1999 B5 / 1.G Suspension Wheel Bearing Housing Remove And Install Workshop Manual

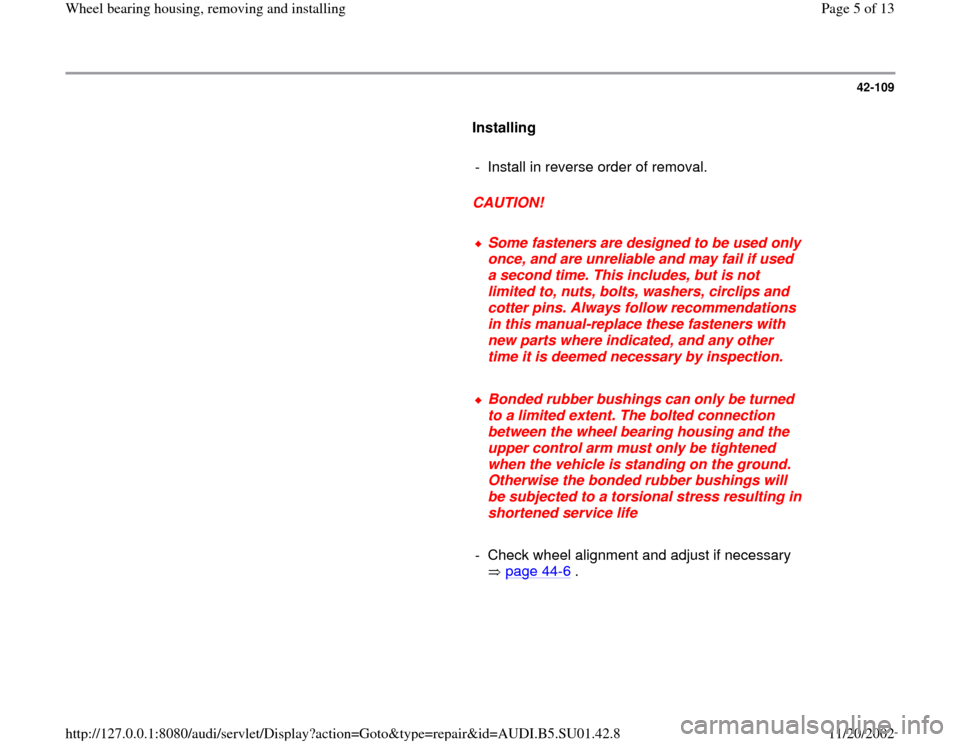

42-109

Installing

- Install in reverse order of removal.

CAUTION!

Some fasteners are designed to be used only
once, and are unreliable and may fail if used
a second time. This includes, but is not
limited to, nuts, bolts, washers, circlips and
cotter pins. Always follow recommendations
in this manual-replace these fasteners with
new parts where indicated, and any other
time it is deemed necessary by inspection.
Bonded rubber bushings can only be turned
to a limited extent. The bolted connection
between the wheel bearing housing and the
upper control arm must only be tightened
when the vehicle is standing on the ground.
Otherwise the bonded rubber bushings will
be subjected to a torsional stress resulting in
shortened service life

- Check wheel alignment and adjust if necessary
page 44
-6 .
Pa
ge 5 of 13 Wheel bearin
g housin
g, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.8

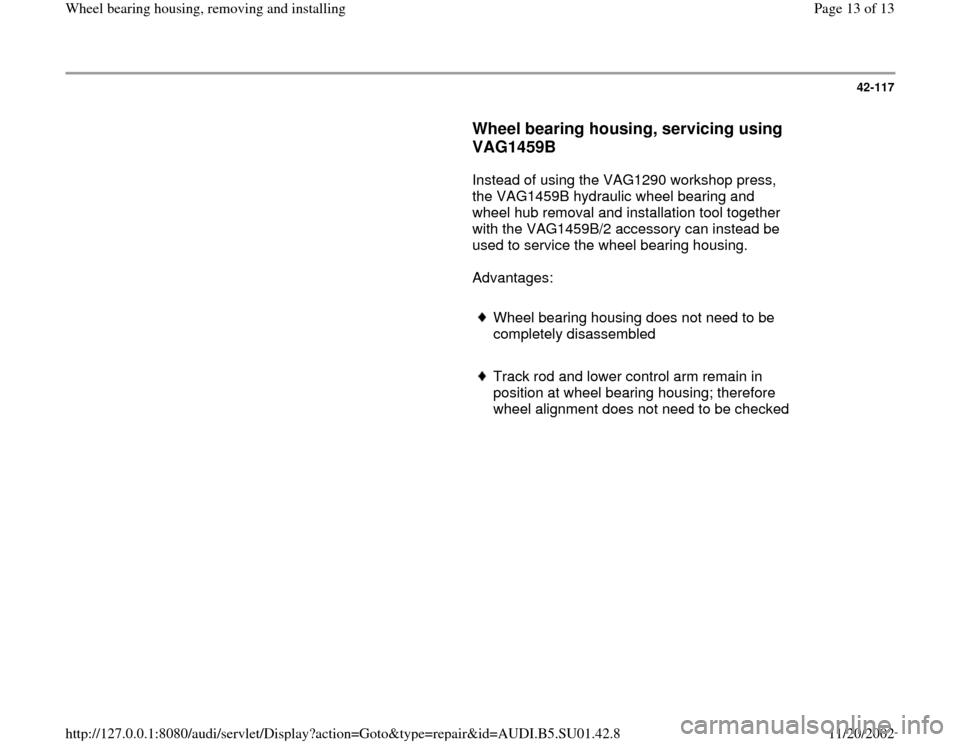

42-117

Wheel bearing housing, servicing using
VAG1459B

Instead of using the VAG1290 workshop press,
the VAG1459B hydraulic wheel bearing and
wheel hub removal and installation tool together
with the VAG1459B/2 accessory can instead be
used to service the wheel bearing housing.
Advantages:

Wheel bearing housing does not need to be
completely disassembled
Track rod and lower control arm remain in
position at wheel bearing housing; therefore
wheel alignment does not need to be checked
