24-92
If the specified values are obtained:
-
Press button.
- Select "End Output" function 06.
- Press -Q- button to confirm input.
If display value changes:
- The following display is possible: "A/C system
not switched on as described."
If the display value does not change, even
though the A/C system was switched on as
described:
If wiring is OK:
Repair Manual, Heating & Air Conditioning, Repair Group 01; connect VAG 1551 scan tool and select "Check DTC Memory" function 02
Repair Manual, 5 Spd. Automatic Transmission 01V, Repair Group 01;
connect VAG 1551 scan tool and select "Check DTC Memory" function 02
- Check wiring for continuity between connector terminal C11 and ECM
or TCM using wiring diagram.
- Check A/C system or automatic transmission:
Pa
ge 8 of 37 Auxiliar
y in
put si
gnals, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.24.25
Page 10 of 37
24-93
If X1X_XX is displayed:
- Briefly press accelerator pedal to apply wide
open throttle.
Display must switch briefly to X0X_XX, then
X1X_XX must appear again after several
seconds.
If display does not change as described:
- Check whether A/C compressor was shut off
while accelerator pedal was being pressed.
- Check A/C system or automatic transmission.
Repair Manual, Heating & Air Conditioning,
Repair Group 01; connect VAG 1551 scan tool and select "Check DTC Memory" function 02
Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 01
; connect
VAG 1551 scan tool and select "Check DTC
Memory" function 02
If the display does not change as described:
Pa
ge 10 of 37 Auxiliar
y in
put si
gnals, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.24.25
Page 14 of 37
24-95
Fuel consumption signal, checking
Notes:
The consumption signal is internally calculated
by the ECM using "injection time."
The consumption signal is routed to both the
trip computer and the Transmission Control
Module (TCM).
The consumption signal is monitored by the
TCM
Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 01; On Board Diagnostic
Carry out the following check only if DTC
memory contains a stored DTC for the TCM
related to the consumption signal, or a missing or
false consumption signal, determined during the
trip computer check.
- Remove instrument cluster or TCM.
Repair Manual, Electrical Equipment, Repair
Pa
ge 14 of 37 Auxiliar
y in
put si
gnals, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.24.25
Page 15 of 37

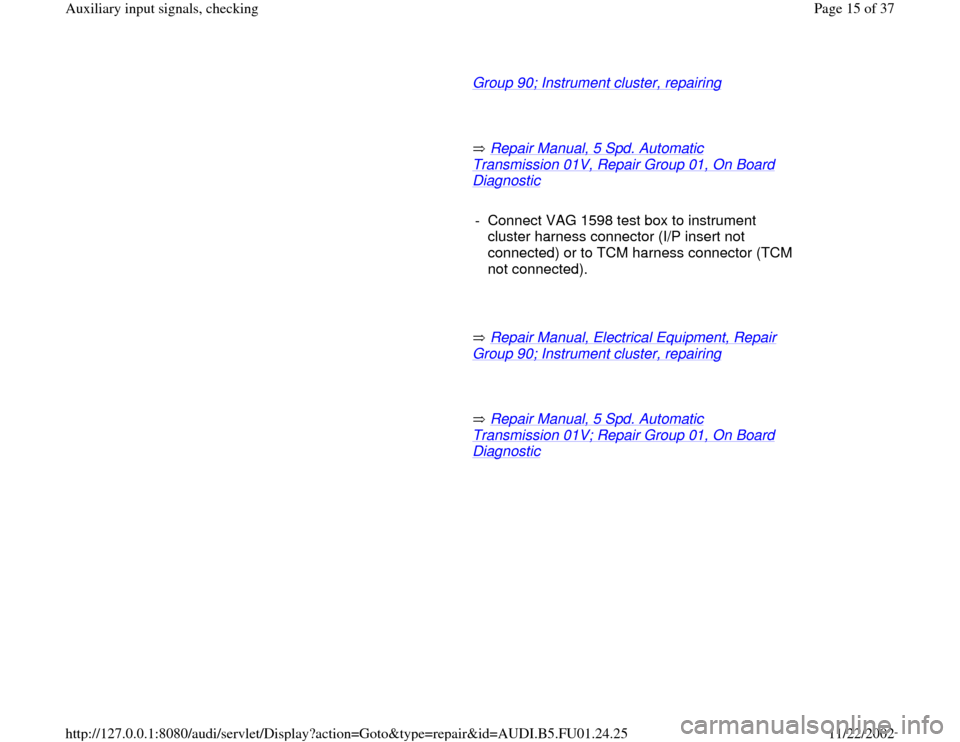

Group 90; Instrument cluster, repairing
Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 01, On Board Diagnostic
- Connect VAG 1598 test box to instrument
cluster harness connector (I/P insert not
connected) or to TCM harness connector (TCM
not connected).
Repair Manual, Electrical Equipment, Repair
Group 90; Instrument cluster, repairing
Repair Manual, 5 Spd. Automatic
Transmission 01V; Repair Group 01, On Board Diagnostic
Pa
ge 15 of 37 Auxiliar
y in
put si
gnals, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.24.25
Page 24 of 37
If wiring is OK:
Repair Manual, 5 Spd. Automatic Transmission 01V, Repair Group 01; Electrical test.
ECM terminal 11B and multi-function switch, using wiring diagram.
- Check multi-function switch.
Pa
ge 24 of 37 Auxiliar
y in
put si
gnals, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.24.25
Page 25 of 37
24-101
Shift procedure, checking
Notes:
The Engine Control Module (ECM) uses this
signal to briefly retard the ignition during shifting
to reduce the mechanical jerking felt between
shifts.
The shift signal is monitored by the
Transmission Control Module (TCM).
Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 01; On Board Diagnostic
Carry out the following check only if a shift-
related DTC is stored in the TCM DTC memory.
Checking requirement
Control module coding OK page 01
-247
CAUTION!
Always use a second technician to operate
the VAG 1551 scan tool while driving.
Pa
ge 25 of 37 Auxiliar
y in
put si
gnals, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.24.25
Page 28 of 37
24-103
Upshift and downshift signals, checking
Notes:
The Engine Control Module (ECM) uses this
signal in connection with the shift signal to
determine whether the current signal is an
upshift or downshift.
The signal for upshift and downshift is
monitored by the Transmission Control Module
(TCM).
Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 01; On Board Diagnostic
Checking requirement
Control module coding OK page 01
-247
.
Pa
ge 28 of 37 Auxiliar
y in
put si
gnals, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.24.25
Page 29 of 37
24-104
Throttle position sensor output signal,
checking
Notes:
The Transmission Control Module (TCM)
interprets this information as a load signal.
This signal is monitored by the TCM.
Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 01; On Board Diagnostic
Checking requirement
Control module coding OK page 01
-247
.
