Page 11 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 1) Intake manifold pressure is determined by the charge air pressure sensor -G31- (instead of -G71- as indicated), air pressure is determined by the Barometric Pressure (BARO) sensor -F96- (in ECM).

Page 12 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 01-20 DTC DTC text Corrective action SAE VAG P0130 16514 Bank 1, sensor 1 Electrical malfunction in circuit - Check Oxygen Sensor (O2S) and oxygen sensor control before Three

Page 13 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 01-21 DTC DTC text Corrective action SAE VAG P0136 16520 Bank 2, sensor 1 Electrical malfunction in circuit - Check Oxygen Sensor (O2S) and oxygen sensor control behind Three

Page 14 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide sensor -G31- Signal too large Pa ge 14 of 49 Dia gnostic Trouble Code (DTC ) memor y, checkin g and erasin g 11/22/2002 htt p://127.0.0.1:8080/audi/servlet/Dis play?action=Goto&t yp e=re pair&i

Page 15 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 01-22 DTC DTC text Corrective action SAE VAG P0300 16684 Combustion misfire detected - Check fuel pressure Page 24 -32 - Check fuel injectors Page 24 -37 P0301 16685 Cy

Page 16 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 01-23 DTC DTC text Corrective action SAE VAG P0327 16711 Knock Sensor (KS) 1 -G61- Signal too small - Check knock sensor Page 28 -45 P0328 16712 Knock Sensor (KS) 1 -G61

Page 17 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 01-24 DTC DTC text Corrective action SAE VAG P0411 16795 Secondary air system Throughput faulty Repair Manual, 1.8 Liter 4 -Cyl. 5V Turbo Engine Mechanical, Engine Code(s):

Page 18 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 01-25 DTC DTC text Corrective action SAE VAG P0442 16826 Tank ventilation system Small leak detected Repair Manual, Fuel Supply System, Repair Group 20; Fuel supply; EVAP c

Page 19 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 01-26 DTC DTC text Corrective action P0501 16885 Vehicle speed signal Implausible signal - Checking Vehicle Speed Signal (VSS) Page 24 -165 P0506 16890 Idle control RPM below sp

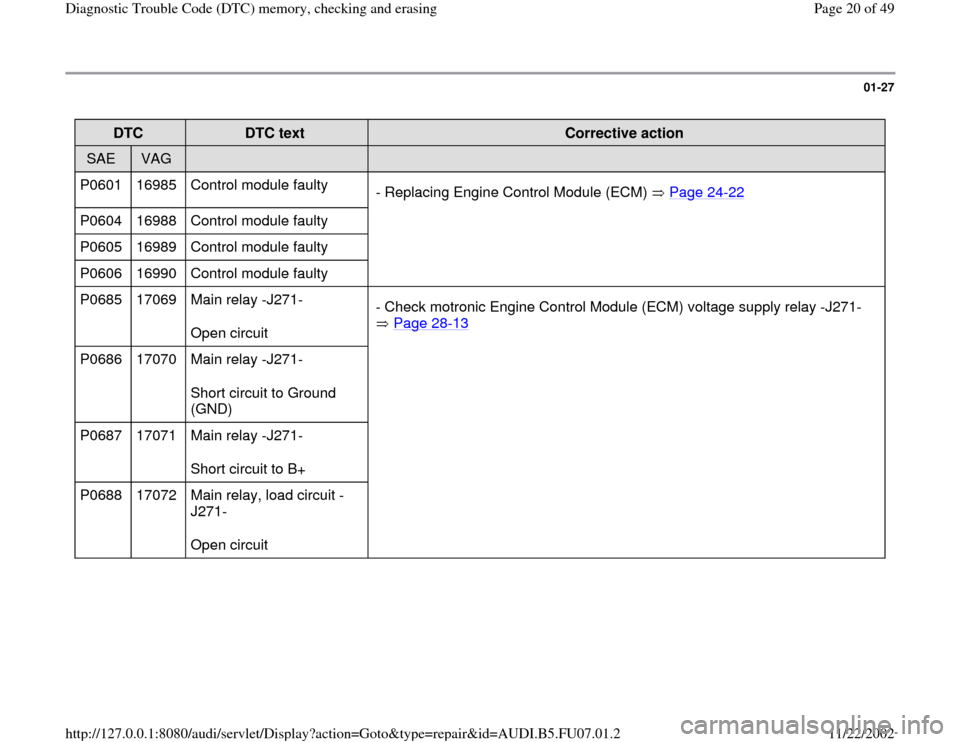

Page 20 of 49

AUDI A4 2000 B5 / 1.G AWM Engine Diagnostic Trouble Code Memory Checking User Guide 01-27 DTC DTC text Corrective action SAE VAG P0601 16985 Control module faulty - Replacing Engine Control Module (ECM) Page 24 -22 P0604 16988 Control module faulty P
