AUDI A4 2000 B5 / 1.G Suspension Wheel Bearing Housing Remove And Install User Guide

42-115

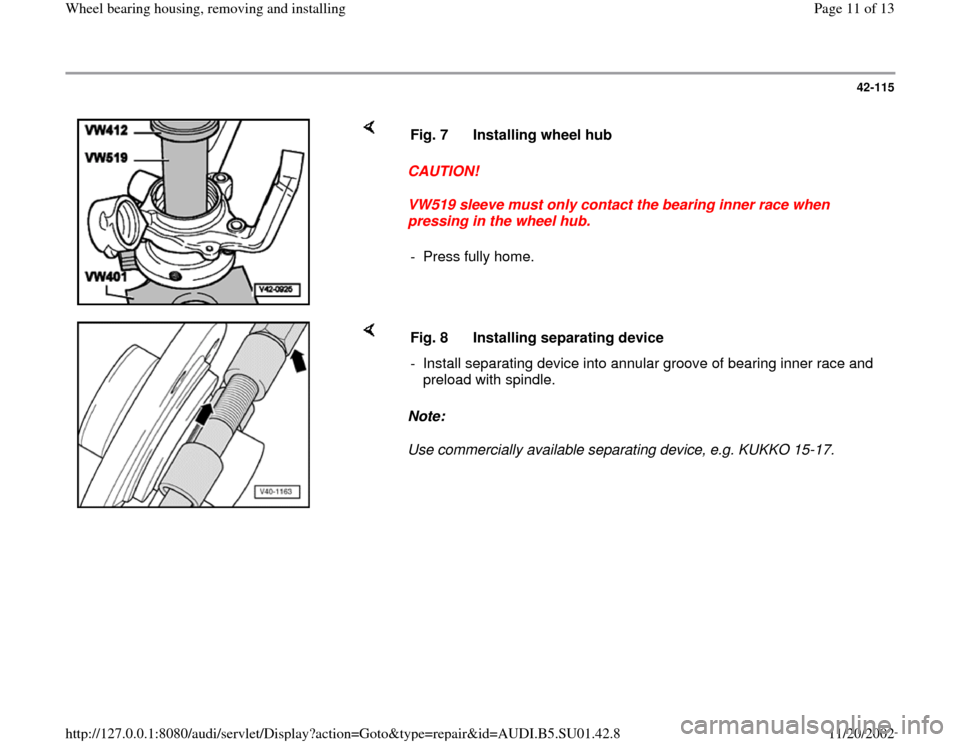

CAUTION!
VW519 sleeve must only contact the bearing inner race when
pressing in the wheel hub. Fig. 7 Installing wheel hub
- Press fully home.

Note:
Use commercially available separating device, e.g. KUKKO 15-17. Fig. 8 Installing separating device
- Install separating device into annular groove of bearing inner race and
preload with spindle.
Pa
ge 11 of 13 Wheel bearin
g housin
g, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.8

42-116

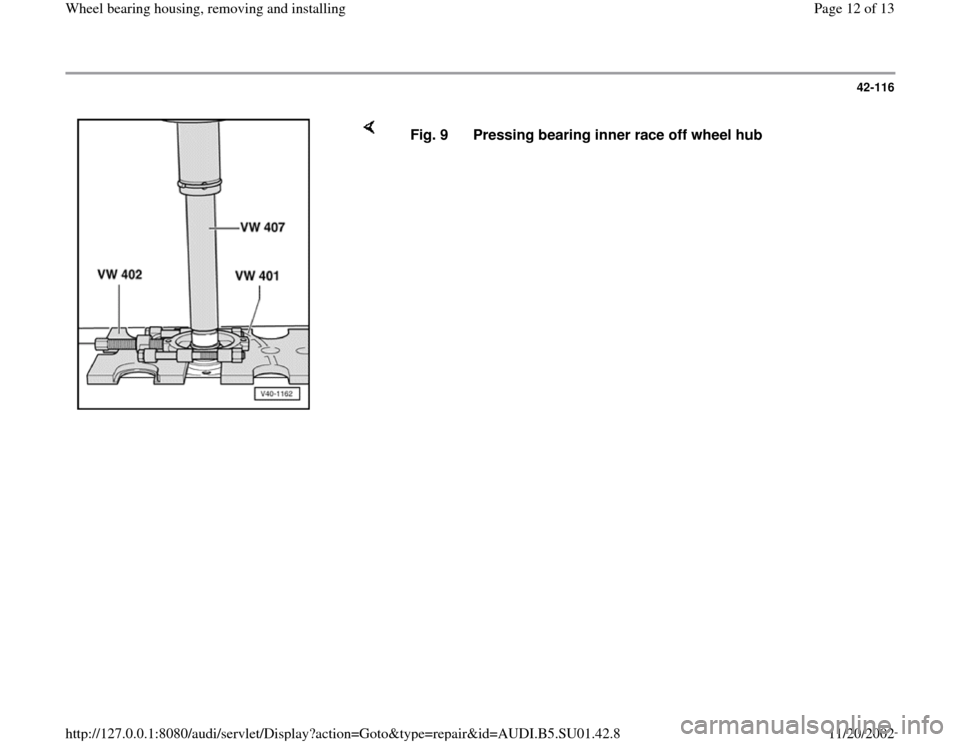

Fig. 9 Pressing bearing inner race off wheel hub
Pa
ge 12 of 13 Wheel bearin
g housin
g, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.42.8

42-117

Wheel bearing housing, servicing using
VAG1459B

Instead of using the VAG1290 workshop press,
the VAG1459B hydraulic wheel bearing and
wheel hub removal and installation tool together
with the VAG1459B/2 accessory can instead be
used to service the wheel bearing housing.
Advantages:

Wheel bearing housing does not need to be
completely disassembled
Track rod and lower control arm remain in
position at wheel bearing housing; therefore
wheel alignment does not need to be checked
