Radio system

General information


CAUTION!

Before beginning repairs on the electrical
system:

Obtain anti-theft radio security code if
necessary.
Switch the ignition off.
Disconnect battery Ground (GND) strap.
On vehicles equipped with Audi Telematics
by OnStar , switch-off the emergency (back-
up) battery for the Telematic/Telephone
Control Module prior to disconnecting
vehicle battery. Use VAS 5051 Vehicle
Diagnostic, Testing and Information System
in mode "Guided Fault Finding" Page 91
-
119
.

After reconnecting vehicle battery, re-code
anti-theft radio if necessary and check
operation. Also check operation of clock and
power windows according to Repair Manual
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-6


"Concert II" and "Symphony II" radio
systems (Sedan), component overview

1 -
CD Changer Unit -R41-
OptionalIn glove compartmentRemoving and installing Page 91
-48
Check wiring Page 91
-50
2 -
Center Mid/High Range Loudspeaker -
R158-
In instrument panelRemoving and installing Page 91
-59
3 -
Radio -R-
In instrument panel, centerRemoving and installing "Concert II" radio
Page 91
-44

Removing and installing "Symphony II"
radio Page 91
-46

Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-9


"Concert II" and "Symphony II" radio
systems (Avant), component overview

1 -
CD Changer Unit -R41-
OptionalIn glove compartmentRemoving and installing Page 91
-48
Check wiring Page 91
-50
2 -
Center Mid/High Range Loudspeaker -
R158-
In instrument panelRemoving and installing Page 91
-59
3 -
Radio -R-
In instrument panel, centerRemoving and installing "Concert II" radio
Page 91
-44

Removing and installing "Symphony II"
radio Page 91
-46

Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-13

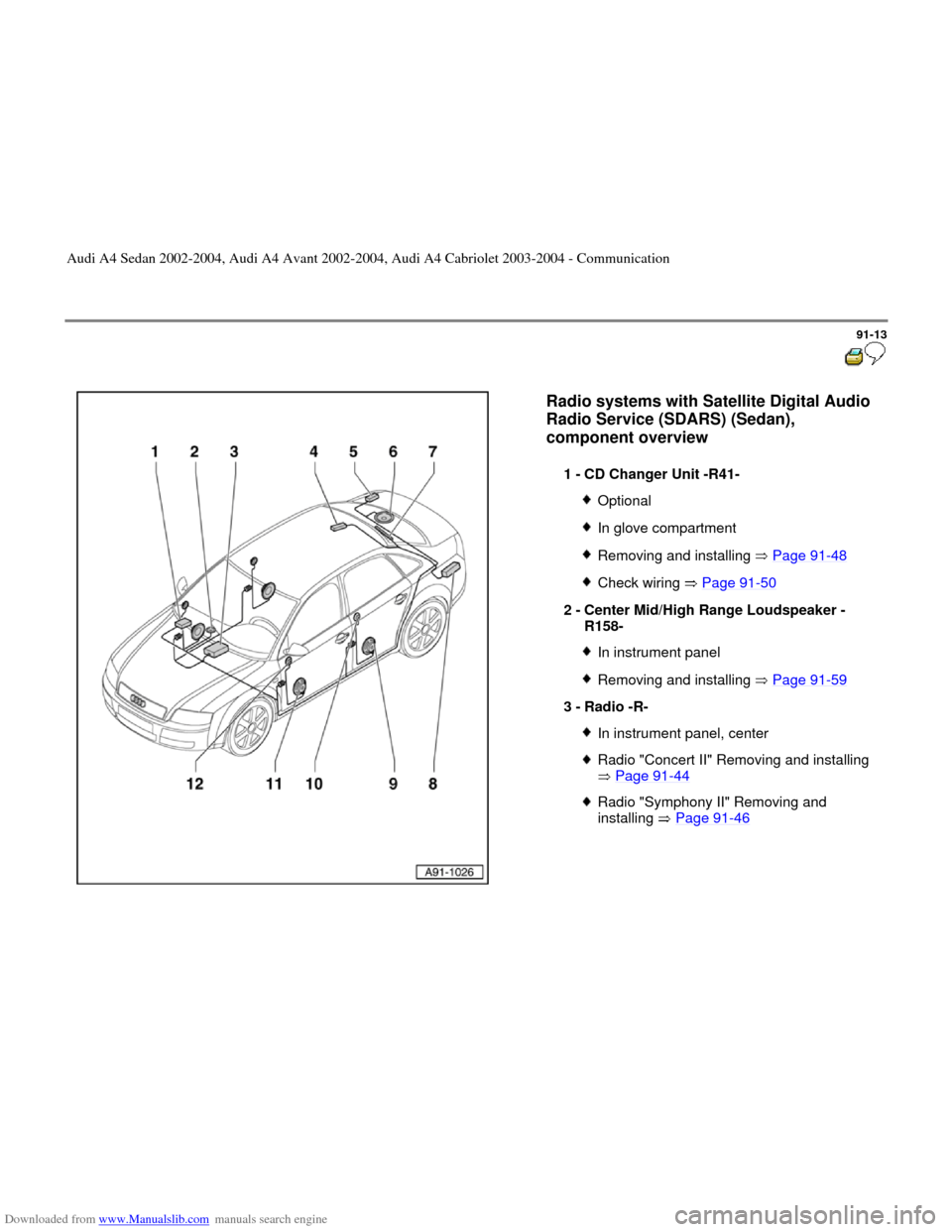

Radio systems with Satellite Digital Audio
Radio Service (SDARS) (Sedan),
component overview

1 -
CD Changer Unit -R41-
OptionalIn glove compartmentRemoving and installing Page 91
-48
Check wiring Page 91
-50
2 -
Center Mid/High Range Loudspeaker -
R158-
In instrument panelRemoving and installing Page 91
-59
3 -
Radio -R-
In instrument panel, centerRadio "Concert II" Removing and installing
Page 91
-44

Radio "Symphony II" Removing and
installing Page 91
-46

Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-17


Radio systems with Satellite Digital Audio
Radio Service (SDARS) (Avant),
component overview

1 -
CD Changer Unit -R41-
OptionalIn glove compartmentRemoving and installing Page 91
-48
Check wiring Page 91
-50
2 -
Center Mid/High Range Loudspeaker -R-
158
In instrument panelRemoving and installing Page 91
-59
3 -
Radio -R-
In instrument panel, centerRadio "Concert II" Removing and installing
Page 91
-44

Radio "Symphony II" Removing and
installing Page 91
-46

Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-49

- Pull CD changer out of installation slot.

- Disconnect electrical connection.

- Pull out release tool from CD changer - to do
this, press in locking tabs on CD changer.

Installing

- Reconnect electrical connection.

- Slide CD changer into installation slot until it
engages.

- After installation, it is essential that the wiring is
checked Page 91
-50
.
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-50

Checking wiring between radio and CD
changer

- Switch off radio.

"Concert II" radio:

- Press CD button on radio and switch radio on at
the same time.

"Symphony II" radio:

- Press button "4" on radio and switch radio on at
the same time, keeping the ON button pressed
in.

All models:

1. Wiring OK
Indicated on radio display:
"CONNECT" Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-51

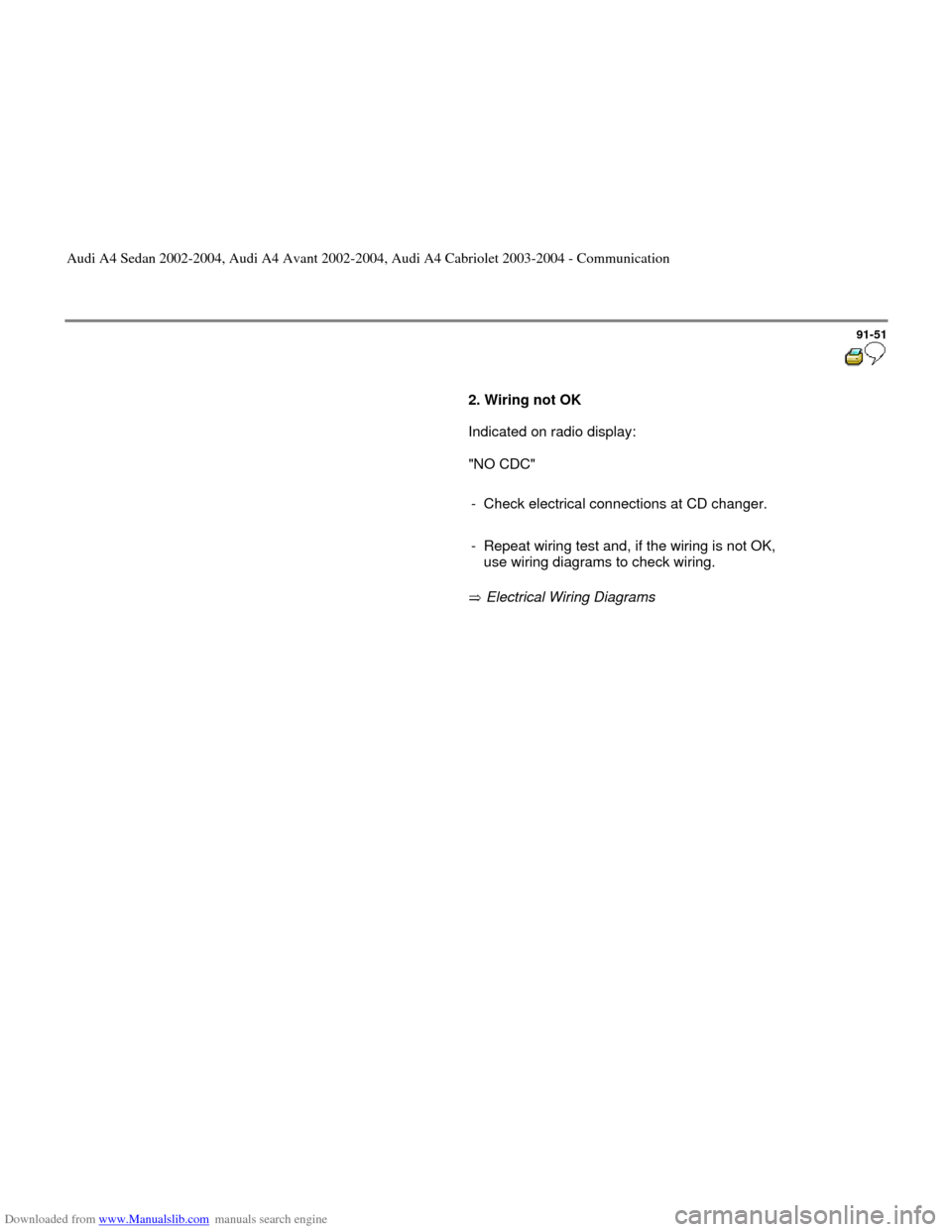

2. Wiring not OK
Indicated on radio display:
"NO CDC"

- Check electrical connections at CD changer.

- Repeat wiring test and, if the wiring is not OK,
use wiring diagrams to check wiring.
Electrical Wiring Diagrams Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication
