The leavin g home function i lluminates the
area around the vehicle when unlock ing it.
T his function can be switched on and off.
The
c o ming h om e and lea ving home func­
tions on ly operate when it is dark and the
light switch is in the AUTO posit ion
¢ page 47 , fig. 40 .
Auto headlight s*
When the light switch is in the A UTO
¢
page 47 posi tion, the switch-on po int of the
lights can be changed in the automatic driving
light function.
Daytime running lights
USA m odel s:
You can switch the dayt ime run­
ni ng lights
on and o ff .
Canada mod els:
The function cannot be
turned off .
It is activated a utomat ica lly each
time the ignition is switched on.
Travel mode*
T he headlig ht beam is asymmetrical. This pro­
v ides stronger illum ination on the s ide of the
road on wh ich you are driving .
If you are driv­
i ng in a count ry that d rives on the opposite
side of the road from your own country, th is
will cau se glare for on coming dr ivers. To pre­
vent glare:
- Trave l mode must be selected in vehicles
with Xenon headlights*.
- In veh icles with halogen headlights, ce rtain
areas of the head light lenses must be cov­
ered w ith wate rproof adhesive covers that
prevent light from passing thro ugh. Fo r
more informat ion, please see your author ­
i z ed Audi dea ler or author ized repa ir faci lity .
(D Tips
When trave l mode is activated, a display in
the dr iver information system in dicates
this each time you switch the ignit io n on.
Clear vi sion 49
Emergency flashers
Fi g. 42 Center co n sole : em erge ncy flasher sw itc h
The emergency flashers makes other moto­
rists aware that you or your vehicle are in an
emergency situation .
.,. Press the switch~¢
fig. 42 to turn the
emergency flashers on or off .
When the emergency f las hers are on, all four
turn s ignals b link at the same time. The turn
s ignal indicator lights
1111 in the instr ument
cluster, as well as the light in the emergency
fla sher switch ~ blink likewise.
You can indicate a lane change or a t urn w hen
the emergency flashers are switched on by us­
ing the turn signal lever. The emergency flash­
ers stop temporarily .
T he emergency flashers a lso work when the
ign ition is turned off .
T he emergency flashers wi ll turn on a utomat i­
ca lly if yo u are in an accident where the airbag
has deployed.
(D Tips
You sho uld turn on the emergency f las hers
when:
- yo u are the last veh icle standing in a t ra f­
fic jam so that any other vehi cles coming
can see you , or whe n
- your vehicle has bro ken down or you are
in an eme rgency s ituation, o r when
- yo ur vehicle is be ing towed by a tow
truck or if you are tow ing another vehicle
beh ind you .

50 Clear vis ion
Interior lights
Front /rear interior lights
Fig . 43 Fro nt headliner : interior lig htin g con tro ls
Fig. 44 R ear headlin er: r ear rea ding lights
@ Interio r ligh ts
Press the switch ~ fig. 43 in the correspond­
ing position.
0 -Interior lights off
I -Interior lights on
If the switch is in the cente r position, the inte­
rior l ights turn on automatically when you un­
lock the vehicle, open a door or remove the ig ­
n ition key . The interior lights turn off several
seconds after your close the doors , when you
lock the vehicle or when you turn the ign it ion
on. When a door is open, the light tu rns off
after a few m inutes.
@ Fr ont /rear r eading lights
To turn a reading light on/off , press the but­
ton~
c::> fig . 43 or c::> fig . 44.
The appearance and location of the rear read­
ing lights may differ depending on the model.
Instrument illumination
T he basic brightness of the illumination for
the instruments, the center console and the
display can be adjusted .
Fig . 45 Ins trum ent ill umin atio n
.,. Press the knob to re lease it .
.,. Turn the knob toward " -" or"+" to reduce or
increase the brightness .
.,. Press the knob aga in to return it to its origi­
nal posit ion.
(!') Tips
The instrument illumination (for dials and
needles) lights on when the ignition is
switc hed on and the vehicle lights are
turned off . As the daylight fades, the illu­
mination of the dia ls likewise dims auto­
matically and wi ll go out completely when
the ou tside light is very low. This feature is
meant to rem ind yo u to sw itch on the
headlights when ou tside light conditions
become poo r.
Vision

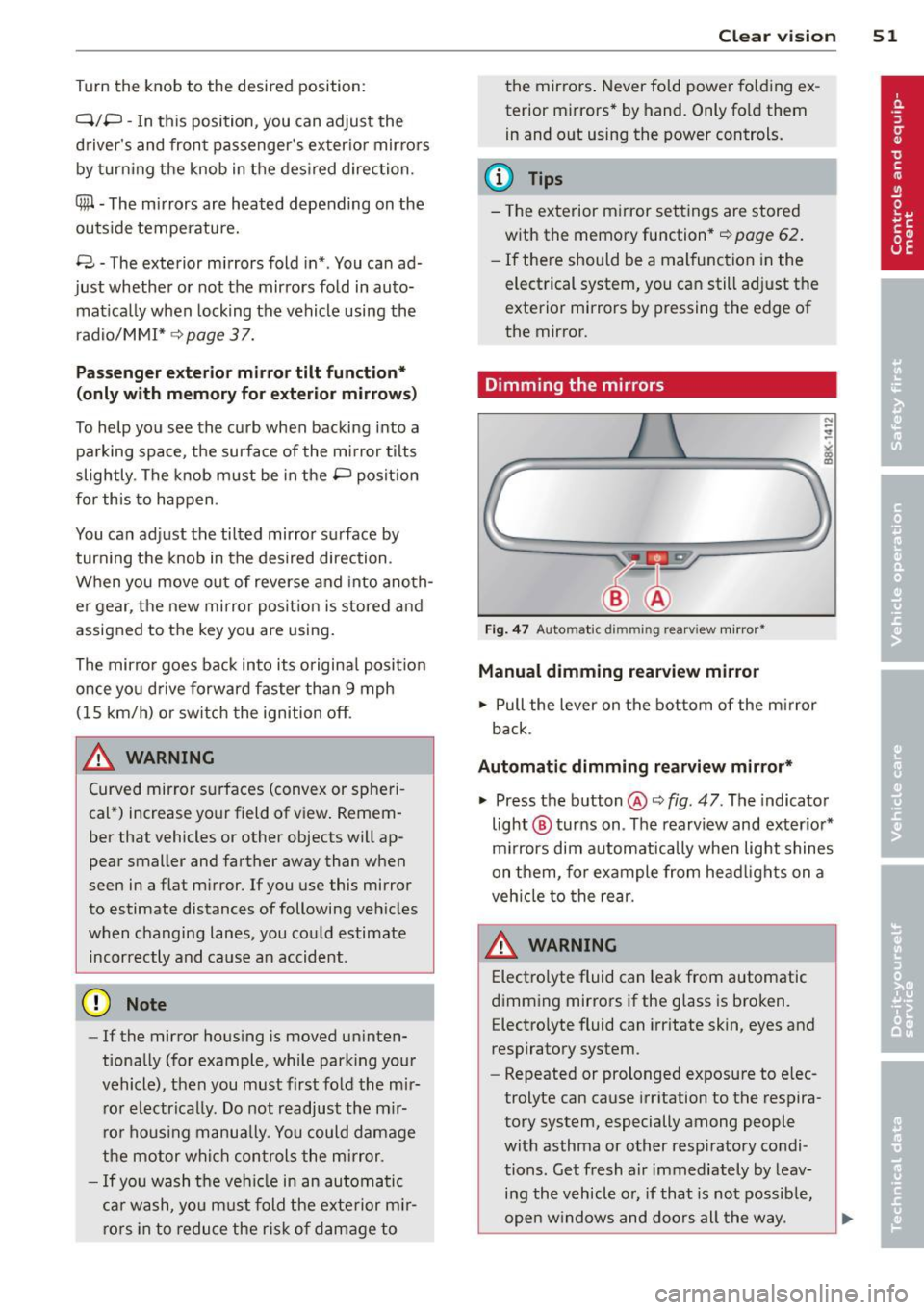

Adjusting the exterior mirrors
Fig . 4 6 Forwar d sect io n of drive r's armr est: powe r mir ­
r o r contro ls

Turn the knob to the desired position:
Q/ P -In this position , you can adjust the
driver's and front passenger's exterior mirrors
by turning the knob in the desired direction.
(ijjl -The mirrors are heated depending on the
outside temperature.
8 -The exterior mirrors fold in*. You can ad­
just whether or not the mirrors fold in auto­
matically when locking the vehicle using the
radio/MM I*
c::> page 3 7.
Passenger exterior mirror tilt function*
(only with memory for exterior mirrows)
To help you see the curb when backing into a
parking space, the surface of the mirror tilts
slightly . The knob must be in the
P position
for this to happen .
You can adjust the tilted mirror surface by
turning the knob in the desired direction .
When you move out of reverse and into anoth ­
er gear, the new mirror position is stored and
assigned to the key you are using.
The mirror goes back into its original position
once you d rive forward faster than 9 mph
(15 km/h) or switch the ignition off .
,&. WARNING
Curved mirror surfaces (convex or spheri­
cal*) increase your field of view. Remem­
ber that vehicles or other objects will ap­
pear smaller and farther away than when
seen in a flat mirror. If you use this mirror
to estimate distances of following vehicles
when changing lanes, you could estimate incorrectly and cause an accident.
(D Note
- If the mirror housing is moved uninten­
tionally (for example, while parking your
vehicle), then you must first fold the mir­ ror electrically. Do not readjust the mir­
ror housing manually. You could damage
the motor which controls the mirror .
-If you wash the vehicle in an automatic
car wash, you must fold the exterior mir­
rors in to reduce the risk of damage to
-
Clear vision 51
the mirrors . Never fold power folding ex­
terior mirrors* by hand. Only fold them
in and out using the power controls.
(D Tips
- The exterior mirror settings are stored
with the memory function*
c::> page 62.
- If there should be a malfunction in the
electrical system, you can still adjust the
exterior mirrors by pressing the edge of
the mirror.
Dimming the mirrors
N
:!
"' ~:::====~~=~====~ :ll
Fig. 47 Auto mat ic dimming re arv iew mirror*
Manual dimming rearview mirror
.. Pull the lever on the bottom of the mirror
back .
Automatic dimming rearview mirror*
.. Press the button @c::> fig. 47. The indicator
light @ turns on . The rearview and exterior*
mirrors dim automatically when light shines
on them, for example from headlights on a
vehicle to the rear.
A WARNING -
Electrolyte fluid can leak from automatic
dimming mirrors if the glass is broken. Electrolyte fluid can irritate skin, eyes and
respiratory system .
- Repeated or prolonged exposure to elec­
trolyte can cause irritation to the respira­
tory system, especially among people
with asthma or other respiratory condi ­
tions. Get fresh a ir immediately by leav­
ing the vehicle or, if that is not possible,
open windows and doors all the way.

52 Clear vision
-If electrolyte gets into the eyes, flush
them thoroughly with large amounts of
clean water for at least 15 minutes;
medical attention is recommended .
- If electrolyte contacts skin, flush affect­
ed area with clean water for at least 15
minutes and then wash affected area
with soap and water; medical attention
is recommended . Thoroughly wash af­
fected clothing and shoes before reuse.
-If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes . Do not induce vomiting unless
instructed to do so by medical professio­
nal. Get medical attention immediately.
Liquid electrolyte leaking from broken mir­
ror glass will damage any plastic surfaces
it comes in contact with. Clean up spilled
electrolyte immediately with clean water
and a sponge.
(D} Tips
- Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimming function of
the exterior mirrors.
- Automatic dimming for the mirror only
operates properly if the sun shade* for
the rear window is not in use or the light
striking the inside mirror is not hindered
by other objects.
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected .
, Sun visors
Fig. 48 Driver 's s ide; sun viso r
The sun visors for the driver and passenger
can be pulled out of their brackets in the cen­
ter of the vehicle and turned towards the
doors @. After the sun visor has been turned
to the door, it can be extended lengthw ise.
The mirror ligh t switches on when the cover
over the vanity mirror @opens.
Rear door sun shade
Applies to vehicles: with rear door sun shade
Fig. 49 Raised rear door sun shade
.,. Pull the shade out and hang it in the brack ­
et on the upper door frame
~ fig. 49 .

Rear window sun shade
Applies to vehicles: with rear window su n shade
Q;l I flc.i" , ~---
Fig. SO W it h MMI : Button for re ar window su n shade
Fig . 51 W it h out MMI: B utto n fo r rear wi ndow s un
s hade
• To extend/retract the sun shade, press the
laf.l button r=;> fig . 50 or ¢ fig. 51.
You can adj ust the settings for the rear sun
shade so the shade retracts automatica lly
when you select the reverse gear . To do this,
select the
! CARI function button> W indow s>
R ear blind > aut omati c> on
or ICARI function
button >
Car sy stem s* contro l button > V ehi­
cl e s ett ings
> Autom atic re ar blind > On . The
cur rent setting is automat ica lly stored a nd as­
signed to the remote key . T he sun shade is ex­
tended again as soon as the vehicle is travel­
ing forward at a speed greater than 9 mph
(15 km/h) if the ignit ion has not been switch­
ed off in the meantime.
A WARNING
When lowering or raising the sunshade, make sure the re is nothing in its way and
that it has a free path to travel. This could
cause persona l injury .
-
Clear vi sion 5 3
@ Tips
-Pressing the button~ several t imes
consecutive ly can trigger the overload
protect ion. The sun shade can only be ex­
tended/retracted aga in after a brief wait­
ing period.
- The rear window sun shade only func­
tions when the vehicle interior is warmer
than 14°F (-10°C) .
Wiper and washer
system
Switching the windshield wipers on
F ig . 5 2 Winds hie ld w iper leve r
Fig . 53 all road: Rear w iper ac tua tio n
0 0 N
"' :8
.....
-
-0 ::, a) m
Move the windshie ld w iper lever to the co rre­
sponding posi tion:
@ -Windshield wiper off
G)-Interval mode . To ex tend/shorten the
wiper intervals, move the switch @to the
left/r ight. In vehicles w it h a rai n sensor* the
wipe rs turn on in the rain once the vehicle
speed ex ceeds approximately 2 mph (4 km/h) .
T he higher the sens it iv ity of the ra in sensor * is
set (switch @to the right), the earlier the
windshield wipers react to moisture on the
w indshield. In some models, you can switch
II-

54 Clear vis ion
ra in sensor mode off and switch intermittent
mode on in the MMI*. Se lect:
I CAR ! function
button
> C ar sys tem s* contro l button > Dri ver
assi st> Rain s enso r.
In interm ittent mode,
you can adjust the interval time using the ®
switch .
@-Slow wiping
@-Fas t wiping
© -Sing le w ipe
® -Clean the windshield . To eliminate water
drop lets, the w indshield wiper performs one
afterwipe operation after several seconds
while driv ing . You can switch th is fu nction off
by mov ing the lever to position ® within 10
seconds of the afte rwipe operation . The after­
wipe func tion is reactiva ted the next time the
ignition is switched on.
a llroad: The rear w iper automatically switches
on when the reve rse gear is engaged and the
front w indshield w ipers are on and in opera­
tion .
C lean ing the headlights*. The headlight wash­
e r system* opera tes on ly when the headl ights
a re on. If you move the leve r to pos ition @,
the head lights are washed in intervals.
@ -allroad : Wipe the rear window. The rear
wiper moves about every 4 seconds.
(J) -allroad : Clean the rear window . The num­
ber of wiping operations depends on how long
the lever is held in pos ition
(J) .
_& WARNING
- T he ra in sensor is only inte nded to assist
the drive r. The driver is still responsible
for man ually switching the wipers on ac­
cording to the v isibility conditions .
- T he windshie ld may not be treated w ith
water-repe lling windshie ld coating
agents . Unfavorable conditions, such as
wetness, darkness, low sun, can res ult in
increased glare. Wiper blade chatter is
also possible .
- Proper ly functioning windshie ld w iper
blades are required for a clear view and safe driving
~ page 54, Replacing
windshield wiper blades.
@ Note
- In the case of frost, check whethe r the
windshield wiper blades are frozen to
the windshield. Sw itching on the wind­
shield wipers can damage the wiper
blades!
- Pr ior to us ing a car wash, the w indshield
w iper system must be sw itched off ( lever
in posit ion @). Th is he lps to prevent un­
intentional switching on and damage to
the windsh ield wiper system .
@ Tips
- The windshie ld wipers are switched off
when the ignit ion is turned off. Act ivate
the winds hield wipers after the ignition
is switched back on by moving the wind­
shield w iper lever to any position.
- Worn or d irty windshield wiper blades
result in st reaking. This can affect the
rain sensor* function. Check your wind­
shield w ipe r blades regularly.
- The washer fluid nozz les of the wind­
shield w asher system a re heated at low
temperat ures when the igni tion is on.
- When stopping tempo rarily, (e .g. at a
t raffic light) the set speed o f the wind­
shield wipers is automatically reduced by
one speed.
· Replacing windshield w iper blades
Wiper blades in good condition help keep the
windshield clear.
F ig. 5 4 Remov ing wi nd sh ie ld w ipe r bl ade

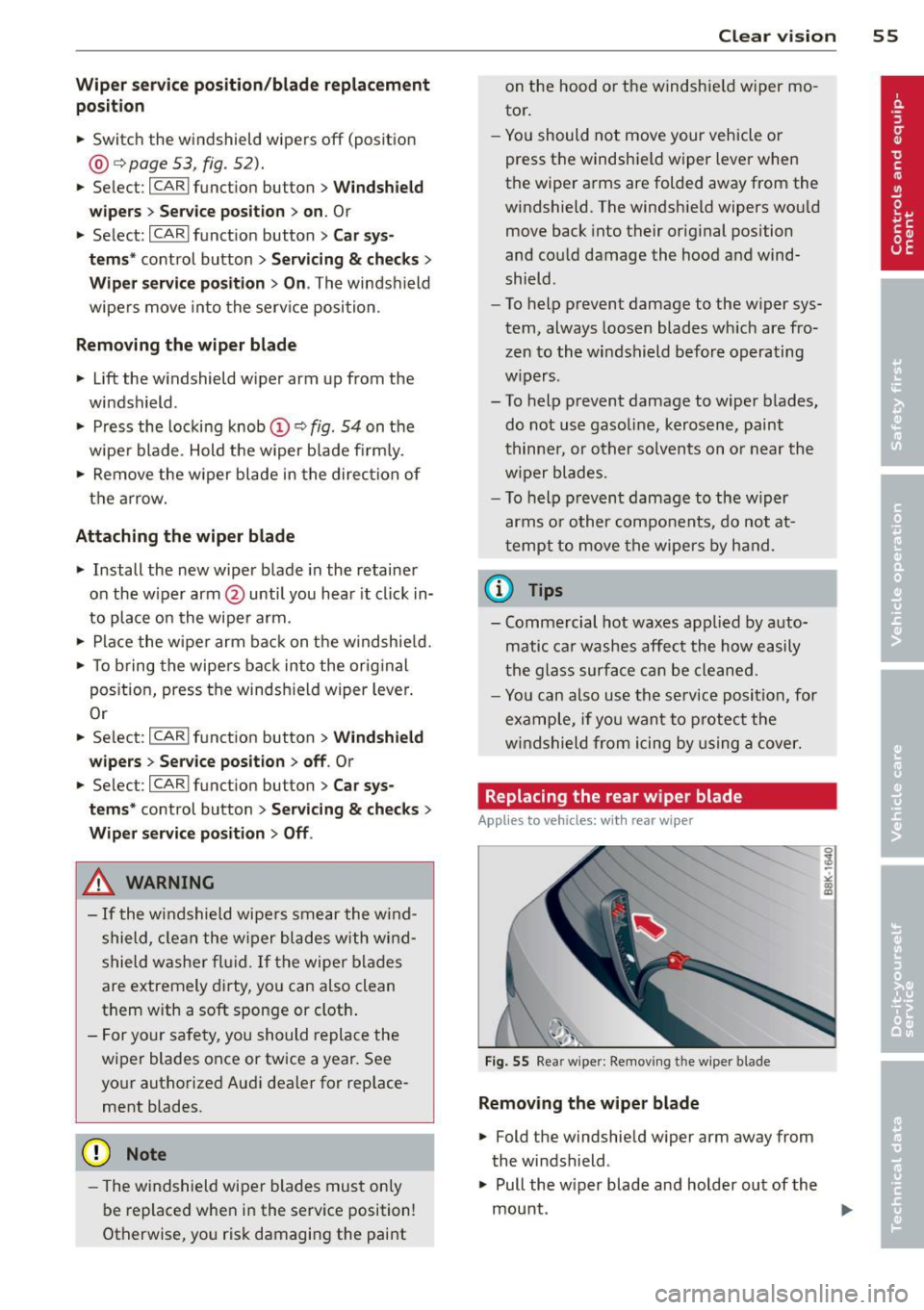

Wiper servi ce position /b lade r eplac ement
po sition
• Switch the windshield wipers off (position
@ c:> page 53, fig. 52).
• Se lect: ICARlfunction button> Windsh ield
wi pers > Ser vice posit io n
> on . Or
• Select: I CAR I funct ion button >
C ar sy s­
t e m s*
control button > Se rvicing & check s >
Wip er servic e po sit ion > On . The windshield
wipers move into the service position.
Rem oving the wiper b lade
• Lift the w indshield wiper arm up from the
wi ndshield.
• Press the locking knob
(D c:> fig. 54 on the
wiper blade. Hold the wiper blade firm ly.
• Remove the w iper blade in the direction of
t h e a rrow.
Attaching th e wiper blade
• Install the new wiper blade in the retainer
on the w iper arm @until you hear it cl ick in­
to place on the wiper arm.
• Place the wiper arm bac k on the windshie ld.
• To bring the wipers back in to the or ig inal
position, press the windsh ield wiper lever .
Or
• Se lect: ICARlfunction button>
Windsh ield
w ipers > Serv ice posit ion
> off. Or
• Select: ICARI funct ion button>
Car sy s­
t e m s*
control button > Servi cing & ch e ck s >
Wipe r serv ice po sition > Off .
A WARNING
-If the w indshield wipe rs smear the wind­
shield, clean the w iper blades with wind­
shield washer fl uid. If the wiper blades
are extremely dirty, yo u can also clean
them with a soft sponge or cloth .
- For yo ur safety, you should replace the
wiper blades once or twice a year. See
your authorized Aud i dealer for replace­
ment blades.
(D Note
- The windshield wiper blades must only
be replaced when in the service position!
Otherwise, yo u risk damaging the paint
Clear vision 55
on the hood or the windshie ld w iper mo ­
tor .
- Yo u should not move your vehicle or
press the windshield wiper lever when
the wiper a rms are folded away from the
windshield. The windsh ield wipers wou ld
move back into their original position
and could damage the hood and wind­
shield.
- To help prevent damage to the wiper sys­
tem, always loosen blades wh ich are fro­
zen to the windshield before operating
w ipers.
- To help prevent damage to wiper blades, do not use gasoline, kerosene, paint
thinner, or other solvents on or near the
w iper blades.
- To help p revent damage to the w iper
arms or other components, do not at­
t empt to move the wipe rs by hand.
(D Tips
- Comme rcial hot waxes applied by auto­
matic car washes affect the how easily
t he glass surface can be cleaned.
- Yo u can also use the service posi tion, for
example, if you want to p rotec t the
w indshield from icing by us ing a cover.
Replacing the rear wiper blade
App lies to vehicles: wi th rear wiper
Fig. 55 Rear w ipe r: Removing the wipe r blade
Removing the wiper bl ade
• Fold the windshield wiper arm away from
the windshield .
• Pull the w iper blade and holder out of the
mount.

56 Clear vis ion

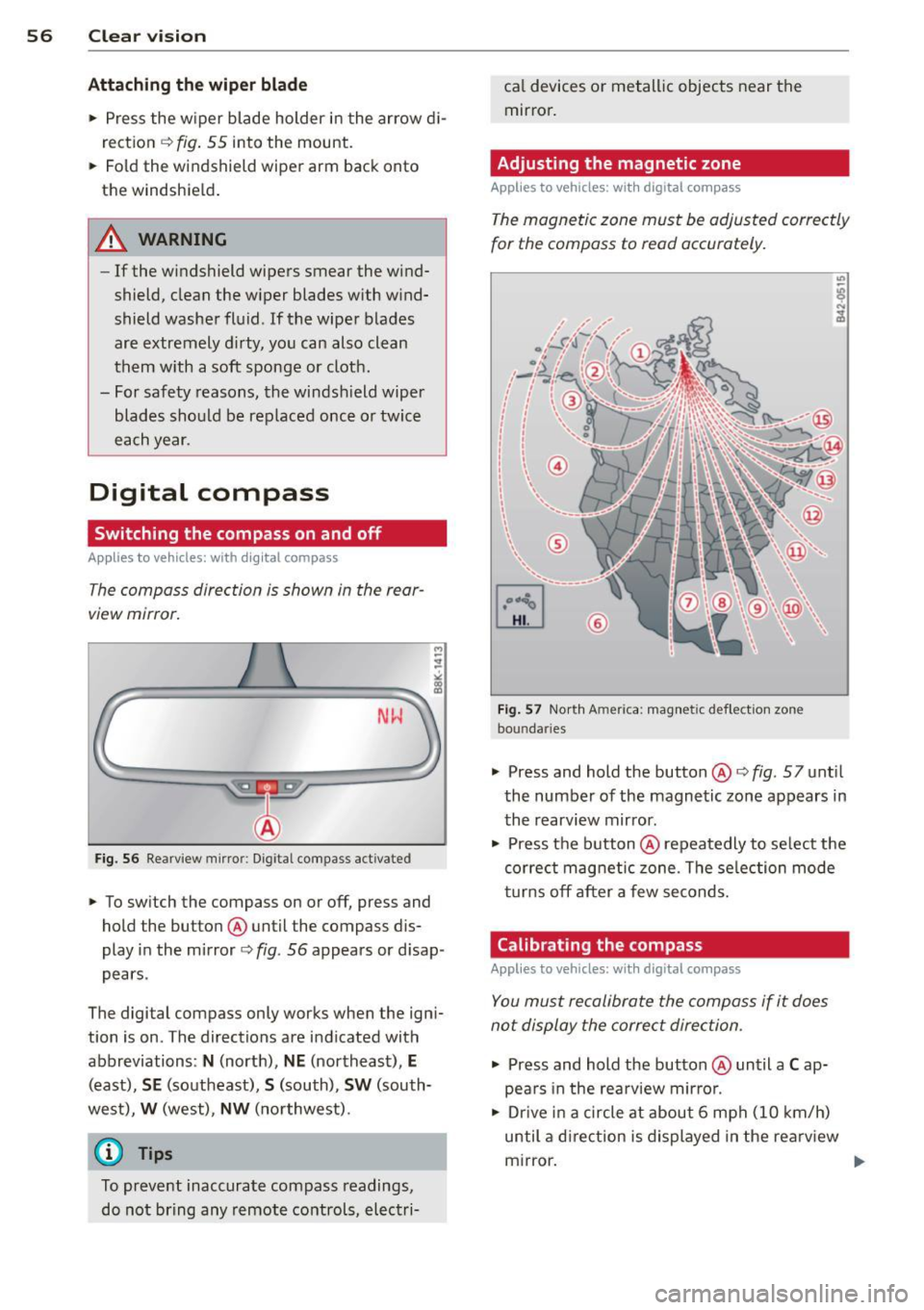

Attach ing th e wiper blade
.,. Press the wiper blade holder in the arrow d i­
rection ¢
fig. 55 into the mount.
.,. Fo ld the windshield wiper arm back onto
the windsh ie ld .
A WARNING
- If the windshield wipers smear the wind­
shield, clean the w iper blades with w ind­
shield washer fluid. If the wiper blades are extremely d irty, you can also clean
them w ith a soft sponge or cloth.
- For safety reasons, the windsh ield wiper
blades should be replaced once or twice
each year.
Digital compass
Switching the compass on and off
Applies to vehicles: with digita l compass
The compass direction is shown in the rear ­
view mirror.
NI--I
Fig. 56 Rearview mirro r: D ig ital compass act ivated
.,. To sw itch the compass on or off, press and
hold the button @ until the compass dis­
play in the mirror ¢
fig. 56 appears or d isap ­
pears .
The digital compass only works when the igni­
tion is on . The directions are indicated with
abbreviations :
N (north), NE (northeast), E
(east), SE (southeast), S (south), SW (south­
west),
W (west), NW (no rthwest).
(D Tips
To prevent inaccurate compass readings,
do not bring any remote controls, elect ri- ca
l devices or metallic objects near the
mirror .
Adjusting the magnetic zone
Applies to vehicles: with digital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately.
F ig . 5 7 Nor th A merica : magn etic d ef le ction zo ne
bo un daries
"'
.,. Press and hold the button @¢fig. 57 unt il
the number of the magnetic zone appears in
the rearview mirror .
.,. Press the button @repeatedly to se lect the
correct magnetic zone . The se lec tion mode
t u rn s off after a few seconds .
Calibrating the compass
Applies to vehicles: with digital compass
You must recalibrate the compass if it does
not display the correct direction .
.,. Press and hold the button @ until a Cap­
pears in the rea rv iew mirro r.
.,. Drive in a c ircle at about 6 mph (10 km/h)
until a d irection is displayed in the rea rv iew
mirror.
II>-

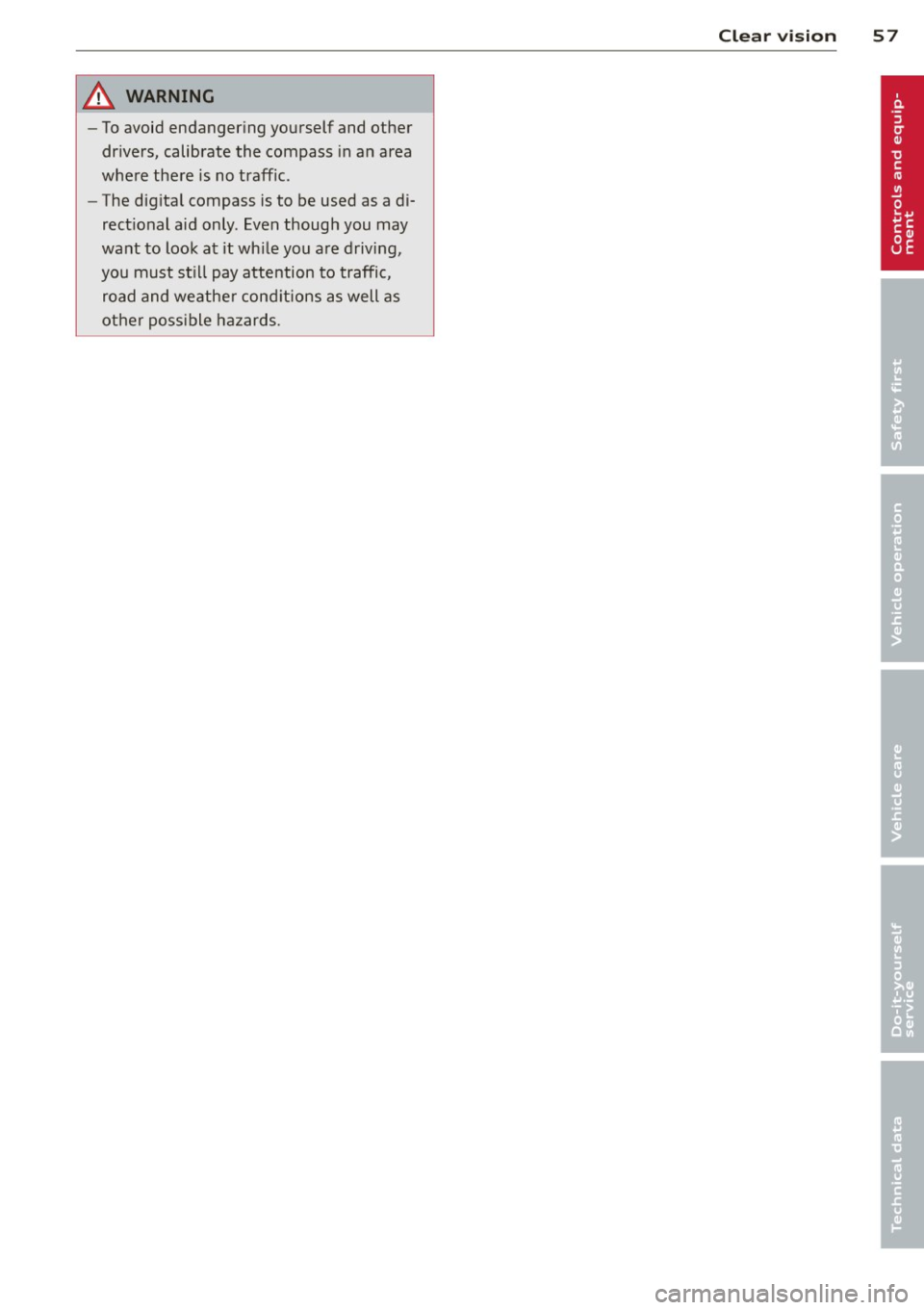

A WARNING ,~
- To avoid endanger ing yourself and other
dr ivers, calibrate the compass in an area
where there is no traff ic.
- The dig ita l compass is to be used as a di­
rect ional aid only . Even though you may
want to look at it wh ile you are driving,
yo u must st ill pay attention to traffic,
road and weathe r cond itions as well as
other poss ible ha zards.
Clear vis ion 5 7

58 Seat s a nd s tor ag e
Seats and storage
General recommen­
dations
Why is your seat adjustment so
important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjust ing the front
seats to provide safe and comfortable support
for the driver and the front passenger . Adjust
your seat properly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
-your body is prope rly supported thus reduc­
ing physical stress and fatigue
- the safety be lts and a irbag system can offer
maximum protection
¢ page 145 .
In the following sec tions, you will see exactly
how you can best adjust you r seats .
There are special regulations and instructions
for insta lling a child safety seat on the front
passenger's seat. Always follow the informa­
tion rega rd ing child safety provided in
G page 166, Child Safety.
WARNING
Refer to G page 12 7, Driving Safely for
important information, tips, suggestions
and warnings that you should read and fol­
low for your own safety and the safety of
your passengers.
A WARNING
, -
Incorrect seating position of the dr iver and
all other passengers can result in serious
personal inj ury .
- Always keep your feet on the f loor when
the vehicle is in mo tion -never p ut your
feet on top of the instrument panel, out of the w indow or on top of the seat cush­
ion. This app lies especially to the passen- gers
. If your seating position is incorrect,
you increase the risk of injury in the case of sudden braking or an accident. If the
airbag inflates and the seating position is incorrect, this could result in pe rsonal
in ju ry or even death.
- It is important for both the driver and front passenge r to keep a distance of at
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
s trumen t panel.
If you're s itting any
closer than th is, the a irbag system can ­
not protect you properly. In addition, the
front seats and head restraints m ust be
adj usted to your body height so that they
can give you max imum protect ion.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel or instrument panel.
- Do not adjust the driver's or front pas­ senger's seat while the vehicle is moving.
Your seat may move unexpected ly , caus­
ing sudden loss of veh icle control and
pe rsonal injury. If you ad just you r seat
while the veh icle is moving, yo u are out
of posit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the dr iver's
seat in the follow ing manner:
.. Adjust the seat in fore and aft direction so
that you can easily push the pedals to the
floor wh ile keeping your knees slightly bent
G &. in Why is your seat adjustment so im ­
portant? on page 58 .
.,. Adjust the seatback so that when you sit
w ith your back against t he seatback, you can
s till grasp the top of the steering whee l.
.. Applies to veh icles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of yo ur head. If that is not possib le, try to
adjust the head restraint so that it is as .,.
