Instrument s and  warnin g/indic ator  ligh ts 15
ml
adaptive  light *
¢page22
m
Light-/rain  sensor*
¢page22
-
B
Adaptive  dampers*
¢page  22
Ill
Sport  differential *
¢page22
m
Ignition lock
¢page  23
Ill
Steering  column  lock
¢page  18
,1,ij
Electromechanical  steering,  dy-
namic  steering*./
¢page 190
Transmission
g
-multitronic®,  tiptronic
¢page97
- S tronic® ¢page  97
m
Transmission
-S t ron ic ® ¢page  97
Other  indicator  l ight s
11
1!11 Turn  signals
llfa ¢page23
CRUISE
•
I
•
USA models: Cruise  control
¢page89
Canada models : Cruise  control
¢page89
Adaptive  cruise  control *
¢page 102
Adaptive  cru ise  control*
¢page  102
-High  beam
¢page48
BRAKE /((J)) Brake  system
The  ligh t illum ina tes  when  the  ignition  is
switched  on.
It goes  out  a fter  the  eng ine  has  been  started.  This
indicates  that  the  b rake
warning  light  is functioning  properly.
If th e brake warning  light  doe s not  light  up
when  the  engine  is  cranking,  th ere may  be a
malfunction  in the  electrical  sy stem . In thi s
case,  contact  your Audi dealer .
If the  brake  system  wa rn ing/ indica tor  light
tu rns  o n,  there  is a  b ra ke  sys tem  ma lfunction .
1111 (USA model s)/.  (Canada model s)
Stop  v ehicl e and  check  brake fluid  lev el
If  the indicator  l ight  turns  on  and  the  mes
sage  appears , proceed  as  follows:
.,.  Pull  off  the  road.
.,.  Stop  the  vehicle.
.,.  Tu rn  off  the  engine.
.,.  Check  the  b rake  fluid  level¢
page  228 .
.,. Contact  your  nearest  autho rized  repair  fa-
cility  if necessa ry.
Warning!  Fault in brake  system . Contact
d ealer
If the  ABS indicator  light fl!S (USA models)/
(11 (Canada  mode ls),  the  ESC ind icator  light
Ji1 and  the  brake  system  indicator  light
1111 ( U SA mode ls)/ .  (Canada  mode ls)  turn
o n  and  the  message  appears,  the  ABS,  ESC
and  braking  d is tribut ion  are  not  worki ng ¢ ,&. .
Carefully  drive  to  your  author ized  Audi  dealer
immediately  to  have  the  malfunct ion  correct
ed ¢,&. .
1111 (USA models )/.  (Canada models)
Parking brake  system  fault!  S ee  owner' s
manual
- If  the  ind icator  light  and  the  message  ap
pear
when  stationary  or after  switch ing  the
ignition  on ,
check  if you  can  release  the
park ing  brake . Afte r releasing  the  parking
brake,  carefully  d rive to  your  au thor ized
Audi  dea le r i mmediately  to  have  the  ma l
function  corre cted.  If yo u can not  release  the
parking  brake,  see k professiona l assistance .
-If the  ind icator  light  and  the  message  ap-
pea r
while  driving , th e emergency  b ra ki ng
function  may  not  be  avail able.
It may  not  be  .,..
Page 18 of 302

16  Instrum ent s and  w arn ing /indic ato r  light s
possible  to  set  the  parking  brake  or  release
it  once  it  has  been  set.  Seek  professional  as
s istance .
(USA models):  If  the  warning  light
1111 and
the  warning  light
liJ appear  together,  imme
diate ly contact  your  authorized  Audi dealer  or
qua lified  workshop  to  have  all  brake  pads  in
spected
¢ page  20.
When  the  light  comes  on,  an  audib le warning
signal  is also  given .
A WARNING
-Always  observe  the  warnings  in
¢ page  213,  Engine compartment, be
fore  opening  the  hood  and  checking  the  brake  flu id .
- Driv ing  with  low  brake  fluid  is a  safety
hazard.  Stop  the  car  and  get  professional
assistance.
- USA models: If  the 1111 warn ing  light,
the
G1 warning  light  and  the m;B warn
ing  light  come  on  together,  the  rear
wheels  co uld  lock  up  first  unde r hard
braking.  Rear  wheel  lock-up  can  cause
loss  of  vehicle  con tro l an d an  accident .
Have your  vehicle  repai red  immedia tely
by your  aut ho rized  Audi  dea le r or  a  quali
fied  workshop.  Drive slowly  and  avoid  sudden,  hard  brake  applications.
- Canada models: If  the  brake  warn ing
light ., the
DJ warning  light  and  the
ABS warning  light
BJ come  on  together,
the  rear  wheels  could  lock  up  first  unde r
hard  braking.  Rear wheel  lock-up  can
cause  loss  of  vehicle  control  and  an  acc i
dent . Have yo ur vehicle  repaired  immed i
ately  by your  authori zed  A udi dealer  or  a
qu alifie d wo rkshop.  Dr ive slowly  and
avo id su dden,  hard  brake  appli cat ions.
- If  the  brake  warning/indicator  light  does
no t go  out  afte r a  few  se con ds  and  the
par king  brake  is released,  or  lights  up
whi le you  are  driving,  the  fluid  level  in
the  brake  f luid  reservoir  is too  low.  If  you
believe  that  it  is safe  to  do  so,  proceed
immediately  at  low  speed  to  the  nearest
authorized  Audi dealer  or  qualified  repair  facility  and  have  the  brake  system  in
spected.
- Always  keep  in  mind  that  after  severa l
brake  applications,  you  will  need  greater
pressure  on  the  brake  pedal  to  stop  your
veh icle.  Do not  rely  on  strained  brakes  to
respond  with  max imum  stopping  power
in critical  s ituations . You must  allow  for
increased  braking  distances.  The  extra
d istance  used  up  by fading  bra kes  could
le ad  to  an  ac cident.
:l~/(®) Electromechanical  parking  brake
The warning/indicator  light  monitors  the
electromechanical  parking  brake .
If  the indicator  light . (USA  models)/ .
(Canada  models)  turns  on,  the  pa rking  brake
was  set.  If  the  parking  brake  is  set  when  the
ignition  is off,  the  ind icator  light  turns  off  af
ter  abo ut  20  seconds.
The  wa rning/i ndicator  lig ht  will  go  out  when
the  pa rking  brake  is  re leased .
• (USA models ) /.  (Can ada  model s)  Cau
tion:  Vehicle  parked  too  ste ep
If  the  indicator  light  b links  and  the  message
appears,  there  is  not  enough  braking  power  to
keep  the  vehicle  from  roll ing . The  brakes  have
overheated . The  veh icle  cou ld  roll  away  eve n
o n  a  sma ll incline .
Press brake  pedal  to  release  parking  bra ke
To  re lease  the  parking  brake,  press  the  brake
pedal  and  press  t he  button(®  or  start  driving
with  starting  assist  at  the  same  time
¢ page  86.
Please  relea se park ing  brake
T o  re lease  the  par king  b rake  manually , p ress
t h e  b rake  peda l and  press  the  button{®)  at
the  same  time.  The  pa rking  brake  on ly  releas
es  automatically  if the  driver's  safety  be lt  is
fastened.
Ill Parking  brake!
If  the 11,1 indicator  light  turns  on  and  t his
message  appears,  the re  is a  parki ng  b rake
Page 19 of 302

Instruments  and  warning/indicator  lights  17
malfunction. Drive  to  your  autho rized  Audi
dealer  or  qualified workshop  immediately  to
have  the  malfunction  corrected.
~ Safety  belts
This warning/indicator  light  reminds you  to
put  on your  safety  belt.
The . warning/ind icator  light  ill uminates
when  the  ignition  is  switched  on  to  remind
the  driver  and  any  front  passenger to put  on
the  safety  belt. Additionally,  an  acoustic  warn
ing  (gong)  will  also  sound.
For  more  Information
¢ page  137,  Safety
belt  warning  light.
0 Battery
The . warning/indicator  light  illuminates
when  you  switch  on  the  ignition and  must  go
out  after  the  engine  has  started.
•  Alternator  fault: Battery  is not  being
charged
If  the  indicator  light turns  on  and  the  mes
sage  appears,  there  is a malfunction  in the
generator  or  vehicle  e lectrica l system .
Drive to  your  autho rized  Aud i dealer  or  quali
fied  workshop  immediately . Because  the  vehi
cle  battery  is discharging,  turn
off all  unnec
essary  electrical  equipment  such  as  the  radio .
Seek  professional  assistance  if the  battery
charge  level is too  low.
(•)  Low battery:  Battery will  be charged
while  driving
If the indicator  light  turns  on and  the  mes
sage  appears,  there  may  be  limited starting
ability .
If thi s  message  turns off after a litt le w hile,
the  battery  charged  eno ugh  wh ile  driving.
If  the  message  does not turn
off, have  your
author ized  Audi  dealer  or  qualified  workshop
correct  the  malfunction.
"l::;r: Engine  oil  pressure
The red engine  oil pressure  warning symbol
requires  immediate  service or repair . Driving
with a  low-oil-pressure  indication is likely to
inflict  severe  damage  to  the  engine.
• Turn off  engine!  Oil  pressure  too  low
If  the  indicator  light  turns  on  and  the mes
sage  appears,  the  oil  pressure  is too  low.
.,.  Pull
off the  road .
.,.  Stop  the  vehicle.
.,.  Turn
off the  engine.
.,.  Check the  engine oil level ¢ page  224.
.,. If  the  eng ine  oil  level  is  too  low,  add  eng ine
oil ¢
page  224 . Make  sure  that  the  oil  pres
sure  warning  symbol. appears  no  longer
in  the  display  before  you  start  dr iv in g again  .
.,.  If  the  engine oil  level  is  correct  and  the  ind i
cator  light still turns on,  turn  the  engine
off
and  do  not  continue  driving. Seek  professio
na l assistance  .
(D Tips
- The engine  oil  pressure  symbol. is
not  an indicator  for a low engine  oil  lev
el.  Do not  rely  on it. Instead,  check the
oil  level  in your  engine  at  regular inter
vals,  preferably  each  time  you  refuel,
and always  before  going  on  a long  trip.
- The  yellow  oil  level  warning  indication
l!I requires oil  refill or workshop  serv
ice  without  delay.  Do not  wait  until  the
red oil  pressure  warning.  starts to
flash  before  you respond  to  the  low  oil
level  warning
1!1-By then,  your  engine
may already  have  suffered  serious dam
age.
~ ..  Engine  oil  level
•  WARNING:  Please  add oil  immediately
If  the indicator  light  and  the  message  appear,
add  engine  oil  immediately
¢ page  224.
Page 20 of 302

18  Instrum ent s and  w arn ing /indic ato r  light s
...L Engine  cooling  system
A malfunction  in the  engine  cooling system
must  be  repaired  as soon  as possible .
• Turn off  engine  and  chec k coolant  le vel
If the  indicator  light  t urns  on and  the  mes
sage  appears,  the  coo lant  temperature  is too
high or the  coo lant  level is too  low.
> Pu ll off the  road.
> Stop  the  vehicle .
> Turn off the  engine.
> Check coolant  level c:> page 226.
> Add coolant  if necessary c:> page 22 7 .
> Continue  driving only after  the eng ine cool
ant  warn ing/ indicator  light  goes  out .
> Contact your authorized  Audi dealer  for as-
s istance  if necessary .
If the  engine  coolant  level is correct,  then  the  radiator  fan  may be the  cause  of the  malfunc
tion .
• Coolan t tempe rature!  Let  engine  run w ith
v eh icl e  s tationary
If the  indicator  light  turns  on and  the  mes
sage  appears  in trailer  mode*,  let  the  engine
run at  idle for  a few m inutes  to  cool down.
A WARNING
- If your veh icle should  break down for
mechanical  or other  reasons,  park at  a
safe  distance  from  moving traffic,  turn
off the  engine  and  turn  on the  hazard
wa rning  lights ¢
page  49,  Emergency
flashers.
-
- Never open  the  hood if you see  or  hea r
steam  or coolant  escap ing from  the  en
gine compartment  - you risk being  scald
ed. Wait until  you can no  longer  see  or
hear  steam  or coo lant  escaping .
- The engine  compartment  of any vehicle
is a dangerous  area.  Before you perform
any work in the  engine  compartment,
turn  of the  eng ine and  allow it to  cool.
Follow the  warning  stickers¢
page  213,
Engine compartment .
(D Note
Do not  continue  driving  if  the . symbol
ill um inates . There is a malfunction  in the
engine  cooling system  -you could  damage
your engine.
@ -Steering  column  lock
•  Stee ring  d efec tive ! Do not  dri ve vehicle!
If the  indicator  light  turns  on and  the  mes
sage  appears,  there  is an electronic  steering
column  lock malfunct ion. You cannot  switch
the  ignit ion on .
Do
not tow yo ur vehicle because  it cannot  be
steered . Seek professional  assista nee.
l!J:I Steering  lock : Cont act de ale r!
If the  indicator  light  turns  on and  the mes
sage  appears,  there  is an e lectronic  stee ring
co lumn  lock malfunct ion .
Drive to your authori zed A udi dealer  immedi
ately  to have the  ma lfunction  corrected .
A WARNING
-
Your vehicle must  not  be towed  in the
event  of a malfunction  in the  elect ronic
steering  co lumn  lock beca use  it cannot  be
steered  due  to  the  loc ked steering . If  it  is
towed  with the  steering  locked, there  is
the  r isk of an accident.
© -Ignition  lock
•  Ignit ion  lo ck defecti ve . Contact  dealer!
If the  indicator  light  turns  on and  the  mes
sage  appears,  do
n ot switch the  ignit ion off
because  you may not  be ab le to  sw itch  it on
again.
Drive to your authorized  A udi dealer  immedi
ately  to  have the  malfunction  corrected .
On vehicles with convenience  key*, the  engine
shou ld  not  be switched
off using the
I S TAR T ENGINE ST OPI button  beca use  the  en
gine cannot  be started  again  after  the  ignition
has  been  switched
off.  ..,.
Page 32 of 302

30  Driver  information  display
Resetting the service  interval  display
Your  authorized  Audi  dealer  will  reset  the  cor
responding  service schedule  after  performing
the  appropriate  service on yo ur vehicle . Yo u
also  have the  possibility  to  reset the  oil
change schedule  after  having  performed  an
oil  change  according  to  Audi  specifications.
Select
I CAR I function  button  > Service  interval
display > Reset  oil  change  interval
or ICARI
function  button> Car systems* control  but
ton
> Servicing & checks > Reset  oil  change
interval.
(D Note
If  you  disconnect  the  battery  terminals, no
calculations  can be made for  the serv ice
interval  display during  this  time  and  no
service rem inder wi ll appear.  Remember
that  observing  the  proper  service  intervals
is  vitally  important  to  extend ing the  life  of
your  vehicle,  particu larly  the  eng ine, and
maintaining  its  value.  Even if  the  mileage
driven  is  low, the  maximum  period of  one
yea r from  one service to  the  next must  not
be exceeded .
@ Tips
-Do not  reset  the  display  between  oil
changes, otherwise  the  display  will  be  in
correct.
- The information  in the  Service Reminder
r ema ins stored  even when  the  vehicle
battery  is disconnected.
On-Board  Diagnostic
system  (OBD)
Malfunction  Indicator  Lamp  (MIL)
The Malfunction  Indicator  Lamp (MIL) (4 i n
the  instrument  cluster  is  part of  the  On-Board
Diagnostic  (OBD II)  system.
The warning/indicator  light  illuminates when
the  ignition  is switched  on and goes out  after
the  engine  starts  and  the idle  has stabilized .
This  indicates  that  the  MIL is working  proper
ly.
If the  light  does  not  go out after  the  engine
is started,  or  illuminates  while  you  are driv
ing,  a malfunction  may exist  in the  eng ine sys
tem . If  the  light illuminates,  the  catalytic  con
verter  could  be damaged .
Continue  driving
with  reduced  power (avoid
ing  sustained  high speeds and/or  rapid  accel
erations)  and  have the  cond ition  corrected.
Contact your  authorized  Audi  dealer.
If the  light  illuminates,  the  electronic  speed
limiter  may also  be malfunct ioning.  For more
information
c:> page  31 , Electronic  speed
limiter.
An improperly  closed fuel  filler  cap  may also
cause  the
MIL light  to  illuminate
c:>page  217.
On-Board  Diagnostics
Fig. 18 Locat io n  of  Data  Link  Con nector  (D LC)
On-Board  Diagnostics  monitors  the  compo
nents  of  your  emission  control  system . Each
monitored  component  in your  engine  system
has been assigned a code. In  case of  a mal
function,  the  component  will  be identified
and the  fault  stored  as a code in  the  control
module  memory.
The MIL  light  may also illuminate  if  there  is a  leak  in the  on-board  fuel  vapor  recovery sys
tem.  If  the  light illuminates  after  a  refueling,
stop  the vehicle  and  make sure  the  fuel filler
cap is  properly  closed
c:> page  217.
In  order  to  make an accurate  diagnosis,  the
stored  data  can on ly be displayed  using  spe
c ial  diagnostic  equipment  (generic scan  tool
furOBD) .
~
Page 36 of 302

34  Openin g and  clo sing
keys.  Unguarded  access  to  the  keys  pro
vides  children  the  opportunity  to  start  the  engine  and/or  act ivate  vehicle  sys
tems  such  as  the  power  w indows  etc . Un
supervised  operation  of  any  veh icle  sys
tem  by ch ildren  can  res ult  in serious  in
Jury.
- Do not  remove  the  key from  the  ignition
lock  until  the  vehicle  has  come  to  a  com
plete  stop.  Otherwise  the  steering  col
um n loc k co uld  suddenly  e ngage  -caus
ing  the  risk of  an  accident.
@ Tips
- The  operation  of the  remote  contro l key
c a n  be  tempo rarily  disrupted  by in terfer
ence  from  tran smi tters  in t he v ici nity  of
the  veh icle work ing  in the  same  frequen
cy ra nge  (e.g . a ce ll phone,  radio  equip
ment).
- Fo r security  reasons,  replacement  keys
are  on ly available  from  Aud i dea le rs .
- Fo r De clarat ion  o f  Compliance  to  United
States  FCC and  Industry  Canada  regu la
tions
¢ page 283.
Removing  the  mechanical  key
Fig . 20 Remot e ma ste r key: re mov ing the  mec hanic al
key
..  Press  the  release  button @¢ fig. 20.
.. Pu ll the  mecha nical  key @ out  of  the  mas
te r key .
Using  the  mechan ica l key, you  can :
- l ock  and  unlock*  the  glove  compartmen t on
the  passenger's  s ide
¢ page 65 .
-lock  and  unlock  t he  lockable*  rear  bench
seat  and  pass-through* ¢
page 69.  -
activate  the  child  sa fety  locks  on  the  rear
doors  ¢
page 42.
-lock  and  unlock  the  vehicle  manua lly
~ page 38 if this  should  not  be  possible
w ith  the  master  key.
- use  t he  ignition  key emergency  release
~ page 35.
Check light  and  battery  in the  master
key
Fig.  21 Rem ote mas ter key:  re m ov ing  th e  ba ttery  h old
e r
Check light  in the  ma ster  key
The  check  light @¢ fig. 21 in the  mas ter  key
provides  information  about  different  condi
t ions .
..  The check  light  turns  on  br iefly  once  when  a
button  is pressed,  and  during  an  "inquiry"
by the  convenience  key system  .
.,.  If  the  check  light  does  not  come  on,  the
battery  is  dead  and  has  to  be  replaced . In
add it io n, w hen  t he  battery  is dead
the m
indicator  light  appea rs  in the  instrument
cl uster  display  as we ll as  the  message
Please  change  key battery .
Master  key battery  replacement
.,. Remove  the  m echan ical  key ~ page 34.
.,.  Press  t he  release  button @~
fig. 21 on  the
b attery  ho lde r and  at  the  same  time  pull  the
battery  holder  o ut  o f the  master  key in the
direction  of the  arrow .
..  Insta ll the  new  battery  CR 2032  with  the
"+ " sign  facing  down.
.,.  Push  the  battery  holder  carefully  into  the
master  key  .
.,.  Insta ll the  mechanical  key .
Page 40 of 302

38  Opening  and closing
Emergency  locking
Fig.  25 Drive r's door : lock cyl inde r
Fig . 26 Front  passe nge r's  door/rea r doo rs *: emergency
l ock
If  the  centra l locking  system  ma lfunctions ,
you  must  unlock/lock  the  doors  separately  us
ing  the  emergency  key or  the mechanic al key.
Unlocking/locking  the  driver's  door with
the  mechanical  key
,. Remove  the mechanical  key¢ page  34.
,. To  unlock  the  dr iver's  door,  turn  the  key to
the  open  position@¢
fig.  25.
,. To  lock the  driver's  door, move the  se lector
lever  to  the  P position  (automatic  transmis
sion)  and  turn  the  key
once to  the  close  posi
tion
® c> A in  General  description  on
page  32.
Locking  the front  passenger's  door/rear
doors*  with  the  mechanical  key
The  emergency  lock is located  on  the  rear  side
of  the  front  passenger's  door  and  the  rear
doors . It  is only  visible  when  the  door  is open.
,.  Remove  the  mechanical  key¢
page  34.
,. Pull  the  cover  cap  out  of  the  opening
<=>fig . 26.
,. Insert  the key in the  inside  slot  and  turn  it
all  the  way to  the  right  (right  door)  or  left
(left  door).
Once  the  front  passenger's  door/rea r doors *
have  been  closed, you  cannot  open  them
again  from  the  outside . The  door  can  be
opened  from  the  inside  by pulling  the  door  handle.  If the  child  safety  lock in  a  rear  door*
is activated,  you  must  first  pull  the  door  han
dle  on  the  inside . Then  you  can  open  the  door
from  the  outside  .
.8, WARNING
Read and  follow  all  WARNINGS c> .&. in
General  description  on  page 32.
(D Tips
-
After  the  ignition  is switched  on,  the  pow
er  locking  system  switch  and  the  unlocking  button  for the  rear  lid
cs in  the  door are
enabled.
Electronic immobilizer
The immobilizer  prevents  your  vehicle  from
being  started  by unauthorized  persons .
Inside  the  key there  is  a computer  chip . This
chip  automat ically  act ivates/deactivates  the
electron ic immobilizer.
Applies  to  vehicles with  ignition lock:
The  electronic  immobilizer  deactivates  auto
matically  when  you  insert  the  remote  control
key  into  the  ign ition  lock . It  activates  again
automatically  when  you
remove the  remote
control  key from  the ignition  lock.
Applies  to  vehicles with convenience  key:
If  the  remote  control  key is  located  inside the
vehicle  and  you  press  the
I S TART  ENGI NE  STOP I button,  the  electron ic
immobilizer  deactivates  automat ically .
If you
switch  the  ignition  off  and  remove  the  remote
control  key from  the  vehicle,  the  electronic
immobilizer  activates  again automatica lly.  ..,.
Page 42 of 302

40  Opening  and closing
Power  opening/closing rear lid
Applies  to vehicles: wit h au tom atic  rear lid  op erat ion
The open  position  can  be  adjusted.
Fig . 29 Drive r's door:  Unlock ing the  rear lid
-
Fig. 30 Locking switch  in the  rear lid

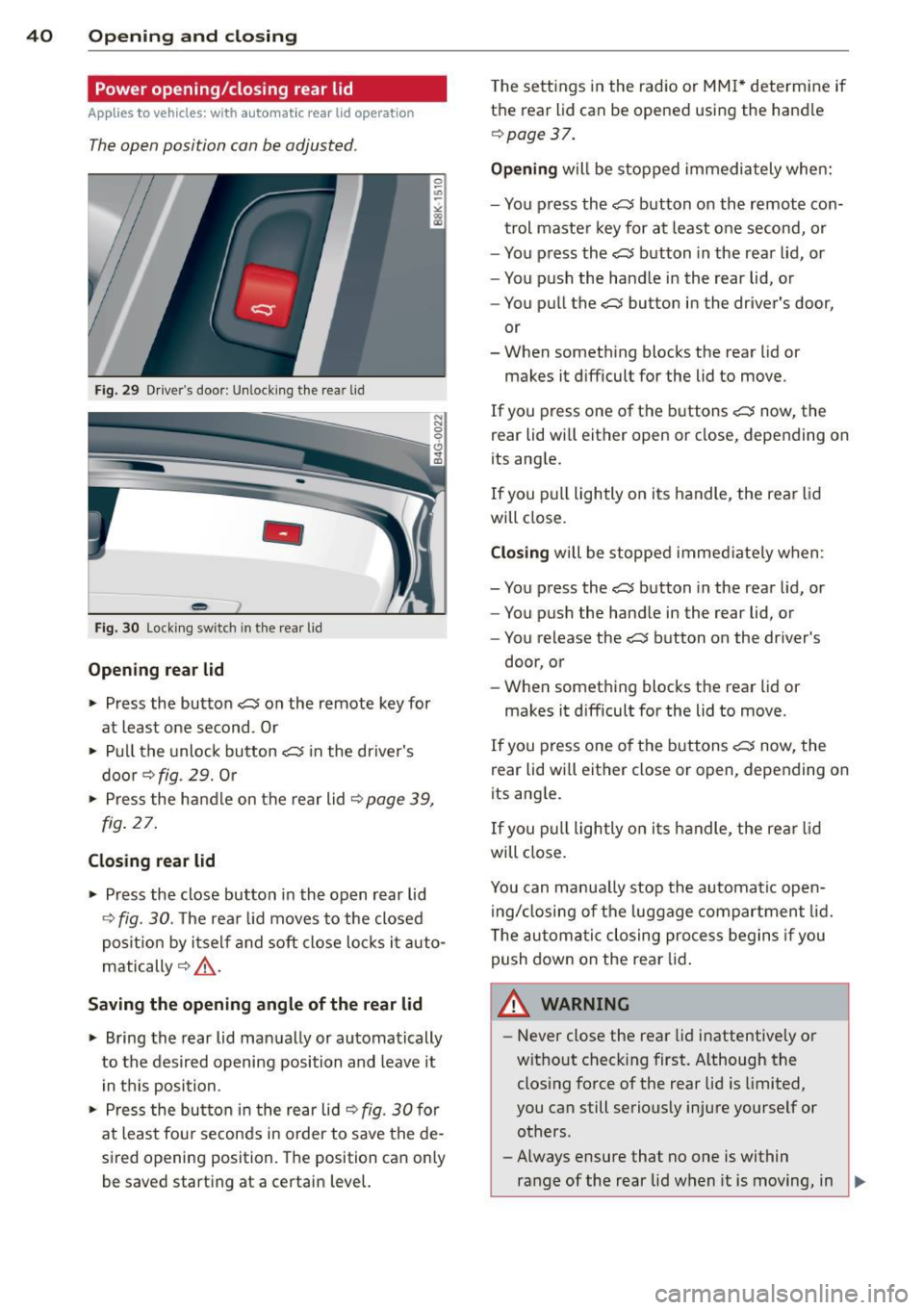

Opening  rear  lid
~ Press  the  button C$ on  the  remote  key for
at  least  one  second . Or
~ Pull the  unlock  button C$ in  the  driver's
door
r::::> fig. 29.  Or
~ Press  the  handle  on  the rear  lid r:::;, page 39,
fig. 27.
Closing  rear  lid
~ Press  the  close  button  in the  open  rear lid
r::::> fig. 30. The  rear  lid moves  to  the closed
position  by  itself and  soft  close  locks it auto
matically
r:::;, ,&. .
Saving  the  opening  angle  of the  rear  lid
~ Bring the  rear  lid  manually  or  automatically
to  the  desired  opening  position  and  leave  it
in  this position.
~ Press  the  button in the rear  lid r:::;, fig. 30 for
at  least  fou r seconds  in  order  to  save  the  de
sired  opening  position.  The position  can  only
be  saved  start ing  at  a  certain  level.  T
he  sett ings  in the  radio  or  MMI* determine  if
the  rear  lid can  be  opened using  the  handle
r::::>page  37.
Opening will be  stopped  immediately  when:
- You  press  the
C$ button  on  the  remote  con-
trol  master  key for at least  one  second,  or
- You press  the
C$ button  in the  rear  lid, or
- You push  the  handle  in the  rear lid,  or
- You pull  the
C$ button  in the  driver's  door,
or
- When  something  blocks  the  rear  lid or
makes  it  difficult  for  the  lid to  move.
If you  press one  of the  buttons
C$ now,  the
rear  lid will  either  open  or  close,  depending  on
its  angle.
If  you  pull  lightly  on  its  handle, the  rear  lid
will close.
Closing will  be  stopped  immediately  when :
- You  press  the
C$ button  in the  rear  lid, or
- You push  the  handle  in the  rear  lid,  or
- You release  the
C$ button  on  the  driver's
door,  or
- When  something  blocks the  rear  lid or
makes  it  difficult  for  the  lid to  move.
If  you  press  one  of the  buttons
C$ now,  the
rear  lid wi ll either  close  or  open,  depending  on
its  ang le.
If you  pull  lightly  on its  h andle,  the  rear  lid
will close.
You can  manua lly stop  the  automatic  open
ing/closing  of the  luggage  compartment  lid.
T he  automatic  closing process  begins  if  you
push  down  on the  rear  lid.
A WARNING ,..___
-Never  close  the  rear  lid inattentive ly  or
without  check ing first.  Although  the
closing  force  of the  rear lid is  limited,
you  can  still  seriously  injure  yourself  or  others.
- Always ensure  that  no  one  is within
range  of the  rear  lid when  it  is  moving,  in
~
Page 67 of 302

(upholder
Fig.  69 Ce nter  console:  front  cupholder
Fig. 70  Rear armrest:  rea r cupho lder
Opening  rear cupholders
~ To open  the  cupholder,  press  on  the  symbol
ii@ ~ fig.  70 .
~ To adjust  the  arm @, swing  it in the  direc
tion  of  the arrow.
~ Place  the  beverage  in the  holder  and  release
the  arm.  The  arm  swings  back  by itself  and
automatically  secures  the  beverage .
Closing cupholders
~ To close  the  cupholder,  press  on the  center
section  between  the two  arms  and  push  the
cupholder  in the  slot  as  far  as  it  will go.
A WARNING
Spilled  hot  liquid  can  cause an  accident
and  personal  injury.
- Never  carry  any  beverage  containers  with
hot  liquids,  such  as  hot  coffee  or  hot  tea,
in  the  vehicle  while  it is  moving . In  case
of  an  accident,  sudden  braking or  other
vehicle  movement,  hot  liquid could  spill,
caus ing  scald ing burns . Spilled  hot liquid
can  also  ca use  an  accident  and  personal
injury.
Seats  and  storage  65
-Use on ly soft  cups  in  the cupholder.  Hard
cups  and  glasses  can  cause  injury in an
accident.
- Never  use the cupho lder  or  adapter  as  an
ashtray  -risk of fire.
(D Note
Only  drink  containers  with  lids  should  be
carried  in the  c upholder.  Liquid could  spill
out  and  damage  your  vehicle's  electronic
equipment  or  stain  the  upholstery,  etc.
Glove compartment
The  glove  compartment  is illuminated  and
can be locked.
Fig . 71 G love  compar tment
~ To open  the  glove  compartment,  pull  the
handle  in the  direction  of  the  arrow~
fig. 71
and  swing  the  cover  down  to  open.
~ To close  the  glove  compartment,  push  the
glove  compartment  lid upward  until  the  lock
engages .
T he  glove  compartment  can  be  locked  using
the  mechanical  key~
page  34.
On the  right  side  in the  glove  compartment  is
a  holder  with the key body  into which  the
eme rgency  key must  be  clipped  to be  able to
start  the  veh icle.
&_ WARNING
To  reduce  the  risk of  personal  injury  in  an
accident  or  sudden stop,  always  keep the
glove  compartment  closed  while  driving.
-
Page 83 of 302

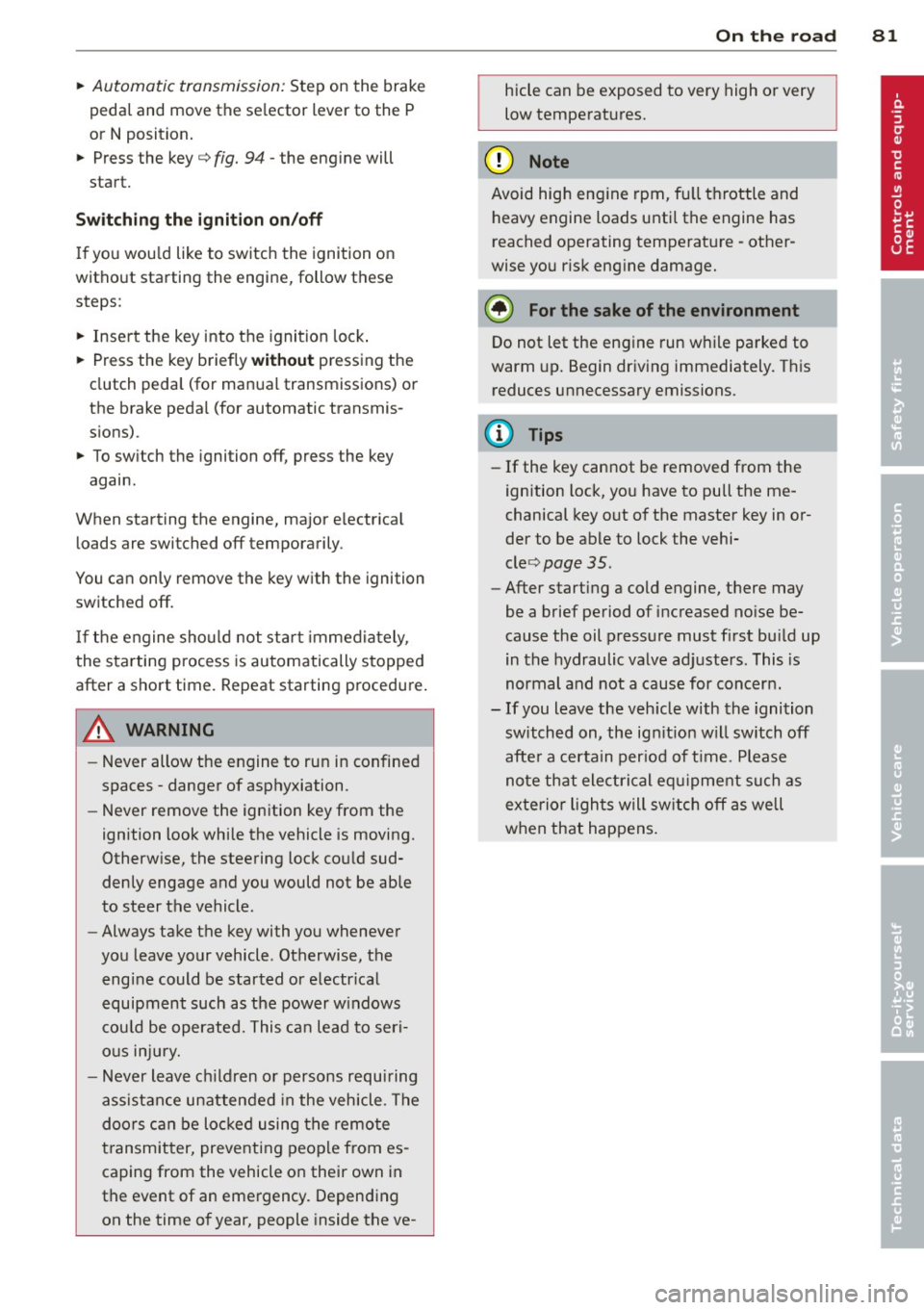

~ Automatic  transmission: Step on the  brake
peda l and move the  se lector  lever to  the  P
or  N position .
~ Press the  key  c:> fig. 94 -the  eng ine will
start.
Sw itching  the  i gnition  on /off
If  you wou ld like  to  switch  the  ignition  on
without  sta rting  the  engine,  follow  t hese
steps :
~ Insert  the  key i nto  the  igni tion  lock .
~ Press the  key b riefly w ithout press ing the
clutch  peda l (for  manual  transmissions)  or
the  brake peda l (for  automatic  transmis
s ions) .
~ To sw itch  the  ignition  off,  press the  key
again .
When  starting  the  engine,  ma jor  e lectr ica l
loads are switched  off  temporarily .
You can only  remove  the  key with  the  ignition
switched  off.
I f  the  engine  sho uld  not  star t  immediately,
the  starting  process  is automatically  stopped
after  a short  time.  Repeat starting  procedure .
A WARNING
-Never allow  the  engine  to  run  in confined
spaces  -danger  of  asphyxiation.
- Never remove  the  ign ition  key from  the
ignition  look  while  the  vehicle  is moving.
Otherw ise, the  steering  lock  could  sud
denly  engage and you would  not  be able
to  steer  the  vehicle.
- Always take  the  key with  you whenever
you  leave your  vehicle . Otherwise,  the
engine  could  be star ted or  e lectr ica l
equipment  such as the  power w indows
cou ld  be operated.  This  ca n  lead to  seri
o us inj ury.
- Never leave c hildren  or  persons requ iring
assistan ce unattended  in the  vehicle.  The
doors c an be lo cked using  the remote
t ransmit ter, preventing  people  from  es
caping from  the  vehicle  on their  own  in
the  event  of  an emergency.  Depend ing
on the  time  of  year, people  inside the  ve-
On  th e ro ad  81
hicle  can be exposed to  very  high  or very
low temperatu res.
(D Note
Avoid high  eng ine  rpm,  fu ll th rottle  and
heavy engine  loads  unti l the  engine  has
reached operating  tempe rat ure -other
wise you  r isk eng ine damage.
@ For the  sake of  the  environment
Do not  let  the  engine  run w hile  parked  to
warm  up. Begin dr iv ing immediately.  T his
reduces unnecessary emissions.
@ Tips
- If  the  key cannot  be removed from  the
ignition  lock, you  have to  pull  the  me
chanical  key out  of  the  maste r key in  or
der to  be able  to  lock the  vehi-
cle c:>
page 35.
-After  starting  a cold  engine,  t here may
be a brief  peri od of  increased no ise be
cause the  oil  press ure must  first  bu ild up
in the  hydraulic  valve ad justers.  This  is
normal  and  not  a cause for  concern.
- If  you  leave the  veh icle with  the  ignition
switched  on, the  ign it ion w ill  switch  off
afte r a certa in per iod of  t ime . Please
note  that  ele ctrical  equ ipment  such as
exterior  ligh ts w ill  sw itch  off  as well
when  that  happens .
