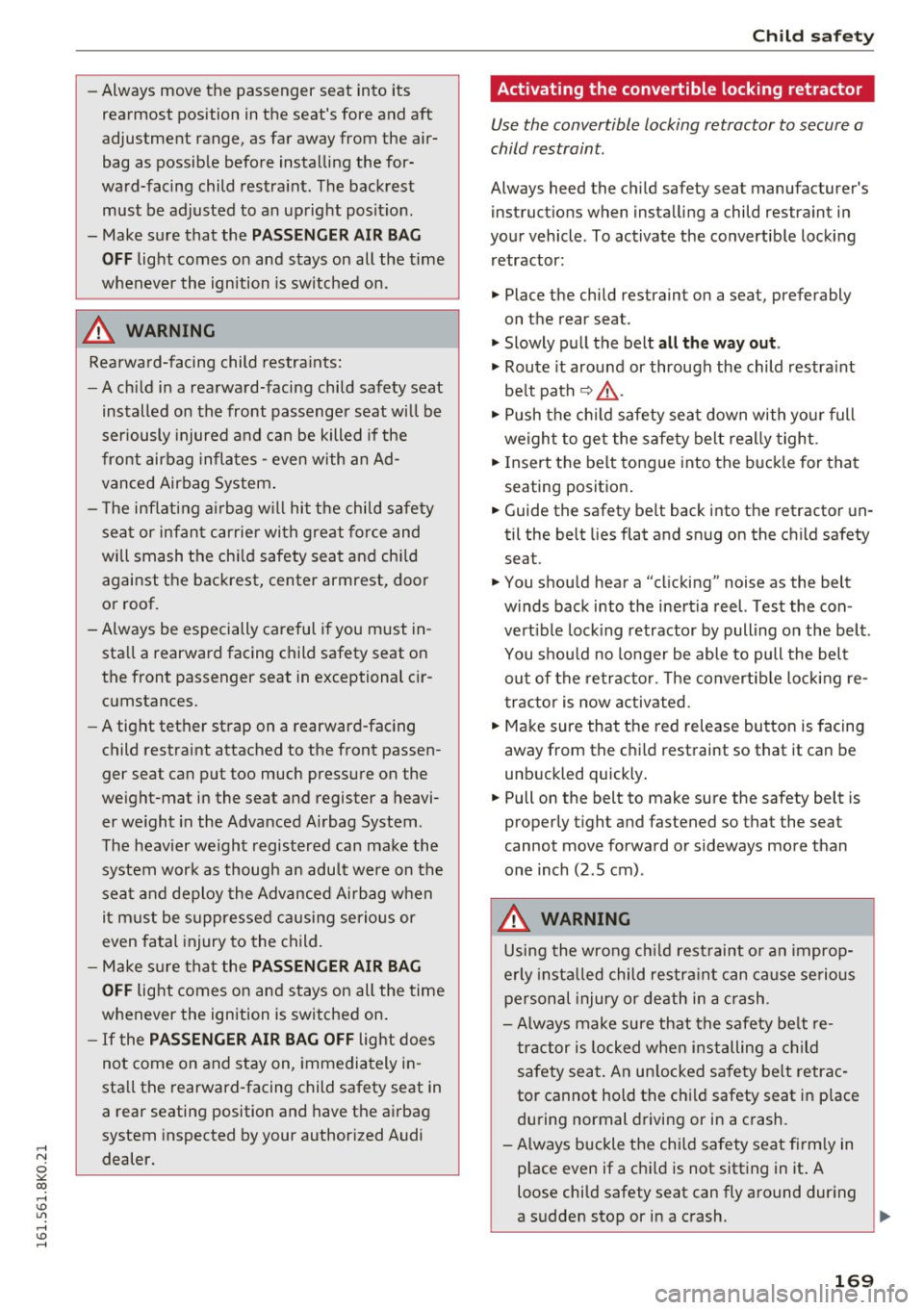

0 ::..:: co ..... ..... -Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the for­
ward-facing child restra int. The backrest
must be adjusted to an upright posit ion.
- Make sure that the
PA SSEN GER AI R BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
A WARNING
Rearwa rd-facing child restra ints:
- A ch ild in a rearward-facing child safety seat
installed on the front passenger seat wi ll be
seriously injured and can be killed if the
front airbag inflates - even with an Ad­
vanced Airbag System .
- The inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and chi ld
against the backrest, center armrest, door
or roof.
- Always be especially careful if you must in­
stall a rearward facing child safety seat on
the front passenger seat in exceptional c ir­
cumstances.
- A tight tether strap on a rearward-facing
child restraint attached to the front passen­
ger seat can put too much pressure on the
we ight-mat in the seat and register a heavi­
er we ight in the Advanced Airbag System.
The heavier we ight registered can make the
system work as though an adult were on the
seat and deploy the Advanced Airbag when
it m ust be suppressed c ausing serious or
even fatal injury to the child.
- Make sure tha t the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on .
-If the PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in ­
stall the rearward-facing child safety seat in
a rear seating position and have the airbag
system inspected by your authorized Audi
dealer.
Ch ild safety
Activating the convertible locking retractor
Use the convertible locking retractor to secure a
child restraint .
Always heed the ch ild safety seat manufactu rer 's
ins truct ions when installing a child restraint in
your vehicle . To activate the convertible locking
retractor:
.. Place the child restraint on a seat, prefer ably
on the rear seat .
.. Slowly pull the belt
all the w ay out .
.. Route it around or through the child restra int
be lt path
¢ & .
.. Push the ch ild safety sea t down with you r full
weigh t to ge t the safety belt really tight.
.. Insert the belt tong ue into the b uck le for that
seating position .
.. Guide the safety belt back into the retractor un­
til the belt lies flat and snug on the child safety
seat .
.. You should hear a ''cl icking" noise as the belt
w inds back into the inertia reel. Test the con ­
vert ib le lock ing retractor by pull ing on the belt .
You shou ld no longer be able to pull the belt
out of the re tractor. The convertib le loc kin g re­
t ractor is now activated.
.. Make sure that the red release button is facing
away from the c hild restraint so that it can be
unbuckled quickly .
.. Pull on the belt to make sure the safety belt is
properly tight and fastened so that the seat
cannot move forward or sideways more than
one inch (2 .5 cm) .
A WARNING
Using the wrong ch ild rest raint o r an improp­
e rly inst alled child restra int can cause se rio us
personal injury or death in a crash.
- Always make sure that the safety be lt re­
tr actor is locked when installing a child
safety seat . An un locked safety be lt retrac­
tor cannot hold the ch ild safety seat in p lace
during normal driving or in a crash.
- Always buckle the child safety seat fi rm ly in
p lace even if a child is not sitting in it. A
loose child safety seat can fly a round during
a sudden stop or in a crash. .,.
169

Child safety

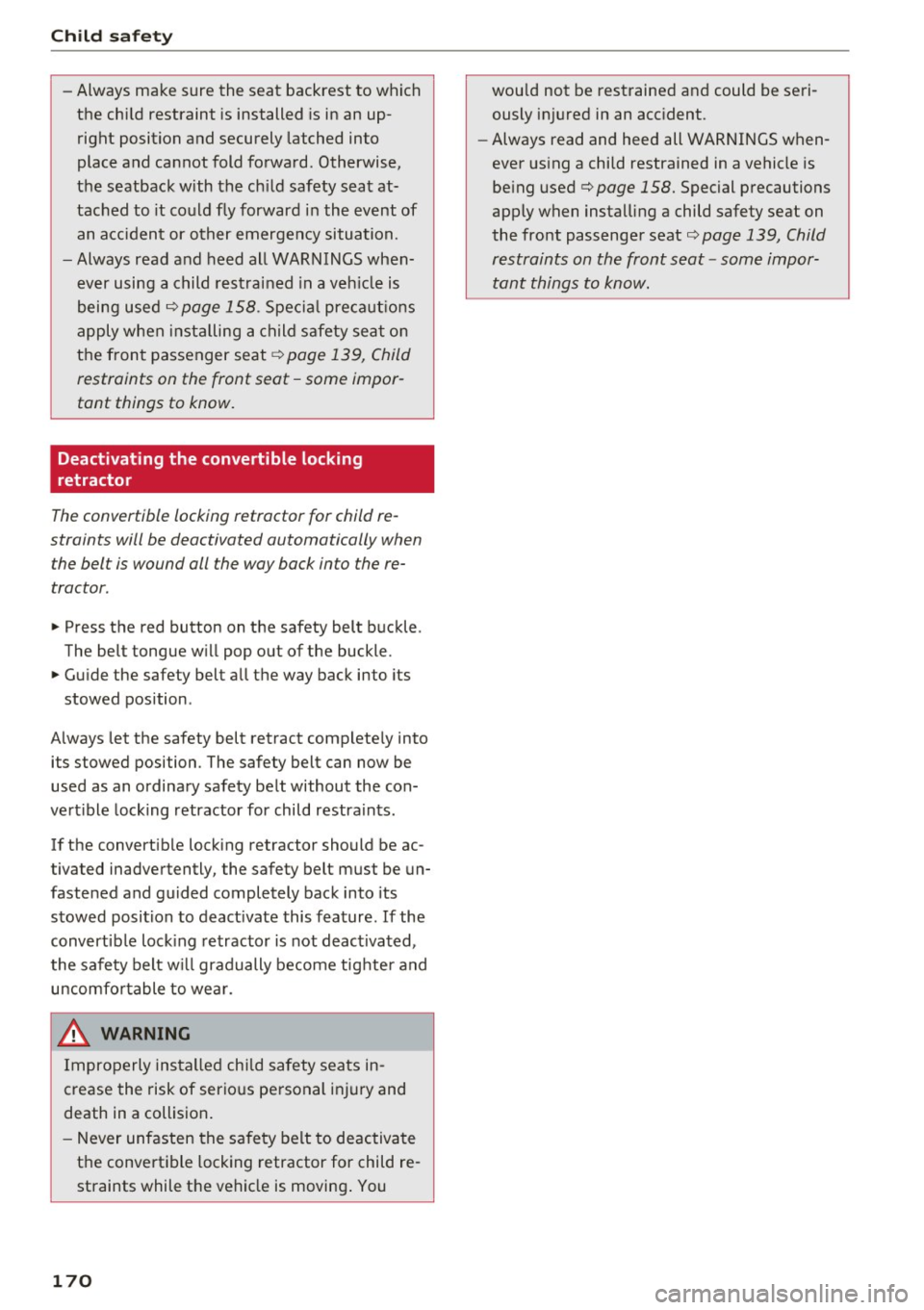

-Always make sure the seat backrest to which
the child restraint is installed is in an up­
right position and securely latched into
place and cannot fold forward. Otherwise,
the seatback with the child safety seat at­
tached to it could fly forward in the event of
an accident or other emergency situation.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 158 . Special precautions
apply when installing a child safety seat on
the front passenger seat¢
page 139, Child
restraints on the front seat -some impor­
tant things to know.
Deactivating the convertible locking
retractor
The convertible Locking retractor for child re­
straints will be deactivated automatically when
the belt is wound all the way bock into the re­
tractor .
~ Press the red button on the safety belt buckle.
Th@ belt tongue will pop out of the buckle.
~ Guide the safety belt all the way back into its
stowed position .
Always let the safety belt retract completely into
its stowed position . The safety belt can now be
used as an ordinary safety belt without the con­
vertible locking retractor for child restraints.
If the convertible locking retractor should be ac­
tivated inadvertently, the safety belt must be un­
fastened and guided completely back into its
stowed position to deactivate this feature. If the
convertible locking retractor is not deactivated,
the safety belt will gradually become tighter and
uncomfortable to wear.
A WARNING
-
Improperly installed child safety seats in­
crease the risk of serious personal injury and
death in a collision.
- Never unfasten the safety belt to deactivate
the convertible locking retractor for child re­ straints while the vehicle is moving. You
170
would not be restrained and could be seri­ously injured in an accident.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 158. Special precautions
apply when installing a child safety seat on
the front passenger seat<=:>
page 139, Child
restraints on the front seat -some impor­
tant things to know.

,....,
N
0
""' CX) ,....,
I.Cl U"I ,....,
I.Cl ,....,

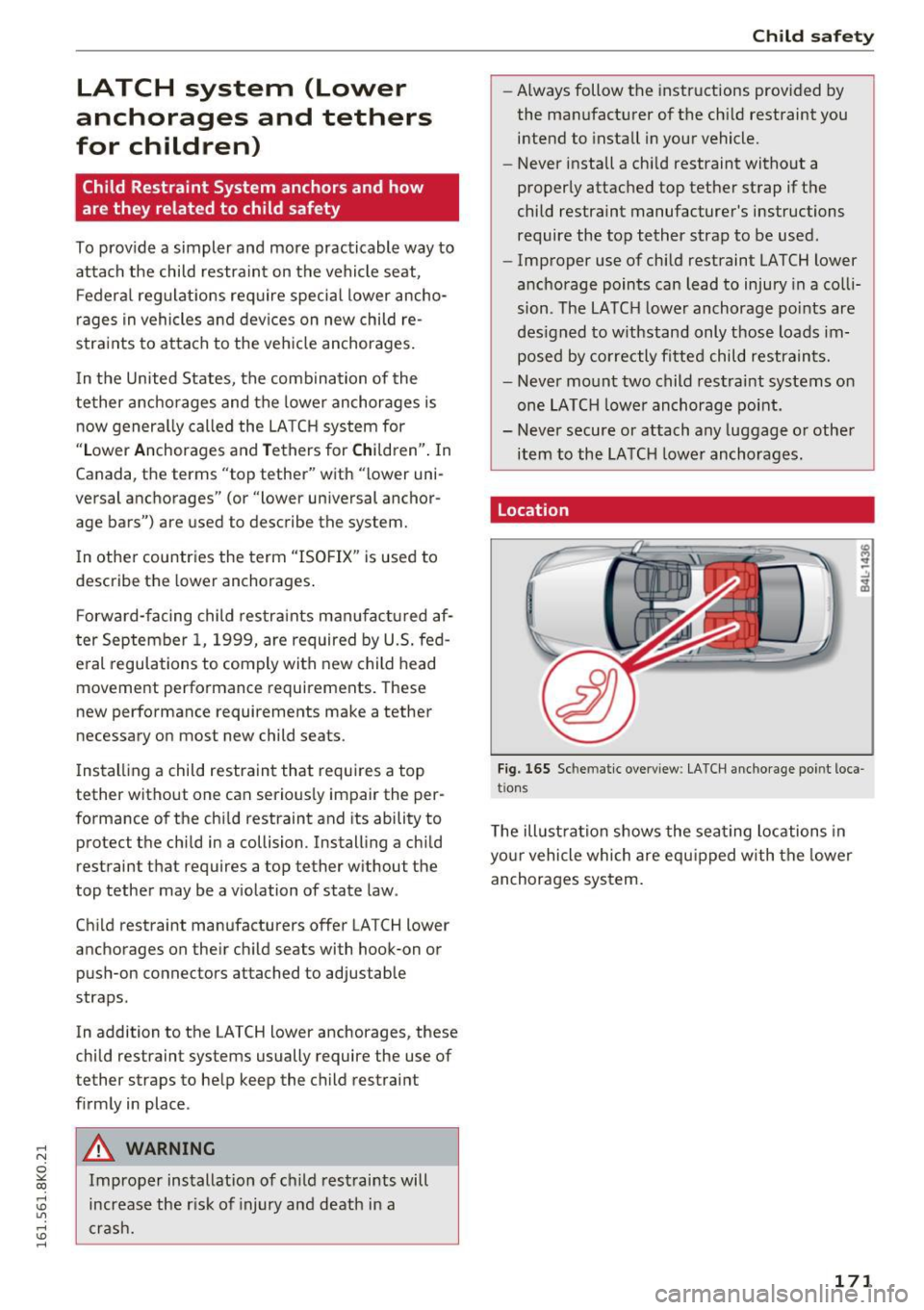

LATCH system (Lower
anchorages and tethers
for children)
Child Restraint System anchors and how
are they related to child safety
To provide a simpler and more practicable way to
attach the child restraint on the vehicle seat,
F ederal regulations require special lower ancho­
rages in vehicles and devices on new child re­
straints to attach to the vehicle anchorages.
In the United States, the combination of the
tether anchorages and the lower anchorages is
now generally called the LA TCH system for
" L ower Anchorages and Tethers for Children". In
Canada, the terms "top tether" with "lower uni­
versal anchorages" (or "lower universal anchor ­
age bars") are used to describe the system.
In other countries the term "ISOFIX" is used to
describe the lower anchorages .
F orward-facing child restraints manufactured af­
ter September 1, 1999, are required by U.S. fed­
eral regulations to comply with new child head
movement performance requirements. These
new performance requirements make a tether
necessary on most new child seats.
Installing a child restraint that requires a top
tether without one can seriously impair the per­
formance of the child restraint and its ability to protect the child in a collision . Installing a child
restraint that requires a top tether without the
top tether may be a violation of state law.
Child restraint manufacturers offer LATCH lower
anchorages on their child seats with hook-on or push-on connectors attached to adjustable
straps.
In addition to the LATCH lower anchorages, these
child restraint systems usually require the use of
tether straps to help keep the child restraint
firmly in place .
A WARNING
Improper installation of child restraints will
increase the r isk of injury and death in a
crash.
Child safety
- Always follow the instructions provided by
the manufacturer of the child restraint you
intend to install in your vehicle.
- Never install a child restraint without a
properly attached top tether strap if the
child restraint manufacturer's instructions
require the top tether strap to be used .
- Improper use of child restraint LATCH lower
anchorage points can lead to injury in a colli­
sion . The LATCH lower anchorage points are
des igned to withstand only those loads im­
posed by correctly fitted child restraints.
- Never mount two child restraint systems on
one LATCH lower anchorage point.
- Never secure or attach any luggage or other
item to the LATCH lower anchorages.
Location
Fig. 165 Schematic overview: LATCH anchorage poi nt loca­
tions
The illust ration shows the seating locations in
your vehicle which are equ ipped with the lower
anchorages system.
171

Child safety

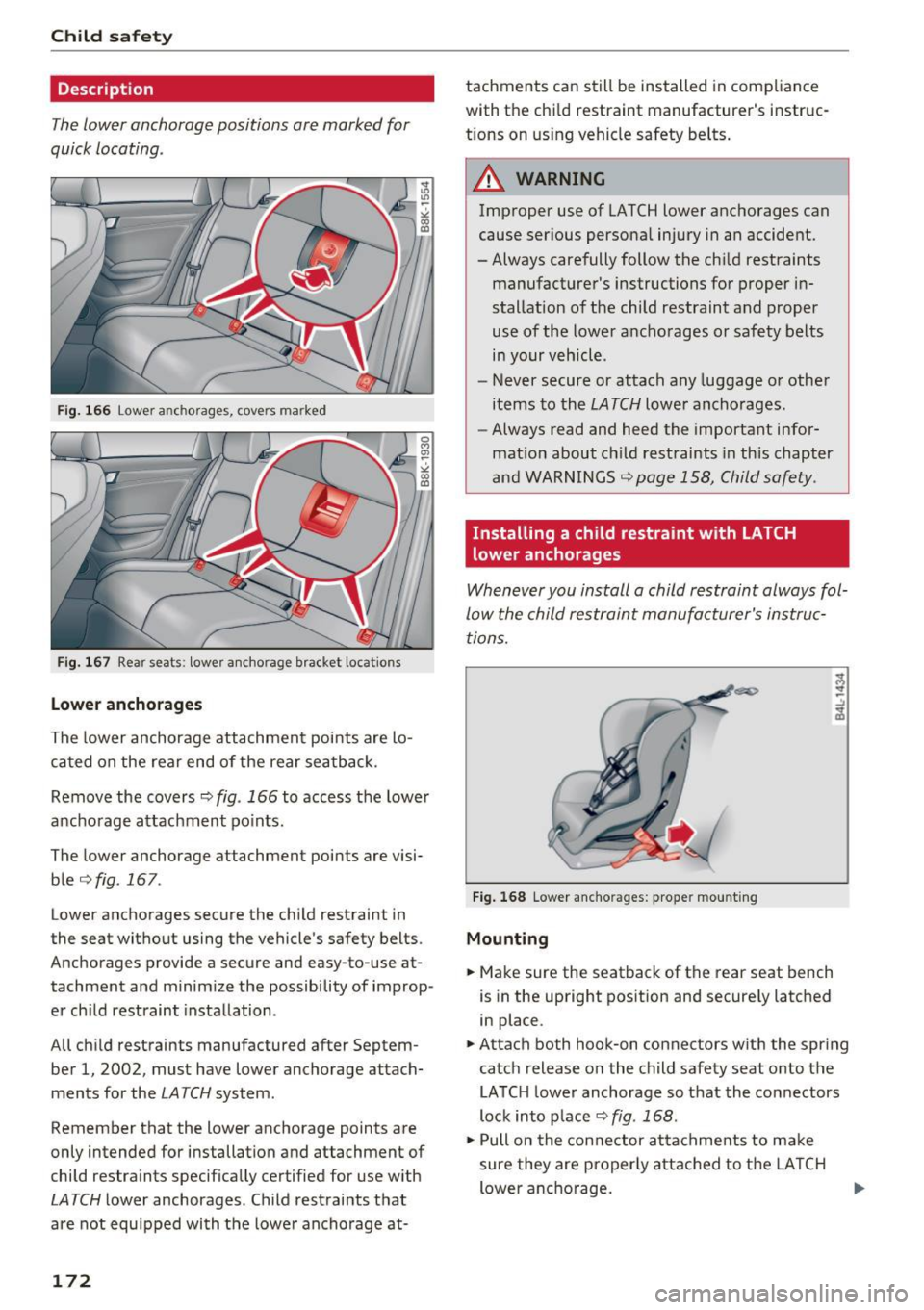

Description
The lower anchorage positions are marked for
quick locating .
Fig . 1 66 Lower anchorages, covers marked
Fig . 167 Rear seats: lower anc horage bracket locations
Lower ancho rages
The lower anchorage attachment points are lo­
cated on the rear end of the rear seatback.
Remove the covers
r::;, fig . 166 to access t he lowe r
anchorage attachment po ints.
The lower anchorage attachment points are visi­
ble
<=> fig . 167 .
Lower anchorages secure the child restraint in
the seat without using the vehicle's safety belts.
Anchorages provide a secure and easy-to-use at­
tachment and minim ize the possibility of improp­
er ch ild restraint insta llation .
All child restraints manufactured after Septem­
ber 1, 2002, must have lower anchorage attach­
ments for the
LATCH system .
Remember that the lower anchorage points are
only intended for installation and attachment of
child restraints specifically certified for use w ith
LATCH lower anchorages . Child restraints that
are not equipped with the lower anchorage at-
172
tachments can still be installed in compliance
with the chi ld restraint manufacturer's instruc­
tions on us ing vehicle safety be lts.
_& WARNING
Improper use of LATCH lower anchorages can
cause serious personal injury in an accident.
-Always carefully follow the ch ild restraints
manufacturer's instructions for proper in­
stallation of the child restraint and proper
use of the lower anchorages or safety belts
in your vehicle .
-Never secure or attach any luggage or other
items to the
LATCH lower anchorages .
- Always read and heed the important infor­
mat io n about ch ild restraints in this chapter
and WARNI NGS
r::;, page 158, Child safety .
Installing a child restraint with LATCH
lower anchorages
Whenever you install a child restraint always fol­
low the child restraint manufacturer's instruc­
tions.
Fig . 168 Lower anchorages : prope r mount ing
Mounting
.,. Make sure the seatback of the rear seat bench
is in the upright pos ition and secure ly latched
in place .
.,. Attach both hook-on connectors with the spring
catch release on the child safety seat onto the
LATC H lower anchorage so that the connectors
lock into p lace
r::;, fig . 168 .
.,. Pull on the con nector atta chments to make
sure they are properly attached to the LA TCH
lower ancho rage.

,....,
N
0
""' CX) ,....,
I.Cl U"I ,....,
I.Cl ,....,

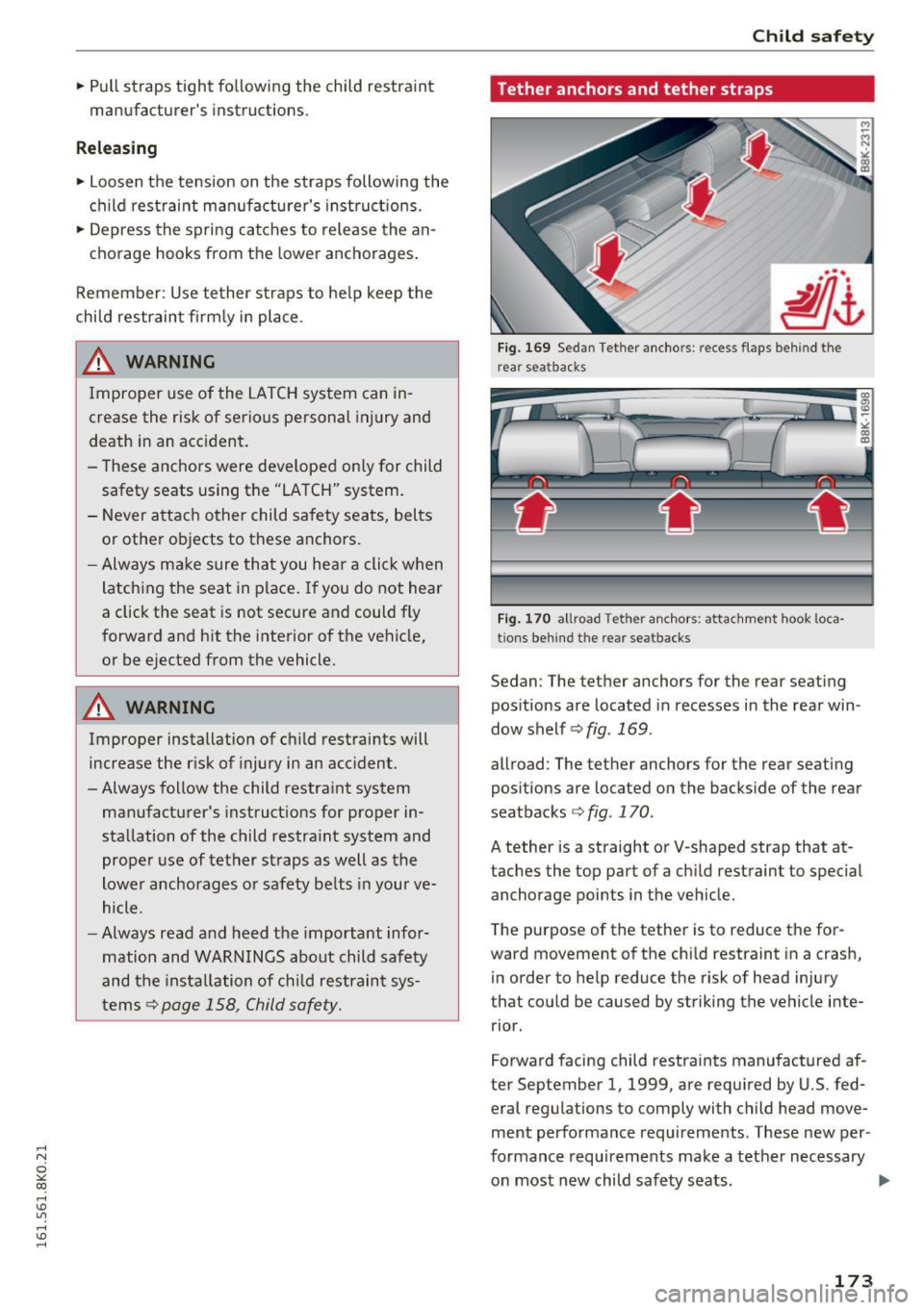

.. Pull straps tight fo llowing the child restraint
manufacturer's instructions.
Releasing
.. Loosen the tension on the straps following the
child restraint manufactu rer's instruct io ns .
.. Depress the spring catches to release the an­
chorage hooks from the lower anchorages .
Remember: Use tether straps to help keep the
child restrain t firm ly in place.
A WARNING
Improper use of the LATCH system can in­
crease the risk of serious personal injury and
death in an acc ident .
- These anchors were deve loped only for child
safety seats using the "LATCH" system.
- Never attac h other child safety seats, belts
o r othe r objects to these anchors.
- Always ma ke sure that you hear a click when
latching the seat in place . If you do not hear
a click the seat is not secure and could fly
forward and hit the interior of the vehicle,
or be ejected from the vehicle.
A WARNING
Improper installation of child restraints will
increase the r isk of injury in an acc ident.
-Always follow the child restra int system
manufacturer's instruct io ns for proper in­
stallation of the child restraint system and prope r use of tether straps as well as the
lower anchorages or safety be lts in your ve­
hicle.
- Always read and heed the important infor­
mation and WARNINGS about child safety
and the insta llation of chi ld restraint sys­
t ems~ page
158, Child safety.
Child sa fety
Tether anchors and tether straps
F ig. 169 Sedan Tether anchors: recess flaps behind the
rear seatbacks
Fig . 1 70 allroad Tether anchors: attac hment hoo k loca­
tions behind the rear seatbacks
Sedan: The tether anchors for the rear seating
pos itions are located in recesses in the rear win­
dow shelf
Q fig. 169.
allroad: The tether anchors for the rear seating
pos itions are located on the backs ide of the rear
seatbacks
o fig . 170.
A tether is a straight or V-shaped strap that at ­
taches the top part of a ch ild restraint to special
anchorage points in the vehicle.
T he purpose of the tether is to reduce the for­
ward movement of the chi ld restraint in a crash,
in order to help reduce the risk of head injury
that could be caused by striking the vehicle inte­
rior.
Forward facing child restraints manufactured af­
ter September 1, 1999, are requ ired by U.S . fed­
eral regulations to comply with child head move­
ment performance requirements . These new per­
formance requ irements make a tether necessary
on most new child safety seats. ..,.
173

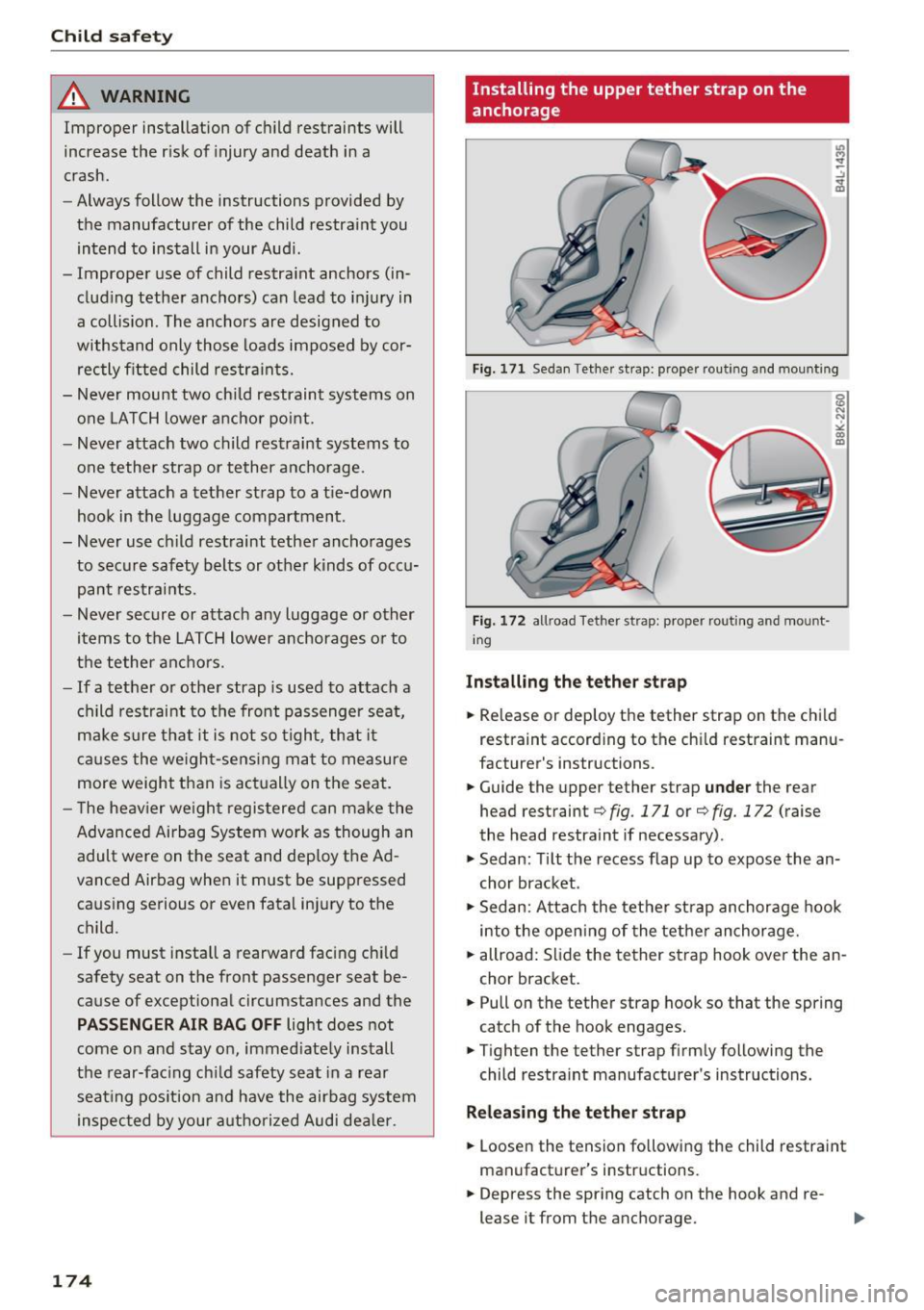

Child safety
_& WARNING
Improper installation of child restraints will
increase the risk of injury and death in a
crash.
-Always follow the instructions provided by
the manufacturer of the child restraint you intend to install in your Audi.
- Improper use of child restra int anchors (in­
clud ing tether anchors) can lead to injury in
a collision. The anchors are designed to
withstand only those loads imposed by cor­ rectly fitted child restraints.
- Never mount two chi ld restraint systems on
one LATCH lower anchor po int.
- Never attach two child restraint systems to
one tether strap or tether anchorage.
- Never attach a tether strap to a tie-down
hook in the luggage compartment.
- Never use ch ild restraint tether anchorages
to secure safety belts or other kinds of occu­
pant restra ints.
- Never secure or attach any luggage or other
items to the LATCH lower anchorages or to
the tether ancho rs.
- If a tether or other strap is used to attach a
child res traint to the front passenger seat,
make sure that it is not so tight, that it
ca uses the we ight-sens ing mat to measure
more weight than is ac tually on the seat.
- T he heav ier we igh t registered can make the
Advanced Airbag System work as though an adult were on the seat and dep loy the Ad ­
vanced Airbag when it must be suppressed
ca using serious or even fatal injury to the
child.
- If you must install a rearward facing chi ld
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PA SSEN GE R AIR BA G OFF light does not
come on and stay on, immed iate ly install
the rear-fac ing ch ild safety seat in a rear
seat ing posit ion and have the airbag system
inspec ted by your a uthorized Aud i dea ler.
174
.
Installing the upper tether strap on the
anchorage
Fig. 171 Sedan Tether strap: prope r routing and mount ing
Fig. 172 allroad Tether strap: proper routing and mount­
ing
Installing the tether st rap
... Release or deploy the tether strap on the chi ld
restraint according to the child restraint manu­
facturer's instructions.
.., Guide the upper tether strap
under the rear
head restraint<=>
fig. 171 or<=> fig. 172 (raise
the head restraint if necessary).
.., Sedan: Tilt the recess flap up to expose the an­
chor bracket.
.., Sedan: Attach the tethe r st rap anchorage hook
into the open ing of the tethe r anchorage.
... allroad: Slide the tether strap hook over the an­
chor bracket.
... Pull on the tether strap hook so that the spring
catch of the hook engages.
.., Tighten the tether strap firm ly following the
child restra int manufacturer's instructions.
Relea sing the tether strap
... Loosen the tension following the child restraint
manufact urer's instructions .
... Depress the spr ing catch on the hook and re­
lease it from the anchorage.

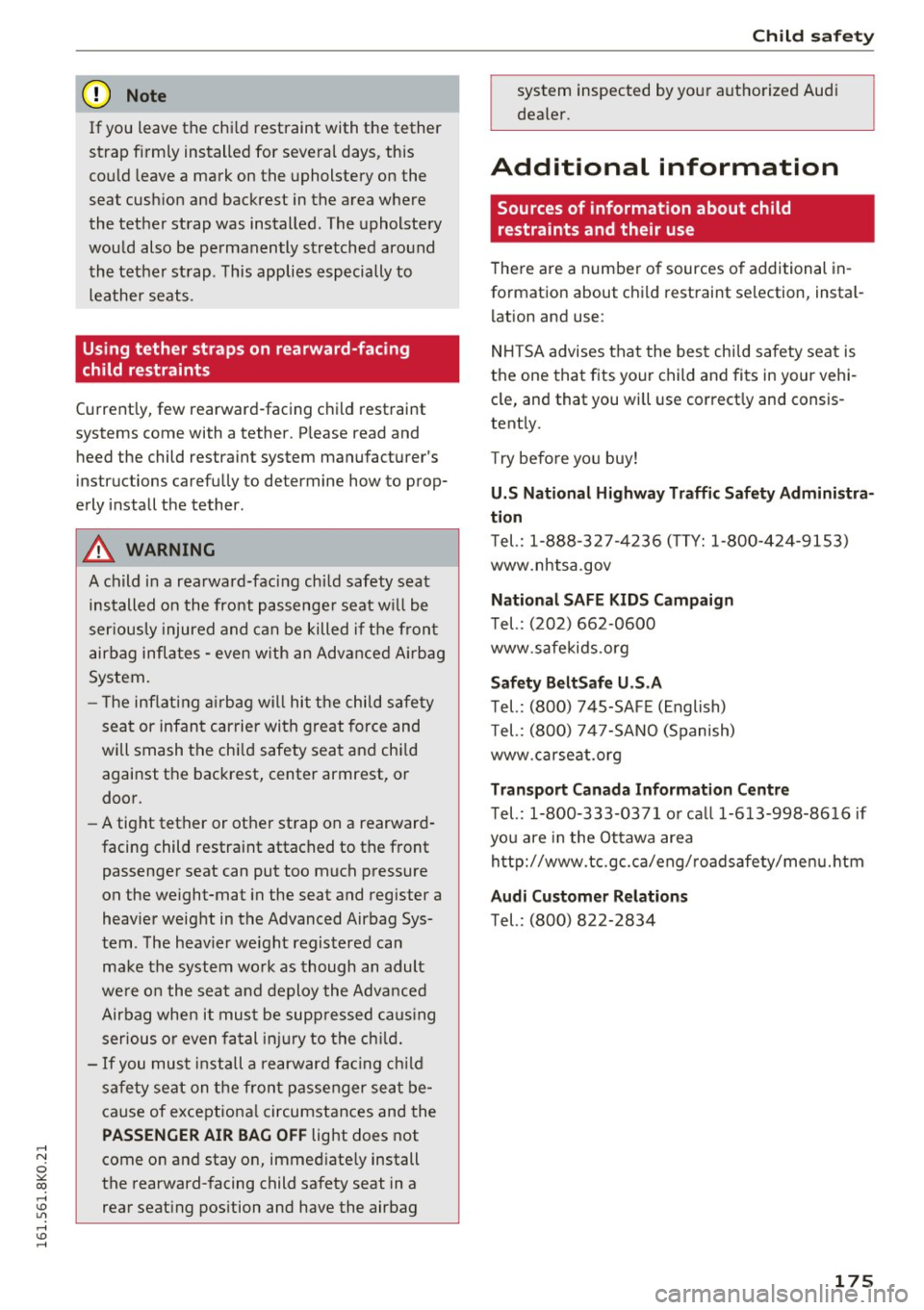

..... N
0 ::..:: co ..... ..... (D Note
If you leave the child restraint with the tether
strap firmly installed for several days, this
could leave a mark on the upholstery on the
seat cushion and backrest in the area where
the tether strap was installed . The upholstery
would also be permanently stretched around
the tether strap . This applies especially to
leather seats .
Using tether straps on rearward-facing
child restraints
Currently, few rearward -facing child restraint
systems come with a tether. P lease read and
heed the child rest raint system manufacturer's
instruc tions care fully to de termine how to prop­
erly install the tether.
A WARNING
A child in a rearward-facing child safety seat installed on the front passenge r seat w ill be
ser ious ly injured and can be killed if the front
airbag infla tes · even w ith an Advanced A irbag
System.
- T he inflating a irbag wi ll hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and chi ld
against the backrest, center armrest, or
door .
- A tight tether or other strap on a rearward­
facing child restra int attached to the front
passenger seat can put too much pressure
on the weight-mat in the seat and register a heavier weight in the Advanced Airbag Sys­
tem . The heav ier weight registered can
make the system wo rk as though an adult
we re o n the seat a nd deploy the Advanced
Airbag when it must be supp ressed caus ing
serious o r even fatal in jury to the c hild.
- If you must install a rearward fac ing ch ild
sa fety seat on the front passenger seat be­
cause of exceptiona l circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediate ly install
the rearward-facing child safety seat in a rear seat ing pos ition and have the airbag
Ch ild safety
system inspected by your authorized Audi
dealer .
Additional information
Sources of information about child
restraints and their use
There are a number of sources o f additional in ­
formation about child restraint se lection, instal­
lation and use :
N HT SA advises tha t the best ch ild safety seat is
the one that fits your child and fits in your vehi ­
cle, and that you wi ll us e correct ly and consis ­
tent ly.
T ry before you buy!
U.S National H igh way Traffic Safety Administra ­
tion
T el. : 1-888 -327-4236 ( TTY: 1-800 -424-9153)
www.nhtsa .gov
Nati onal SAFE KIDS Campaign
Tel. : (202) 66 2-0600
www .safekids.org
Saf ety BeltSaf e U.S .A
T el. : (800) 745-SAFE (English)
T el. : (800) 747-SANO (Spanish)
www .carseat.org
Tran sport C anada Information Centr e
Tel. : 1-800-333-0371 o r ca ll 1-613-998-86 16 if
you are in the Ottawa area
http://www.tc.gc.ca/ eng/ roadsafety/men u. htm
Audi Cu stom er Re lations
T el. : (800) 822-2834
175

Intelligent Technology
Intelligent Technology
Notice about data
recorded by the Event
Data Recorder and
vehicle control modules
Event Data Re corder
This vehicle is equipped wi th an Event Data Re ­
corder (EDR) . The main purpose of an E DR is to
record, in certain crash or near crash -like situa­
tions, such as an airbag deploym ent or h itting a
road obstacle, data that will assist in understand­
ing how a veh icle 's systems performed . The EDR
is designed to record data related to veh icle dy­
namics a nd safety systems for a sho rt period of
time, typically 30 seconds or less . The E DR in this
veh icle is designed to reco rd s uch data as :
- How various systems in your vehicle were oper­
at ing;
- Whether or not the driver and passenger safety
belts were buckled/fastened;
- How far ( if at all) the driver was depressing the
acce lerator and/or brake peda l; and,
- How fast the ve hicle was trave ling.
These data can help provide a better understand­ ing of the ci rc u mstances in which c rashes and in ­
juries occur. NOT E: EDR data are recorded by yo ur
veh icle only if a non-trivia l crash situat ion occurs;
no data are recorded by the EDR under normal
driving conditions and no personal data (e .g .,
name, gender, age, and crash location) a re re­
corded . H owever , other pa rties , such as law en­
forcement, cou ld combine the EDR data w it h the
type o f person ally identifyi ng dat a routine ly ac­
qu ired dur ing a crash invest igat ion .
To read data reco rded by an EDR, specia l equip­
men t is req uire d, and access to the veh icle or the
E DR is needed. In ad dition to the vehicle manu­
facturer, other parties, s uch a s law enforcement,
that have t he specia l equipment, can read the in­
formation if they have access to the vehicle or the E DR.
Some s tate laws restrict the re trieva l or down­
loading of data stored by ED Rs insta lled in a vehi ­
cle fo r the express purpose of retrieving data af -
176
ter an accident or crash event withou t the own ­
er 's consent.
Audi will not access the EDR and /or sim ilar data
o r g ive it to others -
- unless t he ve hicle ow ner (o r lessee if the vehi­
cle has been leased) ag rees; o r
- upon the offic ial request by the police; or
- upon the order of a court of law or a govern-
ment agency; or
- for the defense of a lawsuit through the jud icia l
discovery process.
- Audi may also use the data for research about
veh icle operation and safety perfo rmance or
prov ide the data to a th ird party for research
purposes w itho ut identify ing t he specific vehi­
cle or info rmat ion about the ident ity of its own­
er or lessee and only afte r th e re co rded vehicle
d ata has been a ccessed.
Vehicle control modules
You r vehicle is also equ ipped with a number of
e lectronic cont rol modules for va rious vehicle
syste ms, such as engine ma nagement, em iss io n
contro l, air bag s, a nd safety be lts.
These electronic control modules record data
dur ing norma l vehicle operation t hat may be
n eeded by tra ined techn ic ians for d iagnost ic and
r ep air pur poses. The re cording capab ility of these
modules is lim ited to dat a (no sou nd is recor d­
ed). Only a sma ll amount of data is actually re ­
corded over a very limited period of time, or stor­
ed when a system fault is detected by a contro l
module . Some of the data stored may relate to
vehicle speed, direction, or braking, as well as re­
straint system use and performance in the event
of a crash . Stored data can also only be read a nd
down loaded w it h specia l equipment that is d i­
r ec tly connec ted to the vehicle.
(D Tips
Your vehicle may be e quipped w it h Aud i con­
n ect . Yo ur use of certain Aud i connect fea­
tures requires wire less services that are p ro­
v ided by a third party wireless telecomm uni­
cations provider. Fo r de tails regarding how in ­
fo rmation obtained through Aud i connect is
collecte d, processe d, transmitted, use d, an d ..,.

..... N
0 ::..:: co ..... ..... shared, please see your contract with the
wireless telecommunications provider and the
"About Aud i connect" tab in your vehicle's
MMI*:
IMENU I button> Audi connect > About
Audi conn ect.
Electronic Stabilization
Control (ESC)
Description
ESC helps to improve road ho ld ing and vehicle
dynamics to help reduce the probability of skid­
d ing and loss of veh icle control. It works only
when the engine is runn ing . E SC detects certain
d ifficult dr iving sit uat ions, including when t he
ve hicl e is begin ning to spin (yaw) out of co ntro l
a nd helps you to ge t the veh icle back under con­
tro l by se lective ly bra king the wheels, and/or re ­
d ucing engine powe r and provid ing steering as­
sistance to help hold the vehicle on the dr iver's
intended course. The indicator light
GJ in the in­
strument cluster blinks when ESC is taking action
to help you co ntro l the vehicle.
ESC has limitations. It is important to remember
that ESC cannot overcome the laws of physics. It
will not a lways be able to help out under all con­
d itions you may come up aga inst. For example,
ESC may not always be able to help you master
situations where there is a sudde n change in the
coeff icient of friction of the road surface. When
there is a section of dry road that is sudde nly cov­
e red with wate r, slush o r snow, ESC cannot pe r­
form the same way i t wo uld on the dry s urface . If
the vehicle hydrop lanes (rides on a cushion of wa­
ter i nstead of t he road su rface), ESC wi ll not be
ab le to he lp you steer the ve hicle because contact
with the pavement has been interrupted and the
ve hicle cannot be b raked or steered. Dur ing fast
cornering, pa rticula rly on w inding roads, ESC
cannot always deal as effect ively w it h difficult
d riving si tuations tha n at lowe r speeds. When
tow ing a t raile r, ESC is no t able to help you re­
g ai n con trol as it would if you we re not towing a
tra iler .
A lways adjust yo ur speed and driving sty le to
road, traffic and weathe r co nd itions. ESC canno t
override the vehicle's physical lim its, increase the
Intellig ent Technology
available t ract ion, or keep a vehicle on the road if
road depart ure is a resu lt of driver inattention .
Instead, ESC improves the possib ility o f keeping
the vehicle under contro l and on the road d uring
extreme maneuvers by us ing the driver's steer ing
i nputs to help keep the veh icle go ing in the in ­
tended direction.
If you are traveling at a speed
that causes you to run off the road before ESC
c an p rovide any assistan ce, you may not exper i­
en ce the benefi ts of ESC.
ESC is swi tched o n all the time . In certa in s itua­
t ions when you need less tract ion, you can sw itch
off AS R by press ing the button
11) c:> page 178,
fig. 173 o r c:> page 178, fig . 174. Be s ure to
swi tch ASR on again w hen you no longe r need
l ess trac tion.
T he following systems are integ ra ted in the ESC:
Anti-lock brak ing system (ABS)
ABS prevents the wheels from locking up w hen
braking. The vehicle can still be steered even d ur­
i ng hard braking. Apply steady p ressure to the
brake pedal. Do not pump the peda l. A p uls ing in
t h e br ake peda l indicates that the system is help­
i ng yo u to b rake the vehi cle.
Brake assist system
T he brake assist system can decrease braking dis­
tance . It increases b raking powe r when the dr iver
presses the b rake peda l quickly in emergency sit­
u at io ns. You mus t press and ho ld the br ake pedal
u nt il t he s ituat ion is ove r. In vehicles wi th adap­
tive cru ise control *, the brake assist system is
more sensitive if the distance detected to the ve ­
hicle ahead is too sma ll.
Anti-slip regulation (ASR )
ASR reduces engine powe r whe n the dr ive whee ls
begi n to spin and adapts the fo rce to the road
co ndit ions . Thi s makes it easier to start, acce ler ­
ate and d rive up hills .
Electronic differential lock (EDL)
T he ED L brakes wheels t hat are spi nning and
transfe rs the dr ive power to the o ther dr ive
whee l or wheels if the vehicle is equ ip p ed with
all -wheel drive*. This function is not ava ilab le at
higher speeds. .,.
177

Inte llig ent Techn olo gy
In extreme cases, EDL automatically switches off
to help keep the brake on the braked wheel from
overheating. EDL will switch on aga in automati­
cally when conditions have returned to normal.
St eer ing r ecomm endation
The ESC helps to stabilize the vehicle by chang ing
the steering torque .
I n vehicles with dynamic steering*, ESC also
helps to stabilize the stee ring in critical situa­
tions.
Electron ic inter axle differential lock*/
sel ective whe el t orque control *
The electronic interaxle differentia l lock (front
wheel drive) or the selective wheel torque control
(a ll whee l drive) operates when driving through
curves . The front wheel on the inside of the curve
or both wheels on the inside of the curve are
braked selectively as needed. This allows more
precise driving in curves. The applicable system
may not activate when driving in wet or snowy
conditions.
.,&. WARNING
- The ESC and its in tegrated systems canno t
overcome the laws of phys ics. This is espe­
c ially important on slippery or wet roads.
If
the systems begin acting to stabilize your
Switching on /off
vehicle, you should immediately change
your speed to match the road and traffic
conditions. Do not let the increased safety
provided by these systems tempt you to
take risks. Doing so will increase the risk of
a loss of vehicle control, collision and seri­
ous personal injuries.
- Always adapt your speed to road, traffic and
weather conditions. The risk of los ing con­
trol of the vehicle increases when driving
too fast, espec ially through curves and on
slippery o r wet roads, and when driving too
close to vehicles up ahead . The ESC and its
integrated systems cannot always prevent
collisions -there is still a risk of accidents!
- Always accelerate with specia l care on even,
smooth surfaces such as those that are wet
or covered with ice and snow. The drive
wheels can spin even with these assistance
systems that cannot always help to reduce
the risk of loss of vehicle control.
@ Tips
- ABS and ASR only work correct ly when all
four wheels are equipped with identical
t ires. Different tire sizes can lead to a reduc­
t ion in engine power.
- You may hear noises when the systems de­
scribed are working.
ESC turns on automatically when you start the engine .
Fig. 173 Version A: lower center console,~ OFF button
The ESC is des igned to function in levels. Depend­
i n g on the level tha t is selected, the stabilization
function of the ESC is limited or switched off. The
178
Fig. 174 Version B: upper center console,~ OFF button
amount of stabilization contro l w ill diffe r de­
pending on the level.
"' N N N ~ 0:, m
