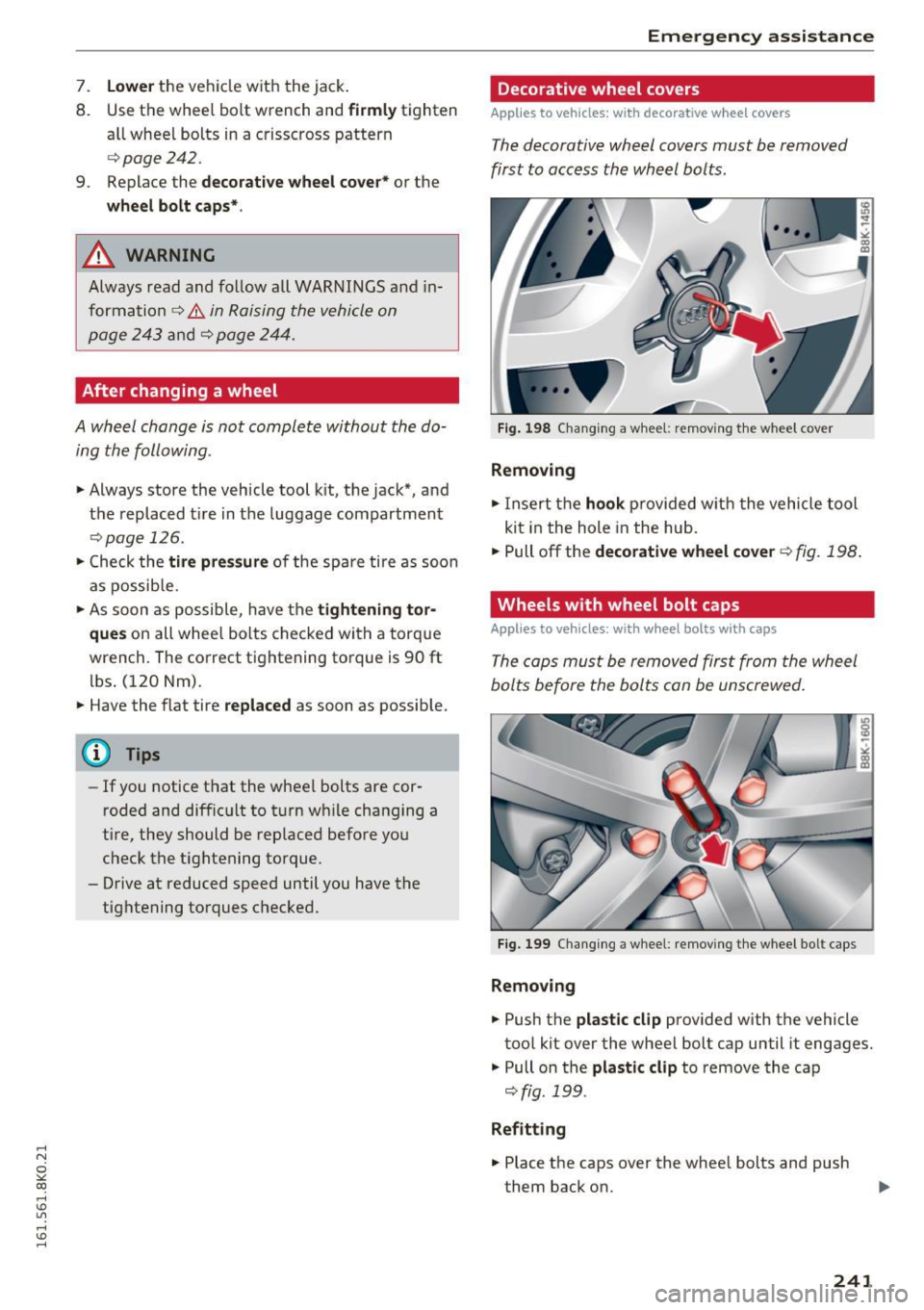

7. Lower the vehicle with the jack .
8 . Use the wheel bolt wrench and
firmly tighten
all wheel bolts in a crisscross pattern
c>page242.
9. Replace the decorative wheel cover* or the
wheel bolt caps* .
A WARNING
Always read and follow all WARNINGS and in­
formation
¢ &. in Raising the vehicle on
page 243
and c> page 244.
After changing a wheel
A wheel change is not complete without the do­
ing the following .
.,. Always store the vehicle tool kit, the jack*, and
the replaced tire in the luggage compartment
c>page 126.
.,. Check the tire pressure of the spare tire as soon
as possible.
.,. As soon as possible, have the
tightening tor·
ques
on all wheel bolts checked with a torque
wrench. The correct tightening torque is 90 ft lbs. (120 Nm).
.,. Have the flat tire
replaced as soon as possible.
@ Tips
- If you notice that the wheel bolts are cor­
roded and difficult to turn while changing a
tire, they should be replaced before you
check the tightening torque.
- D rive at reduced speed until you have the
tightening torques checked.
Emergency assistance
Decorative wheel covers
Applies to vehicles: with decorative wheel covers
T he decorative wheel covers must be removed
first to access the wheel bolts.
Fig. 198 Changing a whee l: re moving the wheel cover
Removing
.,. Insert the hook provided with t he vehicle tool
kit in the hole in the hub.
.,. Pull off the
decorative wheel cover c> fig. 198 .
Wheels with wheel bolt caps
Applies to vehicles: with wheel bolts w,th caps
The caps must be removed first from the wheel
bolts before the bolts can be unscrewed .
Fig. 199 Changing a wheel: removing the wheel bolt cap s
Removing
.,. Push the plastic clip provided with the vehicle
too l kit over the wheel bolt cap un til it engages .
.,. Pull on the
plastic clip to remove the cap
c>fig. 199 .
Refitting
.,. Place the caps over the whee l bolts and push
them back on.
241

Emergency assistance

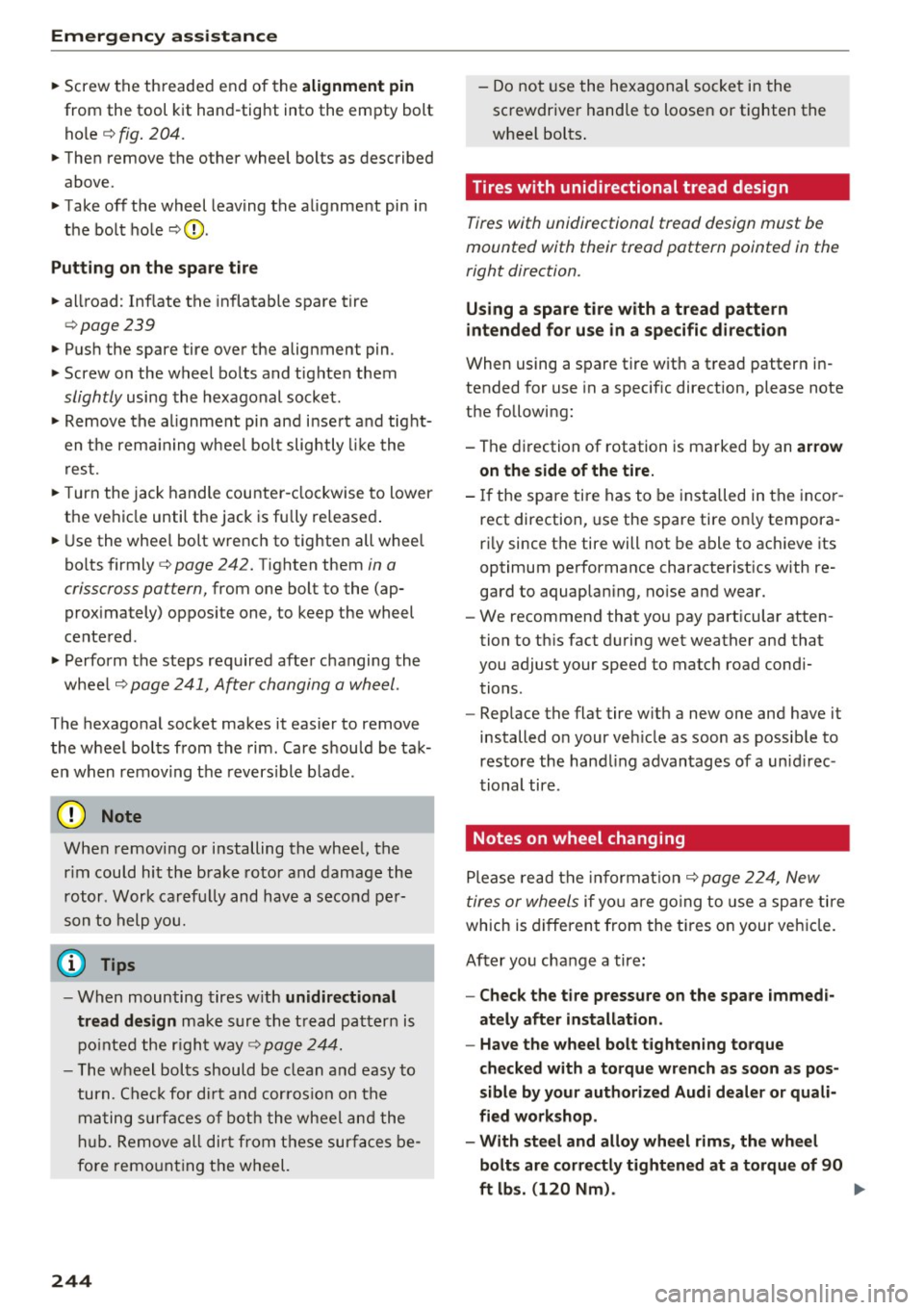

"' Screw the threade d end of the alignment pin
from the tool kit hand-tight into the empty bolt
ho le ¢
fig . 204 .
"'Then remove the other wheel bolts as described
above.
"' Take off the wheel leav ing the a lignment pin in
the bol t ho le ¢ (D .
Putting on the spare tire
"'all road : Inf late the inflatable spare tire
¢ page239
"'Push the spare tire over the alig nment pin .
"' Screw on the wheel bo lts and tighten them
slightly using the hexagonal socke t.
"' Remove the a lignment pin and inse rt and tig ht­
en the rema ining whee l bol t slightly like the
r e st .
"'T urn the jack handle counte r-clo ckwise to lower
the ve hicl e until the jack is fully re leased .
"' Use the whee l bolt wrench to tighten all whee l
bo lts firmly ¢
page 242. Tighten them in a
crisscross pattern,
from one bolt to the (ap­
prox imately) opposite one, to keep the wheel
cente red .
"' Perform the steps req uired afte r changing th e
whee l¢
page 241, After changing a whe el.
The hexago nal soc ket makes it eas ier to remove
the wheel bolts from t he rim . Care shou ld be tak­
e n when remov ing t he revers ible b lade .
([) Note
When removi ng or installing the wh ee l, the
r im cou ld hit the brake ro tor and damage th e
rotor . Work ca refull y and have a secon d per­
so n t o help yo u.
@ Tips
- W hen mounting tir es w ith unidirectional
tread design
mak e sure th e tread pa ttern is
p oin te d t he r igh t way ¢
page 2 44.
-The w heel bol ts should b e cle an an d easy to
t urn. Check for d irt and cor ros io n on the
m at ing s urf ac es o f both t he whee l and the
hu b. Rem ove a ll di rt from th ese sur fac es b e­
f o re remo untin g t he wheel.
244
- Do not use the hexagonal socke t in the
sc rewdrive r hand le to loose n or tig hten the
wheel bol ts .
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction.
Using a spare tire with a tread pattern
intended for use in a specific direction
When using a spare tire w ith a t read pattern in­
tended for use in a specif ic direction, please note
the following:
- The direction of rotation is marked by an
arrow
on the side of the tire.
- If the spare tire has to be inst alled in the inco r­
rect direction, use the spare tire on ly tempora ­
r il y since the tire will not be a ble to ac hieve its
optimum performance characterist ics with re­
gard to aquaplan ing, no ise and wear.
- We recommend that you pay part icu lar atten­
tion to th is fact d uring wet weather and that
you adjust your speed to matc h road condi­
tions .
- Rep lace the flat tire w ith a new one and have it
installed o n your veh icle as soon as possib le to
restore the hand ling advan tages of a un id irec­
t ional tire.
Notes on wheel changing
Please re ad th e inf ormati on ¢ page 224, New
t ires or w heels
if yo u are going to use a sp are tire
which is d iffe rent from the t ires on your ve hicle.
Af ter yo u cha nge a tire :
-Check the tire pressure on the spare immedi­
ately after installation .
- Have the wheel bolt t ightening torque
checked with a torque wrench as soon as pos­
sible by your authorized Audi dealer or quali­
fied workshop.
- With steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of 90
ft lb s. (120 Nm). ..,_
