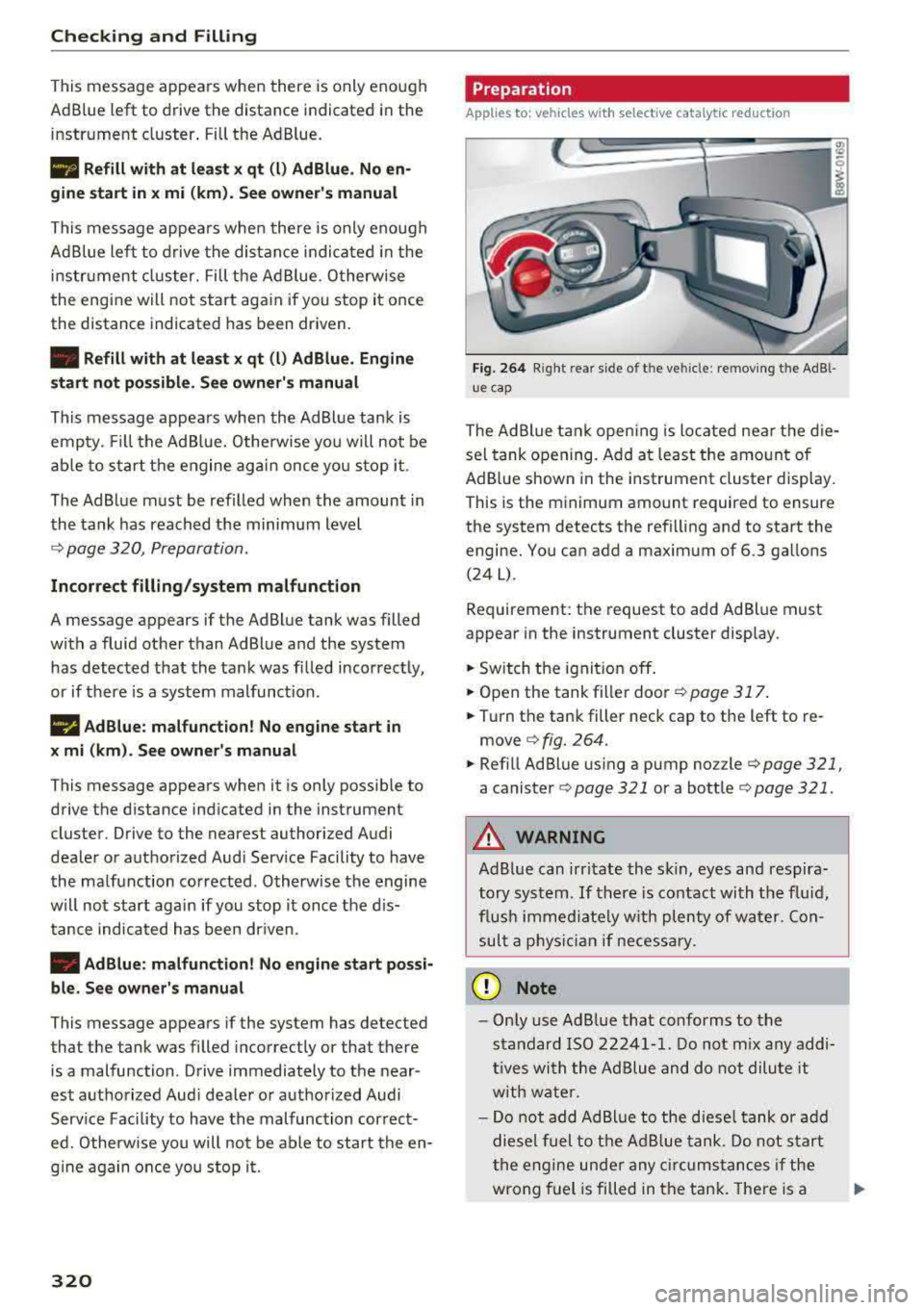

Checking and Filling
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
instrument cluster . Fill the Ad Blue .
• Refill with at least x qt (l) Ad Blue. No en­
gine start in x mi (km). See owner's manual
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
instr ument cluster. Fill the Ad Blue. Otherwise
the engine will not start again if you stop it once
the d istance indicated has been driven .
• Refill with at least x qt (l) AdBlue. Engine
start not possible . See owner's manual
This message appears when the AdBlue tank is
empty. Fill the AdB lue. Otherwise you will not be
able to start the engine again once you stop it .
The AdBlue must be refilled when the amount in
the tank has reached the minim um level
c::> page 320, Preparation.
Incorrect filling/system malfunction
A message appears if the Ad Blue tank was filled
with a fluid other than AdBlue and the system has detected that the tank was fi lled incorrectly ,
or if there is a system malfunction .
II Ad Blue: malfunction! No engine start in
x mi (km). See owner's manual
This message appears when it is only possible to
drive the d istance ind icated in the instrument
cluster. Drive to the nearest authorized Audi
dealer or authorized Aud i Serv ice Facility to have
the malfun ction corrected. Otherwise the engine
will not start again if you stop it once the dis­
tance indicated has been driven .
• Ad Blue: malfunction! No engine start possi­
ble. See owner's manual
This message appears if the system has detected
that the tank was filled incorrectly or that there
is a malfunction . Drive immediately to the near ­
est authorized Aud i dealer or authorized Audi
Service Facility to have the malfunction cor rect­
ed. Otherwise you will not be able to start the en­
g in e again once you stop it .
320
Preparation
App lies to : vehicles with selective cata lyt ic reduct ion
Fig. 264 R ig ht re ar sid e o f th e ve hicle: removing th e Ad B l­
ue cap
The Ad Blue tank open ing is located near the die­
sel tank opening. Add at least the amount of
Ad Blue shown in the instrument cluster display.
This is the minimum amount required to ensure
the system detects the refilling and to start the
engine. You can add a maximum of 6 .3 gallons
(24
L) .
Requ irement: the request to add Ad Blue must
appear in the instrument cluster display .
.. Switch the ignition off.
.. Open the tank fille r doo r c::> page 317 .
.. Turn the tank filler neck cap to the left to re­
move
c::> fig. 264 .
.. Refill Ad Blue using a pump no zzle c::> page 321,
a canister c::> page 321 or a bottle c::>page 321.
A WARNING
AdBlue can irritate the skin, eyes and respira­
tory system .
If there is contact with the fluid,
flush immed iately w ith plenty of water . Con­
sult a physician if necessary .
(D Note
-Only use Ad Blue that conforms to the
standard ISO 22241-1. Do not mix any addi­
ti ves wi th the Ad Blue and do not dilute it
with water .
- Do not add AdBlue to the diesel tank or add
diesel fuel to the Ad Blue tank. Do not start
the engine under any circumstances if the
wrong fuel is filled in the tank. There is a

a co .... N ,....
N .... 0 0
3 co
risk of damaging the fuel tank system and
the engine . See an authorized Audi dealer or
authorized Audi Serv ice Facility for ass is­
tance.
-Ad B lue attacks surfaces such as painted ve­
hicle components, plastic and carpet. Re­
move the fluid as quickly as poss ible with a
damp cloth and plenty of cold wa ter. If the
Ad Blue has already crystallized, use warm
water and a sponge . Ad Blue residue that is
not removed will crystallize and can damage
the affected surface .
-Do not store refill bott les or canisters per­
manent ly in the veh icle. If the container
l ea ks, the escaping AdBl ue could damage
the veh icle inter ior.
-Do not allow AdBlue to come into contact
with clothing. If there is contact with the
fluid , flush immed iate ly w ith plenty of wa­
ter.
@ Tips
F ollow the Ad Blue m anufact urer's instr uc­
tions fo r use and storage .

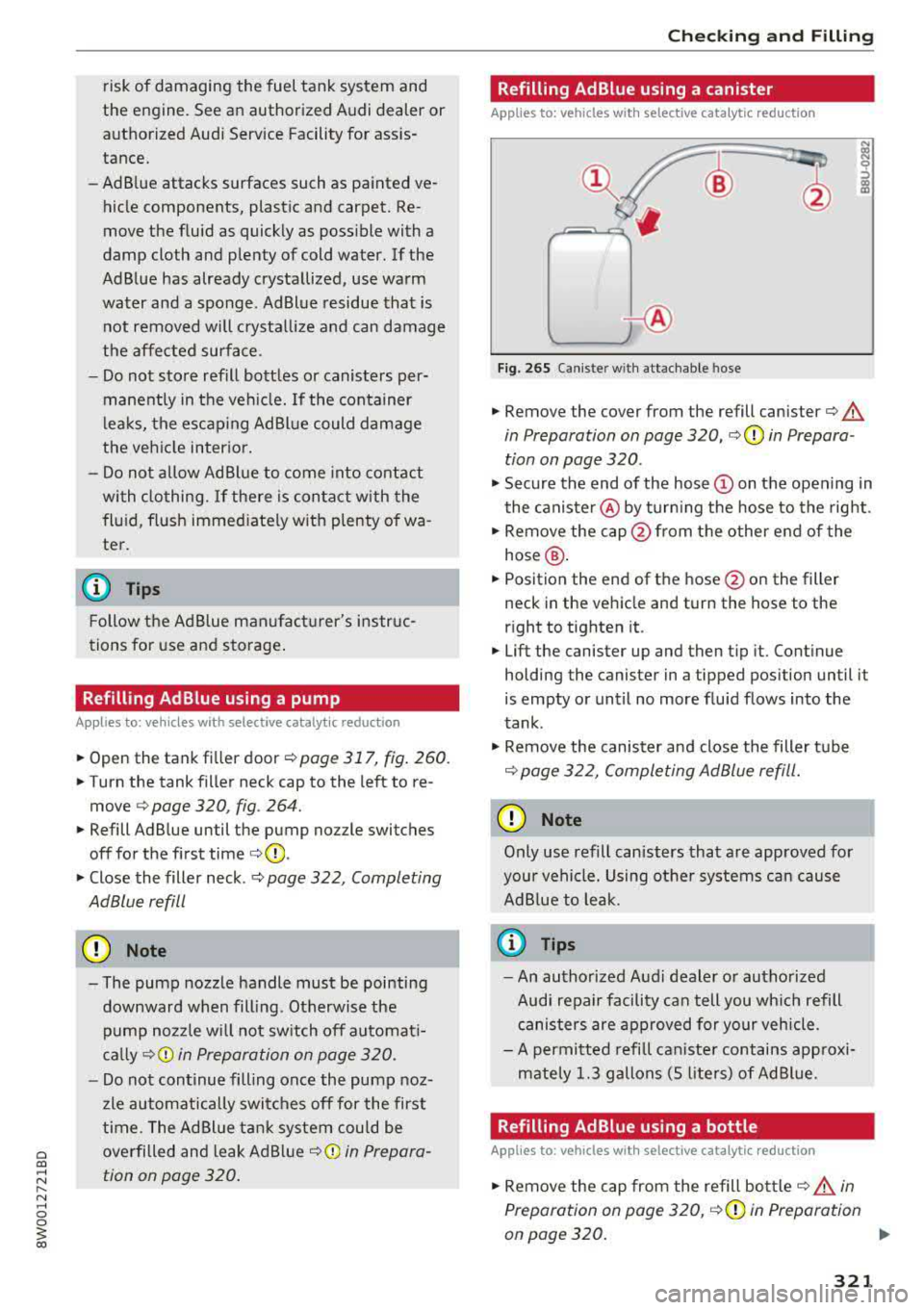

Refilling AdBlue using a pump
Applies to: vehicles with selective catalytic reduction
.,. Open th e tank fi ller door ¢ page 317, fig . 260.
.,. T u rn the tank filler neck cap to the left to re­
move
c:> page 320 , fig . 264.
.,. Refill AdBlue un til the pump no zzle swit ches
off for the first time ¢ (\1) .
.,. Close the filler neck . ¢ page 322, Completing
AdBlue refill
0 Note
-The pump nozzle handle must be pointing downward when filling . Otherwise the
pump noz zle w ill not sw itch
off automat i­
ca lly
c:> Q) in Preparation on page 320.
-Do not continue filling once the pump noz­
zle automatically switches
off for the first
time . The AdBlue ta nk system could be
overfilled and leak Ad B lue
c:> (D in Prepara­
tion on page 320 .
Check ing and Filling
Refilling AdBlue using a canister
Applies to: vehicles with selective catalytic reduction
+®
Fig. 265 Can is te r w it h attachab le hose
.,. Remove the cover from the refill canis te r¢ .&.
in Preparation on page 3 20, ¢ (Din Prepara ­
tion on page 320 .
.,. Secure the end of the hose(!) on the open ing in
t he canister @by turn ing the hose to the rig ht.
.,. Remove the cap @from the other end of the
hose @ .
.,. Position the end of the hose @ on the filler
neck in the vehicle and turn the hose to the
r ight to tighten it .
.,. Lift the canister up and then tip it. Cont inu e
holding the canis ter in a tipped pos it ion until i t
is empty or until no more flu id flows into the
tank .
.,. Remove the canis ter and close the filler t ube
c:> page 322, Completing AdBlue refill .
(D Note
Only use refill canisters that a re approved fo r
your vehicle. Using ot her systems ca n cause
Ad B lue to leak.
© Tips
- An authorized Aud i dealer o r autho rized
Audi repair facility can tell you wh ich refill
canisters are approved for your vehicle.
- A permitted refill ca niste r contains app roxi­
mately 1.3 gallons (5 l ite rs) of Ad Blue .
Refilling AdBlue using a bottle
Applies to: vehicles with selective catalytic reduction
.,. Remove the cap from the refill bo ttle c:> .&. in
Preparation on page 3 20,
c:> (D in Preparation
on page 320 .
.,.
321

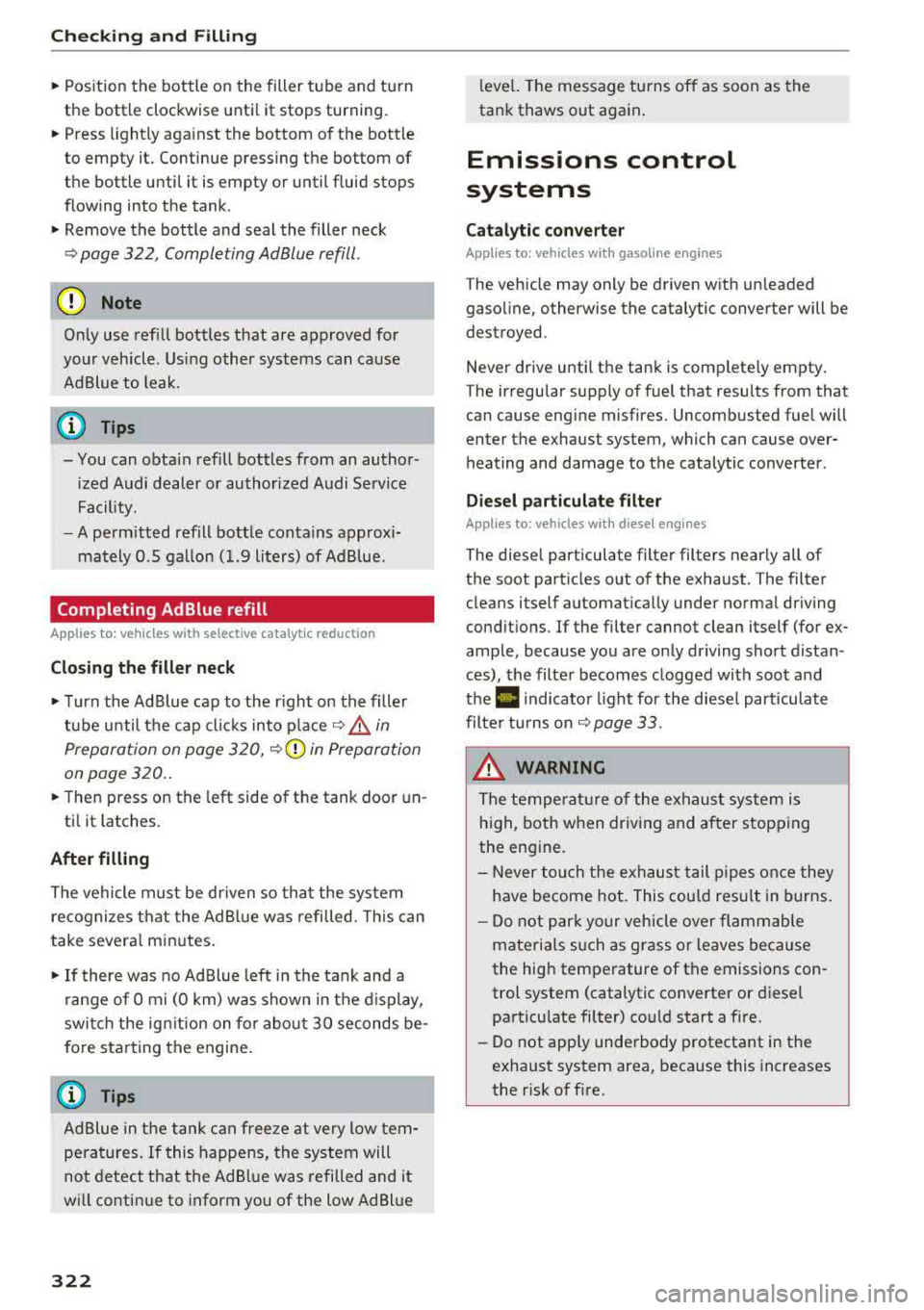

Check ing and F illing
"' Position the bottle on the filler tube and turn
the bottle clockwise unti l it stops turning.
"' Press lightly aga inst the bottom of the bott le
to empty it. Continue pressing the bottom of
the bottle until it is empty or unti l fluid stops
flowing into the tank .
"' Remove the bottle and seal the filler neck
¢ page 322, Completing AdBlue refill .
0 Note
Only use refill bottles that are approved for
your vehicle. Us ing other systems can ca use
Ad Blue to leak.
-You can obta in refill bottles from an author­
i zed Audi dealer or authorized A udi Service
F ac ility.
- A pe rm itted refill bottle conta ins approxi­
mately 0 .5 gallon ( 1.9 liters) of Ad Blue.
Completing AdBlue refill
Applies to: vehicles with selective catalytic reduction
Closing the filler neck
"'Turn the Ad Blue cap to the r ight on the filler
tube unti l th e cap cl ic k s into
p lace ¢.&. in
Prepara tion on page 320,
¢ (Din Preparation
on page 320 ..
"' Then press on the left side of the tank door un-
ti l it latches.
After filling
The vehicle must be driven so tha t the system
recognizes t hat the Ad B lue was refilled. This can
t ake severa l m in utes.
"' If there was no Ad Blue left in the tank and a
r ange of O mi (0 km) was shown in the d isplay,
swi tch the ign ition on fo r abo ut 30 seconds be­
f ore star ting the engine .
(D Tips
Ad Blue in the tank can free ze at very low tem­
pera tures. If this happens, the system will
not detect that the AdB lue was refilled and it
w ill contin ue to inform you of the low AdBlue
322
leve l. The message tu rns off as soon as the
tank thaws out again .
Emissions control
systems
Cat alytic converter
Applies to: vehicles with gasoline engines
T he vehicle may only be driven w ith un leaded
gaso line, otherwise the catalytic converter will be
destroyed .
Never drive unti l the tan k is comp lete ly empty .
T he irregu lar supply of fuel that resu lts from that
can cause eng ine misfires. Uncombusted fuel will
enter the exhaust system , which can cause over­
heating and damage to the catalytic converte r.
Di esel particulate filt er
Applies to: vehicles with diesel engines
The diese l particulate filter filters nearly all of
the soot part icles out of the exhaust. The filter
cleans itself automat ica lly under norma l dr iv ing
cond it io ns. If the filter cannot clean itself (for ex­
amp le, because yo u are on ly driving short distan ­
ces), the filter becomes clogged with soot and
the
1111 i ndicato r light for the diese l particulate
filte r tu rns
on ¢ page 33.
_&. WARNING
The tempera ture o f the e xhaust sys tem is
h igh, both when driving and a fter stopping
the engine.
-
-Never tou ch the e xhaus t tail p ipes o nce they
have become hot. This cou ld resu lt in burns.
-D o not p ark your vehicle over flamm able
materials such as grass or leaves because
the hig h temperature of the emissions con­
trol system (catalyt ic converter or d iese l
pa rticu late filter) co uld start a fire.
- Do not apply underbody protectant in the
exhaust system area, beca use this increases
the risk of f ire.

a co .... N ,....
N .... 0 0
3 co

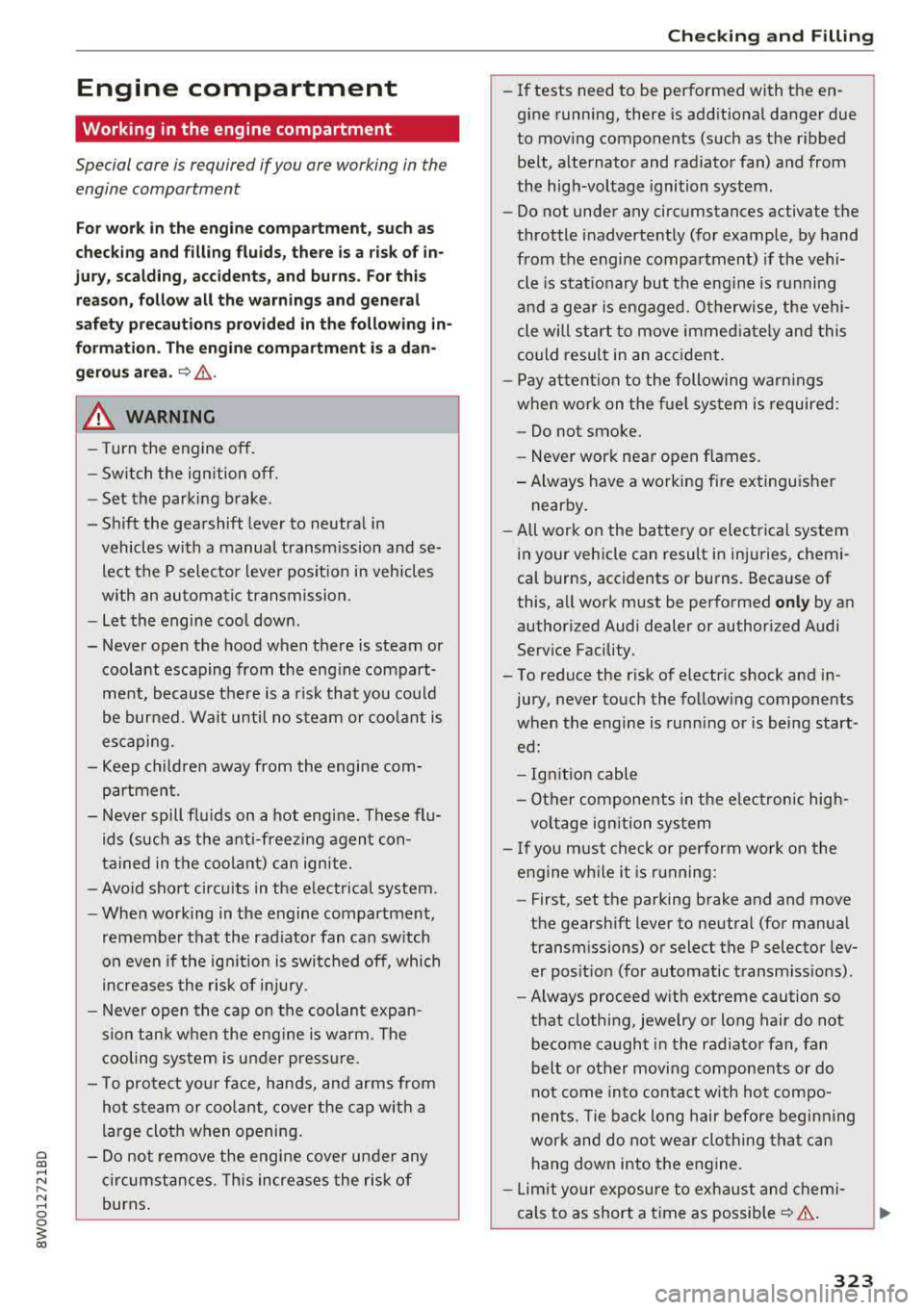

Engine compartment
Working in the engine compartment
Special care is required if you are working in the
engine compartment
F or wo rk in th e en gine c ompar tment , suc h as
ch eckin g and fi llin g flu id s, th ere is a risk of in­
j u ry , sca lding , acci dent s, a nd b urn s. Fo r this
re aso n, follow all the warnin gs and ge nera l
safet y pr eca uti ons pr ov ided in the follow ing in ­
form ation . Th e e ng ine c ompartm en t is a d an­
ger ous a re a .
~ ,&. .
_& WARNING
- T urn the engine off.
- Switch the ign ition off .
- Set the parking brake .
- Shift the gearshift lever to neutral in vehicles with a manual transm ission and se­
lect the P selector lever posit ion in vehicles
with an automatic transmission .
- Let the engine coo l down.
- Never open the hood when there is steam or coolant escaping from the eng ine compart­
ment, because there is a risk that you cou ld
be burned . Wait until no steam or coolant is
escaping.
- Keep children away from the engine com­
partment.
- Never spill flu ids on a hot engine. These flu­
ids (such as the anti-freezing agent con­
tained in the coolant) can ignite.
- Avoid sho rt circu its in the e lectrical system.
- When working in the engine compartment,
remember that the radiator fan can sw itch
on even if the ign ition is switched off , which
increases the risk of inj ury .
- Never open the cap on the coolant expan­
sion tank when the eng ine is warm. The
cooling system is under press ure.
- T o protect your face, hands, and arms from
hot steam or coolant, cover the cap with a
large cloth when opening.
- Do not remove the eng ine cover under any
c ircumstances . This increases the risk of
burns .
Check ing and Filling
-If tests need to be performed with the en­
gine running, there is add itiona l danger due
to mov ing components (such as the ribbed
belt, alternator and radiator fan) and from
the high-voltage ignition system.
-Do not under any circumstances activate the
throttle inadvertently (for example, by hand
from the engine compartment) if the veh i­
cle is stat ionary but the eng ine is running
and a gea r is engaged. Otherwise, the veh i­
cle will start to move immed iate ly and this
could result in an accident.
- Pay attent ion to the following warn ings
when wor k on the fue l system is required :
- Do not smoke.
- Never work near open flames.
-Always have a working fi re extinguisher
nearby.
-All work on the battery or electrical system in your vehicle can result in injuries, chemi­
cal burns, accidents or burns. Because of
this, all work must be performed
o nly by an
author iz ed Audi dealer or author iz ed Audi
Serv ice Facility.
-To reduce the r isk of electric shock and in­
jury, never touch the following components
when the engine is runn ing or is being start­
ed:
- Ign ition cable
- Other components in the e lectronic high-
vo ltage ign ition system
-I f you must check or perform wo rk on the
engine wh ile it is running:
-First, set the parking brake and and move
the gearshift lever to neutral (for manual
transm issions) or select the P selector lev­
er position (for automatic transm iss ions).
- Always proceed w ith extreme caution so
that clothing, jewelry or long hair do not become caught in the radiator fan, fan
belt or other moving components or do
not come into contact with hot compo­
nents. Tie bac k long hair befo re beginning
work and do not wear clothing that can hang down into the engine.
-Lim it your exposure to exhaust and chemi­
cals to as short a time as possible
¢ .&. .
32 3

Checking and Filling

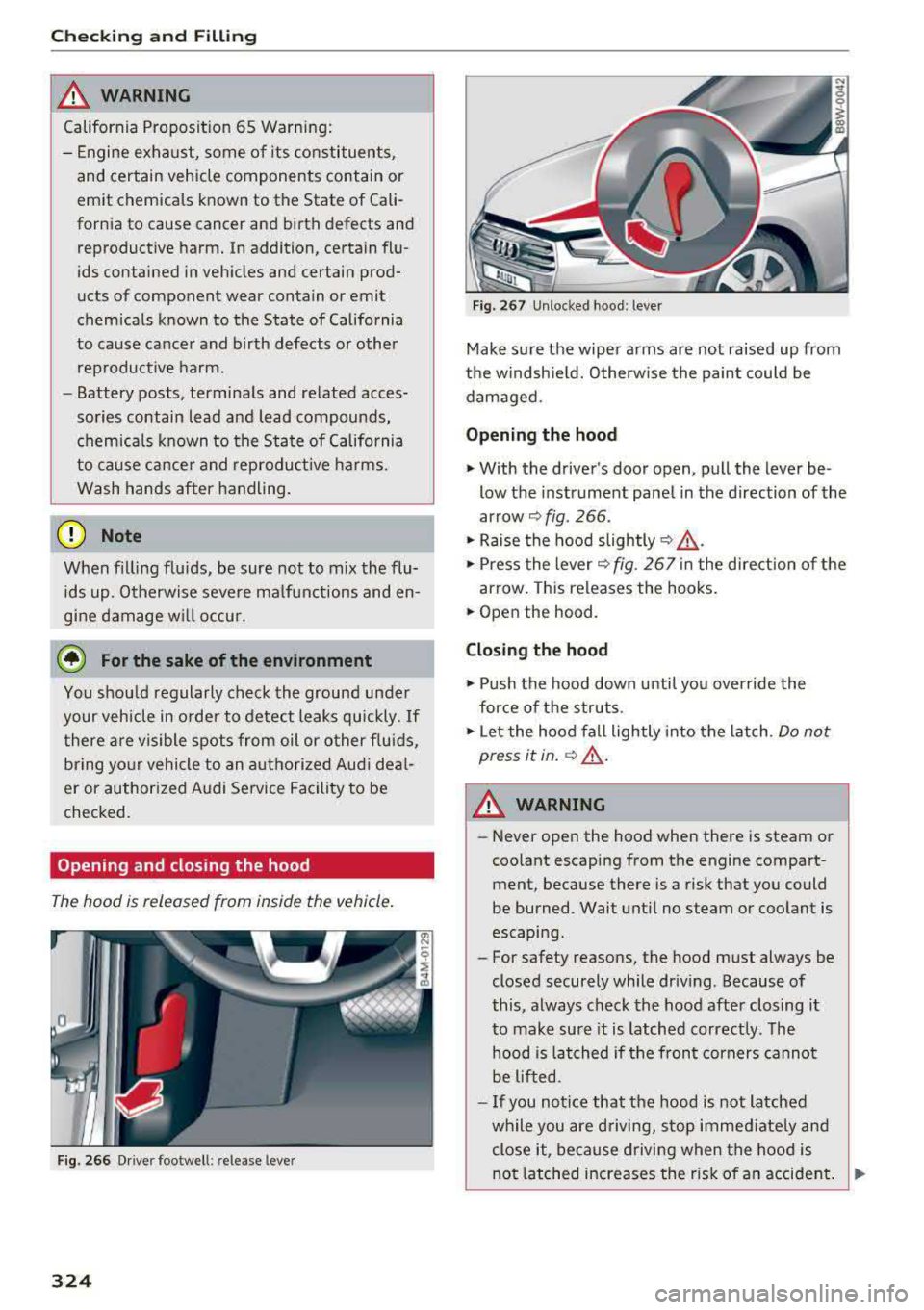

_& WARNING
California Proposition 65 Warning:
- Engine exhaust, some of its constituents ,
and certain vehicle components contain or emit chemicals known to the State of Cali­
fornia to cause cancer and birth defects and reproductive harm. In addition, certain flu ­
ids contained in vehicles and certain prod­
ucts of component wear contain or emit
chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
- Battery posts, terminals and related acces­
sories contain lead and lead compounds, chemicals known to the State of California
to cause cancer and reproductive harms.
Wash hands after handling.
(D Note
When filling fluids, be sure not to mix the flu­ ids up . Otherwise severe malfunctions and
en­
gine damage will occur.
@ For the sake of the environment
You should regularly check the ground under
your vehicle in order to detect leaks quickly . If
there are visible spots from oil or other fluids,
bring your vehicle to an authorized Audi deal­
er or authorized Audi Service Facility to be
checked.
Opening and closing the hood
The hood is released from ins ide the vehicle.
Fig. 266 Drive r footwell : rele ase le v er
324
Fig. 267 Unlocked hood: lev er
Make sure the wiper arms are not raised up from
the windshield. Otherwise the paint could be
damaged .
Opening the hood
"'With the driver's door open, pull the lever be­
low the instrument panel in the direction of the
arrow
9 fig . 266 .
"' Raise the hood slightly 9 ,&.
"'Press the lever ~ fig. 267 in the direction of the
arrow. This releases the hooks.
"' Open the hood.
Closing the hood
"' Push the hood down until you override the
force of the struts .
"'Let the hood fall lightly into the latch . Do not
press it in.
9 ,& .
_& WARNING
-Never open the hood when there is steam or
coolant escaping from the engine compart­
ment, because there is a risk that you could
be burned. Wai t until no steam or coolan t is
escaping.
- For safety reasons, the hood must always be
closed securely while driving . Because of
this, always check the hood after closing it
to make sure it is latched correctly . The
hood is latched if the front corners cannot
be lifted .
- If you notice that the hood is not latched
while you are driving, stop immediately and
close it, because driving when the hood is
not latched increases the risk of an accident.
,...

-If the hood is not latched completely, it
could fly up while you are driving and ob­
struct your vision.
Engine compartment overview
The most important check points.
Checking and Filling
Fig. 268 Typical location of the reservoir a nd t he engine o il filler ope ning
(!) Washer fluid reservoir (O) c::> page 332
@ Jump start po int( +) under a cover,(-) w ith
hex head screw
¢page 332 c:>page 374
@ Engine oil filling opening ( © Engine oil label* w ith VW standard
c:> page325
® Coolant expansion tank (- L) c::> page 329
® Brake fluid reservoir ((0) c::> page 330
The location of the engine oil filling opening and
the coolant expansion tank ¢
fig. 268 (items@
and@) may differ depending on the engine ver­
sion .
_& WARNING
-Read and follow all WARNINGS before check-
in g anything in the engine compartment
c:> page 323.
Engine oil
Engine oil specifications
The engine oil used must conform to exact speci­
fications.
The service interval display in the instrument
cluster of your vehicle will inform you when it is
time for an oi l change . We recommend that you
have your oil changed by an authorized Audi Serv-
ice Advisor.
.,..
325

Check ing and F illing

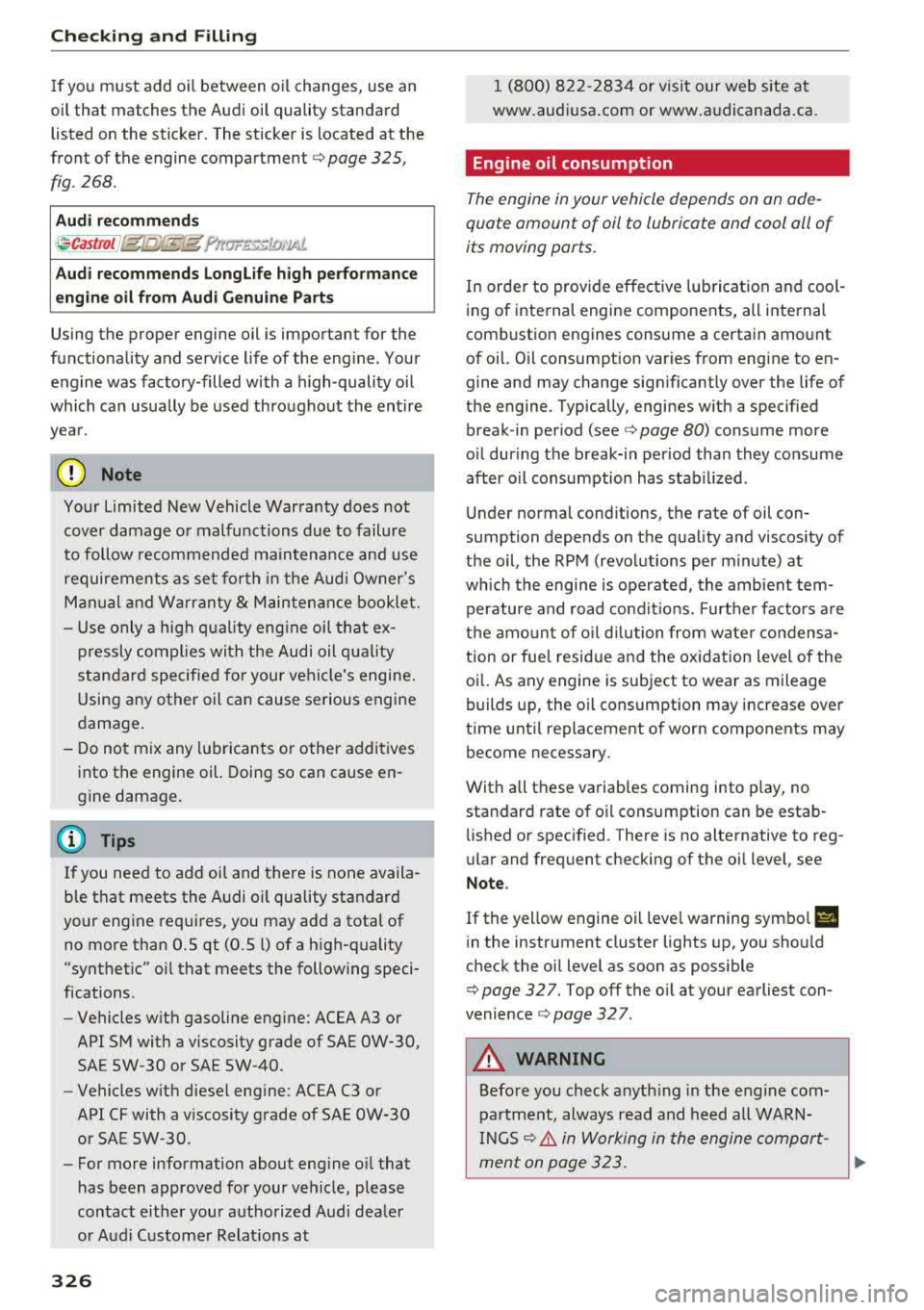

I f you must add oi l between oi l changes, use an
oil that matches the Audi oi l quality standard
listed on the st icker. The sticker is located at the
front of the engine
compartment <=> page 325,
fig. 268.
Au di r ec omm end s
ocastrol i/g/g'fE:@t P'r(w.:::-..~J.D,'JAJ..
A udi r ecommends Longli fe high performa nce
e ngin e oil from Audi G enuin e Part s
Using the proper engine oil is important for the
functionality and service life of the eng ine. Your
engine was factory-filled with a h igh-quality oil
which can usually be used throughout the entire
yea r.
0 Note
Your Limited New Vehicle Warranty does not
cover damage o r malfunctions due to failure
to follow recommended maintenance and use
requirements as set fo rth in the Aud i Owner's
Man ual and Warranty
& Maintenance booklet.
- Use only a high qual ity eng ine oi l th at ex-
p ressly complies with the Audi oil q uality
standard specified for your vehicle's engine .
Using any other oil can cause se rious engine
damage .
- Do not mix any lubricants or other additives into the engine oil. Doing so can cause en­
gine damage.
(D Tips
If you need to add oil and there is none availa ­
ble that meets the Audi oi l quality standard
your engine requi res, you may add a total of
no more than 0.5 qt (0.5 l) of a h igh-quality
"synthet ic" o il that meets the following speci­
fications.
- Vehicles with gasoline eng ine: ACEA A3 or
API SM with a viscosity grade of SAE OW-30,
SAE 5W-30 or SAE 5W-40.
- Vehicles w ith diesel eng ine: ACEA C3 or
API CF with a v iscosity grade of SAE OW-30
or SAE 5W-30 .
- For more information about engine oi l that
has been approved for your vehicle, please
contact eithe r your authorized Aud i dealer
or Audi Custome r Relat ions at
326
1 (800) 822-2834 or visit our web site at
www.audi usa .com or www .audicanada .ca.
Engine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all of
its moving ports.
In order to prov ide effect ive lub ricat ion and cool ­
ing of internal engine components, all internal
combustion engines consume a certain amount
of oil. Oil consumption var ies from engine to en­
gine and may change significantly over the life of
the engine. Typically, engines w ith a specified
break-in period
(see<=> page 80) consume more
o il dur ing the break-in per iod than they consume
after o il consumption has stabi lized .
U nder normal cond itions, the rate of oil con­
sumption depends on the quality and viscos ity of
the oil, the RPM (revolutions per m inute) at
wh ich the engine is operated, the amb ient tem­
perature and road condit ions. Furthe r facto rs a re
t h e amo unt of o il di lution from wate r condensa­
t ion or fue l residue a nd the oxidat ion level of the
oi l. As any engine is subject to wear as mileage
builds up, the oi l consumption may increase ove r
ti me until replacement of worn components may
become necessary.
With a ll these variab les coming into p lay, no
standard rate of oil cons umption can be estab ­
li shed or specified . There is no alternative to reg­
ular and frequent checking of the oil level, see
Note .
If the yellow engine oil leve l warning symbo l El
in the instrument cluster lights up, you should
check the o il level as soon as possible
<=> page 32 7. Top off the o il at your earliest con­
venience
<=> page 32 7.
A WARNING
Before you check anyth ing in the e ngine com­
partment, always read and heed all WARN­
I NGS<=> .&. in Working in the engine compart-
ment on page 323.
1iJ>,

a co .... N ,....
N .... 0 0
3 co
(D Note
Driving with an insufficient oil level is likely to
cause severe damage to the engine.
@ Tips
-The oil pressure warning display. is not
an indicator of the oil level. Do not rely on
it. Instead, check the oil level in your en­
gine at regular intervals, preferably each
time you refuel, and always before going
on a long trip.
-If you have the impression your engine con­
sumes excessive amounts of oil, we recom­
mend that you consult an authorized Audi
dealer to have the cause of your concern
properly diagnosed. Keep in mind that the
accurate measurement of oil consumption
requires great care and may take some
time. An authorized Audi dealer has instruc­
tions about how to measure oil consump­
tion accurately.
Checking the engine oil level and adding
engine oil
The engine oil level can be checked in the Info ­
tainment system
Fig. 269 Engine compa rtment: eng ine oil filler opening
cove r
Checking the engine oil level
- Park the vehicle on a level surface.
- Shut the engine off when it is warm.
0 N
-N
" 00 IX)
-Switch only the ignition back on. Wait approxi-
mately two minutes so that the engine oil can
flow back into the oil pan .
Checking and Filling
- Select in the Infotainment system: the !MENUI
button > Vehicle > left control button > Service
& checks > Oil level.
-Check the oil level in the Infotainment system
display. Add engine oil if the bar in the oil level
indicator is just before "min".
Adding engine oil Follow the safety precautions
~&. in Working in
the engine compartment on page 323.
- Stop the engine and open the hood
~page 324 .
-Unscrew the cap~ on the engine oil filling
opening
~ fig. 269, Qpage 325.
- Carefully add O .S quart (O .S liter) of the correct
oil
~ page 325.
- Close the engine oil filler opening cap.
- Close the hood, restart the ignition after two
minutes and read the current oil level in the In ­
fotainment system.
A WARNING ...__ --When adding oil, do not let oil drip onto hot
engine components. This increases the risk
of afire.
-You must secure the cap on the oil filler
opening correctly so that oil does not leak
out onto the hot engine and exhaust system
when the engine is running, because this is
a fire hazard.
-Always clean skin thoroughly if it comes into
contact with engine oil.
0 Note
- The engine oil level must not be under the
"min" marking, because this increases the
risk of engine damage.
- If the message II Please reduce oil level
appears, there is too much oil in the engine
and there is a risk of damaging the catalytic
converter and engine. Do not start the en­
gine. Contact an authorized Audi dealer or
authorized Audi Service Facility to have ex­
cess engine oil extracted if necessary.
- Do not mix any additional lubricants into
the engine oil. Damage caused by such addi-
tives is not covered by the warranty.
IJJ>
327

Check ing and F illing
@ For the sake of the environment
- Oil should never enter the sewer system or
come into contact with the gro und.
- Pay attention to legal requirements when
disposing of empty oil containers .
@ Tips
- The oil leve l indicator in the d isplay is only
an informationa l disp lay .
If the oil leve l is
too low, a minimum oil warning appea rs in
the instrument cluster. Add oil and close
the hood . The current oil level is displayed
i n the instrument cluster the next t ime the
i gnition is switched on .
- The engine oil consumption may be up to
0 .5 quart/600 miles (0 .5 liter/1,000 km),
depend ing on driving style a nd operating
cond itions . Consumption may be higher
d ur in g the first 3,000 miles (5,000 km). Be­
cause of t his, the engi ne oil level m ust be
chec ked regular ly.
It would be best to check
each time you ref uel your veh icle and before
l ong drives.
Changing the engine oil
We recommend that hove your oil changed by an
authorized Audi dealer or a qualified service sta ­
tion .
Before you c heck a nyth ing in the eng ine compart­
men t,
alway s read and heed all WARNINGS ¢.&
in Working in the engine compartment on
page 323.
T he engine oil must be change d accord ing to the
intervals specified in your Warranty
& Mainte ­
nance booklet . This is very important because the
lubricat ing propert ies of oi l diminish gradually
during normal vehicle use.
Under some circ umstances the engine o il should
be changed more frequently. Change oil more of­
ten if yo u drive most ly short distances, operate
the vehicle in dusty areas or under predominantly
stop-and-go traffic cond it ions, or have yo ur vehi­
cle where temperatures remain below freezing
for extended periods .
328
Detergent add itives in the oi l will make fres h oil
l ook dark after the engine has been r unning for a
sho rt time . This is normal and is not a reason to
change the oil more often than recommended.
Because o f the p roblem o f prope r disposa l, along
with t he specia l too ls and necessary expertise re­
quired, we strongly recommend that yo u have
yo ur oil changed by an authori zed
Audi dealer or
a qua lified service station.
If you choose to change your oil yourself , please
note the fo llow ing important information:
_& WARNING
To reduce the risk of persona l injury if you
must change the eng ine oil in your vehicle
yourself:
- Wea r eye protect ion.
- To red uce the r is k of bur ns from hot engine
oil, let the engine cool down to the touch.
-
- W hen removin g the oil drain plug with your
fingers, stay as far away as possible. Always
keep your forearm pa rallel to the gro und to
he lp prevent hot oil from run ning down your
arm .
- Drain the oil into a container designed for
this purpose, one la rge enough to hold at
least the tota l amount of oi l in you r engine.
- Engi ne oil is poisonous. Keep it well out of
the reach of childre n.
- Continuous contact with used eng ine o il is
ha rmf ul to your skin . Always protect your
skin by washi ng oil off thoroughly with soap
a nd wate r.
(D Note
N eve r mix oil additives with you r engine oil.
These add itives can damage your engine and
advers ely affect you r Audi Limit ed New Veh i­
cle Warranty .
@ For the sake of the environment
-Before cha ng ing you r oi l, first make s ure
you know where you can properly dispose o f
t h e used oil.
- Always dispose of used e ngine o il pro perly .
Do not dump i t on garden soil, wooded

areas, into open streams or down sewage
drains.
- Recycle used engine oil by taking it to a used
engine oil collection facility in your area, or
contact a service stat ion .

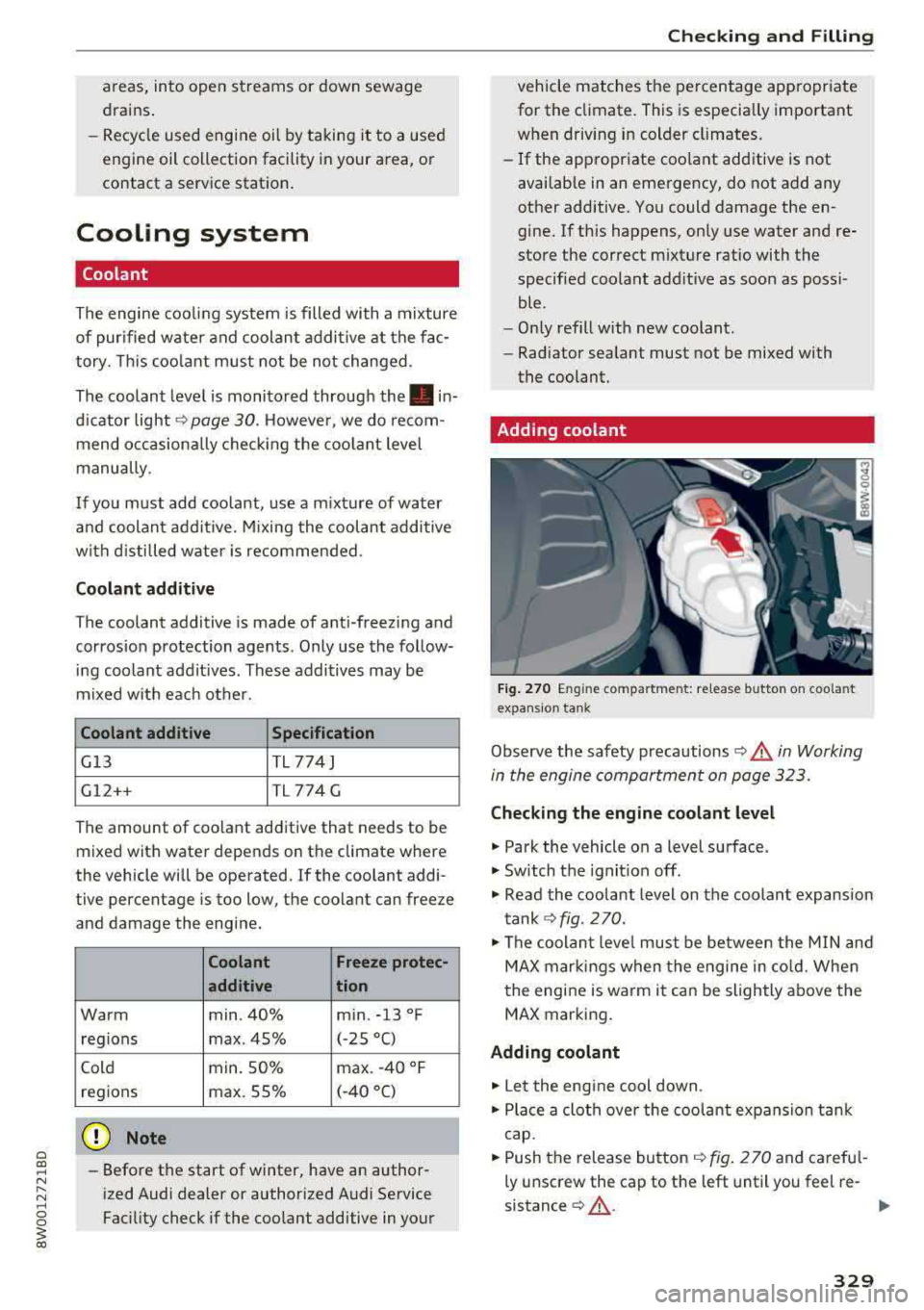

Cooling system
Coolant
The engine coo ling system is filled with a mixture
of purified water and coolant additive at the fac­
tory. This coolant must not be not changed.
The coolant level is monitored through
the. in­
dicator light
¢ page 30. However , we do recom­
mend occasiona lly checking the coolant level
manually.
If you must add coolant, use a mixture of water
and coolant addit ive. Mixing the coolant additive
with distilled water is recommended.
Coolant additive
The coolant additive is made of anti -freezing and
corrosion protection agents. Only use the fol low­
ing coolant additives . These additives may be
mixed with each other.
Coolant additive Specification
G13
TL 774 J
G12++ TL
774 G
The amount of coo lant additive that needs to be
mixed with water depends on the climate where
the vehicle will be operated. If the coolant addi­
tive percentage is too low, the coolant can freeze
and damage the engine.
Coolant Freeze protec-
additive tion
Warm min . 40% min. -13 °F
regions max .
45% (
- 25 °()
Cold min.
50% max
. -40 °F
regions max.
55% (-40 °()
(D Note
-
Before the start of winter, have an author­
ized Audi dealer or authorized Audi Service
Facility check if the coolant additive in your
Checking and Filling
vehicle matches the percentage appropriate
for the climate. This is especia lly important
when driving in colder climates.
- If the appropriate coo lant additive is not
available in an emergency, do not add any
other additive. You could damage the en­
gine. If this happens, only use water and re­
store the correct mixture ratio with the
specified coolant add itive as soon as poss i­
ble .
- Only refill w ith new coolant.
- Radiator sealant must not be mixed with
the coolant.
Adding coolant
Fig. 270 E ngine compartment: re lease button on coolant
expansion tank
Observe the safety precautions ¢,&. in Working
in the engine compartment on page 323.
Checking the engine coolant level
.. Park the vehicle on a level surface .
.. Switch the ignition off .
.. Read the coolant level on the coolant expansion
tank
¢ fig. 270.
.. The coolant level must be between the MIN and
MAX markings when the engine in co ld. When
the engine is warm it can be slightly above the
MAX marking.
Adding coolant
.. Let the eng ine cool down .
.. Place a cloth over the coolant expansion tank
cap .
.. Push the release button ¢ fig. 2 70 and carefu l­
ly unscrew the cap to the left until you feel re-
sistance¢ ,A. IIJ,-
329
