Careandcleaning

Careandcleaning
Generalinformation
Regular,propercarehelpstomaintainyourvehi-
cle'svalue.Itcanalsobearequirementwhen
submittingwarrantyclaimsforcorrosiondamage
andpaintdefectsonthebody.
Therequiredcleaningandcareproductscanbe
obtained
fromanauthorizedAudidealerorau-
thorizedServiceFacility.Readandfollowthein-
structionsforuseonthepackaging.

ZAWARNING
—Usingcleaningandcareproductsincorrectly
canbedangeroustoyourhealth.
—Alwaysstorecleaningandcareproducts out
ofreachofchildrentoreducetheriskofpoi-
soning.

@Forthesakeoftheenvironment
—Purchaseenvironmentally-friendlycleaning
productsifpossible.
—Donotdisposeofcleaningandcareprod-
uctswithhouseholdtrash.
Carwashes
Thelongerthatdepositssuchasinsects,bird
droppings,treesaporroadsaltremain ontheve-
hicle,themorethesurfacecanbedamaged.High
temperaturessuchasthosecausedbysunlight
increasethedamagingeffect.
Beforewashing,rinseoffheavydepositswith
plentyofwater.
Stubborndepositssuchasbirddroppingsortree
saparebestremovedwithplentyofwateranda
microfibercloth.
Also,washtheundersideofyourvehicleonce
roadsaltstopsbeingusedfortheseason.
Pressurewashers
Whenwashingyourvehiclewithapressurewash-
er,alwaysfollowthe operatinginstructions pro-
videdwiththepressurewasher.Thisisespecially
importantinregardtothepressureandspraying
distance.Donotaimthespraydirectlyatthe
342
sealsonthesidewindows,doors,lidsorthesun-
roof*orattires,rubberhoses,insulatingmateri-
al,sensors*orcameralenses*.Keepadistanceof
atleast16in(40cm).
Donotremovesnowandicewithapressure
washer.
Neveruseconenozzlesorhighpressurenozzles.
Thewatertemperaturemustnotbeabove140°F
(60°C).
Automaticcarwash
Sprayoffthevehiclebeforewashing.
Makesurethatthewindowsandroof*areclosed
andthewindshieldwipersareoff.Followinstruc-
tionsfromthecarwashoperator,especiallyif
thereareaccessoriesattachedtoyourvehicle.
Ifpossible,usecarwashesthatdonothave
brushes.
Washingbyhand
Cleanthevehiclestartingfromthetopandwork-
ingdownwardusingasoftspongeorcleaning
brush.Usesolvent-freecleaningproducts.
Washingvehicleswithmattefinishpaintby
hand
Toreducetheriskofdamagingthepaintwhen
washing,firstremovedustandlargeparticles
fromyourvehicle.Insects,greasespots,andfin-
gerprintsarebestremovedwithaspecialcleaner
formattefinishpaint.
Applytheproductusingamicrofibercloth.Tore-
ducetheriskofdamagingthepaintsurface,do
notuse toomuchpressure.
Rinsethevehiclethoroughlywithwater.Then
cleanusinganeutralshampooandasoftmicro-
fibercloth.
Rinsethevehiclethoroughlyagainandletitair
dry.Removeanywaterresidueusingachamois.

ZAWARNING
—Toreducetheriskofaccidents,onlywash
thevehiclewhentheignitionisoffandfol-
lowtheinstructionsfromthecarwashoper-
ator.

8W0012721BG

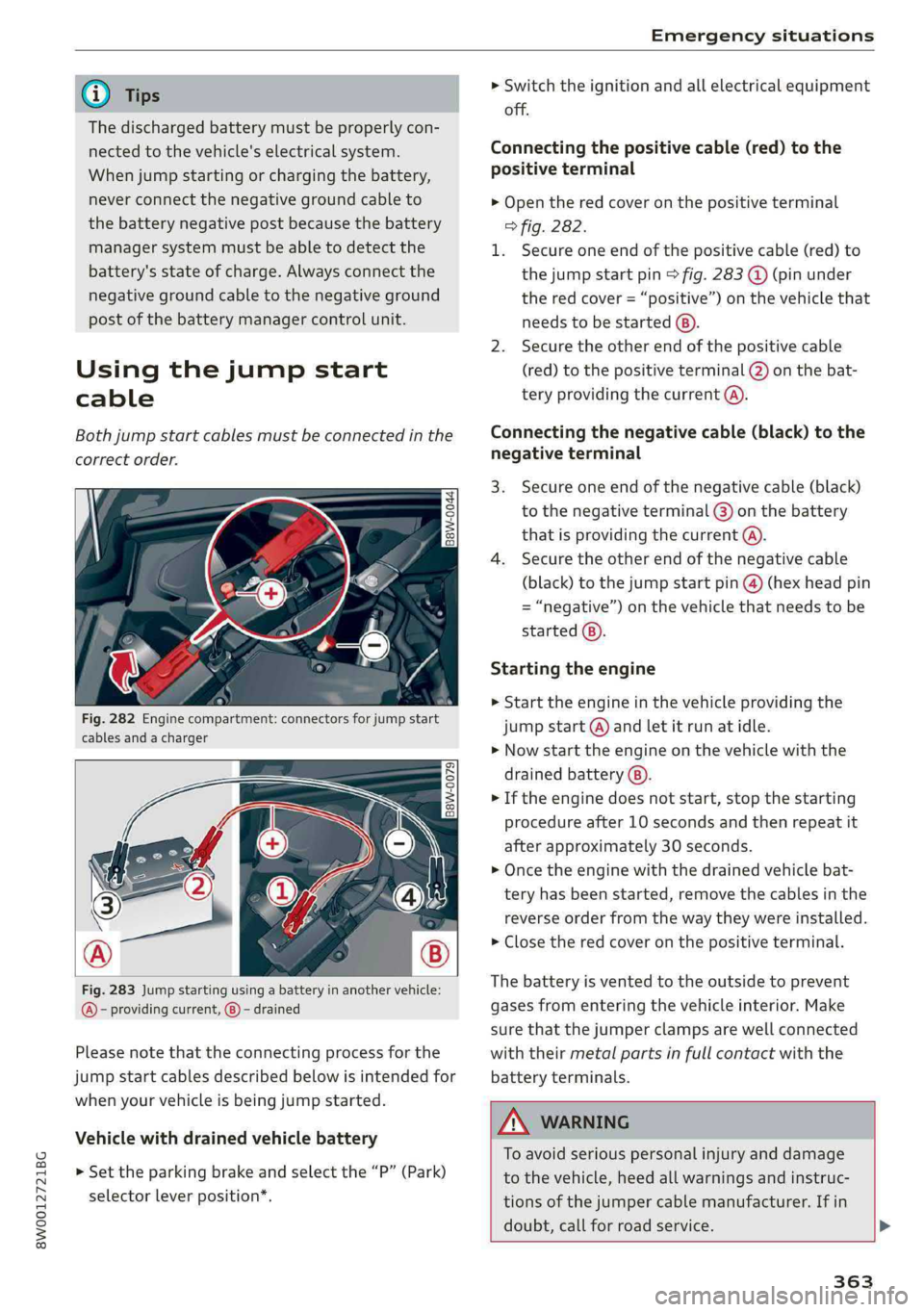

Emergencysituations

@Tips
Thedischargedbatterymustbeproperlycon-
nectedtothevehicle'selectricalsystem.
Whenjumpstartingorchargingthebattery,
neverconnectthenegativegroundcableto
thebatterynegativepostbecausethebattery
managersystemmustbeabletodetect the
battery'sstateofcharge.Alwaysconnectthe
negativegroundcabletothenegativeground
postofthebatterymanagercontrolunit.
Usingthejumpstart
cable
Bothjumpstartcablesmustbeconnectedinthe
correctorder.

Fig.282Enginecompartment:connectorsforjumpstart
cablesandacharger

Fig.283Jumpstartingusingabatteryinanothervehicle:
@-providingcurrent,@)-drained
Pleasenotethattheconnectingprocessforthe
jumpstartcablesdescribedbelowisintendedfor
whenyourvehicleisbeingjumpstarted.
Vehiclewithdrainedvehiclebattery
>Set theparkingbrakeandselectthe“P”(Park)
selectorlever position*.

>Switchtheignitionandallelectricalequipment
off.
Connectingthepositivecable(red)tothe
positiveterminal
>Opentheredcoveronthepositiveterminal
>fig.282.
1.Secureoneendofthepositivecable(red)to
thejumpstartpin>fig.283@(pinunder
theredcover=“positive”)onthevehiclethat
needstobestarted@).
2.Securetheotherendofthepositivecable
(red)tothepositiveterminal@)onthebat-
teryprovidingthecurrent@).
Connectingthenegativecable(black)tothe
negativeterminal
3.Secureoneendofthenegativecable(black)
tothenegativeterminal@)onthebattery
thatisprovidingthecurrent@).
4.Securetheotherendofthenegativecable
(black)tothejumpstartpin@(hexheadpin
=“negative”)onthevehiclethatneedstobe
started ®).
Startingtheengine
»Starttheengineinthevehicleprovidingthe
jumpstart@andletitrunatidle.
>Nowstarttheengineonthevehiclewiththe
drainedbattery@).
>Iftheenginedoesnotstart,stopthestarting
procedureafter10secondsandthenrepeatit
afterapproximately30seconds.
»Oncetheenginewiththedrainedvehiclebat-
teryhasbeenstarted,removethecablesinthe
reverseorderfromthewaytheywereinstalled.
>Closetheredcoveronthepositiveterminal.
Thebatteryisventedtotheoutsidetoprevent
gasesfromenteringthevehicleinterior.Make
surethatthejumperclampsarewellconnected
withtheirmetalpartsin fullcontactwiththe
batteryterminals.

Z\WARNING
Toavoidseriouspersonalinjuryanddamage
tothevehicle,heedallwarningsandinstruc-
tionsofthejumpercablemanufacturer.Ifin
doubt,callforroadservice.>

363

Emergencysituations


—Jumpercables mustbelongenoughsothat
thevehiclesdonottouch.
—Whenconnectingjumpercables,makesure
thattheycannotgetcaughtinanymoving
partsintheenginecompartment.
—Donotbendoverthebatteries-dangerof
chemicalburns!
—Thebatterycelllockingscrewsmustbe
tightenedsecurely.
—Beforeyoucheckanythingintheengine
compartment,alwaysreadandheedall

WARNINGS>page309.

@Note
Improperhook-upofjumpercablescanruin
thegenerator.
—AlwaysconnectPOSITIVE(+)toPOSITIVE
(+),andNEGATIVE(-)toNEGATIVE(-)
groundpostofthebatterymanagercontrol
unit.
—Checkthatallscrewplugsonthebattery
cellsarescrewedinfirmly.Ifnot,tighten
plugspriortoconnectingclamponnegative
batteryterminal.
—Pleasenotethattheprocedureforconnect-
ingajumpercableasdescribedaboveap-
pliesspecificallytothecaseofyourvehicle
beingjumpstarted.Whenyouaregivinga
jumpstarttoanothervehicle,donotcon-
nect
thenegative(-)cabletothenegative
(-)terminalonthedischargedbattery@)
>fig.283.Instead,securelyconnectthe
negative(-)cabletoeitherasolidmetal
componentthatisfirmlyboltedtotheen-
gineblockortotheengineblockitself.If
thebatterythatisbeingchargeddoesnot
vent
totheoutside,escapingbatterygas
couldigniteandexplode!
Towingwithatowtruck
Generalhints
YourAudirequires specialhandlingfortowing.
Thefollowinginformationistobeusedbycom-
mercialtowtruckoperatorswhoknowhowtoop-
eratetheirequipmentsafely.
364
—NevertowyourAudi,towingwillcausedam-
agetotheengineandtransmission.
—Neverwrapthesafetychainsorwinchcables
aroundthebrakelines.
—Topreventunnecessarydamage,yourAudi
mustbetransportedwithaflatbedtruck.
—Toloadthevehicleontotheflatbed,use the
towingloopfoundinthevehicletoolsandat-
tachtothefrontorrearanchorage>page364
and>page365.

ZXWARNING
Avehiclebeingtowedisnotsafeforpassen-
gers.Neverallowanyonetorideinavehicle
beingtowed,foranyreason.
Fronttowingloop
Onlyinstallthefronttowingloopwhenitis
needed.




Fig.284Frontbumper:installingthetowingloop
Thethreadedopeningforthetowingloopislo-
catedontherightsideofthefrontbumper.
»Removethetowingloopfromthevehicletool
kit>page348.
>Pressthecap inwardwithbrief,strong pressure
=> fig.284.Thecapwillloosenfromthebump-
er.
>Tightenthetowingloopinthethreadedopen-
inguntilitstopsandthentightenitwitha
wheelwrench.
>Afterusing,placethetowingloopbackinthe
vehicletoolkit.

ZA\WARNING
Ifthetowingloopisnottighteneduntilit
stopswheninstalling,thethreadsmaybe>
