Vehicle literature
In addition to this Owner's Manual, your Audi comes with a Mainte­
nance
& Warranty booklet.
Moreover, depending on the model and the equ ipment, there may
be additiona l instruction book lets delivered with your vehic le (for
examp le, Operating Instruct ions for your Sound System, Navigation
System etc .) .
I f you are missing one of these publ ications, or if you believe that
the information is not comp lete, contact your authorized Audi
dea ler for assis tance.
The Maintenance & Warranty booklet
exp lains how you can keep your Audi i n top driving cond it ion by
having it serviced regularly . A lways have the Maintenance booklet
with you w hen you take your vehicle to an autho rized Audi dea ler for
service. Your Audi Service Adviser wil l record each schedu led
service and can answer any questions you may have regarding how
to maintain your vehicle.
In Canada,
the vehicle literature is a lso availab le in French. To obtain a copy,
contact your dealer or write to:
Au Canada, on peut se procurer un exemplai re en
frani;ais de ce
document
aupres du concessionnaire ou de:
Volkswagen Canada, Inc.
Cl ient Assistance
Assistance a la Clientele 777 Bay ly Street, West,
A jax, Ontar io L 1 S 7G7
If you sell your Audi
a ll l iterature should be left in the vehicle to make the Warranty terms
as wel l as all operating, safety and ma intenance information avail ­
able to the next owner .
Controls and equip­
ment Safety first Vehicle operation
V
ehi cle literat ur e
If you change your address or if you bought this
Audi used
be sure to send in a " Notice of Address C hange"/ "Notice of Used
Car Purchase" post card. This card can be found in the Maintenance
& Warranty booklet o r obtained from your authorized Aud i dealer.
It i s in your own inte re st th at w e are able to cont act you should the
need arise .•
Vehicle care Do-it-yourself service Technical data

When the ignition is switched off, the odometer reading and the digital clock with date display can be switched on for a few seconds
by pressing the CHECK
button~ page 12, fig. 2 @ . •
Instrument cluster illumination
It is possible to adjust the instrument cluster illumination.
Fig. 4 In str um ent
c luster i lluminatio n
- Press the"+" button to increase the brightness .
- Press the"-" button to dim the br ightness.
A light sensor in the instrument cluster contro ls the illumina tion for
the instrument cluster, the center conso le and the displays.
The illumination for the instrument cluster lights up whenever you
sw itch on the ignition with the
vehicle h eadlight s off. As the
daylight fades, the instrument c luster illumination likewise dims
automatically and wi ll go out comp lete ly when the outside light is
very low . This feature is meant to remind you to switch on the head­
lights when the outside light conditions become poor .
•
Controls and equip­
ment
In st rum ents and w arning /indi cator li ght s
Speedometer with odometer
The speedometer shows you the vehicle speed, and the
odometer shows you how many miles (kilometers) you
have driven .
miles 1S3. 9
S2YY
Fig . 5 Sp eedom eter
c lose-u p: od omete r
di sp lay
The odometer and trip odometer are located inside the speedom ­
eter .
• USA models -Miles
• Canadian models -Kilometers
Low er odom ete r
The lower odometer shows the total number of miles (ki lometers)
d riven .
Upper odometer (tri p odometer )
The upper odometer shows the total number of miles (kilometers)
driven since you last reset the odometer to zero . You can use this
odometer when you want to keep track of how many miles (kilome ­
ters) you have driven for a single trip or errand. The last digit indi ­
cates 1/10 of a m ile (100 meters) . You can set the trip odo meter back
to zero by pressing the reset
button~ fig. 5. -..
irechnical data

Instruments and warnin g/indi cat or li ghts
Se rv ice re mi nder
As soon as less than 1,200 m iles (2,000 ki lometers) of driving are left
before the next due service, the fo llowing message wi ll be disp layed
when you switc h on the ignition:
SE RV IC E IN 1 ,200 Ml (2,000 KM )··· DA YS
After about five seconds the display switches back. Each time you
sw itch on the ignition, the distance wil l be updated until the next
service date is reached .
Ser vic e due
If service is due immediately, SERVI CE! wil l appear in the display
immediately after switching on the ignition . The disp lay switches
back after about five seconds.
Re settin g th e dis pl ay
Your authorized Audi dealer wi ll reset the disp lay after performing
t he scheduled service. If the service is not performed by an autho­
ri zed Audi dealer, the display must then be reset as follows :
• Switch off the ignition .
• Press and hold the Service button
G):::::, page 17, fig . 8, then
switch on the ignition . One of the following messages appears in
the display:
S ER VIC E IN ···· MILE S or SERVIC E!.
• Press the reset button 0 unti l either of the fol lowing messages
appears in the disp lay :
SERV IC E IN ···· MILE S··· DAYS or SER VIC E!
After about five seconds the display switches back .
[ i ] Tip s
• Do not reset the display between service interva ls . Doing so will
resu lt in an incorrect d isp lay.
• The service display information wi ll remain intact even if the
battery is disconnected .
• If a pr iority 1 mal funct ion is detected (red symbol), you cannot
display the distance remaining. •
Reset button
The "0.0" button:::::, page 17, fig. 8 0 performs the fol lowing func ­
t ions:
R es etting th e trip od om ete r
The upper odome ter (tr ip odometer):::::, page 15 can be reset back to
zero by pressing the reset button.
R ese ttin g th e se rv ic e int erva l
The service interva l display :::::, page 17 can be reset by pressing t he
reset button (first se lect the "reset" mode in the service indicator
display). •

Instruments and warning/indicator lights
& WARNING
• Failure to heed warning lights and other important vehicle
information may result in serious personal injury or vehicle
damage .
• Whenever stalled or stopped for repair, move the vehicle a safe
distance off the road, stop the engine, and turn on the emergency
flasher
=> page 79.
• The engine compartment of any motor vehicle is a potentially
hazardous area. Before you check anything in the engine compart­
ment, stop the engine and let it cool down . Always exercise
extreme caution when working under the engine hood
=> page 265 , "Engine compartment"
[ i] Tips
Many functions are monitored by the Auto-Check system
=> page 28. Malfunctions or faults will be identified either with a red
symbol (priority 1 - Danger!) or with a yellow symbol (priority 2 -
Warning). •
Malfunction Indicator Lamp (MIL)
~ (USA models)/ 0 (Canada models)
The Malfunction Indicator Lamp (MIU is part of the On-Board Diag ­
nostic (OBD II) system. The
symbol ~ lights up when the ignition is
turned on and will turn off after the engine has started and has
settled at constant idle speed . This indicates that the MIL is working
properly.
The warning light illuminates when there is a malfunction in the
eng ine electronic system. Contact your authorized Audi dealer and
have the malfunction corrected.
For more information
=> page 27. •
Airbag system ~
This warning/indicator light monitors the airbag and the
tensioner systems.
The I warning light illuminates for a few seconds each time you
switch on the ignition.
If the
~i warning light does not go out, or if it illum inates while you
are driving, or if it starts to flash, then there is a malfunction some ­
where in the system. If the light does not illuminate when you
switch on the ignition, this also means there is a malfunction.
& WARNING
If you have a malfunction in the airbag system, contact your autho­
rized Audi dealer immediately. Otherwise the airbag or the belt
tensioner may not work properly in an accident. •
Tire pressure monitoring system -telltale
indicator lamp
U)
The warning/indicator light appears in the event of a
significant loss of air pressure.
The (1) warning/indicator light illuminates for a few seconds after
the ignition is turned on as function check and then goes out.
If the
(l) symbol appears, pressure is too low in at least one tire.
When the system detects a malfunction, the warning/indicator light
will flash for approximately one minute and then remain continu­
ously illuminated. This sequence will continue upon subsequent
vehicle starts up as long as the malfunction exists. Contact your
authorized Audi dealer and have the malfunction corrected.
For more information
=> page 47. •

Cruise control
CRUISE (USA models)/ ·~ (Canada models)
The CRU ISE wa rn in g/ ind icato r light illuminates whe n the cruise
control is act ivated. •
Anti-lock brake system
ABS (USA models)/
<0 (Canada models)
This warning /indicator light mon itor s the ABS and the
e lec tr oni c di fferent ial loc k (EDL ).
The ABS warning light will come on for a few seconds when the igni ­
t ion is sw itched on. T he lig ht wi ll go out a fter an autom ati c ch eck
sequenc e is complet ed .
There is a malfunction in the ABS when :
• the warning/indicator light does not ill uminate when you switch
o n t he ign ition .
• the warning/indicator light does not go out after a few seconds .
• the warning/i ndicator light illu minates while driving .
Without the electronic assistance of the ABS , the brake system will
still respond and brake the car . Have the brake system checked and
restored to its full performance by an authorized Audi dealer as
soon as possible.
Fo r m ore info rm ation re gar din g th e ABS s ee
=> pa ge 24 0.
Since any malfunction of the AB S also affects the
ESP, that s ystem's
warning symbol !;.
=> page 22 will light up along with the ABS/
0 (Canada mode ls) warning light.
Unspecific malfun ction in the brake system
If both th e bra ke warn ing lig ht => page 23 and the ABS w arn ing l ig ht
illum inate when t he park in g brake is released, t he likely cause is a
serious malfunction in the brake system beyond an inoperative AB S
=>& .
Controls and equip ­
ment
Instruments and warning /indicator lights
If an unsp ecific defect in the brake system is indicated, the entire
br ak e syste m is lik ely to be a ffec ted a nd you
mus t exp ect deg ra d ed
b rake r espons e and performance .
Since any malfunction of the ABS also effects the ESP , that system 's
w ar ning symbol
f;.. => page 2 2 will l ight up alo ng with th e ABS/ 0
(Canada models) warning light.
Malfunction in the electroni c differential lock
(EDL )
The two systems ED L and ABS interact . For th is reason the ABS
warning light/ 8 (Canada mode ls) wi ll come on to ind icate a
ma lfunction in the EDL syste m
=> page 237. See your authorized
Aud i deale r as s oon as poss ible.
& WARNING
• If the ABS/ 8 (Canada models) warning light does not go out ,
or if it comes on while driving, the ABS system is not working
properly . The vehicle can then be stopped only with the brakes
operating without ABS support . You will not have the protection
ABS provides. Contact your Audi dealer as soon as possible.
• USA models : If both the BRAKE warning light and the ABS
warning light come on at the same time, the rear wheels could lock up first under hard braking. Rear wheel brake lock-up can
cause loss of vehicle control and an accident . Have your vehicle
repaired immediately by your authorized Audi dealer or a qualified
workshop. Drive slowly and avoid sudden , hard brake application .
• Canada models : If both the brake warning light ((DJ and the ABS
warning light
0 come on at the same time , the rear wheels could
lock up first under hard braking. Rear wheel brake lock-up can
cause loss of vehicle control and an accident . Have your vehicle
repaired immediately by your authorized Audi dealer or a qualified
workshop. Drive slowly and avoid sudden, hard brake
application. •

Instruments and warnin g/indi cat or li ghts
Safety belts i
This warning/indicator light reminds y ou to put on your
safety belt.
The .ft warning/indicator light i lluminates when the ignition is
switched on to remind the driver and (on USA mode ls only) any front
passenger to put on the safety belt. Additiona lly, an acoustic
warn ing (gong) w ill also sound.
For more
information~ page 176 , "Safety belt warning light 4". •
Turn signals ¢ ¢
The in dicator light flashes when you use either turn
signal.
Whenever you use the left ¢ or the right ¢ turn signal, the indicator
l ight flashes. W hen you use the emerge ncy flasher, both indicator
lights f lash .
I f one of the turn signal light bulbs burn out, the turn signal will
flash twice as fast as normal. •
Electronic Stabilization Program (ESP) fJ
The warning/indicator ligh t monit ors the electr onic s tabi ­
lization program.
The ~ warning/indicator light has the fol lowing functions:
• it flashes while you are driving, when the ESP is working .
• it illuminates when you switch on the ignition for approximately
2 seconds as a funct ion check.
• it illuminates when there is a ma lfunction in the ESP.
• it illuminates after the battery has been disconnected .
• it illuminates continuous ly when the ESP is switched off . •
it illuminates if there is a malfunction in the ABS, since the ESP
is part o f the ABS system.
If the ESP warning/indicator light illuminates and stays on after you
have started the engine, this may mean that the control system has
temporar ily switched o ff the ESP . If this is case, you can reactivate
the ESP by switching the ignition off and then on again . The
warning/indicator light should go out to show that the system is
ful ly functional again .
I f the battery terminals were disconnected and re -connected, the
vehic le was jump started or the battery is very weak, the ESP sensor
system goes through a learning p rocess for the firs t few yards.
D uring th is time, t he ind icator l ight i llu minates. It goes out as soo n
as the learning process is comp lete.
For more information about the
ESP ~ page 236. •
Generator 0
T his warning/indicator light detects a malfunction in the
generator or i n t he vehicle's elec trical system.
T he O warning/indicator light i lluminates w hen you switch on the
ignition and must go out after the engine has started .
I f the
O warni ng/ind icator light illum inates while you a re driv ing,
you shou ld contact your authorized Audi dealer . Since the vehicle
battery is dischargi ng, you should sw itch off any unnecessary elec ­
trical consumers (for example, the air conditioner) .
0 Note
If the _JL warning/indicator light (ma lfunction in the engine coo ling
system) i n the instrument cluster shou ld
i llumi nate ~ page 31, stop
the ve hicle and turn o ff the engine . The coo lant pump is not work ing
-this can cause engine damage! •

High beam [D
The ~D warning/indicator light il lu m inates when the high beams are
on or w hen you use the head lig ht flash er. For mo re inf ormation
about using the h igh beams,
see=> page 80 . •
Electronic power control EPC
Th is warn ing /indicator l ig ht m on ito rs the ele ctr onic
po wer co nt rol.
The EPC warning/indicator light (E lectronic Power Control) illumi ­
n at es w he n yo u switch o n the ignitio n as a functi on ch ec k.
[ i] Tips
If thi s wa rning/indi cator light i llum ina tes w hile you a re driving , then
there is a ma lfunction in the engine electronics . Have the malfunc ­
t io n co rre cte d as so on as p oss ible by your auth orized Audi de aler or
qualified wor kshop .•
Brake system BRAKE (USA models)/ (CD)
(Canada models)
Th is warn ing /indicator l ight i llu minates when the brake
fl uid leve l is t oo low or wh en ther e is a ma lf u nct io n in t he
ABS , or when the pa rkin g brake i s se t.
T he lig ht illu min ate s w hen the igni tio n is turn ed on. It goes out aft er
the engine has be en started and the parking bra ke is fu lly released .
T his i ndicate s th at th e br ake w arni ng lig ht is fun cti onin g prop erl y.
If the brake warning light does not light up when the engine is
cranking or the parking brake is applied , there may be a malfunction
in the electrical system. In this case, contact your Audi dealer.
When the l ig ht comes on, an audible warning si gnal is also given.
Controls and equip ­
ment
Instruments and warning /indicator lights
Parking brake set
T he BRAKE or CCD) (Canada) wa rning/indicat or l igh t illum in ate s wh en
t h e pa rkin g b rake is
se t=> ,&.
& WARNING
• USA models : If the BRAKE warning light and the ABS warning
light come on together , the rear wheels could lock up first under
hard braking . Rear wheel lock-up can cause loss of vehicle control
and an accident . Have your vehicle repaired immediately by your
authorized Audi dealer or a qualified workshop. Drive slowly and
avoid sudden, hard brake applications.
• Canada models : If the brake warning light
{(j)) and the ABS
warning light
0 come on together , the rear wheels could lock up
first under hard braking . Rear wheel lock-up can cause loss of
vehicle control and an accident. Have your vehicle repaired imme­
diately by your authorized Audi dealer or a qualified workshop .
Drive slowly and avoid sudden , hard brake applications.
• If the brake warning/indicator light does not go out after a few
seconds and the parking brake released, or lights up while you are
driving, the fluid level in the brake fluid reservoir is too low. If you
believe that it is safe to do so , proceed immediately at low speed
to the nearest authorized Audi dealer or qualified repair facility and have the brake system inspected .
• Always keep in mind that after several brake applications , you
will need greater pressure on the brake pedal to stop your vehicle .
Do not rely on strained brakes to respond with maximum stopping
power in critical situations . You must allow for increased braking
distances . The extra distance u sed up by fading brakes could lead
to an accident . •

You can switch off the open-door-or-lid warning display by briefly pressing the On Board computer control
but tons => page 39. The
open door or trunk warn ing will, however, illuminate again as soon
as there is a change in the position of the doors, engine hood or
trunk lid. •
On-Board Diagnostic system (OBD)
Malfunction Indicator Lamp (MIL) (USA
models) / (Canada models)
The Malfunction Indicator Lamp (MIU in the instrument cluster
=> page 19, fig. 9 is part of the On -Board Diagnostic (OBD II) system.
The warning/indicator light il luminates when the ignition is
switched on and goes out after the engine starts and the idle has
stabi lized . This indicates that the MIL is working prope rly.
If the light do es not go out after the engine is started, or illuminates
while you are driving, a malfunction may exist in the engine system.
If the light starts flashing, the catalytic converter could be damaged .
Continue driving
w ith redu ced pow er (avoiding sustained high
speeds and/or rapid accelerations) and have the condition
corrected. Contact your authorized Audi dealer.
If the light illuminates, the e lectronic speed limiter may also be
malfunctioning . For more
information=> page 28, "Electronic speed
limiter".
An impr operly c lo se d fuel filler cap may al so cau se th e MIL l amp to
illumi nate
=> page 269. •
Controls and equip ­
ment
Dri ver inf orma tio n di spl ay
On -Board Diagnostics
F ig. 15 Locatio n of
Da ta Li nk Co nnecto r
( DL Cl
On-Board Diagnostics monitors the components of your emission
control system . Each control led component in your engine system
has been assigned a code. In case of a malfunction, the component
wil l be identified and the fault stored as a code in the control
modu le memory.
The M IL lamp may a lso illuminate if there is a leak in the on-board
fuel vapor recovery system. If the light illuminates after a refuelling,
pull off the road and stop the vehicle, then check that the fuel fi ller
cap is proper ly closed
=> page 269.
In order to make an accurate diagnosis, the stored data can only be
displayed using special diagnos tic equipment (generic scan tool for
OBD).
In order to connect the special diagnostic equipment, push the plug
into the Data Link Connector (DLC). The DLC is located to the right of
the engine hood release
lever => fig. 15 .
Your author ized Audi dealer or a qua lified service station can inter­
pre t the code and perform the necessary repair. •

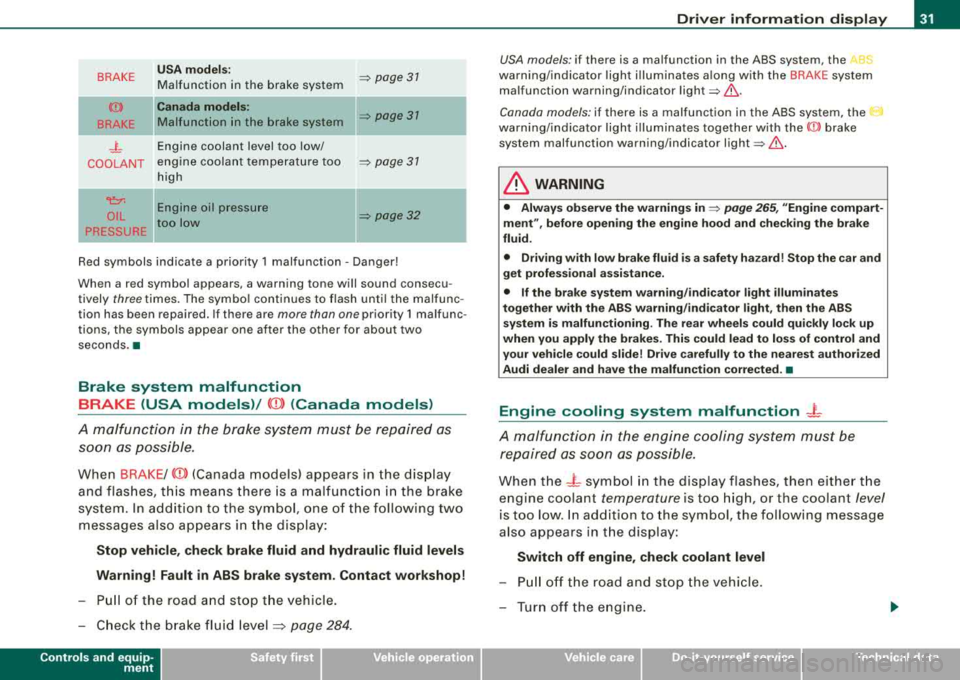

irechnical data

BRAKE
(Ci))
BRAKE
_j_
COOLANT
~
OIL
PRESSURE USA
models:
Malfunction in the brake system
Canada models:
Malfunction in the brake system
Engine coolant level too low/
engine coolant temperature too
high
-
Engine oil pressure
too low =>
page 31
=> page 31
=> page 31
=> page 32
Red symbols indicate a priority 1 malfunction -Danger!
When a red symbol appears , a warning tone will sound consecu­
tively three times. The symbol continues to flash until the malfunc ­
tion has been repaired. If there are more than one priority 1 malfunc­
tions, the symbols appear one after the other for about two
seconds .a
Brake system malfunction BRAKE (USA models)/
(CD) (Canada models)
A malfunction in the brake system must be repaired as soon as possible.
When BRAKE/ (CD) (Canada models) appears in the display
and flashes, this means there is a malfunction in the brake
system. In addition to the symbol, one of the following two
messages also appears in the display:
Stop vehicle, check brake fluid and hydraulic fluid levels
Warning! Fault in ABS brake system. Contact workshop!
- Pull of the road and stop the vehicle.
- Check the brake fluid
level :::;, page 284.
Controls and equip ­
ment
Driver information display
USA models : if there is a malfunction in the ABS system, the ABS
warning/indicator light illuminates along with the BRAKE system
malfunction warning/indicator
light=> ,&..
Canada models: if there is a malfunction in the ABS system, the 0
warning/indicator light illuminates together with the ((l)) brake
system malfunction warning/indicator
light =>,&. .
& WARNING
• Always observe the warnings in => page 265, "Engine compart­
ment", before opening the engine hood and checking the brake
fluid.
• Driving with low brake fluid is a safety hazard! Stop the car and
get professional assistance.
• If the brake system warning/indicator light illuminates
together with the ABS warning/indicator light, then the ABS
system is malfunctioning. The rear wheels could quickly lock up
when you apply the brakes. This could lead to loss of control and
your vehicle could slide! Drive carefully to the nearest authorized
Audi dealer and have the malfunction corrected. •
Engine cooling system malfunction -L
A malfunction in the engine cooling system must be
repaired as soon as possible.
When the - L symbol in the display flashes, then either the
engine coolant
temperature is too high, or the coolant level
is too low. In addition to the symbol, the following message
also appears in the display:
Switch off engine, check coolant level
- Pull off the road and stop the vehicle.
- Turn off the engine.

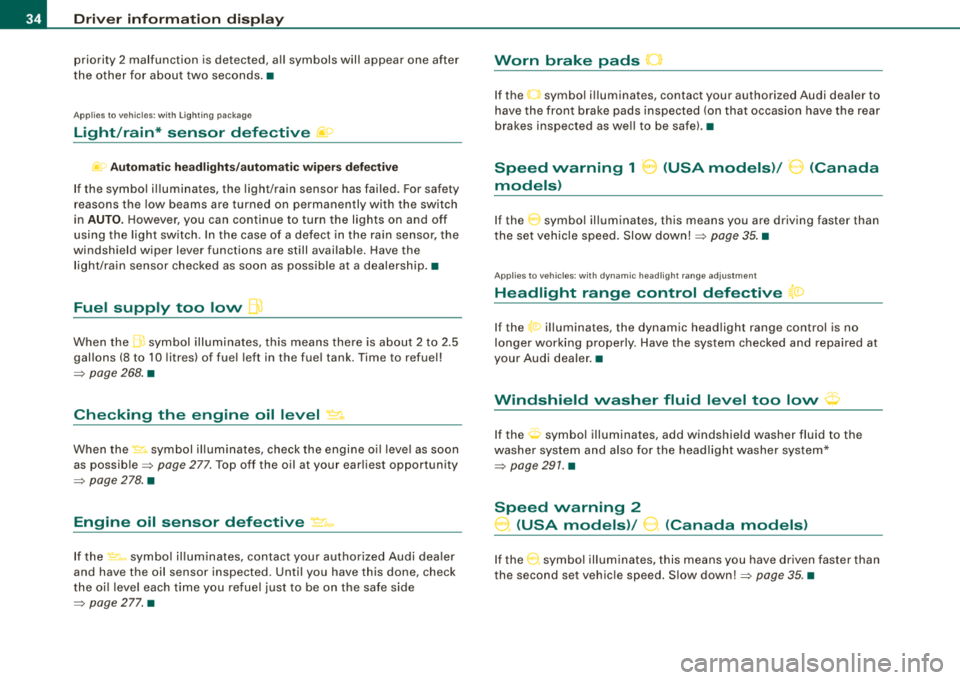

Driver inf ormation di spl ay
priority 2 malfunction is detected, al l symbols will appear one after
t he other for about two seconds. •
Applie s to ve hicles: with Ligh ting pac kage
Light/rain* sensor defective fif>
~o Aut om atic hea dlig ht s/a utom atic w ipers defe ct iv e
If the symbol il luminates, the light /rain sensor has failed. For safety
reasons the low beams a re turned on permanently with the switch
in
AUTO. H owever, you can continue to turn the lights on and off
using the light sw itch . In the case of a defect in the ra in se nsor, the
windshield wiper lever functions are still available. Have the
l ight/ra in sensor checked as soon as poss ible at a dealersh ip .•
Fuel supply too low flt)
When the .ffi symbol illuminates, th is means there is about 2 to 2 .5
gallons (8 to 10 l itres) of fue l left in the fue l tank. Time to refuel!
=> page 268 . •
Checking the engine oil level ~ ..
When the ~ symbol illum inates, check the engine o il leve l as soon
as
possib le => page 277. Top off the oil at your ear liest opportunity
=> page 278 . •
Engine oil sensor defective ~ ...
If the ~-symbo l il lum inates, contact your authorized Audi dea ler
and have the oil sensor inspected . Until you have this done, check
the oi l leve l each t ime you refuel just to be on t he safe side
=> page 277. •
Worn brake pads 0
If the O symbo l illuminates, contact your authorized Audi dealer to
have the front brake pads inspected (on that occasion have the rear
brakes inspected as we ll to be safe) .•
Speed warning 1 8 (USA models)/ 0 (Canada
models)
I f the 0 symbo l il luminates, this means you are driving faster than
the set vehicle speed. Slow
down! => page 35. •
Applies to ve hicles : w ith d ynami c head light rang e adjus tment
Headlight range control defective {a:>
If the t0 illuminates, the dynamic head light range control is no
longer working properly. Have the system checked a nd repaired at
your Audi dealer .•
t·,···
Windshield washer fluid level too low <;p
If the O symbol illuminates, add windshield washer fluid to the
washer system and a lso fo r the headlight washer system*
=> page 291. •
Speed warning 2
0, (USA models)/ 9. (Canada models)
If the 0 symbol illum inates, this means you have driven faster than
the second set vehic le speed . S low
down!=> page 35 . •
