/b, WARNING (continued)
• Always adjust the head restraint properly so that it can give
maximum protection.
•
Proper adjustment of head restraints
Correctly adjusted head restraints are an important part
of your vehicle's occupant restraint system and can help to reduce the risk of injuries in accident situations.

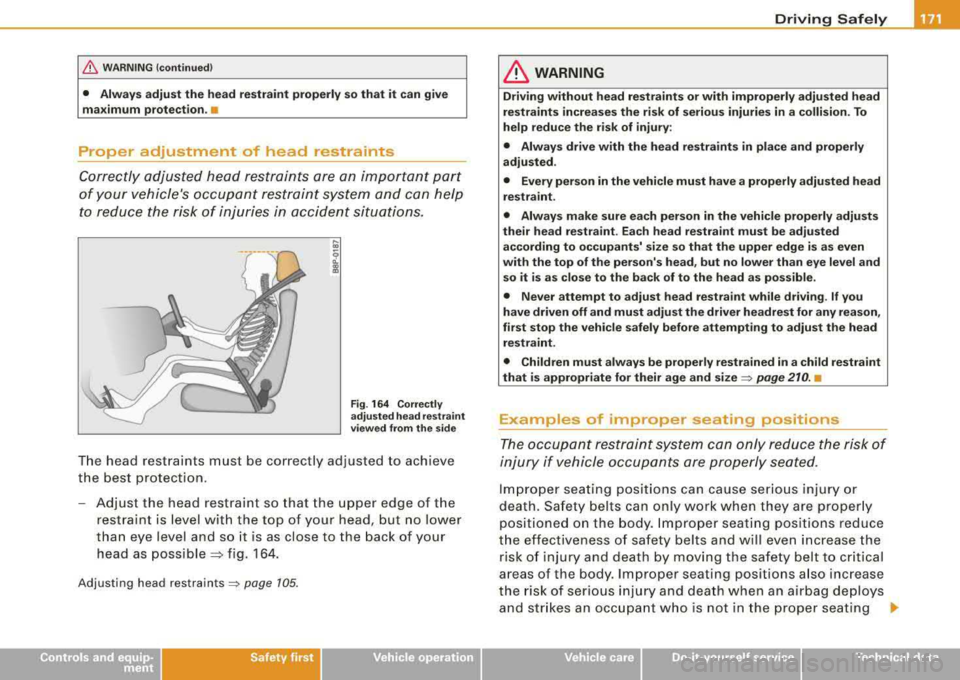

Fig . 164 Correctly
adjusted head restraint
viewed from the side
The head restraints must be correc tly adjusted to ach ieve
the best protect ion .
- Adjust the head restraint so that the upper edge o f the
restraint is level with the top of your head, but no lower
than eye level and so it is as close to the back of your
head as poss ible
~ fig . 164.
Adjus ting head re straints ~ page 105.
Safety first
Driving Safely
LJ}. WARNING
Driving without head restraints or with improperly adjusted head
restraints increases the risk of serious injuries in a collision. To
help reduce the risk of injury :
• Always drive with the head restraints in place and properly
adjusted .
• Every person in the vehicle must have a properly adjusted head
restraint.
• Always make sure each person in the vehicle properly adjusts
their head restraint . Each head restraint must be adjusted
according to occupants' size so that the upper edge is as even
with the top of the person's head, but no lower than eye level and
so it is as close to the back of to the head as possible.
• Never attempt to adjust head restraint while driving . If you
have driven off and must adjust the driver headrest for any reason,
first stop the vehicle safely before attempting to adjust the head
restraint.
• Children must always be properly restrained in a child restraint
that is appropriate for their age and
size ~ page 210. •
Examples of improper seating positions
The occupant restraint system can only reduce the risk of
injury if vehicle occupants are properly seated .
Improper seating positions can cause serious injury or
death . Safety belts can only work when they are properly
positioned on the body. Improper seating positions reduce
the effectiveness of safety belts and will even increase the r isk of injury and death by moving the safety belt to critical
areas of the body . Improper seating positions also increase
the risk of ser ious injury and death when an airbag deploys
and strikes an occupant who is not in the proper seat ing
.,_
