Seat s and storage
Seats and storage
General information
Why is your seat adjustment so important?
The safety belts and the airbag system can only
provide maximum protection if the front seats are correctly adjusted .
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the dr iver and the front passenger . Adjust
your seat properly so that :
- you can easily and quickly reach all the switches
and controls in the instrument panel
- your body is properly supported thus reducing
physical stress and fatigue
- the safety belts and a irbag system can offer
maximum protection
¢ page 129.
In the following sections, you will see exactly
how you can best adjust your seats.
There are special regulat ions and instructions for
installing a child safety seat on the front pas­
senger's seat . Always fo llow the information re­
garding child safety provided in¢
page 151 ,
Child safety.
_&. WARNING
Refer to¢ page 112, Driving safety for im­
portant information, tips, suggestions and
warnings that you should read and follow for
your own safety and the safety of your pas­
senge rs.
_&. WARNING
Incorrect seating position of the driver and all
other passengers can resu lt in serious person­
al injury.
- Always keep your feet on the floor when the
vehicle is in motion -neve r put your feet on
top of the instr ument pane l, out of the win ­
dow or on top of the seat cushion. This ap­
plies espec ially to the passengers . If your
seat ing position is incorrect, you increase
the risk of injury in the case of sudden brak­ ing or an accident. If the airbag inflates and
54
the seating position is incorrect, this cou ld
result in personal injury or even death.
- It is important for both the driver and front
passenger to keep a distance of at least
10 inches (25 cm) between themselves and
the steering wheel and/or instrument panel.
If you're sitting any closer than this, the air­
bag system cannot protect you properly . In
addition, the front seats and head restraints
must be adjusted to your body height so
that they can give you max imum protect ion.
- Always try to keep as much distance as pos­ sible between yourself and the steer ing
wheel or instrument pane l.
- Do not adjust the driver's or front passeng­
er 's seat while the vehicle is moving. Your
seat may move unexpected ly, causing sud­
den loss of vehicle control and persona l in­
jury.
If you adjust your seat while the vehicle
is moving, you are out of position.
Driver's seat '
The correct seat position is important for safe
and relaxed driving.
We recommend that you adjust the dr iver's seat
in the following manner:
~ Adjust the seat in fore and aft direction so that
you can easi ly push the pedals to the floor
while keepi ng your knees slightly bent¢ .&,
in
Why is your seat adjustment so important? on
page 54.
~ Adjust the seatback so that when you sit with
your back against the seatback, you can still
grasp the top of the steering wheel.
~ Applies to veh icles with adjustable head re­
straints: Adjust the head restraint so the upper
edge is as even as possible with the top of your
head.
If that is not poss ible, try to adjust the
head restra int so that it is as close to this posi­
tion as possible ¢
page 57.
_&. WARNING
Never place any objects in the driver's foot­
well. An object could get into the pedal area
and interfere with pedal funct ion. In case of
-

M N
0 l­oo
rl I.O
"' N
"' rl
sudden braking or an accident, you would not
be able to brake or accelerate.

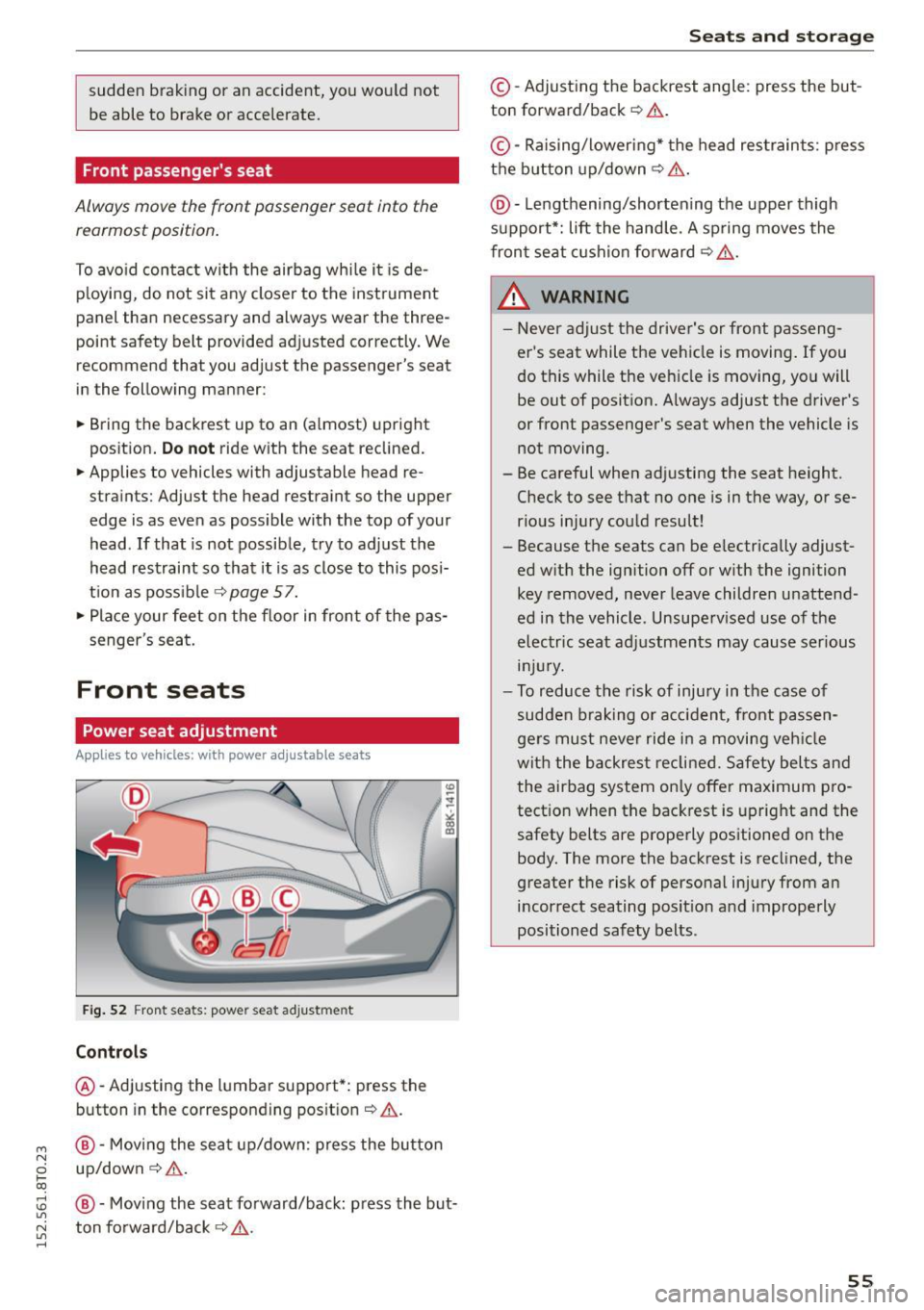

Front passenger's seat
Always move the front passenger seat into the rearmost position .
To avoid contac t with the airbag wh ile i t is de­
p loying, do not sit a ny closer to the inst rument
panel than necessary and always wear the three­
point safety belt provided adj usted correctly. We
recommend that you adjust the passenger's seat
in the following manner:
• Bring the back rest up to an (a lmost) upright
position .
Do not ride with the seat reclined .
• Applies to vehicles with adjustable head re ­
stra ints: Adjust the head restra int so the upper
edge is as even as possible with the top of your
head.
If that is not possible, try to adjust the
head restraint so that it is as close to this pos i­
t io n as poss ible
¢ page 57.
• Place your feet on the f loor in front of the p as­
senger 's seat.
Front seats
Power seat adjustment
App lies to vehicles : with power adjustable seats
Fig. 52 Front seats: powe r seat a dju st m en t
Controls
@ -Adjusting the l umbar suppo rt*: press the
button in the corresponding pos it io n
c:> & .
@ -Moving the se at up/down: press the bu tto n
up/down ¢ & .
@ -Mov ing the s eat fo rward/back: p ress the but­
ton fo rward/back ¢
&,..
Seats and storage
©-Adjust ing the backrest angle : press the but ­
ton forward/back ¢.&. .
©-Raising/loweri ng* the head res train ts: p ress
t h e b utton up/down¢ &.
@ -Lengthening/shortening the upper thigh
support*: lift the hand le. A sp ring moves the
fron t se at c ushion fo rward ¢
.&..
_& WARNING
-Never a dju st the drive r's or front passeng­
er 's seat while the ve hicle is moving .
If you
do this while the ve hicle is moving , you will
be out of position. Always adjust the d river's
or front passenger's seat when the vehicle is
not moving.
- Be careful when adjusting the seat height. Check to see t hat no one is in the way, or se­
rious injury cou ld result!
- Because t he seats can be e lectrically adjust­
ed w it h the ignition off or w ith the ignition
key removed, never leave children unattend­
ed in the vehicle. Unsupe rv ised use of the
elec tric seat ad justments may cause serious
lnJUr y.
-To r educe the risk of inju ry in the case of
sudden b ra king o r ac cident, front passen­
ge rs must neve r ride i n a moving veh icle
wit h the b ackres t re clined. Safety bel ts an d
the airbag system only offe r maximum pro ­
tect ion when the bac krest is upright and the
safety belts are prope rly positioned on the
body. The more the backrest is reclined, the
greater t he risk of personal injury from an
incorrect seating posit io n and improperly
positioned safety belts.
55

Seats and storag e

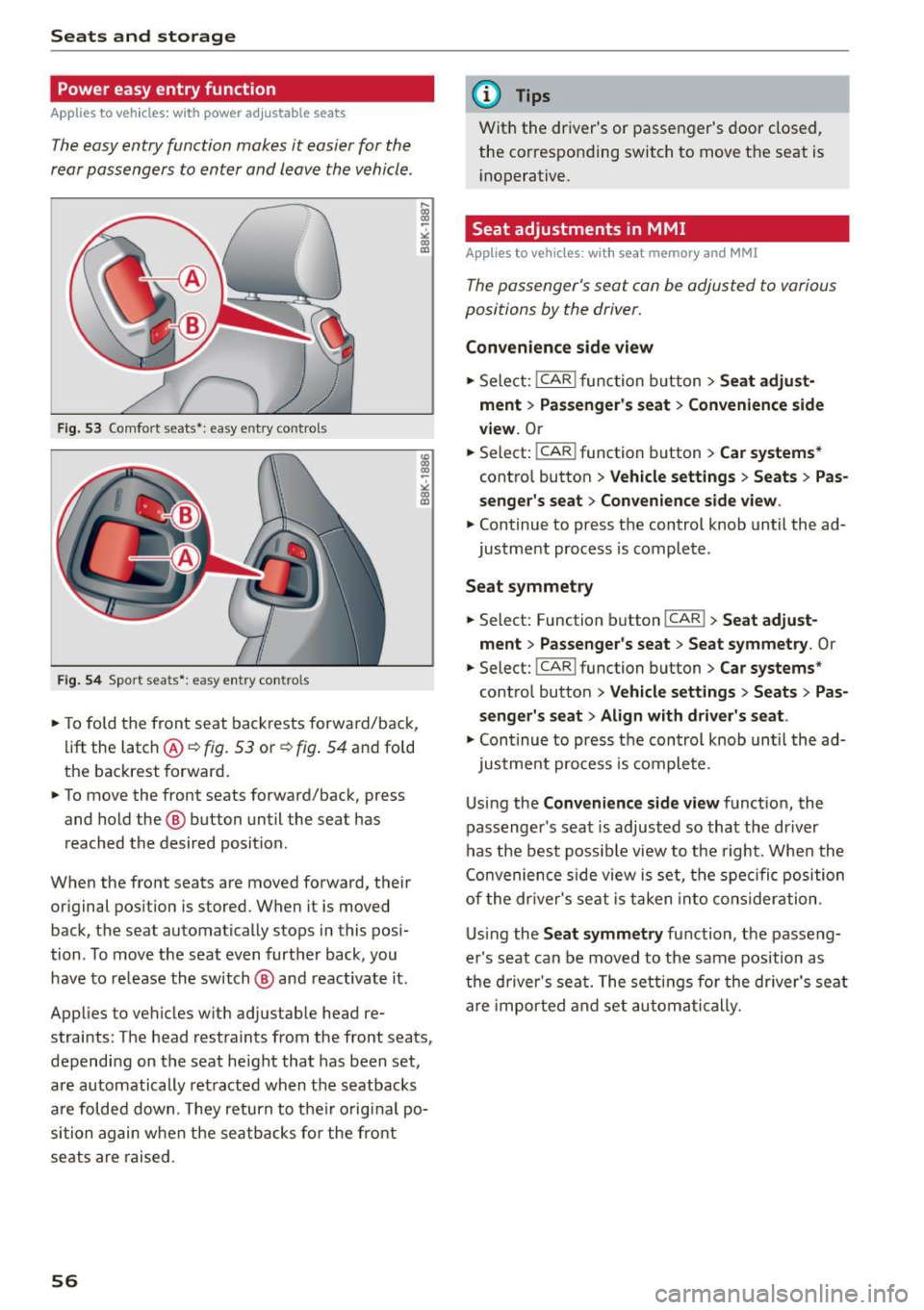

Power easy entry function
Applies to vehicles: with power adjustable seats
The easy entry function makes it easier for the
rear passengers to enter and leave the vehicle .
Fig . 53 Comfo rt seat s•: easy e ntry co ntro ls
F ig . 54 Spor t seats * : ea sy entry con tro ls
.,. To fold the front seat backrests forward/back,
li ft the latch@~
fig. 53 or~ fig. 54 and fo ld
the backrest forwa rd .
.,. To move the front seats forward/back, press
and hold the @ button until the seat has
reached the desired posit ion.
When the front seats are moved forward, their
or iginal position is s tored. When it is moved
back, the sea t automatically stops in this posi­
tion . To move the seat even further back , you
have to re lease the switch @ and reactivate it .
Applies to vehicles w ith adjustable head re­
straints: The head restraint s from the front seats,
depending on the seat height that has been set,
are automatically ret racted when the seatbacks
are folded down . T hey return to their o riginal po­
sition again when the seatbacks fo r the front
seats are raised .
56
@ Tips
With the driver 's or passenger's door closed,
the corresponding switch to move the seat is i noperative .
Seat adjustments in MMI
Applies to vehicles: with seat memory and MMI
The passenger 's seat can be adjusted to various
position s by the driver.
Convenience side view
.,. Sele ct: !CAR ! function b utton> Seat adju st­
ment > Passenger's seat > Con venience side
v iew.
Or
.,. Select: !CAR ! function button> Car systems *
control button > Vehicle settings > Seats > Pas ­
s enger 's se at> Con venience side v ie w .
.,. Continue to press the control knob until the ad­
justment process is complete .
Seat symmetry
.,. Sel ect: Function button !CAR !> Seat adju st­
ment
> Passenge r's seat > Seat symmetry . Or
.,. Select: !CAR ! function button> Car s ystems *
control button > Vehicle settings > Seat s > Pas­
se ng er' s s eat > Align with d rive r's se at .
.,. Continue to press the control knob until the ad-
j ustment process is complete .
Using the
Con venience side view functio n, the
passenger 's seat is adjusted so that the driver
has the best possib le view to the right . When the
Co nvenience side view is set, the spec ific position
of the dr iver's seat is taken into consideration .
Us ing the
Seat symmetr y function, the passeng­
er's seat can be moved to the same position as
the d river 's sea t. The settings for the dr iver's seat
are imported and set au tomatically.

M N
0 l­oo
rl I.O
"' N
"' rl

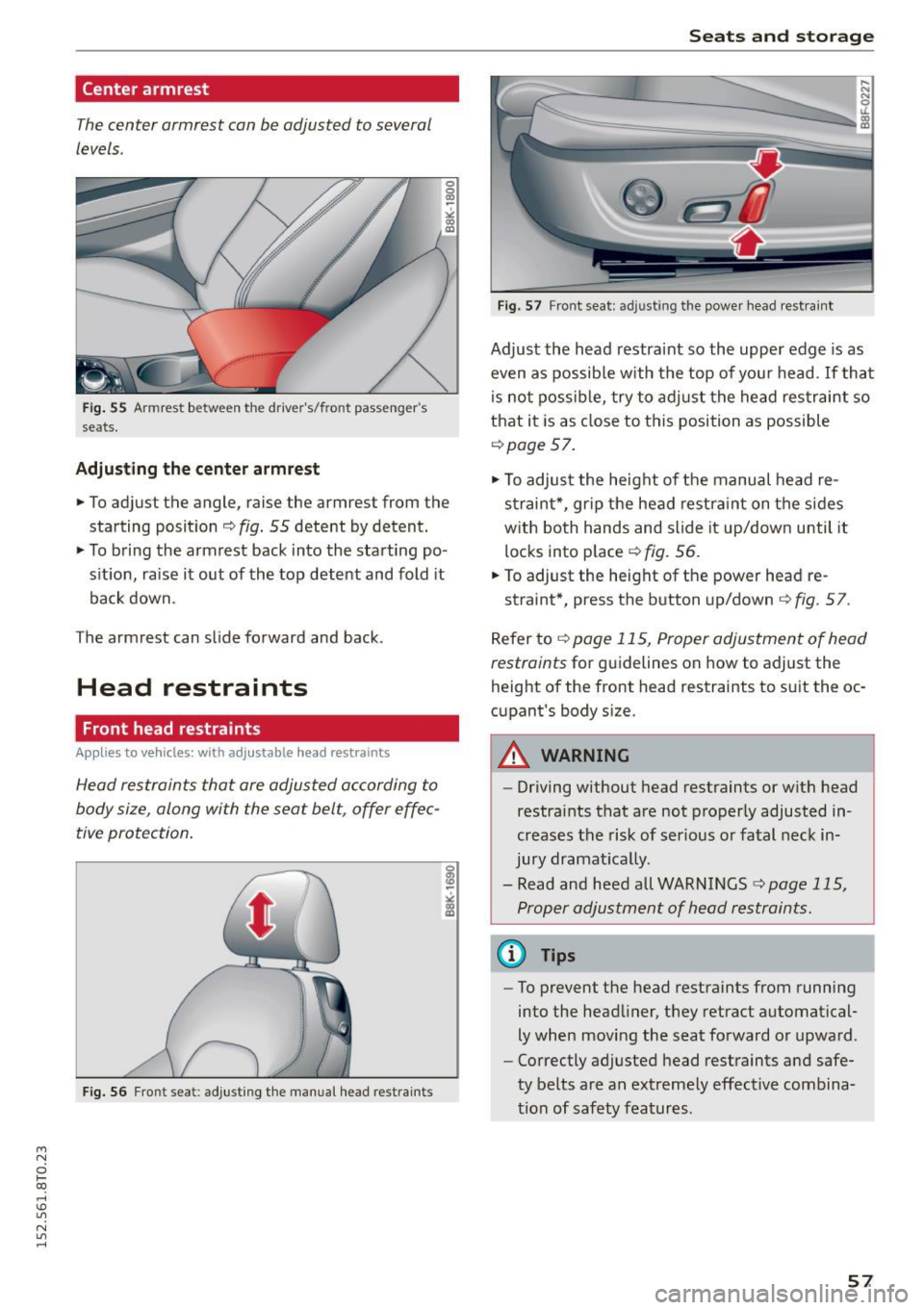

Center armrest
The center armrest can be adjusted to several
levels .
Fig. 55 Armrest between the driver's/front passenger's
seats.
Adjusting the center armrest
.,. To adjust the angle, raise the armrest from the
starting position
c:> fig. 55 detent by detent.
.,. To bring the armrest back into the starting po­
s it io n, raise it out of the top detent and fold it
back down.
The armrest can slide forward and back .
Head restraints
Front head restraints
Applies to vehicles: with a djustable head restraints
Head restraints that are adjusted according to
body size, along with the seat belt, offer effec­
tive protection .
Fig. 56 Front seat : ad just ing the man ual head restraints
Seats and storage
Fig. 57 Front seat: adjusting the power head restra int
Adjust the head restraint so the upper edge is as
even as possib le with the top of yo ur head . If tha t
is not possib le, try to adj ust the head restr aint so
that it is as close to this position as possible
<=> page 57.
.,. To adjust the height of the manual head re­
straint*, grip the head restra int on the sides
w ith both hands and slide it up/down until it
locks into place
<=> fig . 56.
.,. To adjust the height of the power head re-
straint*, press the button up/down
c:> fig. 57 .
Refer to c:> page 115, Proper adjustment of head
restraints
for g uidelines on how to adjust the
height of the front head restraints to suit the oc­
cupant's body size.
A WARNING
-- Driving without head restraints or with head
restraints that are not proper ly adjusted in­
creases the risk of ser ious or fatal neck in­
jury dramat ica lly.
- Read and heed all WARNINGS
c:> page 115,
Proper adjustment of head restraints.
@ Tips
- To prevent the head restraints from running
into the head liner, they retract automatical­
ly when mov ing the seat forward or upward.
- Correctly adjusted head restraints and safe­
ty be lts are an extreme ly effective combina­
tion of safety features.
57
