wheel bolts AUDI A5 2015 Owner´s Manual

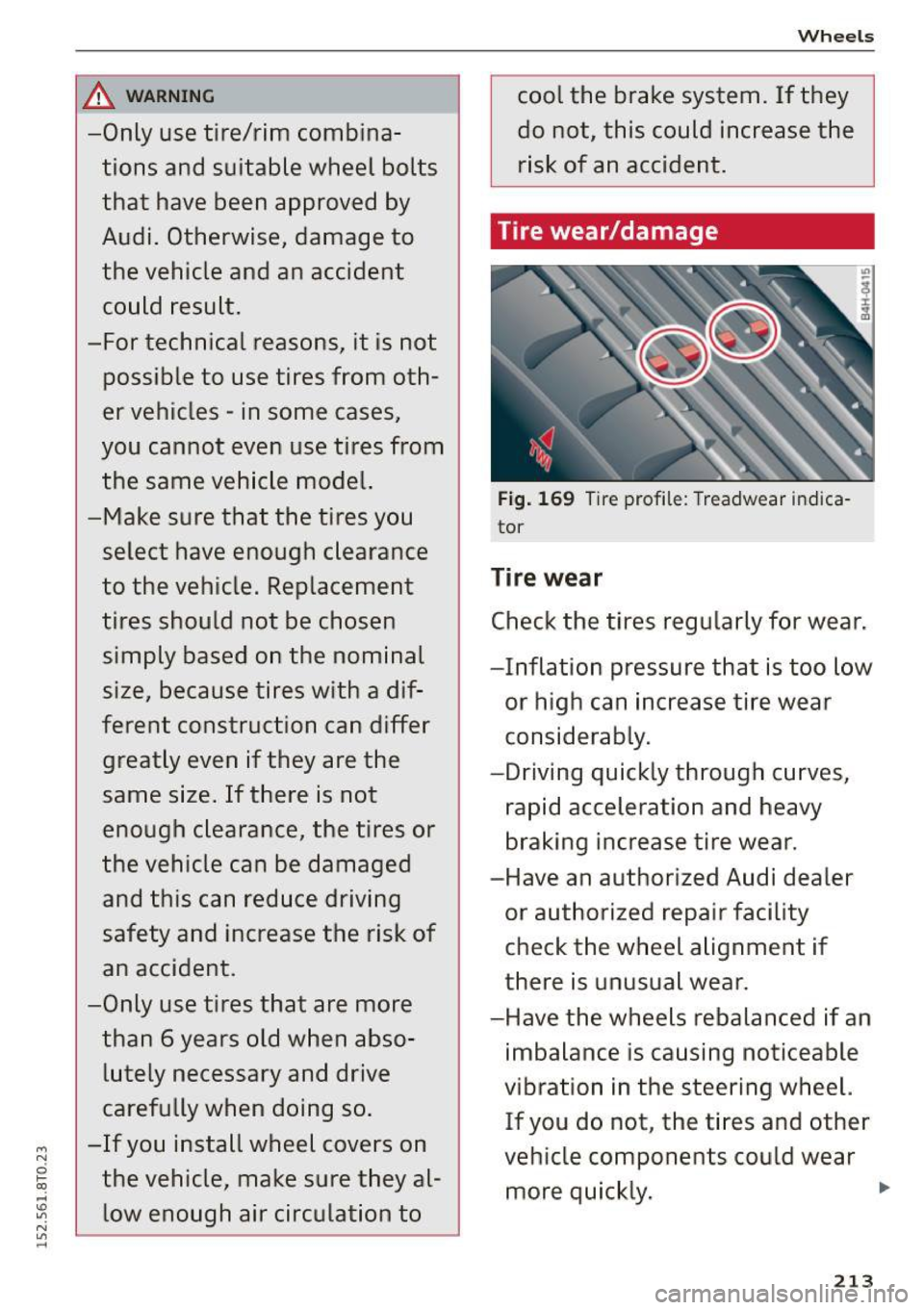

_& WARNING -
-Only use tire/rim combina­tions and suitable wheel bolts
that have been approved by
Audi. Otherwise, damage to
the vehicle and an accident
could result.
- For technical reasons, it is not
possible to use tires from oth­
er vehicles -in some cases,
you cannot even use tires from
the same vehicle model.
- Make sure that the tires you
select have enough clearance
to the vehicle. Replacement
tires should not be chosen simply based on the nominal
size, because tires with a dif­
ferent construction can differ
greatly even if they are the
same size. If there is not
enough clearance, the tires or
the vehicle can be damaged
and this can reduce driving
safety and increase the risk of
an accident.
-Only use tires that are more
than 6 years old when abso­
lutely necessary and drive
carefully when doing so.
-If you install wheel covers on
the vehicle, make sure they al­ low enough air circulation to
Wheels
cool the brake system. If they
do not, this could increase the
risk of an accident.
Tire wear/damage
Fig. 169 Tire profile: Treadwear indica­
tor
Tire wear
Check the tires regularly for wear.
- Inflation pressure that is too low
or high can increase tire wear
considerably.
-Driving quickly through curves,
rapid acceleration and heavy
braking increase tire wear.
- Have an authorized Audi dealer
or authorized repair facility
check the wheel alignment if
there is unusual wear.
-Have the wheels rebalanced if an imbalance is causing noticeable
vibration in the steering wheel. If you do not, the tires and other
vehicle components could wear more quickly.
213
...

M N
i? co ,...., \!) 1.1'1
N 1.1'1 ,....,

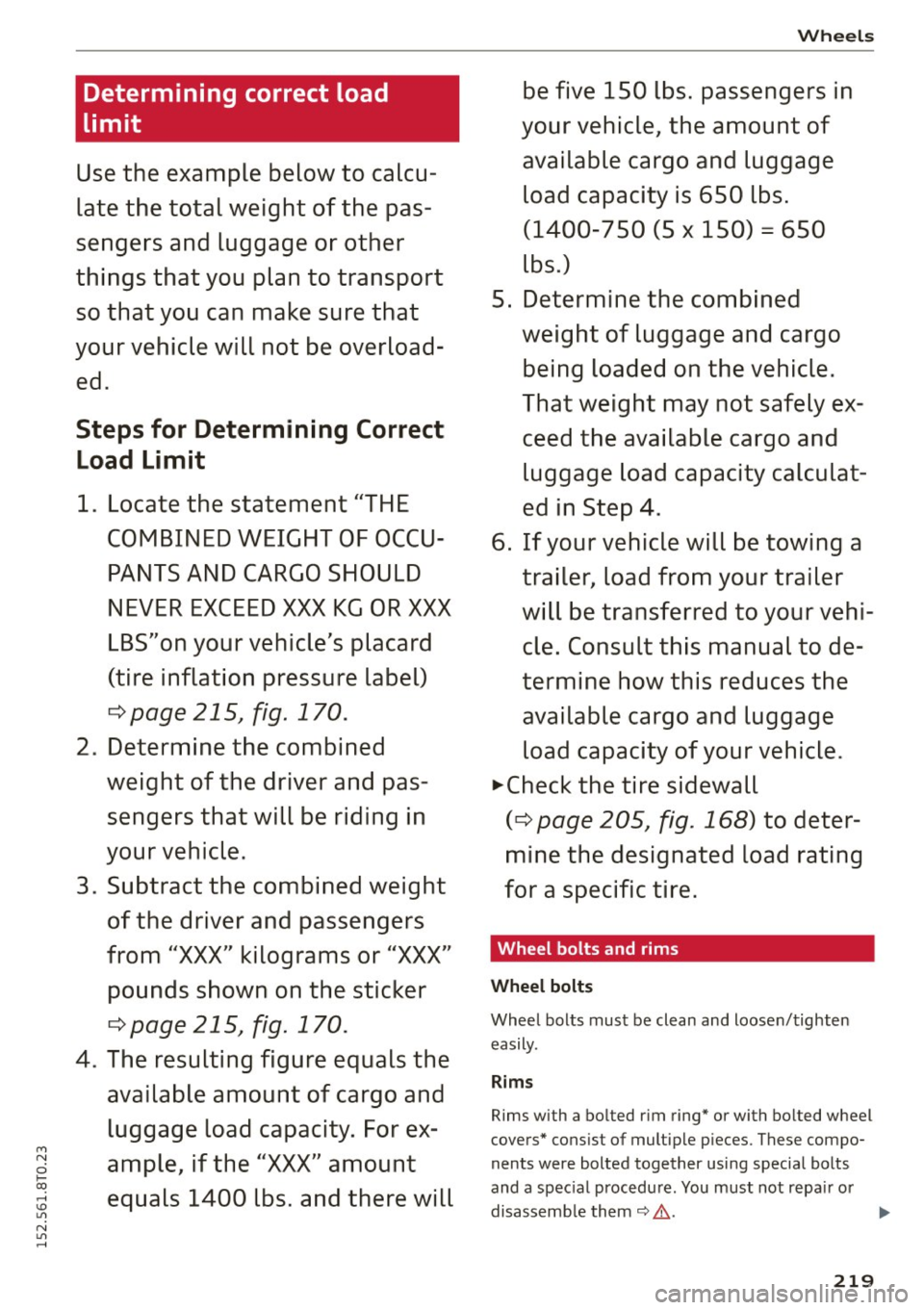

Determining correct load
limit
Use the example below to calcu­
late the total weight of the pas­
sengers and luggage or other
things that you plan to transport
so that you can ma ke sure that
your vehicle will not be overload­ ed .
Steps for Determining Correct
Load Limit
1 . Locate the statement "THE
COMBINED WEIGHT OF OCCU­ PANTS AND CARGO SHOULD
NEVER EXCEED XXX KG OR XXX
LBS"on your vehi cle's pla card
(tire inflation pressure label)
¢ page 215 , fig. 170.
2 . Determine the combined
weight of the driver and pas­
sengers that will be riding in
your vehicle.
3 . Subtract the combined weight
of the driver and passengers
from
"XXX " kilograms or "XXX"
pound s shown on the sticker
¢ page 215 , fig. 170 .
4. The resulting figure equals the
available amount of cargo and luggage load capacity. For ex­
ample, if the
" XXX" amount
equals 1400 lbs. and there will
Wheels
be five 1 SO lb s. passenger s in
your vehicle, the amount of available cargo and luggage load capa city is 650 lb s.
(1400-750 (5 X 150) = 650
lb s.)
5. Determine the combined
weight of luggage and cargo
being loaded on the vehicle .
That weight may not safely e x­
c eed the available cargo and
luggage load capa city cal culat­
ed in Step 4 .
6. If your vehicle will be towing a trailer, load from your trailer
will be transferred to your vehi­
cle. Con sult thi s manual to d e­
termine how this redu ce s the
available cargo and luggage load capacity of your vehicle .
.,.Check the tire sidewall
(¢ page 205 , fig. 168) to deter­
mine the designated load rating
for a specific tire.
Wheel bolts and rims
Wheel bolts
W heel bolts mus t be clean and loose n/tighten
easily .
Rims
Rims with a bo lted r im ring* or with bo lted wheel
cove rs* cons ist of multi ple p ieces . These compo­
nents were bolted together using specia l bolts
and a spec ia l procedu re . You must not repa ir or
disassemb le th em
i::> Li::,. . ..,.
219

Wheels
A WARNING
Wheel bolts that are tightened or repaired in­correctly can become loose and result in loss
of vehicle control , which increases the risk of
an accident. For the correct tightening specifi­
cation, refer to
c:> page 22 7, After changing a
wheel.
- Always keep the wheel bolts and the threads
in the wheel hub clean and free of grease.
- Only use wheel bolts that fit the rim .
- Always have damaged rims repaired by an
authorized Audi dealer or authorized repair
facility. Never repair or disassemble rims
yourself, because this increases the risk of an accident.
Winter tires
Winter tires significantly improve the vehicle's handling when driving in winter conditions . Be­
cause of their construction (width, compound,
tread pattern), summer tires provide less traction
on ice and snow.
.., Use winter tires on all four wheels .
.., Only use winter tires that are approved for your
vehicle.
.., Please note that the maximum permitted
speed may be lower with winter tires
c:> .&,.
Your authorized Audi dealer or authorized re­
pai r facility can inform you about the maximum
permitted speed for your tires .
.., Check the tire pressure after installing wheels
c:> page 215.
The effectiveness of winter tires is reduced great­
ly when the tread is worn down to a depth of
0 .1S7 inch (4 mm). The characteristics of winter
tires also decrease greatly as the tire ages, re ­
gardless of the remaining tread.
A WARNING
-Never drive faster than the maximum per­
mitted speed for your t ires. This could cause
the tires to heat up too much . This increases
the risk of an accident because it can cause
the tire to burst.
220
- Always adapt your driving to the road and
traffic conditions. Drive carefully and reduce
your speed on icy or slippery roads. Even
winter tires can lose traction on black ice.
@ For the sake of the environment
Reinstall summer tires at the appropriate
time, because they provide better handling
when roads are free of snow and ice. Summer
tires cause less road noise, tire wear and fuel
consumpt ion.
(D Tips
You can also use all season tires instead of
winter tires. Please note that in some coun­
tries where winter tires are required, only win­
ter tires w ith the
& symbol may be permit­
ted.
· Snow chains
Snow chains improve traction in the snow .
.., Only install snow chains on the front wheels.
This applies also to vehicles with all wheel drive* .
.., Check and correct the seating of the snow
chains if necessary after driving a few feet. Fol­
low the instructions from the manufacturer .
.., Note the maximum permitted speed when driv­
ing with snow chains . Do not exceed 30 mph
(SO km/h) .
Snow chains not only improve the
driving in win­
ter road conditions, but also the
braking.
Use of snow chains is only permitted with certain
rim/tire combinations due to technical reasons.
Check with an authorized Audi dealer or author­
ized repair facility to see if you may use snow
chains .
Use
fine-mesh snow chains. They must not add
more than 0.53 inch (13.S mm) in height, includ­
ing the chain lock.
You must remove the chains when driving on
roads that are
free of snow. When roads are free
of snow, snow chains can impair handling and .,.

M N
0 l­oo
rl I.O
"' N
"' rl
Emergency assistance
Vehicle tool kit
The tools ore stored underneath the floor panel
in the luggage comportment.
Fig. 173 Luggage compartme nt: tool kit
When you need access to the veh icle tool kit or
jack*, you will need to take out the spare t ire*
and cover¢
page 225.
The vehicle tool kit includes:
- Hook for removing wheel covers*
- Plastic hook to remove wheel bolt covers*
- Alignment pin for changing the whee l
- Screwdriver w ith reversible blade
- Tool for chang ing light bulbs
- Reversible bit (reversible Torx bit for changing
light bulbs)
- Rod for jack
- Jack*
- Lug wrench
- Towing eye
Some of the vehicle items listed above are prov id­
ed on certain models only or are optional extras.
Before returning the jack* to its place, retract the
jack arm fu lly.
_& WARNING
- Never use the screw driver hex head to
t ighten whee l bolts, since the bolts cannot
attain the necessary tightening torque if you
use the hex head, potentially causing an ac­
cident.
- The factory-suppl ied jack is intended only
for your vehicle model. Under no c ircum­
stances should it be used to lift heavy
Emergen cy assistance
vehicles or other loads; you risk injuring
yourself.
- Never start the engine when the vehicle is
raised, which could cause an accident.
- Support the vehicle securely with appropri­
ate stands if work is to be performed under­
neath the vehicle; otherwise, there is a po­
tential risk for injury.
Space-saving spare tire
(compact spare tire)
Applies to vehicles: with space-saving spare tire
The spore tire/wheel is located in the luggage
comportment under the cargo floor cover. It is
intended for short-term use only.
Fig. 174 Spare tire
Removing the spare tire
.,. Lift the cargo floor by the p lastic handle
¢fig. 174.
.,. Hook the handle into the luggage compart­
ment weather strip.
., Turn the large screw ¢
fig. 174 counter-clock­
wise.
., Take out the spare ti re .
., Always store the vehicle tool kit, the jack*, and
the replaced tire in the luggage compartment
¢page 118.
.,. Unhook the cargo floor before closing the rear
lid.
Using the spare tire (compact spare tire)
The compact spare tire is only intended for emer­
gencies until you can reach a repa ir shop. Replace
it as quickly as possible with a standard wheel
and tire. ..,
225

M N
0 I-co
rl I.O
"' N
"' rl
the wheel diagona lly opposite the wheel be­
ing changed with the folding chocks or ot h­
er objects. When one front wheel is lifted
off the ground, placing the Automatic Trans­
mission in "P" (Pa rk) wi ll
not prevent the ve­
hicle from moving .
- Before you change a wheel, be sure the
ground is level and fi rm.
If necessary, use a
sturdy board under the jac k.
- Always store the vehicle tool kit, the jack*
and the replaced tire in the luggage com­
partment c::>
page 118 .
(D Note
If you are chang ing the wheel o n a steep in­
cline, use a rock or sim ila r object to block the
opposite whee l to prevent the vehicle from
moving.
@ Tips
Obey a ll laws.
Changing a wheel
When you change a wheel, follow the sequence
described below step -by -step and in exactly that
order.
1. Remove the decorati ve w heel co ver* or the
w he el bolt caps *. For more details see a lso
c::> page 22 7, Decorative wheel covers or
c::> page 228, Wheels with wheel bolt caps .
2. Loosen the whe el bolt s c::> page 228.
3. Lo cate the proper mo unti ng po int for the
jack and align the jack below tha t point
c::> page229.
4. Lift the car wit h the jack c::> page 229.
5. Remove the wheel with the flat tire and then
install the
spare t ire c::> page 230.
6 . Tighten all wheel bo lts light ly.
7 .
Low er the veh icle w ith the jack.
8 . Use the wheel bolt wrench and
firmly tighten
9.
all whee l bolts in a crissc ross pattern
c::> page 228.
Replace t he de corative wh ee l c over* or the
whe el bolt cap s*.
Em erg en cy ass is tan ce
A WARNING
-Always read and follow all WARNINGS and in-
formation
c::> .&. in Raising the vehicle on
page
229 and c::> page 231.
After changing a wheel
A wheel change is not complete without the do­
ing the following.
.. Always store the vehicle tool k it, the jack*, and
the replaced t ire in the luggage compartment
c::>page 118.
.. Check the tir e pr essure of the spare ti re as soon
as poss ible .
.. As soon as possib le, have the
tightening to r­
que s
on a ll whee l bolts checked wi th a torque
wrench . Th e cor rect tigh tening torque is 90 ft
lbs .
(120 Nm).
.. Have the flat tire
replaced as soon as possible.
@ Tips
- If you not ice tha t the wheel bo lts are cor­
roded and difficult to turn while changing a
tire, they should be replaced before you check the tightening torque.
- Dr ive at reduced speed until you have the
tightening torques checked .
Decorative wheel covers
Applies to vehicles: with decorative w heel covers
The decorative wheel covers must be removed
first to access the wheel bolts .
Fig. 1 75 Chang ing a w heel: re m ovi ng t he w heel cove r
227

Emergency assistance

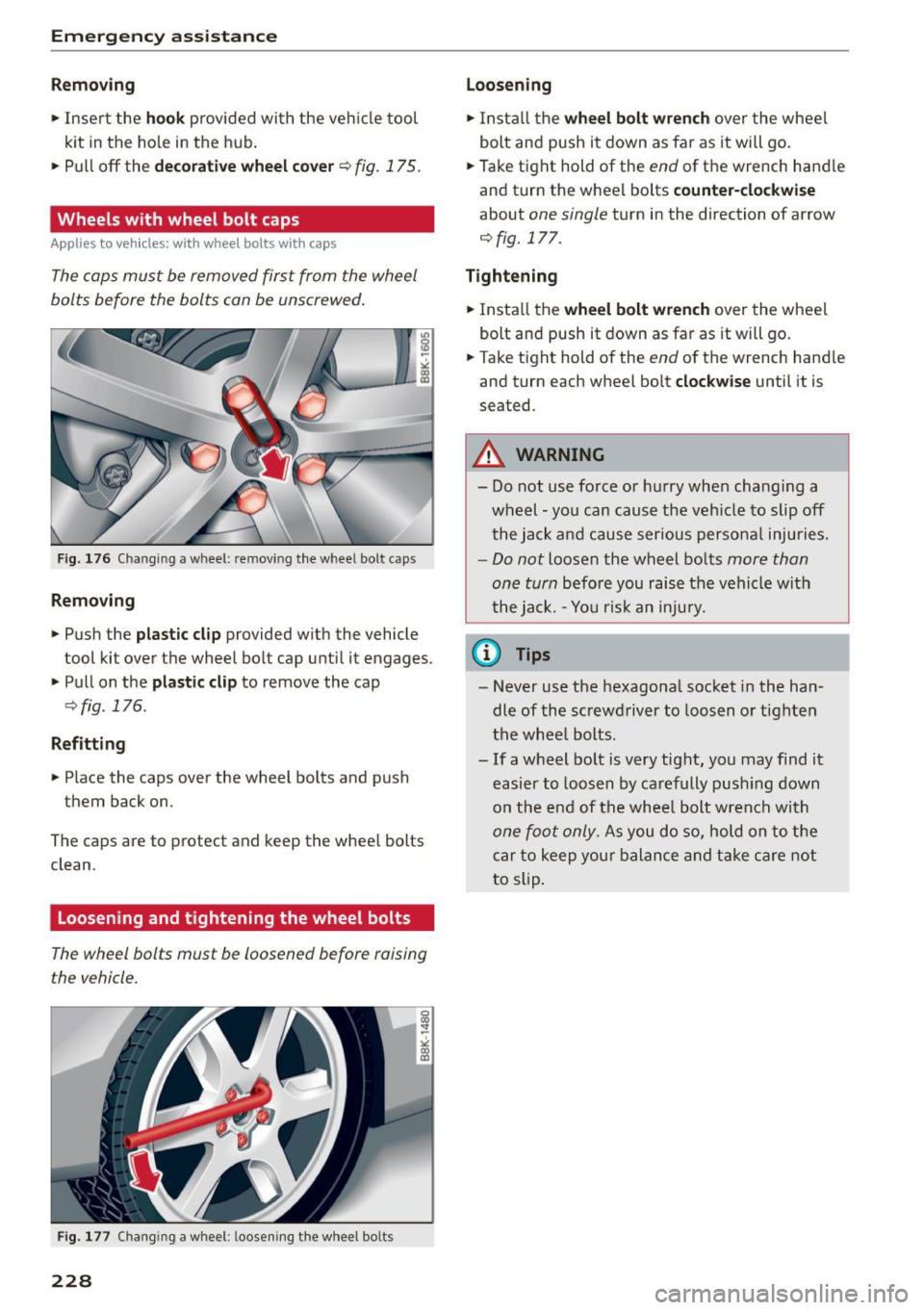

Removing
.. Inser t the hook provided wi th the veh icle tool
kit in the ho le in the h ub.
.. Pu ll
off the decorative wheel cover c::;, fig. 175.
Wheels with wheel bolt caps
Applies to veh icles: with wheel bolts wit h caps
The caps must be removed first from the wheel
bolts before the bolts can be unscrewed .
Fig. 176 Chan gin g a w hee l: r em ov ing the w hee l bo lt caps
Removing
.. Push the plastic cl ip provided w it h the vehicle
tool kit over t he wheel bolt cap unti l it engages.
• Pu ll on t he
plastic clip to remove the cap
¢ fig . 176 .
Refitting
.. Place the caps over the wheel bo lts and p ush
them back on.
The caps are to protect and keep the whee l bolts
clean.
Loosening and tightening the wheel bolts
The wheel bolts must be loosened before raising
the vehicle.
F ig . 177 Chan gin g a w hee l: l ooseni ng the w heel bo lts
228
Loosening
• Insta ll the whe el bolt wren ch over the wheel
bolt and push i t down as far as it will go .
.. Take tight hold of the
end of the wrench hand le
and turn the wheel bolts
counter -clockwise
about one single turn in the direction of arrow
¢fig. 177.
Tightening
.. Insta ll the wheel bolt wren ch over the wheel
bolt and push it down as fa r as it will go .
.. Take t ight hold of the
end o f th e wrench hand le
and turn each wheel bolt
clockwise until it is
seated.
A WARNING
- Do not use fo rce or hurry whe n cha nging a
whe el - you can c ause the veh icle to slip
off
the jac k and ca use serious persona l injuries .
-Do not loosen the wheel bol ts more than
on e turn
befo re you rais e the ve hicle with
t he ja ck . -Yo u ris k an inju ry .
(D Tips
- Never use the hexagona l socket in the han­
dle of the sc rew driver to loosen o r tighten
t h e whee l bolts .
- If a w heel bo lt is very tight, you may find it
easier to loosen by ca refully push ing down
on the en d of the wh ee l bol t wren ch with
one f oot only. As you d o so, hold on t o th e
ca r to keep you r balan ce and take c are not
to slip .

Emergency assistance
CD Note
Do not lift the vehicle by the sil l. Position the
vehicle jack only at the designated lifting points on the sill. Otherwise, your vehicle will
be damaged.
Taking the wheel off/installing the spare
tire
Follow these instructions step -by -step for chang­
ing the wheel .
Fig. 180 Changin g a w heel : us ing th e scr ewdr iver handle
(w ith t he blade removed) to turn the bolts
Fig. 181 Cha nging a whee l: al ignment pin inside the top
h ole
After you have loosened a ll wheel bolts and
raised the vehicle
off the ground, remove and re­
place the whee l as follows:
Removing the wheel
.,. Remove the topmost wheel bolt completely
with the
hexagonal socket in the screwdriver
hand le (vehicle too l kit)
c:;, fig . 180 and set it
aside on a
clean surface.
.,. Screw the threaded end of the
alignment pin
from the tool kit hand-tight into the empty bolt
hole
¢fig. 181 .
230
.,. Then remove the other wheel bolts as described
above.
.,. Take
off the wheel leaving the a lignment pin in
the bolt ho le
c:;, CI) .
Putting on the spare tire
""Push the spare tire over the alignment pin.
.,. Screw on the wheel bolts and tighten them
slightly using the hexagona l socket .
.,. Remove the alignment pin and insert and tight­
en the remaining wheel bolt slightly like the
rest .
.,. Turn the jack handle counter -clockwise to lower
the vehicle until the jack is fully released .
.,. Use the wheel bolt wrench to tighten all wheel
bolts firmly
c:;, page 228. Tighten them in a
crisscross pattern,
from one bolt to the (ap­
proximately) opposite one, to keep the wheel
centered .
.,. Perform the steps required after changing the
wheel
c:;, page 22 7, A~er changing a wheel.
The hexagonal socket makes it easier to remove
the wheel bolts from the rim. Care should be tak­
en when removing the reversib le blade.
CD Note
When removing or installing the whee l, the
rim could h it the brake rotor and damage the
rotor. Work carefully and have a second per-
son to he lp you.
@ Tips
- When mounting tires with unidirectional
tread design
make sure the tread pattern is
pointed the right way
c:;, page 231.
-The wheel bolts should be clean and easy to
turn. Check for dirt and corrosion on the
mating surfaces of both the wheel and the
hub. Remove all dirt from these surfaces be­
fore remounting the wheel.
- Do not use the hexagonal socket in the
screwdriver handle to loosen or tighten the
wheel bolts .

M N
i? co ,...., \!) ..,.,
N ..,., ,....,
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right dir ection .
Using a spare tire with a tread pattern
intended for use in a specific direction
When us ing a spa re tire w ith a t read pa tte rn in­
t e nded fo r use in a specific d ir e ct ion, p lease no te
the following:
- The direction of rotation is marked by an
arrow
on the side of the tire .
-If the spare t ire has to be installed in the incor­
rect direction, use the spare tire only tempora­
rily since the tire will not be able to achieve i ts
o ptimum performanc e character istics wit h re­
gard to aquaplaning, noise and wea r.
- We recommend that you pay pa rticular atten­
t io n t o this fact du ring wet weat he r and t hat
yo u adju st yo ur sp eed to match road condi­
t ions.
- Re place the fla t tire w ith a new one and have i t
i nsta lled on yo ur vehicle as s oon as po ssible to
re store the han dling a dvan tages o f a un idirec­
t io na l tire.
Notes on wheel changing
P lease read the information ¢ page 212, New
tires or wheels
i f you are going to use a spare tire
which is different from the tires on your ve hicle.
Afte r you change a tire:
- Check the tire pressure on the spare immedi­
ately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as po s­
sible by your authorized Audi dealer or quali­
fied workshop .
- With steel and alloy wheel rims , the wheel
bolts are correctly tightened at a torque of 90
ft lbs. (120 Nm ).
- If you notice th at the wheel bolt s are corroded
and difficult to turn while changing a tire ,
they should be replaced before you check the
tightening torque .
Emergency assistance
-Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi­
ble. Remount the wheel cover .
Until then , drive with extra care and at reduced
speed s.
_& WARNING
- If you are going to e quip your ve hicl e wit h
tires o r rims which differ from those which
were factory installed, then be sure to read
the information ¢
page 212, New tires or
wheels.
- Always make sure the damaged wheel o r
even a flat tire a nd the jack a nd too l kit a re
p roperly secu red in the luggage compart­
men t and are not loos e in t he passeng er
compa rt m ent.
- In an acci dent or sudde n man euver they
could fly forwa rd, inj uring a nyone in t he ve­
h icle.
- Always s to re damag ed wh eel , jack and tools
s ecure ly in the luggage co mpart ment. Ot h­
e rwi se, in an accident o r sud den man euver
they co uld fly forward, causing injury to pas­
sen gers in t he ve hicle.
(D Note
D o not use co mmercially ava ilab le tire seal­
a nts. O therwise, the e le ct ric al c ompone nts of
the tire pre ssure monit oring sys tem * w ill no
l on ger wor k properly and t he sensor for the
tire pressu re monito ring system * wi ll have to
b e replaced by qu alified workshop.
-
231

Index
Treadwear indicators . . . . . . . . . . . . . . . . . 213
Unidirectiona l. . . . . . . . . . . . . . . . . . . . . . . 207
Uniform t ire quality grading ... ... .. .. . 221
Tires and whee ls
Glossary of t ire and load ing terminology . 207
Tir es and vehicle load limits ... ... .... . 217
Tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Torn or frayed safety belts
123
Towing Fr ont eyelet . . . . . . . . . . . . . . . . . . . . . . . . 238
Rear eyelet . . . . . . . . . . . . . . . . . . . . . . . . . 239
Tow trucks . . . . . . . . . . . . . . . . . . . . . . . . . 238
TPMS (tire pressure monitor ing system) . . . 223
Trailer mode . . . . . . . . . . . . . . . . . . . . . . . . . 181
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Trailer towing Operating instructions . . . . . . . . . . . . . . . . 181
Technical requirement s . . . . . . . . . . . 181, 182
Transmission 6-speed manual transmission . . . . . . . . . . . 82
Transm ission malfunction (indicator light) . . 87
T ransport Canada . . . . . . . . . . . . . . . . . . . . . 120
Travel mode . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Trip computer
Fuel consumption . . . . . . . . . . . . . . . . . . . . 24
Mileage ...... .. ................ ... .. 24
Single-trip memory . . . . . . . . . . . . . . . . . . . 24
Total-trip memory . . . . . . . . . . . . . . . . . . . . 24
Trip odometer . . . . . . . . . . . . . . . . . . . . . . . . . 12
Trunk
refer to Luggage compartment . ..... 64, 118
Trunk escape handle . . . . . . . . . . . . . . . . . . . . 38
Trunk lid
refer to Rea r lid . . . . . . . . . . . . . . . . . . . . . . 3 7
Turn signa ls. . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Warning/indicator lights . . . . . . . . . . . . . . . 22
u
Unfastening safety be lts
Uniform t ire quality grading .......... . .
Unlocking 126
221
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Unlocking/ locking
at the lock cylinder. . . . . . . . . . . . . . . . . . . . 36
by remote control . . . . . . . . . . . . . . . . . . . . 34
258
with the centra l locking switch . . . . . . . . . . 35
with th e convenience key . . . . . . . . . . . . . . . 34
Us e of jumper cables . ............... .. 237
V
Valet parking . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 49
Vehicle Care/cleaning . . . . . . . . . . . . . . . . . . . . . . . 184
Out of service . . . . . . . . . . . . . . . . . . . . . . . 185
Vehicle control modules . . . . . . . . . . . . . . . . 169
Vehicle electrical system . . . . . . . . . . . . . . . . 16
Vehicle identification label. . . . . . . . . . . . . . 241
Vehicle Identification Number (VIN) . . . . . . 241
Vehicle jack . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Vehicle shut-down . . . . . . . . . . . . . . . . . . . . 178
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . 225
Ventilat ion . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
w
Warning/indicator lights . . . . . . . . . . . . . . . . 13
Airbag system . . . . . . . . . . . . . . . . . . . . . . . 19
Anti-lock braking system (ABS) . . . . . . . . . . 19
Brake system . . . . . . . . . . . . . . . . . . . . . . . . 15
Electromechanical parking brake . . . . . . . . 16
Electronic power control . . . . . . . . . . . . . . . 20
Electron ic Stabilization Contro l (ESC) . . . . . 18
Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Malfunction Indicator Lamp (MIL) . . . . . . . 20
Safety be lt . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Safety systems . . . . . . . . . . . . . . . . . . . . . . . 19
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warranty coverages . . . . . . . . . . . . . . . . . . . 244
Washer reservo ir . . . . . . . . . . . . . . . . . . . . . 204
Washing matte finish paint . . . . . . . . . . . . . 184
Weights...... .... .. .... ........... .. 241
What happens if you wear your safety belt too
loose? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
What happens to unbe lted occupants? . . . . 122
What impairs driving safety?........ .. .. 113
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . 219
