technical data AUDI A5 2020 Owners Manual

Table of contents

Audi smartphone interface...... al;
Setup... eect ee 211
TrOuUBLESHOOtING wees « & wees « 2 eos so eee 212
Additional settings.............. 213
System settingS.......+seeeeceeveees 213
Software update...............2.000. 214
Connected devices..........-..000005 214
Legalinformation................... 215
Maintenance and Care........... 217
Checking and Filling............. 217
FUClss: + quan ¢ x deme 2 2 seme ey eee & 2 ee 217.
Refuelimgsaiins «+ anawece x a cause « wvensue a © sunnes 218
Emissions control system............. 220
Engine compartment................. 221
ENQineOiles cscceoe s+ serie oo ermace 2 3 ences ¥ es 223
Cooling system. ............ 0. eee eee 227
Braketluid): « s wom as ween a ¢ aewee + & oe 229
Electrical:systemisses «sss ee eee vo wees 229
Battery. ..... 2.00.00 ese eee eee ee 230
Windshield washer system...........- 232
Service interval display............... 233
Wheels.............. 0.0. e eee eee 234
Wheelsiaiid Tires « cass ¢ 2 awe ¢ 2 mean a 5 234
Tire pressure monitoring system....... 252
Care and cleaning................ 254
General information wo. ceo saeco es 254
Car washes...............2..20.00005 254
Cleaning and care information......... 255
Taking your vehicle out of service....... 259
Do-It YOUrSEUT v5 ¢ «gee8 & peas es eee 260
Emergency assistance........... 260
General
information................. 260
EQUIPITICNE sass ¢ ¢ eens + eeen a 3 ces 3s He 260
Tire mobility kit ose: <2 cere ae eee se ees 260
Changingatire..............0.. eee 262
Space-saving spare tire............... 265
JUITIP'SESHEING « cores s « were « ¥ eerws & 2 cores 266
TOWING senses <2 seexsie s > costeine © « serene « o samenes 267
Fuses and bulbs........:6..000005 270
FUSCSiercs i & accaans ao cena ooo mero wom ROI & 270
Bulbs. .... 0... eee eee eee eee eee 274
Customer information........... 275
Data privacy..................000. 275
Image recording............seeeeeees 275
Datamemoniesy. « s sscams sv sume ov ene a 0s 2758
Transmitted information.............. 276
Accessories and technical
CHANGES... 1... eee eee eee 278
Warranty......... 00-000. e eee eee 278
Audi Literature Shop..............00. 278
Driving in other countries............. 278
Maintenance, repairs, and technical
MOGIFIcAatIONS vase x x mem = x saw x 2 sue 278
Accessories and parts................ 280
Reporting Safety Defects.............. 280
Declaration of compliance for
telecommunications equipment and
electronic systems............---0000- 281
Wechinicaldata:... . secs. s wen es ews 283
Identification data................00. 283
Vehicle dataiscs: = s xews 2s eens sp oes ye 283
Index... 0.2... eee 285

8W7012721BA
Checking and Filling

> Turn the fuel cap clockwise until it clicks into
place.
> Close the fuel filler door and then press on the
left side until it latches.
The correct fuel type for your vehicle can be
found on a label located on the inside of the fuel
filler door. For additional information on fuel, see
=> page 217.
For the tank capacity in your vehicle, refer to the
Technical Data > page 284.
To reduce the risk of fuel leaking out or vapors
escaping, make sure that the fuel tank is closed
correctly. Otherwise the ES indicator light will
turn on.
If the central locking system malfunctions, there
is a fuel filler door emergency release
=> page 220.


Z\ WARNING
Improper fueling procedures and improper
handling of fuel can lead to explosions, fires,
severe burns, and other injuries.
— Do not smoke. Keep away from open flames.
— The ignition must be switched off when re-
fueling.
— Mobile devices, radio devices, and other ra-
dio equipment should always be switched
off when refueling. Electromagnetic rays
could cause sparks and start a fire.
— If you do not insert the fuel pump nozzle all
the way into the filler tube, then fuel can
leak out. Spilled fuel can ignite and start a
fire.
— Never get into the vehicle when refueling. If
there is an exceptional situation where you
must enter the vehicle, close the door and
touch a metal surface before touching the
fuel pump nozzle again. This will reduce the
risk of electrostatic discharge that can cause
flying sparks. Sparks can start a fire when
refueling.


ZA WARNING
Transporting fuel containers inside the vehicle
is not recommended. Fuel could leak out of
the container and ignite, especially during an
accident. This can cause explosions, fires, and
injuries.
— Ifyou must transport fuel in a fuel contain-
er, note the following:
— Always place the fuel container on the
ground before filling. Never fill the fuel
container with fuel while it is inside or on
the vehicle. Electrostatic discharge can oc-
cur while refueling and the fuel vapors
could ignite.
— When using fuel containers made of met-
al, the fuel pump nozzle must always re-
main in contact with the container to re-
duce the risk of static charge.
— Insert the fuel pump nozzle as far as pos-
sible into the filler opening while refuel-
ing.
— Follow the applicable legal regulations in
the country where you are driving when
using, storing and transporting fuel con-
tainers.
— Make sure that the fuel container meets
the industry standards, for example ANSI
or ASTM F852-86.



) Depending on the engine and country
() Note
— Remove fuel that has overflowed onto any
vehicle
components immediately to reduce
the risk of damage to the vehicle.
— Never drive until the fuel tank is completely
empty. The irregular supply of fuel that re-
sults from that can cause engine misfires.
Uncombusted fuel may enter the exhaust
system and increase the risk of damage to
the catalytic converter.
@) For the sake of the environment
— Do not overfill the fuel tank, or fuel could
leak out when the vehicle is warming up.
— Fuel should never enter the sewer system or
come into contact with the ground.
219
>

8W7012721BA
Data privacy

Data privacy
Image recording
Surrounding area monitoring
Applies to: vehicles with surrounding area monitoring
Some vehicle functions require the vehicle’s path
to be detected and evaluated. This is done by
cameras installed permanently on the vehicle
that detect objects in the vehicle's surroundings
(such as obstacles or guard rails). The live images
from the cameras are transmitted to the applica-
ble control module.
The camera images are transmitted to the appli-
cable control module and stored for processing.
The control module analyzes the current camera
image using image evaluation software. This im-
age evaluation software detects anonymized
technical measurements, such as distances to ob-
jects. The control module evaluates these techni-
cal measurements and makes it possible for the
assist systems to control the vehicle, if necessary.
Data memories
Vehicle control modules
5 io. oO Z| x=
+ )



Fig. 196 Driver's side footwell: connection port for the On
Board Diagnostic System (OBD)
Your vehicle is equipped with electronic control
modules for various vehicle systems such as the
airbags. These vehicle control modules store data
while driving normally that is required by an au-
thorized Audi dealer or authorized Audi Service
Facility for diagnosis and repair purposes. Only
certain types of data are recorded for a very short
period of time if a control module has detected a
system event. No noises, conversations, or im-
ages will be recorded in the vehicle.
The data may include information such as the ve-
hicle speed, the direction of travel, and informa-
tion about the brake system, or also the behavior
of the restraint system in the event of an acci-
dent. The stored data can be exported and down-
loaded with special devices, which must be con-
nected directly to the vehicle.
On Board Diagnostic System (OBD)
There is a diagnostic connector socket in the driv-
er's side footwell to read out the various control
modules and the event data recorder. Data re-
garding the function and condition of the elec-
tronic control modules is stored in the event
memory. Only have an authorized Audi dealer or
authorized Audi Service Facility read out and de-
lete the event memory.

ZX WARNING
— Incorrect use of the connection port for the
On Board Diagnostic System can cause mal-
functions, which can then result in accidents
and serious injuries.
— Only allow an authorized Audi dealer or au-
thorized Audi Service Facility to read out the
engine data.
Creu lem eelcel 1g
Event Data Recorder

This vehicle is equipped with an Event Data Re-
corder (EDR). The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions,
such as an airbag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle's system performed. The EDR is
designed to record data related to vehicle dynam-
ics and safety systems for a short period of time,
typically 30 seconds or less. The EDR in this vehi-
cle is designed to record such data as:
— How various systems in your vehicle were oper-
ating;
— Whether or not the driver and passenger safety
belts were buckled/fastened;
— How far (if at all) the driver was depressing the
accelerator and/or brake pedal; and,
— How fast the vehicle was traveling.
275

Data privacy

These data can help provide a better understand-
ing of the circumstances in which crashes and in-
juries occur. NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs;
no data are recorded by the EDR under normal
driving conditions and no personal data (e.g.
name, gender, age, and crash location) are re-
corded. However, other parties, such as law en-
forcement, could combine the EDR data with the
type of personally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required, and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer, other parties, such as law enforcement,
that have the special equipment, can read the in-
formation if they have access to the vehicle or the
EDR.
Data usage
Audi can read out the information stored in the
data memories or similar data, or give this infor-
mation to third parties, especially in the follow-
ing situations:
— If the vehicle owner or lessee agrees
—If there is an official request from the police
— Ifa court or authorities request it
If legally permitted, Audi can also use the data
for analysis of vehicle operation and safety per-
formance or provide this data to third parties for
research purposes.
Transmitted information
Data collection
Applies to: vehicles with data collection
Depending on the country, AUDI AG may collect
data for the following purposes, for example: of-
fer and product optimization, public safety, pro-
vision of Audi connect remote vehicle services,
and adaptation to customer expectations. For ex-
ample, various technical function data, environ-
mental data, driving data, and usage data will be
collected for a specific purpose and forwarded to
AUDI AG. The data will be sent from the vehicle
at the time the data was collected.
276
Applies to: MMI: You can find additional informa-
tion about data collection in the MMI. Select on
the home screen: SETTINGS > General > Legal
notes > About Audi connect.
If you would like to deny data transmission to
AUDI AG, contact an authorized Audi dealer or
authorized Audi Service Facility for more infor-
mation. You also have the option to deactivate
data transmission within the privacy settings.
Privacy settings
Applies to: vehicles with Audi connect
> Applies to MMI: Select on the home screen:
SETTINGS > Privacy settings.
When using Audi connect services or during data
collection, data will be transmitted from the ve-
hicle.
> To display additional information about the pri-
vacy settings and the associated symbols in the
status bar, press @ in the MMI.
Requirement: the ignition must be switched on.
Setting the maximum privacy settings
When the Activate privacy mode function is
switched on, the data connection is deactivated
or sending of data is restricted, but all safety-re-
lated, legal, or contractually required Audi con-
nect services remain activated. The majority of
the Audi connect services are deactivated.
When the function is switched off, the data con-
nection will be available in order to use Audi con-
nect services.
Adjusting individual privacy settings
In the MMI, you can adjust individually which da-
ta should be transmitted from the vehicle. If you
switch on a data category, the data will be trans-
mitted.
@) Note
You are responsible for all precautions taken
for data protection, anti-virus protection, and
protection against loss of data on mobile de-
vices that are used to access the Internet
through the Wi-Fi hotspot.

8W7012721BA
Accessories and technical changes

Usually maintenance and repair work requires
special tools, measuring devices, and other
equipment that is available to trained vehicle
technicians in order to help ensure that your vehi-
cle and all of its systems operate correctly, relia-
bly, and safely. Performing work on the vehicle
incorrectly can impair the operation and reliabili-
ty of your vehicle and may void one or more of
your vehicle's warranties.
Technical Modifications
Interference with electronic components, their
software, the wiring, and data transfer may cause
malfunctions. Because of the way electronic com-
ponents are interconnected, such malfunctions
can also impair systems that are not directly in-
volved. This means that you risk both a substan-
tial reduction in the operational safety of your ve-
hicle and increased wear of vehicle components.
Some convenience functions, such as the conven-
ience turn signal function, individual door open-
ing function, and displays, can be reprogrammed
using special workshop equipment. If functions
are reprogrammed, the information and descrip-
tions about these functions in this Owner's Man-
ual may no longer apply to the changed func-
tions. Audi recommends that an authorized Audi
dealer or authorized Audi Service Facility perform
and verify any reprogramming procedures.


carry out the job and have the correct tech-
nical information and the correct tools.
— If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer, an authorized Audi Service Facility,
or another qualified workshop. Serious per-
sonal injury may result from improperly per-
formed work.


ZA WARNING
Maintenance procedures, repairs, or technical
modifications that are performed incorrectly
increase the risk of an accident and can lead
to serious injuries.


ZA WARNING
The engine compartment of any motor vehicle
is a potentially dangerous area and can cause
serious personal injury.
— Always use extreme caution when doing any
work in the engine compartment. Always
follow commonly accepted safety practices
and use common sense. Never risk personal
injury.
— Never perform any work in the engine com-
partment unless you know exactly how to

@) Note
— Maintenance procedures, repairs or techni-
cal modifications that are performed incor-
rectly can cause damage to the vehicle, such
as corrosion.
— If emergency repairs must be performed,
take your vehicle to an authorized Audi deal-
er or authorized Audi Service Facility as soon
as possible.
— Audi is not liable for damage to the vehicle
resulting from failure to comply with these
guidelines.
@) For the sake of the environment
— Regular maintenance can help protect the
environment.
— Technical modifications to the vehicle can
have a negative impact on fuel consumption
and vehicle emissions.
(@) For the sake of the environment
Certain components in your vehicle such as
undeployed airbag modules, pretensioners
and remote control batteries may contain Per-
chlorate Material - special handling may ap-
ply, See www.dtsc.ca.gov/hazardouswaste/
perchlorate. When the vehicle or parts of the
restraint system including airbag modules
and safety belts with pretensioners are scrap-
ped, all applicable laws and regulations must
be observed. Your authorized Audi dealer is
familiar with these requirements and we rec-
ommend that you have your dealer perform
this service for you.
(i) Tips
Because of your vehicle's aluminum body de-
sign, all service and repair procedures
279

8W7012721BA
Technical data

Technical data
Identification data
Vehicle data label
XXX X= HKNK WOK XX
(Hae wrccnce XX XNKKKNKK
Frm XXX XX
2
XX XXKKXKK XK KX XK
3 }—— MOTORS / GET. 8
eco au cone XXX
XXX KW XXX
XXX WX
CQ -ASRAINER YyNX XXX NOK
M. - AUSST. / OPTIONS
EOA 7D5 4UB 6XM 5SG SRW
2EH JOZ 1LB 1AS_ 1BA
3FC SMU 7X1
FOA 9G3 0G7 OYH OJF
SG TLE 3KA 8EH U1A X9B QZ7
1XW 8Q3 9Q8 8Z4 D2D
716 CV7 7KO 4X3 2K2
34 4KC 3Y0 413 5D2
1SA 7GB QIA 4GQ

RAZ-0668



ee

Fig. 197 Vehicle identification label
The vehicle identification label > fig. 197 is locat-
ed in the luggage compartment under the cargo
floor cover.
The vehicle identification label information can
also be found in the Warranty & Maintenance
booklet.
Vehicle data
The sticker contains the following vehicle data:
@® Vehicle Identification Number (VIN)
@ Vehicle type, engine output, transmission
® Engine and transmission codes
@) Paint and interior codes
© Optional equipment numbers
Vehicle identification number (VIN)
The VIN is located in the following areas:
— Applies to: MMI: Select on the home screen:
VEHICLE > Settings & Service > Vehicle info.
— On the vehicle identification label
— At the front behind the windshield*
— inthe engine compartment on the right side
Notes about technical data
The values may vary based on special equipment
as well as market-specific equipment and meas-
uring methods.
Please note that the specifications listed in the
vehicle documentation always take precedence.
G) Tips
Any technical data that is missing was not
available at the time of printing.





Length (in (mm)) | Width (in (mm)) | Width across the | Height at curb
mirrors (in (mm)) | weight (in (mm))
AS Cabriolet 184.9 (4,697) 72.7 (1,846) 79.9 (2,029) 54.5 (1,384)
A5 Coupe 184.9 (4,697) 72.7 (1,846) 79.9 (2,029) 54.0 (1,371)
AS Sportback 187.3 (4,757) 72.6 (1,843) 79.9 (2,029) 54.6 (1,386)
S5 Cabriolet 184.9 (4,697) 72.7 (1,846) 79.9 (2,029) 54.5 (1,384)
S5 Coupe 184.9 (4,697) 72.7 (1,846) 79.9 (2,029) 54.0 (1,371)
S5 Sportback 187.3 (4,757) 72.6 (1,843) 79.9 (2,029) 54.6 (1,386)

283

Technical data

(er) Fah a(t)
Fuel tank 15.3 gal (58 L)

Windshield and headlight washer system*

5.5 qt (5.2 L)

Weights

B8U-0378
FVNOVU UENO
Fig. 198 Safety certificate


Gross Vehicle Weight Rating (GVWR)
The maximum permitted total weight @ of the
vehicle is listed on the safety certificate on the
side area of the door or on the driver's door pillar.
Gross Axle Weight Rating (GAWR)
The maximum permitted load on the front axle
@ or the rear axle @) is listed on the safety cer-
tificate on the side area of the door or on the
driver's door pillar.
Load
The maximum permitted load is listed on the tire
pressure label on the driver's door pillar.
Roof load
The maximum permitted roof load is:
— Applies to: Coupe: 165 lbs (75 kg)
— Applies to: Sportback: 198 lbs (90 kg)
284

8W7012721BA

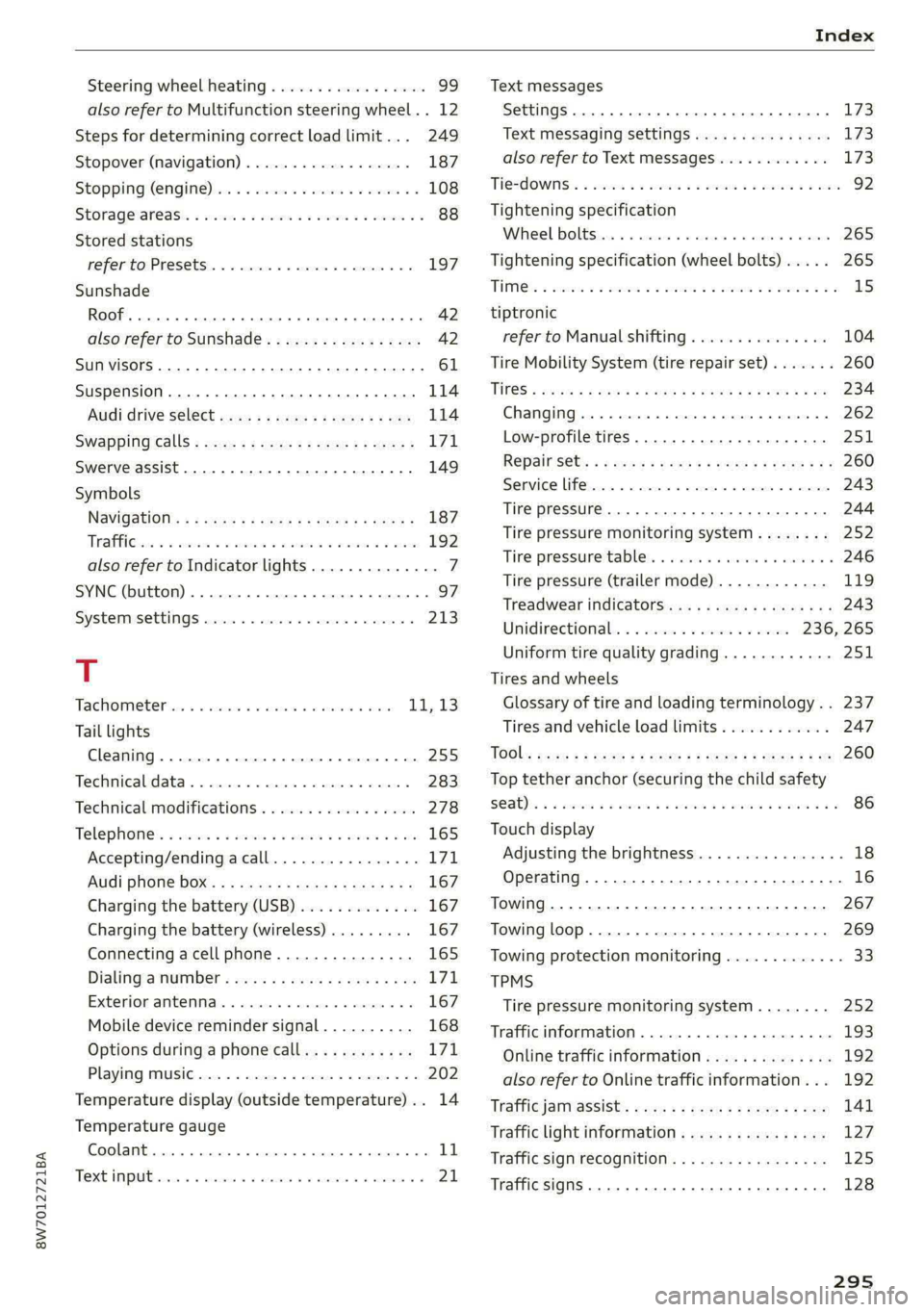

Index

Steering wheel heating................. 99
also refer to Multifunction steering wheel. . 12
Steps for determining correct load limit... 249
Stopover (navigation) . o.c:.4 «exces «+ onus 187
Stopping (ENGINE) suc x a sain ov ceavase 4 o cweseae es 108
StOrageiareas:. « sxe 6% wesw so ws 5 o aeOEE eo 88
Stored stations
HEferEOuPReSetsi. « 2 cose «x smo oo eee wo 197
Sunshade
ROOF... cece en ene eens 42
also refer to Sunshade............-.... 42
SUN VISOFS 2... eee ee eee 61
Suspension. ...... 0.0.0 eee eee eee 114
Audi drive select..............02-0005 114
Swapping Calls ¢ een: sz sens ss eewe se ees = 171
Swerve assist... 0.26... cee eee eee eee 149
Symbols
N@VIGAtION's « x saws ¢ = sew 7 2 mee & 2 gateR 187
Mirai Gens 3 scans © w cocwiue w stamewee w mueiee we emu 192
also refer to Indicator lights.............. 7
SYNC (button) ..............0..00000000. o7
SYStEMUSCEEINGS cereus o + amcnene T
Tachometerios: «sess a & ccna a a vane a oxene 11, 13)
Tail lights
Cleaning. ...... 0... eee 255
Techinicalidata « «. cine + wines «0 vnamere « anaen 283
Technical modifications ...............55 278
Telephones « sii oo wwe @ o onnen ¥ 0 teres 2 8 oe 165
Accepting/ending acall................ 171
Audi photie: box: « « cass 3 seas dc eeea sai 167
Charging the battery (USB) ............. 167
Charging the battery (wireless) ......... 167
Connecting acell phone............... 165
Dialitigra NUMDED s cow s 2 news os wow 3 wos 171
Exterior antennas. . cccis os sie oo emis vo 167
Mobile device reminder signal.......... 168
Options during a phone call............ 171
Playing MUSIGrsccm oo sexe % < summws =u conem 6 2 6 202
Temperature display (outside temperature) .. 14
Temperature gauge
Text messages
SettingS 0.6... cece cece eee eee eee 173
Text messaging settings............... 173
also refer to Text messages............ 173
THES OWNS i: & sieeve 2 2 scone x 2 seo 2 a meee ow ers 92
Tightening specification
Wheel Doltsiass « «acini + a snason + « exewene + veers 265
Tightening specification (wheel bolts) ..... 265
THITIGS: 2 cece: 2 2 emis vo ome oo oe a SAE ow 15
tiptronic
refer to Manual shifting............... 104
Tire Mobility System (tire repair set)....... 260
TICES © msi 4 2 ews s ee a & HERE Ge HE Fe 234
Changing...... 2... cee eee eee eee eee 262
Low-profile
tires. ......... 00. eee eee 251
Repaitisets: « 2 cows « eam 4 « yeu s x nwo a a 8
Semiice lif ks oa eerie « senate © vente we H steno
Tire pressure

Tire pressure monitoring system........ 252
Tire pressure table................006. 246
Tire pressure (trailer mode)............ 119
Treadwear indicators.................. 243
Unidirectional.................0. 236, 265
Uniform tire quality grading............ 251
Tires and wheels
Glossary of tire and loading terminology .. 237
Tires and vehicle load limits............ 247
TOOls: spo: 2 x yeuse = 9 eee 5 ¢ ee oo ew 260
Top tether anchor (securing the child safety
SOA): « = sarees « & semen = % wane © @ mew w eo 4 28 86
Touch display
Adjusting the brightness................ 18
Operating..................00.00.000. 16
TOWING... 26. eee eee 267
Towing loop..... 2.2... eee eee eee eee 269
Towing protection monitoring............. 33
TPMS
Tire pressure monitoring system........ 252
Traffic information.................00-. 193
Online traffic information.............. 192
also refer to Online traffic information... 192
Traffic jam’assist:: «occ 2s eee +s ees 2 eee 141
Traffic light information..............0. 127
Traffic sign recognition................. 125
Traffic SIGNS ©... ee eee eee 128
295
