(D Note
- Never use chemical solvents (e.g . lighter
flu id, turpentine), waxes, shoe polish or
s imilar products on Alcantara ® surfaces.
- To avoid damage, have stubborn stains
removed by a commercia l cleaning spe­
cialist.
- Do not use brushes, stiff sponges or sim­
ilarly abrasive cleaning aids.
Safety belts
Only well-maintained safety belts work relia­
bly when needed.
.. Keep belts clean .
.. For cleaning, use a mi ld soap and water sol­
ution . Let be lts dry thoroughly and away
from direct sunlight.
.,. Do not allow inertia reel safety belts to re­
tract before they are completely dry.
.,. Check the condition of your safety belts
reg­
ularly .
Heavily soiled safety belts may not retract
properly .
A WARNING
Damaged safety belts can break in a crash.
- Anything that might damage your safety
belts could mean that you and your pas­
sengers wou ld not be adequately pro­
tected in an acc ident.
- Safety belt performance depends on cor­
rect installation. Never remove belts
from the vehicle to clean them.
- Do not use chemical cleaning agents,
bleach o r dyes. They have corros ive prop­
erties whi ch weaken the webbing.
- When cleaning your safety belts, inspect
them for damage.
If you discover dam­
age, see your a uthorized Audi dea ler.
- Always read and heed all WARN INGS and
other information
Qpage 194.
l) Use o nly the correct cleaning sol utions. Neve r use gas­
oline or d iese l fuel.
Cleaning and protec tion
Engine compartment
Be especially careful when cleaning the en­
gine compartment.
A lw ays switch o ff the ign it ion before cle an ­
i ng the eng ine
c> ,& .
Plenum pan el
Remove leaves from the plenum panel in front
of the windshield under the engine hood. This
prevents the water drain holes from becoming
blocked, and it prevents debris from enter ing
the vehicle interior through the heating and
vent ilat ion ducts.
Co rro sio n protect ion
The engine compartment and transmission
have been corrosion-protected at the factory.
Good anti -corrosion treatment is very impor­
tant, partic ularly in the winter.
If the vehicle
is frequently driven on salt treated roads, the
entire engine compartment and p lenum panel
should be thoroughly cleaned at the end of
winter and retreated to prevent salt damage.
At the same time, the underside of the vehicle
shou ld be washed as well.
If the engine compartment is cleaned at any
time with grease remov ing solutions
1> , or if
you have the engine washed, the anti-corro­
s ion treatment is almost always removed as
well.
It i s therefo re essentia l to have a long­
lasti ng cor rosion pro tect ion reapplied to all
surfaces, seams, joints and components in the
engine compartment .
A WARNING
Be aware: The engine compartment of any
motor vehicle is a potentially hazardous
area.
- Before work ing in the engine compart­
ment, be sure to read the information
c> page 212.
- Before reaching into the front plenum
panel, a lways remove the ignit ion key.
205
•
•

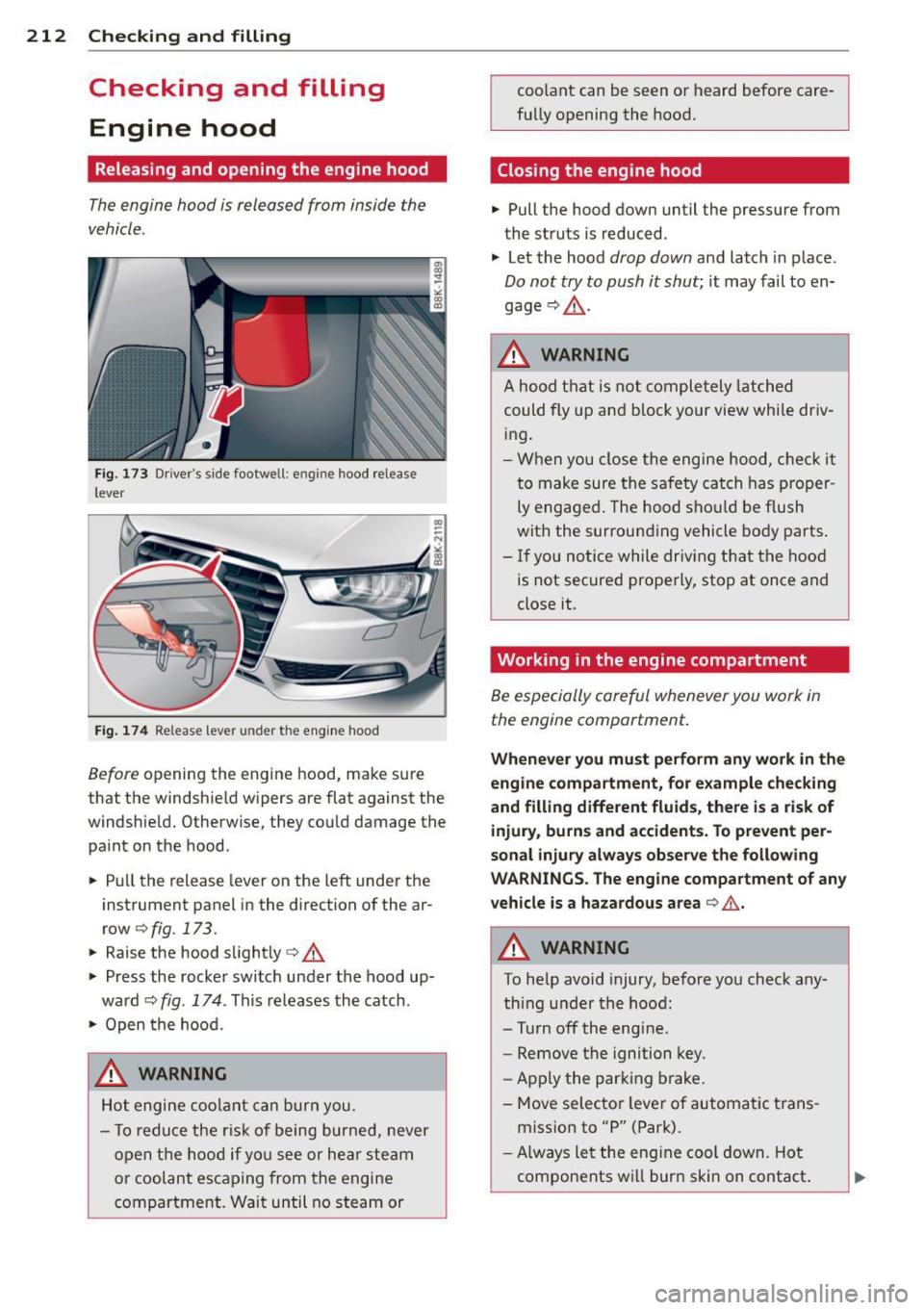

212 Checking and filling
Checking and filling
Engine hood
Releasing and opening the engine hood
The engine hood is released from inside the
vehicle .
Fig . 173 D river' s side footwe ll: e ngin e hood re lease
lever
F ig. 1 74 Re lease lever u nde r the eng ine hood
Before openin g the engine hood, ma ke s ure
that the windshie ld w ipers are flat against the
windshield. Otherwise, they co uld damage the
pa int on the hood .
... Pull the release lever on the left under the
inst rument panel in the direction of the ar­
row
c;, fig . 173.
... Raise t he hood s lightly r::;, &,
... Press the rocke r swi tc h under the hood up­
ward
c;, fig . 174 . This re leases the catch .
... Ope n the hood.
A WARNING
Hot engi ne co olan t ca n bur n you .
- T o redu ce the r is k o f being burned, never
op en t he ho od if yo u see or hea r ste am
or cool an t esc aping from the engine
c ompartment. Wait unti l no steam or co
olant can be seen or heard before care ­
fu lly opening the hood.
Closing the engine hood
... Pull the hood down until the pressure from
the struts is reduced .
... Let the hood
drop down and latch in p lace .
Do not try to push it shut; it may fail to en­
gage
r::;, &, .
A WARNING
-
A ho od th at is not co mpletely latched
could fly u p an d block your view while driv­
in g.
- Wh en you cl ose the engi ne ho od, ch ec k it
t o make sure the sa fe ty ca tch has prope r­
ly engaged . The hood s hould be flush
wit h the surroun ding vehicle body pa rts .
-If you notice while driv in g that t he hood
is not secured prope rly, sto p at once and
close it.
Working in the engine compartment
Be especially ca reful whenever you work in
the engine compartment.
Whenever you must perform any work in the
engine compartment, for example checking
and filling different fluid s, there is a ri sk of
injury , burns and accidents . To prevent per­
sonal injury always observe the following
WARNINGS. The engine compartment of any
vehicle is a hazardous area
r::;, ,&. .
A WARNING
-To help avo id injury, before yo u check any-
thing unde r the hoo d:
- Turn off the eng ine.
- Remove the ignition key.
- Ap ply the park ing brake .
- Move selector leve r of automatic t rans -
miss io n to "P" (Par k).
- Alway s le t the eng ine cool d own. Ho t
components w ill bur n skin on contact .

-To reduce the r isk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment . Wait until no steam or
coolant can be seen or heard before ca re­
fully opening the hood .
- Keep children away from the engine com ­
partment.
- Never spill flu ids on hot engine compo­
nents. They can cause a fire .
- Never touch the radiator fan. The aux ili­
ary e lectr ic fan is temperature controlled
and can switch on suddenly .
- Never open the coolant reservoir cap
when the eng ine is still warm . The cool­
ant system is pressur ized and hot coo l­
ant could spray out.
- Protect your face, hands and arm from
steam or hot eng ine coolant by placing a
thic k rag over the cap when you open the
coolant reservoir.
- Do not remove the engine cover under
any c ircumstances. Th is increases the
risk of bu rns.
- If wo rk on the fuel system or the electri­
cal sys tem is ne cessary:
- Always disconnect the battery.
- Never smoke or work near heaters or
open flames . Fluids in the engine com­
partment co uld start a fire.
- Keep an approved fire extinguisher im­
mediately ava ilable.
- To avoid electrical s hock and persona l in­
jury while the engine is running or being
started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
- If you must perform a check or repa ir
with the engine running:
- Fir st, fully apply the parking brake,
move se lector lever of a utomatic trans­
mission to "P" (Park).
Checkin g and fillin g 213
-Always use extreme caution to prevent
clothing, jewelry, or long hair from get­
ting caught in the radiator fan, V-be lts
or other moving parts, or from contact­
i ng hot parts . Tie back hair before
starting, and do not wear clothing that
will hang o r droop into the engine.
- Minimize exposure to em ission and
chemical hazards
9 .&, .
&_ WARNING
Califo rnia Proposition 65 Wa rni ng:
- Engi ne exhaust, some of its const ituents,
and certa in vehicle components contain
or emit chemi cals known to the State of
California to cause cancer and birth de­
fects and reproduc tive harm. In addition,
certain fl uids con tained in vehicles and
certain products of component wear con­
tain or emit chemica ls known to the
State of California to cause cancer and
birth defects or other reproductive harm.
- Battery posts, terminals and related ac­
cessories conta in lead and lead com ­
pounds, c hemicals known to the State of
California to cause cancer and reproduc ­
tive harms. Wash hands afte r handling .
(D Note
When adding flu ids, always make sure that
they are poured into the proper conta iner
or f iller opening, otherwise serious dam­
age to vehicle systems w ill occur .
@ For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly . If
you see spots from oil or other veh icle flu­
i ds, have you r vehicle inspected by an au­
thori zed Audi dealer. •
•

214 Checking and filling
Engine compartment
Engine compartment
These are the most important items that you can check.
Fig. 175 Typical layout for containers and eng ine o il filler cap
(D Eng ine o il filler cap ("1::::r.) . . . . . 21 7
@ Jump start point(+) under a cov-
er .. .. .... ... ....... .... ..
225, 260
@ Bra ke fluid reservo ir (0)) . . . . . 221
@ Coolant expansion tank (-L) . . . 220
® Jump start point(-) with hex
head sc rew ..... .......... ..
225, 260
® W indshield/headlight* washer
. (" ') container o ....... . ... .. . 226
The pos ition o f the engine o il fi lling hole
¢ fig . 175 (item @) can differ depending on
the eng ine design.
A WARNING
Before yo u check anything in the engine
compartment, always read and heed all
WARNINGS ¢.&. in Working in the engine
compartment on page 212.
-
Engine oil
· Engine oil specifications
The engine oil used in your Audi needs the
right kind of oil.
The eng ine in your Audi is a sophist icated
power plant that was b uilt to exacting specifi­
cations . Th is engine needs the right k ind of
engi ne oil that meets specifica tions regard ing
quality a nd v iscosity so that it can run
smooth ly and reliab ly. Choosing the rig ht o il
and changing oil within the t ime and mile age
i n tervals prin ted in you r vehicle's Warr anty
&
Maintenance booklet matters a lot more to ­
day tha n it did years ago . Aud i has deve loped
a spec ia l quality standard for engine oil that
will help assure that your vehicle 's engine w ill
get the lubr ication it needs for proper opera-
t ion . ..,_

Modern eng ine lubrication has taken a quan ­
tum leap in the last few years . Many synt hetic
oils ava ilable today provide better engine lu­
brication that can outlast traditional petrole­
um-based o ils, making them a smart choice
for use throughout the life of your Audi.
Whether you use synthetic or petroleum­ based engine oil, the oil that you use must
conform to Audi's oil quality standard
VW 502 00 to help keep your vehicle's engine running smoothly and help prevent the for­
mat ion of harmfu l deposits, sometimes called
"sludge", that ove r time can lead to expensive
r epairs.
At the t ime of pri nting, engine o ils available in
the U.S . and Canada that meet the exacting
specifications of Audi oi l standard VW 502 00
are synthetic engine oils. This does not mean, h owever, that every synthetic engine oil w ill
meet Audi oil standard VW 502 00. So always
be sure that you use an approved oi l.
To help preve nt the format ion of harmful de­
posits use only oi l with the fo llowing spec ifi­
cations printed on the oil container:
Audi oil standard VW 502 00
O il conta iner labels may carry the specif ica­
tion s ingly or in comb inat ion w ith other des ig­
nations and oil qua lity standards.
Viscos ity
Engine oi ls are graded according to their vis­
cosity. The proper v iscosity grade oi l for your
engine depends on cl imactic or seasonal con­
d itions where you dr ive. You can use oil with a
viscosity grade of SAE SW40 across all tem­
pe rature ranges for normal d riving conditions .
However, if eng ine oi l viscosity grade SAE
SW40 is not avai lab le, you can also use viscos­
ity grade SAE SW-30 or SAE OW-40 as long as
it meets Audi o il quality standard VW 502 00
specifications.
Because engine oil that meets the Audi oil
standard may not be available everywhere
when you need it, we st rongly recomme nd
that you always carry with you a n ext ra quart
Checkin g and fillin g 215
(li ter) of oil that exp ress ly con forms to the
VW 502 00 specificatio n, in case you have to
top
off the o il while on the road.
Only if the level of the o il is at or be low the
minimum mark -and no oi l that expressly
confo rms to Audi oil standard VW 502 00
spec ifications is available -may you top
off
with a h igh quality engine o il, preferab ly syn ­
thet ic-based, that meets ACEA A3 or API SM
spec ifications, but even then, only in v iscosity
grades SAE SW-40, SA E SW-30, o r SAE
OW- 40. However, dur ing the entire time be­
tween o il cha nge inte rva ls, never top
off with
more than a tota l of 0. 5 q t/liter engine o il
that does not con form to A udi oil specification
vw 502 00.
Fo r more information abo ut eng ine oi l tha t
has been approved for your veh icle, ple ase
contac t eit h er yo ur autho rized Aud i dea le r or
Audi C ustomer Re lations at 1 (800) 822 -2834
or visit our web site at www .a u diusa.com or
www.aud icanada.ca. Here you w ill also find a
current list of oils (manufacturers, brand
names etc.) that conform to Audi oil standard
vw 502 00.
Changing the engine oil
T he eng ine oi l and o il f ilter m ust be changed
according to the mileage (kilometers) and
time intervals specified i n your ve hicle's War ­
ranty
& Maintenance booklet. Do not exceed
these interva ls - harmful deposits from old
engine oil can reduce engine performance and
can lead to expensive engine repairs.
Changi ng the oil at the recommended inter­
vals is so very important beca use the lubricat­
ing propert ies of oil decrease gradually during
norma l veh icle use. If you a re not sure when
yo u have your o il cha nged, ask your author­
ized Audi Se rv ice Adv isor.
Under some circumstances the engine oil
shou ld eve n be changed more frequent ly.
Change oil more often if you dr ive most ly
sho rt distances, operate the ve hicle in dusty
areas o r most ly under stop-and -go traff ic con-
di tions, o r when you use your vehi cle where .,..
•
•

216 Check ing and filling
temperatures stay below freezing point for
long periods.
Detergent addit ives in the o il w il l make fresh
oil look dark after the eng ine has been run­
ning for a short time . This is norma l and is not
a reason to change the oi l more often than
recommended.
D am age or m alfunc tions du e to lack of
m ainten ance
It
is essential that you change your oil at the
recommended in tervals using only engine o il
that complies with Audi oi l standard
VW 502 00. Your Limited New Vehicle War­
ranty does not cover damage or malfunctions
due to fail ure to fo llow recommended mainte­
nance and use requ irements as set forth in
the Audi Owner's Manual and Warranty
&
Maintenance book let . Your dealer will have to
deny warranty coverage unless you present to
the dea ler proof in the form of Service or Re­
pa ir Orders that all scheduled ma intenance
was performed in a t imely manner.
Eng ine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all
of its moving parts.
In order to provide effective lubrication and
cool ing of internal engine components, a ll in­
ternal combustion eng ines consume a certa in
amount of oil. O il consumption varies from
engine to engine and may change significantly
over the life of the engine. Typica lly, engines
with a specif ied break-in period (see
¢
page 187) consume more oil during the
break-in period than they consume after oil
consumption has stabilized.
Under norma l conditions, the rate of oil con­
sumption depends on the quality and viscosity
of the oil, the RPM (revolutions per minute) at
which the engine is operated, the ambient
temperature and road condit ions . Further fac­
tors are the amount of oil d ilution from water
condensat ion or fuel residue and the ox ida­
tion level of the oi l. As any engine is subject to wear as mi
leage builds up, the oil consump­
tion may increase over time until replacement
of worn components may become necessary.
With a ll these variab les coming into play, no
standard rate of oil consumption can be es­
tablished or specified. There is no alternative
to regu lar and frequent check ing of the o il lev ­
el, see
Note .
If
the yellow engine oil leve l warning symbo l
I! in the instrument cluster lights up, you
shou ld check the oil leve l as soon as possib le
¢
page 217. Top off the oil at your earliest
convenience ¢
page 217.
A WARNING '"---
Before you check anythi ng in the engine
compartment, always read and heed all
WARNINGS¢
A in Working in the engine
compartment on page 212.
(D Note
Driving w ith an insufficient o il level is like­
ly to cause severe damage to the engine .
(D Tips
-The oil pressu re warn ing display . is
not an indic ator of the oil l evel. Do not
r el y on it . In stea d, check th e oil l eve l in
y our engin e at regular inter val s, pref ­
erably ea ch time you r efu el, and alwa ys
before go ing on a long trip .
-If you have t he impression yo ur engine
consumes excessive amoun ts of o il, we
recommend that you consu lt an author­
ized Aud i dea ler to have the cause of
your concern properly diagnosed. Keep in m ind that the accurate measu rement of
oil consumption requ ires great care and
may take some time. An authorized Aud i
dealer has instructions about how to
measu re oil consumption accurately.
-

Checking the engine oil level
Fig . 176 MMI Disp lay: Oil l eve l ind icator
Re ad oil le vel
.,. Park you r vehicle so that it is horizontally
level.
.,. Shut the engine off when it is at operating
temperature.
.,. Switch only the ignit ion back on.
.,. Wait approx . two minutes .
.,. Select : Funct ion button
ICAR I > Oil l evel. Or
.,. Se lect: Function button
ICA RI > Car sys-
tem s*
cont rol button > Servicin g & ch e ck s >
Oil l evel.
.,. Read the oil leve l in the MMI * Display
r:!> fig . 176 . Add engine oi l if the bar o f the
oi l level indicator is near "min"
c> page 217
Depending on the way the veh icle is driven
and the operating conditions, oil consumption
can be up to a 1/2 qua rt per 600 miles (0 .5
li­
ter per 1,000 km) . Consumption may be high­
er within the first 3,000 mi les (5,000 km).
@ Tips
The oil level indicator in the MMI* Disp lay
is only an information display.
If the oi l
level is too low, a min imum oil warning ap­
pears in the instrument cluster. Add oil
r:!> page 217 . If the hood has been opened,
the current oil level is shown in the instru­
ment cluster the next time the ign ition is
sw itched on. Checkin
g and fillin g 217
~ Adding engine oil
Fig. 177 Eng in e compa rtm en t: Cove r on the oil filler
n eck
.,. Before yo u check anything in the engine
compa rtment,
alwa ys read and h eed all
WARNING S
c> .&. in Working in the engine
compartment on page 212 .
.,. Unscrew the cap
'e:;r. to the engin e oil filling
hole ¢fig . 177, r:!>fig. 175 .
.,. Carefully top off with the appropr iate oil in
0 .5 liter doses .
.,. Check the oil level aga in after two minutes
c> page 217 .
.,. Top off the o il aga in, if necessary.
.,. Scr ew the cap back on the filling hole .
&_ WARNING
-Wh ile topping off, the o il m ust not come
in contact with hot engine parts -fire
hazard!
- The oi l filler cap mus t be properly se ­
cured to prevent oil from being sprayed
on the hot engine and exhaust system
when the engine is running - fire hazard!
- If you r skin has come in contact with the
engine o il, you must subsequently
cleanse it thoroughly.
(D Note
- Check the oil leve l using the radio or
M MI* . If the message
Plea se reduce oil
level
appears, contact yo ur authorized
Audi dea ler or other qualified workshop
to have excess oil extracted if necessary.
- Audi does not recommend the u se of o il
addit iv es. They m ay damage the engine
and adversely aff ect your New Vehi cle
W arranty .

218 Check ing and filling
@ For the sake of the environment
- Under no circumstances can the oil come
in contact with the sewage network or
the soil.
- Observe and follow legal regu lations
when disposing of empty oil containers.
Changing the engine oil
We recommend thot hove your oil changed by
an authorized Audi dealer or a qualified serv­
ice station.
Before you check anything in the engine com­
partment,
a lways r ea d and heed all WARN­
ING S ¢ & in Working in the engine compart­
ment on page 212.
The engine oil must be changed according to
the intervals specified in your Warranty
&
Maintenance book let. This is very important
because the lubricating properties of oil di­
minish gradually during normal vehicle use .
Under some circ umstances the engine oi l
should be changed more frequently . Change
oil more often if you drive mostly short dis­
tances, operate the vehicle in dusty areas or under predominantly stop-and -go traffic con ­
d itions, or have your veh icle where tempera­
tures remain below freez ing fo r extended pe­
riods.
Detergent addit ives in the o il w ill make fresh
oil look dark after the eng ine has been run­
n ing fo r a short time. This is norma l and is not
a reason to change the oil mo re often than
recommended.
Because of the problem of proper disposal ,
a long w ith the special tools and necessary ex­
pertise required, we strong ly recommend that
you have your o il changed by an authorized
Audi de ale r or a qualified service station.
If you cho ose t o c han ge your oil yours elf ,
please note the following important informa­
tion :
A WARNING
To reduce the risk of personal injury if you
must change the eng ine oil in your vehicle
yourself:
- Wear eye protect ion.
- To reduce the risk of burns from hot en- gine oil, let the engine cool down to the
touch.
- When removing the o il dra in plug with
your fingers, stay as far away as possible. Always keep your forearm parallel to the
ground to help prevent hot oil from run­
n ing down you r arm.
- Dra in the oil into a container designed
for this purpose, one large enough to hold at least the tota l amount of oil in
your engine.
- Engine oil is poisonous. Keep it we ll out
of the rea ch of childre n.
- Continuous contact with used eng ine o il
is harmfu l to your sk in. Always protect
your skin by washing oil off tho ro ughly
with soap and wate r.
@ Note
Neve r mix oil additives with your engine
oi l. These additives can damage your en­
g ine and adversely affec t you r A ud i L imit­
ed New Veh icle War ranty.
@ For the sake of the environment
- Before changing your oil, first make su re
you know where you can prope rly dispose
o f the used oil.
- Always dispose of used eng ine oi l proper ­
ly. Do not dump it on garden soil, wood­
ed areas, into open streams o r down
sewage drains.
- Recycle used engi ne oil by taking it to a
used engine oil collection facility in you r
area, or contact a service station.

Engine cooling system
Coolant
The engine coolant performs two functions: it
keeps the engine from overheating and it pro ­
te cts the engine from freezing in the winter .
The cooling system is sealed and generally re­
qu ires little attention .
The cooling system has been filled at the fac­
tory with a permanent coolant which does not need to be changed. The coolant consists of a
mixture of water and the manufacturer's gly ­
col-based coolant additive G 13 antifreeze with
anticor ros ion add itives (50% for USA mode ls;
60% for Canadian mode ls). This mixtu re both
assures the ne cessa ry frost prote cti on and
p rotec ts metal components in the engine's
coo ling system from cor ros io n an d scaling. It
a lso raises the boiling point of the coolant.
D o not red uce the con cent ration o f th e coo l­
ant in the summe r by adding plain water .
The
proportion of coolant additive must be at least 50% but not more than 60%
to ma in­
tain antifreeze protection and cooling efficien­
cy. If the coolant frost protect ion is too low,
the coolant cou ld freeze and damage the veh i­
cle heating and eng ine cooling system .
For yea r-round driving, antifreeze is added at
the factory for temperatures down to:
- -3 1 °F (-35°C)USA
- -4 0 ° F ( - 40 °C) Canada.
A WARNING
Before yo u check any thing in the engine
compartment, always read and hee d all
W AR NIN GS
¢ .&. in Working in the engine
compartment on page 212.
(D Note
- Before win ter se ts in, have the coolan t
checked to see if t he coolant ad dit ive i n
your vehicle is suffic ient to meet the cli­
mate cond itions . T hi s is especially imp or­
tant if you live in a regi on whe re the w in­
te r is e xtremely cold. If necessary, in -
Checking and fillin g 219
crease the propo rtion of coo lant add itive
to 60%.
- When adding coolant additive to yo ur
coolin g system , remembe r:
- We reco mmend us ing o nly coola nt ad­
d itive G12++ or G13 for your vehicle .
This coolan t ad ditive is availab le at a u­
thor ized Audi dealers. O ther types of
ant ifree ze can s ignific antly red uce cor­
rosion pro tec tion . The result ing corro­
sion can ca use a loss o f coolan t and se ­
rio us en gine damage.
- D o not add any ty pe of rad iator leak seal­
ant to yo ur vehicle 's engine coolan t.
Adding radiator repair fl uid may adverse ­
ly affect the function and performance of
your cooling system and co uld resu lt in
damage not covered by you r New Ve hicle
Limited War ran ty.
Checking the engine coolant level
The engine coolant level can be checked with
a quick glance.
Fig . 1 78 Eng in e co mpa rtm ent : Cover o n the coo la nt
expans io n t an k
-... ;;; ,; a, m
.. Before yo u check anything in the engine
compartment,
always read and heed all
WARNINGS ¢ & in Working in the engine
compartment on page 212 .
"' Park yo ur vehicle on a lev el su rface .
"' Turn off the ignition .
"' Read t he e ngine coolant level from the
coo lant expan sio n ta nk ¢
fig. 178 ,
¢ fig. 175. With a cold engine, the coolant
level sho uld be between the "MIN " and
"MAX" markings . When the engine is warm,
the level may be slightly above the "MAX"
marking.
Iii>

220 Check ing and filling
The location of the coolant expansion tank
can be seen in the engine compartment illus­
tration ¢
page 214 .
To obtain an accurate read ing, the eng ine
must be switched off .
The expans io n tank in you r vehicle is equipped
with an e lectr ic cool ant level sensor.
When the coolant level is too low, the warning light in the A uto-Check System ¢
page 18 will
b link until you add coo lant and the level has
been restored to no rm al. Even though the re is
an e lec tric coolant level sensor, we s till rec ­
ommend you check the coolant leve l from
time to time.
Coolant loss
Coolant loss may indicate a leak in the cooling
system. In the event of coolan t loss, the cool ­
i ng system should be inspected immedia tely
by your authorized A udi dealer. It is not
enough merely to add coolant.
I n a
s e aled system, losses can occur only if
the boiling poin t of the coolant is excee ded as
a result of overheating.
A WARNING
The cooling system is unde r pressure and
can get ve ry hot. Reduce the risk of sca ld­
ing from hot coolant by following these
steps.
- Turn off the engine and allow it to cool
down.
- Protect yo ur face, hands and arms from
escaping fluid and steam by covering the
cap with a large, thick rag.
- Turn the cap slowly and ve ry carefu lly in
a counter-clockwise direction wh ile ap­
plying light, downward pressure on the
top of the cap .
- To avoid being b urned, do not spill ant i­
freeze or coolant on t he exhaust system
or hot eng ine parts. Unde r certain condi­
tions, t he ethy lene g lycol in engine cool­
an t can ca tch fire.
(D Note
Do not ad d any type of radiator leak sea l­
ant to your veh icle's engine coo lant. Add­
i ng radiator repa ir fluid may adverse ly af­
fect the funct ion and performance of your
cooling system and could result in damage not cove red by your New Veh icle L imited
War ran ty .
Adding coolant
Be very careful when adding engine coolant.
Before you check anyth ing in the eng ine com­
partment,
always read and heed all WARN­
INGS c> &. in Working in the engine compart ­
ment on page 212.
.. Turn off the engine.
.. Let the engine cool down.
.. Place a thick rag over the coolant expansion
tank ¢
fig. 178 and carefully turn the cap
co unter-clo ckwise ¢,&. .
.,. Add coo lant.
.. Twis t the cap on aga in
t ightly.
Replacement engine coo lant must confo rm to
exact spec ificat ions
¢ page 219, Coolant. We
re commend using on ly coo la nt additive G 12+
+ , G 13 or in an eme rgen cy G12+. Do
not use a
different additive. In an emergency use plain
water until yo u can get the correct additive
and can restore the correct ratio . This shou ld
be done as soon as possible .
If you have los t a cons iderab le amount o f
coolant , then you sho uld ad d cold antifreeze
and cold wate r on ly w hen the engine is cold.
Always use
new engine coo lant when refilling.
Do not f ill coo lant abov e the "MAX" mark . Ex­
cess coo la nt w ill be fo rced o ut thro ugh the
pressure relief valve in t he cap w hen the en­
gine becomes hot.
A WARNING
-= -
-The cooling system is under pressure and
can get very hot. Reduce the risk of ..,.
