phone AUDI A5 CABRIOLET 2013 Owners Manual

(!) Door handle
@
®
©
®
®
Power locking sw it ch
Memory buttons (dr iver's seat)
Button for side ass ist
A ir outlets
Control lever for :
- Turn signal and high beam
0 Multi-function steering wheel
with:
- Horn
- Driver's airbag ........... .
- Audio/video , telephone and
navigation buttons
- Rocker switches for tiptronic
operation .... .... ... .... .
@ ISETI button .... ....... .... .
® Instrument cluster ......... .
@ Reset button for trip odometer
@ Switches for:
- Windshield wiper/washer
- Trip computer ............ .
@ Ignition lock ............ .. .
@ Adjustable steer ing column
~ Control leve r for :
- Cruise contro l .. ... ... .... .
- adaptive cruise contro l ... .. .
@ Instrument lighting .. ... ... .
@ Release lever for the engine
hood .. .. .. ............. .. .
@ Data Link Conne ctor for On
Board Diagnos tic s (OBD II) ... .
@ Light switch ........... .. .. .
@ Adjuster control for outside mir-
35
64
103
53
144
90
11
10
12
57
25
75
75
84
94
55
212
29
52
rors . . . . . . . . . . . . . . . . . . . . . . 55
@ Power window switches . . . . . . 39
@ Radio-Displayll or MMI-Display
@ Depending on options:
- Radio system
- CD changer
l) The im age in t he d ispl ay will app ea r either in mu lt ipl e
col ors or in a singl e co lor , de pen din g o n th e vehicl e
e q ui pment. Th e m ulti co lo r im age w ill be use d i n this
O w ner's Manual becau se bo th mult i co lo r and sin gle
col or vers io ns are almost iden tic al.
Instruments and controls 9
@) Emergency flasher ......... .
@ Glove compartment (lockable)
@ Front passenger's airbag .....
@ Depending on options, switches
for :
- drive select .............. .
- Electron ic Stabilization Con -
trol ..... ... .. ..... ..... .
@ Deluxe aut omatic climate con-
tro l ...................... .
@ Selector lever for automatic
transmission ......... ..... .
@ Ashtray with cigarette lighter
@ Depend ing on options:
- MMI cont ro l console or
- drive select ......... ..... .
- Electron ic Stabili zation Con-
trol button .............. .
@ Central power window switch
@ Powe r top switch ........... .
@ I START ENG IN E STOPI button
@ Electromechanical parking
brake .. .. .... ... .. ....... .
(D Tips
54
67
144
107
179
70
88
66 ,66
107
17 9
44
78
80
-Some of the equipment or features
shown in the general illustration may be
standard equipment on your vehicle or
may be optional eq uipment depending
on your model. Always ask your author­
ized Audi dealer if you have a quest ion
about your vehicle.
- Operation of the Multi Media Interface
(MMI) is described in a separate manual.

keys. Unguarded access to the keys pro­
vides children the opportunity to start
the engine and/or activate veh icle sys­
tems such as the power windows etc. Un­ supervised operation of any vehicle sys­
tem by ch ildren can result in serious in­
jury.
- Do not remove the key from the ignition
lock until the vehicle has come to a com­
plete stop. Otherw ise the steering col­
umn lock cou ld suddenly engage -caus­
ing the risk of an accident.
(D Tips
- The operation of the remote contro l key
can be temporarily disrupted by interfer­
ence from transmit ters in the vici nity of
the vehicle working in the same frequen ­
cy range (e .g . a ce ll phone, radio equip­
ment).
- Fo r security reasons, replacement keys
are on ly available from Audi dea lers .
- For Decla rat ion of Compliance to United
States FCC and Industry Canada regula­
tions
~page 272.
Removing the mechanical key
0 ....
9 r
. ~
•
Fi g. 18 Remote master key: remov ing the mechanical
key
.,. Press the release button@r=:>fig. 18.
.,. Pull the mechan ical key ® out of the mas­
ter key.
Using the mechan ical key, you can:
- lock and unlock* the glove compartment on
t h e passenger's sider::;,
page 67.
Op enin g an d clos ing 33
- lock and unlock the vehicle manually
r::;, page 36 if this should not be possible
w ith the master key.
- use the ignition key emergency release
r::;, page 34.
Check light and battery in the master
key
Fig . 1 9 Remote master key: removing the battery hold ­
er
Check li ght in the mast er key
The check light @r=:>
fig. 19 in the master key
provides information about different condi­
tions.
.,. The check light turns on briefly once when a
button is pressed, and during an "inquiry"
by the convenience key system.
.,. If the check light does not come on, the
battery is dead a nd has to be replaced. In
add it ion, when the battery is dead
the m
indicator light appea rs in the instrument
cluste r display as we ll as the message
Please cha nge key batte ry .
Ma ster key battery replacement
.,. Remove the mechanica l key
r::;, page 33 .
.,. Press the release button @ r::;, fig. 19on the
bat tery ho lder and a t the same time pull the
battery ho lder out of the master key in the
direction of the arrow .
.,. Insta ll the new battery CR 2032 with the
" + " sign facing down .
.,. Push the battery holder carefully into the
master key.
.,. Install the mechanical key .

122 Driving Safel y
• Fasten your safety belt and wear it proper ly.
Also instruct your passengers to fasten their
safety belts proper ly ¢
page 132.
What impairs driving safety?
Safe driving is directly related to the condi­
tion of the vehicle, the driver as well as the
driver's ability to concentrate on the rood
without being distracted.
The driver is responsible for the safety of the
vehicle and all of its occupants. If your ability
to drive is impaired, safety risks for everybody
in the vehicle increase and you also become a
hazard to everyone else on the road ¢
.&,.
Therefore:
• Do not let yourself be distracted by passen­
gers or by using a cellular telephone.
• NEVER drive when your dr iving ability is im­
paired (by medicat ions, alcohol, drugs, etc.) .
• Observe all traffic laws, rules of the road
and speed limits and plain common sense .
• ALWAYS adjust your speed to road, traff ic
and weather condit ions.
• Take frequent breaks on long trips . Do not
drive for more than two hours at a stretch .
• Do NOT drive when you are tired , under
pressure or when you are stressed.
A WARNING , .
Impaired driving safety increases the risk
of serious personal injury and death when­
ever a vehicle is being used .
Proper occupant
seating positions
Proper seating position for the driver
The proper driver seating position is impor­
tant for safe, relaxed driving.
Fig. 132 Correct seat ing posit ion
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the driver's seat to the
following position:
• Adjust the driver's seat so that you can easi­
ly push the pedals all the way to the floor
while keeping your knee(s) slightly bent
¢.&, .
• Adjust the angle of the seatback so that it is
in an upr ight position so that your back
comes in full contact with it when you drive.
• Adjust the steering whee l so that there is a
distance of at least 10 inches (25 cm) be­
tween the steering wheel and your breast
bone ¢
fig. 132. If not possible, see your au­
thorized Audi dealer about adaptive equip­ ment.
• Adjust the steering wheel so that the steer­
ing wheel and airbag cover points at your
chest and not at your face .
• Grasp the top of the steering whee l with
your elbow(s) slightly bent.
• Applies to veh icles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head.
If that is not possible, try to
adjust the head restraint so that it is as
close to this posit ion as possible.
• Fasten and wear safety belts correctly
¢page 135.

150 Airbag system
must always sit in an upright position,
must not lean against or place any part
of their body too close to the area where
the airbags are located .
- Occupants who are unbelted, out of posi­
tion or too close to the airbag can be se­ riously injured by an airbag as it unfolds
with great force in the blink of an eye
~page 141.
A WARNING
A child in a rearward-facing child safety
seat installed on the front passenger seat
will be seriously injured and can be killed if
the front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
- Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rear-facing child
safety seat in a rear seating position and
have the airbag system inspected by your
authorized Audi dealer.
A WARNING
Objects between you and the airbag will
increase the risk of injury in a crash by in­
terfering with the way the airbag unfolds
or by being pushed into you as the airbag
inflates.
- Never hold things in your hands or on
your lap when the vehicle is in use.
- Never transport items on or in the area of the front passenger seat. Objects
could move into the area of the front air­
bags during braking or other sudden ma­
neuver and become dangerous projec- tiles that can cause serious personal in­
jury if the airbags inflate.
- Never place or attach accessories or oth­
er objects (such as cupholders, tele­ phone brackets, large, heavy or bulky ob­
jects) on the doors, over or near the area marked "AIRBAG" on the steering wheel,
instrument panel, seat backrests or be­
tween those areas and yourself. These
objects could cause injury in a crash, es­
pecially when the airbags inflate.
- Never recline the front passenger's seat
to transport objects. Items can also
move into the area of the side airbag or
the front airbag during braking or in a
sudden maneuver. Objects near the air­
bags can become projectiles and cause
injury, particularly when the seat is re­
clined.
A WARNING
'-
The fine dust created when airbags deploy
can cause breathing problems for people
with a history of asthma or other breath­
ing conditions.
- To reduce the risk of breathing problems, those with asthma or other respiratory
conditions should get fresh air right
away by getting out of the vehicle or
opening windows or doors.
- If you are in a collision in which airbags
deploy, wash your hands and face with
mild soap and water before eating.
- Be careful not to get the dust into your
eyes, or into any cuts or scratches.
- If the residue should get into your eyes,
flush them with water.

154 Airbag system
There are some important things you have to
know to make sure that the effectiveness of
the system will not be impaired and that dis­
carded components do not cause injury or pol ­
lute the environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing an airbag

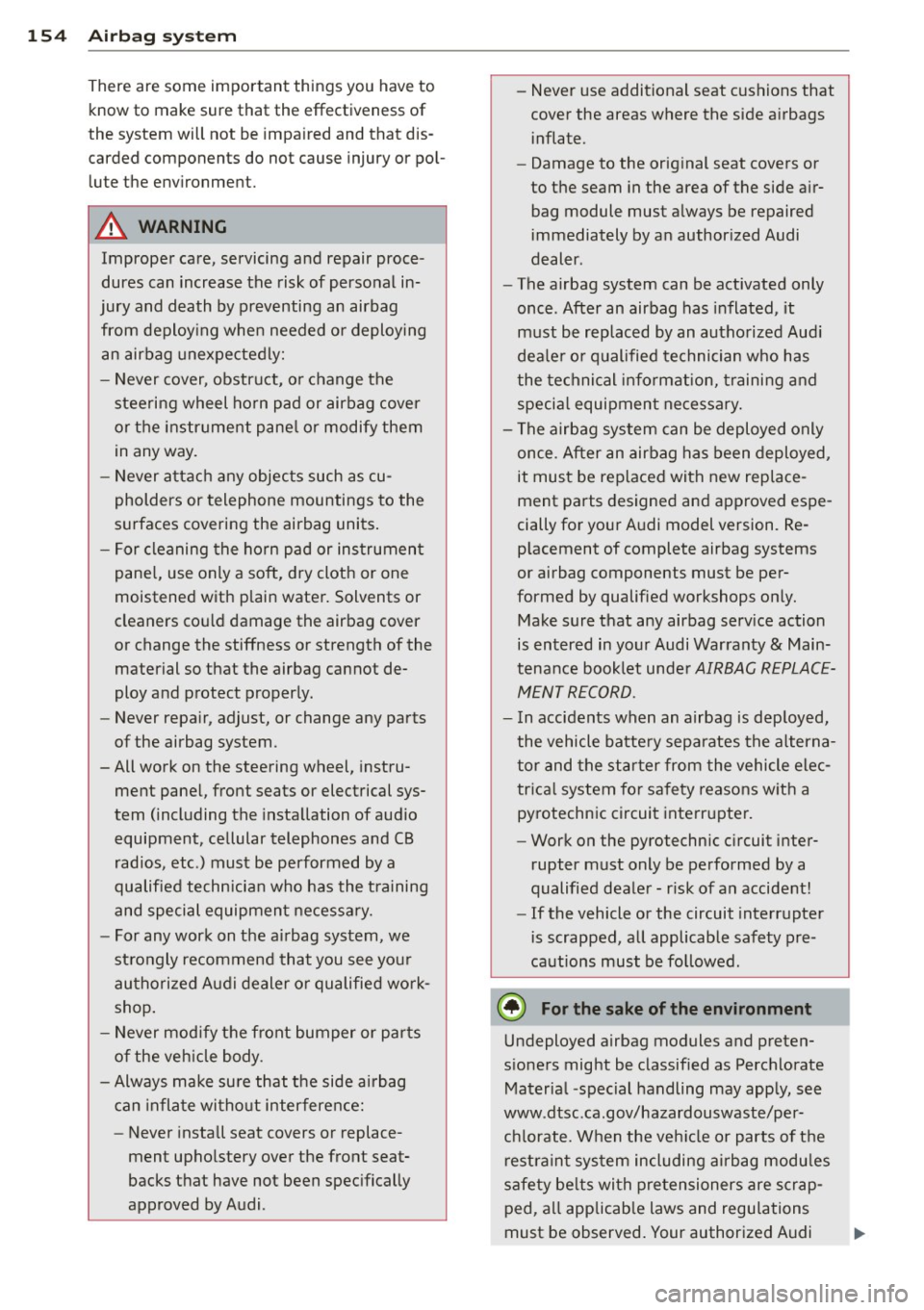

from deploying when needed or deploying an airbag unexpectedly:
- Never cover, obstruct, or change the
steering wheel horn pad or airbag cover
or the instrument panel or modify them
in any way.
- Never attach any objects such as cu­
pholders or telephone mountings to the
surfaces covering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one
moistened with plain water. Solvents or
cleaners could damage the airbag cover
or change the stiffness or strength of the
material so that the airbag cannot de­
ploy and protect properly.
- Never repair, adjust, or change any parts
of the airbag system .
- All work on the steering wheel, instru­
ment panel, front seats or electrical sys­
tem (including the installation of audio
equipment, cellular telephones and CB
radios, etc .) must be performed by a
qualified technician who has the training
and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your
authorized Audi dealer or qualified work­ shop.
- Never modify the front bumper or parts
of the vehicle body.
- Always make sure that the side airbag
can inflate without interference:
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi . -
Never use additional seat cushions that
cover the areas where the side airbags
inflate.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer .
- The airbag system can be activated only
once. After an airbag has inflated, it
must be replaced by an authorized Audi
dealer or qualified technician who has
the technical information, training and
special equipment necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed,
it must be replaced with new replace­
ment parts designed and approved espe­
cially for your Audi model version. Re­
placement of complete airbag systems
or airbag components must be per­
formed by qualified workshops only.
Make sure that any airbag service action
is entered in your Audi Warranty
& Main­
tenance booklet under
AIRBAG REPLACE­
MENT RECORD .
-In accidents when an airbag is deployed,
the vehicle battery separates the alterna­
tor and the starter from the vehicle elec­
trical system for safety reasons with a pyrotechnic circuit interrupter.
- Work on the pyrotechnic circuit inter­
rupter must only be performed by a
qualified dealer -risk of an accident!
- If the vehicle or the circuit interrupter
is scrapped, all applicable safety pre­
cautions must be followed.
@ For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate Material -special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/per­
chlorate. When the vehicle or parts of the restraint system including airbag modules
safety belts with pretensioners are scrap­
ped, all applicable laws and regulations
must be observed. Your authorized Audi
1J1-

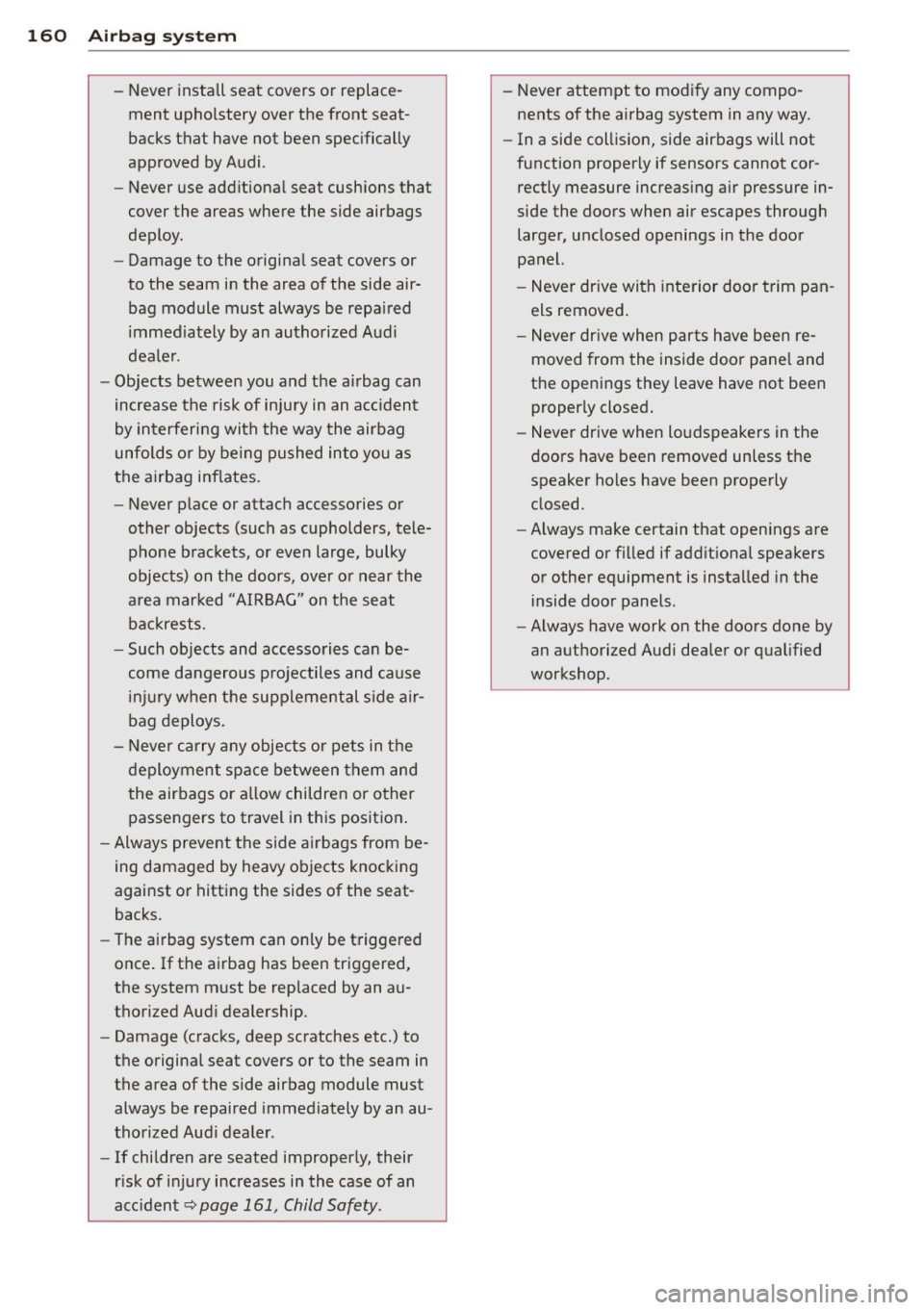

160 Airbag system
-Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­ bag module must always be repaired
immediately by an authorized Audi
dealer .
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cupholders, tele­ phone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once.
If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident ~
page 161, Child Safety.
-Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­
rectly measure increasing air pressure in­
side the doors when air escapes through larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed.
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
- Always make certain that openings are
covered or filled if additional speakers
or other equipment is installed in the
inside door panels.
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop.

210 Fuel supply and filling your fuel tank
Refuelling
Fig. 169 Rig ht rear veh icle s ide: Open ing t he fuel fille r
fl ap
Fig. 170 Fu el fi ller fla p w ith attached fuel c ap
When activating the central lock ing, the fuel
fi ller flap is automatically un locked or loc ked.
Refuel the vehicle with the ig nition turned
off.
Taking the fuel cap off
~ Turn off the ignition .
~ Press the left side of the fuel fil ler flap to
open it~
fig . 169 -arrow- .
~ Unscrew fuel cap counter-clockwise and
hang i t on the fuel filler flap
~ fig . 170.
Refuelling procedure
~ Insert the fuel no zzle from the gasoline
pump into the fuel filler nec k as far as it will
go .
~ Select a medium refuelling rate so that the
nozzle switches off automatical ly when the
tank is full.
Putting the fuel cap back on
~ After filling your tank, tw ist the fuel cap
clockwise as far as it will go .
~ Close the fuel filler flap. T
o avoid fuel spill ing or evaporating from the
fuel tank always close fuel cap properly and
completely .
A WARNING
-Improper refueling or handling of fuel can
cause fire, explosion and severe burns.
- Fuel is highly flammable and can cause
severe burns and other injuries.
- Failure to shut the engine off while refu­
eling and/or to insert the pump no zzle
fully into the fuel filler neck could cause
fuel to spray out of filler neck or to over ­
flow . Fuel spray and overflowing fuel can
cause a fire .
- Never use a cellular telephone while re­
fueling . The electromagnet ic rad iat ion
can cause sparks that can ignite fuel va­
pors and cause a fire.
- Never get back into your vehicle whi le re­
fue ling.
If in exceptional circumstances
you must get back in your vehicle while
ref ueling, make ce rtain that you close
the door and touch metal to discharge
static electricity before touching the fill ­
er nozzle again . Static electricity can
cause sparks that can ignite fuel vapors released during refueling .
- Never smoke or have an open flame any­
where in or near your veh icle when refu­
eling or filling a portable fuel conta iner .
- For your safety, we strongly recommend
that you do not travel with a portable
fuel conta iner in your vehicle . The con­
tainer, full or empty may leak and could
cause a fire, especially in a crash .
- If, u nder exceptional cir cumstances, you
must transport a portable fuel conta iner,
p lease observe the following:
- Never fill a portable f uel container
whi le it is anywhere in or on the vehicle
(for example, in the luggage compart­
ment, or on the trunk). Static electrici­
ty can build up while filling and can ig­
nite fuel vapors causing a fire.
- Always place a portable fue l conta iner
on the ground before filling.

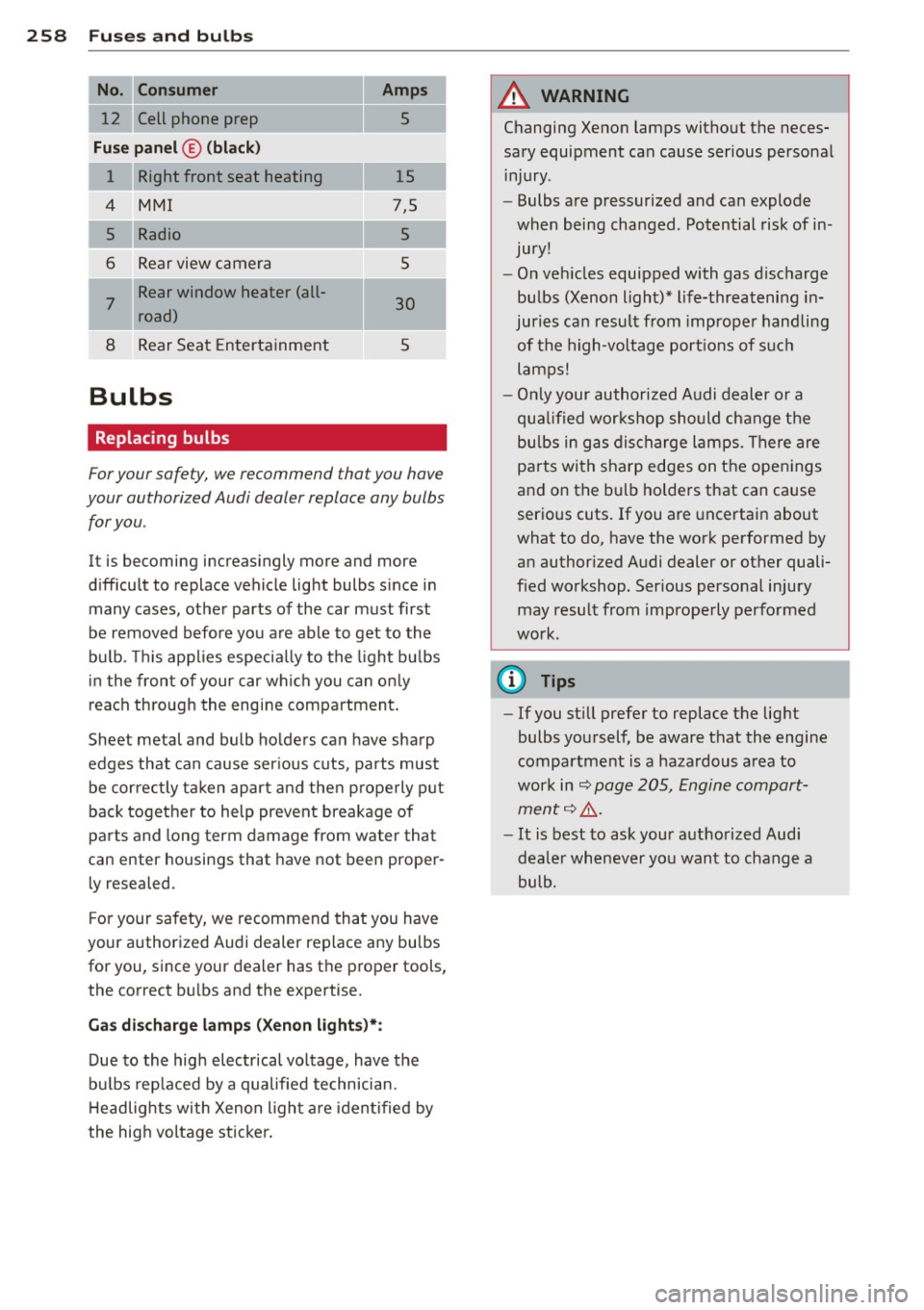

258 Fuses and bulbs
--No. Consumer Amps
12 Cell phone prep 5
-
Fuse panel© (black)
1 Right front seat heating 15
4 MMI 7,5
5
Radio 5
6 Rear view camera 5
7
Rear window heater (all·
30 road)
8 Rear Seat Entertainment 5
Bulbs
Replacing bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for you.
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in many cases, other parts of the car must first
be removed before you are able to get to the
bu lb. Thi s applies especially to the light bu lbs
in the front of your car which you can only
reach through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, parts must
be correctly taken apart and then properly put
back together to help prevent breakage of
parts and long term damage from water that
can enter housings that have not been proper·
ly resealed.
F or your safety, we recommend that you have
your author ized Audi dealer replace any bulbs
for you, since your dealer has the proper tools,
the correct bu lbs and the expertise.
Ga s discharge lamps (Xenon lights}*:
Due to the high electrical vo ltage, have the
bu lbs rep laced by a qualified technician.
H eadlights with Xenon l ight are identified by
the high voltage sticker.
A WARNING
Changing Xenon lamps without the neces­
sary equipment can cause serious personal
in jury.
- Bulbs are pressurized and can explode
when being changed. Potential risk of in­
jury!
- On vehicles equipped with gas discharge
bulbs (Xenon light)* life-threatening in­
juries can result from improper handling
of the high-voltage portions of such
lamps!
- Only your authorized Audi dealer or a
qualified workshop should change the
bu lbs in gas discharge lamps. There are
pa rts with sharp edges on the openings
and on the bulb holders that can cause
serious cuts. If you are uncertain about
what to do, have the work performed by
an author ized Audi dealer or other quali­
fied workshop. Ser ious personal injury
may result from improperly performed
work.
(D Tips
- If you st ill prefer to replace the light
bulbs yourself, be aware that the engine
compartment is a hazardous area to
work in
9 page 205, Engine compart­
ment
9 Lr:,. .
-It is best to ask your authorized Audi
dealer whenever you want to change a
bulb.

-Always make sure the transm ission se­
lector lever (automatic transmiss io n) is
in "P" (Park positi on) a nd the park brake
is firm ly ap plied .
@) For the sake of the environment
-Changing t he eng ine settings w ill ad­
versely affect em ission levels. This is det­
rimental to the environment and increas­
es fuel consumption .
- Always observe env ironmental regula­
tions when d isposing of old engine oil,
used brake fluid, dirty engine coolant,
spent batter ies or worn out t ires.
- Undeployed airbag modules and preten­
s ioners might be classified as Perchlo­
r ate Mate rial -spec ia l hand ling may ap­
ply, see www.dts c.ca .gov/haza rdous­
was te/perch lorate. When the veh icle or
parts of the res traint system in cl ud ing
a irbag modules safety be lts wit h preten ­
sioners are scrapped, all applicable laws
and regulations must be observed. Your
a uthorized Audi dea ler is familiar w ith
these requirements and we recommend
that you have your dea ler perform this
se rv ice for you .
Additional accessories,
modifications and
parts replacement
Additional accessories and parts
replacement
Always consult an authorized Audi dealer be­
fore purchasing acce ssories.
Your veh icle inco rporates the latest safety de­
sig n featu res e nsu ring a high standard of ac­
tive and passive safe ty .
This safety could be comp romised by non-ap­
p roved changes to the ve hicle. For this reason ,
if pa rts have to be replaced, please observe
t he following points when ins tall ing addition­
a l accessories:
Con sumer In formation 2 7 1
Approved Audi accesso ries and genuine Aud i
parts are available from authorized A udi deal­
ers.
T hese de alers a lso have the necessary facili­
ties, tools and tra ined spec ialists to install the
parts and accessories proper ly .
A WARNING
Using the wrong spare pa rts or using non­
approved accessories can cause damage to
the vehicle and ser ious persona l injury.
- Use on ly accessories express ly approved
by Audi and ge nuine Audi spare parts
- These parts and accessories have been
specially designed to be used on yo ur ve­
hicle.
- Never install accessor ies such as tele­
phone crad les or beverage ho lders o n air­
bag covers or withi n the airbag deploy­
ment zones . Do ing so will increase t he
ris k of injury if a irbags are triggered in an
accide nt!
- Before you check anything in the engine
compa rtment, always r ead and heed a ll
W ARNINGS ~
page 205.
(D Note
- If items other than genu ine A udi spare
par ts, add-on equipmen t and accessory
items are used o r if repair wo rk is not
performed a ccord ing to spe cified met h­
ods, this ca n resu lt in s evere damage to
yo ur vehicle's engine and body (s uch as
co rrosion) and adversely affect yo ur vehi ­
cle's warranty .
- If emergency repairs mus t be performed
elsewhere, have the veh icle examined by
an authorized Aud i dealer as soon as
possible.
- The manufacturer cannot be held liable
for damage wh ich occ urs due to failure
to comply with these stipu lations.
•
•

272 Consumer Information
Technical Modifications
Our guidelines must be complied with when technical modifications are made .
Always consult an authorized Audi dealer be­
fore starting work on any modifications.
This will help ensure that vehicle function,
performance and safety are not impaired
¢ &. .
Attempting to work on electronic components
and the software used with them can cause
malfunctions. Because of the way electronic
components are interconnected with each
other, such malfunctions can also have an ad­
verse affect on other systems that are not di­
rectly involved. This means that you risk both
a substantial reduction in the operational
safety of your vehicle and an increased wear of
ve hicle parts ¢
A:,..
Author ized Audi dealers will perform th is
wo rk in a professiona l and competent manner
or, in special cases, refer you to a professional
company that specializes in such modifica­
tions .
A WARNING
-
Improper repairs and modifications can
change the way vehicle systems work and
cause serious personal injury.
(D Note
If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized A udi dealer as soon as possi­
ble.
Declaration of
Compliance, Telecom­
munications and
Electronic Systems
Radio Frequency Devices and Radiocommuni­
cation Equipment User Manual Notice.
The manufacturer is not responsib le for any
radio or TV interference caused by unauthor­
ized modifications to this equipment.
Devices
T he following devices each comply with FCC
Part 15.19, FCC Part 15.21 and RSS-Gen Iss ue
1:
- Adapt ive cru ise control*
- Conven ience key*
- Side assist*
- Cell phone package*
- Electron ic immobilizer
- Homelink ® universal remote control*
- Remote control key
- Tire pressure monitoring system*
FCC Part 15.19
This device complies with part 15 of the FCC
Rules . Operation is subject to the follow ing
two conditions:
(1) This device may not cause harmful inter­
ference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
FCC Part 15.21
CAU TION:
Changes or mod ifications not expressly ap­
proved by the party responsible for compli­
ance could void the user 's authority to operate
the equipment .
RSS-Gen Issue 1
Operation is subject to the following two con­
ditions:
