AUDI A5 CABRIOLET 2014 Owner's Manual

Instruments and warning/indicator lights 19
If the fl indicator light turns on, ESC was re­
stricted or switched
off using the I ~ O FF I but­
ton
¢ page 179.
Stabilization control (ESC/ABS): Fault! See
owner's manual
If the indicator light Ji) and the ABS indicator
light
ml (USA models) / II] (Canada models)
turn on and the message appears, the ABS or
e lectronic differential lock is ma lfunctioning.
This a lso ca uses the ESC to malfunction . The
brakes st ill function with their normal power,
but ABS is not act ive.
D rive to your authorized Audi dea ler immedi­
ately to have the malfunction corrected .
Fo r more informat io n about the ESC
¢page 179.
A WARNING
If the . (USA models) . (Canada mod ­
els) brake system indicator light turns on
together with the ABS and ESC indicator
lights, the ABS/ESC regulating function
may have failed. Functions that stabilize
the vehicle are no longer avai lab le. This
could cause the vehicle to swerve and in­
crease the risk of sliding. Drive carefu lly to
the nearest authorized Audi dea le r and
have the malfunction corrected.
(D Tips
For addit ional information on ESC and
ABS, refer to
¢ page 179.
ABS /(8) Anti-lock braking system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL).
The warning/indicator light ml (USA models)/
II] (Canada models) w ill come on for a few
seconds when the ign ition is switched on . The
light wi ll go out after an automatic check se­
quence is completed.
There is a malfunction in the ABS when:
-The warning/ indicator light does not illumi­
nate when you switch the ignition on . -
The warning/indicator light does not go out
after a few seconds.
- The warning/indicator light il luminates
while driving.
T he ESC indicator lig ht also illuminates if
there is a malfunction in the ABS. The mes­
sage
Stabilization control (ESC): Fault! See
owner 's manual
also appears in the instru­
ment cluster display and a warning tone
sounds.
The brake system will still respond even
without the assistance of the ABS system.
See your authorized Audi dealer as soon as
possible to restore full braking performance.
For more information regarding the ABS
¢page 179.
Malfunction in the brake system
If the brake warning light ¢page 15 and the
ABS warning illuminate
together there may be
a malfunction in the ABS, and there may a lso
be a malfunct ion in the brake system itself
¢ .&. .The ABS will not work and you will no­
tice a change in braking response and per­
formance.
In the event of a malfunction in the brake
system
the warning/indicator light . (USA
models) . (Canada models) in the instru ­
ment cluster flashes
¢ page 15 .
Malfunction in the electronic differential
lock (EDL)
The EDL works together with the ABS . The
ABS warning light will come on if there is a
malfu nction in the EDL system
¢page 179.
See your authorized Audi dealer as soon as
poss ible.
A WARNING
-
-If the ml (USA models) tli] (Canada
models) warning light does not go out,
or if it comes on while dr iving, the ABS
system is not working properly. The vehi­
cle can then be stopped only w ith the
standard brakes (without ABS). You w ill
not have the protect ion ABS provides.
...

20 Instrum ent s a nd w arn in g/i ndic ato r light s
Contact your authorized Audi dealer as
soon as possible.
- USA models: If the . warning light and
the
rJl1 warning light come on together,
the rear wheels could lock up first under
hard braking. Rear wheel lock-up can
cause loss of vehicle control and an acci­
dent . Have your vehicle repaired immed i­
ately by your authorized Audi dealer or
qualified workshop. Dr ive slowly and
avo id sudden, hard brake applicat ions.
- Canada models: If the brake warn ing
light . and the ABS warning light
[IJ
come on together, the rear wheels could
lock up first under hard braking. Rear
wheel lock-up can cause loss of vehicle
control and an acc ident. Have your vehi­
cle repaired immediately by your author­
ized Audi dealer or qualified workshop.
Drive slowly and avoid sudden, hard
brake applicat ions.
~ /!J.' Safety systems
The fl (USA models)/ E,I (Canada models) in­
d icator light monitors the safety systems (e .g.
a ir bags, pretensioners) and ill uminates for a
few seconds each time you switch the ignition
on.
I f the
fl (USA mode ls)/ E,I (Canada models)
i ndi cato r light does not go out, or if it illumi­
nates wh ile you are driv ing, or if it sta rts to
blink, then there is a ma lfunction somewhere
in the system.
If the light does not illuminate
when you switch the ignition on, this also means there is a malfunction.
A WARNING
If you have a malfunction in the safety sys­
tems, contact your author ized Audi dealer
immediately. Otherw ise the safety sys­
tems may not work properly in an acci­
dent.
l) .: USA mode ls on ly
(0) Worn brake pads
llJ Br ake pad s!
If the warning light illuminates, immed iately
contact your authorized Audi dealer or quali­
fied workshop to have all brake pads inspect­ ed . On USA models the warn ing light
llJ
comes on together with the warning light •.
Both sets of brake pads on an axle must al­
ways be replaced at the same time.
A WARNING
Driving with bad brakes can cause a colli­
sion and serious personal injury.
- If the warning light
llJ and the warning
light
. 1) with the message Brake pads!
comes on in the instrument cluster dis­
play, immediately contact your author­
ized Audi dealer or qualified workshop to
have all brake pads checked or replaced if
necessary.
EPC Electronic power control
This warning/indicator light monitors the
electronic power control.
The l3i warn ing/ indicator light (Electron ic
Power Control) illuminates when you sw itch
the ignit ion on as a function check.
(D Tips
If this warning/ indicator light illum inates
while you are driving, then there is a mal­
funct ion in the engine electronics. Have
the malfunct ion corrected as soon as pos­
s ible by your authorized Audi dealer or a
qualified repa ir facility.
Ci Malfunction Indicator Lamp (MIL)
T he Ma lfun ction Indicator Lamp (MIL) is par t
of the On-Board Diagnostic (OBD II) system.
-
The symbo l ('4 lights up when the ignition is
switched on and will turn off after the engine
has started and has settled at a constant idle
IJ>,

Instruments and warning/indicator lights 21
speed. This ind icates that the MIL is working
properly.
The warning light illuminates when there is a
mal funct ion in the engine e lectronic system.
Contact your authorized Audi dealer and have
the ma lfunction corrected .
An improperly closed fuel filler cap may also
cause the MIL light to illum inate
r:!,> page 204.
For more informat ion r:!,> page 29 .
!?) Engine speed limitation
App lies to vehicles: wit h eng ine speed lim itat ion
Ill Do not exceed max. engine speed of
XXXX rpm
The Ill symbol illuminates when there is an
engine control malfunction . The
'3i indicator
l ight in the instrument cluster also illumi­
nates. The engine speed is lim ited to the
speed displayed in the driver information sys ­
tem . Keep in mind that the engine speed will
not exceed the va lue disp layed in the driver in­
formation system, for example when down­
shifting.
Drive to your authorized Audi dea ler immedi­
ately to have the malfunction corrected .
'.!2:;,.,, Engine oil sensor
• Oil level! Sensor defective
If the symbol illuminates, contact your au­
thorized Audi dealer and have the oil sensor
inspected. Until you have this done, check the
oil level each time you refuel just to be on the
safe side
r:!,> page 211 .
Bil Tank system
(iD Please refuel
If the indicator light turns on for the f irst
time and the message appears, there are
about 2.1- 2 .4 gallons (7 -9 liters) of fuel left
in the tank. Time to refuel
r:!,> page 203.
DD Fuel tank system malfunction! Contact
dealer
If the indicator light turns on and this mes­
sage appears, there is a malfunction in the
tank system.
Drive to your authorized Audi dealer immedi­
ate ly to have the malfunction corrected.
C> Windshield washer fluid level
II Please refill washer fluid
If the symbol illum inates, add windshield
washer fluid to the washer system and also to
the headlight washer system*
r:!,> page 220.
~ Windshield wipers
El Windshield wiper defective
The re is a malfunc tion with the windshie ld
wipers .
Drive to your author ized Audi dealer immedi­
ate ly to have the malfunction corrected .
~/ }D /0$ Defective light bulb warning
If the S:$ indicator light turns on, a bulb has
failed. The message indicates the location of
the bu lb.
- If the
El indicato r light also turns on, then
a fo g lig ht has failed. The position of the in­
dicator light corresponds with the location
on the vehicle .
- If the
II indicato r light also turns on, then
a rear fog * light has failed. The position of
the indicator light corresponds with the lo­
cation on the vehicle .
T his wa rning can also occur if the light switch
is in an unengaged position between two sym­
bols.
Vehicle lights: System fault!
If the message appears, there is a malfunc ­
tion in the headlights or light sw itch .
Drive to your authori zed Audi dealer immedi-
ately to have the malfunction corrected .
IJJ,,

22 Instruments and warning/indicator lights
&_ WARNING
-light bulbs are pressurized and could ex­
plode while they are being changed caus­
ing serious personal injury.
- Work with due care when handling the
high-voltage section of gas discharge
(xenon) lights*. Failure to do so could re­
sult in death or serious injury.
(D Tips
Have the bulb replaced or the connection
repaired by your authorized Audi Service
department.
~(D Headlight range control
Appl ies to vehicles: with headlig ht range co ntrol
II Headlight range control defective !
If the symbol II illuminates, the dynamic
headlight range control is no longer working
properly . Have the system checked and re­
paired at your authorized Audi dealer.
§0 Adaptive Light
Appl ies to vehicles: with adaptive light
r!l Audi adaptive light: defective
If the indicator light turns on and this mes­
sage appears, there is a malfunction in the
adaptive light system. The headlights still
function.
Go to an authorized dealership to have the
headlights or the control unit for the adaptive
light repaired .
@..D light/rain sensor
Applies to vehicles: with light/rain sensor
II Automatic headlights/ automatic wipers
defective
If the indicator light turns on and this mes­
sage appears, the light/rain sensor is not
functioning correctly.
For safety reasons the low beams are turned
on permanently with the switch in
AUTO.
However, you can continue to turn the lights on and off
using the light switch . You can still
control all functions that are independent of
the rain sensor through the windshield wiper lever .
Contact your authorized Audi dealer as soon
as possible to have the problem corrected.
Q Adaptive dampers
Applies to vehicles: with Aud i drive select and adaptive
dampers
II Suspension: System fault!
If the II symbol in the display comes on,
there is a malfunction in the adaptive damp­
ers. Please go to an authorized Audi dealer or
qualified workshop to have the malfunction
repaired.
H Sport differential
Appl ies to vehicles: with Aud i drive select and spo rt dif ­
ferential
Sport differential: System fault!
There is a malfunction with the sport differen­
tial.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected .
Sport differential: Overheating
The transmission temperature has increased
significantly due to the sporty driving manner.
Drive in a less sporty manner until the tem­
perature returns to the normal range and the
indicator light switches of.
&_ WARNING
-
Contact your authorized Audi dealer or
qualified workshop if the sport differential is faulty or malfunctioning . The repair
must be performed by trained personnel
using the correct oil in order to ensure
safety.
~ Ignition lock
l3 Ignition lock defective

Instruments and warning/indicator lights 23

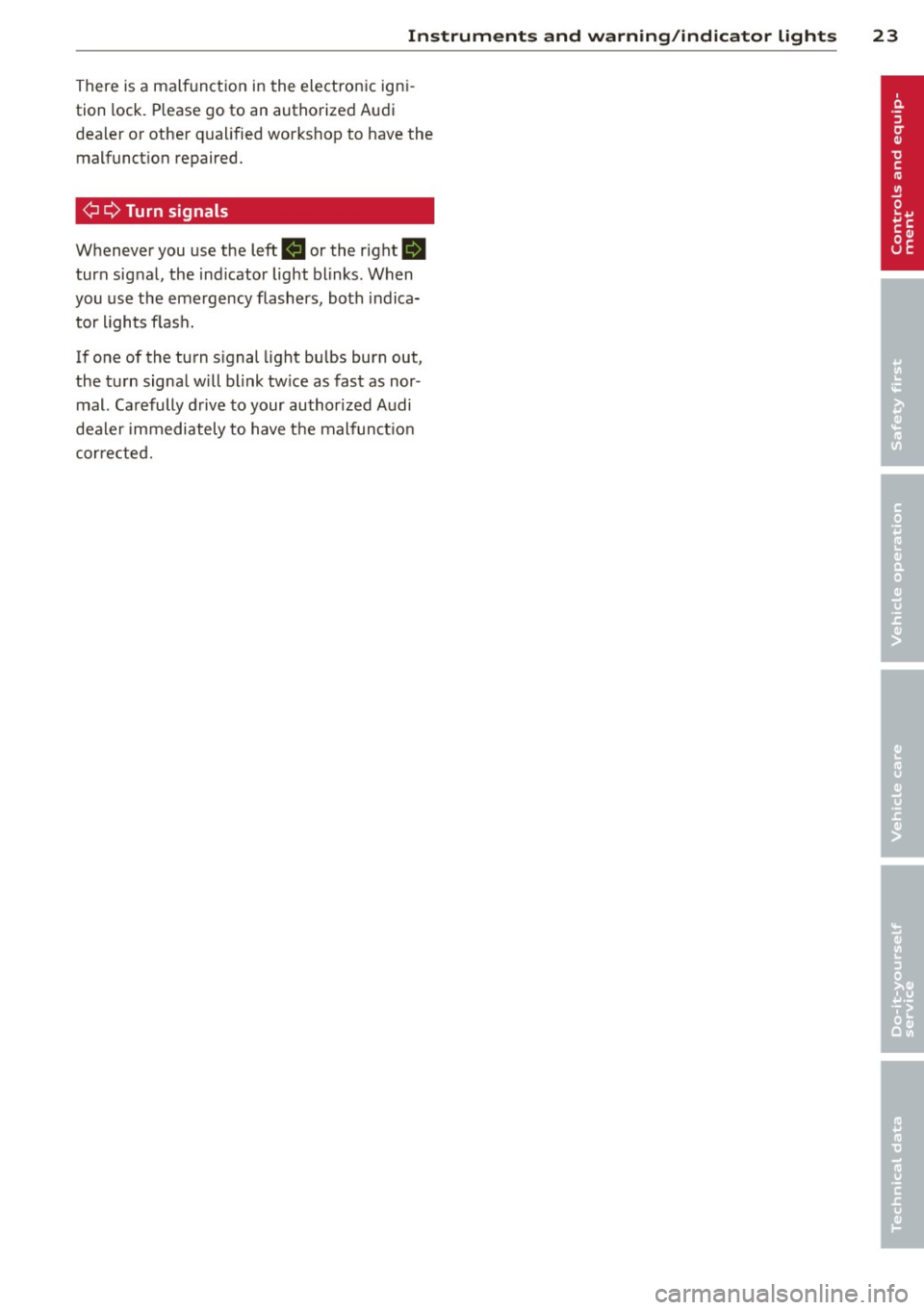

There is a malfunction in the electronic igni­
tion lock. Please go to an authorized Audi
dea ler or other qualified workshop to have the
malfunction repaired.
¢¢ Turn signals
Whenever you use the left B or the right B
turn signal, the ind icator light blinks . When
you use the emergency flashers, both indica­
tor lights flas h.
If one of the turn s ignal light bulbs burn out,
the turn signal w ill blink tw ice as fast as nor ­
mal. Carefully drive to your authorized Audi
dealer immediately to have the malfunct io n
corrected.

24 Driver information d isplay
Driver information
display
Introduction
The Driver information display inside the in­
strument cluster provides you, the driver,
with important information.
Fig. 7 Instrument cluster: ce nter display
Fig. 8 Wiper lever: controls for the menu display
Center display
With the ignition on, the display in the Dr iver
I nformation System shows the following in­
formation:
- CD* inserted or Radio* station set
- Outside temperature*: At temperatures be-
low 41 °F (+S °C), a snowflake symbol ap­
pears in front of the temperature display
c::> .&_.
-Warning if one of the doors, front lid or en-
gine compartment lid is not closed.
Additional functions
You can open the following functions in the
Driver Information System display by pressing
the
! RESET I button c::> fig. 8 one or more times:
Digital speedometer*
Tire pressure monitoring*
<::>page240
Trip computer <::>page25
Efficiency program* <::> page 27
Service interval display <::> page 28
Speed warning <::> page 81
Gearshift selector positions <::> page 85
Automatic transmission
Adaptive cr uise control*
<::> page 93
Auto Check Control
Some functions and vehicle components are
scanned for their operating status when you
switch the ignition on and whi le you are driv­
ing . Malfunctions or required service proce­
dures are signaled audibly and indicated by
red and yellow illuminated symbols and re­
minders in the d isplay.
A WARNING
--- Never rely exclusively on the outside
temperature display to determine if a
road surface is icy or not . Keep in mind
that road surfaces , espec ially br idges
and overpasses, could be ice covered and
slippery even at an outside temperature
above 41 °F (+S °C).
- Always remember,
even if the "snow­
flake" symbol (ice warning) does not ap­
pear in the disp lay, black ice cou ld be on
the road.
- Always reduce your speed and drive with
specia l care in cold weather conditions
when the chance of encountering icy
road surfaces increases.
¢j) Tips
If the vehicle is stationary, or if you are
driving at a very low speed, the tempera­
ture shown in the display might be slightly
higher than the actual outside tempera­
ture. This i.s caused by the heat being radi­
ated from the engine .

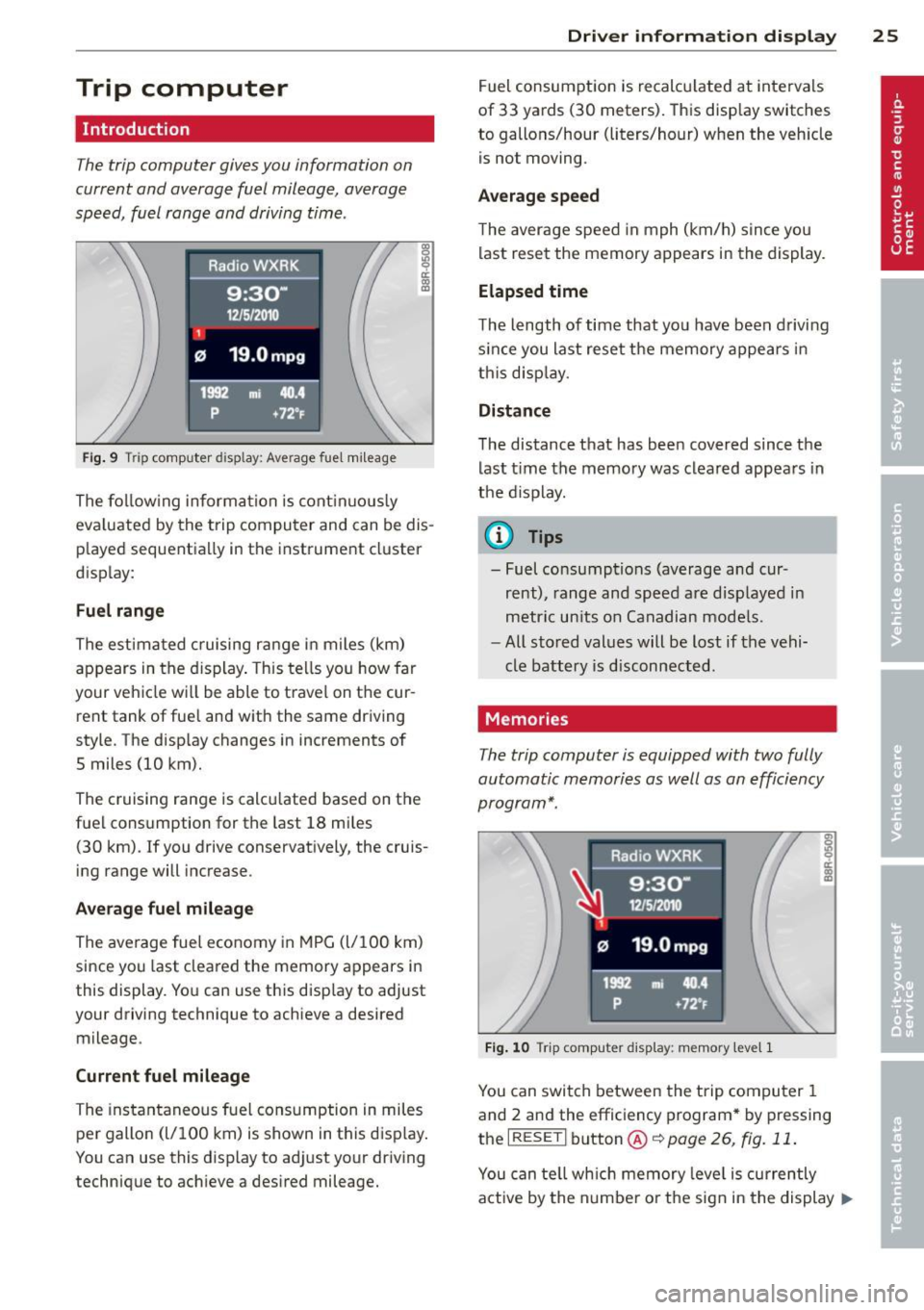

Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time .
Fig. 9 Trip computer display: Average fuel mileag e
The fo llowing information is continuously
eva luated by the trip computer and can be dis­
p layed sequentially in the instrument cluster
display:
Fuel range
The estimated cruising range in miles (km)
appears in the display. This tells you how far
your vehicle wi ll be able to travel on the cur­
rent tank of fue l and with the same driving
style. The display changes in increments of
5 miles (10 km).
The cruising range is calcu lated based on the
fuel cons umption for the last 18 mi les
(30 km) . If you drive conservatively, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this display. You can use this disp lay to adjust
your driving technique to achieve a desired
mileage .
Current fuel mileage
The instantaneous fuel consumption in miles
per gallon (l/100 km) is shown in this display .
You can use this display to adj ust yo ur driving
technique to ach ieve a desired mileage.
Driver information display 25
Fuel consumption is recalcu lated at intervals
of 33 yards (30 meters). This display switches
to gallons/hour (liters/hour) when the veh icle
is not moving.
Average speed
The average speed in mph (km/h) s ince you
last reset the memory appears in the display.
Elapsed time
The length of time that yo u have been driving
s ince you last reset the memory appears in
th is disp lay.
Distance
The distance that has been covered since the
last time the memory was cleared appears in
the d isplay .
(0 Tips
- Fuel consumptions (average and cur­
rent), range and speed are displayed in
metric units on Canadian mode ls.
- All stored values will be lost if the vehi­
cle battery is disconnected.
Memories
The trip computer is equipped with two fully
automatic memories as well as an efficiency
program* .
Fig . 10 Tri p computer display: memory leve l 1
You can switch between the trip computer 1
and 2 and the efficiency program* by pressing
the
I RESET I button @r:::> page 26, fig. 11 .
You can tell which memory leve l is currently
active by the number o r the sign in the display
II--

26 Driver in formation d isplay

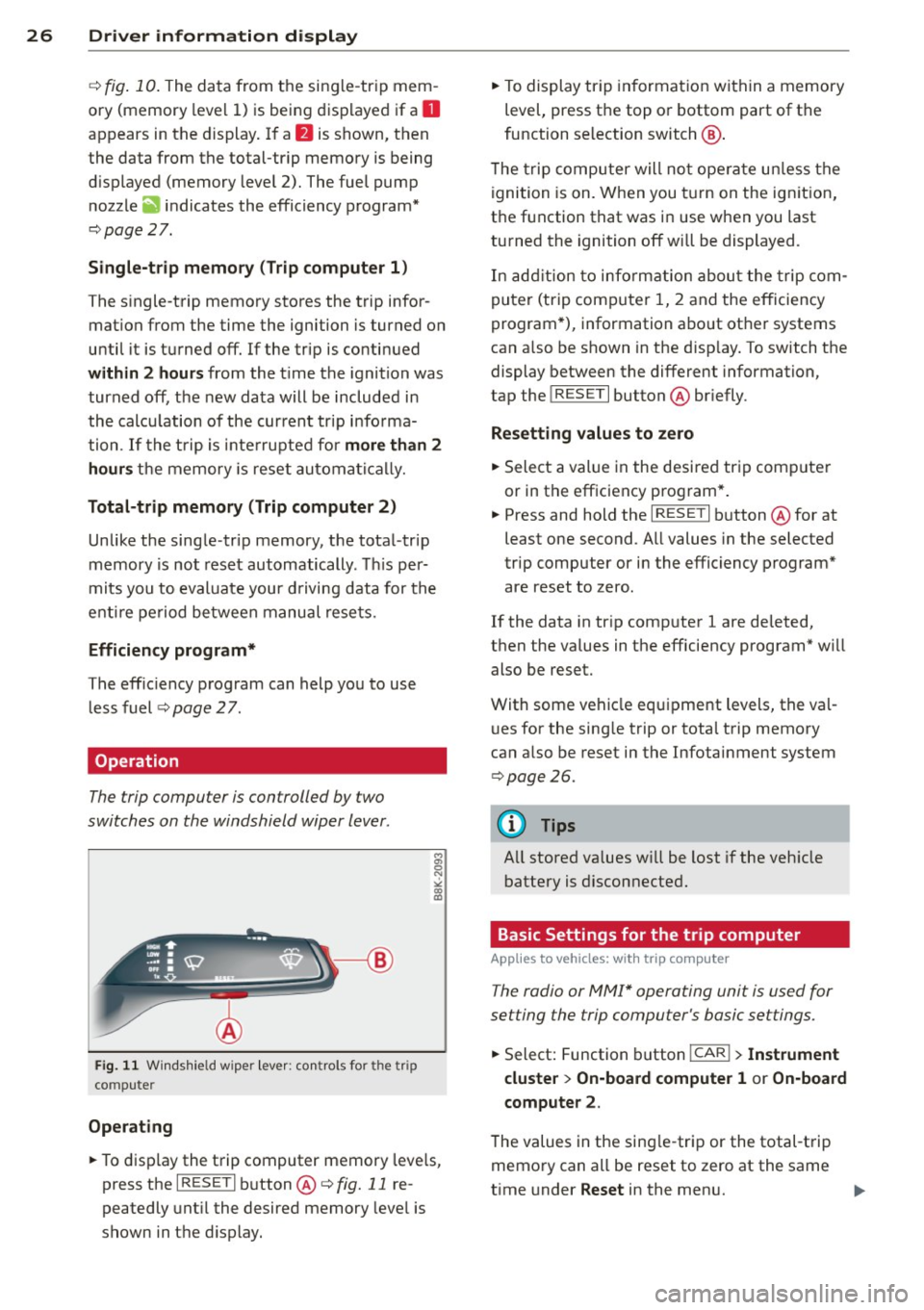

¢fig . 10 . The data from the single -trip mem ­
ory (memory leve l 1) is being displayed if a
D
appears in the display . If a II is shown, then
the data from the total -trip memory is being
d isplayed (memory leve l 2). The fuel pump
nozzle
iii indicates the efficiency program*
¢ page 27.
Single-tr ip m emory (Trip computer 1 )
The single-trip memory stores the trip infor­
mat ion from the time the ignition is turned o n
until it is turned off. If the trip is continued
w ithin 2 hours from the t ime the ignition was
turned off, the new data will be included in
the calcu lation of the current trip i nfo rma­
tion .
If the t rip is inte rrupted fo r more than 2
hours the memory is reset automati ca lly.
Total -trip memory (Trip computer 2)
Unlike the sing le-trip memory, the tota l- tr ip
memory is not reset automatically . Th is per­
mits you to evaluate your d riving data for the
enti re pe riod be tween manual rese ts.
Efficiency program*
The effic iency program can help you to use
less fuel ¢
page 2 7.
Operation
The trip compu ter is controlled by two
switches on the windshield wiper lever.
F ig . 11 W ind sh ie ld wipe r lever: co ntro ls fo r the tri p
co mp ute r
Operating
.. To disp lay the trip computer memory leve ls,
press the
I RESE T I button @¢ fig. 11 re­
peatedly unt il the desired memory leve l is
shown in the d isplay. ..
To display tr ip in format ion within a memory
level, press the top or bottom part of the
function se lection switch @.
T he trip computer will no t ope rate un less the
ignition is on. When you t urn on the ign it ion,
the function that was i n use when you last
turned the ignition off wi ll be displayed.
In add ition to info rmation abou t the trip com­
puter (trip computer 1, 2 and the efficiency
program *), information abo ut other systems
can a lso be shown in the disp lay . To switch the
display between the different information,
tap the
! RESET I button @briefly.
Resett ing values to ze ro
.. Select a val ue in the desired trip comp uter
or in the efficiency prog ram* .
.. Press and hold the
I RESE T I button @for at
least one second . A ll values in the selected
trip computer or in the efficiency program*
are reset to zero .
If the data in tr ip comp uter 1 are de leted,
then the values in the efficiency program* will
also be reset.
With some vehicle equipme nt levels, the val ­
u es for the sing le trip or total trip memory
can a lso be reset in the Infotainment system
¢ page 26.
(D Tips
All stored va lues w ill be lost if the veh icle
battery is disconnected.
Basic Settings for the trip computer
Applies to vehicles: with trip computer
T he radio or MMI * operating unit is used for
setting the trip computer 's basic se ttings .
.. Select: Function button !CAR !> In strument
cluster
> On -board computer 1 or On-board
computer
2 .
The values in the sing le -tr ip or the total-trip
memory can all be reset to zero at the same
t ime under
Reset in the menu. IJ,-

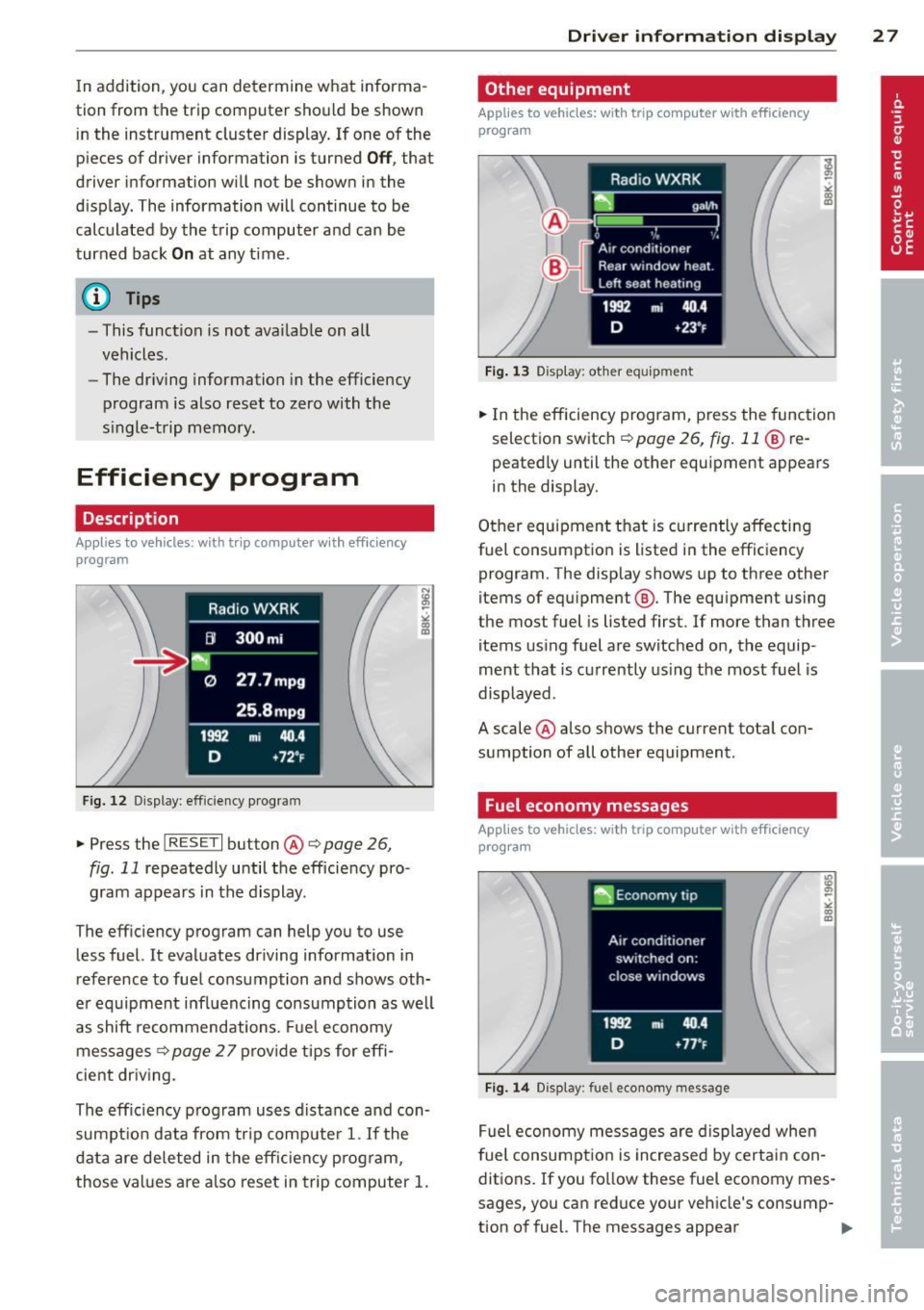

In addition , you can determine what informa­
tion from the trip computer should be shown in the instrument cluster display. If one of the
pieces of driver information is turned
O ff , that
driver information will not be shown in the
d isp lay. The information will continue to be
calculated by the trip computer and can be
turned back
On at any time .
(D Tips
-This function is not availab le on all
vehicles .
- The driving information in the efficiency
program is also reset to zero with t he
s ingle-trip memo ry.
Efficiency program
Description
Applies to vehicles: with trip computer w it h eff ic iency
program
F ig. 12 Disp lay : efficiency p rogram
.,. Press the I RES ET I but ton @ ¢ page 26,
fig. 11 repeatedly until the efficiency pro ­
gram appears in the display.
The efficiency program can help you to use less fuel. It evaluates driving information in
reference to fuel consumption and shows oth­
e r equipment influencing consumption as wel l
as shift recommendations. Fue l economy
messages ¢
page 2 7 prov ide tips for effi­
cient driv ing.
The eff ic iency p rogram uses distance and con­
sumpt ion data from tr ip compute r
1. If the
data are deleted in the eff iciency p rog ram,
those values are a lso reset in trip computer
1.
Dri ver inform ation di spl ay 2 7
Othe r equipment
Applies to vehicles: wit h trip computer with efficiency
program
Fig . 1 3 D isplay: other equ ipmen t
.,. In the efficiency program, p ress the function
selection switch ¢
page 26, fig. 11 @ re­
peated ly until the other equipment appears
in the display .
Other equipment t hat is currently affecting
fuel consumptio n is listed i n the effic iency
program. The display shows up to three othe r
items of equ ipment @. The equ ipment using
the mos t fuel is listed firs t. If more than three
items us ing fuel are switched on, the equip ­
ment that is currently us ing the most fuel is
displayed .
A scale @also shows the current total con­
sumption of all other equipment.
Fuel economy messages
App lies to vehicles: with trip computer with efficiency
program
F ig . 14 Display: fuel e cono my message
Fuel economy messages are d isplayed when
fuel consumpt ion is increased by certai n con­
ditions. If you follow these fuel economy mes­
sages, you can reduce your vehicle's consump-
tion of fuel. The messages appear .,..

28 Driver information d isplay
automatically and are only displayed in the ef­
ficiency program. The fu el economy messages
turn off automat ically after a certain period of
time.
• To turn a fue l economy message off immedi­
ately after it appears, press the
I RESET I but­
ton ¢
page 26, fig. 11 @, or
• Press the function selection switch
c::> page 26, fig. 11 @ .
{D) Tips
-Once you have turned a fuel economy
message off, it will only appear again af­
ter you turn the ignition on again .
- The fuel economy messages are not dis­
played in every instance, but rather in in­
tervals over a period of time .
Service interval display
The service interval display reminds you when
your next service is due.
Fig . 15 Dis play : S ervic e interva l di splay
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed
according ly . The display works in two stages :
Service reminder
30 days before the next service is due, a serv­
ice reminder appears in the display when you
turn on the ignition
c::>fig. 15.
After about S seconds the display switches
back to normal. The d istance and time re­
maining are updated each time the ignition is
turned on until the date due for service is reached .
Service due
When the due date for service is reached, the
message
Service due! appears in the instru­
ment cluster immediate ly after yo u turn on
the ignition. Additionally, a warning tone
sounds. After about S seconds the display
switches back to normal.
Calling up the service schedules
If or when an oil change or inspection is due,
can be shown in the radio or MMI* d isp lay by
selecting the service interval display in the car
menu. Select !CAR ! function button >
Service
interval dis play
or! CAR ! function button> Car
systems*
control button > Servicing &
checks .
Resett ing the service interval display
Your authorized Audi dealer will reset the cor­
responding service schedule after performing
the appropriate service on your vehicle. You
also have the possibility to reset the oil
change schedule after having performed an
o il change according to Aud i specif ications .
Select
I CAR ! funct ion button > Service interval
display> Reset oil change interval
or ICARI
function button > Car systems* control but­
ton >
Servicing & checks > Reset oil change
interval.
(D Note
If you disconnect the battery terminals, no
ca lculations can be made for the service
interval display dur ing th is time and no
service reminder will appear. Remember
that observing the proper service intervals
i s vitally important to extending the life of
your vehicle, particularly the engine, and maintain ing its value. Even if the mileage
driven is low, the maximum period of one
year from one service to the next must not
be exceeded.
© Tips
-Do not reset the display between oil
changes, otherwise the disp lay w ill be in­
correct.
...
