60 Seats and stor age
Seats and storage
General recommen­
dations
Why is your seat adjustment so
important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
you r seat prope rly so that :
- you can easily and quickly reach all the
switches and controls in the instrument
panel
-your body is properly supported thus reduc­
ing physical stress and fatigue
- the safety be lts and airbag system can offer
maximum protection ¢
page 140.
In the following sections, you will see exactly
how you can best adjust your seats .
There are special regulations and instructions
for installing a child safety seat on the front
passenger's seat. Always follow the informa­
tion regarding child safety provided in
¢ page 161, Child Safety.
WARNING
Refer to¢ page 121, Driving Safely for
important information, tips, suggestions
and warnings that you should read and fol­
low for your own safety and the safety of
your passengers.
A WARNING
, -
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury .
- Always keep your feet on the floor when
the vehicle is in motion -never put your
feet on top of the instrument panel, out of the w indow or on top of the seat cush­
ion. This applies especially to the passen- gers
. If your seating position is incorrect,
you increase the risk of injury in the case
of sudden braking or an accident. If the
airbag inflates and the seating position is incorrect, this could result in personal
injury or even death.
- It is important for both the driver and front passenger to keep a distance of at
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel.
If you're sitting any
closer than this, the airbag system can­
not protect you properly. In addition, the
front seats and head restraints must be
adjusted to your body height so that they
can give you maximum protection.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel or instrument panel.
- Do not adjust the driver's or front pas­
senger 's seat while the vehicle is moving.
Your seat may move unexpectedly, caus­
ing sudden loss of veh icle control and
personal injury. If you adjust your seat
while the veh icle is moving, you are out
of posit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the driver's
seat in the following manner :
.. Adjust the seat in fore and aft direction so
that you can easily push the pedals to the
floor wh ile keeping your knees slightly bent
o &. in Why is your seat adjustment so im ­
portant? on page 60 .
.,. Adjust the seatback so that when you sit
w ith your back against the seatback , you can
still grasp the top of the steering wheel.
.. Applies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as .,.

close to this position as possible
¢page 63.
A WARNING
Never place any objects in the driver's foot­
well. An object could get into the pedal
area and interfere with pedal function. In
case of sudden braking or an accident, you
would not be able to brake or accelerate .
Front passenger's seat
Always move the front passenger seat into
the rearmost position .
To avoid contact with the airbag while it is de­
ploying, do not sit any closer to the instru­
ment panel than necessary and always wear
the three-point safety belt provided adjusted
correctly . We recommend that you adjust the
passenger's seat in the following manner:
.,. Bring the backrest up to an (almost) upright
position.
Do not ride with the seat reclined .
"" Applies to vehicles with adjustable head re­
stra ints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as
close to this position as possible
¢ page 63.
.,. Place your feet on the floor in front of the
passenger's seat .
Front seats
Power seat adjustment
Applies to vehicles: with power adjustable seats
Fig. 67 Front seats: power seat adjustment
Seats and storage 61
Controls
@-Adjusting the lumbar support*: press the
button in the corresponding position ¢
.&..
@ -Moving the seat up/down: press the but­
ton up/down ¢ ,&. .
®-Moving the seat forward/back: press the
button forward/back¢ ,&..
©-Adjusting the backrest angle : press the
button forward/back¢ ,&..
©-Raising/lowering* the head restraints:
press the button up/down¢,&. .
@ -Lengthening/shortening the upper thigh
support* :
lift the handle. A spring moves the
front seat cushion forward ¢
.&..
A WARNING ,--
- Never adjust the driver's or front pas­
senger's seat while the vehicle is moving.
If you do this while the veh icle is moving,
you will be out of position. Always adjust
the dr iver's or front passenger's seat
when the vehicle is not mov ing.
- Be careful when adjusting the seat
he ight. Check to see that no one is in the
way, or ser ious injury could result!
- Because the seats can be electrically ad­
justed with the ignition off or with the
ignit ion key removed, never leave chil­
dren unattended in the vehicle. Unsuper­
vised use of the electric seat adjust­
ments may cause serious injury.
- To reduce the risk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in a moving ve­
hicle with the backrest reclined. Safety
belts and the airbag system only offer
maximum protection when the backrest
is upr ight and the safety belts are prop­
erly positioned on the body. The more
the backrest is reclined, the greater the
risk of persona l injury from an incorrect
seating position and improperly posi­
tioned safety belts.

62 Seats and storage
Power easy entry function
Applies to vehicles: with power adjustable seats
The easy entry function makes it easier for
the rear passengers to enter and leave the ve­
hicle.
Fig. 68 Comfort seat s•: easy entry contro ls
Fi g. 69 Spor t sea ts•: easy e ntry co ntrols
• To fold the front seat backrests forward/
back,
lift the latch @¢ fig. 68 or¢ fig. 69
and fold the backrest forward.
• To move the front seats forward/back, press
and hold the @ button until the seat has
reached the desired position.
When the front seats are moved forward,
their origina l position is stored . When it is
moved back, the seat automatically stops in
this position. To move the seat even further
back, you have to release the switch @ and re­
activate it .
Applies to vehicles w ith adjustab le head re­
straints : The head restraints from the front
seats, depending on the seat height that has
been set, are automat ically retracted when
the seatbacks are folded down . They return to
the ir original position again when the seat­
backs for the front seats are raised .
(D Tips
With the driver's or passenger's door
closed, the corresponding switch to move
the seat is inoperat ive.
Seat adjustments in MMI
Appl ies to vehicles: with seat memory and MMI
The passenger 's seat can be adjusted to vari­
ous positions by the driver.
Convenience side view
• Select: !CAR I function button > Seat adjust­
ment > Passenger's seat > Convenience side
view.
O r
- -• Select: I CAR I function button > Car systems*
control button > Vehicle settings > Seats >
Passenger's seat > Convenience side view.
• Continue to press the control knob until the
adjustment process is complete.
Seat symmetry
• Select: Function button !CAR !> Seat adjust­
ment > Passenger's seat > Seat symmetry.
Or
• Select: !CARI function button> Car systems*
control button > Vehicle settings > Seats >
Passenger's seat> Align with driver's seat.
• Continue to press the control knob until the
adjustment process is comp lete.
U sing the
Convenience side view function, the
passenger's seat is adjusted so that the driver
has the best possible view to the right. Whe n
the Convenience side view is set, the specific
position of the driver's seat is taken into con ­
sideration .
Using the
Seat symmetry function, the pas­
senger's seat can be moved to the same posi­
tion as the driver's seat. The settings for the
driver's seat are imported and set automati ­
ca lly.

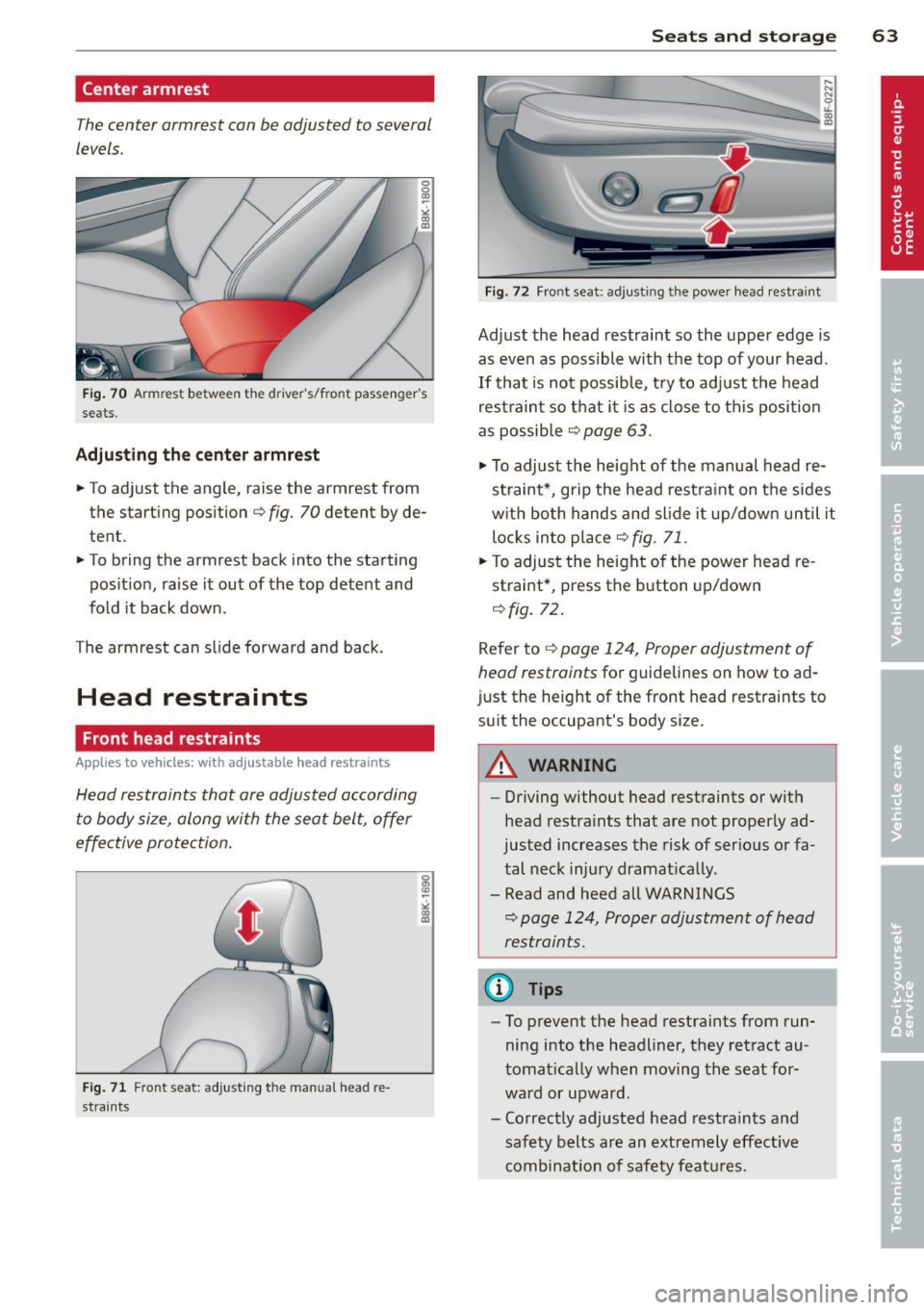

Center armrest
The center armrest can be adjusted to several
levels .
Fig. 70 Arm rest between t he driver 's/front passenger's
seats .
Adjusting the center armrest
.. To adjust the angle, raise the armrest from
the starting position
r=:> fig. 70 detent by de­
tent .
.. To bring the armrest back into the starting
pos ition, raise it out of the top detent and
fold it back down .
The armrest can slide forward and back .
Head restraints
Front head restraints
Applies to vehicles: with ad justable head restraints
Head restraints that are adjusted according
to body size, along with the seat belt, offer
effective protection.
F ig . 71 Fro nt seat: adjusting the man ual head re­
st raint s
Seats and storage 63
Fig. 72 Front seat: adjusting the power head restraint
Adjust the head restraint so the upper edge is
as even as possible with the top of your head .
If that is not possib le, t ry to adjust the head
restraint so that it is as close to this position
as possible
r=:> page 63 .
.,. To adjust the height of the manual head re­
straint*, grip the head restraint on the sides
with both hands and slide it up/down until it
locks into pla cer=:>
fig. 71 .
.. To adjust the height of the power head re­
straint *, press the button up/down
<=:> fig. 72.
Refer tor=:> page 124, Proper adjustment of
head restraints
for guidelines on how to ad­
j ust the height of the front head restraints to
suit the occupant 's body size.
A WARNING
-Driving without head restraints or with
head restraints that are not properly ad­
justed increases the risk of serious or fa­
tal neck injury dramatica lly.
- Read and heed all WARNINGS
<=:> page 124, Proper adjustment of head
restraints .
@ Tips
-To prevent the head restraints from run­
ning into the headliner, they retract au­
tomatically when moving the seat for­
ward or upward .
- Correctly adjusted head restraints and
safety belts are an extremely effective
combination of safety featu res.

64 Seats and storage
Seat memory
Description
Applies to vehicles: with memory function
The memory function allows you to quickly
and easily sto re and recal l personal seating
p rofiles for the dr iver. The memo ry func tion is
operated through the master key and the
memory buttons in the driver's door .
The driver's seating profi le is stored and as ­
sig ned to the master key each t ime the vehi cle
is locked . When you open the door, the seat
profile is automatically recalled. If two people
use one vehicle, it is recommended that each
person always uses "their own" master key.
Up to 2 seat profiles can be stored in the
memory buttons in the driver's door . Once
they are stored, these seat profiles can be se­
lected at any time.
I n addition to the driver 's seat settings , you
can also store and access the exterior mirror
adj ustment settings* using the remote con­
trol key or memory button.
Remote control key
App lies to vehicles: with seat memory
To assign the driver's seat settings to the re­
mote contro l key when locking the vehicle, the
function must be activated in the radio or
MMI*
~ Se lect : ICAR I function button> Seat adj ust­
ment
> D river's s eat > Remote co ntrol key >
on. Or
~ Select : ~I C,....A~R~ I fu nct ion but ton > Car sys tem s*
control button > Vehi cle setting s > Seat s>
Driv er' s seat > Remo te cont rol ke y> On .
(D Tips
If you do not want another d river's set­
tings to be assigne d to the remote key,
sw itch off the memory function u sing the
rad io or MMI* or the
!ON/O FF I button
r=)poge 64.
Memory buttons
Applies to vehicles: with seat memory
Fig . 73 Driver's door: memo ry function buttons
The memory b uttons are located in the driv­
er's door.
Switching the memo ry function on /off
~ Press the ION/OFF ! button to sw itch the
memory fu nction on/off . The word
OFF
lights up when the memory function is
sw itched off. Seat profiles are neither stored
nor recalled.
Storing a seat p rofile
~ Press the ISETI button. When the word SE T
lights up, the memory is ready to store set­
tings.
~ Press a memory button dII or [Ii ) briefly . A
tone conf irms that the settings were stored.
Accessing a seat profile
~ If the driver's door is open and the ignition
is switched off, press the memory button.
~ If the driver's door is closed or the ignition is
sw itched on, press and hold the memory
button until the seat adjustment is com­
plete .
_&. WARNING
-For safety reasons ., the seat setting can
only be re called when the vehicle is s ta­
tionary - otherwise yo u risk hav ing an ac­
cident.
- I n an emerge ncy the recall p roced ure ca n
be cancelled by pressing t he
ION/OFF !
switch or by ta pping the memo ry but ­
tons .

140 Airbag system
Airbag system
Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job , occupants must al­
ways properly wear their safety belts and be
in a proper seating position.
F or your safety and the safety of your passen­
gers, before driving off, always:
• Adjust the driver's seat and steering wheel
properly ¢
page 122,
• Adjust the front passenger's seat properly
r=; page 61,
• Wear safety be lts properly ¢ page 135,
• Always properly use the proper child re-
straint to protect children ¢
page 161.
In a collision airbags must inflate within the
blink of an eye and with considerable force.
The supplemental airbags can cause injuries if
the dr iver or the front seat passenger is not
seated properly . Therefore in order to help the
a ir bag to do its job, it is important, both as a
d river and as a passenger to sit prope rly at all
times.
By keeping room between your body and the
steering wheel and the front of the passenger
compartment, the airbag can inflate fully and
comp letely and provide supplemental protec­
tion in ce rtain frontal collisions
¢page 122,
Proper occupant seating positions.
F or details
on the operation of the seat adjustment con­
t rols ¢
page 61.
It's especially important that children are
properly restrained ¢
page 161.
There is a lot that the driver and the passen­
ge rs can and must do to help the individua l
safety features installed in your A udi work to­
gether as a system.
Proper seating pos ition is important so that
the front airbag on the driver side can do its
job. If yo u have a physical impa irment or con- dition that
prevents you from sitting properly
on the driver seat with the safety belt properly
fastened and reaching the pedals , spec ial
modif ications to your vehicle may be necessa­
ry.
Contact your a uthorized Audi dealer, or call
Audi C ustomer Relations at 1-800-822-2834 .
When the airbag sys tem dep loys , a gas gener­
ator will f ill the airbags, break open the pad­
ded covers, and inflate between the steering
whee l and the driver and between the instru­
ment pane l and the front passenger. The air­
bags will deflate immediately after deploy­
ment so that the front occupants can see
th rough the windshield aga in without inter­
ruption .
All of this takes place in the blink of an eye, so
fast that many people don't even realize that
the a irbags have deployed . The airbags also
inflate with a great deal of force and nothing
shou ld be in their way when they deploy.
Front airbags in comb ination with prope rly
worn safety belts slow down and limit the oc­
cupant's forward movement. Together they
help to prevent the driver and front seat pas­
senger from hitting parts of the inside the ve­
hicle while reducing the forces acting on the
occupant dur ing the crash. In this way they
help to reduce the risk of injury to the head
and upper body in the crash . A irbags do not
protect the arms or the lower parts of the
body.
Both front a irbags w ill not inflate in all fronta l
collisions . The triggering of the airbag system
depends on the vehicle deceleration rate
caused by the collision and registered by the
electron ic control unit. If this rate is below
the reference value programmed into the con­
trol unit, the airbags will not be triggered ,
even though the car may be bad ly damaged as
a result of the co llision . Vehicle damage, re­
pair costs or even the lack of veh icle damage
is no t necessarily an indication of whether an
airbag should inflate or not .
It is not possib le to define a range of vehicle
speeds that w ill cover every possib le kind and .,.

-Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lling
the forward-facing child restraint. The backrest must be adjusted to an upr ight
posit ion.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
t ime w henever the ignition is sw itched
o n.
Advanced Airbag System components
The fron t passenger seat in your vehicle has a
lot of very important parts of the Advanced
Airbag System in it. These parts include the
weight-sens ing mat, sensors, wiring, brack ­
ets, and more. The function of the system in
the front passenger seat is checked by the
e lectronic control u nit when the ignit ion is on .
The control un it mon itors the Advanced Air­
bag System and turns the airbag indicator
l ight on whe n a ma lfunction in t he sys tem
components is de tected. The function of the
airbag indicator light is described in greater
detai l below . Because the front passenger
seat contains important parts of the Ad ­
vanced A irbag System, you m ust take care to
prevent it from being damaged. Damage to
the seat may prevent the Advanced Airbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag Sy stem
consists of the following:
- Crash sensors in the front of the veh icle that
measure veh icle acceleration/decele ration
to provide information to the Advanced Air­
bag System about the seve rity of the crash.
- An electronic co ntrol unit, with integrated
c rash se nsors for front and side impacts .
T he cont ro l unit " decides " whethe r to fire
the front airbags based on the inform ation
received from the crash senso rs . The contro l
unit a lso "decides" whether the safety belt
pretensioners should be activated .
Airbag system 147
-An Advanced A irbag w ith gas gene rator and
contro l valve fo r the driver ins ide the steer ­
ing wheel h ub.
- An Advanced Airbag w ith gas gene rator and
contro l valve inside the instrument pane l for
the front passenger.
- A weight-sensing mat under the upholstery
padding of the front passenger seat cushion
that measures the total weight on the seat.
The informat ion reg istered is sent continu­
ously to the electronic control unit to regu­
late deployment of the front Advanced Air­
bag on the passenger side.
- An airbag monitor ing system and ind icator
light in the instrument cluster
q page 150 .
-A sensor in each front seat registers the dis­
tance between the respective seat and the
steer ing whee l o r inst rument panel. The in­
forma tion registered is sent cont inuo usly to
t he elect ron ic cont ro l uni t to regula te de­
ployment o f the front Advance d Airbags .
- The
PASSENGER AIR BAG OFF ligh t comes
on and st ays on in the cen ter o f th e instr u­
ment panel
<:!;> page 151, fig . 153 and tells
you whe n the front Advanced Airbag on the
passenger side has been tu rned
off .
-A sensor below the safety be lt latch fo r the
front seat passenger to measure the tension on the safety be lt . The tension on the safety
be lt and the weight registered by the
weight-sensi ng mat he lp the control unit
"decide" whether the front a irbag for the
front passenge r seat should be turned
off or
not
<=;> pag e 141, Child restraints on the
front seat -some important things to
know.
- A senso r in the safety belt latch fo r the d riv­
er a nd fo r the fro nt sea t passenger tha t
senses w hethe r that safe ty belt is latched or
no t and transmi ts this informa tion to the
electronic control unit.
_&. WARNING
Damage to the front passenger seat can
prevent the front airbag from work ing
properly.
-
•
•

162 Child Safety
-If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rearward-facing child safety
seat in a rear seating position and have
the airbag system inspected immediately
by your authorized Audi dealer.
.&, WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with
United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured . The
Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas ­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat.
It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat.
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight-sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the
seat. The weight of a child restraint and its "footprint" vary for different kinds of child re -
straints and for the different models of the .,.

278 Index
Fastening . ...... ......... ... .... . 136
Improperly worn . . . . . . . . . . . . . . . . . . 138
Not worn . ................. ..... . 133
Safety belt position ....... .. .. .... . 137
Safety instructions .......... .. .... . 135
Securing child safety seats ..... .. ... 171
Special cons iderations for pregnant
women .. .. ................ ... .. .
137
Unfasten ing ........... .. .... .. .. . 138
Warn ing/ indicator l ight .... .. .. .. .. . 132
Warning light ...................... 16
Why YOU MUST wear them ......... . 132
Worn properly ............ ... .... . 134
Safety belt warn ing light .... .. .. .... . 132
Safety compliance sticker ... .. .. .... . 261
Safety equipment ................... 121
Safety features for occupant restraint and
protection . .. ... . ...... ... .. .. .. .. .
121
Safety guidelines
Seats .. .. .... ........... ........ ..
60
Safety instructions
Engine compartment ....... ... .... .
206
for using child safety seats . .. .. .. .. . 164
for using safety belts ...... .. .. .. .. . 135
Monitoring the Advanced Airbag Sys-
tem ..... .. ................ ... .. .
152
Seat adjustment
Head restraints .......... .. .. .... .
124
Seat belts
refer to Safety belts ....... .. .. .... . 132
Seat covers
Cleaning . .. .. ........ ...... ... .. .
198
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . 71
Upper cabin heating . . . . . . . . . . . . . . . . . 72
Seating capacity ............ ... .... . 132
Seating position
Driver ... .. ................ ... ...
122
Front passenger .......... .. .. .. .. . 123
How to adjust the front seats . .. .. .. . 123
Incorrect seat position ........... .. . 125
Occupants .. ................ ..... . 122
Rear passengers . . . . . . . . . . . . . . . . . . . 124
Seat memory . . . . . . . . . . . . . . . . . . . . . . . 64
Seats
Adjusting .. ... .... ...... .. .. .. .. ..
61
Adjusting in the MMI .......... .. .... 62
Convenience side view . . . . . . . . . . . . . . . 62
Drive r's seat . . . . . . . . . . . . . . . . . . . . . . . 60
Folding ........................... 67
Front passenger's seat ............... 61
Head restraints ............... ..... 63
Number of seats . ............. .... 132
Power easy entry function ............ 62
Safety gu idelines ........ ...... .. .. . 60
Seat symmetry . .. .......... ...... .. 62
Seat ventilation . . . . . . . . . . . . . . . . . . . . . 71
Seat (upper cabin heating) ........ .. .. . 72
Selective unlock feature . . . . . . . . . . . . . . . 36
Se lector lever . . . . . . . . . . . . . . . . . . . . . . . 85
Emergency re lease ............... .. . 91
Selector lever emergency release .. .. .. . 91
Service and disposal
Safety belt pretensioner ..... ... .. ..
139
Service interval display . . . . . . . . . . . . . . . . 28
Serv ice position
refer to Replacing w iper blades .. .... . 57
SET button . . . . . . . . . . . . . . . . . . . . . . . . . 11
Shutting down vehicle ............ ... 189
S ide a irbags
Description .. .. .. ............. .. ..
158
How they work ... ................ . 159
side assist
Adjusting the brightness ............
104
Sensor range .. .. ... .......... .. .. 103
Side assist
Activating and deactivating ...... ....
104
Cleaning the sensors ........ .... ... 196
Description .. .. .. .......... ...... . 102
Side marker lights . . . . . . . . . . . . . . . . . . . 51
Ski sack ...... .. .. .. ... ........ .... . 67
Snow chains .. .. .. .......... ...... . 238
Sound system display . . . . . . . . . . . . . . . . . 24
Sources of information about child re-
stra ints and their use ............ .. ..
178
Spare tire ... .. ... . .. .... .... ... .. .. 243
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 12
Speed rating letter code ............. . 234
Speed warning system ........... .. .. . 81
Sport d ifferential .. ............. .... 106
Indicator lamp ... ................ .. 22
START ENGINE STOP button (conven ience
key) ....... .... .. ............. .... .
78
