load capacity AUDI A5 CABRIOLET 2015 Owners Manual

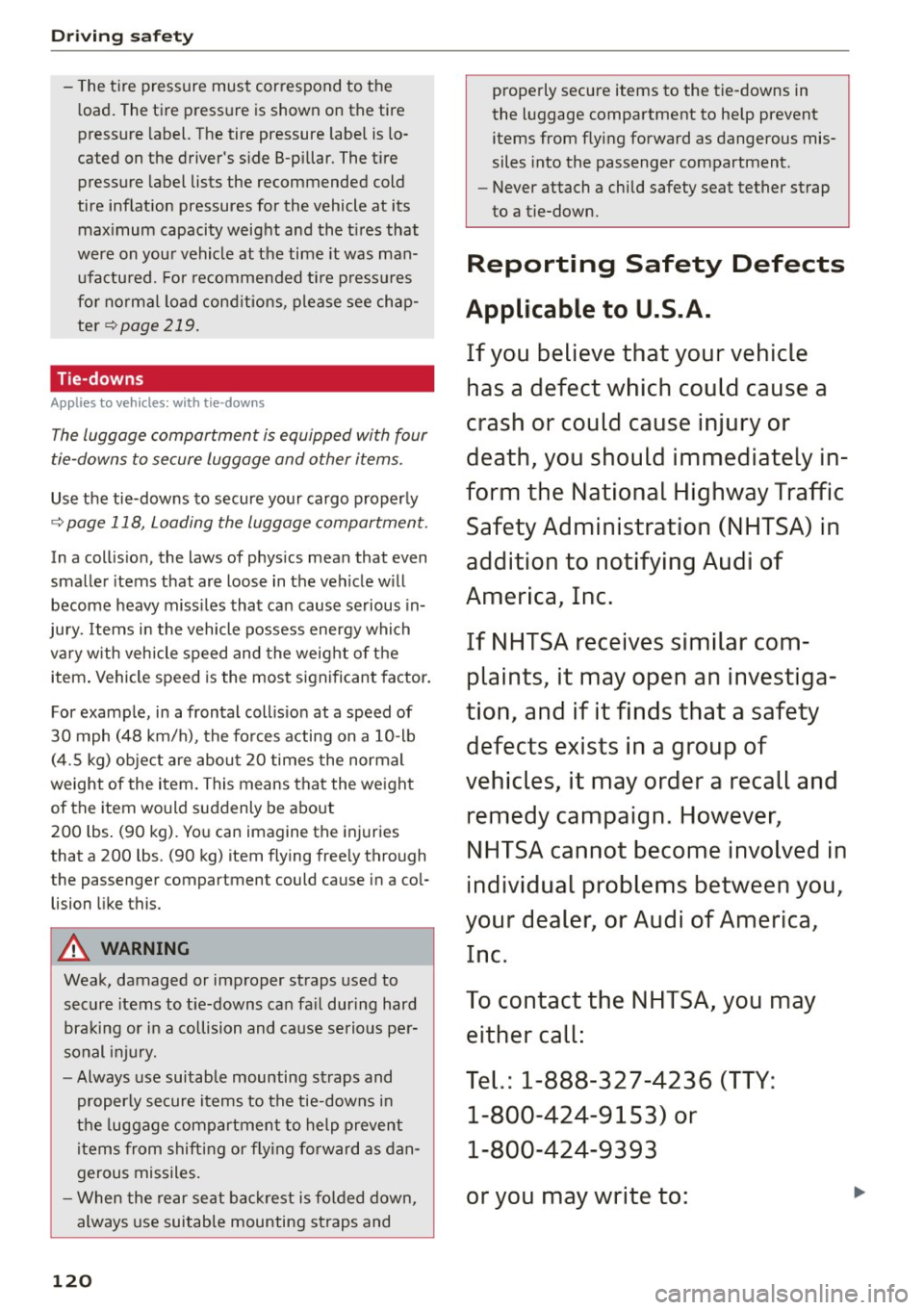

Driving safet y
- The tire pressure must cor respond to the
l oad . The tire press ure is shown on the tire
pressure label. The tire pressure labe l is lo ­
cated on the driver's s ide B-pillar. The tire
pressure label lists the recommended cold
tire inflation pressures for the vehicle at its max imum capacity weight and the t ires that
were on you r vehicle at the time it was man­
ufa ctu red. For re comme nded ti re p ress ures
fo r normal load cond itions, please see chap­
ter
<=> page 219 .
Tie-downs
Applies to vehicles: with tie-downs
The Luggage compartment is equipped with four
tie-downs to secure Luggage and other i tems.
Use the tie-downs to secure your cargo properly
<=> page 118, Loading the luggage compartment.
In a coll is io n, the laws of phys ics mean that even
smaller items that are loose in the vehicle w ill
become heavy m iss iles that can cause serious in­
jury. Items i n the vehicle possess energy which
vary w ith vehicle speed and the weight of the
item . Vehicle speed is the most significant factor .
For examp le, in a frontal coll is ion at a speed of
30 mph (48 km/h), the fo rces acting on a 10-lb
( 4 .5 kg) obje ct are abou t 20 times the normal
weight of the item. This means that the we ight
of the item would suddenly be abo ut
200 lbs . (90 kg). Yo u can imagine the injuries
that a 200 lbs. (90 kg) item flying free ly through
t he passenger compartmen t could cause in a co l­
lision like this.
A WARNING
Weak, damaged or improper straps used to
secure items to t ie-downs ca n fa il during hard
braking or in a collision and ca use serious pe r­
sonal i njury.
- Always use suitable mounting straps and
properly secure items to the tie-downs i n
t h e luggage compartment to help prevent
items from shifting or f ly ing fo rward as dan ­
gerous missiles .
- When the re ar seat bac krest is folded down,
always use suitable mounting s traps and
120
-
properly secure items to the t ie-downs in
the l uggage compartment to help prevent
items from flying forward as dangerous mis­
siles into the passenger compartment .
- Never attach a child safety seat tether strap
to a tie-down.
Reporting Safety Defects
Applicable to U.S.A.
If you believe that your vehicle
has a d efect which could cause a
crash or could cause injury or
death, you should immediatel y in­
form the Nat ional High way Traffic
S afet y Administration (NH TSA ) in
addition t o notify ing Audi of
America, Inc.
If NHTSA re cei ves similar com ­
pl aint s, it ma y open an in ves tiga­
tion , and if it find s that a safety
defe cts exists in a group of
v ehi cles, it ma y order a recall and
remed y campaign . Howe ver ,
NHTSA cannot become in vol ve d in
indi vidu al pr oblem s betw een you ,
your deal er, o r A udi of Am eri ca ,
In c.
To contact the NHTSA, you ma y
eith er call:
T el.: 1-888-327-4236 (TTY :
1 -800-424 -915 3) or
1 -800-424-9 393
or you may write to :

Wheels
(D Tires for passenger vehicles
(if applicable)
P indicates a tire for a passenger
vehicle. T indicates a tire desig­
nated for temporary use .
@ Nominal width
Nominal width of the tire be­
tween the sidewalls in millime­
ters . In general: the larger the
number, the wider the tire.
@ Aspect ratio
Height/width ratio expressed as a
percentage.
@ Tire construction
R indicates a radial tire.
® Rim diameter
Size of the rim diameter in inches .
@ Load index and speed rating
The load index indicates the tire's
load-carrying capacity.
The speed rating indicates the
maximum permitted speed
¢ & in
W inter tires on page 224 .
"EXTRA LOAD", "xl" or "RF" indi­
cates that the tire is reinforced or
is an Extra Load tire.
Speed rat- Maximum permitted speed
ing
p
up to 93 mph (150 km/h)
Q up to 99 mph (160 km/h)
210
Speed rat- Maximum permitted speed
Ing
R up to 106 mph (170 km/h)
s up to 110 mph (180 km/h)
T up to 118 mph (190 km/h)
u up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)a>
z above 149 mph (240 km/h)a)
w up to 168 mph (270 km/h)a)
y up to 186 mph (300 km/h)a)
a) For tires above 149 mph (240 km/h),
tire manufacturers sometimes use the
code "ZR".
(J) US DOT number (TIN) and
manufacture date
The manufacture date is listed on
the tire sidewall (it may only ap­
pear on the inner side of the tire) :
DOT ... 4514 ...
means , for example, that the tire
was produced in the 45th week of
the year 2014.
@ Audi Original equipment
tires
Audi Original equipment tires
with the designation "AO" or "RO"
have been specially matched to
your Audi. When used correctly,
these tires meet the highest standards of safety and handling.
Your authorized Audi dealer will
be happy to provide more infor­
mation.

Wheels
Bead
means the part of the tire that is
made of steel wires, wrapped or
reinforced by ply cords and that is
shaped to fit the rim .
Bead separation
means a breakdown of the bond
between components in the bead.
Cord
means the strands form ing the
plies in the tire.
Cold tire inflation pressure
means the tire pressure recom­
mended by the vehicle manufac­
turer for a tire of a designated
size that has not been driven for
more than a coup le of miles (kilo­
meters) at low speeds in the three
hour period before the tire pres­
sure is measured or adjusted .
Curb weight
means the weight of a motor ve­
hicle with standard equipment in­
cluding the maximum capacity of
fuel, oi l, and coolant , air condi ­
tioning and additional weight of optional equipment.
E x tra load tire
means a tire des igned to operate
at higher loads and at higher in-
2 12
flation pressures than the corre­
sponding standard tire . Extra load
tires may be identified as "XL",
"xl", "EXTRA LOAD", or "RF" on
the sidewall.
G ross A xle Weight Rating
("GAWR ")
means the load-carrying capacity
of a single axle system , measured
at the tire-ground interfaces .
Gross Vehicle Weight Rating
( "GVWR" )
means the max imum total loaded
weight of the vehicle .
Groove
means the space between two ad­
jacent tread ribs .
Load rating (code )
means the max imum load that a
tire is rated to carry for a given in­
flation pressure . You may not find
this information on all tires be­ cause it is not required by law.
Ma ximum load rating
means the load rating for a tire at
the maximum permissible infla­
tion pressure for that tire .
Maximum loaded vehicle
w eight
means the sum of: ...

M N 0 u. "! ... IO "? N U'> .....
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Product ion options weight
Maximum (permissible)
inflation pressure
means the max im um cold infla­
tion pressu re to which a tire may
be inflated . Also called "maxi­
mum inflation pressure ."
Normal occupant weight
means 150 lbs . (68 kilog rams)
times the number of occupants
seated in the veh ic le up to the to­
tal seating capacity of yo ur vehi­
c le.
Occupant distribution
means d istr ibution of occupants
in a vehicle.
Outer diameter
means the overall diameter of an
inflated new tire .
Overall width
means the linear dis tance be­
tween the exter iors of the side­
walls of an inflated tire, including
elevations d ue to labe ling, deco­
rations , or protective bands or
ribs .
Whee ls
Ply
means a layer of rubbe r-coated
parallel cords .
Production options weight
means the comb ined weight o f
those installed regular production
options weighing over 5 lbs . (2 .3
kg) in excess o f those s tandard
items which they re place , not pre ­
viously conside red in cu rb weight
or accessory weight, including heavy duty brakes, ride levelers,
heavy du ty bat tery, and special
trim .
Radial ply tire
means a pneumat ic t ire in which
the ply co rds that ex tend to the
beads are laid at substantially 90
degrees to t he ce nterli ne of the
tread .
Recommended inflation
pressure
see ~ page 212, Cold tire infla­
tion pressure .
Reinforced tire
means a tire designed to operate
at higher loads and at h igher in­
flat ion pressures than the corre­
sponding standard tire . Rein­
f orced tires may be identified as
2 13

Uniform Tire Quality Grading
is a tire information system devel­
oped by the United States Nat ion­
al Highway Traffic Safety Adminis ­
tration (NHTSA) that is designed
to help buyers make relative com­
parisons among tires . The UTQG is
not a safety rating and not a guar­
antee tha t a tire will last for a
prescribed number of miles (ki lo­
meters) or perform in a certain
way. It simply gives tire buyers
additional information to com­
bine with othe r considerations,
s u ch as price , brand loyalty and
dealer recommendations . Under
UT QG,
tir es a re grade d by the tire
manu factu rers in three areas :
treadwear, traction, and tempera­
ture resistance. The UTQG infor­ mation on the tires, mo lded into
the sidewalls .
U.S. DOT Tire Identification
Number (TIN)
This is the tire's "serial number" .
It beg ins with the letters "DOT"
and indicates that the tire meets
all federal standa rds. The next
two numbers or letters indicate
the plant where it was manufac -
~ tu red, and the last four numbers 0
~ represent the week and year o f IO
~ manufacture . For example , ....
Wheels
DOT ... 4514 ...
means that the tire was produced
in the 4Snd week of 201 4. The
other numbers are ma rketing co­
des that may or may not be used
by the tire manufact urer. Th is in­
formation is used to contact con­
sumers if a tire defect requ ires a
recall.
Vehicle capacity weight
means the rated cargo and lug ­
gage load plus 150 lbs. (68 kilo­
grams) times the vehicle's des ig ­
na ted seating capacity.
Vehicle maximum load on the
tire
means that l oad on an ind iv idual
tire that is determined by distrib­
ut ing to eac h ax le its share of t he
maximum loaded vehic le weight
and dividing by two.
Vehicle normal load on the tire
means that load on an individual
tire that is determined by d istrib­
uting to each ax le its share of the
curb weight , accessory weight,
and norma l occupant weigh t (dis­
tributed in acco rdance with
¢ page 220) and dividin g by two . .,.
215

M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,
Determining correct load
limit
Use the example below to calcu­
late the total weight of the pas­
sengers and luggage or other
things that you plan to transport
so that you can make sure that
your vehicle will not be overload­ ed.
Steps for Determining Correct Load Limit
1. Locate the statement "THE
COMBINED WEIGHT OF OCCU­PANTS AND CARGO SHOULD
NEVER EXCEED XXX KG OR XXX
LBS"on your vehicle's placard
(tire inflation pressure label)
¢page 219, fig. 181.
2. Determine the combined
weight of the driver and pas­
sengers that will be riding in
your vehicle.
3. Subtract the combined weight of the driver and passengers
from
"XXX" kilograms or "XXX"
pounds shown on the sticker
¢page 219, fig. 181.
4. The resulting figure equals the
available amount of cargo and luggage load capacity. For ex­
ample, if the
"XXX" amount
equals 1400 lbs. and there will
Wheels
be five 1 SO lbs. passengers in
your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400-750 (5 X 150) = 650
lbs.)
5. Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely ex­
ceed the available cargo and
luggage load capacity calculat­
ed in Step 4.
6. If your vehicle will be towing a trailer, load from your trailer
will be transferred to your vehi­
c le. Consult this manual to de­
termine how this reduces the
available cargo and luggage load capacity of your vehicle.
.,.Check the tire sidewall
(¢ page 209, fig. 179) to deter­
mine the designated load rating
for a specific tire.
Wheel bolts and rims
Wheel bolts
Wheel bolts must be clean and loosen/tighten
easily.
Rims
Rims with a bolted rim ring* or with bolted wheel
cov ers* consist of multiple pieces. These compo­
nents were bolted together using special bolts
and a special procedure . You must not repair or
disassemble them
i::> Li::,.. ..,.
223

Technical data
Gross Axle Weight Rating
The Gross Axle Weight Rating is the maximum
load that can be appli ed at each axle of the vehi ­
cle ¢& .
Vehicle capacity weight
The vehicle capacity we ight (max. load) is listed
on the driver's side 8 -p ill ar.
_& WARNING
- T he actual Gross Axle Weight Rating at the
front and rear axles should not exceed the
permissible weights, and their combination
must not exceed the Gross Vehicle Weight
Rating .
Dimensions
Length in (mm)
Width in (mm)
Width (across mirrors) in (mm)
Height (unloaded) al in (mm) -
Exceeding permissible weight ratings can
result in veh icle damage, acc idents and per­
sonal injury.
(D Note
- The vehicle capacity weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage). When
transporting a heavy load in the luggage
compartment, carry the load as near to the
rear axle as possible so that the vehicle 's
hand ling is not impaired .
- Do not exceed the maximum permissible
axle loads or the maximum gross vehicle
we ight. Always remember that the vehicle's
hand ling will be affected by the extra load.
T herefore, adjust your speed accordingly.
- Always observe local regulations .
AS Cabriolet S5 Cabriolet
182.1 (4626) 182 .7 (4640)
73.0 (1854) 73 .0 (1854)
7 9.5 (2020) 79 .5 (2020)
54.4 (1383) 54 .3 (1380)
al T h e he igh t of th e vehicle depend s on the tir es and t he s usp en sion .
When driving up steep ramps, on rough roads,
over curbs, etc. it is important to remember that
some parts of your vehicle, such as spo ilers or ex-
Capacities
Fuel tank: tota l capacity
Windshield and headlight* washer fluid conta iner
246
haust system components, may be close to the
ground . Be careful not to damage them.
gal (liters) 16.1 (61.0)
quarts (liters) 4
.8 (4.5)
