Cooling system
Coolant
The engine coolant performs two functions: it
keeps the engine from overheating and it pro ­
tects the engine from freezing in the winter .
The cooling system is sealed and generally re­
quires little attention.
T he cooling system has been filled at the factory
with a permanent coolant which does not need to
be changed . The coolant consists of a mixture of
specially condit ioned water and the manufactur ­
er's glycol-basedcoolant add itive G 13 antifreeze
with anticorrosion additives (SO% for USA mod­
e ls; 60% for Canadian mode ls). This m ixture
both ass ures the necessa ry frost protection and
protects metal components in the engine's coo l­
ing system from corrosion and scaling .
It also
raises the boiling point of the coolant.
Do not red uce the concent ration of the coolant in
the summer by adding p lain water.
The propor­
tion of coolant addit ive mu st be at least 50 %
but not more than 60 %
to mainta in antifreeze
protection and cooling efficiency. If the coolant
frost protection is too low, the coolant could
freeze and damage the vehicle heating and en­
g ine cooling system .
For year-round driving, antifree ze is added at the
factory for temperatures down to :
- -31° F(- 3S°C)USA
- - 40 ° F ( - 40 °C) Canada.
If you must add coolant, use a m ixture of water
and coolant addit ive. M ixing the coolant additive
with d istilled water is recommended .
_& WARNING
Before you check anythi ng i n t he engine com­
partment, always read and heed all WARN ­
INGS
¢ .&. in Working in the engine compart­
ment on page 193 .
(D Note
-Befo re winter se ts in, have the coo lant
checked to see if the coolant additive in your
vehicle is sufficient to meet the cl imate con -
Check ing and Filling
ditions. This is especially important if you
live in a region where the winter is extreme­
ly cold. If necessary, increase the proportion
of coolant additive to 60%.
- When adding coolant additive to your cool­
ing system, remember :
- We recommend us ing only coolant add i­
tive G12+ + or G13 for yo ur vehicle. This
coolant addit ive is avai lab le at aut horized
A udi dealers . O ther types of antifree ze can
significantly reduce corrosion pro tect ion .
The resulting corrosion can cause a loss of
coolant and serious engine damage.
- Do not add any type of radiator leak sealant
to your vehicle's engine coolant. Adding ra ­
diator repair fluid may adversely affect the
function and performance of your cooling system and cou ld resu lt in damage not cov­
ered by your New Veh icle Limited Warra nty .
Checking the engine coolant level
The engine coolant level can be checked with a
quick glance.
Fi g. 1 74 Engin e compar tmen t: Cover o n the coo la n t ex ­
pansion tank
.. Before you check anything in the eng ine com­
partment,
always r ead and heed all WARN­
INGS ¢ ,A in Working in the engine compart ­
ment on page 193 .
.. Par k your veh icle on a leve l sur face.
.. Tur n off t he ignit io n .
.. Read the eng ine coolan t leve l from the coo lant
expansion tank
¢ fig . 174, ¢page 195,
fig. 171 .
With a cold engine, the coo lant level
should be b etween the "MIN" and "MAX" mark­
ings. When the eng ine is warm, the level may
be slightly above the "MAX" marking. .,..
199

Check ing and F illing
The location of the coolant expansion tank can be
seen in the engine compartment illustration
¢ page 195.
To obtain an accura te reading, the eng ine must
be switched off .
The expans io n tank in your vehicle is equipped
with a n elec tric coolant level sensor.
When the coolant level is too low, the war ning
lig ht in the Auto-Check System¢
page 15 will
blin k until you add coo la nt and the level has bee n
restored to normal. Even t hou gh the re is an e lec­
tr ic coolant level sensor, we still re commend you
check the coo lant level from time to time .
Coolant loss
Coolant loss may indicate a leak in the cooling
system. I n the event of coolant loss, the cooling
system should be inspected immediately by your
author ized Audi dealer. It is not enough me rely
to add coolant.
I n a
se aled system, losses can occur only if the
boi ling point of the coo lant is ex ceeded as a re ­
sul t of over heat ing.
A WARNING
T he cooling system is unde r pressure and can
get very hot . Red uce the risk of scalding from
hot coolant by following these steps.
- Turn off the eng ine and a llow it to cool
down .
- Protect your face, hands and arms from es ­
caping fluid and steam by cove ring the ca p
with a la rge, thick rag.
- Turn the cap s lowly and very ca refu lly in a
counter-clockwise direction w hile ap ply ing
light, downwa rd pressure o n the top of the
cap.
- To avo id being burned, do not sp ill anti­
freeze or coolant on the exha ust system or
hot eng ine parts. Under certain conditions,
the ethy lene g lycol in e ngine coolant can
catch fire.
(D Note
Do not add any type of radiato r leak sealant
to your veh icle's engine coolant. Adding radia-
200
tor repair fluid may a dverse ly affect the func ­
tion and performance of your coo ling system
and could result in damage not covered by
your New Vehicle Limited Warranty.
Adding coolant
Be very careful when adding engine coolant.
Befo re yo u check any thing in the engine compart­
ment,
always read and heed all WARNINGS
¢ A in Working in the engine compartment on
page 193.
Requireme nt: The re mus t be a res idual amo unt
of coolant in the expans ion tank ¢(!) .
""Tur n off t he engine .
"" Let the eng ine cool down.
"" Pla ce a thick rag over the coolan t ex pan sio n
tank ¢
page 199, fig. 174 and carefull y turn
the cap counter-clockwise ¢,&. .
"" Add coolant m ixed in the cor rect rat io
¢page 199, Coolant up to the MAX ma rking.
"" Make sure that the fluid level remains stab le.
Add more coolant if necessa ry .
"" Twis t the cap o n aga in
tightly.
Replacement eng ine coolant must conform to ex­
act specifications ¢
page 199, Coolant.
We recommend using only coo lant ad ditive G 12+
+ , G13 or in an emergency G12+. Do
not use a
different additive. In an emergency use plain wa­
te r unt il you can get the cor rect addit ive and ca n
r esto re the cor rect rat io. Thi s should be done as
soon as possib le.
If you have lost a considerable amount of coo l­
an t, then you s hou ld add co ld a ntifreeze and cold
water only whe n the engine is co ld.
A lways use
new engine coo lant when ref illing.
Do no t fill c oolant above the "MAX" mark . Excess
coolant will be forced out th rough the pressure
r elief valve in the cap when the engine becomes
hot.
~

a:,
a:,
...... N r--. N ...... 0
0
LL 00

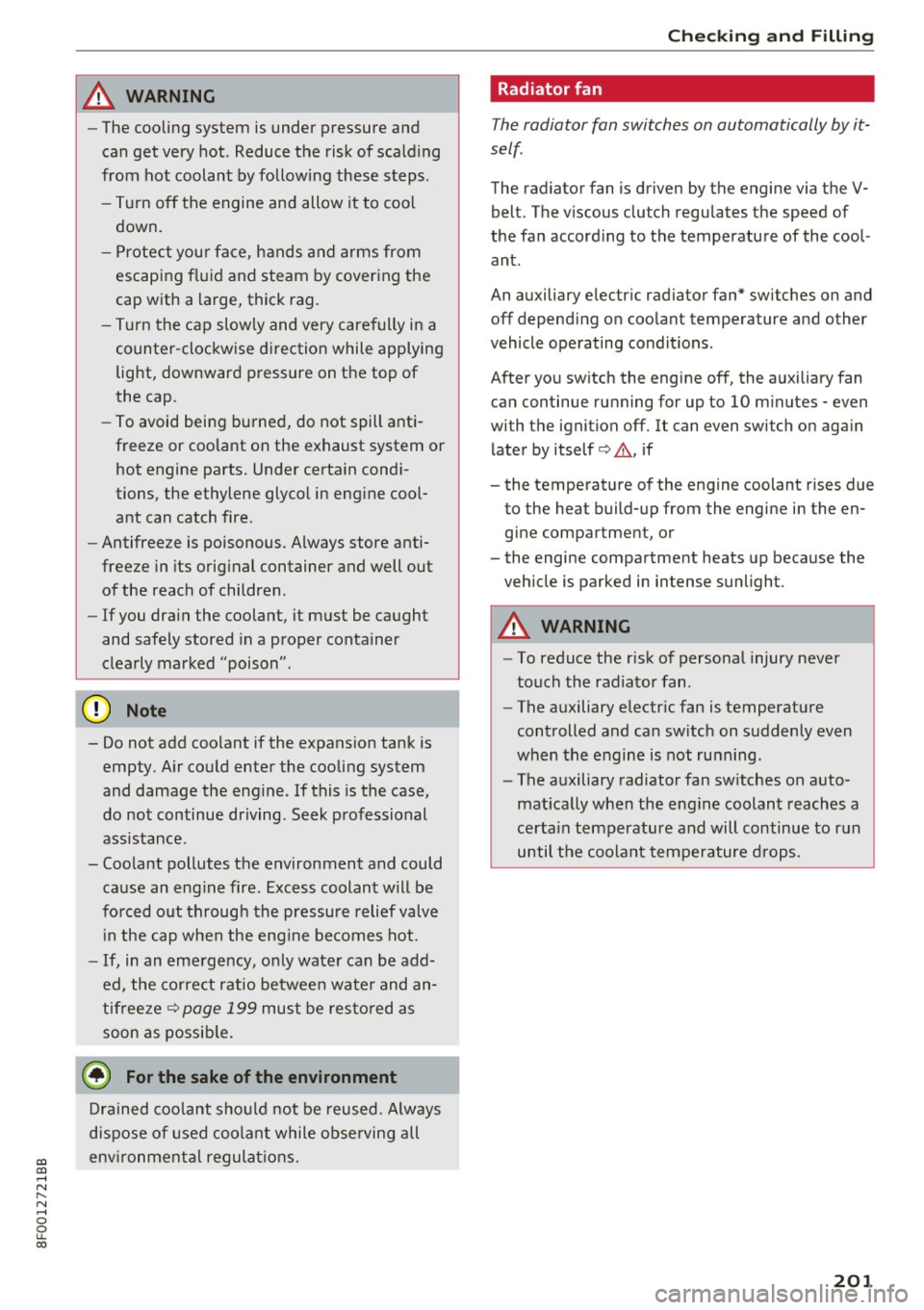

A WARNING ,~
- The cooling system is under pressure and
can get very hot. Reduce the risk of scald ing
from hot coolant by following these steps.
- Turn
off the engine and allow it to coo l
down.
- Protect you r face, hands and arms from
escaping fluid and steam by cover ing the
cap with a large, thick rag.
- Turn the cap slowly and very carefully in a
counter-clockwise d irection while applying
light, downward p ressure on the top of
the cap.
- To avoid being burned, do not spill anti­
freeze or coolant on the exhaust system or
hot engine parts. Under certa in cond i­
tions, the ethylene glycol in eng ine cool­
ant can catch fire.
- Antifreeze is poisonous. Always store anti­
freeze in its orig inal container and well out
of the reach of children.
- If you dra in the coolant, it must be caught
and safely stored in a proper conta iner
clearly marked "poison".
- Do not add coolant if the expansion tank is
empty. Air cou ld enter the cooling system
and damage the eng ine. If this is the case,
do not continue driving . Seek professional
ass istance.
- Coolant pollutes the env ironment and could
cause an eng ine fire. Excess coolant will be
fo rced o ut through the pressure relief valve
i n the cap when the e ng ine be comes hot.
- If, in an emergency, only wate r can be add­
ed, the co rrect r atio betwee n wate r and an­
tifree ze
Q page 199 must be res to red as
soon as possib le.
{® For the sake of the environment
Dra ined coolant sho uld not be reused. Always
disp ose of used coolant while obse rving all
env ironment al regulat ions.
-
Ch eck ing and Filling
Rad iator fan
The radiator fan switches on automatically by it­
self .
The radiator fan is driven by the engine via the V­
belt. The viscous clutch regulates th e speed of
the fan accord ing to the temperature of the cool­
ant .
An auxiliary e lectr ic radiator fan* switches on and
off depending on coo lant temperature and other
vehicle operating conditions.
After you switch the engine
off, the auxiliary fan
can continue running for up to 10 m inutes -even
with the ignition
off. It can even switch on aga in
later by itself
Q .& , if
- the temperature of the engine coolant rises due
to the heat build-up from the engine in the en­
gine compartment, or
- the engine compartment heats up beca use the
veh icle is parked in intense sunlight.
A WARNING
- To reduce the r isk of persona l injury neve r
touch the radia to r fan .
- The auxiliary e lectr ic fan is temperature
controlled and can switch on s uddenly even
when the engine is not ru nning .
- The a uxiliary radiator fan sw itches on auto­
mat ically when the eng ine coolant reaches a
certa in temperature a nd will continue to run
until the coolant temperature d rops.
201

Checking and Filling
Brake fluid
Checking brake fluid level
The brake fluid level can be checked with a quick
glance.
Fig. 175 Engine compartment: Cover on the brake fluid
r eservoir
Before you check anything in the engine compart­
ment,
always read and heed all WARNINGS
¢ A in Working in the engine compartment on
page 193.
., Read the brake fluid level from the brake fluid
reservoir
<=> fig . 175, ¢page 195, fig . 171 . The
brake fluid level must be between the
" MIN"
and "MAX " markings.
The brake fluid reservoir is located at the rear
partition of the engine compartment on the left
side
¢ page 195.
The fluid level may drop slightly after some time
due to the automatic adjustment of the brake
pads . This is not cause for alarm .
If the brake fluid level falls
considerably below
the ' 'MIN" mark, the brake warning/indicator
light (U .S. models:
1111 , Canadian models: 1111)
will come on¢ page 13 . Do not continue to oper­
ate the vehicle . The complete brake system
should be thoroughly checked by an authorized
Aud i dealer or qualified workshop and the cause
corrected . If the brake fluid level is too low, the
brake warning/indicator light w ill illuminate.
Contact an author ized Audi dealer
immediately.
(D} Tips
The brake fluid reservoir is located under­
neath the cover.
202
Changing brake fluid
Have the brake fluid changed by an experienced
technician .
Brake fluid absorbs moisture from the air. If the
water content in the brake fluid is too high, cor­
rosion in the brake system may result after ape­
riod of time . The boiling po int of the brake fluid
will a lso decrease considerably and decrease
braking performance.
Therefore , the brake fluid must be changed
every
two years .
Always use new brake fluid which con­
forms to Feder-al Motor Vehicle Standard "FMVSS
116 DOT 4 ".
The brake fluid reservoir can be difficult to reach ,
therefore, we recommend that you have the
brake fluid changed by your author ized
Audi
dealer .
Your dealer has the correct tools, the
right brake fluid and the know-how to do this for
you.
A WARNING
- Brake fluid is poisonous. It must be stored
only in the closed original container out of
the reach of children!
- Brake fai lure can result from o ld or inappro­
priate brake fluid. Observe these precau­
tions:
- Use only brake fluid that meets SAE speci­
fi cation
J 1703 and conforms to Federal
Motor Veh icle Standard 116. Always check
with your authorized Audi dealer to make
sure you are using the correct brake f luid .
The correct type of brake f luid is also indi­
cated on the brake fluid reservoir.
- The brake fluid must be new . Heavy use of
the brakes can cause a vapor lock if the
brake fluid is left in the system too long .
This can seriously affect the efficiency of
the brakes as well as your safety. This
could result in an accident.
(D Note
Brake fluid will damage the paint of your vehi-
cle .
lilJJ,

a:,
a:,
...... N r--. N ...... 0
0
LL 00
@ For the sake of the environment
Because of the problem of proper disposal of
brake fluid as we ll as the special toots re­
quired and the necessary expertise, we rec­
ommend that you have the brake fluid
changed by your authorized Audi dealer .
Battery
General information
Under normal operating conditions, the battery
in your Audi does not need any maintenance.
With
high outside temperatures or long daily
drives we recommend that you have the electro­
lyte level checked by an authorized Audi dealer or
qualified workshop. The electrolyte level should
also be checked each time the battery is charged
¢ page 205.
Have the battery checked when you take your ve­
hicle in for serv ice. You are well advised to re­
place a battery t hat is older than 5 years.
Disconnecting the battery terminals
Some vehicle functions (power window regula­
tors, for example) are lost if the battery termi­ nals are disconnected. These functions have to be
relearned after the battery terminals are con­
nected again. To prevent th is, the battery should
only be disco nnected from the vehicle e lectr ica l
system when abso lutely necessary for repairs.
Vehicles not driven for long periods
If you do not drive your vehicle over a period of
several days or weeks, electrical components are
gradually cut back or sw itched off. This reduces
energy consumption and maintains starting ca ­
pability over a longer period¢
page 173.
Some of the conven ience functions may not oper­
ate, such as the interior lights or the power seat
adjustment. The convenience functions will be
available again when you turn on the ignition and
start the engine.
Winter operation
During the winter months, battery capacity tends
to decrease as temperatures drop . T his is be-
Checking and Filling
cause more power is also consumed while start­
ing, and the headlights, rear window defogger,
etc., are used more often.
Avo id unnecessary power consumption, particu­
larly in city traff ic or when traveling only short
distances . Let your authorized Audi dealer check
the capacity of the vehicle battery before winter
sets in ¢
page 205. A well charged battery will
not only prevent starting problems when the
weather is cold, but will also last longer .
(D Tips
If your vehicle is left standing for several
weeks at extremely low temperatures, the ve­
hicle battery should be removed and stored
where it w ill not freeze. This will prevent it
from be ing damaged and having to be re­
placed.
Working on the battery
Be especially careful when working on or near
the battery.
The battery is located in the luggage compart­
ment under the floo r. Before you check anything
in the luggage compartment,
read and heed all
WARNINGS ¢
LD.·
Always heed the safety warnings, when working
on the vehicle battery or the veh icle electrical
system to prevent injury.
The following WARNINGS are very important
when working on the battery:
Always heed the following WARNING SYM·
BOLS and safety precautions when working on
the battery.
®
Always wear eye protection.
A
Battery acid contains sulfuric acid. Al·
ways wear gloves and eye protection .
@
No
- sparks
· flames
· smoking.
203

Checking and Filling
A
When a battery is charged, it produces hydrogen gas which is explosive and
could cause personal injury.
®
Always keep the battery well out of reach
of children.
A WARNING
Whenever working on the battery or on the
electrical system, there is the risk of injury ,
accident and even fire. Read and heed the fol­
lowing WARNINGS:
- Always wear eye protection. Do not let bat ­
tery acid or any lead particles get on your
skin or clothing. Shield your eyes. Explosive gases can cause blindness or other injury.
- Battery acid contains sulfuric acid. Sulfuric acid can cause blindness and severe burns.
- Always wear gloves and eye protection . Do
not tilt the battery because acid could leak
out of the ventilation openings.
- If you get battery acid in your eyes or on
your skin, immediately rinse with cold wa­
ter for several minutes and get medical at­
tention .
- If you should ingest any battery acid, seek
medical attention immediately.
- Do not expose the battery to an open flame,
electric sparks or an open light .
- Do not smoke.
- Do not interchange the positive and nega-
tive cables .
- When working on the battery, be sure not to
short-circuit the terminals with tools or oth­
er metal objects. This would cause the bat­
tery to heat up very quickly, which could
lead to damage or explosion and personal
lnJUry.
- When a battery is charged, it produces hy­
drogen gas which is explosive and could
cause personal injury.
- Always keep the battery well out of the
reach of children.
- Before work is done on the electrical sys­
tem, disconnect the negative ground cable.
- Before performing any work on the electri­
cal system, switch off the engine and igni­
tion as well as any electrical equipment. The
204
-
negative cable on the battery must be dis­
connected. If you are just going to replace a light bulb, then it is enough to switch off
the lights.
- Before disconnecting the battery, switch off
the anti-theft alarm system! Otherwise you
will set off the alarm .
- When disconnecting the battery, first dis­
connect the negative cable and then the
positive cable.
- Before reconnecting the battery, make sure
all electrical consumers are switched off .
Reconnect the positive cable first and then
the negative cable . Never interchange the
cables - this could start a fire!
- Never charge a frozen or a thawed-out bat­
tery.
It could explode! If a battery has fro­
zen, then it must be replaced. A discharged
battery can freeze over at 32°F (0°C).
- Make sure the vent hose is always attached
to the opening on the side of the battery .
- Never use batteries which are damaged .
There is the danger of an explosion! Always
replace a damaged battery.
A WARNING
California Proposition 65 Warning :
- Battery posts, terminals and related acces­
sories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive problems.
Wash hands after handling.
(D Note
- Do not disconnect the vehicle battery when
the ignition is switched on or when the en­
gine is running, otherwise, you will damage
electronic components in the electrical sys­
tem .
- If your vehicle is going to stand for a long
period of time without being driven, protect
the battery from "freezing", otherwise it
will be damaged and will then have to be re­ placed .

a:,
a:,
...... N
" N ...... 0
0
LL co
Battery charging
Starting the engine requires a well charged bat­tery .
Fig. 1 76 Engine co mpartment: Co nnectors for charger and
j u mpe r cab les
A lways read and h eed all WARNINGS be low
¢ &. and
¢&. in Working on the battery on
page 204 .
•Turnoff the ignition and all electr ica l consum­
ers .
• Make sure the area is well vent ilated when you
charge the battery .
• Open the engi ne hood ~
page 193.
• Open the cover on the posit ive pole ¢ fig . 176.
• Connec t the charger connecto rs accord ing to
the instructions to the
jump start bolts . (Bolts
under the cover= "positive", Bo lts with hex
head = "negat ive").
• Only now plug the mains lead for the charging
equipment into the wall outlet and turn it on
c> &, .
• Make sure the charging rate is not ov er
30 amps /14 .8 Volt .
• When the ba tte ry is fu lly charged : Tur n the
charg ing equipmen t off and remove the mains
l ead from the wall outlet.
• Now remove the clamps fo r the cha rging equ ip-
ment.
• Close the cover on the posit ive pole.
• Close the hood ¢
page 193 .
A discharged battery can freeze at temperatures
of only 32 °F (0 °C). A llow a frozen battery to
thaw comp lete ly before attempting to charge it
¢
& . However , we recommend not us ing a
thawed battery again because the battery cas ing
Checking and Filling
can be cracked due to ice forma tion and can leak
battery acid.
Battery charging (Maximum charging rate of
30 amps /14.8 Volt)
When charging at low voltages (e .g . with a trick­
le charger ),
the battery cables do not have to be
disconnected f irst . T he battery caps should
not
be opened when charging a battery .
It is not necessary to remove the battery from
the luggage compartment .
Fast charging the battery (charging rate
above 14 .8 Volts)
F or techn ical reasons do not use a battery cha rg­
er that uses vo ltage greater than 14.8 Vo lts to
charge your vehicle 's battery .
_8 WARNING ~
Charging a battery can be dangerous.
- Always follow the operating instructions
provided by the battery charger manufactur­
er when charging your battery.
- Never charge a froze n battery . It may ex ­
p lode because of gas trapped in the ice. Al·
low a froze n battery to thaw out first.
- Do not reuse batter ies which were frozen.
The battery hous ing may have cracked and
weakened when the battery froze .
- Charge the battery in a well ventilated area.
Keep away from open flame or electrical
spark . Do not smoke . Hydrogen gas generat­
ed by the battery is explos ive.
- To reduce the danger of explosion , never
connect or d isconnect charger cables while
the charge r is operating .
- Fast charg ing a battery is dange rous and
should only be attempted by a competent
technician w ith the proper equipment.
- Battery acid that may spill during charging
should be washed off w ith a so lution of
warm wa ter and baking soda to neutra lize
the acid .
205

Check ing and F illing
CJ) Note
Never use a fast charger as a booster to start
the engine . This will serio us ly damage sensi­
tive electronic components, such as control
un its, relays, radio, etc., as well as the battery
charger .
Battery replacement
The new ba ttery mu st have the same specifica­
tions and dimensions as the original equipmen t
battery .
Intelligent energy management in your vehicle is
responsible for dist ributing the electrical energy
throughout your vehicle¢
page 173. The inte lli­
gent ene rgy ma nagement system wi ll keep the
eng ine batte ry charged better the n ve hicles w ith­
ou t th is system . To make su re the addit io nal
e lec trica l energy is avail ab le on ce again after you
h a ve changed the battery, we recommend t hat
you insta ll batteries o f the same type an d manu­
facture on ly (t he same as those insta lled at the
time your veh icle was delive red). Spec ificat ions
are listed on the battery housing. Your author­
ized Audi dealer must code the battery in the en­
ergy management system to enab le you to use
the energy manageme nt functions correctly after
replacing the battery .
If it is not possible to use a battery of th is type,
the new battery must have the same capacity ,
voltage (12-volts) , ampe rage, construct ion and
p lug sealing.
When insta lling the battery, make sure the igni­
tion and all electrical consumers are tur ned off .
@ Note
Make sure the ventilation hose on the side of
the batte ry is connected, othe rw ise fumes or
battery acid can lea k out.
@ For the sake of the environment
Because of the prob lem of proper disposal of
a battery, we recommend your author ized
Audi dea le r change the battery fo r you. Bat­
t er ies con ta in su lf ur ic ac id a nd lead a nd must
always be disposed of prop erly i n comp lianc e
206
with a ll environmenta l re gu lations . Disposing
of veh icle batteries im properly is very danger­
ous to t he environment.
Windshield/headlight*
washer container
Fig. 177 En gin e compar tment: Cove r on the w inds hield
a n d head lig ht* was he r flu id conta iner
The washer fluid co nta iner is marked with the
symbol
Q on its cap ~ fig. 177, ¢ page 195,
fig. 1 71.
M N
-N ,.:
"' m
.. Before you check anythi ng i n the engine com ­
partment,
always read and heed all WARN­
INGS ¢ .& in Working in the engine compart­
ment on page 193.
.. Lift the fi ller cap to ngue to add w ashe r fl uid .
You c an f ill the containe r to t he top .
.. Press the ca p back on to the filler neck a fte r fill -
ing the contai ner.
Yo u c an find the reservo ir
capacity in t he table in
~page 244.
Clean water should be used when filling up . If
possible, use soft wate r to preve nt scaling on the
w ashe r jets. Alw ays add a glass cleane r solu tion
(wi th fros t protection in the win ter) .
@ Note
Do n ot mix engi ne coolan t antifree ze or any
o the r ad ditive s t o fill u p the wi ndshi eld wash­
er reservo ir.

CX)
CX)
-N ,.._ N
-0
0 l,L
CX)

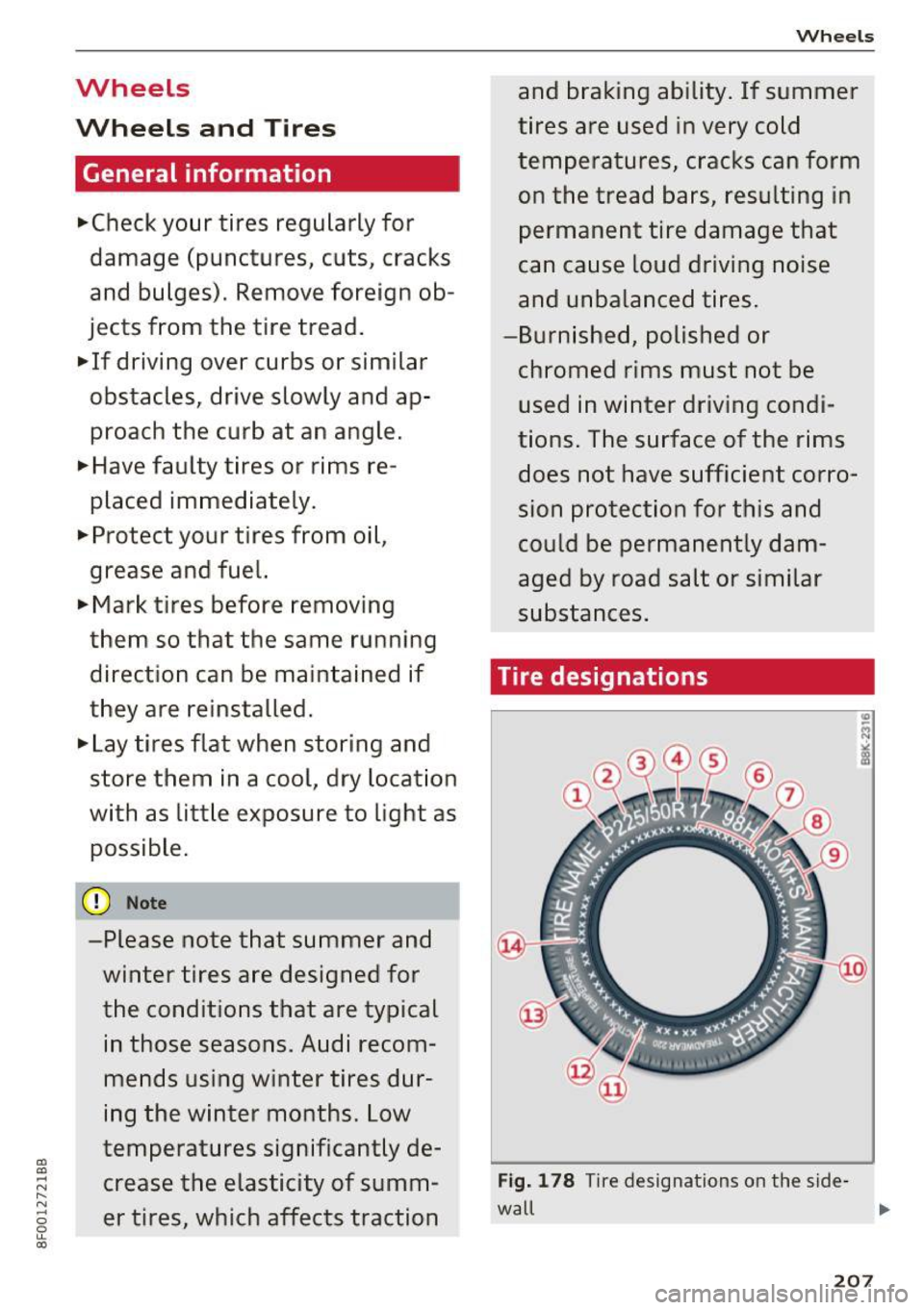

Wheels
Wheels and Tires
General information
.,.Check your tires regularly for
damage (punctures, cuts, cracks
and bulges). Remove foreign ob­
jects from the tire tread.
.,. If driving over curbs or similar
obstacles, drive slowly and ap­
proach the curb at an angle.
.,.Have faulty tires or rims re­
placed immediately.
"'Protect your tires from oil,
grease and fuel.
.,.M ark tires before removing
them so that the same running
direction can be maintained if
they are reinstalled.
"'Lay tires flat when storing and
store them in a cool, dry location
with as little exposure to light as
possible.
(D Note
-Please note that summer and
winter tires are designed for
the conditions that are typical in those seasons. Audi recom­
mends using winter tires dur­
ing the winter months. Low
temperatures significantly de­ crease the elasticity of summ­
er tires, which affects traction
Wheels
and braking ability. If summer
tires are used in very cold
temperatures, cracks can form
on the tread bars, resulting in
permanent tire damage that
can cause loud driving noise
and unbalanced tires.
-Burnished, polished or
chromed rims must not be
used in winter driving condi­
tions. The surface of the rims
does not have sufficient corro­
sion protection for this and
could be permanently dam­ aged by road salt or similar
substances.
Tire designations
Fig. 178 T ir e designations on the side -
wall Ill>
207

Wheels
(D Tires for passenger vehicles
(if applicable)
P indicat es a tire for a passenger
vehicle. T indicates a tire desig­
nated for temporary use.
@ Nominal width
Nominal width of the tire be­
tween the sidewalls in millime­
ters. In general: the larger the
number, the wider the tire.
@ Aspect ratio
Height/width ratio expressed as a
percentage.
@ Tire construction
R indicates a radial tire.
® Rim diameter
Size of the rim diameter in inches.
@ Load index and speed rating
The load index indicates the tire's
load-carrying capacity.
The speed rating indicates the maximum permitted speed
¢ & in
W inter tires on page 222 .
"EXTRA LOAD", "xl" or "RF" indi­
cates that the tire is reinforced or
is an Extra Load tire.
Speed rat- Maximum permitted speed
ing
p
up to 93 mph (1 50 km/h)
Q up to 99 mph (160 km/h)
208
Speed rat- Maximum permitted speed
Ing
R
up to 106 mph (170 km/h)
s up to 110 mph (180 km/h)
T up to 118 mph (190 km/h)
u up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)al
z above 149 mph (240 km/h)al
w up to 168 mph (270 km/h)al
y up to 186 mph (300 km/h)al
a) For tires above 149 mph (240 km/h),
tire manufact urers sometimes use the
code "ZR".
(j) US DOT number (TIN) and
manufacture date
The manufacture date is listed on
the tire sidewall (it may only ap­
pear on the inner side of the tire):
DOT ... 2216 ...
means, for example, that the tire
was produced in the 22nd week of
the year 2016.
@ Audi Original Tires
Audi Original Tires with the desig­
nation "AO" or "RO" have been
specifically matched to your Audi.
When u sed correctly, these tires
meet the highest standards for
safety and handling. An author­
ized Audi dealer or authorized
Audi Service Facility will be able
to provide you with more infor­
mation.
