– Take the screwdriver and the interchangeable Torx socket
out of the vehicle tool kit.
– Remove the screws ⇒page 278, fig. 258 that secure the
trim panel to the lock carrier and detach the trim panel.
– Slacken the two screws that secure the headlight to the lock carrier and the screw at the underside of the head-
light (this screw is located between the cover and the
rubber cap and should not be slackened more than ten
turns) ⇒page 278, fig. 259.
– Carefully pull the headlight forward about 60 mm.
– Release and unplug th e electrical connector.
– Carefully take the headlight out towards the front (swivel it slightly if necessary).
Installing
– Perform all of the above steps in reverse sequence.The headlight must be inserted in two guides (on the underside of
the headlight). This is the only w ay to ensure that the headlight is
installed in the correct position. To determine whether the headlight
is correctly installed, check that it is aligned flush with adjacent
body parts (such as the wing panel).
Do not interchange the securing screws.
Caution
Please take particular care not to damage or scratch the adjacent
parts of the body when removing or installing the headlights.
Applies to vehicles: with halogen main beam headlightsRemoving bulb for main beam headlights– Remove the headlight ⇒page 278 .
– Take off the rubber cap ⇒fig. 260 ⇒ in “Changing
bulbs” on page 276.
– Press the connector in the direction of the arrow ⇒fig. 261.
– Remove the connector together with the bulb from the headlight housing.
– Disconnect the connector from the base of the bulb ⇒ in “Changing bulbs” on page 276.

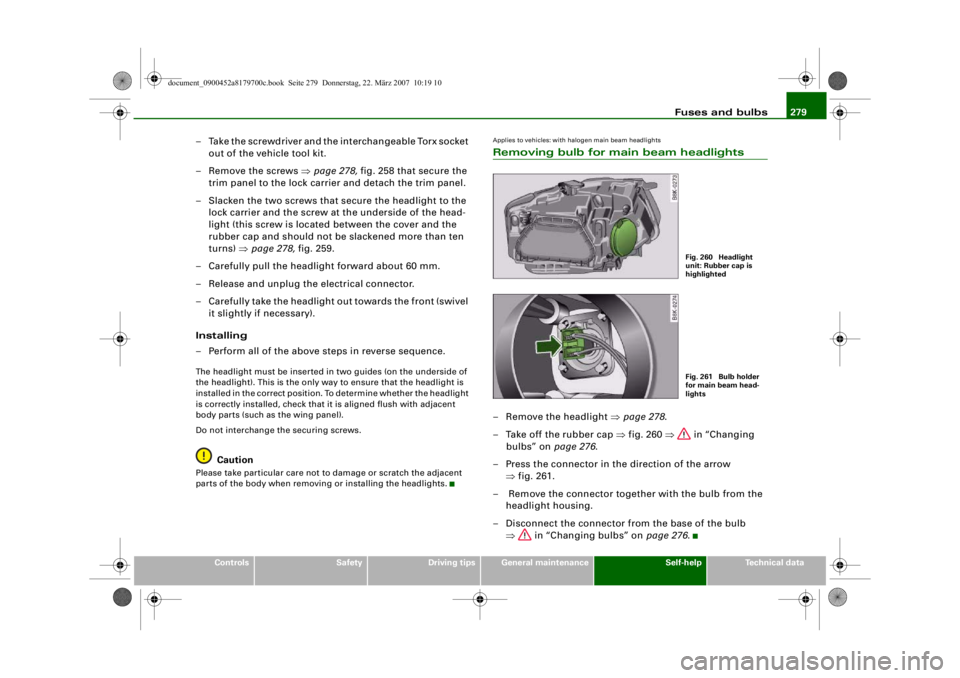

Fig. 260 Headlight
unit: Rubber cap is
highlightedFig. 261 Bulb holder
for main beam head-
lights
document_0900452a8179700c.book Seite 279 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
-+ +-
CD
•

Fuses and bulbs
280Applies to vehicles: with halogen main beam headlightsInstalling the bulb for the main beam headlights
When installing a bulb, the lug on the base of the bulb
must be inserted into the appropriate mounting on the
bulb housing.– Attach the new bulb to the connector ⇒ in “Changing
bulbs” on page 276.
– Insert the bulb carefully into the bulb housing. Start by placing the base of the bulb directly behind one of the
retaining hooks so that the lug fits into the recess on the
bulb housing. – Press the connector in the direction of the arrow
⇒fig. 263 until the bulb engages.
– Check that the bulb is securely seated in the bulb housing.
– Fit the rubber cap and install the headlight ⇒page 278 .
– Check whether the new bulb is working.
– Have the headlight settings checked.
Note
Ensure that the rubber cap is seated correctly so that no water can
enter the unit.Applies to vehicles: with halogen dipped headlightsRemoving bulb for dipped headlights

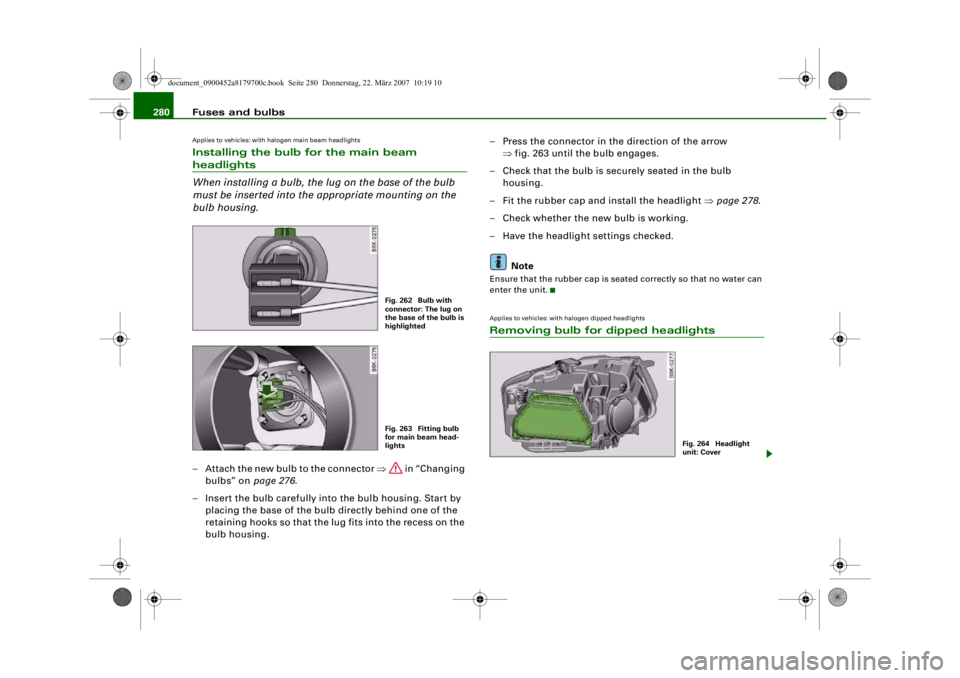

Fig. 262 Bulb with
connector: The lug on
the base of the bulb is
highlightedFig. 263 Fitting bulb
for main beam head-
lights
Fig. 264 Headlight
unit: Cover
document_0900452a8179700c.book Seite 280 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
[I]
•
-+ +-

Fuses and bulbs281
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
– Remove the headlight ⇒page 278.
– Swivel the retaining clip of the cover upwards.
– Take off the cover ⇒page 280, fig. 264 ⇒ in
“Changing bulbs” on page 276.
– Press the connector in the direction of the arrow ⇒fig. 265.
– Remove the connector together with the bulb from the headlight housing.
– Disconnect the connector fr om the base of the bulb
⇒ in “Changing bulbs” on page 276.
Applies to vehicles: with halogen dipped headlightsInstalling bulb for dipped headlights
When installing a bulb, the lug on the base of the bulb
must be inserted into the appropriate mounting on the
bulb housing.– Attach the new bulb to the connector ⇒ in “Changing
bulbs” on page 276.
– Insert the bulb carefully into the bulb housing. Start by placing the base of the bulb directly behind one of the
retaining hooks so that the lug fits into the recess on the
bulb housing.

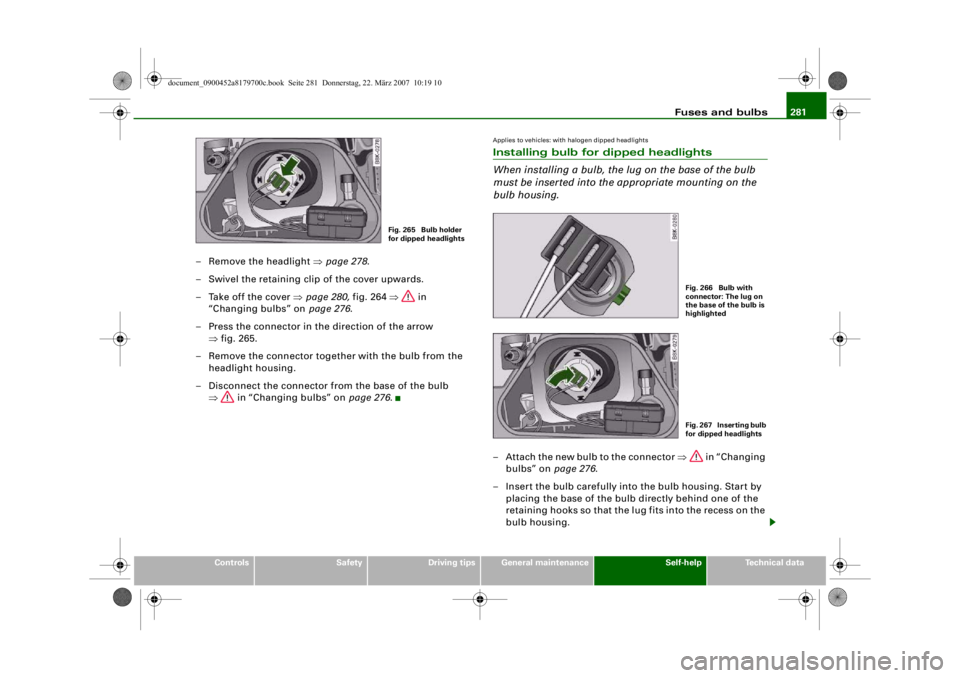

Fig. 265 Bulb holder
for dipped headlights
Fig. 266 Bulb with
connector: The lug on
the base of the bulb is
highlightedFig. 267 Inserting bulb
for dipped headlights
document_0900452a8179700c.book Seite 281 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
-+ +-
•

Fuses and bulbs
282
– Press the connector in the direction of the arrow ⇒page 281, fig. 267 until the bulb engages.
– Check that the bulb is securely seated in the bulb housing.
– Fit the cover and swivel the retaining clip downwards.
– Install the headlight ⇒page 278.
– Check whether the new bulb is working.
– Have the headlight settings checked.Applies to vehicles: with xenon headlight bulbsChanging bulb for turn signalsThe bulb is secured in the bulb carrier with a bayonet
fastener.
– Remove the headlight ⇒page 278 .
– Take off the rubber cap (small cover) and remove the bulb carrier.
– Lightly press the defective bulb into the bulb carrier, then turn it anti-clockwise and remove it.
– Do not touch the glass part of the new bulb with your bare hands, use a cloth or paper towel instead.
– Fit the new bulb, pressing it into the bulb carrier, and turn it clockwise as far as it will go.
– If necessary, use a cloth to re move any fingerprints from
the glass part of the bulb.
– Insert the bulb carrier into the headlight. Note
Ensure that the rubber cap is seated
correctly so that no water can
enter the unit.Applies to vehicles: with halogen dipped headlightsChanging bulb for side lightsRemoving bulb for side lights
– Remove the headlight ⇒page 278 .
– Swivel the retaining clip of the cover upwards.
– Take off the cover ⇒page 280, fig. 264 ⇒page 280 ⇒
in “Changing bulbs” on page 276.
– Grasp the bulb holder by the handle ⇒fig. 268 and pull it
out.
– Lightly press the defective bulb into the bulb carrier, then turn it anti-clockwise and remove it.
Installing bulb for side lights
– Fit the new bulb, pressing it into the bulb holder and turn it clockwise as far as it will go.
Fig. 268 Bulb holder
for side lights is high-
lighted
document_0900452a8179700c.book Seite 282 Donnerstag, 22. März 2007 10:19 10
--4 -
-
[I]
T
•
•
-+ +-

Fuses and bulbs283
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
– Use a clean cloth to remove any fingerprints from the
glass part of the bulb.
– Insert the bulb carrier into the headlight.
– Fit the cover and swivel the retaining clip downwards.
– Install the headlight ⇒page 278 .
– Check whether the new bulb is working.Changing bulb for front fog lightsPreparations
The description for changing the bulb refers to the left fog
light; in principle the same procedure applies to the right
fog light.
– Switch off the ignition and the lights.
– Detach the trim cover ⇒ fig. 269 (pull it carefully in the
direction of the arrow).
– Remove the two securing screws ⇒fig. 270 and pull the
fog light unit out of the bumper.
– Unplug the electrical connector.
CautionThe trim cover is secured to the bumper by several retaining hooks.
Do not use force when removing the trim cover to avoid damaging
it.Changing bulb– Turn the bulb holder anti-clockwise ⇒page 278 and take
it out of the fog light housing.

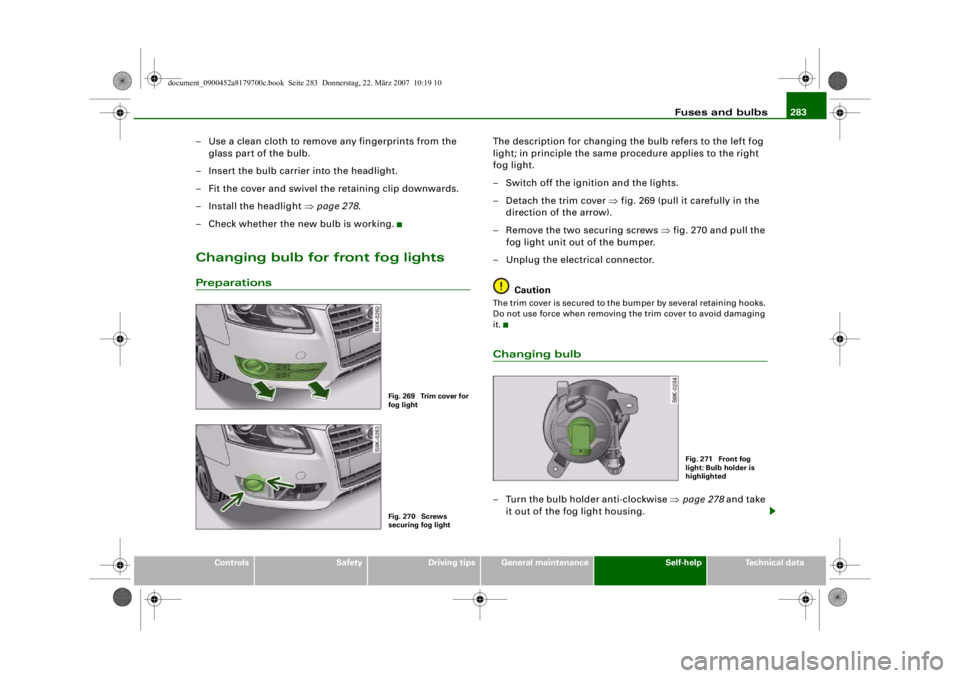

Fig. 269 Trim cover for
fog lightFig. 270 Screws
securing fog light
Fig. 271 Front fog
light: Bulb holder is
highlighted
