Applies to vehicles: with stretch netStretch net / retaining net
The stretch net / retaining net can be used to secure light
items in the luggage compartment.Stretch net
– First secure the front hooks in the fastening rings
⇒ fig. 84.
–Then secure the rear hooks in the fastening rings.
Retaining net
– Secure the hooks of the retaining net to the fastening rings at the bottom of the tail panel ⇒fig. 85. – Pull down the retaining hooks at the top of the luggage
compartment. Pull up the net and attach the loops of the
net to the retaining hooks.
You can also use the retaining hooks ⇒fig. 85 to secure light items
of luggage, such as shopping bags, etc.
The hooks will fold up again by themselves when not in use.
WARNING
The retaining net should only be us ed to hold objects weighing up
to 5 kg. Heavier objects cannot be safely secured (injury risk).Side storage compartment
The DVD player for the navigation system* is located in
the left side compartment in the luggage compartment.
Fig. 84 Stretch net laid
outFig. 85 Stretch net
attached in position as
retaining net
Fig. 86 Luggage
compartment: Side
trim with closed
storage compartment
document_0900452a8179700c.book Seite 79 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
. I
-+ +-

Seats and storage
80
– To open the storage compartment, pull the handle ⇒page 79, fig. 86.DVD player for navigation system*
The DVD player for the navigation system is located in this storage
compartment ⇒fig. 87 in the luggage compartment. For more
information, please refer to the Infotainment/MMI Operating
Manual.
Applies to vehicles: with folding backrestsExtending the luggage compartment from the boot
The backrests can be folded forwards to increase the
storage space.Releasing and folding down backrest
– When you pull the release lever ⇒ fig. 88 in the direction
of the arrow, the safety knob ⇒fig. 89 will pop up and
the red marking on the knob will become visible.
– Fold down the backrest.
Fig. 87 Luggage
compartment: DVD
player for navigation
system
Fig. 88 Release lever in
luggage compartmentFig. 89 Safety knob
AA
document_0900452a8179700c.book Seite 80 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
-+
•
+-

Seats and storage81
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
Returning backrest to an upright position
– Push the backrest up again until it engages securely
⇒ . The red marking on the safety knob ⇒ page 80,
fig. 89 should no longer be visible when the backrest is
properly secured.When the backrest is properly enga ged in its upright position, it can
be locked and unlocked with the key. This prevents unauthorised
access to the luggage compartment from inside the vehicle.
The luggage compartment can only be extended from the boot
when the backrest has not been locked with the key.
WARNING
The rear backrest must always be securely latched so that objects
stored in the luggage compartment will not fly forward during
sudden braking.
Caution
When returning the backrest to an upright position, make sure that
the seat belts for the rear seats ar e in their guides so that they
cannot be caught up and damaged in the catches for the backrest.
It is also important to remove any other objects from the rear seats
to avoid damaging the backrest when folding it forwards.
Applies to vehicles: with folding backrestsExtending the luggage compartment from inside the vehicle
The backrests can be folded forwards to increase the

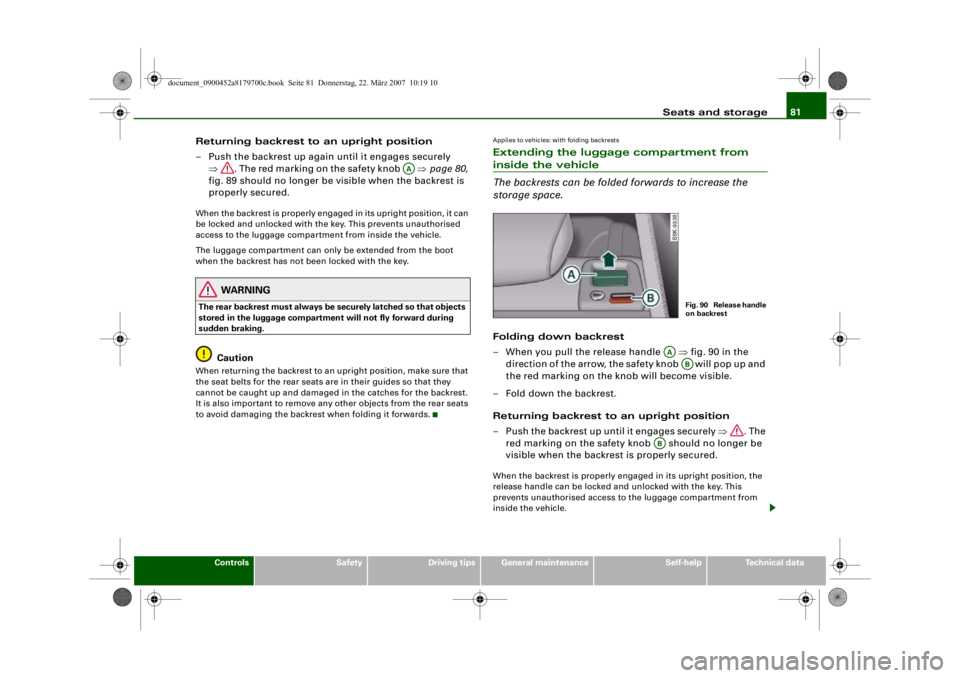

storage space.Folding down backrest
– When you pull the release handle ⇒fig. 90 in the
direction of the arrow, the safety knob will pop up and
the red marking on the kn ob will become visible.
– Fold down the backrest.
Returning backrest to an upright position
– Push the backrest up until it engages securely ⇒. The
red marking on the safety knob should no longer be
visible when the backrest is properly secured.When the backrest is properly en gaged in its upright position, the
release handle can be locked and unlocked with the key. This
prevents unauthorised access to the luggage compartment from
inside the vehicle.
AA
Fig. 90 Release handle
on backrest
AA
AB
AB
document_0900452a8179700c.book Seite 81 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
-+
0
+-
•

Seats and storage
82
WARNING
The rear backrest must always be securely latched so that objects
stored in the luggage compartment will not fly forward during
sudden braking.
Caution
When returning the backrest to an upright position, make sure that
the seat belts for the rear seats are in their guides so that they
cannot be caught up and damaged in the catches for the backrest.Applies to vehicles: with folding backrestsLocking the backrest–Turn the key ⇒ fig. 91 to the right to lock the backrest.
– Turn the key to the left to unlock the backrest.When the backrest is properly en gaged in its upright position, the
release handle can be locked and unlocked with the key. This
prevents unauthorised access to the luggage compartment from
inside the vehicle.
Caution
When returning the backrest to an upright position, make sure that
the seat belts for the rear seats are in their guides so that they
cannot be caught up and damaged in the catches for the backrest.Storage shelf
The storage shelf behind the rear backrest should only be
used to store light articles of clothing.
WARNING
Do not store any heavy or hard objects on the storage shelf. They
could cause injury if the brakes are applied suddenly.
Caution
Please note that hard objects co uld chafe against the wires of the
heating element in the rear window and cause damage.
Note
Make sure that the slots between the rear window and the storage
shelf are kept clear to ensure unimpaired ventilation.

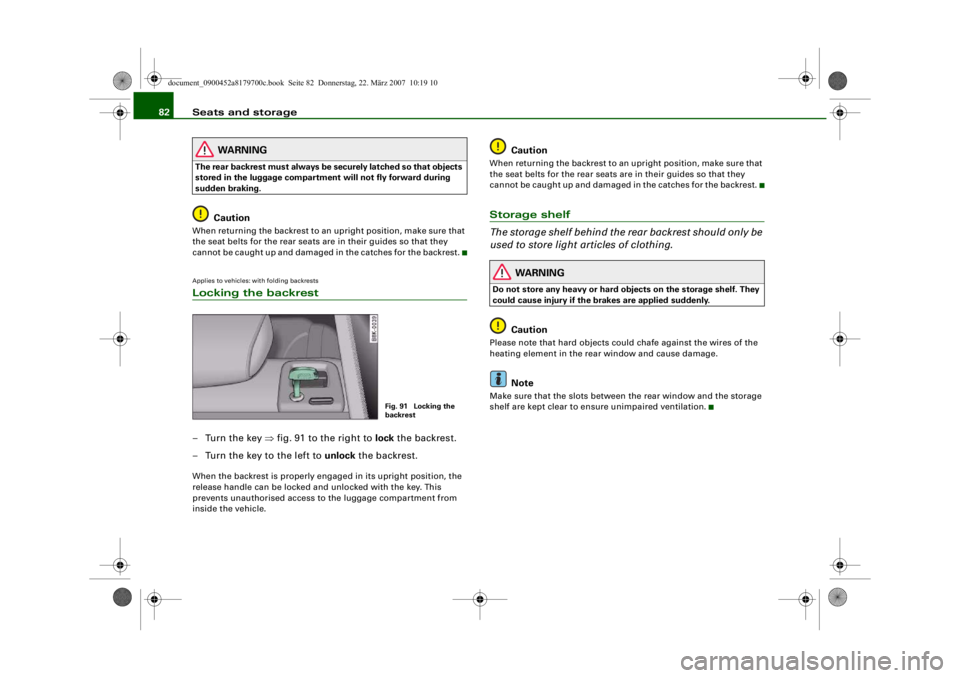

Fig. 91 Locking the
backrest
document_0900452a8179700c.book Seite 82 Donnerstag, 22. März 2007 10:19 10
--4 -
T
I&
I
CD
•
CD
•
I&
-+
CD
+-
rn
•

Seats and storage83
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
Applies to vehicles: with load-through hatchLoad-through hatch
You can use the load-through hatch and bag to transport
objects safely inside the vehicle.Opening the load-through hatch
– In the passenger compartment, pull down the centre rear
armrest.
– Pull the release catch ⇒fig. 92 -arrow- and fold the cover
of the load-through hatch down into the passenger
compartment.
– Open the boot lid.
– Working from the luggage compartment, push the bag through the opening.
– Secure the bag ⇒ page 83.
Closing the load-through hatch
– Open the boot lid.
– Take the bag out of the load-through hatch. – Fold the cover of the load-through hatch back up from
inside the vehicle until it engages.
– Fold up the centre armrest again if desired.
– Close the boot lid.
WARNING
Loose objects must be transported in the bag, as the bag can be
secured. Individual objects cannot be secured - Risk of accident!
Note
•
You can also open the load-through hatch from the luggage
compartment. Press down the re lease catch and push the cover
forwards.
•
The load-through hatch can be locked and unlocked from inside
the vehicle using the emergency key ⇒fig. 92.
Applies to vehicles: with load-through hatchSecuring the transport bag
The transport bag must be secured in the luggage
compartment.

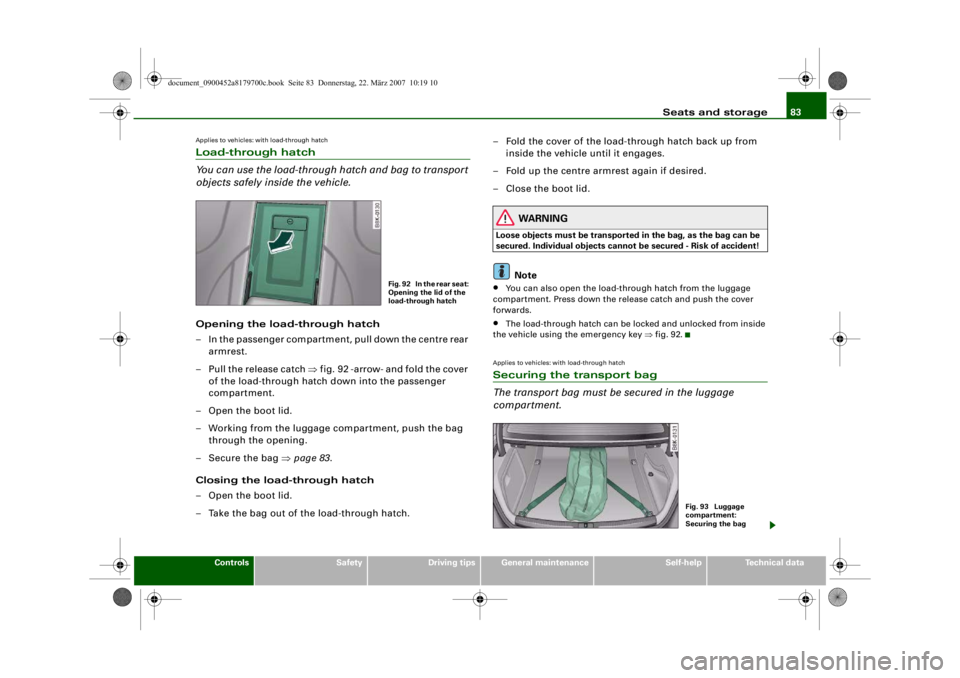

Fig. 92 In the rear seat:
Opening the lid of the
load-through hatch
Fig. 93 Luggage
compartment:
Securing the bag
document_0900452a8179700c.book Seite 83 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
[]]
-+
•
+-

Seats and storage
84
Securing the bag in the luggage compartment
– Two belts with hooks are attached to the bottom side of the bag. Engage the hooks into the rear fastening rings
in the luggage compartment ⇒page 83, fig. 93.
Securing the objects in the bag
– Pull the free end of the belt tight to secure it ⇒fig. 94.
NoteIf the bag is damp or wet, allow it to dry before putting it away.Roof carrierDescription
Additional loads can be transported using the roof carrier.Note the following points if you in tend to carry loads on the roof:•
The rain channels are moulded into the roof as part of the aero-
dynamic roof design. It is therefore not possible to mount conven-
tional roof luggage racks. We recommend using the carrier units
from the range of Audi Genuine accessories.
•
These carrier units form the basic elements of a complete roof
carrier system. Special fixtures mu st then be added in order to
safely transport luggage, bicycles, skis, surf boards or boats on the
roof. All the elements of this syst em are available from Audi dealers.Caution
Any damage to the vehicle caused by the use of other types of roof
rack or incorrect installation will not be covered by the factory
warranty. The roof carrier system must therefore be installed exactly
according to the instructions provided.Attachment points
The roof carrier must be attached at the marked points
only.Mounting
The front feet of the carrier units must be fitted exactly onto the
locating pins between the side frame and the roof frame trim
⇒fig. 95. The pins come into view when you push the sealing lip
back off the roof frame trim using the tool supplied with the roof
carrier. The rear attachment points are marked by two small
arrows on the top edge of the side window.

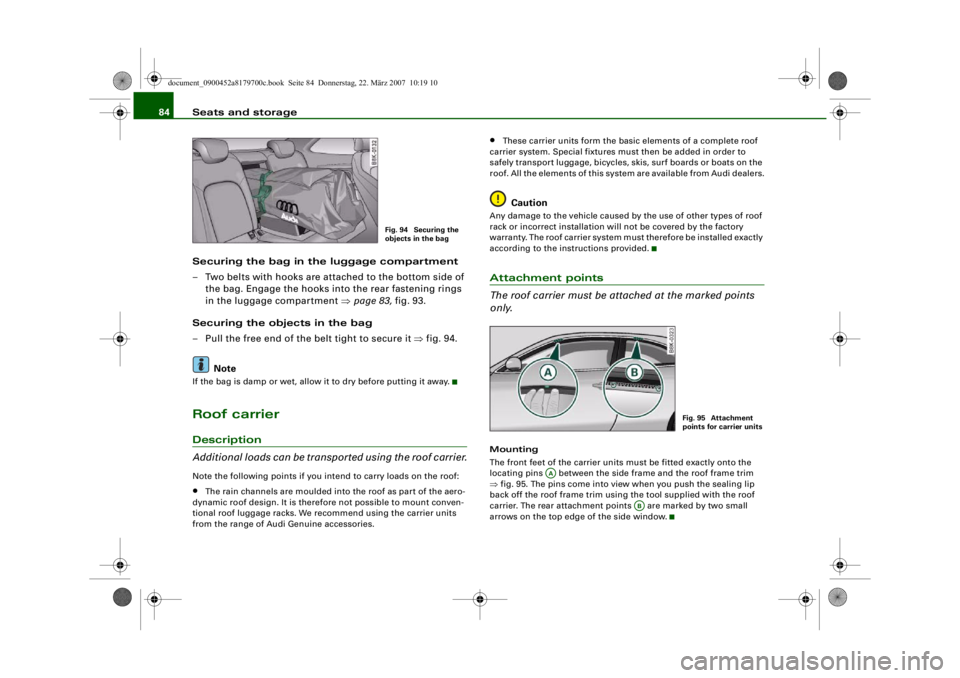

Fig. 94 Securing the
objects in the bag
Fig. 95 Attachment
points for carrier units
AA
AB
document_0900452a8179700c.book Seite 84 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
CD
•
-+
[I)
+-
•
•

Seats and storage85
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
Roof load
Loads carried on the roof must be securely attached. The
car's handling is affected when transporting loads.The maximum permissible roof load for your vehicle is 75 kg. The
load limit applies to the combined weight of the carrier system and
the load itself.
It will not be possible to carry the full maximum load if the roof
carrier you are using is rated for a load which is less than this figure.
Do not exceed the maximum weight limit for the roof carrier, which
is listed in the fitting instructions.
WARNING
•
To prevent accidents, loads ca rried on the roof must be
securely attached.
•
Do not exceed the maximum roof load for the vehicle, the
maximum axle loads or the maximu m gross vehicle weight, as this
could cause an accident.
•
When transporting heavy or bulky loads on the roof, bear in
mind that the car's handling is af fected by the extra weight on the
roof and a possible susceptibility to cross winds. Adjust your
speed and driving style accord ingly to avoid accidents.For the sake of the environment
The increased air resistance when the roof carrier is fitted means
that the vehicle uses more fuel. For this reason you should always
take off the roof carrier when it is not in use.
Cup holdersFront cup holder
– Two drinks can be placed in this cup holder ⇒fig. 96.
Opening rear cup holder
– Press the symbol
 ⇒fig. 97.
Placing drinks in rear cup holder
– To adjust the arm of the cup holder , move it in the direction indicated by the arrow.

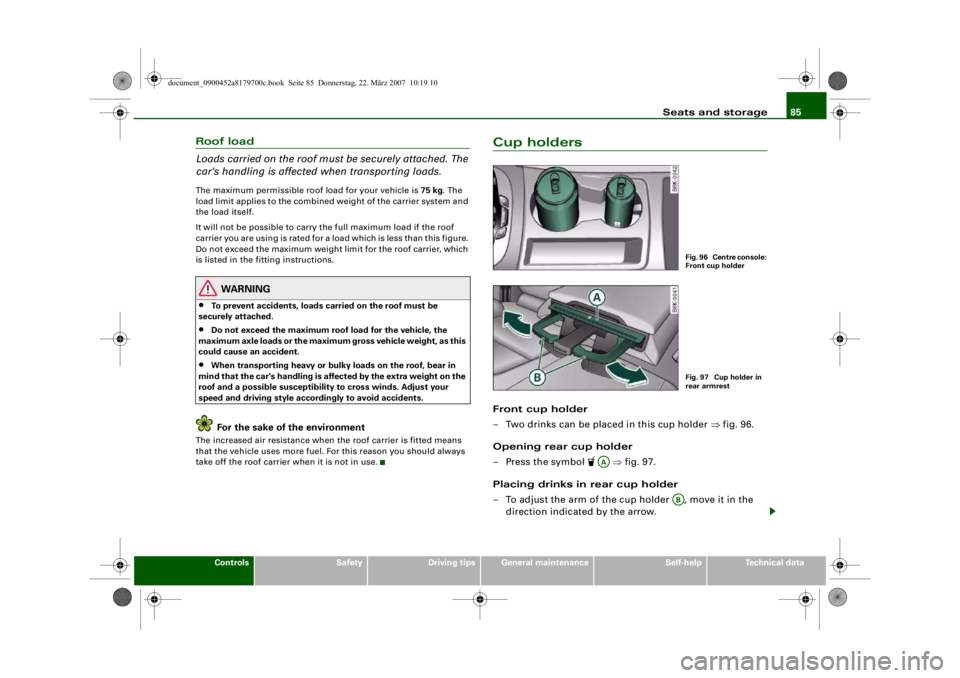

Fig. 96 Centre console:
Front cup holderFig. 97 Cup holder in
rear armrest
AA
AB
document_0900452a8179700c.book Seite 85 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
-+ +-
•

Seats and storage
86
– Position the cup in the holder and let go of the arm. The arm will move back automatically to secure the cup.
Closing cup holder
– Press the middle piece between the two arms and push the cup holder back into the shaft as far as it will go.The retainer arm should be positi oned against the drinks container
so that it is held securely.
One or two drink containers can be held in the centre armrest.
WARNING
•
Do not put any hot drinks in the cup holders while the vehicle
is moving. You could be scalded if the hot liqu id is spilt.
•
Do not use hard china cups or glasses. These could cause injury
in the event of an accident.Caution
You should avoid putting open drinks containers in the cup holders.
The drinks could otherwise spill over and cause damage to e.g. the
electrical equipment or the seat covers.
AshtraysFront ashtrayOpening ashtray
– Slide the cover open.
Closing ashtray
– Lightly press the cover to make the ashtray close auto- matically.
Removing ashtray
–Slide the switch ⇒ fig. 98 to the right to release the
ashtray.
– Take out the ashtray ⇒fig. 98.
Inserting ashtray
– Insert the ashtray and press it into its mountings.
WARNING
Never put waste paper in the asht ray, as this could cause a fire.
Fig. 98 Centre console:
Ashtray open
AA
AB
document_0900452a8179700c.book Seite 86 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
-+
0
+-
•
•

Seats and storage87
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
Rear ashtrayOpening ashtray
– Pull the front lip of the ashtray ⇒fig. 99 in the direc-
tion of the arrow.
Removing ashtray
– Press down the retainer and take out the ashtray.
Inserting ashtray
– Place the ashtray in the holder.
WARNING
Never put waste paper in the ashtra y, as this could cause a fire.
Cigarette lighter and electrical
socketsCigarette lighter
The 12 Volt socket for the cigarette lighter can also be
used as a power source for other electrical appliances.Using cigarette lighter
– Open the cover of the front ashtray.
– Press in the cigarette lighter knob.
– Wait for the lighter to spring out.
– Pull out the cigarette lighter immediately.
– Use the glowing heater element of the cigarette lighter to
light your cigarette.
– Put the cigarette lighter back in its socket.
Operating electrical socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the ciga- rette lighter socket.
Fig. 99 Rear centre
console: Ashtray
AB
AA
Fig. 100 Front ashtray
(open)
document_0900452a8179700c.book Seite 87 Donnerstag, 22. März 2007 10:19 10
--4 -
-T
-+ +-
.I

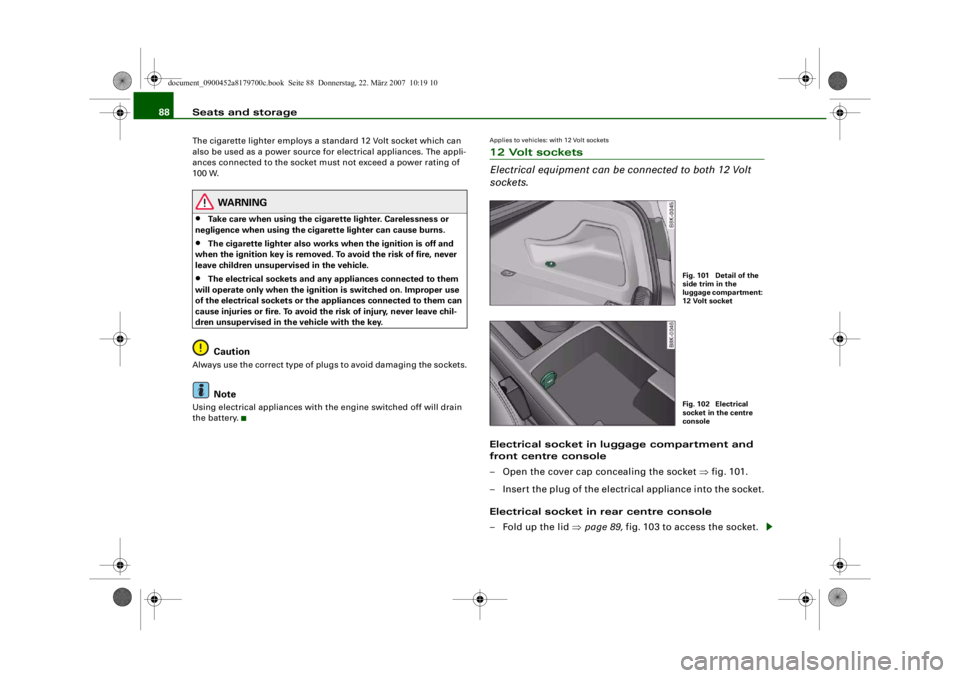

Seats and storage
88The cigarette lighter employs a standard 12 Volt socket which can
also be used as a power source fo r electrical appliances. The appli-
ances connected to the socket must not exceed a power rating of
100 W.
WARNING
•
Take care when using the cigare tte lighter. Carelessness or
negligence when using the cigarette lighter can cause burns.
•
The cigarette lighter also works when the ignition is off and
when the ignition key is removed. To avoid the risk of fire, never
leave children unsuper vised in the vehicle.
•
The electrical sockets and any appliances connected to them
will operate only when the ignition is switched on. Improper use
of the electrical sockets or the appliances connected to them can
cause injuries or fire. To avoid the risk of injury, never leave chil-
dren unsupervised in the vehicle with the key.Caution
Always use the correct type of plugs to avoid damaging the sockets.
Note
Using electrical appliances with the engine switched off will drain
the battery.
Applies to vehicles: with 12 Volt sockets12 Volt sockets
Electrical equipment can be connected to both 12 Volt
sockets.Electrical socket in luggage compartment and
front centre console
– Open the cover cap concealing the socket ⇒fig. 101.
– Insert the plug of the electrical appliance into the socket.
Electrical socket in rear centre console
– Fold up the lid ⇒page 89, fig. 103 to access the socket.
Fig. 101 Detail of the
side trim in the
luggage compartment:
12 Volt socketFig. 102 Electrical
socket in the centre
console
document_0900452a8179700c.book Seite 88 Donnerstag, 22. März 2007 10:19 10
-+
CD [I]
•
--4 -
-T +-
