ESP AUDI A5 COUPE 2010 Owners Manual

-Emergency situations PW:f..._--=---=----------------
& WARNING
• To reduce the risk of serious injury and vehicle damage .
- Always lift the vehicle only at the special workshop hoist and
floor jack lift points illustrated~ page
331, fig. 257 and
~ page 331, fig. 258.
- Failure to lift the vehicle at these points could cause the
vehicle to tilt or fall from a lift if there is a change in vehicle
weight distribution and balance. This might happen, for
example, when heavy components such as the engine block or
transmission are removed.
• When removing heavy components like these, anchor vehicle
to hoist or add corresponding weights to maintain the center of
gravity. Otherwise, the vehicle might tilt or slip off the hoist,
causing serious personal injury.
0 Note
• Be aware of the following points before lifting the vehicle:
- The vehicle should never be lifted or jacked up from under­
neath the engine oil pan, the transmission housing, the front or
rear axle or the body side members . This could lead to serious
damage.
- To avoid damage to the underbody or chassis frame, a rubber
pad must be inserted between the floor jack and the lift points.
- Before driving over a workshop hoist, check that the vehicle
weight does not exceed the permissible lifting capacity of the hoist .
- Before driving over a workshop hoist, ensure that there is sufficient clearance between the hoist and low parts of the
vehicle. •

_______________________________________________ C _o_ n _ s_u _ m_ e_ r_l_n _f_o _ r_ m_ a_ t _i _o _ n __ lllll
Consumer Information
Warranty coverages
Y o ur A udi i s covere d by the f ollowi ng wa rrant ie s:
• New Vehicle Limited Warranty
• Limited Warranty Against Corrosion Perforation
• Emissions Control System Warranty
• Emissions Performance Warranty
• California Emissions Control Warranty (USA vehicles only)
• California Emissions Performance Warranty (USA vehicles only)
Detai led information regarding your warrant ies can be found in
your
Warr anty & M aintenan ce book let .•
Operating your vehicle outside the
U.S .A. or Canada
Government regulations in the United States and Canada require
t hat automobiles meet specific emission regulations and safety
standards . T herefore, vehicles built for the U.S .A . and Canada differ
from vehicles so ld in other countries .
If you plan to take your vehic le outside the continental limits of the
United States or Canada, there is the possibi lity that
• unleaded fue ls for vehicles w ith catalytic converter may not be
avai lable;
• fue l may have a considerably lower octane rat ing . Improper fuel
may cause engine damage;
• serv ice may be inadequate due to lack of proper service faci lities ,
tools or testing equipment;
• replacement parts may not be readily available .
Controls and equip­
ment Safety first Vehicle operation
•
Navigation systems for vehicles built for the U.S.A . and Canada
wil l not necessarily work in Europe, and may not work in other coun ­
tries outs ide o f North America.
0 Note
Audi cannot be responsible fo r mechanica l damage that could
resu lt from inadequate fuel, service or parts availability. •
Audi Service Repair Manuals and
literature
Audi Official Factory Service Manuals are published as soon as
poss ible after model introduction . Serv ice manuals are ava ilab le
from :
Audi Technical Literature Ordering Center
Call toll -free :
Te l.:
1 (800) 544-8021
(from 8:00 AM to 8 :00 PM, EST, Monday through Friday)
or access their website
www .audi .dd sltd .com on the Internet to
order repair manuals and other Aud i literature .•
Maintenance
Gen era l
Your vehicle has been designed to he lp keep maintenance require ­
ments to a minimum . However, a certain amount of regular mainte ­
nance is sti ll necessary to assure your veh ic le's safety, economy and .,
Vehicle care Do-it-yourself service Tec hn ica l da ta

___ C_ o_n_ s_ u_m _ e_ r_ ln_ f_ o _r _m _ a_ t_ i_o _n ______________________________________________ _
reliability. For detailed vehicle maintenance consult your Warranty &
Maintenance book let.
Und er di ffi cult ope rating cond ition s, for example at extremely low
outside temperatures, in very dusty regions, when towing a trailer
very frequen tly, etc., some service work shou ld be performed
between the intervals specified. This applies particularly to:
• oil changes, and
• cleaning or replacing the air filter.
By regularly maintaining your vehicle, you help make sure that emis­
sion standards are maintained, thus minimizing adverse effects on
the environment. •
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated fuel injection and
emission control systems, and the general ly increasing technical
complexity of today's automobi les, have steadi ly reduced the scope
of maintenance and repa irs which can be carried out by vehicle
owners.
Al so, sa fety a nd e nvironment al concerns p lace very strict
limi ts on the na ture of repairs a nd adjustments to engine and trans ­
mission parts which an owner can perform.
Maintenance, adjustments and repairs usually require special tools,
testing dev ices and other equipment ava ilable to specially trained
workshop personnel in order to assure proper performance, reli ­
ability and safety of the vehicle and its many systems.
Improper maintenance, adjustments and repairs can impair the
ope ration and re liability of your vehic le and even void your vehic le
warranty. Therefore, proof of servicing in accordance with the main­
tenance schedu le may be a condition for upholding a pos sible
warranty claim made within the warranty period. Above all, operational safety can be adversely affected, creating
unnecessary r isks for you and your passengers .
If in doubt about any servicing, have it done by your authorized Audi
dea ler or any other properly equipped and qualified workshop. We
strongly urge you to give your authorized Audi dealer the opportu­
nity to perform all scheduled maintenance and necessary repairs.
Your dealer has the fac ilities, origina l parts and trained spec ial ists
to keep your vehicle running proper ly.
P e rforming limited maint ena nce your self
The following pages describe a lim ited number of procedures which
can be performed on your vehicle wi th ordinary too ls, should the
need arise and trained personnel be unavai lab le. Before performing
any of these procedures, a lways thoroughly read all of the appli ­
cable text and carefu lly follow the instructions given. Always rigor ­
ously observe the
WARNINGS provide d.
Before you che ck anything in th e eng ine compartment , always read
and heed all WARNINGS~
& and~ & in "Working in the engine
compartment" on
page 271.
& WARNING
• Serio us per sonal injur y may oc cur a s a re sult of improperly
performed maintenan ce , adjustment s or repair s.
• Alway s be e xtremely careful when working on the vehi cle .
Alway s follow commonly accepted s afety pra ctice s and general
c ommon sen se . Ne ver ri sk p ers onal injury .
• Do not attempt any of the maintenan ce , check s or repair s
de scr ibed on the follo wing page s if you are not full y familia r with
the se or other procedure s with respect t o the vehicle , or are uncer ­
tain ho w to pr oceed .
• Do not do any work without the proper tool s and equ ipment .
Ha ve the ne cessa ry work done by your authorized Audi deale r or
another properly equipped and qu alified work shop .
~

___ C_ o_n_ s_ u_m _ e_ r_ ln_ f_ o _r _m _ a_ t_ i_o _n ______________________________________________ _
& WARNING (con tinued)
men t zo nes. Doin g s o w ill in cre ase the r isk of injury if airb ags are
t rigg ered in an accid en t!
• Before you che ck anything i n the e ngine co m partment , always
re ad and heed all WARN IN GS
~ page 263.
0 Note
• If items other than genuine Audi spare par ts, add-on equipment
and accessory items are used or if repair work is not performed
according to specified methods, this can resu lt in severe damage to
your vehicle 's engine and body (such as corrosion) and adverse ly
affect your vehicle's warranty .
• If emergency repairs must be performed elsewhere, have the
vehic le examined by an authorized Audi dealer as soon as possible.
• The manufacturer cannot be held liable for damage which occurs
due to fai lure to comply w ith these stipu lations. •
Technical Modifications
Our guidelines must be c omplied with when technical
modifi cations are made.
Always consult an authorized Audi dealer before starting work on
any modifications.
This will he lp ensure that vehicle function, performance and safety
are not impaired ~& .
Attempting to work on e lectronic components and the software
used with them can cause malfunctions. Because of the way e lec­
tronic components are interconnected with each other, such
malfunctions can also have an adverse affect on other systems that
are not directly involved . This means that you risk both a substantial
reduction in the operational safety of your vehicle and an increased
wear of vehicle parts~& . Authori
zed Audi dealers will perform this work in a professiona l and
competent manner o r, in special cases, refer you to a professiona l
company that specializes in such modifications .
& WARNING
Improper r epair s and m odifica tion s can ch ange th e way veh ic le
syst ems w ork and cau se seri ous per sonal inju ry .
0 Note
If emergency repairs must be performed elsewhere, have the
vehicle examined by an authorized Audi dea ler as soon as
possible. •
Declaration of Compliance,
Telecommunications and Electronic
Systems
Radio Frequency Devices and Radiocommunication
Equipment User Manual Notice.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment.
D ev ices
The fol lowing devices each comply with FCC Part 15.19, FCC Part
15.21 and RSS -Gen Issue 1:
• Adaptive cruise control*
• Convenience key*
• Audi side assist*
• Cell phone package*
• Electronic immobilizer
• Homelink ® universal remote control *

_______________________________________________ C _o_ n _ s_u _ m_ e_ r_l_n _f_o _ r_ m_ a_ t _i _o _ n __ lllll

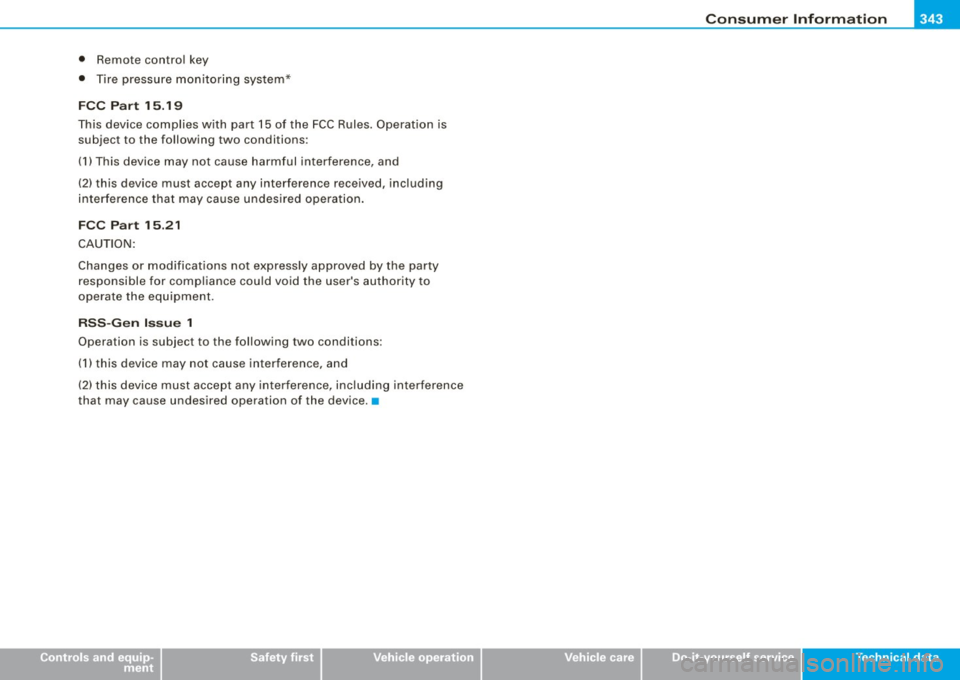

• Remote control key
• Tire pressure monitoring system*
FCC Part 1 5.1 9
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation .
FCC Part 1 5.21
CAUTION:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
RSS-Gen Issue 1
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device. •
Controls and equip­
ment Safety first Vehicle operation
Vehicle care Do-it-yourself service Tec hn ica l da ta

ffl Alphabetical index ----=------...:..:...::... ___________________________ _
Electronic immobilizer .... ...... ... 11, 41
Electronic power contro l
(EPC) warning/indicator light .. .... .. 13
Electronic stabilization program (ESP) How the system works . . . . . . . . . . . . 234
Warni ng/indicator lights ........... 13
Emergency braking .... ..... .. ...... 114
Emergency flasher . . . . . . . . . . . . . . . . . . . 57
Warning/indicator lights ........... 14
Emergency key . . . . . . . . . . . . . . . . . . . . . . 38
Starting engine .... ....... ........ 41
Emergency locking of the doors ........ 47
Emergency release Selector lever . . . . . . . . . . . . . . . . . . . . 154
E . mergency starting . . . . . . . . . . . . . . . . . 326
Emergency towing .................. 329
Emergency un locking
Ignition key ...... .... .... .... .... 40
Energy management ...... ... ... .... 241
Battery power . . . . . . . . . . . . . . . . . . . 242
Driver notification . . . . . . . . . . . . . . . . 242
Engine Compartmen t ........ ...... . .. .. 272
Coolant .. .... ..... ... ... .... .... 277
Hood ...... ........... ....... ... 270
Starting .................. ...... 108
Starting with jumper cables ....... 326
Stopping ....................... 109
Engine compartment Safety instructions . . . . . . . . . . . . . . . 271
Working the engine compartment .. 271
E . I ngme coo ant system .... ... ... .. ... 277
Adding coolant ... .... ...... ..... 279
Checking coo lant level .. .... .... .. 278
Check ing the engine coolant level .. 278
Malfunction ......... .... ......... 30
Radiator fan ...... .... .... .... ... 280
Engine coolant temper.ature
Temperature gauge ...... .... ..... . 8
Engine data .. ................ ...... 337
Engine hood Closing .. .... .... ... .. .... ...... 271
How to release the hood . . . . . . . . . . 270
Engine oil .......................... 273
Adding ......................... 275
Additives .. ....... .... ...... .... 275
Changing . .... .... .... .... .... .. 276
Check oil level ............. ...... 275
Consumption ... .. ............ ... 275
Oil consumption ................. 274
Oil grades ... .. ...... .... ... .. ... 273
Specification and viscosity ...... .. 273
Engine oil level ...................... 36
Engine oil pressure Malfunction .. .... ....... ......... 31
Engine oil sensor defective ............ 36
Engine speed limitation ............... 36
Environment Break -in period .... ........ ...... 243
Catalytic converter ........ ....... 244
Disposing of your vehicle battery ... 285
Driving at high speeds .... ... .. ... 246
Driving to minimize pollution and noise 245 Fuel ..
...... ... .. . ... .... .... ... 267
Fuel economy ... ....... .... ...... 245
Leaks under your vehicle ....... ... 271
Letting the vehicle stand and warm up ..
246
Proper disposal of drained brake fluid
281
Proper disposal of drained engine coolant ... .. ...... ... .. ... .... . 279
Proper disposal of drained engine oil ....
275 ,276
Recycling used engine oi l ...... ... 275
Unleaded fuel ........ .... .... ... 265
What should I do with an old battery?
285
Environmental note Rear window defogger .. ....... 95, 102
Roof rack ... ... .. .. .. .... .... .... 85
EPC See Electronic power control .... .... 13
ESP See Electronic stabi lization program
(ES P) ... ......... ... ............ 13
Event Data Recorder (EDR) ............ 234
Expansion tank ..................... 278
Eyeglasses compartment .............. 89
F
Fan
Deluxe automatic c limate control .... 93
Deluxe automatic climate control plus ...
100
Radiator ........ ... .. .... .... ... 280

Alphabetical index -
-------------=----
Torn or frayed safety belts . . . . . . . . . . . . 182
Touch -up pain t ..... .... .... .... .... 256
Towing Front eyelet .. .... .... ... .... .... 329
Rear eyelet ... ................... 330
Tow truck procedures .. ...... .... . 329
TPMS Tire pressure monitoring system ... 307
Trailer towing ... .... .... ........ ... 248
Operating instructions .... ... .... . 248
Technical requirements ...... . 248, 249
Tips .... ... ... ... .... ..... .. .... 250
Transmission .. ...... .... ...... .... . 147
6 -speed manual transmission ...... 147
tiptronic ... .. .... .... ........... 147
Transport Canada .... ....... .... .... 178
Tread Wear Indicator (TWI) .. .... .... . 297
Trip computer Fuel consumption .... ... .... .... .. 23
Mileage .... ... .. .... .... ...... ... 23
Single -trip memory . ...... ...... ... 24
Total -trip memory .. ...... ...... ... 24
Trip odometer ... ...... ........ .... .. 11
Trunk See Rear lid .. .... .... .... ... .... .. 47
Trunk escape handle .... ... .... .... . 310
Trunk pass-through ... ... .. .... .... .. 83
Turn signals . .... .... .... .... .... .... 58
Warning/indicator lights ............ 14
u
Undercoating ........... .... ..... .. . 258
Controls and equip­
ment Safety first
Unfastening safety belts
... .. ... ..... 186 Electronic power control . ...... ..... 13
Unidirectiona l tires ....... .... ....... 287 Electronic stabilization program (ESP) 13
Uniform tire quality grading .......... 303 High beam
.... ....... .... ...... .. 15
Unlocking Power locking switch ..... .... .... . 46 Malfunction Indicator Lamp (MIU ..
.. 15
Safety belt .... .... .... ............ 14
Rear lid/trunk lid . ..... ....... .... . 47 Tire pressure
monitoring system ..... 14
Remote control key .......... ...... 43 Turn signals
...... .... .... .... .... 14
Using the mechanical key . ...... .. .. 45 Warranty coverages ...
... .. ... .... . . 339
Use of jumper cables .... .... ...... .. 327 Washer
reservoir ... .. .... ...... .... . 286
Washing ........................... 252
V Automatic car wash ....... ........ 253
by hand .... ... .. .... .... .... .... 253
Valet parking ... ....... ...... ..... .. . 50
General information ...... .... .... 252
Vanity mirror .... ... ........ .... .... . 60 with a power
washer ...... .... .... 254
Vehicle Identification !Number (VIN) .... 334 Waxing
............................ 255
Vehicle jack .... ....... ...... .... ... 315 Wear indicator .................. .... 297
Vehicle literature .... .. . .. .. ...... ... .. 4 Weatherstrips ........... .... ....... 257
Vehicle tool kit ... ... ..... ... .... .... 31
O Weights .. ..... .. .... .... ...... ..... 335
Vehicle-care products ...... .... ... .. . 252 What happens if you wear your safety belt too
Venti lation loose? ... ... .... .... .... .... ... 184
Deluxe automatic c limate control .... 90 What happens to unbelted occupants? . 181
Deluxe automatic climate control plus 96 What impairs driving safety? .......... 169
What should I do after changing a wheel? ..
W 294
What should I do after replacing whee ls?
Warning lights . ........ ... ........ ... 12 294
Warning/indicator lights . .... .... ....... 8 Wheel bo lts
Adaptive cruise contro l .. .. ........ 125 Torque .... ... .... ....... .... .... 305
Airbag system .... .... ........ .... 14 Wheels .. ........ .... ..... .. ...... . 287
Anti-lock brake system (ABS) ... ..... 15 cast a lloy . .... ........ .... .... ... 258
Brake system ... ... .. .... .. .. .... . 16
Checking tire pressure ............ 293
Cruise control .... ... .... .... .... .. 15
Cold tire inflation pressure . .... .... 291
Elec tromechanica l parking brake .... 16
General notes .. .... ..... .. ...... . 287
Vehicle operation Vehicle care Do-it-yourself service Technical data
