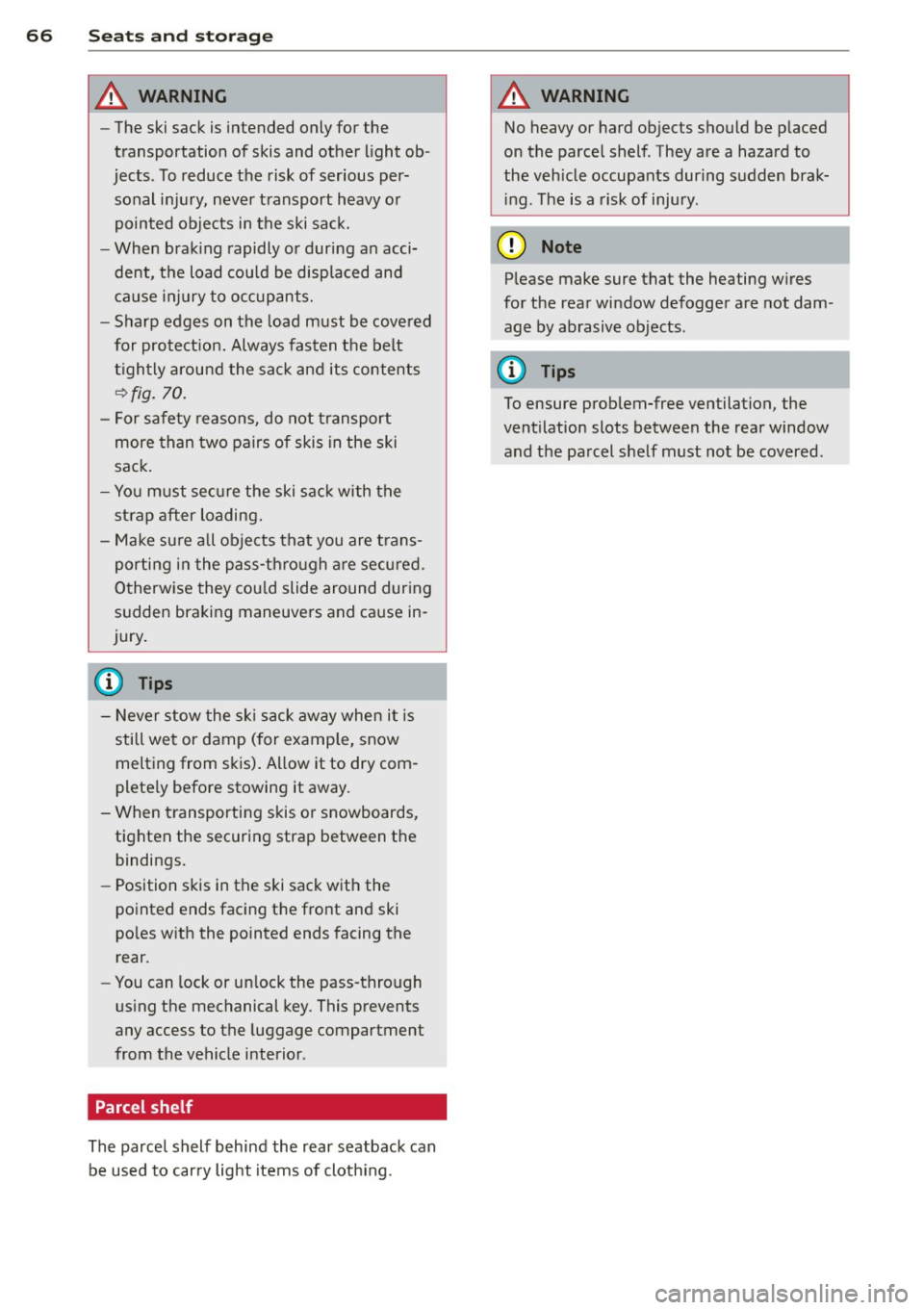

66 Seat s a nd s tor ag e
8_ WARNING
-
- The ski sack is intended only for the
transportation of skis and other light ob ­
jects . To reduce the risk of serious per­
sonal injury, never transport heavy or
pointed objects in the ski sack.
- When brak ing rapidly or during an acci­
dent, the load could be displaced and
ca use injury to occupants.
- Sharp edges on the load must be covered
for protect ion. Always fasten the belt
t ightly around the sack and its contents
¢ fig. 70.
-For safety reasons, do not transport
more than two pairs of skis in the ski
sack .
- You must sec ure the ski sac k with the
st rap after loading.
- Make su re a ll objects that you are t rans­
porting in the pass-through are secured.
Otherwise they cou ld slide around during
sudden braking maneuvers and cause in­
jury.
(D Tips
- Never stow the sk i sack away when it is
still wet or damp (for examp le, snow
melting from skis). Allow it to dry com­
plete ly before stowing it away.
- When transporting skis or snowboards, tighten the securing strap between the bindings.
- Position skis in the ski sack wit h the
pointed ends facing the front and ski
po les with the pointed ends facing the
rear.
- You can lock or un lock the pass-through
u sing the mechanical key. This prevents
any access to the luggage compartment
from the vehicle interior .
Parcel shelf
The parcel shelf behind the rear seatback can
be used to car ry light items of cloth ing .
8_ WARNING
No heavy or hard objects should be p laced
on the parcel shelf. They are a hazard to
the veh icle occupants during s udden brak­
i ng . The is a risk of injury .
(D Note
Please make sure that the heating w ires
for the rear window defogger are not dam ­
age by abrasive objects .
(D Tips
To ensure problem-free ven tilation , the
vent ilation slots between the rear window
and the pa rcel she lf must not be covered .

switching recirculation mode on when driving
through a tunnel or when sitting in traffic
c::>_& .
The IAU TO I button or I@ FR ON T I button
switches recircu lation mode off .
IAUTO I Switching automatic mode on
Automatic mode ma inta ins a constant tem­
peratu re inside the vehi cle. Air temperature,
a irflow and air d istribution are controlled au­
tomatically.
Adjusting th e tempe ratur e
Temperatures between 60 °F (+16 °C) and
84 °F ( +28 °C) can be set . Outside of this
range,
L O or HI will appear in the cl imate con­
trol system disp lay. At both of these settings,
the climate control system runs continuously
at maximum cooling or heating power . There
is no temperature regu lation.
~ Ad just ing the airflow
You can adjust the airflow manually to su it
your needs . To have the airflow regulated au­
tomatically, press the IAUTO ! button.
~Adjusting the air distribution
You can manually se lect the vents where the
a ir will flow. To have the air d istr ibution regu­
l ated automatically, press the
IAU TOI button .
~ Adjusting seat heat ing *
Pressing the button switches the seat heating
on at the highest sett ing (level 3). The LEDs
indicate the temperature leve l. To reduce the
temperature, press the button again . To
switch the seat heating off , press the button
repeatedly unt il the L ED turns off.
After 10 minutes , the seat heat ing automati­
cally switches from level 3 to level 2.
I @ FRON T I Switch the d efro ster on /off
The windshield and s ide windows are defrost­
ed or cleared of condensation as quickly as
possible. The max imum amount of air flows
mainly from the vents below the windsh ield.
Recirculation mode switches off . T he tempera­
ture is controlled a utomat ica lly.
Warm and c old 69
The !AUTO ! button switches the defroster off.
lmn R EAR ! Switching rear window heater
on /off
T he rea r window heater on ly operates when
the engine is running. It sw itches off auto ­
matically after a few m inutes, depending on
the outs ide temperature .
T o p reven t the re ar window heater from
switching off automatically, press and hold
the
l oo REARI b utton for more than 2 seconds .
This remains stored until the ign ition is
switched off .
Air vents
You can open and close the center and rear air
vents using the thumbwheels . The levers ad­
just the direction of the airflow from the
vents.
In vehicles with a 3 -zone deluxe automatic cli­
mate control system*, you can adjust the air
temperature in the rear by turning the thumb­
whee l toward the red side to make it warmer
or toward t he blue side to make it coo ler.
A WARNING ...
- Do not use the recircu lation for extended
pe riods of time . The windows could fog
up since no fresh a ir can enter the vehi­
cle .
If the windows fog up, press the air
reci rculation button aga in immediately
to switch off the air reci rc u lation func­
tion or se lect defrost .
- I ndividuals w ith red uced sensitivity to
pa in or temperature cou ld deve lop burns
when using t he seat heating function. To
red uce the risk of injury, these individu­
a ls shou ld not use seat heating.
(D Note
To avoid damage to the heat ing e lements
i n the seats, do not kneel on the seats or
place heavy loads on a small area of the
seat.

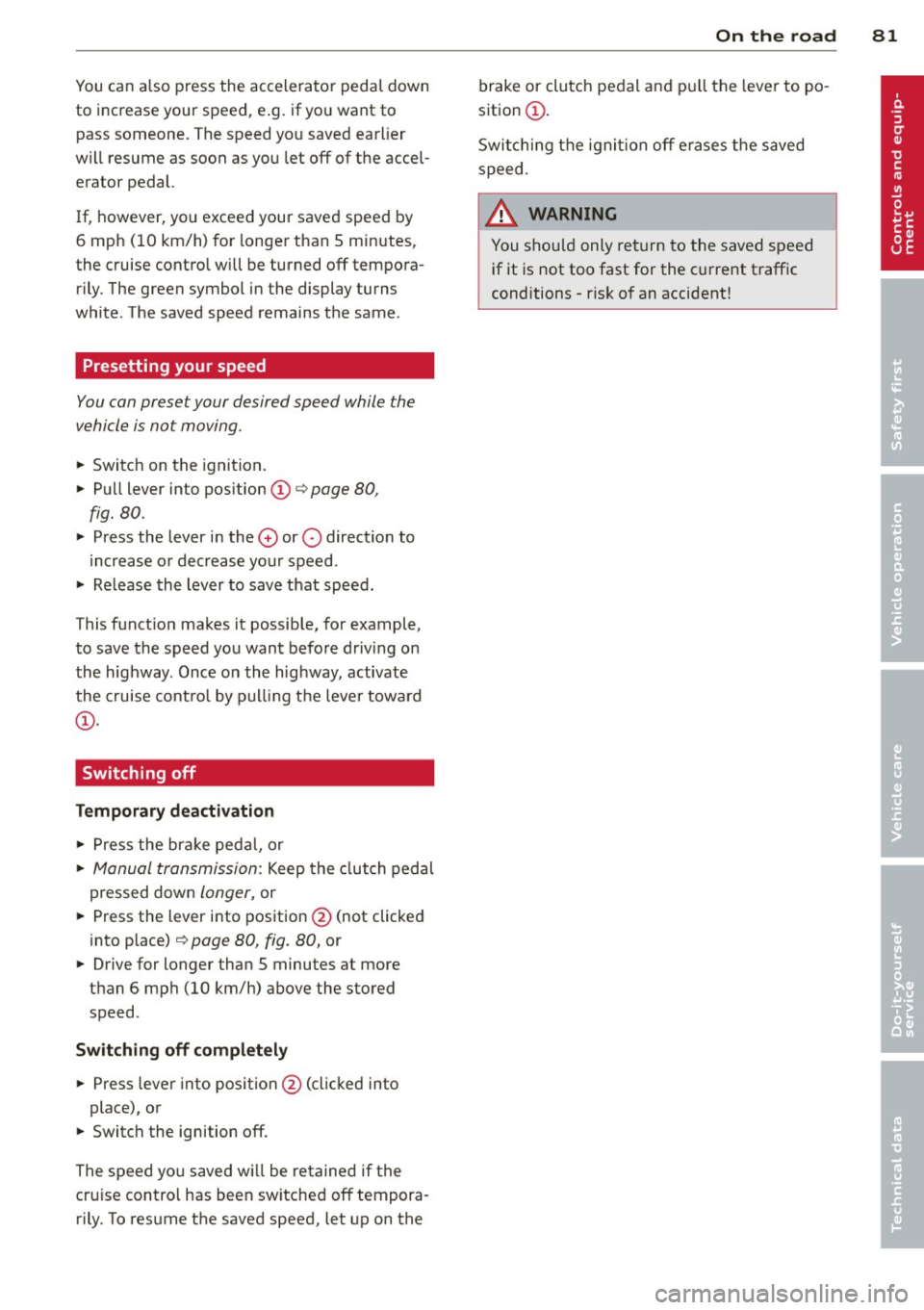

You can also p ress the accelerator pedal down
to increase your speed , e .g. if you want to
pass someone. The speed yo u saved earlier
will resume as soon as you let off of the accel­
erator pedal.
If, however, you exceed your saved speed by
6 mph (10 km/h) for longer than 5 min utes,
the cruise control will be turned off tempora­ rily. The green symbol in the display turns
white . The saved speed remains the same .
Presetting your speed
You can preset your desired speed while the
vehicle is not moving.
" Switc h on the ignition.
" Pull lever into pos ition
(D c> page 80,
fig. 80.
" Press the lever in the 0 or O direction to
i ncrease o r decrease yo ur speed .
" Re lease the lever to save that speed .
This funct ion makes it possible, for example,
to save th e speed you want before driving on
the highway . Once on the highway, activate
the c ruise cont ro l by pulling the leve r towa rd
(D .
Switching off
Temporary deactivation
" Press the brake ped al, or
" Manual transmission : Keep the clut ch pedal
pressed down
longer, or
" Press the lever into pos ition @ (not clicked
into p lace)
¢ page 80, fig. 80, or
" Drive for longer than S minutes at more
than 6 mph (10 km/h) above the stored
speed .
Switching off compl ete ly
" Press lever into position @(clicked into
place), or
" Switc h the ignition off.
The speed yo u saved wi ll be retained if the
cru ise control has been switched off tempora ­
rily. To resume the saved speed, let up on the
On th e ro ad 81
brake or clutch pedal and p ull the lever to po ­
sition
(I) .
Swi tc hi ng the ignit ion off e rases the saved
speed.
A WARNING ~
You shou ld only ret urn to the saved speed
if it is not too fast for the current traffic
conditions -risk o f an accident!

88 Transmission
Emergency release of the selector lever
App lies to vehicles: with tiptronic
If the vehicle's power supply foils, the selec­
tor lever con be released in on emergency.
Fig. 88 Removing ashtray insert
Fig. 89 Emergency release for selector lever
The emergency release is located under the in­
sert for the ashtray.
.. Slide open the cover for the ashtray.
.. Release the ashtray by push ing the switch
@¢fig. 88 to the right.
.. Remove the ashtray insert@.
.. Now you can see a small cover in the ash­
tray holder on the front of the ashtray re­
cess.
.. Re lease and remove this cover .
.. You now have access to a bolt. Using a
screwdriver or similar, press the bolt down
and hold it down ¢
fig. 89.
.. Now press the interlock and move the selec-
tor lever to the N pos ition .
The selector lever can only be moved from the
P position if the ignition key is in the lock and
the ignition is turned on. If the vehicle has to
be pushed or towed if the power supply fa ils
(e.g. battery is discharged), the selector lever
must first be moved to the N position using
the emergency locking device.
S tronic ®
Introduction
Applies to vehicles: with S tronic transm ission
Your vehicle is equipped with an electronical­
ly-controlled manual transmission called S
tronic ®. Two independent clutches transfer
the power between the engine and transmis­
sion . They rep lace the torque converter used
in conventional automatic transmissions and
allow the vehicle to accelerate without a no­
ticeable interruption in traction.
You can also shift the gears
manually using
tiptronic , if you like ¢ page 92.
Selector lever positions
Applies to vehicles: wit h S t ronic tra nsmi ssio n
Fig. 90 Display: Se lector lever posit ions
The instrument cluster display shows the cur­
rent se lector lever position and current gear .
P -Park
The wheels are mechanically locked in this po­
sition. You can only shift into Park when the
vehicle is
stationary ¢ /1. .
To shift in and out of P, press the interlock
button in the selector lever
while press ing the
brake pedal.
R - Reverse
Only shift into reverse gear when the vehicle is
stationary and the engine is running at idle
speed ¢
/1..
To select R, press the interlock button while
pressing the brake pedal. The back-up lights
switch on in the R position if the ignition is
switched on .

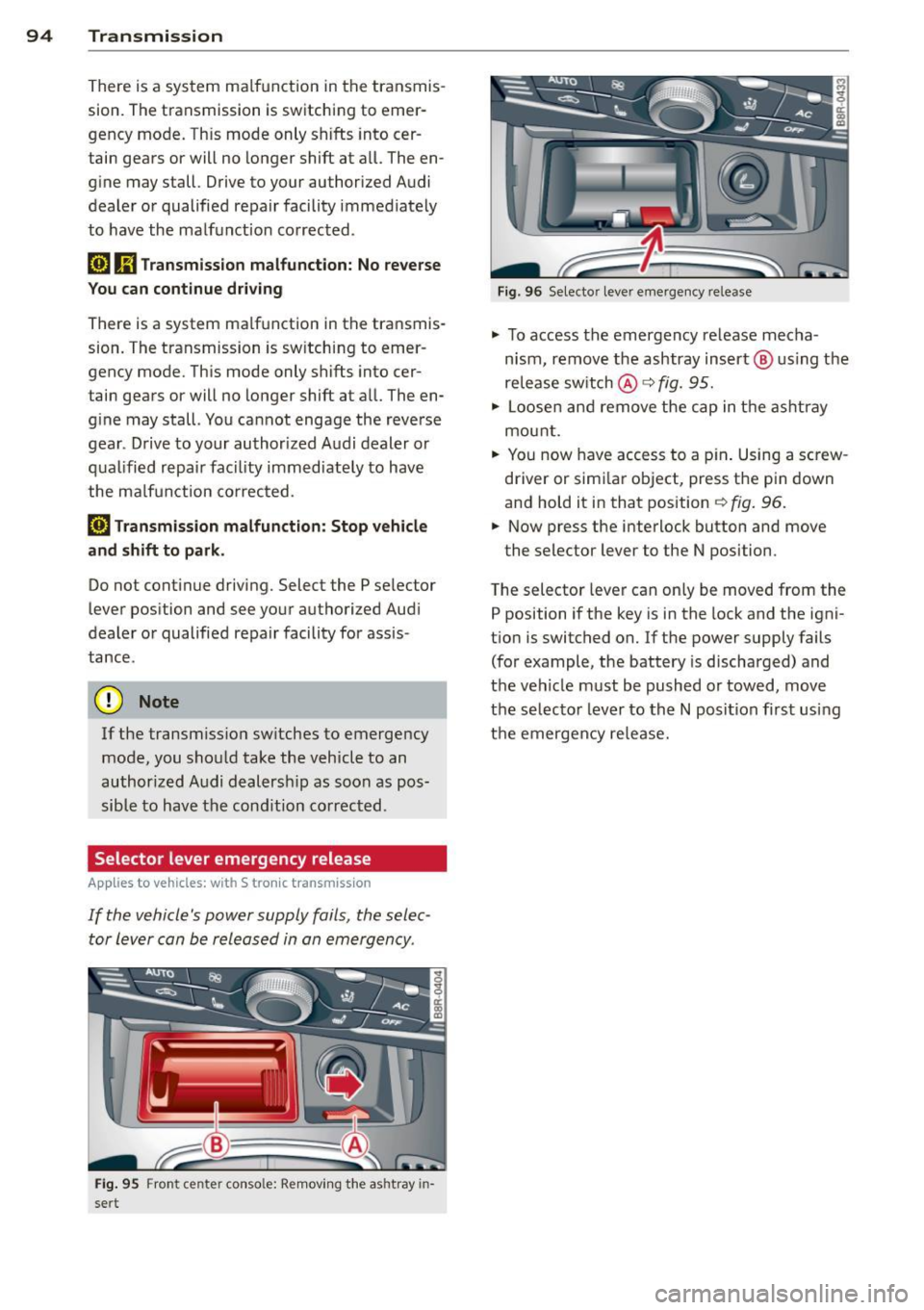

94 Transmi ssion
There is a syste m ma lf un ction in t he tr ansmis­
sion. The transm ission is switching to emer­
gency mode. Th is mode only sh ifts into cer­
tain gears or will no longer shift at all. The en­
gine may stall. Drive to your authorized Audi
dealer o r qualified repair facility immediately
to have the malfunction co rrected .
[O] Ii) Transmi ssion malfunct ion: No re verse
You can conti nue d riving
There is a system ma lf u nction in the transmis­
sion. The transmission is sw itching to emer­
gency mode. Th is mode only shifts into cer­
tain gears or will no longer shift at a ll. The en­
g ine may stall. You cannot engage the reve rse
gear . D rive to your authorized A udi dealer or
qua lified r epai r faci lity immediate ly to have
the ma lf u nction co rrec ted .
[O] Tran smission malfunct ion : Stop veh icle
and shift to park .
Do not continue driving. Select the P se lector
lever pos ition and see your authorized Audi
dealer o r qualified repair facility for assis ­
tance.
({D Note
If the transmiss io n sw itches to emergency
mode, you sho uld take the vehicle to an
author ized Audi dealersh ip as soon as pos­
sib le to have the cond ition co rrected.
Selector lever emergency release
App lies to vehicles: with S tronic tr ansmiss ion
If the vehicle's power supply fails , the selec ­
tor lever can be released in an emergency .
Fig. 95 Fron t cen te r con so le: Remov ing the ashtray in­
sert
F ig. 96 Selec to r lever eme rge ncy re lease
"' To access the emergency re lease mecha ­
n ism , remove the ashtray insert @ us ing the
release switch @q
fig. 95.
"' Loosen an d remove the cap in t he asht ray
mou nt.
"' Yo u n ow have access to a p in . Using a sc rew­
driver or simi la r object, press the pin down
and hold it in that position
¢ fig . 96.
"' Now press the i nterlock button and move
the selector lever to the N posi tion .
T he selector lever can only be moved from the
P position i f the key is in the lock and the igni­
t ion is switched on. If the power supply fails
(for example, the battery is discharged) and
t h e veh icle must be pushed or towed, move
the selecto r lever to th e N position fi rst usi ng
the emergency re lease.

Audi adaptive cruise control and braking guard 95
Audi adaptive cruise
control and braking
guard
Introduction
App lies to vehicles: with Audi adaptive cruise co ntrol
The adaptive cruise control system assists the
driver by regu lating vehicle speed and helping
to maintain a set distance to the vehicle
ahead, within the limits of the system . If the
system detects a moving vehicle up ahead,
adaptive cruise control can brake and then ac­
celerate your vehicle. This he lps to make driv­
ing more comfortable on long highway
stretches.
The braking guard system can warn you about
an impending collision and initiate braking
maneuvers
c::;, page 101.
Adaptive cruise control and braking guard
have technical limitations that you must
know , so please read this section carefully, un­
derstand how the system works and use them properly at all times.
General information
General information
Applies to vehicles: with Audi adaptive cruise control
Fig. 97 Front of the veh icle: Pos ition of radar sensor
The area that contains the radar sensor
c::;, fig. 97 must never be covered by st ickers or
other objects or obstructed with dirt, insects,
snow or ice that will interfere with the adap­
tive cruise control system and Audi braking
guard. For information on cleaning, refer to
c::;, page 202. The same applies for any modifi­
cations made in the front area . The
function of the adaptive cruise contro l
system and braking guard is limited under
some cond itions:
- Objects can only be detected when they are
within sensor range
c;,page 97, fig . 100 .
-The system has a limited ability to detect
objects that are a short distance ahead, off
to the side of your vehicle or moving into
your lane.
- Some kinds of vehicles are hard to detect;
for examp le motorcycles, vehicles with high
ground clearance or overhanging loads may
be detected when it is too late or they may
not be detected at all.
- When driving through curves
c::;, page 96.
-Stationary objects c::;, page 96 .
A WARNING
-Always pay attention to traffic when adap-
tive cruise control is switched on and brak­ ing guard is active. As the dr iver, you are
still responsible for starting and for ma in­
tain ing speed and distance to other ob­
jects. Braking guard is used to assist you.
The driver must always take action to avoid
a collision. The driver is always responsible
for braking at the correct time.
- Improper use of adaptive cruise con trol
can caus e collisions, other accidents and
serious personal injury .
- Never let the comfort and convenience
that adaptive cruise control and Audi
braking guard offer distract you from the
need to be alert to traff ic conditions and
the need to remain in full control of yo ur
veh icle at a ll times,
- Always remember that the adaptive
cru ise contro l and Aud i brak ing guard
have lim its -they will not slow the vehi­
cle down or maintain the set d istance
when you drive towards an obstacle o r
someth ing on or nea r the road that is not
moving, such as vehicles stopped in a
traffic jam, a stalled or disabled vehicle.
If registered by the radar sensor, vehicles
or obstacles that are not moving can
trigger a collision warning and if .,.

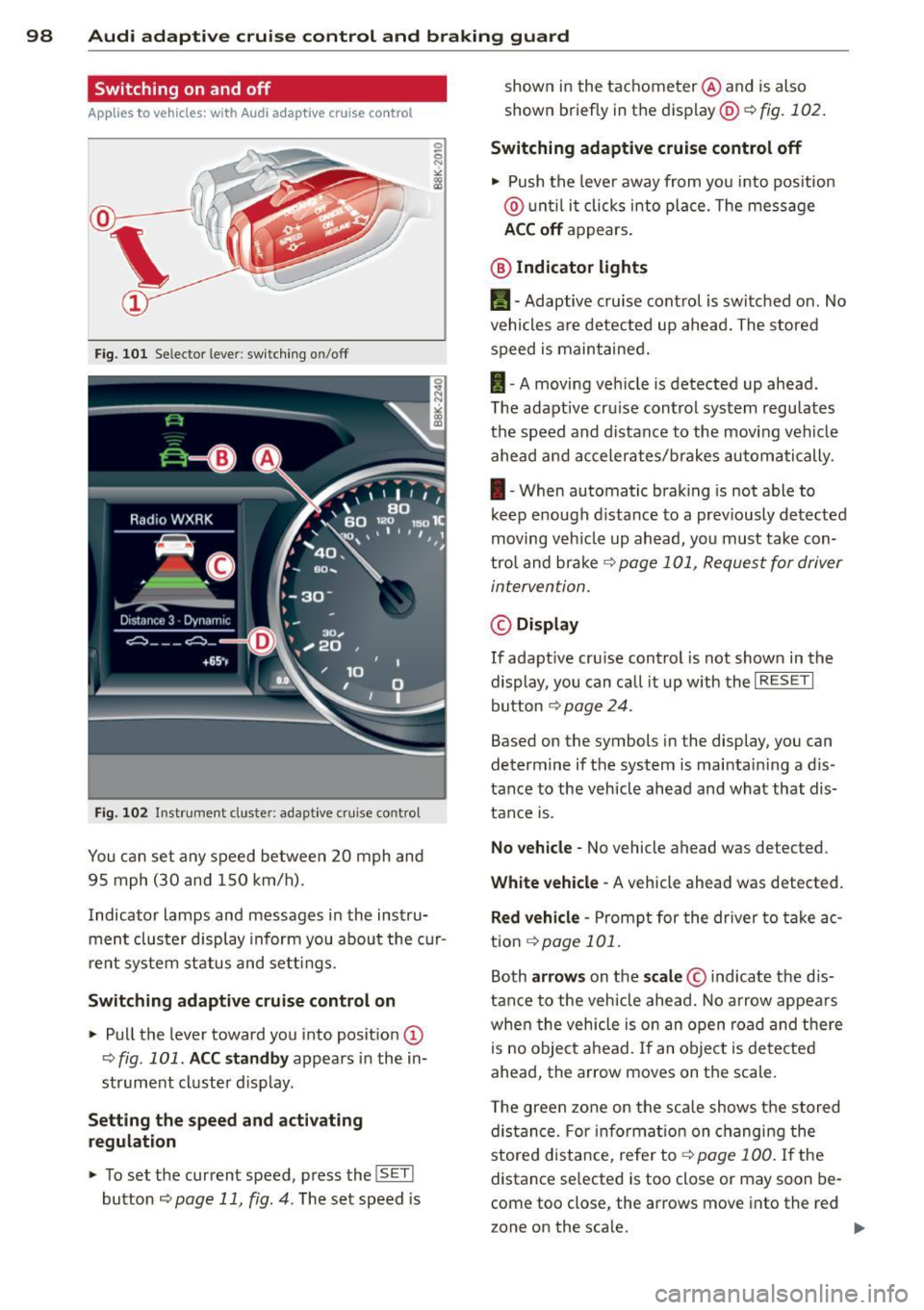

98 Audi adaptive cruise control and braking guard
Switching on and off
Applies to vehicles: with Audi adaptive cruise co ntrol
Fig. 101 Selec tor lever: switching on/off
Fig . 102 Instrument clus te r: adap tive cru ise control
You can set any speed between 20 mph and
95 mph (30 and 150 km/h).
Indicator lamps and messages in the instru­
ment cluster display inform you about the cur­
r ent system status and settings.
Switching adaptive cruise control on
.. Pull the lever toward you into posit ion @
-:>fig . 101 . ACC standby appears in the in­
strument cluster d isplay .
Setting the speed and activating
regulation
.. To set the current speed , press the ISET !
button r:::> page 11 , fig. 4. The set speed is shown in the tachometer
@and is also
shown briefly in the display@r:::>fig.
102.
Switching adaptive cruise control off
.. Push the lever away from you into pos itio n
@ unt il it clicks into place. The message
ACC off appears.
@ Indicator lights
II-Adaptive cruise control is switched on. No
vehicles are detected up ahead. The stored
speed is maintained.
I -A moving vehicle is detected up ahead .
T he adapt ive cru ise control system regulates
the speed and distance to the moving vehicle
ahead and accelerates/brakes automatically.
I -When automatic braking is not able to
keep e nough d istance to a prev iously detected
moving veh icle up ahead, you must take con­
trol and brake
r:::> page 101, Request for driver
intervention.
© Display
If adapt ive cru ise control is not shown in the
display, you can call it up w ith the
I RESET I
button r:::> page 24.
Based on the symbols in the display, you can
determine if the system is maintai ning a d is ­
tance to the vehicle ahead and what that dis­
tance is.
No vehicle -No vehicle ahead was de tected .
White vehicle -A vehicle ahead was detected .
Red vehicle -Prompt for the driver to take ac­
tion
r:::> page 101 .
Both arrows on the scale© indicate the dis­
tance to the vehicle ahead. No arrow appears
when the vehicle is on an open road and there
is no object ahead. If an object is detected
ahead, the arrow moves on the scale .
T he green zone on the scale shows the stored
distance. For information on changing the
stored distance, refe r to ~
page 100 . If the
distance se lected is too close or may soon be ­
com e too close , the arrows move into the re d
z one on the sca le.

Audi side assist Lane change assistant
Description
Applies to vehicles: with s ide assist
Fig . 108 Sensor detection range
Fig. 109 Disp lay on the exterior mirror
Side assist he lps you monitor your blind spot
and traffic behind your veh icle. W ith in the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling w ith you within sensor ra nge
(D
c::, fig . 108: if a lane change is class ified as crit­
ical, the display @ in the exterior mirror
c::> fig. 109 turns on.
The display in the left exterior mirror provides
assistance when making a lane change to the l eft, while the display in the right exter ior mir­
r or p rov ides assistance when making a lane
change to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as crit ical. The display
i n the respective mirror turns o n, but is d im.
Aud i side assist 105
The display remains d im intentionally in the
information stage so that your view toward
the front is not disturbed .
Warning st age
If you activate the turn signal, s ide assist
warns you about veh icles that are detected
and classified as critical. The display in the re ­
spective mirror blinks brightly . If this hap­
pens, check traff ic by glancing in the rearview
mirror and over your shoulder¢
A in General
information on page 106.
@ Tips
- You can adjust the brightness of the dis­
play @¢
page 107.
-Please refer to the instructions for tow­
ing a trailer located in¢
page 106.

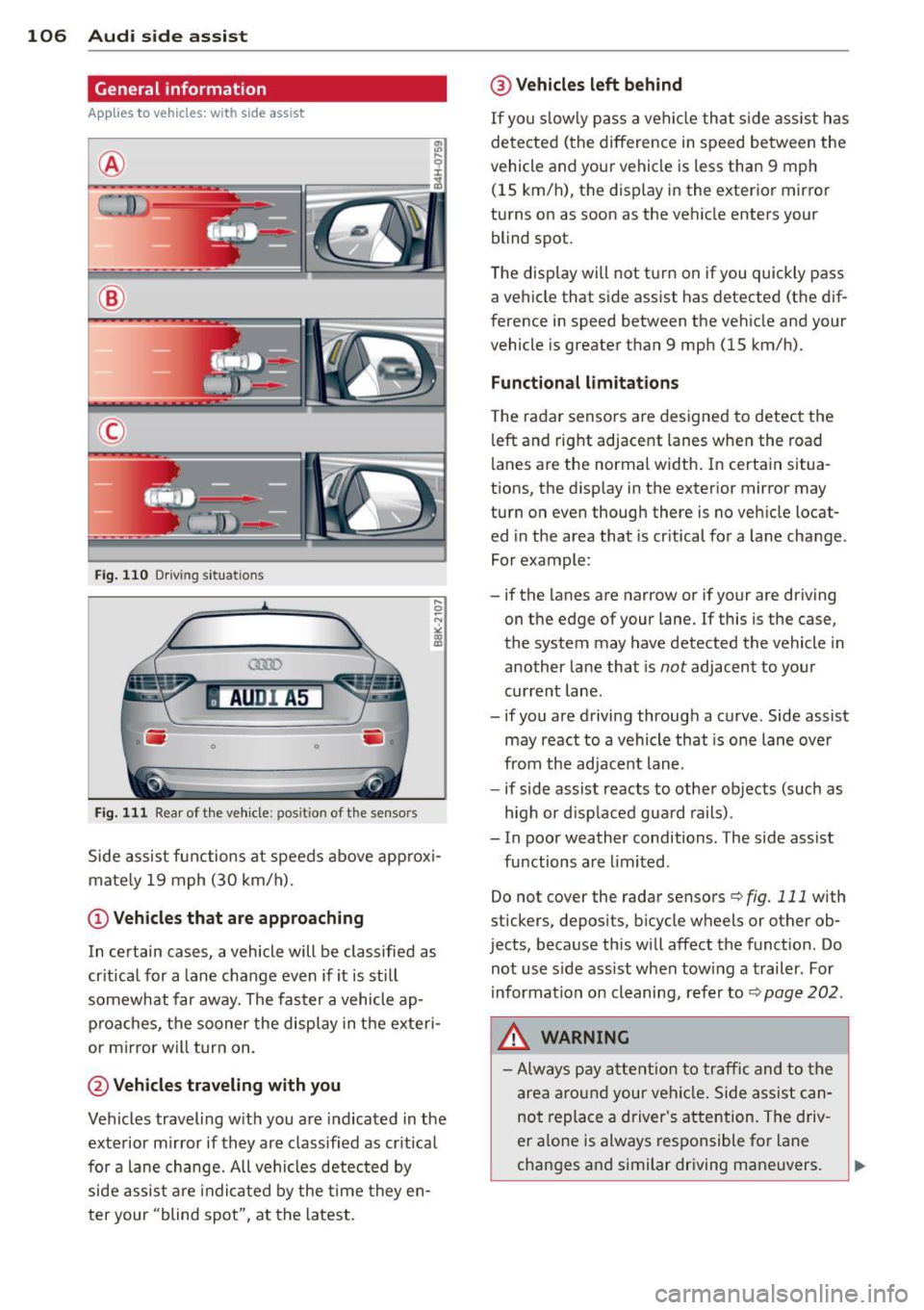

106 Audi side assist
General information
App lies to vehicles: with side assist
®
©
Fig. 110 Driving s it u at ions
AU DI A5
-~~~~-. -. . -.
F ig . 11 1 Rea r of th e ve hicle: pos it io n of t he se nso rs
Side assis t fu nctions at speeds above ap prox i­
ma tely 19 mph (30 km/h).
(D V ehicles that are approaching
In certain cases, a vehicle will be classified as
cr itical for a lane change
even if it is still
somewhat far away. The fas ter a vehicle ap­
p ro aches, the sooner the disp lay in the exteri­
or m irror will t urn on.
@ Vehicles traveling with you
Vehicles traveling w ith you are indicated in the
exterior m irror if they are classified as cr it ical
for a lane change. All vehicles detec ted by
side assis t are in dicated by the time they en­
ter your "blind spot", at the latest.
@ Vehicles left behind
If you s low ly pass a ve hicl e tha t sid e ass ist has
dete cted ( the difference in s peed between the
vehicle and you r vehicle is less than 9 mph
(15 km/h), the display in the exter ior mirror
turns on as soon as the vehicle enters your blind spot.
The display wi ll not t urn on if you quickly pass
a vehicle that s ide assist has detected (t he d if ­
f erence in speed between the ve hicle and your
vehicle is greater than 9 mph (15 km/h).
Functional limitations
T he radar senso rs are designed to detect the
left and right adjacent lanes whe n the road
l anes a re the normal width. In certain situa­
t ions, the d isp lay in the exterior mirror may
turn on even though there is no ve hicle locat­
ed in the area that is cr itical fo r a la ne cha nge.
Fo r example:
- if the lanes are narrow or if your are driving on t he edge of your lane. If this is the case,
the system may have detected the vehicle in
another la ne that is
not adjacent to you r
cur rent lane .
- if you a re driving throug h a c urve . Side assist
may react to a vehicle that is one lane ove r
from the ad jacent lane .
- if side assist reacts to other objects (such as
high or d isp laced gua rd rails) .
- In poor weather conditions. The side assist fu nctions are limited .
Do not cover the radar sensors
c::> fig. 111 with
stickers, depos its, bicycle wheels or other ob­
jects, because this will affect the funct ion. Do
not use s ide ass ist when towing a trailer . For
i nforma tion on cleaning, refe r to
c::> page 202 .
&_ WARNING
-Always pay a ttention t o traffic and to th e
ar ea arou nd your vehi cle. Side a ssist c an­
no t repl ace a driver 's atte ntion. The driv ­
er a lone is always res ponsible fo r lane
cha nges a nd similar driving maneuvers.

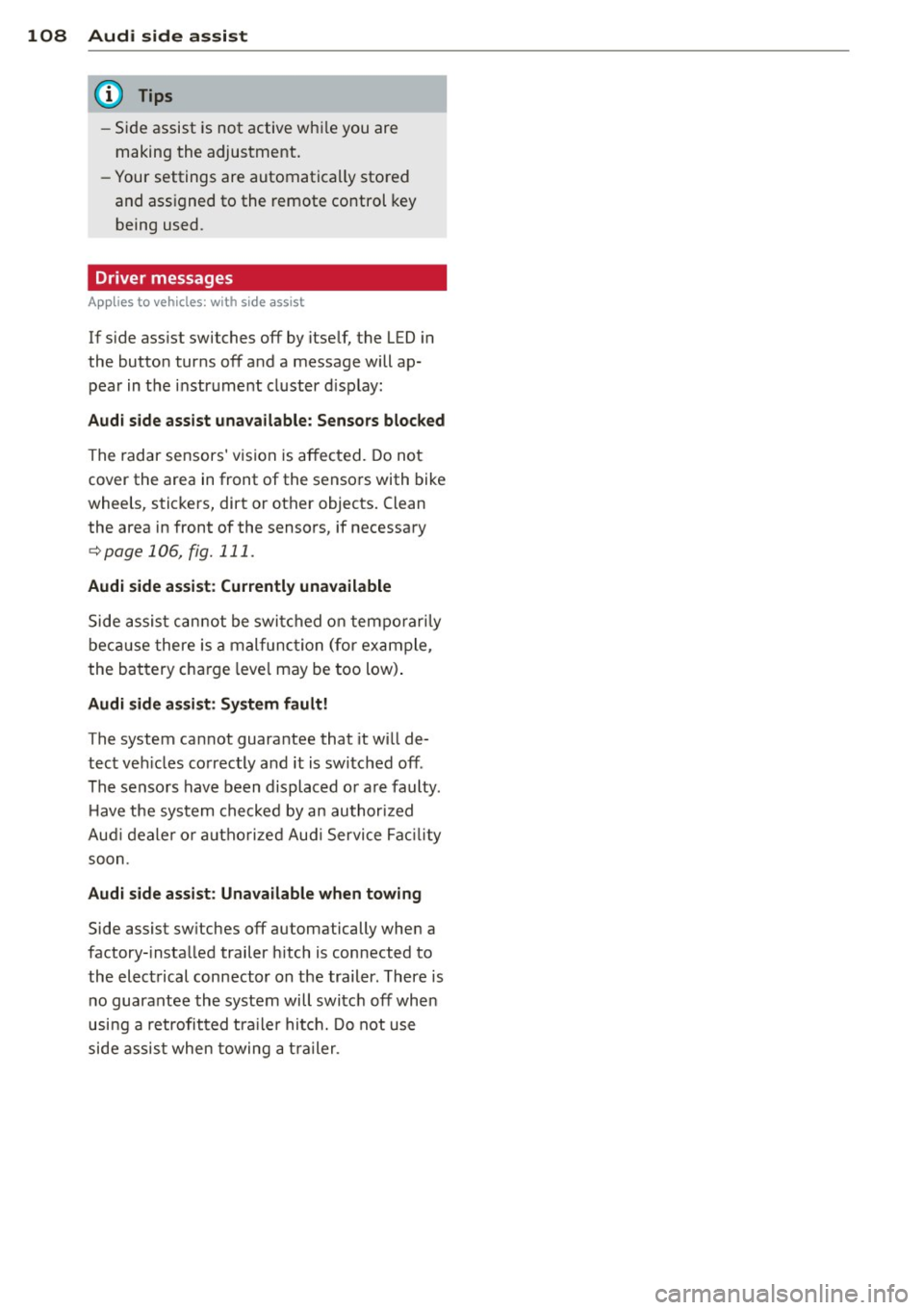

108 Audi side assist
- Side assist is not active while you are
making the adjustment.
- Your settings are automatically stored
and assigned to the remote control key
being used.
Driver messages
App lies to vehicles: with side assist
If side assist switches off by itself, the LED in
the button turns off and a message will ap­
pear in the instrument cluster display:
Audi side assist unavailable: Sensors blocked
The radar sensors' vision is affected. Do not
cover the area in front of the sensors with bike
wheels, stickers, dirt or other objects. Clean
the area in front of the sensors, if necessary
c:::;,page 106, fig. 111.
Audi side assist: Currently unavailable
Side assist cannot be switched on temporarily
because there is a malfunction (for example,
the battery charge level may be too low) .
Audi side assist: System fault!
The system cannot guarantee that it will de­
tect vehicles correctly and it is switched off .
The sensors have been displaced or are faulty .
Have the system checked by an authorized
Aud i dealer or authorized Audi Service Facility
soon .
Audi side assist: Unavailable when towing
Side assist switches off automatically when a
factory-installed trailer hitch is connected to
the electrical connector on the trailer . There is
no guarantee the system will switch off when
using a retrofitted trailer hitch. Do not use
side assist when towing a trailer.
