technical data AUDI A5 COUPE 2013 Owners Manual

4 Table of contents
Technic al d ata . . . . . . . . . . . . . . . . .
269
General information . . . . . . . . . . 269
Exp lanation of technical d ata . . . . . . . 269
Vehicle ident ific ation . . . . . . . . . . . . . . 269
We igh ts . . . . . . . . . . . . . . . . . . . . . . . . 269
Dimensions. . . . . . . . . . . . . . . . . . . . . . 270
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
211 hp, 2 .0 liter4-cy l. engine. .. .. .. 271
333 hp, 3.0 lite r 6-cyl. engine ... .. .. 272
Consumer Information . . . . . . . 273
Warranty coverages . . . . . . . . . . . . . . . 273
Operating your vehicle outside the U.S.A . or Canada . . . . . . . . . . . . . . . . . 273
Audi Service Repair Manuals and Literature . . . . . . . . . . . . . . . . . . . . . . . 273
Maintenance. ........... ... .. ... . 273
Additional accessories , modificat ions
and parts r eplac ement . . . . . . . . . . . . 275
Decla ration of Compli ance,
Telecommunica tions and Elec tronic
Systems . . . . . . . . . . . . . . . . . . . . . . . . 276
Ind ex . . . . . . . . . . . . . . . . . . . . . . . . . . 278

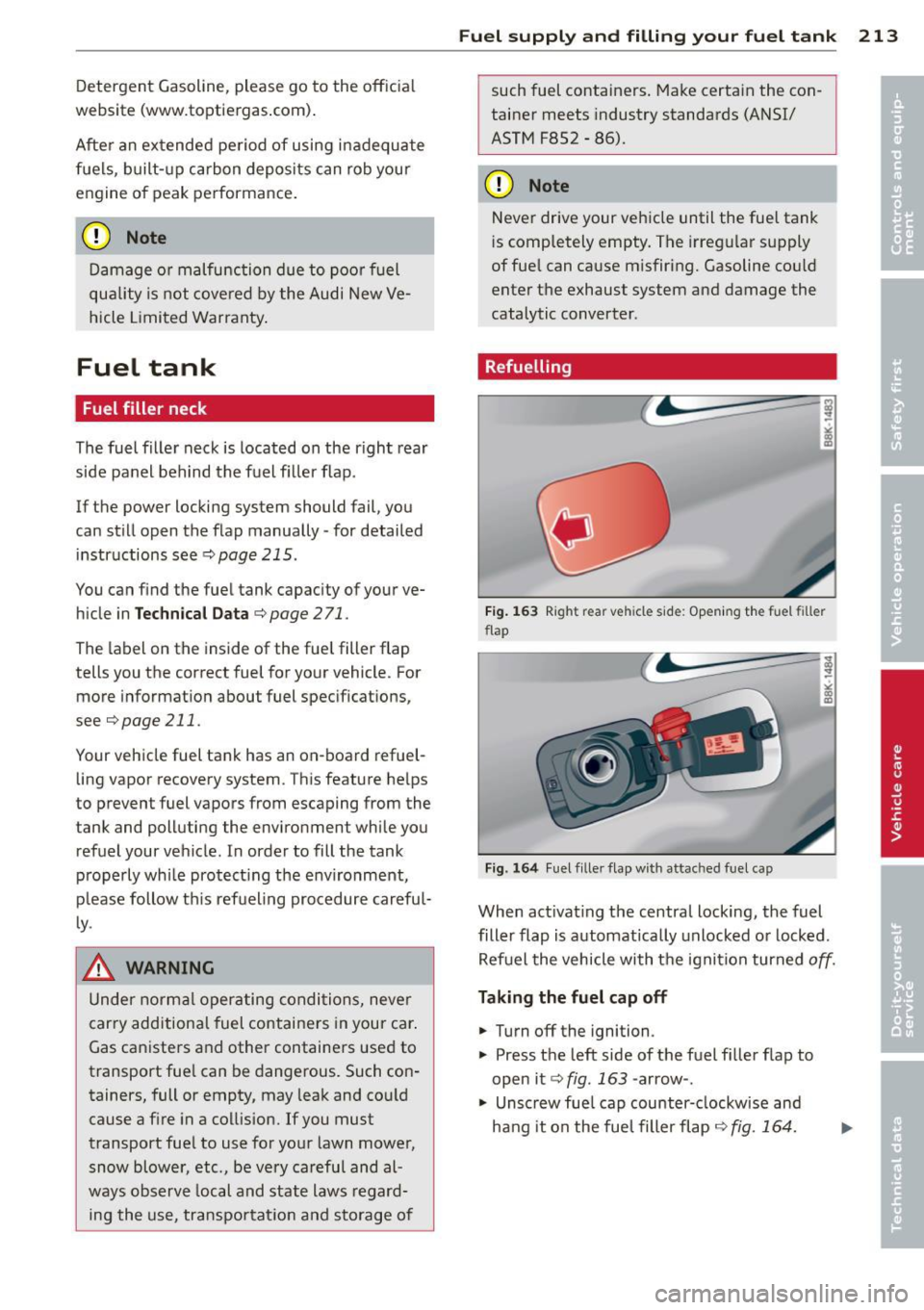

Detergent Gasoline, please go to the o fficia l
website (www.toptiergas .com) .
Afte r an ex tende d pe riod of using i na dequate
fue ls, built -up carbon deposits can rob you r
e ngine of peak pe rformance .
(D Note
Damage o r m alfunction due to poor fuel
qua lity is not cove re d by the Audi New Ve­
hicle Limited Warranty .
Fuel tank
Fuel filler neck
The fuel filler neck is located on the r ight rear
side panel beh ind the f uel filler flap.
If t he power locki ng system should fail, you
can st ill open the flap manually -for detailed
instr uctions
see <::;> page 215.
You can f ind the fuel tank capac ity of your ve­
h icle in
Technical Data r=;, page 271.
The label on the inside of the fuel filler flap
tells you the correct fuel for yo ur vehicle . For
more informat ion about fuel spec ificat ions,
see
r=;, page 211 .
Your vehicle fuel tank has an on-board refuel­
ling vapor recovery system . Th is feature he lps
to prevent fuel vapors from escaping from the
tank and polluting the enviro nment whi le you
refuel your ve hicle. In order to fill the tank
p rope rly whi le pro tect ing t he env ironment,
p lease follow t his refueling procedure car eful­
l y .
& WARNING
Under norm al oper ating co ndi tions, neve r
carry additional fuel containe rs in your car .
Gas canisters and other containers used to
transport fue l can be d angerous. Such con­
tainers, full or empty, may leak and co uld
cause a fire in a collision. If you must
transport fue l to use for yo ur lawn mowe r,
snow blower, etc., be very carefu l and al­
ways observe local and state laws regard­
ing the use, tra nspor tat io n and storage o f
Fuel suppl y and filli ng your fuel t ank 213
such fuel containe rs . M ake certa in the con­
tainer meets industry standa rds (ANSI/
ASTM F852 - 86).
(D Note
Neve r drive your vehicle until the fuel tank
i s completely empty. T he irreg ular s upply
of fue l can ca use m isfir ing. Gasoline cou ld
enter t he exhaust system and damage the
catalytic converter .
Refuelling
Fig. 1 63 Right rea r ve hicle s ide : Open ing t he fuel filler
flap
F ig . 164 Fu el f ille r fla p with attac hed fuel cap
>< "' a,
When act ivat ing the centra l locking, the fuel
filler flap is a utomatically unlocked o r locked .
Ref uel the vehicle wi th t he ignition turned
off.
Taking the fuel cap off
.,. Turn off the ignition.
.,. Press t he left side of the fuel f iller flap to
open it
r::> fig . 163 -arrow-.
.,. Unsc rew fue l cap counter-clockwise and
ha ng it on the fue l filler flap
r:::> fig. 164.

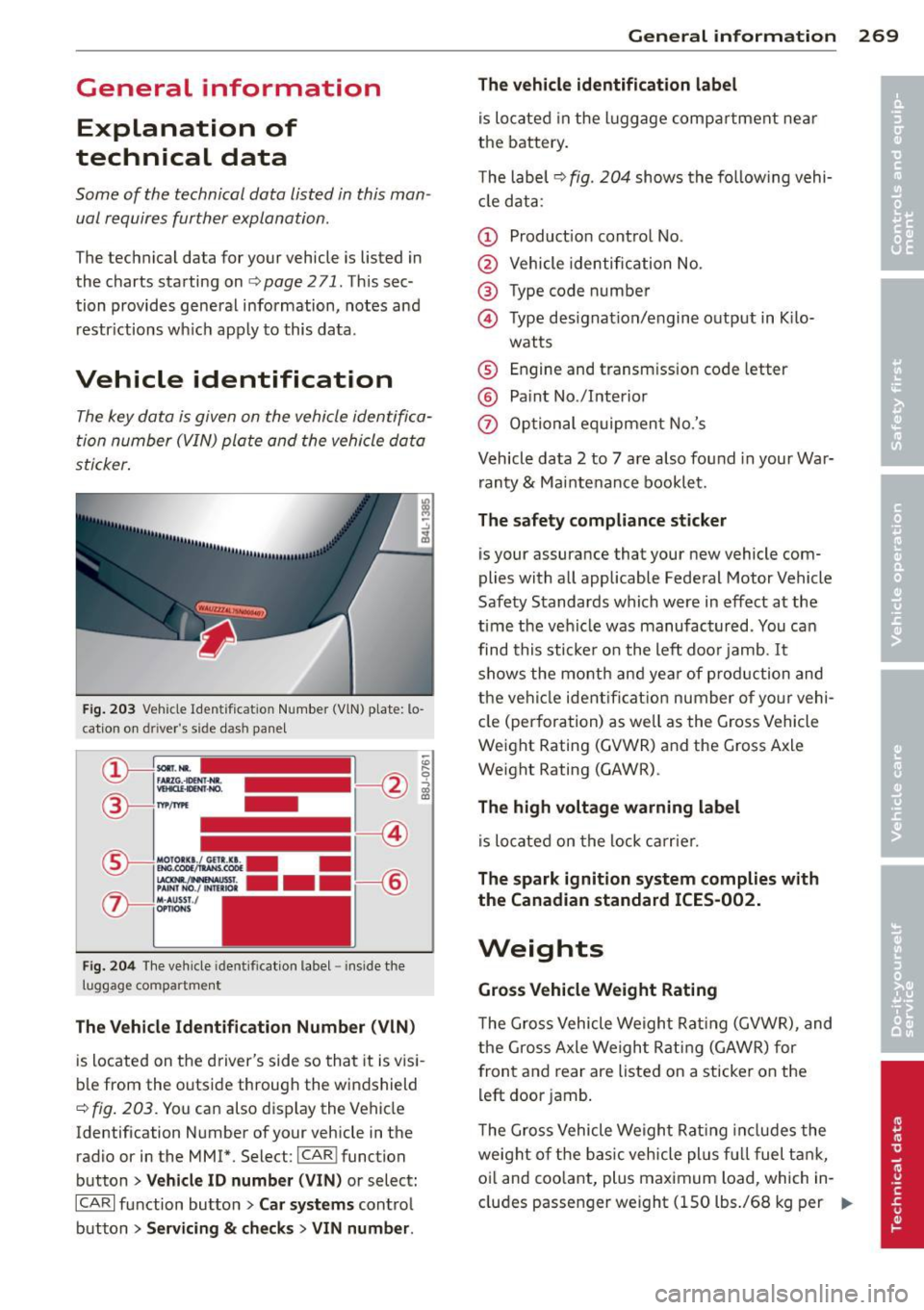

General information Explanation of
technical data
Som e of t he technical data listed in this man ­
ual requires further explanation .
The technical data for your vehicle is listed in
the charts starting on
c:> page 2 71. This sec­
tion provides general information, notes and
r estr ictions wh ich app ly to this data.
Vehicle identification
The key data is given on the vehicle identifi ca­
tion number ( VIN) plate and the vehicle data
sti cker .
Fig. 20 3 Vehicle Ident ificat ion Num ber (VlN) p la te: lo ­
cation o n drive r"s side dash pa nel
Fi g. 2 04 The ve hicle ident ification label -in side the
l u ggage compartme nt
The Vehicle Identification Number (VlN)
is located on the d river's side so tha t it is v is i­
b le from the outside throug h the windshield
c:> fig . 203. You can also d isplay the Vehicle
Identification N umber of your vehicle in the
radio or in the MM!*. Select: ICAR !function
button
> Vehicle ID number (VIN) or select :
I CA R
I function butto n > Car systems contro l
button
> Servicing & checks > VIN number .
General inform ation 269
The vehicle identification label
is lo cated in the l uggage comp artment near
the battery.
T he label ~
fig. 204 shows th e fo llow ing vehi­
cl e d ata :
(D Product ion cont ro l No .
@ Vehicle identific ation No.
@ Type code number
© Type designat ion/e ngine o utput in K ilo-
wat ts
® Engine and transm ission code letter
® Pa int No./lnterior
0 Option al eq uipmen t No.'s
Vehicle data 2 to 7 are a lso fo und in your War­
ranty
& Mai nte nance bookle t.
The safety compliance sticker
is your assurance that your new vehicle com­
plies wi th a ll applicable Fede ral Motor Vehicle
Safety S tandards which were in effect at the
tim e the ve hicle was manufactur ed . You ca n
find this sticke r o n the left doo r jamb.
It
sh ows the m onth and ye ar of pro duction and
t h e ve hicl e ident ifi cat io n number of yo ur vehi ­
cle (perfora tion) as well as the G ross Vehicle
Weight Rating (GVW R) and the Gross Axle
Weight Rating (GAWR) .
The high voltage warning label
is lo cated on the l ock ca rrie r.
The spark ignition system complies with
the Canadian standard ICES-002.
Weights
Gross Vehicle Weight Rating
T he Gro ss Vehicle Weigh t Rat ing (GVWR), and
the Gross Axle We igh t Ra tin g (GAWR) for
fron t and rear are listed on a sticker on the
l eft door jamb .
T he Gro ss Vehicle Weigh t Rat ing incl udes the
weig ht o f the bas ic vehicle plus f ull fuel t ank,
oi l and coo lant, p lus maximum load, which in­
cludes passen ger we ight (150 lbs./68 kg per ..,.
