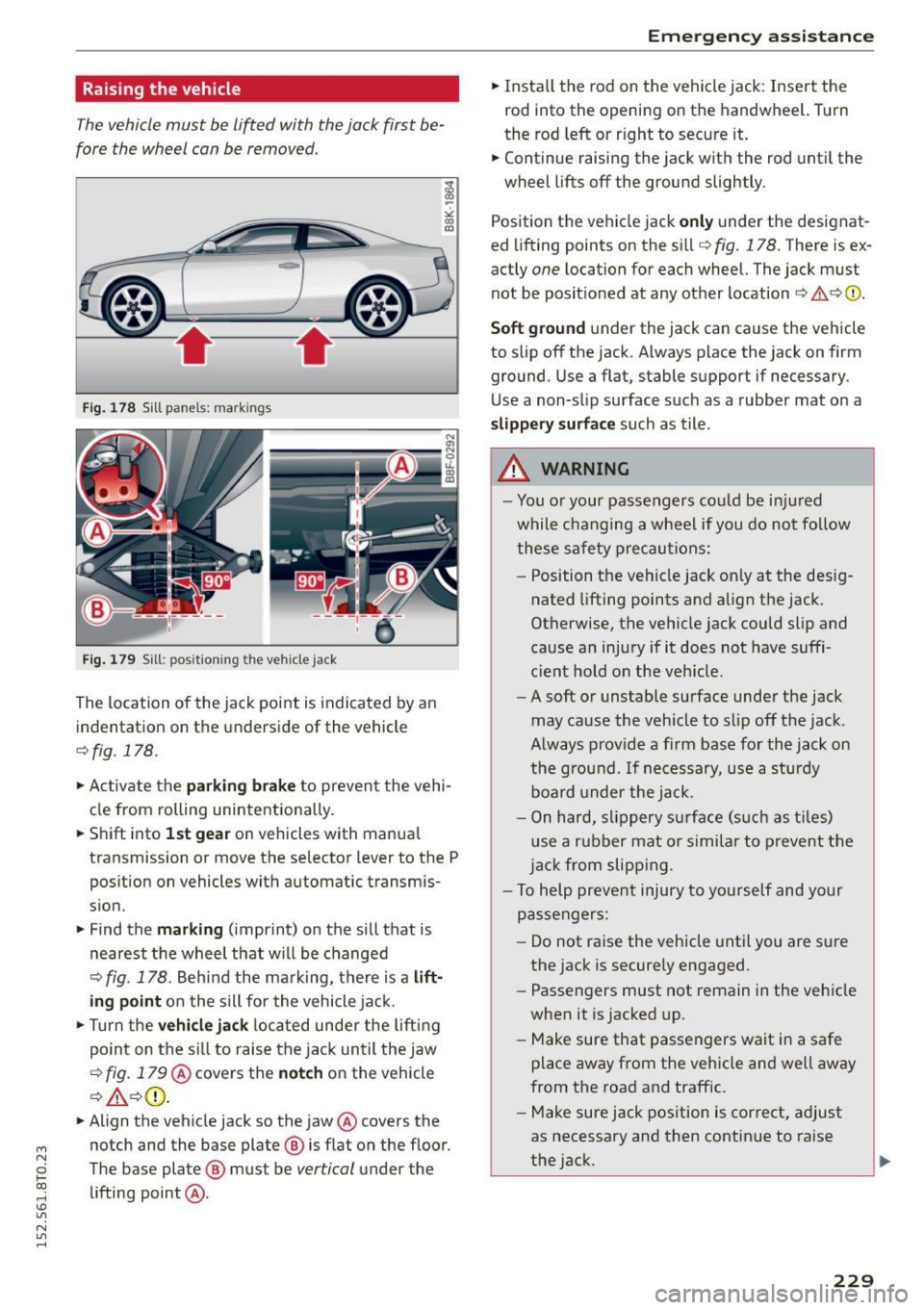

Raising the vehicle
The vehicle must be li~ed with the jack first be­
fore the wheel can be removed .
·- ·
Fig . 178 Sill panels: marking s
Fig . 179 S ill: posit ion ing the vehicl e jack
The location of the jack point is indicated by an
indentation on the underside of the vehicle
¢ fig. 178.
.,.. Activate the pa rkin g brake to prevent the vehi­
cle from rolling unintentionally .
.,.. Shift into
1st gea r on vehicles with manua l
transmission or move the selector lever to the P
pos ition on vehicles with automatic transmis­
sion.
.,.. Find the
marking (imprint) on the sill that is
nearest the wheel that w ill be changed
¢ fig . 178. Behind the marking, there is a lift­
ing point
on the sill for the vehicle jac k.
.,.. Turn the
veh icle jack loca ted under the lifting
point on the si ll to raise the jack until the jaw
r:=;, fig. 179 @ covers the notch on the vehicle
¢A ¢ 0 .
.,.. Align the vehicle jack so the jaw @covers the
notch and the base plate @ is flat on the floor.
The base plate @ must be
vertical under the
lifting point @.
Em erg en cy ass is tan ce
.,.. Insta ll the rod on the vehicle jack : Insert the
rod into the opening on the handwheel. Turn
the rod left or r ight to secure it.
.,.. Continue raising the jack with the rod unt il the
wheel lifts off the ground slightly .
Position the vehicle jack
onl y under the designat­
ed lifting points on the si ll
Q fig. 178. There is ex­
actly
one Location for each wheel. The jack m ust
not be posit ioned at any other location
c:> ,& ¢CI).
So ft g round under the jack can cause the vehicle
to s lip off the jack . Always place the jack on firm
ground. Use a flat, stable support if necessary.
Use a non-s lip surface such as a rubber mat on a
slipper y surfa ce such as tile .
A WARNING
= -
-You or your passengers could be injured
while changing a wheel if you do not fo llow
t hese safety precautions:
- Position the vehicle jack on ly at the desig ­
nated lifting points and align the jack.
Otherwise, the vehicle jack could slip and
cause an injury if it does not have suffi­
c ient hold on the vehicle.
- A soft or unstable surface under the jack
may cause the vehicle to slip off the jack .
Always provide a firm base for the jack on
the ground.
If necessary, use a sturdy
board under the jack.
- On hard, slippery su rface (such as t iles)
use a rubber mat or simi lar to prevent the
ja ck from slipp ing.
- To help prevent injury to yourself and your
passengers:
- Do not raise the vehicle until you are sure
the jack is secure ly engaged.
- Passengers must not remain in the veh icle
when it is jacked up .
- Make sure that passengers wait in a safe
place away from the vehicle and we ll away
from the road and traffic.
- Make sure jack pos ition is correct, adjust
as necessary and then contin ue to raise
the jack .
229

Emergency assistance
CD Note
Do not lift the vehicle by the sil l. Position the
vehicle jack only at the designated lifting points on the sill. Otherwise, your vehicle will
be damaged.
Taking the wheel off/installing the spare
tire
Follow these instructions step -by -step for chang­
ing the wheel .
Fig. 180 Changin g a w heel : us ing th e scr ewdr iver handle
(w ith t he blade removed) to turn the bolts
Fig. 181 Cha nging a whee l: al ignment pin inside the top
h ole
After you have loosened a ll wheel bolts and
raised the vehicle
off the ground, remove and re­
place the whee l as follows:
Removing the wheel
.,. Remove the topmost wheel bolt completely
with the
hexagonal socket in the screwdriver
hand le (vehicle too l kit)
c:;, fig . 180 and set it
aside on a
clean surface.
.,. Screw the threaded end of the
alignment pin
from the tool kit hand-tight into the empty bolt
hole
¢fig. 181 .
230
.,. Then remove the other wheel bolts as described
above.
.,. Take
off the wheel leaving the a lignment pin in
the bolt ho le
c:;, CI) .
Putting on the spare tire
""Push the spare tire over the alignment pin.
.,. Screw on the wheel bolts and tighten them
slightly using the hexagona l socket .
.,. Remove the alignment pin and insert and tight­
en the remaining wheel bolt slightly like the
rest .
.,. Turn the jack handle counter -clockwise to lower
the vehicle until the jack is fully released .
.,. Use the wheel bolt wrench to tighten all wheel
bolts firmly
c:;, page 228. Tighten them in a
crisscross pattern,
from one bolt to the (ap­
proximately) opposite one, to keep the wheel
centered .
.,. Perform the steps required after changing the
wheel
c:;, page 22 7, A~er changing a wheel.
The hexagonal socket makes it easier to remove
the wheel bolts from the rim. Care should be tak­
en when removing the reversib le blade.
CD Note
When removing or installing the whee l, the
rim could h it the brake rotor and damage the
rotor. Work carefully and have a second per-
son to he lp you.
@ Tips
- When mounting tires with unidirectional
tread design
make sure the tread pattern is
pointed the right way
c:;, page 231.
-The wheel bolts should be clean and easy to
turn. Check for dirt and corrosion on the
mating surfaces of both the wheel and the
hub. Remove all dirt from these surfaces be­
fore remounting the wheel.
- Do not use the hexagonal socket in the
screwdriver handle to loosen or tighten the
wheel bolts .

M N
i? co ,...., \!) ..,.,
N ..,., ,....,
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right dir ection .
Using a spare tire with a tread pattern
intended for use in a specific direction
When us ing a spa re tire w ith a t read pa tte rn in­
t e nded fo r use in a specific d ir e ct ion, p lease no te
the following:
- The direction of rotation is marked by an
arrow
on the side of the tire .
-If the spare t ire has to be installed in the incor­
rect direction, use the spare tire only tempora­
rily since the tire will not be able to achieve i ts
o ptimum performanc e character istics wit h re­
gard to aquaplaning, noise and wea r.
- We recommend that you pay pa rticular atten­
t io n t o this fact du ring wet weat he r and t hat
yo u adju st yo ur sp eed to match road condi­
t ions.
- Re place the fla t tire w ith a new one and have i t
i nsta lled on yo ur vehicle as s oon as po ssible to
re store the han dling a dvan tages o f a un idirec­
t io na l tire.
Notes on wheel changing
P lease read the information ¢ page 212, New
tires or wheels
i f you are going to use a spare tire
which is different from the tires on your ve hicle.
Afte r you change a tire:
- Check the tire pressure on the spare immedi­
ately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as po s­
sible by your authorized Audi dealer or quali­
fied workshop .
- With steel and alloy wheel rims , the wheel
bolts are correctly tightened at a torque of 90
ft lbs. (120 Nm ).
- If you notice th at the wheel bolt s are corroded
and difficult to turn while changing a tire ,
they should be replaced before you check the
tightening torque .
Emergency assistance
-Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi­
ble. Remount the wheel cover .
Until then , drive with extra care and at reduced
speed s.
_& WARNING
- If you are going to e quip your ve hicl e wit h
tires o r rims which differ from those which
were factory installed, then be sure to read
the information ¢
page 212, New tires or
wheels.
- Always make sure the damaged wheel o r
even a flat tire a nd the jack a nd too l kit a re
p roperly secu red in the luggage compart­
men t and are not loos e in t he passeng er
compa rt m ent.
- In an acci dent or sudde n man euver they
could fly forwa rd, inj uring a nyone in t he ve­
h icle.
- Always s to re damag ed wh eel , jack and tools
s ecure ly in the luggage co mpart ment. Ot h­
e rwi se, in an accident o r sud den man euver
they co uld fly forward, causing injury to pas­
sen gers in t he ve hicle.
(D Note
D o not use co mmercially ava ilab le tire seal­
a nts. O therwise, the e le ct ric al c ompone nts of
the tire pre ssure monit oring sys tem * w ill no
l on ger wor k properly and t he sensor for the
tire pressu re monito ring system * wi ll have to
b e replaced by qu alified workshop.
-
231

Fuses and bulbs
Fuses and bulbs
Fuses

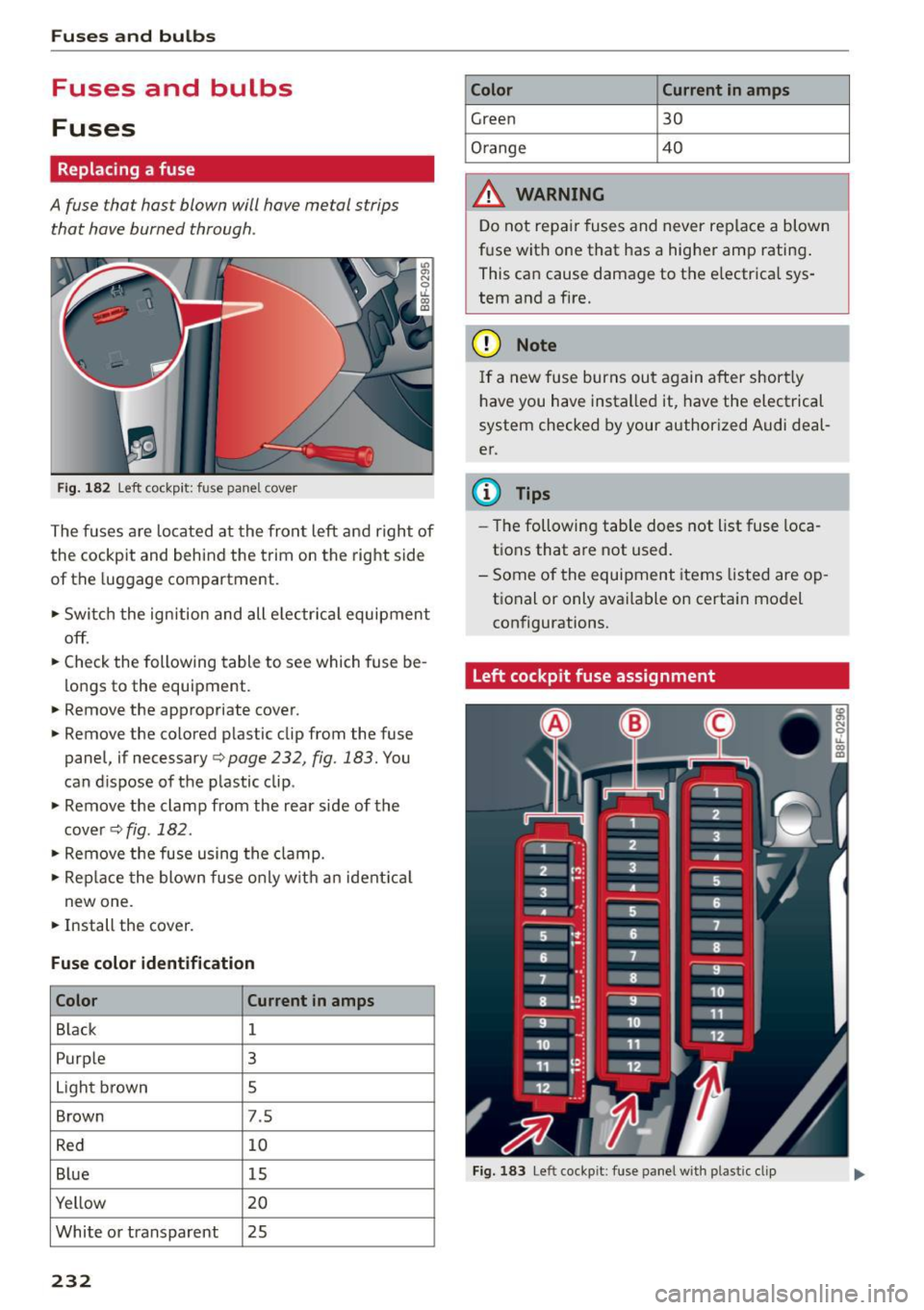

Replacing a fuse
A fuse that hast blown will have metal strips
that have burned through .
Fig. 18 2 Left cockpit: fuse panel cover
The fuses a re located at the fron t left and right of
the cockpit and behind the trim on the right side
of the luggage compartment.
• Swi tc h the ignition and all e lectr ica l equipment
off .
• Check the following table to see which fuse be­
longs to the equipment.
• Remove the appropriate cover.
• Remove the colored p lastic clip from the fuse
panel, if necessary ¢
page 232, fig. 183. You
can d ispose of the p lastic clip .
• Remove the clamp from the rear side of the
cover ¢fig.182.
• Remove the fuse using the clamp.
• Rep lace the blow n fuse o nly w it h an ident ica l
new one.
• Install the cover .
Fuse color identification
Color Current
in amps
Black 1
Purp le 3
Light brown s
Brown 7.5
R ed 10
B lue 15
Yellow 20
White or transparent 25
232
Color Current in amps
Green 30
Orange 40
A WARNING
D o not repa ir fuses and never rep lace a blown
f u se wit h one that has a higher amp rating .
This can cause damage to the e lectr ica l sys­
tem and a fire.
(D Note
I f a new fuse burns out again after short ly
h ave you have insta lled it, have the electrical
system checked by your author ized Audi deal­
er.
(D Tips
- The followi ng table does not list fuse loca ­
t ions that a re not used.
- Some of the equipment items listed are op ­
t ional or only available on certain model
con figurations.
Left cockpit fuse assignment
F ig . 18 3 Le ft cockpi t: fuse panel wi th plastic clip

M N
0 l­oo
rl I.O
"' N
"' rl
Fu se pa nel @ (black )
No. Consumer
1 Dynamic steering
2 Electron ic Stabilization Control (module)
A/C system pressure sensor, electrome-
chanical parking brake, HomeLink, auto-
3 mat
ic dimming interior rear view mirror,
air quality/outside air sensor, Electron ic
Stabilization Control (button)
s Sound actuator
6 Headlight range control/headl
ight (corner-
ing light)
7 Headlight (cornering light)
Control modu les (electromechanical park-
8 ing brake, shock absorber, q uattro sport),
DCDC converte r
9 Adaptive
cruise control
10 Shift gate/clutch sensor
11 Side assist
1 2 Headlight range cont ro l, parking system
13 Airbag
14 Rear
wiper (a llroad)
15 Auxiliary fuse (instrument panel)
16 Auxiliary
fuse termina l 15 (engine area)
Fuse p anel @ (brown )
No. C onsumer
2 Brake light sensor
3 Fuel pump
4 Clutch sensor
5
Left seat heating with/without seat venti-
lation
6 Electronic Stabilization Control (electric)
7 Ho rn
8
Front left door (window regulator, central
locking, mirror, switch, lighting)
9 Windshield wiper motor
10 Electronic Stabilization Control (valves) Fu
ses a nd bulb s
No. Consumer
Two-door mode ls: rear left window regula-
11 tor; Four-door
models: rear left door (win-
dow regulator, central locking, switch,
light ing)
12 Rain and l
ight sensor
Fuse panel © (r e d )
No . Con sumer
3 Lumbar support
4 Dynamic steering
5 Inter
ior l ight ing (Cabriolet)
6 Windshie
ld washer system, headlight
washer system
7 Vehicle electrica l system control module 1
8 Vehicle electr ica l system control module 1
9 Left rear
window regulator motor (Ca brio-
let)/su nroof
10 Vehicle electr ica l system co ntrol module 1
11 Right rear
window regulator (Cabriolet)/
sun shade motor
12 Anti-theft
alarm warning system
Right cockpit fuse assignment

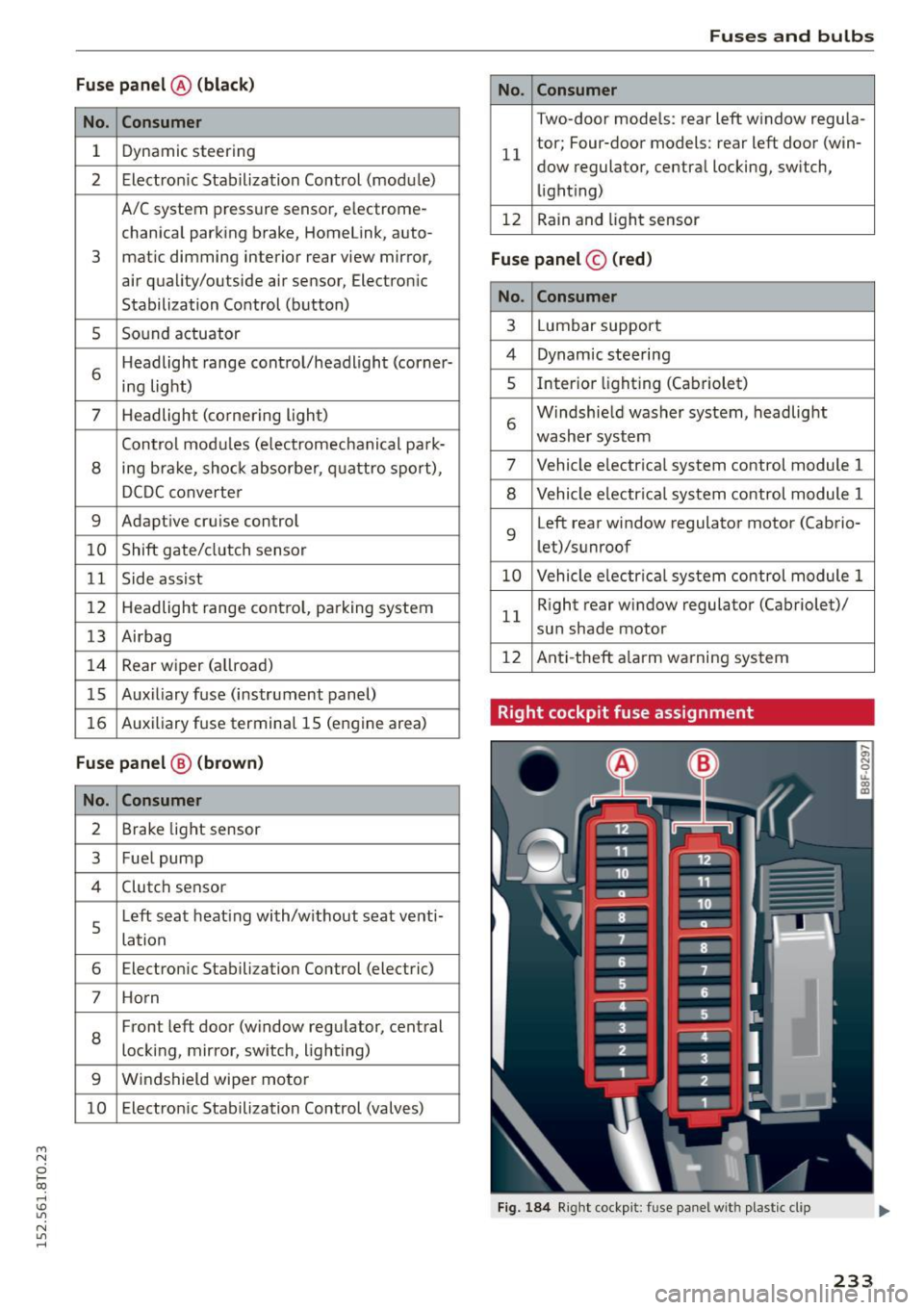

Fig. 184 Right cockpit: fu se panel with plastic cl ip
233

Fuses and bulbs
Fuse panel @ (black )
No. Consumer
5 Steering col
umn switch module
7 Term inal 15 d iagnost ic connector
8 Gateway (Databus diagnostic interface)
9 Supplementary heater
Fuse panel@ (brown )
No. Consumer
1 CD/ DVD p laye r
2 Wi-Fi
3 M
MI/Radio
4 Instrument cluster
5
Gateway (ins trument cluster co ntrol mod-
ule)
6 Ignition lock
7 Ligh t swi tch
8 Climate control system blower
9 Steering col umn lock
10 Climate contro l system
1 1 Te
rm inal 30 d iagnost ic connector
12 Steer ing column sw itch module
234
Right luggage compartment fuse
assignment

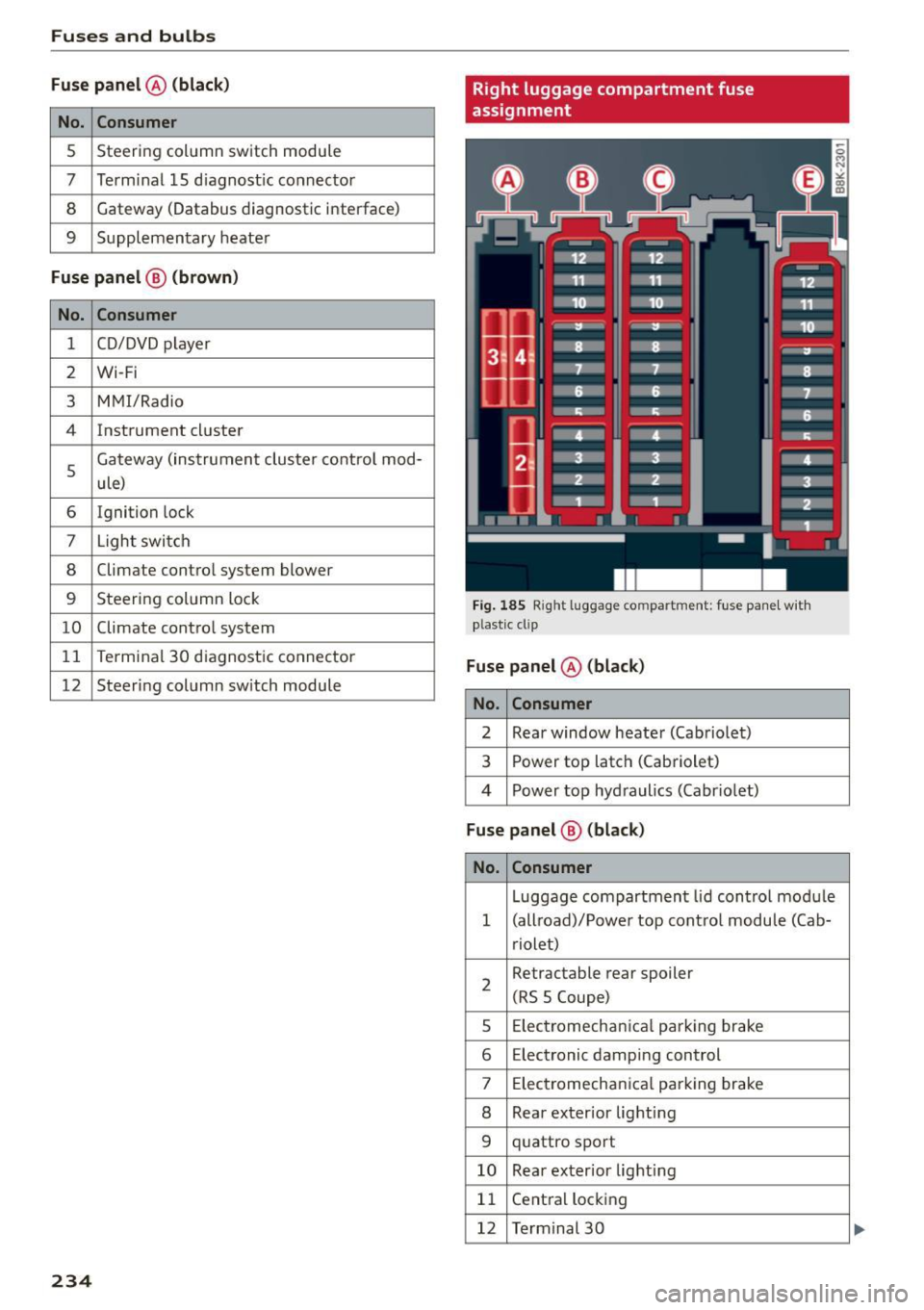

Fig. 185 Right lu ggage compartment: f use pane l w it h
plast ic clip
Fuse panel @ (black )
No . Consumer
2 Rea r window heater (Cabriole t)
3 Power top latch (Cabriolet)
4 Power top hyd raulics (Cabr io let)
Fuse panel @ (black)
No . Consumer
Luggage compartment lid con trol mo dule
1 (all road)/Powe r top cont ro l modu le (Cab-
r iolet)
2 Retractable rear
spoiler
(RS 5 Coupe)
5 Elec tromechan ica l pa rking brake
6 Electronic damping control
7 Elec tromech anica l par king brake
8 Rear exterior lig hti ng
9 qu attro sport
10 Rear exter ior lighting
1 1 Cent
ral locking
12 Term inal 30

M N
i? co ,...., \!) 1.1'1
N 1.1'1 ,....,
Fuse panel© (brown)
No. Consumer
1 Luggage compartment lid control module
(allroad)
2 12-volt socket, cigarette lighter
3 DCDC converter path 1
4 DCDC converter path 2, sound amplifie r,
rad io
6 Right upper cabin heating (Cabriolet)
7 Electromechanical parking brake
9
Right front door (window regulator, cen-
tral locking, mirror, switch, lighting)
10 Left upper cabin
heating (Cabriolet)
Two-door models: rear right w indow regu-
11 lator; Four-door models: rear
right door
(window regulator, central locking, switch,
lighting)
12 Cell phone prep
Fuse
panel © (black)
No. Consumer
1 Right front seat heating
4 MMI
5 Radio
6 Rear view camera
7 Rear window heater (allroad)
8 Rear
Seat Entertainment
Bulbs
Replacing bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for
you .
It is becoming increasingly more and more diffi­
cult to replace vehicle light bulbs since in many
cases , other parts of the car must first be re­
moved before you are ab le to get to the bulb .
This applies especially to the light bulbs in the
front of you r ca r which you can only reach
through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, parts must be
Fuses and bulbs
correct ly taken apart and then properly put back
together to help prevent breakage of parts and
long term damage from water that can enter
housings that have not been properly resealed.
For your safety, we recommend that you have
your authorized Audi dea ler replace any bulbs for
you, since your dealer has the proper tools, the
correct bulbs and the expertise.
Gas discharge lamp s (Xenon lights)*:
Due to the high electr ical voltage, have the bulbs
replaced by a qualified technician . Head lights
with Xenon light are identified by the high volt­
age sticker.
A WARNING
Changing Xenon lamps without the necessary
equipment can cause serious personal injury.
- Bulbs are pressurized and can explode when
being changed . Potential risk of injury!
- On vehicles equipped with gas discharge
bu lbs (Xenon light) * life -threatening injuries
can result from improper handling of the
high -vo ltage portions of such lamps!
-On ly your authorized Audi dealer or quali­
fied workshop shou ld change the bulbs in
gas discharge lamps. There are parts with
sharp edges on the openings and on the
bulb holders that can cause serious cuts . If
you are uncertain about what to do, have
the wor k performed by an autho rized Audi
dealer or qualified workshop. Serious per­
sonal injury may result from improperly per­
formed work .
(D Tips
-If you st ill prefer to replace the light bulbs
yourself, be aware that the eng ine compart­
ment is a hazardous area to work
inq page191 q&_ ,
-It is best to ask your authorized Audi dealer
whenever you want to change a bulb.
235

Emerg enc y s it uat ion s
Emergency situations
General
T his c hapt er is inte nded fo r tra ined e merg ency
c rews a nd worki ng p ers onn el w ho h ave the nec­
e ssa ry tool s and equipm ent t o perf orm the se
op era tion s.
Starting by pushing or
towing
CD Note
Vehicl es with an automa tic tra nsmission
c annot be st arted by pushing or towing .
Starting with jumper
cables
If necessary, the engine con be started by con­
necting it to the battery of another vehicle .
If the engine should fail to start because of a d is­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, us ing a
p air of j umpe r cables to start the engine.
Jump er c abl es
Use only jumper cab les of sufficiently largec ross
sec tion
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use on ly jumper cables with
insulated term inal
clamps which are d istinctly mar ked:
plus (+ ) cabl e in most cases co lored re d
minu s(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, ac id, and gas.
Any of these can cause very ser ious or fatal in­
jury . Fo llow the inst ruct ions be low for safe
hand Ling of your veh icle's battery.
- Always shield your eyes and avoid leaning
over the battery whenever possible.
- A discharged battery can freeze at tempera­
tures just below 32 °F (0 °C). Before con­
nect ing a jumper cab le, you must thaw the
236
frozen battery completely, otherwise it
could explode.
- Do not allow battery acid to contact eyes or
skin. Flush any contacted area with water immed iately.
- Improper use of a booster battery to start a
veh icle may cause an explosion.
- Vehicle batteries generate explosive gases .
Keep sparks, flame and lighted cigarettes
away from batteries.
- Do not try to jump start any vehicle with a
low acid level in the battery.
- The voltage of the booster battery must al­
so have a 12-Volt rat ing . The capacity (Ah)
of the booster battery should not be lower
than that of the discharged battery. Use of batter ies of different voltage or substantial­
ly different "Ah" rating may cause an explo­
sion and personal injury .
- Never charge a frozen battery . Gas trapped
in the ice may cause an explosion .
- Never charge or use a battery that has been
frozen . The battery case may have be weak­
ened .
- Use of batter ies of different voltage or sub­
stantially d ifferent capacity (Ah) rating may
cause an explosion and injury. The capacity
(Ah) of the booster battery sho uld not be
lowe r than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed a ll
WARNINGS
qpoge 191.
CD Note
-App lying a higher voltage booster battery
wi ll cause expensive damage to sensitive
elec tronic components, such as control
units, re lays, radio, etc.
- T here must be no electrical contact between
the vehicles as otherwise cu rrent cou ld al­
ready start to flow as soon as the positive
(+) termina ls are connected.
@ Tips
The discharged battery must be properly con-
nected to the vehicle's electrical system. .,.

M N
0 l­oo
rl I.O
"' N
"' rl
When jump starting or charging the battery,
never connect the negative ground cable to
the battery negat ive post because the battery
manager system must be able to detect the
battery's state of charge. Always connect the
negative g round cab le to the negative ground
post of the battery manager control unit.
Use of jumper cables
Make sure to connect the jumper cable clamps in
exactly the order described below!

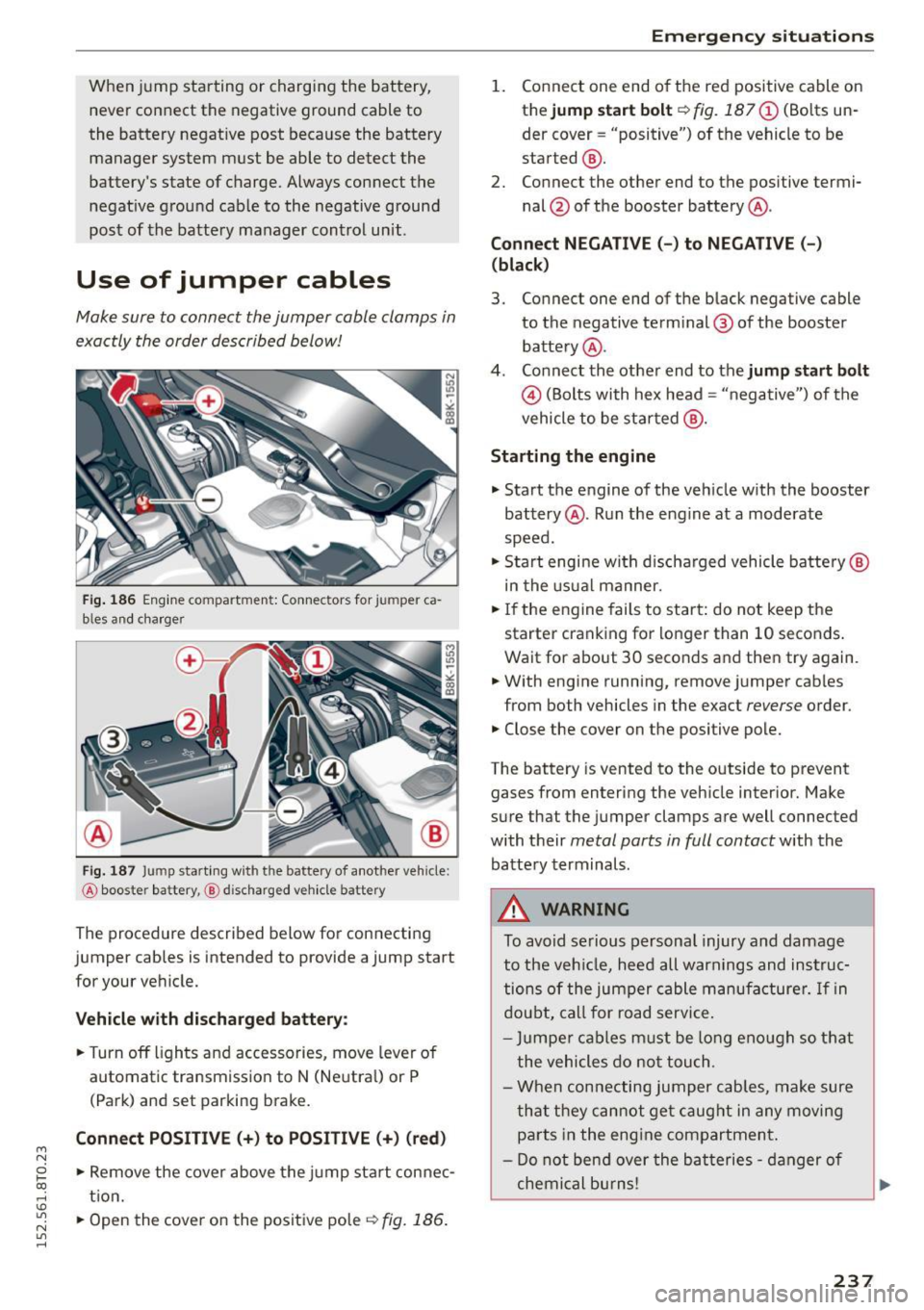

Fig. 186 Engine compa rtment: Connectors for jumper ca­
b les and c harger
Fig. 187 Jum p sta rting with the battery of anot her veh icle :
@ boos te r ba ttery, @ discharged veh icle battery
The procedure described below for connecting
jumper cables is intended to provide a jump start
for your vehicle.
Vehicle with discharged battery :
.. Turn
off lights and accessories, move lever of
automatic transmission to N (Ne utra l) or P
(Park) and set parking brake.
Connect POSITIVE(+) to POSITIVE(+) (red)
.. Remove the cover above the jump start connec­
t ion.
.. Open the cover on the posit ive pole ¢
fig. 186.
Emergency situations
1. Connect one end of the red positive cable on
the jump start bolt~
fig. 187 (D (Bolts un­
der cover= "positive") of the vehicle to be
started @.
2. Connect the other end to the positive termi- nal@of the booster battery @.
Connect NEGATIVE (-) to NEGATIVE(-)
(black)
3. Connect one end of the black negative cable
to the negative terminal ® of the booster
battery @.
4 . Connect the other end to the jump start bolt
@ (Bolts with hex head= "negative") of the
vehicle to be started @.
Starting the engine .. Start the engine of the veh icle with the booster
battery @. Run the eng ine at a moderate
speed .
.. Start engine with discharged vehicle battery @
in the usual manner.
.. If the engine fails to start: do not keep the
starter cranking for longer than 10 seconds.
Wait for about 30 seconds and then try again .
.. With engine running, remove jumper cables
from both vehicles in the exact
reverse order .
.. Close the cover on the positive pole.
The battery is vented to the outside to prevent
gases from entering the vehicle inter ior. Make
sure that the jumper clamps are well connected
with their
metal parts in full contact with the
batte ry terminals.
A WARNING
To avoid serious personal injury and damage
to the vehicle, heed all warnings and instruc­
tions of the jumper cable manufacturer. If in
doubt, call for road service.
- Jumper cables must be long enough so that
the vehicles do not touch .
- When connecting jumper cables, make sure
that they cannot get caug ht in any moving
parts in the eng ine compartment.
- Do not bend over the batteries -danger of
chemi cal burns!
237

Emergency situation s
-The ba ttery ce ll lockin g screws must be
t ightened securely .
- Before you check anyt hing in the engine
compartment, always read and heed all
WARNINGS
c> page 191.
(D Note
Improper hook -u p of jumper cables can r uin
the generator .
- A lways connect POS ITIV E(+ ) to POS ITIV E
( + ), and NEGATIVE( -) to NEGATIVE( -)
gro und post of the battery manager control
unit .
- Check that a ll screw plugs o n the batte ry
ce lls are screwed in firmly . If not, tighten
pl ugs prior to connect ing clamp on negat ive
battery te rminal.
- Please note that the procedure for connect­
i ng a jumper cable as desc ribed above ap ­
plies specifica lly to the case of yo ur vehicle
being jump started . W hen you a re g iving a
j u mp sta rt to another vehicl e, do
not co n­
ne ct the negative ( -) cab le to the negative
( -) t erminal o n the di scharged battery @
c> fig. 187. In stea d, secure ly co nn ect the
nega tive ( -) cab le to either a solid me tal
com ponent that is f irm ly bolted to the en ­
gine block o r to t he engine bloc k itself. I f
the battery that is being charged does not
vent to the outside , escap ing battery gas
could ignite and exp lode!
Towing with a tow truck
General hints
Y o ur Audi requires special handling for towing.
The fo llow ing information is to be used by com ­
mercia l tow truck operato rs who know how to op­
erate their eq uipment safe ly .
- Never tow your Audi, towing will cause dam­
age to the engine and transmiss ion.
- Never wrap the safety chains or winch cables
around the brake lines .
- To pre vent unnecessary damage, your Audi
must be transported with a flat bed truck.
238
- To load the vehicle on to the flat bed , use the
towing loop found in the vehicle tools and at·
tach to the front or rear anchorage
c> page 238 and c:>page 239.
A WARNING
A veh icle being towed is not safe f or passe n­
gers . Never a llow anyone to ride in a ve hicle
be ing towed, fo r any reason .
Front towing loop
Do not install the front towing loop until it is
needed .
Fig. 188 Fro nt b um per: remov ing t he cove r cap
Fig. 18 9 Front b umper: sc rew ing in t he tow ing loop
The towing loo p fits in to the threade d hole locat­
ed on the right side o f the front bum per and cov ­
e red by a small cover when not in use .
.,. Remove the tow ing loop fr om the vehicle tool­
ki t
c> page 225 .
... Press the cover i n by app lyi ng shor t strong
pressure to the bottom part to release it from
the bumper
¢ fig. 188.
... Sc rew the tow ing loop tightly into the th readed
hole as far as it will go
c> fig. 189 and tighten it
w it h the wheel w rench . ..,.
