AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide 24-174

-  Depress gas pedal completely (swiftly) and then
release it (brief acceleration).


Specified value in display field 4: Indication
jumps for a few seconds from "Compr. ON"
to

Page 12 of 44

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide -  If there are no malfunctions in the wiring, check
function of A/C system.

       Repair Manual, Heating & Air Conditioning, Repair Group 01

Pa
ge 12 of 44 Additional si
gnals, testin
g

Page 13 of 44

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide 24-175

A/C system signal, checking

      The A/C system signal notifies the Engine
Control Module (ECM), that the A/C system
requires a higher idle speed to achieve the
desired interior te

Page 14 of 44

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide 24-176
 If specified values are not obtained:
Read Measuring Value Block
Q
Input displa
y group number XXX

When indicated on display:
-  Press buttons -0-, -5- and -6- to select "display gro

Page 15 of 44

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide 24-177

-  Check the following wire connection for open
circuit and short circuit to Ground (GND) and B+:

Test box
VAG1598/31
Socket
A/C control
head -E87-
Terminal
40    Elec

Page 16 of 44

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide 24-178

Brake light switch and brake pedal
switch, checking


Note:
     For safety reasons, the instruction from the
accelerator pedal sensor (potentiometer) to the
ECM to open the t

Page 17 of 44

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide 24-179

Read Measurin
g Value Block
Q
Input display group number XXX

When indicated on display:
-  Press buttons -0-, -6- and -6- to select "display group number 066" and
press -Q- button to

Page 18 of 44

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide Switch points slightly offset
Pa
ge 18 of 44 Additional si
gnals, testin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.6

Page 19 of 44

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide 24-180
       If indications do not resemble description:

Check switch

-  Remove driver-side storage compartment.

       Repair Manual, Body
-Interior, Repair Group
68; Instrume

Page 20 of 44

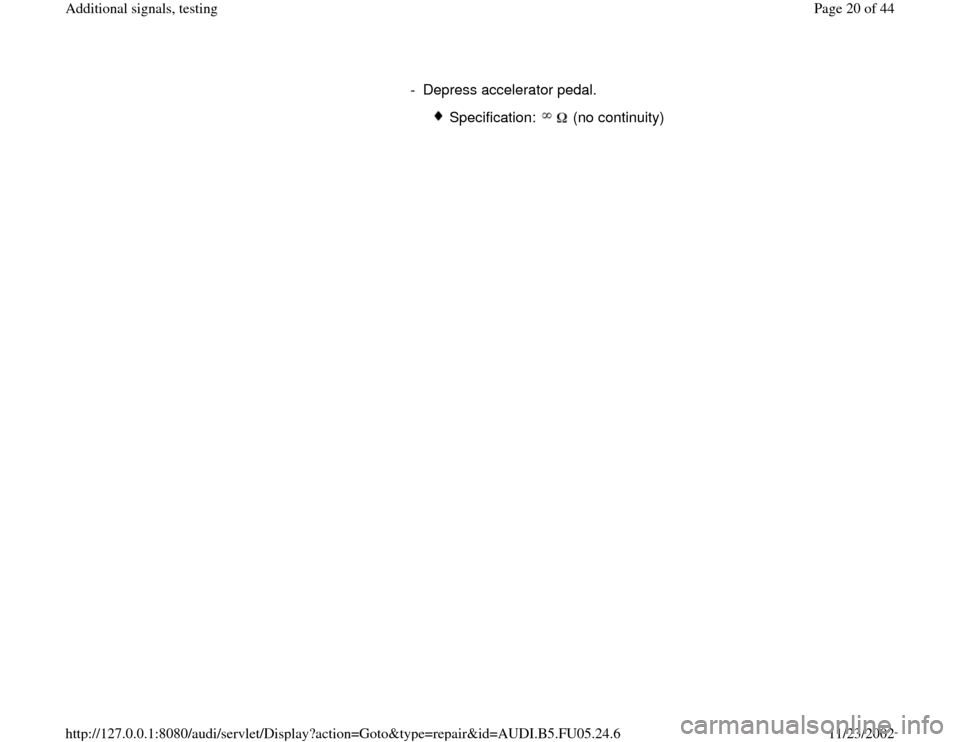

AUDI A6 1996 C5 / 2.G ATQ Engine Additional Signals Testing User Guide - Depress accelerator pedal.

Specification:  (no continuity)
Pa
ge 20 of 44 Additional si
gnals, testin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B
