climate settings AUDI A6 2014 Owners Manual

2 Table of contents Vehicle literature .. .. .. .. .. ... .
5
About this Owner's Manual . . . 6
Controls and equipment ..... .
Instruments and controls ... .
General illustration ......... .. ... .
Instruments and warning/
indicator lights ............... .
Instruments ............ ... .. ... .
Warning/indicator lights ..... ... .. .
Driver information display ... ... ... .
On-Board Diagnostic system (OBD) .. .
Opening and closing .. .. .... . .
Keys .......................... .
Power locking system ............ .
Rear lid ...................... .. .
Child safety lock for the rear doors .. .
Power windows ........... ... .. . .
Valet park ing ................... .
Sliding/tilting sun roof ............ .
Clear vision ................... .
Lights ......................... .
I nter ior lights ................... .
V1s 1on .......... ......... ... ... .
Wiper and washer system ... .... .. .
Mir rors .... .............. ... ... .
Seats and storage ......... ... .
General recommendations ... .... . .
Front seats ..................... .
Head restraints ................. .
Seat memory ................... .
Ashtray .. .. ... ... .... ......... . .
C igarette lighter .............. ... .
12-vo lt sockets .................. .
Storage ........ .............. .. .
Roof rack .... ................ .. .
L uggage compartment ...... ... .. .
Pass-through with ski sack ... .. ... . 8
8
8
11
11
12
24
30
32
32
34
38
40
40
41
41
43
43
46
47
48
so
52
52
53
55
56
58
58
59
59
61
63
65
Warm and cold . . . . . . . . . . . . . . . . 67
Climate controls . . . . . . . . . . . . . . . . . . 67
Three-zone climate control . . . . . . . . . 68 Four-zone
automatic climate control
Steering wheel heating ........... . 70
72
On the road
. . . . . . . . . . . . . . . . . . . 73
Steer ing . . . . . . . . . . . . . . . . . . . . . . . . 73
Starting and stopping the engine . . . . 74
E lectromechanical parking brake . . . . 77
Start-Stop-System . . . . . . . . . . . . . . . . 79
Speed warning system . . . . . . . . . . . . . 82
Cruise control . . . . . . . . . . . . . . . . . . . . 82
Audi adaptive cruise control
and braking guard . . . . . . . . . . . .
84
Introduction . . . . . . . . . . . . . . . . . . . . . 84
Genera l information . . . . . . . . . . . . . . 84
Audi adaptive cruise control . . . . . . . . 86
Audi braking gua rd . . . . . . . . . . . . . . . 90
Messages . . . . . . . . . . . . . . . . . . . . . . . 91
Audi active lane assist . . . . . . . . 93
Active lane assist . . . . . . . . . . . . . . . . . 93
Audi side assist . . . . . . . . . . . . . . . 96
Lane Change Assistant. . . . . . . . . . . . . 96
Audi drive select . . . . . . . . . . . . . . 100
Driving settings . . . . . . . . . . . . . . . . . . 100
Raising/lowering the vehicle . . . . . . . . 102
Driver messages . . . . . . . . . . . . . . . . . . 102
Night vision assistant . . . . . . . . . 103
Night vision assistant with detected
pedes trian marking . . . . . . . . . . . . . . . 103
Automatic Transmission . . . . . . 107
multitronic, S tronic, tiptronic. . . . . . . 107
Parking systems . . . . . . . . . . . . . . 114
General information . . . . . . . . . . . . . . 114
Parking system plus . . . . . . . . . . . . . . . 115
Rearviewcamera ................. 116
Peripheral cameras . . . . . . . . . . . . . . . 119
Adjusting the d isplay and the warning
tones. . . . . . . . . . . . . . . . . . . . . . . . . . . 124

32 Opening and clo sing
Opening and closing
Keys
Key set
Fig . 17 Key set
@ Remot e control k ey w ith m echan ical
ke y
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control. A mechanical key is integrat­
ed in the remote control key
r:::;, page 33 .
@ Eme rgenc y ke y
The emergency key is not intended for con­
stant use.
It should only be used in an emer­
gency. Keep it in a safe place and do not carry it on your key ring .
Key replac em ent
If you lose a key, contact your authorized Audi
dealer immediately to have the
lost key disa­
bled. Be sure to bring all your keys with you.
P er sonal c omfo rt se ttin gs
If two peop le use one vehicle, it is recom­
mended that each person always uses "their
own" master key . When the ignition is switch­
ed off or when the vehicle is locked, personal
convenience settings for the follow ing sys­
tems are stored and assigned to the remote master key .
- Automatic climate control
- Central locking system
- Amb ience light ing*
- Seat memory*
- Parking system*
- Adaptive cruise control* - Audi active
lane assist *
- Aud i side assist*
- Aud i drive select
- Night vision assistant*
- Heated steering wheel*
The stored settings are automatically recalled
when you unlock the vehicle, when you open
the doors or when you switch the ignition on.
A WARNING
-- Do not leave your vehicle unattended . Al-
ways take your ignit ion key with you and
lock your vehicle . Entry by unauthorized
persons could endanger yo u or resu lt in
theft or damage the vehicle.
- Do not leave ch ildren unattended in the
veh icle, especially with access to vehicle
keys. Unguarded access to the keys pro­
vides children the opportunity to start the engine and/or activate vehicle sys­
tems such as the power windows, etc .
Unsupervised operation of any vehicle
system by children can result in serious
injury.
(1) Tips
- The operation of the remote control key
can be temporar ily disrupted by interfer­
ence from transm itters in the vic inity of
the vehicle working in the same frequen­
cy range (e.g. a cell phone, radio equip­
ment).
- For security reasons, rep lacement keys
are only ava ilable from Audi dealers.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions
r:::;, page 286.

Warm and cold Climate controls
Description
App lies to vehicles: with three -zone cl imate contro l or
four -zone a uto mat ic climate contro l
The climate control system warms, cools and
adds humidity to the air in the vehicle interior .
It is the most effective when the windows and
sunroof* are closed . If the temperature inside
the parked veh icle becomes very warm, open­
i ng the w indow br iefly will speed up the cool­
ing process.
In all heating mode functions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has reached a certain
temperature.
Condensat ion from the cooling system can
drip and form a puddle of wate r under the ve­
h icle. This is normal and does not mean there
is a leak .
Pollutant filt er
The pollutant filter removes pollutants such
as dust and po llen from the air.
The air pollutants filter must be changed at
the intervals specified in your Warranty
&
Maintenance booklet, so that the air condi­
tioner can properly work .
If you drive your vehicle in an area with high
a ir pollution, the filter may need to be
changed more frequently than specified in
your Aud i Warranty
& Ma intenance booklet. If
i n doubt, ask your authori zed Audi Service Ad­
visor for adv ice.
K ey coded settings
Three-zone climate control: T he b lower set­
ting and air d istribution are stored automati­
cally and ass igned to the remote control key
that is in use .
Four-zone automatic climate control: The cli­
mate contro l settings are automatica lly stor­
ed and assigned to the remote control key
that is in use .
Warm and c old 67
A WARNING
-
Reduced visibi lity is dangerous and can
cause acc idents .
- For safe driving it is very important that
all windows be free of ice, snow and con­
densat ion.
- Comp letely fam il iarize yourse lf with the
proper use and funct ion of the heat ing
a nd ventilation system and especially
how to defog and defrost the w indows.
- Never use the windshield wiper/washer system in freez ing weathe r unt il you
have wa rmed the windshie ld first, using
the heating and ventilation system. The
washer sol ution may freeze on the wind­
shie ld and red uce visibi lity.
CJ) Note
- If you s uspect that the air conditioner
has been damaged, switch the system
off to avoid furt her damage and have it
inspected by a qualified dea lership .
- Repairs to the Audi air conditioner re­
quire specia l technical know ledge and
special tools. Contact an authorized Audi
dealer fo r ass istance.
@ For the sake of the envi ronment
By reducing the amount of f uel you use,
you also red uce the amount of pollutants
emitted into the air.
(D Tips
- Keep the air intake s lo ts ( in front of the
w indshield) free from ice, snow and de­
bris in order to maintain the proper func­
tion of the climate control system.
- The energy ma nagement system may
switch the seat heating* or rear window defroster off temporar ily. These systems
are available again as soon as the energy
balance has been restored .
- Air escapes through vents under the rear window. When plac ing items of cloth ing
on the luggage compartment cover, en­
sure that the openings are not covered.

70 Warm and cold

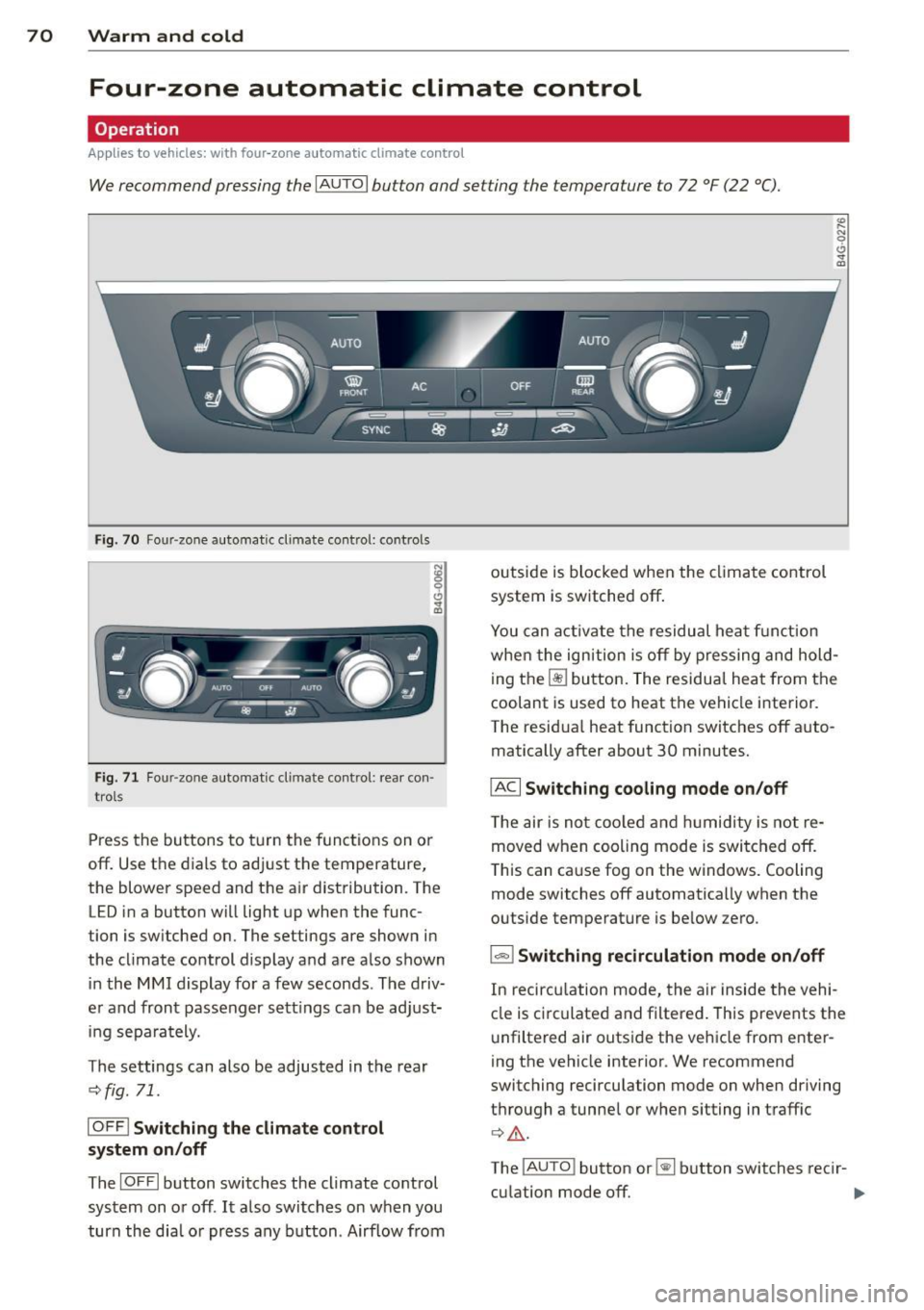

Four-zone automatic climate control
Operation
Applies to vehicles: with four -zone automa tic clima te control
We recommend pressing the IAUTO I button and setting the temperature to 72 °F (22 °C).
Fig. 70 Four-zone automat ic climate contro l: controls
Fig . 71 Fou r-zone automatic cl imate cont ro l: rear con ­
trol s
Press the buttons to turn the functions on or
off. Use the dials to adjust the temperature,
the blower speed and the air distribution. The
LED in a button will light up when the func­
tion is switched on. The settings are shown in
the climate control display and are also shown in the MMI display for a few seconds . The driv­
er and front passenger sett ings can be adjust­
ing separately.
The settings can also be adjusted in the rear
<::;> fig. 71.
IOFFj Switching the climate control
system on/off
The I O FFI button switches the climate control
system on or off .
It also switches on when you
turn the dia l or press any button . Airflow from outside is blocked when the
climate control
system is switched off .
You can activate the residual hea t function
whe n the ignition is off by pressing and hold­
ing the ~ button. The residua l heat from the
coolant is used to heat the vehicle interior .
The residual heat function switches off auto­
matically after about 30 minutes.
!ACI Switching cooling mode on/off
The air is not cooled and humidity is not re­
moved when cooling mode is switched off.
This can cause fog on the windows. Cooling
mode switches off automatically when the
outside temperature is be low zero .
1- 1 Switching recirculation mode on/off
In recircu lation mode, the air inside the vehi ­
cle is circu lated and filtered. This prevents the
unfiltered air outside the vehicle from enter­
ing the vehicle interior . We recommend
switching recirculation mode on when driving
through a tunnel or when sitting in traffic ¢ .&, .
The
! AUTO I button or~ button switches rec i r-
cu lation mode off. .,.

IAUTO I Switching automatic mode on
Automatic mode mainta ins a constant tem­
perature inside the vehicle. Air temperature,
airflow and air distribution are controlled au­
tomatically.
Adjusting the temperature
Temperatu res between 60 °F (+16 °C) and
84 °F ( +28 °C) can be set. O uts ide of this
range,
lo or hi wi ll appear in the climate con ­
trol system disp lay. At both of these settings,
the climate control system runs continuously
at maximum cooling or heating power. There
is no temperature regu lation.
~ Adjusting the airflow
You can adjust the airf low manually to suit
your needs . To have the airf low regulated au­
tomatically, press the
I AUTO j button.
li!J Adjusting the air distribution
You can manually se lect the vents where the
air will flow. To have the air distribution regu­
lated automatically, press the
IAUTOI button .
~I~* Adjusting seat heating/
ventilation*
Pressing the button switches the seat heat­
ing/ventilation on at the highest setting ( level
3). The LEDs indicate the heating/ventilation
level. To reduce the heating/venti lation, press
the button again. To switch the seat heating/
ventilation off, press the button repeatedly
until the LED turns off.
After 10 minutes, the seat heating automati­
cally switches from level 3 to level 2.
l The windshield and side windows are defrost­
ed or cleared of condensation as quickly as
possible. The maximum amount of air flows
mainly from the vents below the windshield.
Recirculation mode switches off . The tempera­
ture should be set to 72 °F (22 °C) or higher.
The
IAU TOI button switches the defroster off.
Warm and cold 71
liiii REAR ! Switching rear window heater
on/off
The rear window heater only operates when
the engine is running. It switches off auto­ matically after 10 to 20 minutes, depending
o n the outside temperature.
To prevent the rear window heater from
switching off automatically, press and ho ld
the ~ button for more than 2 seconds. This
remains stored until the ignition is switched
off .
I SYNC I Synchronization*
When synchronization is switched on, the
same settings are applied to both the driver
and front passenger, except for the seat heat­
ing/ventilation*. The rear zone is also
synchronized. Synchronization switches off
when the settings for the front passenger s ide
o r r ear are adjusted.
You can also switch synchronization on by pressing and holding a dial. For example, if
you press and hold the dial on the front pas­
senger side, the settings for that side are
transferred to the driver side. The same ap­
plies to the rear.
Air vents
You can open or close the center and outer
vents in the cockpit and the vents in the rear
cente r console and door pillars using the
ridged thumbwheels. The levers adjust the di­
rection of the airflow from the vents.
&_ WARNING
-=
-Do not use the recirc ulation for extended
periods of time . The windows could fog
up since no fresh air can enter the vehi­
cle . If the windows fog up, press the air
recirculation button aga in immediately
to switch off the air recirculation func­
tion or se lect defrost.
- Individuals w ith reduced sensitivity to
pa in or temperature cou ld deve lop burns
when using the seat heating function . To
red uce the risk of injur y, these individu-
als should not use seat heating. ..,.

7 2 Warm and cold
(D Note
To avoid damage to the heating e lements
in the seats, do not kneel on the seats or
place heavy loads on a small area of the
seat .
Setup
Applies to vehicles: with four-zone a utomat ic clima te con·
tro l
The climate control system setup is accessed
through the MMI .
.,. Se lect : I CAR I func tion button> (Car )* sys·
terns
con trol but ton > AC .
Rear cabin settings*
When th is fu nction is selected, all sett ings for
the rear can be adjusted through the climate
control sys tem in the cockpit. The cl imate
con trol sys tem se tt ings cannot be adjusted in
the rea r seat at the same time. This func tion
switches
o ff after a certain period of time or
when one of the dia ls in the cockp it is press­
ed .
Auto recirculation*
The sensit ivity level of the au tomatic rec ircu­
lation mode can be set at vario us leve ls from
off to sensit ive. The recirculation mode is con ­
trolled a utomat ica lly. You must p ress the ~
button if fog forms on the windows.
Footwell temperature
You can adju st the footwell temperat ure so
that it is cooler or wa rme r.
Supplementary heater*
The supplementary heater warms the interio r
of veh icles with diesel engines * mo re quick ly .
T he s upplementa ry he ater is cont ro lled au to­
mat ic all y in the
Aut o setting .
Steering wheel heating
App lies to vehicles: wi th hea ted s tee rin g whe el
The steering wheel rim can be heated .
Fig. 72 Stee ring co lu mn : stee rin g w heel hea tin g but ·
ton
.,. Press the~ button to switch steering whee l
heating on/off. The message
Steering wheel
heating on !/Steering wheel heating off !
appears in the instrument cluster d isp lay.
T he temperat ure is maintained at a constant
l evel when steering wheel heating is switched
on.
T he steering wheel hea ting se tt ings are stor ­
ed automat ica lly and assigne d to the remote
control key that is in use .

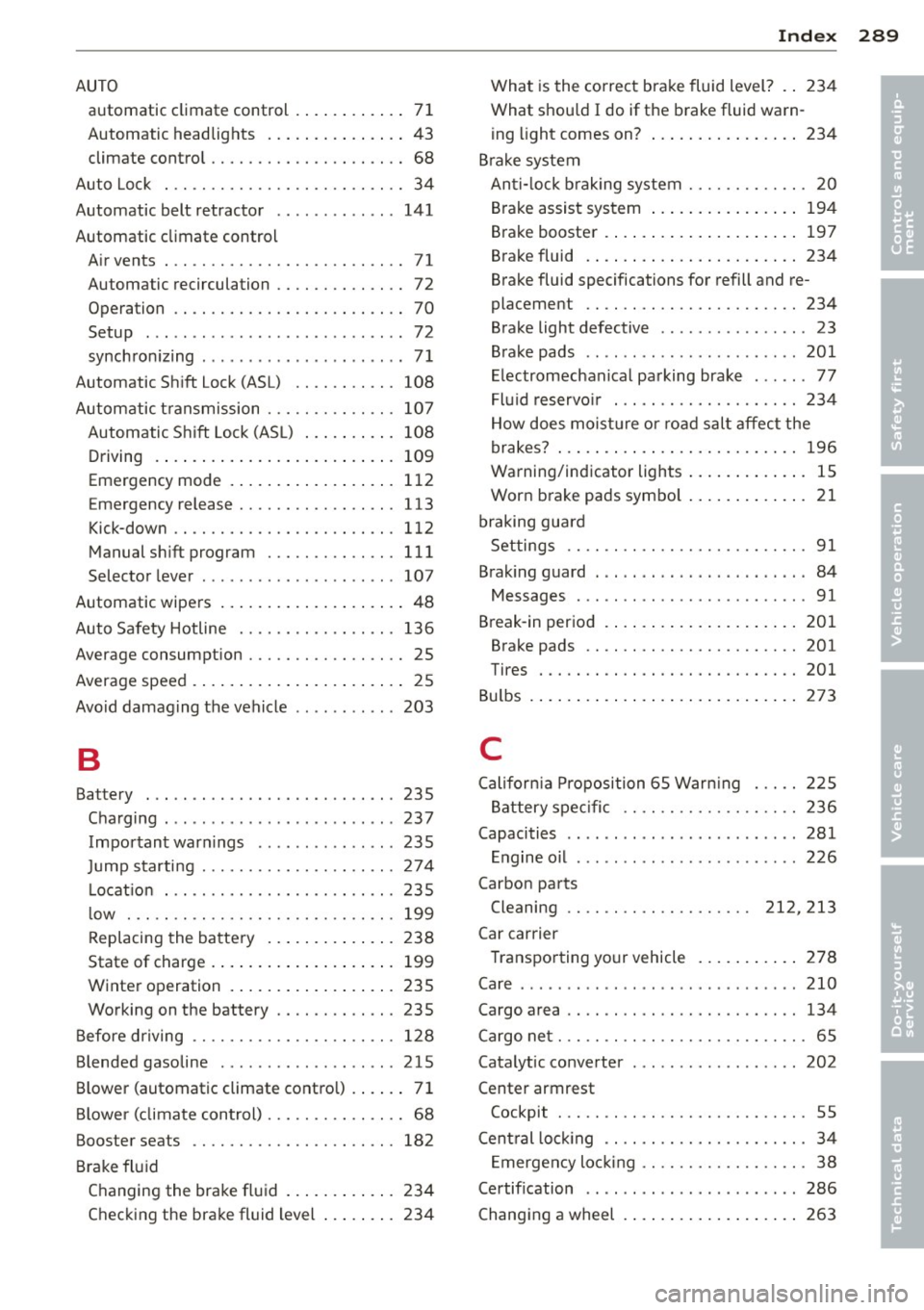

Index 289 ____________________________ ...:.:..:.=.:::.::.:
AUTO
automatic climate control . ... .. .. .. .. 71
Automatic headlights .... ... .. .. .. .. 43
climate control . . . . . . . . . . . . . . . . . . . . . 68
Auto Lock . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Automatic belt retracto r ..... ...... .. 141
Automatic climate control Air vents ................ ...... .... 71
A t t· . l . u oma 1c recircu at1on . . . . . . . . . . . . . . 72
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 70
Setup . .. ...................... ... 72
synchron izing ................... ... 71
Automatic Sh ift Lock (ASL) .. .. .. .. .. . 108
Autom atic t ransmission .............. 107
Automatic S hift Lock (ASL) ... .. .. .. . 10 8
D riving .... .. .... .... ... .. .. .. ... 109
Emergency mode . ..... ... .. .. .. .. . 1 12
Emergency release ........ .. .. .. .. . 113
Kick-down .. ............. .... .. ... 112
Manual s hift program .............. 111
Selector lever ..................... 107
Automatic wipe rs ... .... ... .. .. .. .. .. 48
Auto Safety Hotline ........ .. .. .. .. . 136
Average consumption ................. 25
Average speed . . . . . . . . . . . . . . . . . . . . . . . 25
Avo id damag ing the vehicle .. .. .. .. .. . 203
B
Ba ttery . .. .. .. .. .............. ... . 235
Cha rging ......................... 237
Impor tant war nings ...... .. .. .. .. . 235
J ump starting . ........... .. .. .. ... 274
L o cat ion . .. ............. .... .. ... 235
l ow . .. .. .. .... ............. .. .. . 199
Replacing the ba ttery .. ... .. .. .. .. . 238
State of charge . ... .... ... .. .. .. ... 199
Winte r operation . ..... ... .. .. .. .. . 235
Working on the battery ............. 235
B efore dr iving . . . . . . . . . . . . . . . . . . . . . . 128
Blended gasoline . ................ .. 215
Blower (automatic climate contro l) . . . . . . 71
B lower (climate control) . . . . . . . . . . . . . . . 68
Booster seats ............. .... .. ... 182
B rake fl uid
C hanging the brake fluid ... .. .. .. .. . 234
Chec king the brake fluid level ... .. .. . 234 What
is the correct bra ke fluid level? . . 234
What shou ld I do if the brake fluid wa rn -
i ng light comes on? .. .. ..... ... .. .. 234
B ra ke system
An ti-lock b rak ing system ........ .... . 20
B ra ke assis t sys tem .. ... .... ... .. .. 194
B rake booster . ...... .. .. ..... ... .. 197
Brake fluid . ... .. .. .. .. ...... ... .. 234
Brake fluid specifications for refill and re-
placeme nt .. .. .. ................. 234
B rake light defective . . . . . . . . . . . . . . . . 23
B ra ke pads .. .. .. .. . .. .... ...... .. 201
El ectromechan ica l pa rking brake ...... 77
Fl uid reservo ir ... ................. 234
H ow does moist ure or ro ad sal t affec t the
brakes? . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Warning/ind icator lights ..... ... .. .. . 15
Wor n brake pads symbo l ..... ... .. .. . 21
braking gua rd
Settings .......................... 91
B rak ing guard . .. .. .... ....... ....... 84
Messages ......................... 91
Break-in per iod . ..... . .. .. ..... ... .. 201
Brake pads .. .. .. ................. 201
r ires ....... .. ...... ............ .
Bul bs . ... .. .. .... .. . .. .. ..... ... . .
C
201
273
Cali for nia Pr oposition 65 War ning . .. .. 22 S
B attery spe cific .. .... ...... ..... .. 236
Capacities ......................... 281
E ngine oil ... .. .. .. . .. .... ...... .. 226
Carbon parts
Cleaning . . . . . . . . . . . . . . . . . . . . 212, 213
Car car rier
T ranspo rting your vehicle .... ... .. .. 278
Care .......... .... ................ 210
Cargo area . . . . . . . . . . . . . . . . . . . . . . . . . 134
Cargo ne t . . . . . . . . . . . . . . . . . . . . . . . . . . . 6S
Catalytic converter 202
Center armrest
Cockpit ... .. .. .. ................. . 55
Central lo cki ng .. .. .... ............. . 34
E mergen cy lo ckin g ............. .. .. . 38
Ce rtif ication . . . . . . . . . . . . . . . . . . . . . . . 286
Changing a wheel .... . .. ..... ... .. .. 263
•
•

Night vision assistant .... ... .. .. .. .. . 103
C leaning camera lenses . ... .. .. .. .. . 211
Nitrogen oxide (NOx) cata lytic conve rter
refer to Ad Blue ........... .. .. .. ... 220
Number of seats .. .. .... .... . .. .. .. . 138
0
Occupant seating positions
129
Octane rating ............. .... .. .. . 215
Odometer ..... ................ .... . 27
O FF (automatic climate contro l) . . . . . . . . 70
O FF ( clima te control) ....... .. .. .. .. .. 68
O il
refer to Engine oil ......... ... ... .. 226
On-board compute r ..... ... .. .. .. .. .. 25
On-Board Diagnostic System (OBD) Data L ink Connector (DLC) .. .. .. .. .. .. 30
E lectron ic speed lim ite r . . . . . . . . . . . . . . 3 1
M alfunct ion Indica tor Lamp (M IL) ... .. 30
Open door/hood/rear lid warning . . . . . . . 24
Opening Hood .... .. ................. .. ... 224
Powe r windows .......... .... .. .. .. 40
Sliding/tilting sunroof ........ .... ... 41
Operate you r vehicle economica lly and
minim ize po llution ......... .. .. .. .. . 203
Othe r equipmen t (eff ic iency p rog ram) . .. 26
Outlet .. .. .. .... ... .. ... ... .. .. .. .. 58
p
Paint damage
212
P aint No . .. .. .... ......... .... .. .. . 280
Park ing . .. ... ......... ...... .... ... 78
Automatic t ransmission ... .. .. .. .. . 109
Valet park ing ............ .. .. .. .. .. 41
Park ing brake ............. .... .. .. .. 77
also refer to Electromechanical park ing
brake .. .. ... ............. ... ... ... 77
Park ing system
Ad justing the disp lay/warning tone .. . 124
C leaning sensors/camera lenses . .. .. . 211
C leaning the rear view camera .. .. .. . 116
Malfunct io n .. ........... .. .. .. .. . 125
Par king system plus .......... .... .. 115
P eriphe ra l came ras .... ... .. .. .. .. . 119
Rear view camera ......... .. .. .. .. . 116
Inde x 295
Trai le r hitch ..... ... .. .. ..... ... .. 125
o/sorefertoPa rkingsystems . .. 115,116
Pa rking systems . .. ................. 11 4
Particle f ilter
refer to Diese l part icu late filter .. .. .. . 22
Pa rts replacement ... . .. .. ..... ... .. 285
Pass-through w ith sk i sack . . . . . . . . . . . . . 65
PASSENGER AIR BAG OFF light ...... .. 160
P a ssenger protect ion ............ .... 192
Passive safety system ... .. ...... .... . 128
Pedals ... .. .. .. .... . ... ...... ... .. 133
Physical p rinciples of a frontal collision 139
Plastic parts Cleaning ........ .. ............... 212
Polishing ... .. .... .. . .. .. ..... ... .. 212
Pollen filter
refer to P oll utant fil ter ........... .. . 67
Pollutant f ilter .. .. .... ......... .. .. . 67
Power locking system .. .. .. ..... ... .. . 34
Locking/unlocking the vehicle from in-
s ide .......... .. .. ................ 37
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Se lective unlock feature ........ .. .. . 35
Settings ........ .. ................ 35
U nlocking and locking vehicle ....... .. 35
Power seat adjustment Front seats . . . . . . . . . . . . . . . . . . . . . . . . 53
Power steer ing
refer to Ele ct ro -mechanical power as -
sist . ... .. .. .... ... . ... ..... ... .. 198
Power w indows .. .. ............. .. .. . 40
m alfu nction . .. .... ... .......... .. . 41
P regnant women
Spec ia l considerations when wear ing a
safety belt . . . . . . . . . . . . . . . . . . . . . . . 143
pre sense ... .... .. .. . .............. 192
P reventative passenge r protection . .. .. 192
Programming the Homeli nk unive rsal re -
mote control .. .. .. .. . .. .... .... .. .. 126
Proper occupant seating positions ... .. 129
P roper s afety belt posi tion . . . . . . . . . . . . 142
Proper seating position Front passenger .................. . 130
Occupan ts . .. .. .... .. ........ ..... 129
Rea r passengers .. ............. .... 131
Protecting .. .. .. .. ................. 212
•
•
