adblue AUDI A6 2017 Owners Manual

Checking and Filling
-A worn or damaged nozzle or a nozz le that
is too sma ll may not be ab le to open the
diesel misfueling guard . If this is the case,
try turning the noz zle before inserting it in
the fuel filler neck, use a different fuel p ump, or see an authorized Audi dealer or
aut horized Aud i Serv ice Facility for ass is­
ta nce.
- The misfueling guard does not open when adding fue l from a fue l conta iner . You can
bypass it by adding the diese l fuel s low ly.
Fuel filler door emergency release
If the central locking system is faulty, the fuel
filler door can be unlocked manually.

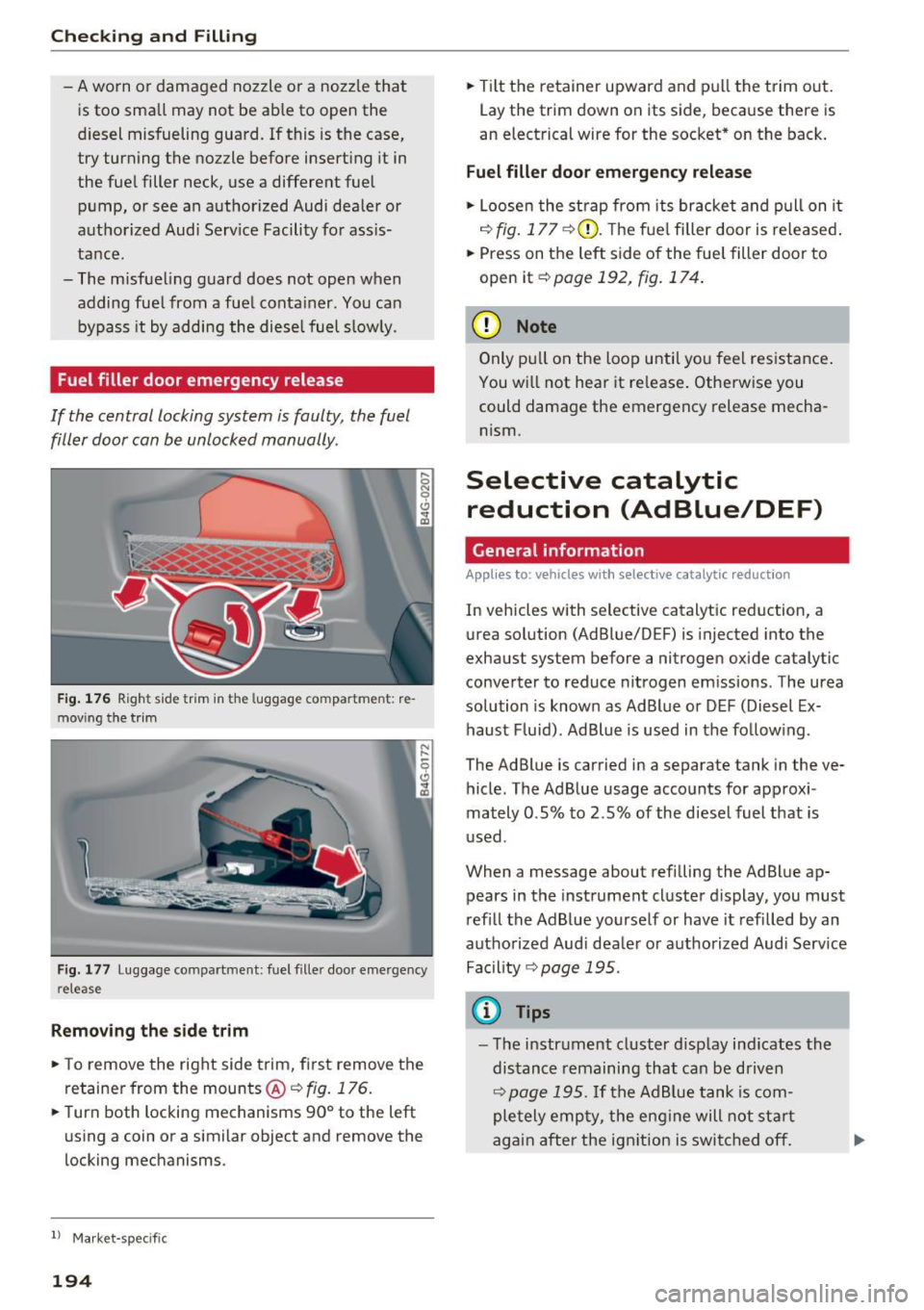

F ig. 1 76 Righ t side tr im in the luggag e com pa rtmen t: re­
m ovi ng t he trim
F ig . 1 77 Luggage com partment: fuel f ille r doo r eme rge ncy
re leas e
Removing the side trim
• To remove the right side trim, fi rst remove the
re taine r from the mounts@¢
fig. 176.
• Turn both locking mechanisms 90° to the left
us ing a coin or a similar object and remove the
locking mechanisms .
l) Ma rket -specifi c
194
• Tilt t he retainer upward and pull the trim out .
Lay the trim down on its side, beca use there is
an electrical wire for the soc ket* on the back .
Fuel filler door emergency release
• Loose n the strap from its bracke t and p ull on it
¢ fig. 17 7 ¢(i). Th e f ue l filler door is re le ased .
• Press on the left side of the fue l filler door to
open it
¢ page 192, fig . 174.
(D Note
Only p ull on the loop u nti l yo u feel resistance .
You wi ll not hear it re lease . Otherw ise you
could damage the emergency release mecha­ nism .
Selective catalytic
reduction (AdBlue/DEF)
General information
Appl ies to: vehicles with selective catalytic reduct ion
In vehicles with selective catalyt ic reduction, a
u rea solution (AdBlue/DEF) is injected into the
exhaust system before a nitrogen oxide catalytic
conve rter to reduce nitrogen em issions . The urea
solution is known as Ad Blue or D EF (Diesel Ex­
haust Fluid) . Ad Blue is used in the follow ing .
The Ad Blue is carried in a separate tank in the ve­ hicle. The AdBlue usage acco unts for approxi ­
mately 0 .5% to 2 .5% of the diese l fuel that is
u sed .
When a message about refilling the AdBlue ap­ pears in the instrument cl uster display, you must
ref ill the Ad B lue yourself or have it refilled by an
autho rized Aud i dea le r o r a uthorized Audi Serv ice
Fa cility
¢ page 195.
(D Tips
- The i nstr ument cluster d isplay ind icates the
dis tance remaining that ca n be driven
¢ page 195 . If the Ad Blue tank is com ­
pletely emp ty, the eng ine will no t st art
again after the ign ition is swi tched
off.

co
co
.... N
" N .... 0 0 <.,;) 'SI'
-Ad Blue is req uired by law to operate this ve ­
hicle .
Messages in the instrument cluster display
Appl ies to: ve hicles with selective ca talytic reduc tion
The display indicates if the Ad Blue level is low or
if there is a system malfunction.
AdBlue level low
You wi ll be informed if the Ad Blue in t he tank
dr ops below a certain leve l.
Please r efill Ad B lu e. Rang e x mi (km )
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
driver information system . Fill the AdBlue.
Ad Blue /9 Refill AdBlue! Cannot start engine
in x mi (x km )! See owner 's m anual
This message appea rs when there is only eno ugh
Ad Blue left to d rive the distance indicated in the
driver information system. Fill the AdBlue. Other­
wise the engine will not start again if you stop it
once the distance ind icated has been driven. You
can also check the remaining distance in the on­
board computer*.
Refill AdBlue! No restart! See o wn·
er 's manual
This message appears when the AdBlue tank is
empty. Fill the Ad B lue . Otherwise you will not be
ab le to start the engine again once you stop it.
The AdB lue m ust be refilled when the amount in
the tank has reached the minimum level
¢ page 195, Filling Ad Blue .
Incorrect filling/system malfunction
A message appears if the Ad Blue tank was filled
with a fluid other than AdBl ue and the sys tem
h as detec ted t hat the tank was f illed incorrect ly,
or if there is a system malfunction .
Ad Blue/ AdBlue : system fault . No restart in
x mi (x km ) See owner 's manu al
This message appears when it is only poss ible to
drive the d ista nce ind icated in the dr iver informa­
tion system. Drive to t he nearest autho rized Aud i
dealer or authorized Aud i Serv ice Facility to have
Checking and Filling
the mal func tion corrected. Otherw ise the engine
will not sta rt again if you stop it once the dis­
tance indicated has been driven .
Ad Blue: Syst em fault No re start!
See owne r's ma nual
T his message appears if the system has detected
that the tan k was fi lled incorrect ly or tha t there
is a ma lf u nction. Drive immed iate ly to the nea r­
est authorized A udi dealer or authorized Audi
Service Facility to have the malfunction correct ­
ed. Otherwise you will not be able to start the en ­
gine again once you stop it .
Filling AdBlue
Applies to : vehicles wi th selective cat alyt ic re du ctio n
Fi g. 17 8 Right rear side of the vehicle: removing t he AdBl ­
ue cap
The Ad Blue tank open ing is located near the d ie­
se l tank opening . Add at least 1.5 gallons (5 . 7
li te rs) of Ad Blue. This is the m inimum amo unt re­
quired to ensure the system detects the refilling
and to start the eng ine. You can add a max imum
of4.5 gallons ( 17 liters).
Requirement: the request to add Ad Blue mus t
appea r in the ins trument clus ter display.
.,. Switch the ignit ion off .
.,. Open the tank filler door ¢
page 192.
.,. Tur n the cap on the f iller ne ck coun ter-clock­
w ise using the wheel wre nch from the vehi cle
too l kit to remove it¢
fig . 178.
.,.. Fill the AdBlue using a bottle ¢ page 196 or a
canister
¢page 196. ..,.
195

Checking and Filling
& WARNING
AdBlue can irritate the skin, eyes and respira­tory system. If there is contact with the fluid,
flush immediately with plenty of water . Con­
sult a physician if necessary.
(D Note
- Only use Ad Blue that conforms to the
standard ISO 22241 -1. Do not mix any addi ­
tives with the Ad Blue and do not dilute it
with water.
- Do not add Ad Blue to the diesel tank or add diesel fuel to the Ad Blue tank. Do not start
the engine under any circumstances if the
wrong fuel is filled in the tank. There is a
risk of damaging the fuel tank system and
the engine. See an authorized Audi dealer or
authorized Audi Service Facility for assis­
tance.
- AdBlue attacks surfaces such as painted ve­
hicle components, plastic and carpet. Re­
move the fluid as quickly as possible with a
damp cloth and plenty of cold water. If the
Ad Blue has already crystallized, use warm
water and a sponge . AdBlue residue that is
not removed will crystallize and can damage
the affected surface.
- Do not store refill bottles or canisters per ­
manently in the vehicle. If the container
leaks, the escaping AdBlue could damage
the vehicle interior.
- Do not allow AdBlue to come into contact
with clothing. If there is contact with the
fluid , flush immediately with plenty of
wa­
ter.
(j) Tips
Follow the Ad Blue manufacturer 's instruc­
tions for use and storage.
Refilling AdBlue using a bottle
Applies to: vehicles with selective catalytic reduction
... Remove the cap from the refill bottle ¢.&. in
Filling AdBlue on page 196,
c::> (D in Filling
AdBlue on page 196.
196
... Position the bottle on the filler tube and turn
the bottle clockwise until it stops turning.
... Press lightly against the bottom of the bottle
to empty it . Continue pressing the bottom of
the bottle until it is empty or until fluid stops
flowing into the tank .
... Remove the bottle and seal the filler neck
c::> page 197, Completing AdBlue refill.
d) Note
Only use refill bottles that are approved for
your vehicle. Using other systems can cause AdBlue to leak.
(D Tips
- You can obtain refill bottles from an author­
ized Audi dealer or authorized Audi Service
Facility.
- A permitted refill bottle contains approxi­
mately 0.5 gallon (1.9 liters) of AdBlue.
Refilling AdBlue using a canister
Applies to: vehicles with selective catalytic reduction
®
+®
Fig. 179 Canister w ith attachable hose
... Remove the cover from the refill canister c::> .&.
in Filling AdBlue on page 196 , c::>(D in Filling
AdBlue on page 196 .
.,. Secure the end of the hose the canister @by turning the hose to the right.
.,. Remove the cap @from the other end of the
hose @.
... Position the end of the hose @on the filler
neck in the vehicle and turn the hose to the
right to tighten it .
... Lift the canister up and then tip it . Continue
holding the canister in a tipped position until it
1J,,

co
co
.... N
" N .... 0 0 <..:l - is empty or until no more fluid flows into the
tank .
.,. Remove the canister and close the fi ller tube
c:> page 197 , Comple ting AdBlue refill .
CD Note
Only use refi ll canisters that are approved for
your vehicle. Us ing other systems can cause
Ad Blue to leak.
(D Tips
- An authorized Audi dealer or authorized
Audi repair facility can tell you which ref ill
canisters are approved for your vehicle.
- A permitted refill canister conta ins approxi­
mately 1.3 gallons (5 liters) of AdBlue.
Completing AdBlue refill
Applies to: vehicles with selective catalytic reduction
Clo sing the filler nec k
.,. Tu rn the cap on the filler neck to the right with
the wheel wrench until the cap clicks into place.
This t ightens the cap to the specification c::> .&.
in Filling AdBlue on page 196, c:> 0 in Filling
AdBlue on page 196.
.,. The n press on the left side of the tank doo r un-
t il it latches .
After filling
The vehicle must be dr iven so that the system
recognizes that the Ad Bl ue was refilled . Th is can
take severa l m inutes.
.,. If there was no Ad Blue left in the tank and a
range of O mi (0 km) was shown in the display,
switch the ign ition on for about 30 seconds be­
fore starting the engine.
(D Tips
Ad Blue can freeze at very low temperatures.
If th is happens , the system will not detect
that the Ad Blue was refilled and it will contin­
ue to inform yo u of the low Ad B lue level. The
message turns off as soon as the tank thaws
out again .
Ch eck ing and Filling
Catalytic converter
Applies to: vehicles with gasoline engine
It is very important that your emission control
system (cataly tic converter) is functioning prop­
erly to ensure that your vehicle is running in an
environmentally sound manner.
.,. Always use lead-free gasoline c:> page 190 , Fuel
supply.
.,. Never run the tank down all the way to empty .
.,. Never put too much motor o il in your engine
c:> page 203, Adding engine oil.
.,. Never try to push- or tow-start your vehicle.
The catalytic co nverter is an efficient "clean -up"
device built into the exhaust system of the ve hi­
cle. The catalyt ic converter b urns many of the
po llutants in the exhaust gas before they are re­
leased into the atmosphere.
The exclusive use of un leaded fuel is cr itically im­
portant for the life of the catalytic converte r and
prope r funct ion ing of the eng ine .
_&. WARNING
The tempera ture of t he exhaus t sys tem is
h igh, bot h when driv ing and a fter stopping
the engine .
- Never tou ch the exhaust tail pipes once they
have become hot. This cou ld resu lt in burns.
- Do not park or operate the vehicle in ar eas
where the hot exhaus t sys tem may come in
contact with dry grass, b rush, fuel spill or
other material which can ca use a fire.
- Do not app ly additiona l undercoating or
r u stp roofing on or near the exhaust mani­
fold, exha ust pipes, cata lytic converter or
heat shields . D uring driving, the substance
used for undercoat ing could overheat and
cause a fire.
CD Note
- Be aware that just one tank fi lling with
leaded fuel w ill already seriously degrade
the performance of the catalytic converter .
- Do not exceed the correct engine oil leve l
c:> page 203.
197

co
co
.... N ,..._
N .... 0 0 <..:l - Numbers and
Symbols
4-zone deluxe automatic climate control 60
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Key recognition . . . . . . . . . . . . . . . . . . . . . . 60
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Res idual heat . . . . . . . . . . . . . . . . . . . . . . . . 64
Synchronizing . . . . . . . . . . . . . . . . . . . . . . . . 64
A
A/C (4-zone deluxe automatic climate
control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
A/C (deluxe automatic climate control) 61
ABS
refer to Anti-Lock Braking System . . . . . . 120
Accessories . . . . . . . . . . . . . . . . . . . . . . . 55, 261
Active lane assist . . . . . . . . . . . . . . . . . . . . . . 96
Adjusting the vibration warning . . . . . . . . . 98
Cleaning the camera area . . . . . . . . . . . . . 232
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 97
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Switching on/off . . . . . . . . . . . . . . . . . . . . . 97
Adaptive air suspension . . . . . . . . . . . . . . . . 104
Adaptive cruise control . . . . . . . . . . . . . . . . . . 88
braking guard . . . . . . . . . . . . . . . . . . . . . . . . 93
Cleaning the sensor . . . . . . . . . . . . . . . . . . 232
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Request for driver intervention . . . . . . . . . . 93
Stop -and -go traffic . . . . . . . . . . . . . . . . . . . 91
AdBlue. ... .. .. ................ ..... . 194
Me ssages . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Opening the tank door . . . . . . . . . . . . . . . . 195
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Adjusting air distribution (4-zone deluxe auto­
matic climate control) . . . . . . . . . . . . . . . . . . 63
Adjusting a ir distribution (deluxe automatic
climate control) . . . . . . . . . . . . . . . . . . . . . . . 61
Adjusting the temperature (4-zone deluxe au ­
tomatic climate control) . . . . . . . . . . . . . . . . 63
Adjusting the temperature (deluxe automatic
climate control) . . . . . . . . . . . . . . . . . . . . . . . 61
advanced key
refer to Convenience key . . . . . . . . . . . . . . . 70
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Index
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 167
Advanced Airbag-System . . . . . . . . . . . . . . 151
Advanced Airbag System components . . . 154
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Child restraints . . . . . . . . . . . . . . . . . . . . . 173
Components (front airbags) . . . . . . . . . . . 154
Danger of fitting a child seat on the front
passenger seat . . . . . . . . . . . . . . . . . . . . . . 148
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Front airbags .... .. ............. 151, 152
How do the front airbags work? . . . . . . . . 157
How many airbags does my vehicle have? 154
How the Advanced Airbag System compo-
nents work together . . . . . . . . . . . . . . . . . 156
Important information . . . . . . . . . . . . . . . 147
Impo rtant safety instructions on the knee
airbag system . . . . . . . . . . . . . . . . . . . . . . . 165
Knee airbags. . . . . . . . . . . . . . . . . . . . . . . . 163
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 159
PASSENGER A IR BAG OFF light . . . . . . . . . 159
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Safety instructions . . . . . . . . . . . . . . . . . . . 161
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . 165
S ide curta in airbags . . . . . . . . . . . . . . . . . . 168
Warning/Indicator lights . . . . . . . . . . . . . 159
When must the system be inspected? 159
Air pressure (tire pressure monitoring
system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Air suspension . . . . . . . . . . . . . . . . . . . . . . . 104
Alignment pin (tire changing) . . . . . . . . . . . 236
All season tires . . . . . . . . . . . . . . . . . . . . . . . 225
All weather lights . . . . . . . . . . . . . . . . . . . . . . 41
All wheel drive . . . . . . . . . . . . . . . . . . . . . . . 124
Alternator
refer to A lternator (indicator light) . . . . . . 14
Alternator (indicator light) . . . . . . . . . . . . . . 14
Amb ient lighting . . . . . . . . . . . . . . . . . . . . . . 44
Anti-freeze Windsh ield washer system . . . . . . . . . . . . 208
Anti -lock braking system
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 16
Anti-Lock Braking System . . . . . . . . . . . . . . 120
Anti-s lip regulat ion
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 16
Anti-Slip Regulation . . . . . . . . . . . . . . . . . . . 120
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
263
