transmission oil AUDI A6 2017 Owners Manual

Instruments and indicator lights
12
Electromechanical parking brake
¢page 14
Tire pressure monitoring system./
¢page228
Tire pressure monitoring system
¢page228
Engine control (gasoline engine)./
¢page 17
Engine control (diesel engine)./
¢page 17
Malfunction Indicator Lamp (MIL)
./
¢page 17
Diesel particulate filter*
¢page 18
Engine speed limitation
¢page 18
Engine oil level
¢page 15
Engine oil sensor
¢page 18
Engine warm-up request
¢page 18
Battery charge
¢page 14
Tank system
¢page 18
Washer fluid level
¢page 19
Windshield wipers
¢page 19
Remote control key
¢page 70
Remote control key
¢page 72
Battery in remote control key
¢page29
Bulb failure indicato r
¢page 19
Rear fog lights
¢page 19
Headlight range control system
¢page 19
Adaptive light*
¢page42
Light/rain sensor
¢ page 19
Active lane assist*
¢page 97
Transmission
¢page 81
Transmission
¢page 81
Steering lock
¢page 15
Engine start system
¢page 15
Brake booster
¢page 16,
Central indicator light
¢page 10
Electromechanical power steering,
dynamic steering*
¢ page 123
Air suspension*
¢page 16
Sport different ial*
¢ page 19
Ad Blue*
¢page 194
Ad Blue"
¢page 194
Other indicator lights
--------------
Turn signals
¢page20
USA models:
cruise control system
¢page 86

co
co
.... N
" N .... 0 0 <.,;) 'SI"

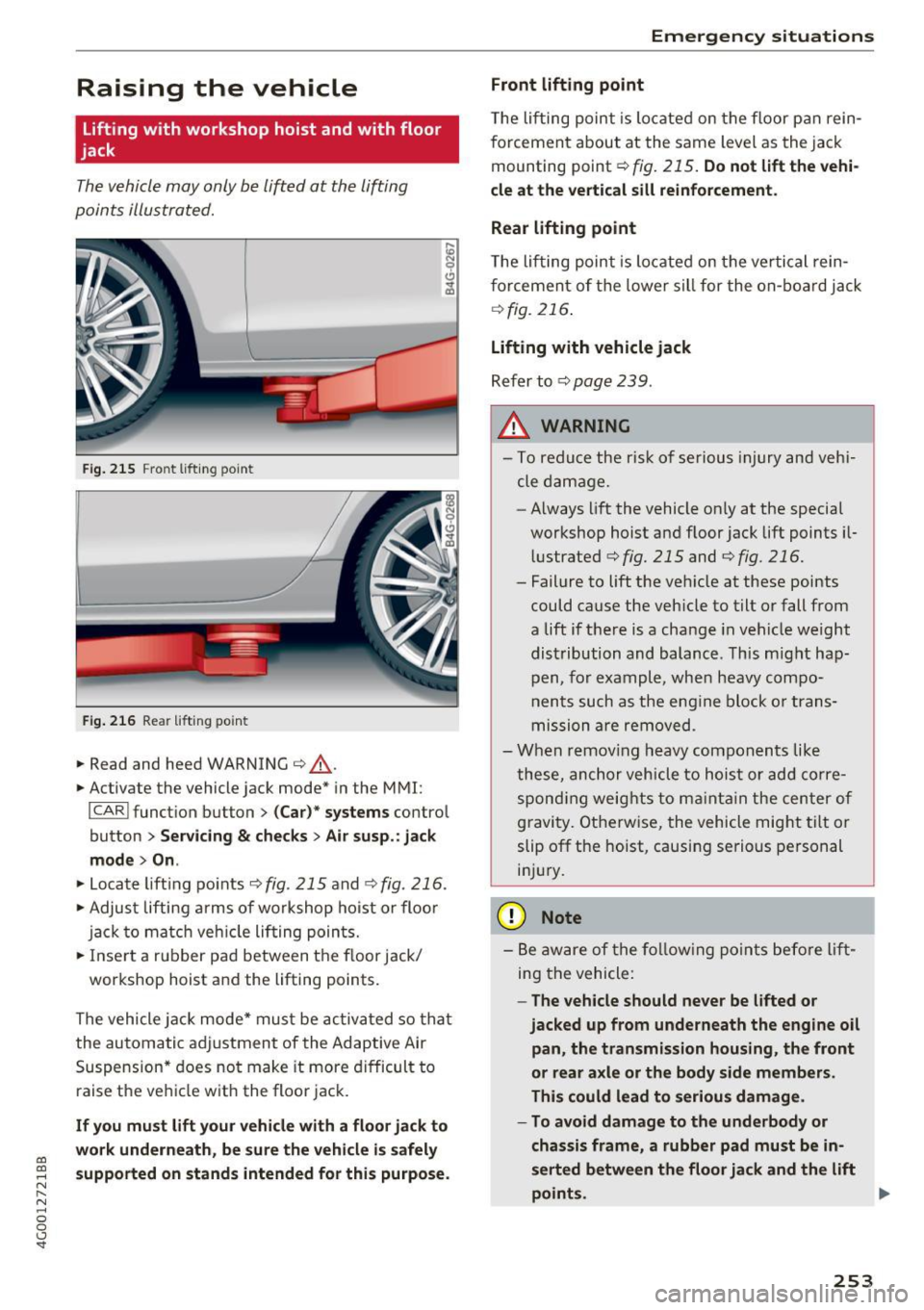

Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only b e li~ ed at the lifting
points illustra ted.
F ig. 215 Front lift ing po int
F ig. 216 Rea r lift ing po int
.,. Read and heed WARNING c:> &_ .
.. Activate the vehicle jack mode* in the MMI:
I CAR I funct ion button> (Car) * systems contro l
button >
Servicing & checks > Air susp.: jack
mode > On .
.. Loca te lift ing po ints c:> fig . 215 and c:> fig . 216 .
.. Adju st lifting arms of wo rkshop ho ist o r floo r
j ac k t o ma tch vehicl e lifting poin ts.
.. In se rt a rub ber pa d between the f loor jack/
wor kshop hoist a nd the lifting points .
T he vehicle ja ck mode* mus t be activa ted so th at
the au tomatic a djustment of the Adaptive Air
Suspension * does not make it more d ifficult to
raise the ve hicle w it h the floo r jack.
If you must lift your vehicle with a floor jack to
work underneath , be sure the vehicle is safely
supported on stands intended for this purpose .
Emergency situations
Front lifting point
The li fting poin t is lo cate d on the floor p an rein ­
f orceme nt ab out at the same level as the ja ck
mounting point
c:> fig . 215 . Do not lift the vehi­
cle at the vertical sill reinforcement.
Rear lifting point
T he lifting point is lo cated on the ver tic al rein ­
f orcement o f the lower s ill for the on- bo ar d jac k
<=>fig. 216.
Lifting with vehicle jack
Refer to c:> pag e 239 .
A WARNING
- To reduce the r is k of se rious inju ry and vehi ­
cle damag e.
- Always lift the vehicle on ly at the special
workshop h oist a nd floor jack lift points
il ­
lustrated c:>fig. 215 and c:>fig. 216.
-Failure to lift t he veh icle at these points
could cause t he veh icle to tilt o r fall from
a lift i f th ere is a change in vehicle weight
dist ribution and balance . This might hap­
pen, fo r example, when heavy compo­
n en ts such as the eng ine block o r tran s­
mis sio n a re re moved .
- Whe n re mov ing heavy co m ponents like
these, an ch or vehicle t o hois t or ad d co rre­
spon ding weig hts t o m aintai n the cen ter of
g ravi ty . Ot herw ise, the vehicle mig ht tilt or
slip off t he hoist, caus ing se rious pe rsonal
i njur y .
(D Note
-Be aw are of the fo llow ing points b efor e lift­
ing the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage .
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points . .,.
253

co
co
.... N
" N .... 0 0 <..:l ' Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Ceram ic brake rotors
New brake pads . . . . . . . . . . . . . . . . . . . . . 122
Certification . . . . . . . . . . . . . . . . . . . . . . . . . 262
Changing engine oil . . . . . . . . . . . . . . . . . . . 204
Child restraints Danger of using child restraints in the front
seat. .. .. .. .. ............... .. .. .. . 148
Where can I get additional information
about child restraints and their use? . . . . 189
Ch ild restraint system anchors . . . . . . . . . . 185
Child safety .. .. ............... .. .... . 171
Important safety instructions for using child
safety seats . . . . . . . . . . . . . . . . . . . . . . . . 17 5
Important things to know when driv ing with
children . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Tether anchors . . . . . . . . . . . . . . . . . . . . . . 188
Tether straps . . . . . . . . . . . . . . . . . . . . . . . 188
Child safety lock Power windows . . . . . . . . . . . . . . . . . . . . . . 36
Rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Child safety seats
Booster seats . . . . . . . . . . . . . . . . . . . . . . . 181
Convertible child seats . . . . . . . . . . . . . . . 179
Convertible locking retractor . . . . . . . . . . 184
H ow do I properly install a child safety seat
in my vehicle? . . . . . . . . . . . . . . . . . . . . . . . 175
I nfant seats .. .. ............. .. .. .. . 177
I nstall ing a chi ld restraint using the LA TC H
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
LATCH system . . . . . . . . . . . . . . . . . . . . . . 187
Lower anchorages . . . . . . . . . . . . . . . . . . . 186
Mounting and releasing the anchorage
hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Safety instructions . . . . . . . . . . . . . . . . . . . 17 5
Unused safety belts on the rear seat . . . . 177
Child seats .. .. ................ ..... . 177
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
C igarette lighter . . . . . . . . . . . . . . . . . . . . . . . 54
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Cleaning/removing ice from windows . . . . . 233
C leaning Alcantara . . . . . . . . . . . . . . . . . . . . 234
Cleaning artificial leather . . . . . . . . . . . . . . . 234
C leaning carbon parts . . . . . . . . . . . . . 233, 234
Cleaning controls . . . . . . . . . . . . . . . . . . . . . 233
Cleaning decorative parts/trim . . . . . . . . . . 233
Index
Cleaning displays . . . . . . . . . . . . . . . . . . . . . 233
Cleaning exhaust tail pipes . . . . . . . . . . . . . 232
Cleaning plastic parts . . . . . . . . . . . . . . . . . . 233
Cleaning rims . . . . . . . . . . . . . . . . . . . . . . . . 232
Cleaning textiles . . . . . . . . . . . . . . . . . . . . . . 234
Climate contro l system . . . . . . . . . . . . . . . . . 60
Automatic auxiliary heater . . . . . . . . . . . . . 64
Automatic recirculation . . . . . . . . . . . . . . . . 64
Basic settings . . . . . . . . . . . . . . . . . . . . . . . . 64
Drive select . . . . . . . . . . . . . . . . . . . . . . . . . 104
Closing Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Windows . .. .. . ... ............... .. . 37
Closing/opening By remote control . . . . . . . . . . . . . . . . . . . . 30
With the central locking switch . . . . . . . . . 31
With the convenience key . . . . . . . . . . . . . . 30
Closing aid (doors) . . . . . . . . . . . . . . . . . . . . . 27
Closing and opening With the door lock . . . . . . . . . . . . . . . . . . . . 32
Clutch (manual transmission) Indicator light . . . . . . . . . . . . . . . . . . . . . . . 16
Cockpit (overview) . . . . . . . . . . . . . . . . . . . . . . 6
Color code . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Coming home . . . . . . . . . . . . . . . . . . . . . . . . . 43
Compartments . . . . . . . . . . . . . . . . . . . . . . . . 55
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Consumer information . . . . . . . . . . . . . . . . . 259
Consumer Information . . . . . . . . . . . . . . . . . 135
Consumption (fuel) . . . . . . . . . . . . . . . . . . . . 22
Contacting NHTSA . . . . . . . . . . . . . . . . . . . . 135
Convenience key Start ing the eng ine (START ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Stopping the eng ine (STAR T ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Switching the ignition on . . . . . . . . . . . . . . 70
Unlocking/locking . . . . . . . . . . . . . . . . . . . . 30
Convenience opening . . . . . . . . . . . . . . . . . . . 37
Convertible child safety seats . . . . . . . . . . . 179
Convertible locking retractor
Activating . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Deactivating . . . . . . . . . . . . . . . . . . . . . . . . 185
Using to secure a child safety seat . . . . . . 184
Cooling down . . . . . . . . . . . . . . . . . . . . . . . . . 66
265

Index
Maintenance intervals . . . . . . . . . . . . . . . . . 208
Malfunction Indicator Lamp (MIL) . . . . . . . . 25
Massage function . . . . . . . . . . . . . . . . . . . . . . 50
Mechanical key . . . . . . . . . . . . . . . . . . . . . 28, 29
Memory function . . . . . . . . . . . . . . . . . . . . . . 52
Mirror Dimming ... .. .. ................ ... .. 45
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . 46
Mirrors Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 45
Monitoring the Advanced Airbag System . . 159
Multifunction steering wheel. . . . . . . . . . . . . 22
N
Natural leather care/cleaning
NHTSA
Contacting . ..................... .. .
Night vision assist ............. ...... .
Cleaning the camera ................ .
Nitrogen oxide (NOx) catalytic converter
refer to Ad Blue .. ............. .... .. .
Number of seats ..................... .
0
Occupant seating positions 234
135
101
232 194
139
129
Octane rating . . . . . . . . . . . . . . . . . . . . . . . . 190
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
OFF (4-zone deluxe automatic climate con-
trol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
OFF (deluxe automatic climate control) 61
O il
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 18
also refer to Engine oil . . . . . . . . . . . . . . . 201
Oil change interval . . . . . . . . . . . . . . . . . . . . 208
On-board computer . . . . . . . . . . . . . . . . . . . . 22
On-Board Diagnostic System (OBD)
Data Link Connector (DLC) . . . . . . . . . . . . . . 25
Electronic speed limiter . . . . . . . . . . . . . . . . 26
Malfunction Indicator Lamp (MIL) . . . . . . . 25
Opening..... ......................... 27
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . 192
Hood ........ .. ................ .... 200
Luggage compartment lid . . . . . . . . . . . . . . 34
Sunroof. ..... .................. ..... 38
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
270
Opening/closing
With the central locking switch . . . . . . . . . 31
With the convenience key . . . . . . . . . . . . . . 30
Opening and closing
On the door lock cylinder . . . . . . . . . . . . . . . 32
Other consumers (efficiency program) . . . . . 23
Overview (Cockpit) . . . . . . . . . . . . . . . . . . . . . . 6
p
Paint damage
Paint number
Parking aid 233
255
Cleaning sensors/camera . . . . . . . . . . . . . 232
Parking brake
refer to Electromechanical parking brake . 75
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . 41
Parking system Adjusting the display/warning tone
... .. 118
Cleaning the rearview camera . ....... ..
110
Malfunction
. . . . . . . . . . . . . . . . . . . . . . .. 118
Parking system plus ................. . 109
Periphera l cameras
. . . . . . . . . . . . . . . . .. 113
Per ipheral display
.... ............. .. 109
T railer hitch
... .. .... ............. .. 118
also refer to Parking systems . . . . . . 109, 110
Parking systems . . . . . . . . . . . . . . . . . . . . . . 108
Rearv iew camera . . . . . . . . . . . . . . . . . . . . 110
Parking (automatic transmission) . . . . . . . . . 79
Parking (Valet Parking function) . . . . . . . . . . 39
Parts replacement . . . . . . . . . . . . . . . . . . . . 261
Pass-through . . . . . . . . . . . . . . . . . . . . . . . . . 59
PASS ENGER A IR BAG OFF light . . . . . . . . . . 159
Passenger protection . . . . . . . . . . . . . . . . . . 13 7
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Pedestrian detection . . . . . . . . . . . . . . . . . . 101
Peripheral display . . . . . . . . . . . . . . . . . . . . . 109
Physical p rinciples of a frontal collision . . . 140
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Pollen filter
refer to Pollutant filter . . . . . . . . . . . . . . . . 60
Pollutant filter . . . . . . . . . . . . . . . . . . . . . . . . 60
Power Seat adjustment . . . . . . . . . . . . . . . . . . . . . 50
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
