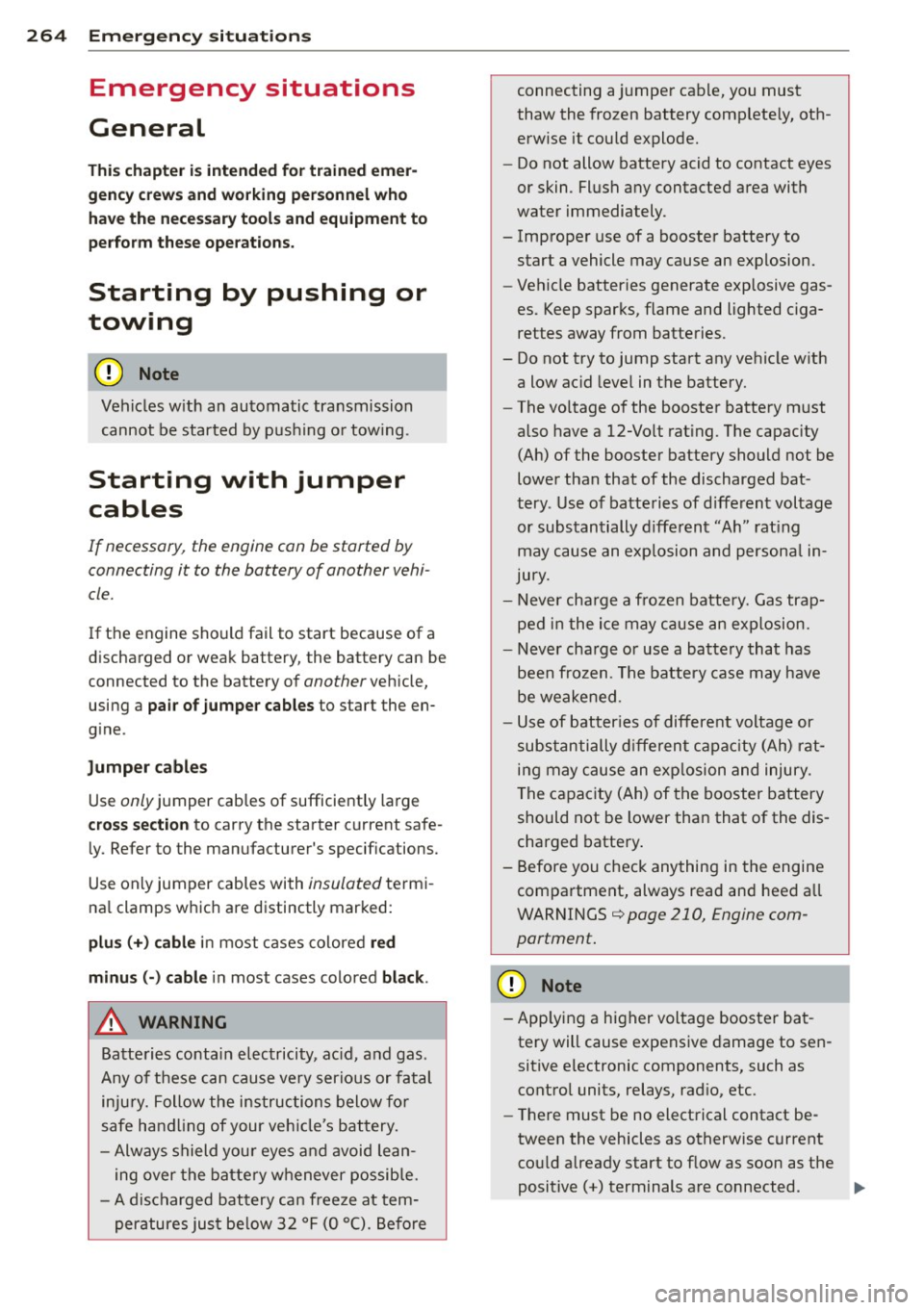

264 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who
have the necessary tools and equipment to
perform these ope rations.
Starting by pushing or
towing
Q;) Note
Vehicles w ith an automatic transmission
cannot be started by pus hing o r tow ing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another veh icle,
using a
pair of jumpe r cables to start the en­
g ine .
Jumper cables
Use only jumper cables of sufficiently large
cross section to carry the starter current safe­
ly. Refer to the manufacturer's specif ications.
Use only jumper cables with
insulated termi­
na l clamps which are distinctly marked:
plus(+) cable in most cases colored red
minu s(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
inju ry. Follow the instructions below for
safe handling of your veh icle's battery.
- Always shield you r eyes and avoid lean­
ing over the battery whenever possible.
- A discharged battery can freeze at tem­
peratures just be low 32 °F (0 °C). Before connecting a
jumper cable, you must
thaw the frozen battery complete ly, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin. Flush any contacted area with
water immediately.
- Improper use of a booster battery to start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es. Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with a low acid level in the battery.
- The vo ltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery . Use of batteries of d ifferent voltage
or substantially different "Ah" rating
may cause an exp losion and personal in­
jury.
- Never charge a frozen batte ry. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batter ies of different voltage or
substantially different capacity (Ah) rat­
ing may cause an exp losion and injury.
The capacity (Ah) of the booster battery
should not be lower than that of the dis ­
charged battery.
- Before you check anything in the engine
compartment, always read and heed a ll
WARNINGS
¢page 210, Engine com­
partment.
«I) Note
-Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
contro l units, relays, rad io, etc.
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,_

266 Emergency situations
-When connecting jumper cables, make
sure that they cannot get caught in any
moving parts in the engine compart­
ment .
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
<=) page 210, Engine com­
partment.
(D Note
Improper hook-up of jumper cables can ru­
in the generator.
-Always connect POSITIVE(+) to POSI­ TIVE(+), and NEGATIVE( -) to NEGATIVE
( - ) ground post of the battery manager
control unit.
- Check that all screw plugs on the battery
cells are screwed in firmly . If not, tighten
plugs prior to connecting clamp on nega­
tive battery terminal.
- Please note that the procedure for con­
nect ing a jumper cable as described
above applies spec ifically to the case of
you r vehicle being jump started. When
you are giving a jump start to another ve­
hicle, do
not connect the negative(-) ca­
ble to the negative(-) terminal on the
discharged battery@<=)
fig. 198. In­
stead, securely connect the negative(-)
cable to either a solid metal component
that is firmly bolted to the engine block
or to the engine block itself. If the bat­
tery that is being charged does not vent
to the outside, escaping battery gas
could ignite and explode!
Emergency towing
with commercial tow
truck
General hints
Your Audi requires special handling for tow­
tng.
The following information is to be used by
commercia l tow truck operators who know
how to operate their equipment safely.
- Never tow your Audi. Towing will cause
damage to the engine and transmission .
- Never wrap the safety chains or winch ca­
bles around the brake lines.
- To prevent unne cessary damage, your Audi
must be transported with a flat bed truck.
- To load the vehicle on to the flat bed, use
the towing loop found in the vehicle tools
and attach to the front or rear anchorage
r=) page 266 and ¢ page 267.
.&_ WARNING
=
A vehicle being towed is not safe for pas-
-
sengers. Never allow anyone to ride in a
vehicle being towed, for any reason.
Front towing loop
Only install the front towing loop when it is
needed.
Fig. 199 Fro nt bumpe r: cove r
Fig. 200 Front bumper: installing the towing loop
There are threads located behind the right
s ide of the front bumper where a towing loop
can be installed. The threads are located be­
hind a cover.
.,. Remove the tow ing loop from the vehicle
tool kit .

268 Emergency situations
@ Tips
Check carefully to make sure the hook- up
is sec ure before moving the ca r up the flat ­
bed truck ramp.
Lifting vehicle
Lifting with workshop hoist and with
floor jack
T he vehi cle may only be li~ed at the lifting
points illustrated .
Fig. 204 Front lift ing po int
Fi g. 205 Rear lift ing point
• Read and heed WARNING q &_ .
• Locate lifting points qfig. 204 and
qfig. 205.
• Adjust lift ing arms of workshop hoist or
floor jack to match vehicle lifting points.
• Inse rt a r ubber pad betw een the floor jack/
wor kshop hoist and the lifti ng points.
If you must lift your vehicle with a floor jack
to work underneath, be sure the vehicle is
safely supported on stands intended for thi s
purpose .
Front lifting point
The lifting point is located on t he floor pan re­
i n forcement about at the same level as the j
ac k mounting po int
~ fig. 204. Do not lift
the veh icle at the vertical sill reinforcement .
Rear lifting point
The lifti ng po int is located o n the vert ica l rein­
f orcemen t of the lowe r sill for the on- boar d
j a ck
q fig . 205.
Lifting with vehicle jack
Refer to ¢ page 256 .
A WARNING
-- To reduce the risk of s erio us injury and
ve hicl e damage.
- Always lift the vehicle only at the spe­
c ia l workshop hoist and floor jack lift
po ints illustrated
¢ fig. 204 and
q fig. 205.
-Fail ure to lift the ve hicle at these
po ints could cause the vehicle to tilt or
fall from a lift if there is a change i n ve­
h icle weight distribution and balanc e.
T his mig ht happen, fo r example, whe n
h eavy com ponen ts such as the eng ine
b lo ck o r trans mission a re remove d.
- W hen removi ng heavy compone nts like
t hese, anch or vehicle to h oist or ad d cor ­
resp onding we ig hts t o main tain t he cen­
t er of gravity. Oth erwise, t he ve hicle
might tilt or slip off the ho ist , ca using
serio us personal injury.
(D Note
- B e aw are o f the followin g poin ts before
li ft ing t he vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil pan, the transmission housing, the
front or rear axle or the body side
members. This could lead to serious
damage .
- To avoid damage to the underbody or
chas sis frame, a rubber pad must be
inserted between the floor jack and
the lift points.
-
- Before driving over a workshop hoist,
check that the vehicle weight doe s not .,..

274 Con sum er Inf ormation
comp lexity of today's automobi les, have
steadi ly reduced the scope of maintenance
and repairs which can be carried out by vehicle
owners.
Also, s afety an d e nvir onm ent al con­
cerns place very strict limits on the nature of repairs and adjustments to engine and trans ­
miss ion pa rts which an owner can perform .
Maintenance, adjustments and repa irs usua lly
require special tools, testing devices and oth­
er equipment avai lab le to specially trained
workshop personnel in order to assure proper
performance, reliab ility and safety of the vehi­
cle and its many systems .
Improper ma intenance, adjustments and re ­
pa irs can impair the operation and reliab ility
of your vehicle and even void your vehicle war­ ranty. Therefo re , proof of servici ng in accord­
ance w it h the ma intenance sched ule may be a
condition for upholding a poss ible warranty
claim made within the warran ty period.
Above all, operational safety can be adve rsely
affected, creating unnecessary risks for you
and your passengers.
If in doubt about any serv icing, have it done
by your author ized Audi dealer or any other
p roperly equipped and qualified workshop .
We strong ly urge you to give your authorized
Audi dealer the opportunity to perform all
schedu led maintenance and necessary repairs .
Your dea ler has the facilities, or iginal parts
and tra ined spec ialists to keep your vehicle
running properly .
Performing lim it e d m aint en anc e y ourself
The fo llowing pages describe a limited num­
ber of procedures which can be performed on
you r vehicle with ordinary too ls, shou ld the
need arise and trained personnel be unavaila­
ble. Before performing any of these proce­
dures, always thoroughly read all of the app li­
cable text and ca refully follow the instruc­
tions given. Always rigorously obse rve the
WARNINGS p rovided .
Before you ch eck anything in th e engin e
compartme nt, alway s read an d heed all WARNINGS
¢ & a
nd ¢ & in Working in the
engine comportment on page 216 .
A WARNING
--Serious personal in jury may occur as a re-
sult of improperly performed mainte­ nance, adjustments or repa irs.
- Always be extremely careful when work­
ing on the vehicle. Always follow com­
monly accepted safety pract ices and gen­
eral common sense. Never r isk personal
in jur y.
- Do not attempt any of the maintenance,
checks or repairs descr ibed o n the fol­
lowing pages if you are not fu lly fam iliar
with these or other procedures with re­ spect to the vehi cle, or are uncerta in how
to proceed .
- Do not do any work withou t the proper
too ls and equipment . Have the necessary
work done by your authorized A udi deal ­
er or anothe r properly equipped and
qualified workshop.
- The engine compar tment o f any motor
vehicle is a potentially hazardous area. Never reach into the area around or
touch the rad iator fan. It is temperature
control led and can sw itch on suddenly -
even when the engine is off . The radiator
fan switches on automatically when the
coo lant reaches a ce rtain temperature
and will cont inue to ru n until the coo lant
tempera ture drops.
- Always sw itch off the ignition before any­
one gets under the vehicle.
- Always support your veh icle with safety
s tands if it is necessary to work under­
neath the vehicle. The j ack s upp lied with
the vehicle is not adequate for this pur­
pose and cou ld co llapse causing serio us
pe rsonal injury .
- If you must work underneath the vehicle
with the wheels on the ground, a lways
make sure the vehicle is on leve l ground,
that the wheels are a lways secure ly
blocked and that t he engine cannot be
started .

-Always make sure the transm ission se­
lector lever (automatic transmiss ion) is
in "P" (Park position) and the park brake
is firm ly app lied .
@) For the sake of the environment
-Changing the eng ine settings w ill ad­
versely affect em ission levels. This is det­
rimental to the environment and increas­
es fuel consumption .
- Always observe env ironmental regula­
tions when d isposing of old engine oil,
used brake fluid, dirty engine coolant,
spent batter ies or worn out t ires.
- Undeployed airbag modules and preten­
s ioners might be classified as Perchlo­
rate Material -specia l hand ling may ap­
ply, see www.dts c.ca .gov/hazardous­
waste/perch lorate. When the veh icle or
parts of the restraint system includ ing
airbag modules safety belts wit h preten­
sioners are scrapped, all applicable laws
and regulations must be observed. Your
a uthorized Audi dea ler is familiar w ith
these requirements and we recommend
that you have your dea ler perform this
serv ice for you .
Additional accessories,
modifications and
parts replacement
Additional accessories and parts
replacement
Always consult an authorized Audi dealer be­
fore purchasing accessories.
Your veh icle incorporates the latest safety de­
sig n featu res ensu ring a high standard of ac ­
tive and passive safety.
This safety could be compromised by non-ap­ proved changes to the veh icle. For this reason,
if parts have to be replaced, please observe
the following points when install ing addition­
a l accessories:
Con sumer In formation 275
Approved Audi accesso ries and genuine Audi
parts are available from authorized Audi deal­
ers.
T hese dea lers a lso have the necessary facili­
ties, tools and trained specialists to install the
parts and accessories proper ly.
A WARNING
Using the wrong spare parts or using non­
approved accessories can cause damage to
the vehicle and serious persona l injury.
- Use on ly accessories express ly approved
by Audi and genu ine Audi spare parts
- These parts and accessories have been
specially designed to be used on your ve­
hicle .
- Never install accessories such as tele­
phone cradles or beverage holders on air­
bag covers or within the airbag deploy­
ment zones . Do ing so will increase the
risk of injury if a irbags are triggered in an
accident!
- Before you check anything in the engine
compa rtment, always read and heed all
WARNINGS
r:::;. page 210.
(D Note
-If items other than genuine Audi spare
parts, add-on equipment and accessory
items are used or if repair work is not
performed accord ing to spe cified meth­
ods, this can result in severe damage to
yo ur vehicle's engine and body (such as
corrosion) and adversely affect your vehi ­
cle's warranty .
- If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized Audi dealer as soon as
possible.
- The manufacturer cannot be held liable
for damage wh ich occurs due to failure
to comply with these stipulations.
•
•

Manual shift program . . . . . . . . . . . . . . 105
Selector lever .................. ... 103
Shift buttons . . . . . . . . . . . . . . . . . . . . . 106
Steering wheel with tiptronic . .. .. .. . 106
Automatic wipers .......... .. .. .. .... 45
Auto Safety Hotline ............ ... .. 126
Average consumption .......... ... .. .. 23
Average speed . . . . . . . . . . . . . . . . . . . . . . . 23
Avoid damaging the vehicle .. .. .. .. .. . 193
B
Battery ... .. .. ............. .. .. ... 226
Charging . .. ............. .... .. ... 229
Important warnings ...... .. .. .. .. . 227
Jump starting ............... ... ... 264
Location ... ... .. .. ...... .. .. .. .. . 227
l ow . .. .. .. .. ... .. ..... ... .. .. .. . 190
Replacing the battery ..... .. .. .. .. . 230
State of charge ........... .... .. ... 190
Winter operation ............ ... .. . 226
Working on the battery ....... ... .. . 227
Before driving . . . . . . . . . . . . . . . . . . . . . . 118
Blended gasoline .......... .... .. .. . 211
Blower (automatic climate control) . . . . . . 68
Blower (climate control) . . . . . . . . . . . . . . . 65
Body cavity sealing ............ ... .. . 205
Booster seats ............. .. .. .. .. . 172
Brake fluid Changing the brake fluid ....... ... .. 226
Checking the brake fluid level ... ... .. 225
What is the correct brake fluid level? .. 225
What should I do if the brake fluid warn-
ing light comes on? ....... .. .. .. .. . 225
Brake system Anti-lock braking system . ......... ... 18
Brake assist system .......... .... .. 184
Brake booster ............ .... .. .. . 188
Brake fluid .............. .... .. .. . 225
Brake fluid specifications for refill and re-
placement ................. ... ... 226
Brake light defective ......... ... .. .. 20
Brake pads . ............. .... .. ... 192
Electromechanical parking brake .. .. .. 74
Fluid reservoir ........... .... .. .. . 225
How does moisture or road salt affect the
brakes? .. ............ ...... .... .. 187
Index 279
Warning/indicator lights ............. 14
Worn brake pads symbol ............. 19
braking guard . . . . . . . . . . . . . . . . . . . . . . . 79
Messages . .. .. .. .... ........... .. . 86
Settings .. .. .. .. ................. . 86
Break-in period .. .... .. .. ...... ..... 192
Brake pads ...... .. ............... 192
T ires ... .. .. .. .. ... .. .......... .. 192
Bulbs .... .. .. .. .. .. ............... 263
C
California Proposition 65 Warning ..... 217
Battery specific .. .... ............. 228
Capacities .. .. .. .. .... ........... .. 272
Engine oil ........................ 218
Car care .. .. .. .. .. .. . .. .... ........ 200
Exterior ... .. .. .... ... .. ..... ..... 200
Interior . .. .... .. .. . .............. 206
Cargo area . . . . . . . . . . . . . . . . . . . . . . . . . 124
Cargo net . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Catalytic converter ................. . 193
Center armrest Cockpi t ..... .. ................... .
Sl
Central locking . . . . . . . . . . . . . . . . . . . . . . 31
Emergency locking . ............... .. 35
Certification ...... .. ............... 276
Changing a wheel .. ............. .. .. 254
Changi ng engine oil .... ............. 222
Chassis (undercoating) ............... 205
Checking Engine coolant level ............ .... 223
Tire pressure . .. .. ................. 237
Child restraints Danger of using child restraints in the
front seat ........................ 139
Where can I get additional information
about child restraints and their use? .. 181
Child restraint system anchors ....... . 177
Child safety ....... .. ..... .......... 163
Convertib le locking retractor ......... 17 4
Important safety instructions for using
child safety seats . .. ........... .... 167
Important things to know when driving
with children .. .... ............... 163
Tether anchors ..... .............. . 180
Tether straps .. .. ................. 180
•
•

Defrosting (windows)
automatic climate control ... ... .. .. .. 68
climate control . . . . . . . . . . . . . . . . . . . . . 66
Determining correct load limit ... .. .. . 239
Dimensions .... .. .. .... ... .. .... .. . 271
Dimming the rearview mirror . ... .. .. .. 48
Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Door/rear lid warning . . . . . . . . . . . . . . . . . 22
Doors Power child safety lock ....... ... .. .. 37
Driver information system CD/radio display . . . . . . . . . . . . . . . . . . . . 22
Door/rear lid warning . . . . . . . . . . . . . . . 22
Efficiency program . . . . . . . . . . . . . . . . . . 24
Exterior temperature display ... .. .. .. 22
On-board computer . . . . . . . . . . . . . . . . . 23
Driver seating position . . . . . . . . . . . . . . . 119
drive select .. .. ........... .. .. .. .... 96
Adaptive dampers . . . . . . . . . . . . . . . . . . 96
Cornering light .............. ... ... . 96
Safety belt tensioner . . . . . . . . . . . . . . . . 96
Driving safely . . . . . . . . . . . . . . . . . . . . . . 118
Driving through water ........ .. .. .. . 194
Driving time . . . . . . . . . . . . . . . . . . . . . . . . 23
Duplicate key . . . . . . . . . . . . . . . . . . . . . . . 29
Dust filter
refer to Pollutant filter . . . . . . . . . . . . . . 64
E
Easy entry feature . . . . . . . . . . . . . . . . . . . . 71
Efficiency program . . . . . . . . . . . . . . . . . . . 24
Fuel economy messages . . . . . . . . . . . . . 24
Other equipment . . . . . . . . . . . . . . . . . . . 24
Electrical accessories (sockets) . . . . . . . . . 55
Electro-mechanical power assist .. . ... . 189
Electromechanical parking brake Emergency braking . . . . . . . . . . . . . . . . . 76
Operation .. ... .. .. ...... .. .. .. .. .. 74
Parking .. ............ ...... .... ... 75
Releasing and closing ........ .... ... 74
Starting assist ........... .... .. .. .. 75
Starting from rest ........ .. .. .. .. .. 75
Starting off with a trai ler ............. 75
Warning/indicator lights ......... .. .. 15
Electronic differential lock (EDL) .. ... .. 184
Warn ing/ indicator lights ..... .. .. .. .. 18
Index 281
Electronic immobilizer . . . . . . . . . . . . 25, 30
Electronic power control (EPC) warning/indicator light ............. . 19
Electronic speed limiter .......... .... . 28
E lectronic stabilization program (ESP) .. 184
Warning/indicator lights ............. 18
Emergency actuation Doors ...... .. .. ................. . 35
Power sunroof . .. .... ........... .. . 40
Rear lid ........................... 37
Emergency brak ing ... . .. .. .. .... .... . 76
Emergency flasher ... .............. .. 42
Warning/indicator lights ........ .. .. . 21
Emergency release Selector lever ...... ............... 107
Emergency starting .. .............. . 264
Emergency towing . ................. 266
Emergency warning triangle ...... .. .. 252
Energy management . ............... 190
Engine Compartment . ..... ............... 218
Coolant ... .. .. .. ............... .. 223
Data ..... .. .. .. ................. 272
starting . .. .. .. .... .. .. ...... ...... 71
Starting with jumper cables ........ . 264
Stopping ........ .. ................ 73
Engine compartment ................ 218 Closing the hood . .. ........... .... 217
Opening the hood .... ...... ..... .. 216
Safety instructions .. .............. . 216
Working in the engine compartment .. 216
Engine coolant .. .. ................. 223
Adding coolant . ...... ............. 224
Checking the engine coolant level . .. .. 223
Expansion tank .... ............... . 223
Malfunction symbol ... .. ...... .... .. 15
Radiator fan . .. .. ................. 225
Temperature gauge ............ .... . 10
Engine oil .. .. .. .. .. . .. .. ..... ... .. 218
Adding ......... .. ............... 221
Additives .. .. .. .. .. . .. .... ........ 221
Changi ng ... .. ...... ........... .. 222
Checking the engine oil level ..... .... 221
Ind ications and conditions requiring ex-
tra checking ..... .. ............... 221
Indicator light ..... .............. .. 17
Oil consumption .. .. .............. . 220
•
•

28 2 Index
Oil grades . ...... ..... ... .. .. .... . 218
Oil level symbol ....... ... .. .. .... .. 20
Pressure malfunction . .... ... .. .... . . 1 6
Recommended oil check intervals ..... 221
Sensor defective . . . . . . . . . . . . . . . . . . . . 20
Specification and viscos ity ... ... .. ... 218
Engine speed limitation ... .. .. .. .... . . 20
E ng ine start system (indicator lights) .... 17
Environment Break- in period ........... .. .. .... . 192
Catalytic converter ................. 193
D isposing of your vehicle battery ..... 230
D riving at high speeds ..... .. .. .. .. . 195
D riving to m inim ize pollution and no ise 194
F uel ... ...... ............. ...... . 213
F uel economy .. . ...... ... .. .. .... . 194
L eaks under your veh icle ... .. .. .. .. . 2 16
L etting the vehicle stand and warm up . 195
Proper disposal of dra ined brake fluid . 226
Proper disposal of dra ined engine coo l-
ant . .. .. .... ........ ...... ... .. . 224
Proper disposal of dra ined engine
oil . . . . . . . . . . . . . . . . . . . . . . . . . 22 1, 222
Recycl ing used engine oil ... .. .. .. .. . 22 1
Un leaded fuel ............ .. .. .. .. . 211
What should I do wi th an old ba ttery? . 230
ESP (Electronic stabilization program) Warn ing/ indicato r lights . ....... ..... 18
Event Data Recorder ( EDR) ..... .. .... . 184
E xha ust tail p ipes .......... .. .. ..... 206
Expansion tank ............. .... .... 223
Exterior lighting . .. ..... ... .. .. .... .. 41
E xterio r m irrors
Ad just ing ............... .. .. .. .. .. 47
Di mm ing . ... ............ .. .. .. .. .. 48
H eating ..... .. .. ..... ... .. .. .... .. 47
E xte rio r temperatu re d isplay ... .. .. .. . . 22
F
Fastening
Booster seats ............... ... ... 172
Conve rtible c hild safety seats ... .. .. . 170
I nfant seats ... .......... .. .. .. .. . 169
Fastening eyes . ........... .. .. .... .. 62
Fl oor mats . . . . . . . . . . . . . . . . . . . . . . . . . 123
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . 123 F
or the sake of the environment
Gasoline fumes and the environment . . 213
Red ucing engine noise by early upshift-
ing ... .... .... .. .................. 10
Refueling . ................... .... 213
Sav ing fuel by early ups hifting ...... .. 10
Fo ur-zone automatic climate control ... . 67
Front a irbags
Descrip tion ................... .... 141
How they work ................ .. .. 14 7
Frontal collis ions and the laws of phys ics 129
F ront seats . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adjusting . ....................... 120
Child restraints in the front seat .. .... 139
F uel
Additives . ..... .. ... .. ..... .... . .. 211
B lended gaso line ... ... ..... ... .. .. 211
C urrent consumption ............... . 23
Economy messages (effic iency program) 24
Fuel filler flap emergency release . .... 214
Fuel filler neck . .. ................ . 212
Fuel gauge .. .. .. ... .. .. ... ..... .. . 11
Gasoli ne .. .. .. .. .. .... .... .... ... 211
Gasoli ne add it ives ............... .. 212
Low fue l level symbol .......... .. .. . 20
Octane rat ing .... .. .... .... ... .. .. 211
Recommendation .... .. ..... .... . .. 211
Ref uel ling ..... .. .. ... ..... ... .. .. 213
Reserve ... ...... ................. . 11
Tank capac ity ................. 11,272
F uses
Assignment ..... .. ... ..... ... .. .. 260
Replacing ..... .. ... .. ..... .... . .. 260
G
Garage door opener (HomeLink ®) . ... .. 115
Garment hooks . . . . . . . . . . . . . . . . . . . . . . 56
Gas discharge lamps ............. .... 263
Ga uges
E ngine coo lan t temperature . . . . . . . . . . 10
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 11
Speedometer .... .. .... .... ... .. .. . 25
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 11
Tr ip odometer .................. .. . 25
Genera l illustr ation ... .......... .. .. .. 8
Generator (warning/indicator lights) .... 16
G lossary of tire and loading terminology 232

Side assist Activating and deactivating . . . . . . . . . . . 88
Cleaning sensors ............ ... .. . 202
Description . ............. .... .. .... 88
Informational and alert stage signals .. 90
Messages in instrument cluster display . 94
MMI settings .... .. ...... .. .. .. .. .. 93
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 89
Safety tips . . . . . . . . . . . . . . . . . . . . . . . . 94
Sensor detection area . . . . . . . . . . . . . . . 89
Side curtain airbags ........... .... .. 160
Description .... .. .. ...... .. .. .. .. . 160
How they work .............. ... ... 161
Safety instructions ........ .. .. .. .. . 161
Side marker lights ......... .. .. .. .. .. 41
Ski sack ..... .. ................ ..... 62
also refer to Trunk pass-through .. .. .. 63
Sliding/tilting sunroof Emergency closing .......... .. .. .. .. 40
Opening and closing ...... .. .. .. .. .. 39
Snow chains . ................ ... ... 247
Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Sources of information about child re-
straints and their use ....... .. .. .. .. . 181
Space-saving spare tire ...... .. .. .. .. . 253
Spare tire .... ................ ... ... 253
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 25
Speed rating letter code ..... .. .. .. .. . 243
Speed warning system ...... .. .. .. .. .. 76
Star button . . . . . . . . . . . . . . . . . . . . . . . . . 23
START ENGINE STOP button ........... 71
Starting from rest .......... .. .. .. .. .. 75
Startingoffwithatrailer .... .. .. .. .. .. 75
Starting the engine .................. 71
Steering Electrically adjustable steering wheel .. 70
Manually adjustable steering wheel .. .. 70
also refer to Electro-mechanical power
assist ..... .. ................ .... 189
Steering wheel Easy entry feature . . . . . . . . . . . . . . . . . . 71
Indicator light . . . . . . . . . . . . . . . . . . . . . 17
Steering wheel heating .... .. .. .. .. .. 69
Steering wheel column Adjusting electrically ...... .. .. .. .. .. 70
Adjusting manually ....... .. .. .. .. .. 70
Steps for determining correct load limit . 239
Index 287
Stopping the engine . ............... .. 73
Storage . . . . . . . . . . . . . . . . . . . . . . . . 55, 60
Sunroof .... .. .. .. ... ............ ... 39
Sun shade .. .. .. .. ................. . 45
Sun visors ........ .. ................ 45
Symbols
refer to Warning/indicator lights ..... . 11
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 11, 22
Technical modifications .............. 276
Temperature display ............. .. .. . 22
T ether anchors . . . . . . . . . . . . . . . . . . . . . 180
Tether strap . . . . . . . . . . . . . . . . . . . . . . . 180
The first 1,000 miles (1,500 km) and after-
wards ...... .. .. .. ................. 192
Three-zone climate control . . . . . . . . . . . . 65
Tie-downs . . . . . . . . . . . . . . . . . . . . . 61, 125
Tips for the environment
Saving fuel . ... .. .. ................ 58
tiptronic ... .. .. .. ................. 102
A ut omatic Shift Lock (ASL) ...... .. .. 104
Driving .......................... 102
Dynamic shift program ............. 105
Emergency mode ... ............... 106
Kick-down . .. .. .. ................. 104
Manual shift program .............. 105
Selector lever .. .. ... ... ...... ..... 103
Tire pressure . ...................... 23 7
Tire pressure monitoring system ....... 249
Loss of air pressure ................ 250
Malfunction . .. .. ................. 250
Resetting tire pressures ............ . 251
Tires ...... ... .. .... .......... ..... 231
Service life ....... ................ 241
Speed rating letter code ........ .. .. 243
Tire manufacturing date ........ .. .. 243
Tire specifications ................ . 243
Tread depth ....... ............... 241
Uniform tire quality grading ........ . 245
Winter tires . .. ...... ............. 246
T ires and vehicle load limits ....... .... 239
Tires and wheels Checking tire pressure ............. . 237
Cold tire inflation pressure ......... . 235
Dimensions .. .. .. ................. 242
•
•
