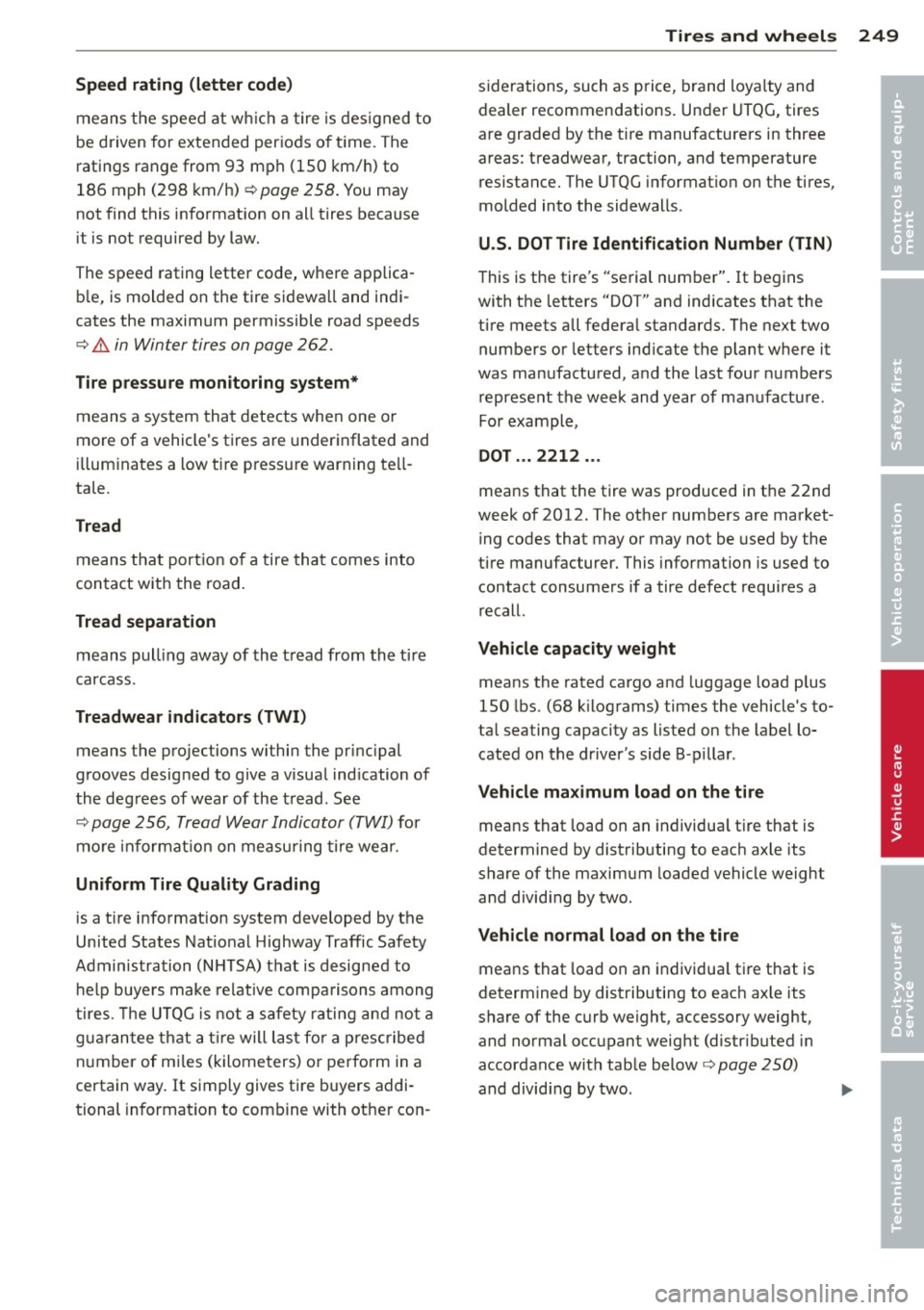

Speed rating (letter code)
means the speed at wh ich a tire is des igned to
be driven for extended periods of t ime . The
ratings range from 93 mph (150 km/h) to
186 mph (298 km/h)
¢page 258. You may
not find this information on all tires because
it is not required by law.
The speed rating letter code, where applica­ ble, is molded on the tire sidewall and indi­
cates the maximum permissible road speeds
¢ &. in Winter tires on page 262.
Tire pressure monitoring system*
means a system that detects when one or
more of a vehicle's tires are underinflated and
illuminates a low tire pressure warn ing te ll­
tale .
Tread
means that port ion of a tire that comes into
contact with the road.
Tread separation
means pulling away of the tread from the tire
carcass .
Treadwear indicators (TWI)
means the projections within the pr incipal
grooves designed to give a visual ind ication of
the degrees of wear of the tread. See
¢
page 256, Tread Wear Indicator (TWI) for
mo re inf ormat ion on measuring tire wear.
Uniform Tire Quality Grading
is a tire information system developed by the
United States National Highway Traffic Safety
Admin istration (N HTSA) that is designed to
help buyers make relative comparisons among
tires . Th e U TQG is not a safety rating and not a
g ua ran tee that a tir e will last for a prescribed
number of mi les (kilometers) or perform in a
certain way. It simply gives tire buyers addi ­
tional information to combine with other con-
Tires and wheels 249
siderations, such as price, brand loyalty and
dealer recommendations. Under UTQG, tires
are graded by the t ire manufacturers in three
areas : treadwear, traction, and temperature
resistance. The UTQG informat ion on the tires,
molded into the sidewalls .
U.S. DOT Tire Identification Number (TIN)
This is the tire's "serial number". It begins
with the letters "DOT" and indicates that the
tire meets all federa l standards. The next two
numbers or letters indicate the plant where it
was manufactured, and the last four numbers
represent the week and year of manufacture.
For example,
DOT ... 2212 ...
means that the tire was produced in the 22nd
week of 2012. The other numbers are market­
ing codes that may or may not be used by the
tire manufacturer. This information is used to
contact consumers if a tire defect requires a
recall.
Vehicle capacity weight
means the rated cargo and luggage load plus
150 lbs. (68 k ilograms) times the vehicle's to­
tal seating capacity as listed on the label lo­
cated on the driver's side B -pillar .
Vehicle maximum load on the tire
means that load on an individual tire that is
determined by distributing to each axle its
share of the maximum loaded vehicle weight
and dividing by two.
Vehicle normal load on the tire
means that load on an individual tire that is
determined by distributing to each ax le its
share of the curb weight, accessory weight,
and normal occupant weight (distr ibuted in
accordance with table below¢
page 250)
and dividing by two.
•
•

250 Tires and wheels

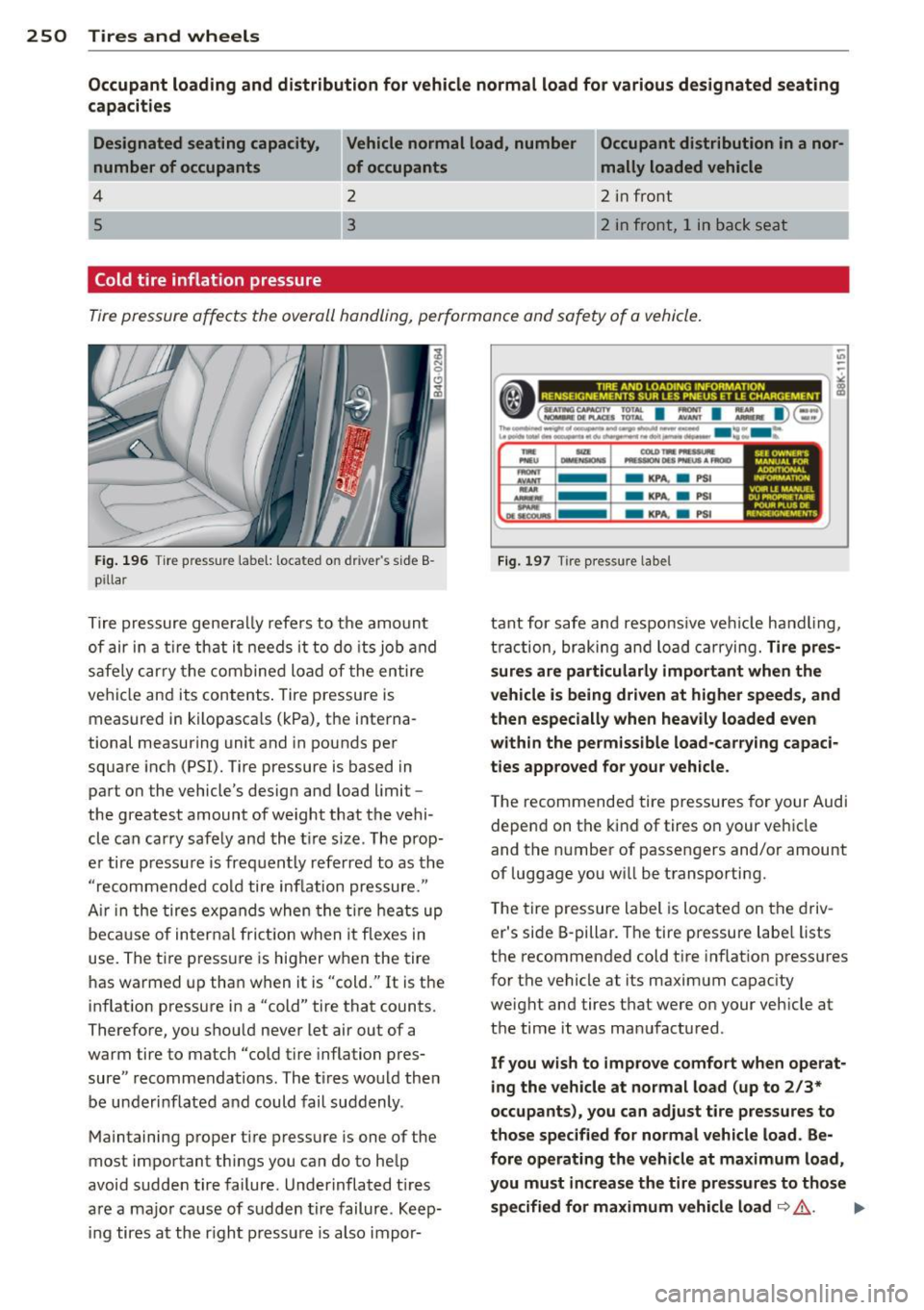

Occupant loading and distribution for vehicle normal load for various designated seating
capacities
Designated seating capacity,
number of occupants Vehicle normal load
, number Occupant distribution in a nor-
of occupants _____ mally loaded vehicle
4 2 _________ 2infro nt
5 3 2 in front, 1 in back seat
Cold tire inflation pressure
Tire pressure affects the overall handling, performance and safety of a vehicle.
Fi g. 196 Tire pressure label: located on drive r's si de 8 -
pilla r
Tire pressure gene ra lly refers to the amo unt
of air i n a tir e th at i t needs it to do its job and
s a fe ly c arry the combined load of the entire
ve hicl e and its contents . Tire pressure is
measured in kilopasca ls (kPa), the i nterna ­
tional measuring unit and in pounds per
squa re inc h (PSI). Tire pressure is based in
part o n the vehicle's design and load limit -
the greatest amount of we ight that the vehi ­
cle can car ry safely an d the t ire s ize. The prop­
e r tire p ressu re is freq uen tly referred to as the
"recommende d cold tire inf lation pressure."
A ir in the tires exp ands when the ti re heats up
beca use of in ter nal fri ct ion when i t flexes in
use. The tire p ress ure is higher when the tire
has warmed up tha n when it is "cold." It is the
inflat ion pressure in a "cold" tire that counts.
Therefore, you sho uld never let air out of a
warm tire to match "cold ti re inflation pres­
sure" recommendations. The t ires wo uld the n
be underinflated a nd could fail suddenly .
Maintaining proper t ire p ressure is one of the
most important things you can do to he lp
avoid sudden tire failure. Underinflated t ires
a re a majo r ca use of s udden tire failure. Keep­
ing tires a t the r ight pressu re is also impor-
-~
-
( • (==. ~r: I := I :... 1)-~- -:-i
n. ........... ....,. .................... ,...,,.. ...... ...... .. '--............................................... ·-..
TN IIZE CO.O TN.,,.... ,.,._u OWlHSIONt ......,., DU ,.,._ua .-,--
-.....
--...........
- KP a PSI
- ICPA. a PSI
- ICPA. a PSI
Fig. 197 Tire p ressu re labe l
SEEOWHf:ft"S
MA. NUAl FOR
IHFOll:MA TION Va.t Lf M>.MJ!:L OU PltOPfllE f A.IN: ,ol.M"-.UtDf NNSCIOM.:MErtf5
tant for safe an d respo ns ive ve hicle ha ndling,
t raction, br aking and load ca rrying .
Tire pres­
sures are particularly important when the
vehicle i s being dr iven at higher speeds, and
then especially when heavily loaded even
within the permissible load-carrying capaci ­
ties approved for your vehicle .
The recommende d tire pressures for your Audi
depen d on t he kind of tires o n your vehicle
and the number of passengers and/or amount
of luggage you w ill be transporti ng.
T he tire pressure label is located on the d riv­
er's side B -pillar . The tire pressure labe l lists
the recommended cold t ire inflat ion pressures
fo r the vehicle at its maxim um capac ity
weight and tires t hat were on your veh icle at
t h e time it was ma nufactured.
If you wish to improve comfort when operat­
ing the vehicle at normal load (up to 2 /3*
occupants ), you can adjust t ire pressures to
those specified for normal vehicle load. Be·
fore operating the vehicle at maximum load,
you mu st increase the tire pres sures to those
specified for maximum vehicle load
i:::> .&, . II>-

Tires and wheels 251
Bear in mind that the tire pressure monitoring
system* can only monitor the tire pressures
you have stored. The system does not recog­
ni ze the load cond it ion of your vehicle.
The effectiveness of the tire pressure monitor ­
ing system* will be impaired if you store nor­
mal load pressures but then operate the vehi ­
cle at its maximum load
c;, & .
See the illustration c;, fig. 196 for the location
of the label on driver's side B-pillar (co lor of
the actua l labe l and exact location on the ve­
hicle will vary slightly).

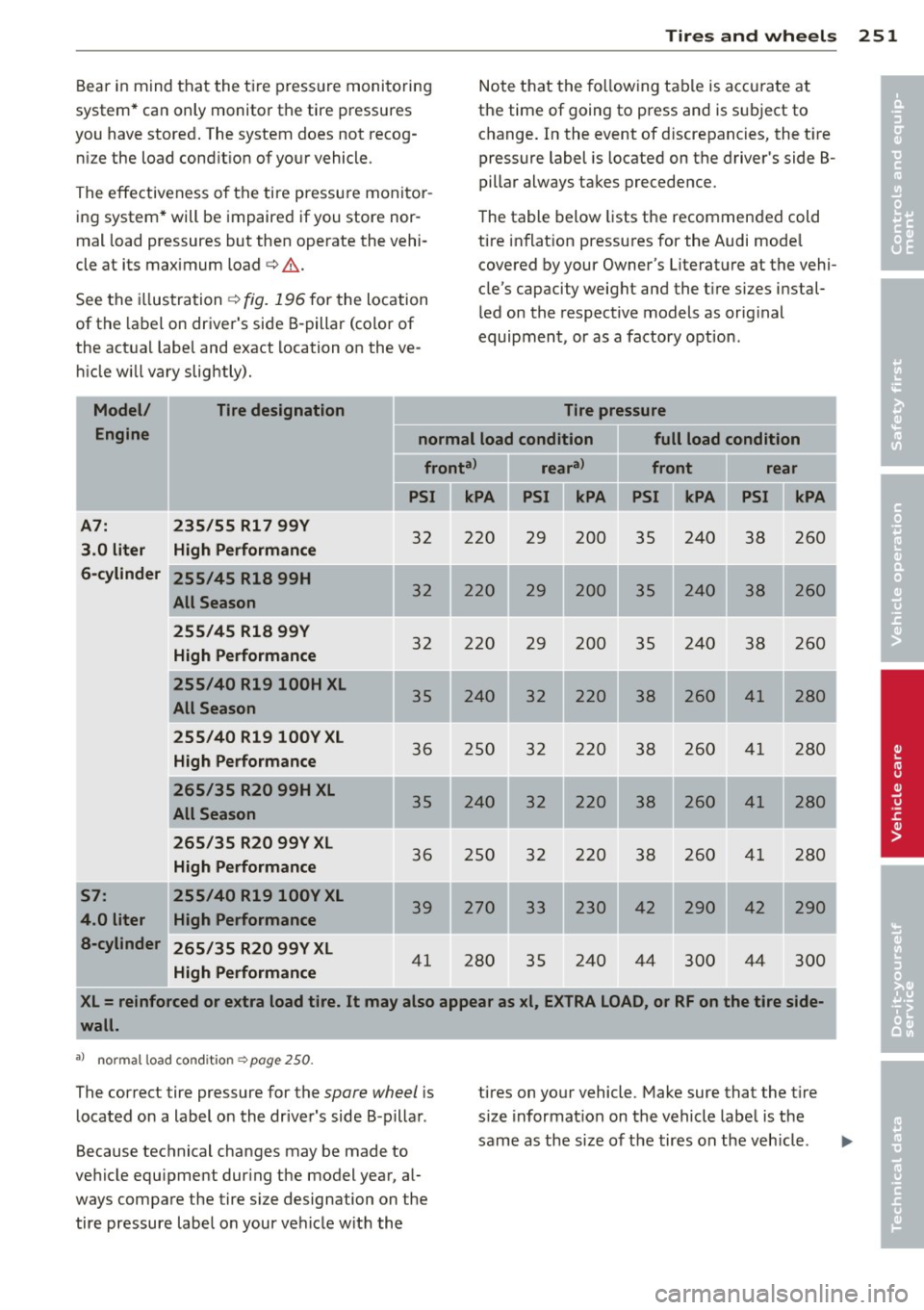

Tire designation
Note that the following table is accurate at
the time of going to press and is subject to change. In the event of d iscrepancies, the t ire
pressure label is located on the driver's side B­
pillar always takes precedence.
The table below lists the recommended cold
tire inflat ion pressures for the Audi mode l
covered by your Owner's Literature at the vehi­
cle's capacity weight and the t ire sizes instal­
led on the respective models as orig inal
equipment, or as a factory option.
Tire pressure
Model/
Engine normal load condition full load condition
fronta> reara>
front rear
PSI kPA PSI
A7: 235/55 Rl 7 99Y
3.0 liter High Performance
6-cylinder
S7:
4.0 liter a-cylinder 255/45 R18 99H
All Season
255/45 R18
99Y
High Performance
255/40 R19 l00H XL
All Season
255/40 R19100YXL
High Performance
265/35 R20 99H XL
All Season
265/35 R20 99Y XL
High Performance
255/40 R19
l00Y XL
High Performance
265/35 R20 99Y XL
High Performance
32 220
32 220
32 220
35 240
36 250
240
36 250
39 270
41 280 29 200
35 240 38 260
29 200 35 240 38 260
29 200 35 240 38 260
32 220 38 260 41 280
32 220 38 260 41 280
32 220 38 260 4
1
280
32 220 38 260 41 280
33 230
42 290
42 290
35 240
44 300 44
300
XL= reinforced or extra load tire. It may also appear as xl, EXTRA LOAD, or RF on the tire side-
wall.
al no rmal load condition c:;,page 250.
The correct tire pressure for the spare wheel is
located on a label on the driver's side B-pillar.
Because technical changes may be made to
vehicle equ ipment dur ing the model year, al­
ways compare the tire size designation on the
tire pressure label on your vehicle w ith the tires on your vehicle.
Make sure that the tir e
s ize informat ion on the vehicle label is the
same as the size of the tires on the vehicle .
'
I
'
I
•
•

252 Tires and wheels

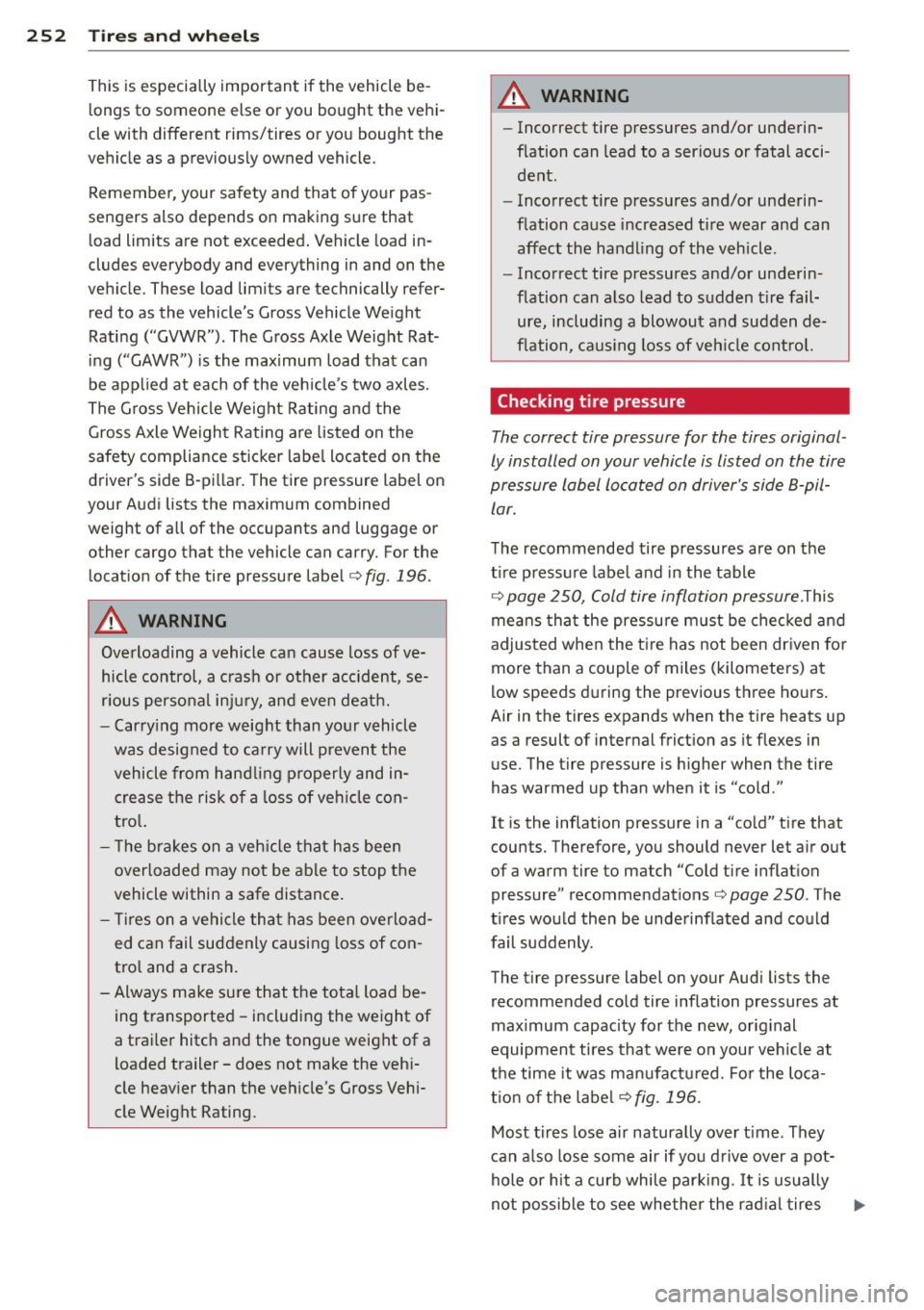

This is especia lly important if the vehicle be­
longs to someone else or you bought the vehi­
cle with different rims/tires or you bought the
vehicle as a previously owned vehicle.
Remember, your safety and that of your pas­
sengers also depends on making sure that
load limits are not exceeded. Vehicle load in­
cludes everybody and everything in and on the
vehicle. These load limits are technically refer­
red to as the vehicle's Gross Vehicle Weight
Rating (' 'GVWR"). The Gross Axle Weight Rat­
ing ("GAWR") is the maximum load that can
be applied at each of the vehicle's two axles.
The Gross Vehicle Weight Rating and the
Gross Axle Weight Rating are listed on the
safety compliance sticker label located on the
driver's side 8-pillar. The tire pressure label on
your Audi lists the maximum combined
weight of all of the occupants and luggage or
other cargo that the vehicle can carry. For the
location of the tire pressure labe l
¢fig . 196.
A WARNING
Overloading a vehicle can cause loss of ve­
hicle control, a crash or other accident, se­
rious personal injury, and even death.
- Carrying more weight than your vehicle
was designed to carry will prevent the
vehicle from handling properly and in­ crease the risk of a loss of vehicle con­
trol.
- The brakes on a vehicle that has been
overloaded may not be able to stop the
vehicle within a safe distance.
- Tires on a vehicle that has been overload­
ed can fail suddenly causing loss of con­
tro l and a crash.
- Always make sure that the total load be­
ing transported -including the weight of
a trailer hitch and the tongue weight of a
loaded trailer - does not make the vehi­
cle heavier than the vehicle's Gross Vehi­
cle Weight Rating.
A WARNING
- Incorrect tire pressures and/or underin­
flation can lead to a serious or fatal acci­
dent.
- Incorrect tire pressures and/or underin­
flation cause increased tire wear and can affect the handling of the vehicle.
- Incorrect tire pressures and/or underin­
flation can also lead to sudden tire fail­
ure, including a blowout and sudden de­
flation, causing loss of vehicle control.
Checking tire pressure
The correct tire pressure for the tires original­
ly installed on your vehicle is listed on the tire
pressure label located on driver's side 8-pil­ lar.
The recommended tire pressures are on the
tire pressure label and in the table
¢ page 250, Cold tire inflation pressure.This
means that the pressure must be checked and
adjusted when the tire has not been driven for
more than a couple of miles (kilometers) at
low speeds during the previous three hours.
Air in the tires expands when the tire heats up
as a result of internal friction as it flexes in
use. The tire pressure is highe r when the tire
has warmed up than when it is "cold ."
It is the inflation pressure in a "cold" tire that
counts. Therefore, you should never let air out
of a warm tire to match "Cold tire inflation
pressure" recommendations¢
page 250. The
tires would then be underinflated and could
fail suddenly.
The tire pressure label on your Audi lists the
recommended cold tire inflation pressures at
maximum capacity for the new, original
equipment tires that were on your vehicle at
the time it was manufactured. For the loca­
tion of the label¢
fig. 196.
Most tires lose air naturally over time . They
can also lose some air if you drive over a pot­
hole or hit a curb while parking. It is usually
not possible to see whether the radial tires ..,.

used today are underinflated j ust by looking
at them.
Therefo re, be sure to check tire pressures at
l eas t once a mon th and always before going
on a long trip. Make sure to take the number
of people and the amount of luggage into ac­
count when adjusting tire pressure for a trip -
even one that you would not consider to be
"long." See¢
page 254 , Tires and vehicle
load limits
for more important information .
A lways use an accurate tire pressure gauge
when check ing and adjusting inflation pres­
sures . Check all of the tires and be sure not to
forget the spare t ire . If the pressure in any tire
i s too high when the tire is "cold," let air out
of the tire slowly with the edge of the t ire
gauge and keep checking the pressure until
you reach the p ress ure th at is cor re ct for the
l oad (passengers and luggage) and kind of
d riving you plan to do .
I f the p ressu re in any tire is too low , note the
d ifference between the pressure in the cold
tire and the pressure yo u need and add the ai r
that you need to reach the correct pressure for
the vehicle load (passengers and luggage) for
the tires on your vehicle as listed on the on
your veh icle and in this manual and the kind
of dr iving you p lan to do.
Never e xceed the m aximum inflation pre s­
su re li sted on th e tir e sidewall for any rea ­
son.
Remember that the vehicle manufacturer, not
the tire manufacturer, determines the co rrect
tire p ressure for the tires on your vehicle .
It is important to check the tire pressure when
the tires are cold .
- Read the requ ired ti re p ressu re from the tire
pressure label. The ti re pressu re labe l is lo­
cated on the drive r's side 8-p illar.
- T urn the valve stem cap counter-clockwise
to remove it from the tire valve .
- Place the air pressu re gauge on the valve.
- T he tire pressures should only be checked
and adjusted when the tires a re cold . The

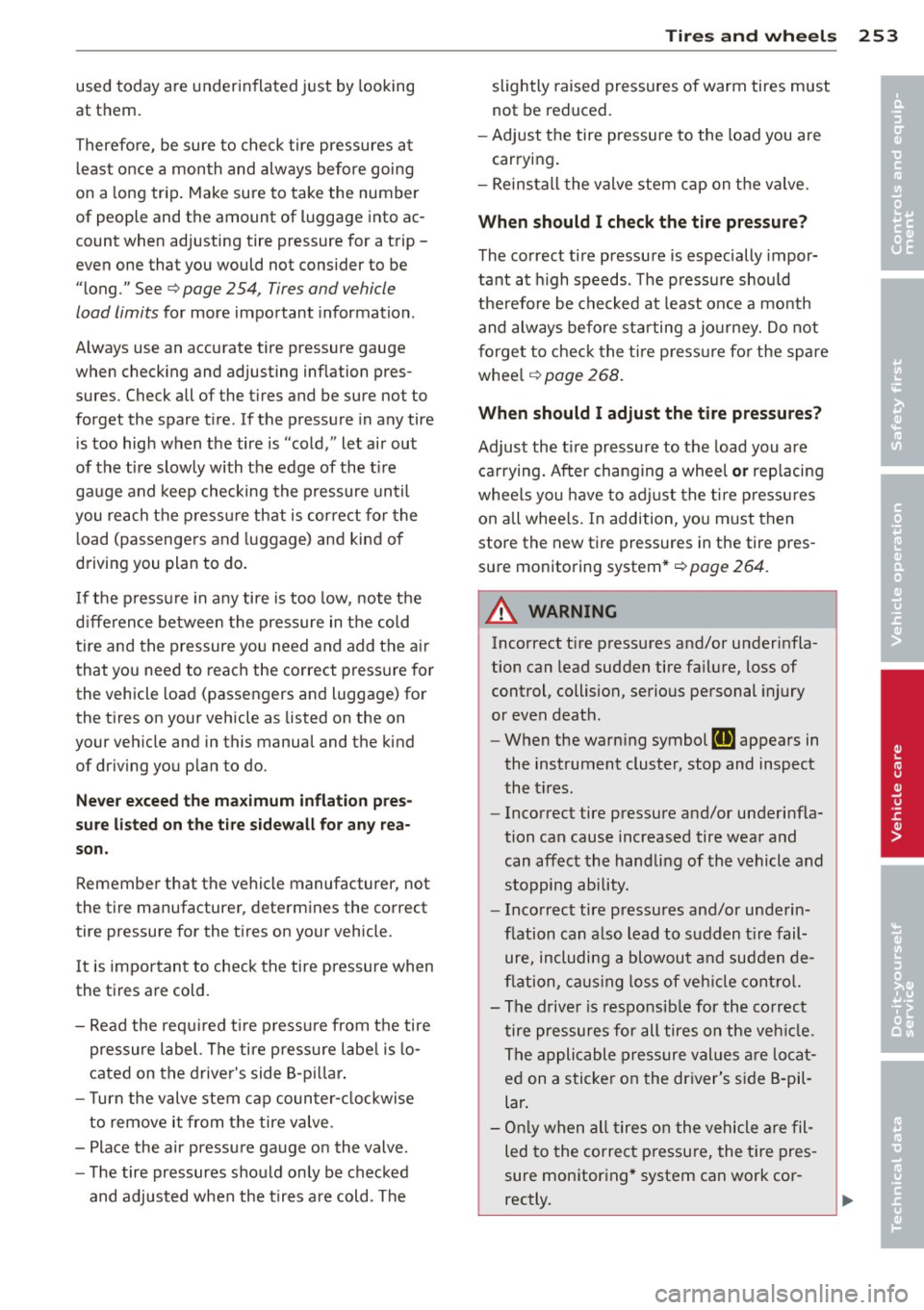

Tire s an d wheel s 253
slightly raised pressures of warm tires must
not be reduced.
- Adjust the tire pressure to the load you are
car rying.
- Reins tall the valve stem cap on the va lve.
When should I check the tire pr essure?
The correct tire pressure is especially impor­
tant at h igh speeds . T he p ressure should
therefore be chec ked at least once a month
and always before sta rting a jo urney. Do not
f orge t to chec k the ti re p ressu re fo r the spare
whee l¢
page 268.
When should I adjust the tire pressures ?
Adjust the tire pressure to the load you are
carrying. After chang ing a whee l
or replacing
whee ls yo u have to adj ust the ti re press ures
on all whee ls. In addition, yo u m ust then
store the new tire pressures in the tire pres ­
s u re monitoring system*¢
page 264.
A WARNING
-
Incorrect tire pressures and/or underinfla­
tion can lead sudden tire fa ilure, loss of
control, collision, serious personal injury
or even death.
- When the warning symbol
[IE appears in
the instrument cluster, stop and inspect
the t ires.
- Incorrect tire pressure and/or underinfla­
tion can cause increased tire wear and can affect the handling of the vehicle and
stopping ability .
- Inco rrect tire pressures and/or underin­
flation can a lso lead to sudden t ire fail­
ure, including a blowout a nd sudden de­
flation, ca using loss of veh icle cont ro l.
- The drive r is respons ib le for the correct
tire pressures for all tires on the ve hicle.
T he appli cable pressure values are locat­
ed on a sticker on the dr iver's s ide B-pil­
lar .
- On ly when all tires o n the vehicle are fil­
led to the correct pressu re, the t ire pres ­
sure monitor ing * system can work cor­
rectly. •
•

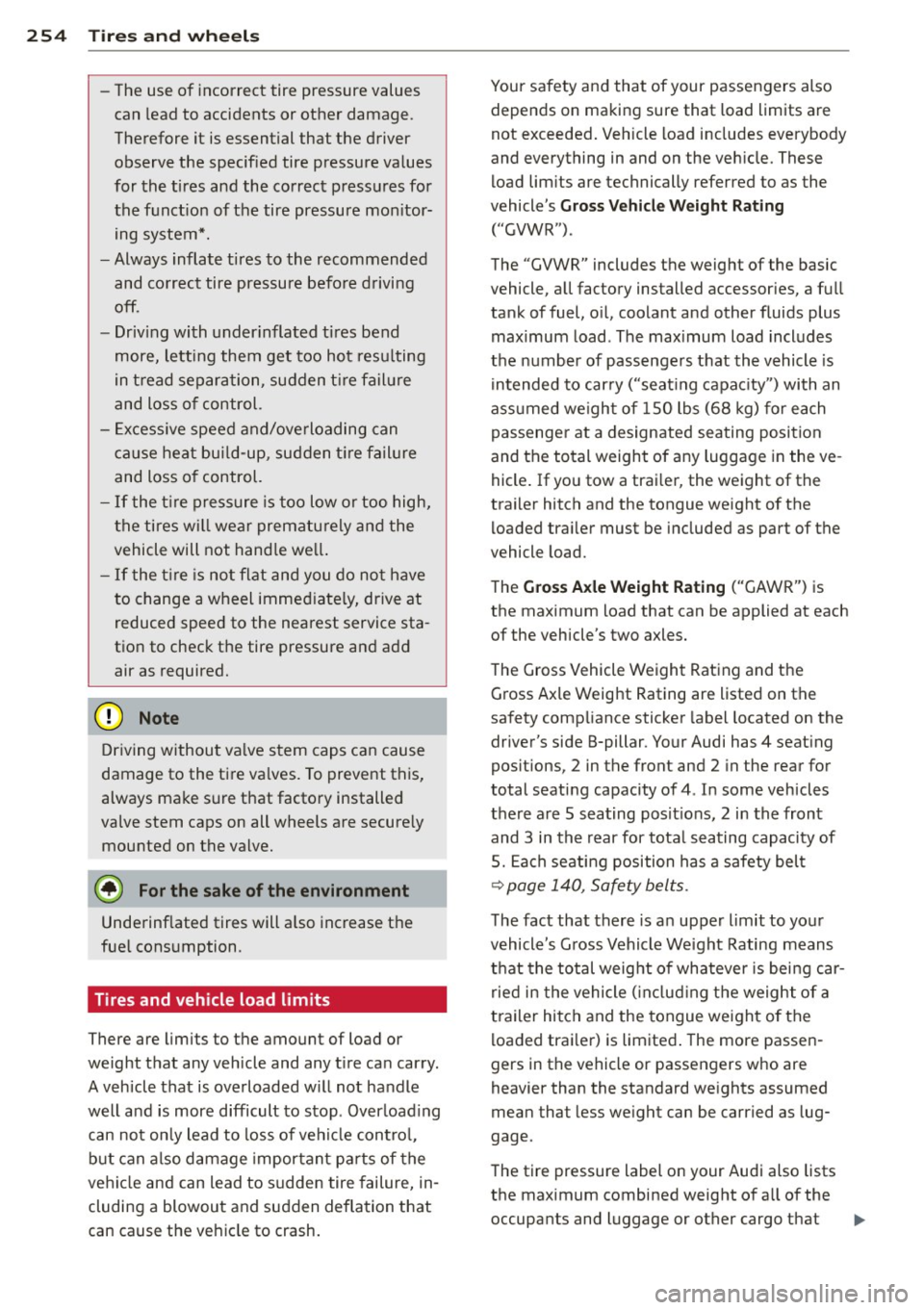

254 Tire s and wheel s
-The use of incorrect tire pressure values
can lead t o acci dents or other damage .
T herefore it is essential that t he driv er
o bserve the specified tire pressure values
for the ti res and the correct pressu res for
the f unct ion of the tire pressure mon itor­
ing system*.
- Always inflate tires to the recommended
and co rrect tire pressure befo re d riving
off.
- Driv ing with under inflated ti res bend
more, lett ing them get too hot resu lting
in t read separation, sudden t ire fa il u re
and loss o f control.
- E xcess ive speed and/ove rloading can
c ause heat bui ld-up, sudden t ire fail ure
and loss o f control.
- If the t ire p ress ure is too low or too high,
the tires w ill wear prematu rely and the
vehicle will not hand le we ll.
- If the t ire is no t flat and you do no t have
to change a wheel immed iate ly, drive at
reduced speed to the nearest service sta­
t ion to check t he tire pressure and add
air as required.
(D Note
Dr iving w ithou t va lve s tem caps can cause
damage to the tire va lves. To prevent this,
always make sure that facto ry installed
valve stem caps on all wheels are secure ly
mounted on the valve.
@ For the sake of the environment
Unde rinflated tires will a lso increase the
fue l cons umption.
Tires and vehicle load limits
There are limits to the amount of load or
weight that any vehicle and any t ire ca n car ry .
A vehicle that is overloaded w ill not handle
well and is more difficult to stop . Over load ing
can no t on ly lead to loss of veh icle contro l,
b ut can also damage impor tan t par ts of the
vehi cle and can lead to s udden tire failure, in ­
cluding a blowout and sudden deflation that
can cause the veh icle to crash. Your safety and that of your passengers also
depends on making sure that load limits are
not exceeded . Vehicle load includes everybody
and everything in and on the veh icle. These
load lim its are technically referred to as the
vehicle's
Gro ss Vehicle Weight Rating
("GVWR").
The "GVWR" includes t he weight of the basic
vehicle, a ll factory installed accessories, a full
tank of fuel, o il, coolant and other fluids plus
maximum load. The max imum load incl udes
the number of passengers that the vehicle is
i ntended to car ry ("seat ing capac ity") with an
ass umed we igh t of 150 lbs (68 kg) for e ach
passenge r at a designated seating posi tion
and the total weight of any luggage in the ve ­
hicle . If you tow a trai ler, the weight of the
trai ler hitch and the tongue weight of the
loaded tra iler must be included as part of the
vehicle load.
The
Gros s Axle Weight R ating ("GAWR") is
the maximum load that can be applied at each of the vehicle's two axles.
The Gross Vehicle Weight Rat ing and the
Gross Ax le Weight Rating are listed on the
safety comp liance sticker label located on the
driver's side B-pillar . Your Audi has 4 seat ing
pos itions, 2 in the front and 2 in the rear for
total seating capacity of 4 . In some vehicles
the re a re 5 seating pos it ions, 2 in the front
and 3 in the rear for tota l seating capacity of
5. Each seat ing position has a safety belt
¢ page 140, Safety belts .
T he fact that there is a n upper limit to yo ur
vehicle's G ross Vehicle Weight Rating means
t h at the total weig ht of whatever is bei ng car­
ried in the vehicle ( in cl udi ng the weight of a
trai ler hi tch and the tongue weight of the
l oaded trai le r) is limited . The more passen ­
gers in the vehicle or passengers who are
heavier than the standard we ights assumed
mean that less we ight can be carried as lug­
gage.
T he tire pressure label on your Audi also lists
the maximum combined weight of a ll of the
occupants and luggage or other cargo that .,..

the vehicle can carry. For the location of the
label
~ fig. 196.
A WARNING
Overloading a vehicle can cause loss of ve­
hicle control, a crash or other accident, se­
rious personal injury, and even death.
- Carrying more weight than your vehicle was designed to carry will prevent the
vehicle from handling properly and in­
crease the risk of the loss of vehicle con ­
trol.
- The brakes on a vehicle that has been
overloaded may not be able to stop the
vehicle within a safe distance.
- Tires on a vehicle that has been overload ­
ed can fail suddenly, including a blowout
and sudden deflation, causing loss of
control and a crash.
- Always make sure that the total load be­
ing transported -including the weight of
a trailer hitch and the tongue weight of a
loaded trailer -does not make the vehi­
cle heavier than the vehicle's Gross Vehi­
cle Weight Rating.
Determining correct load limit
Use the example below to cal­
culate the total weight of the
passengers and luggage or oth­
er things that you plan to trans­
port so that you can make sure
that your vehicle will not be
overloaded.
Steps for Determining Correct Load Limit
1. Locate the statement "THE
COMBINED WEIGHT OF OC­
CUPANTS AND CARGO
SHOULD NEVER EXCEED XXX

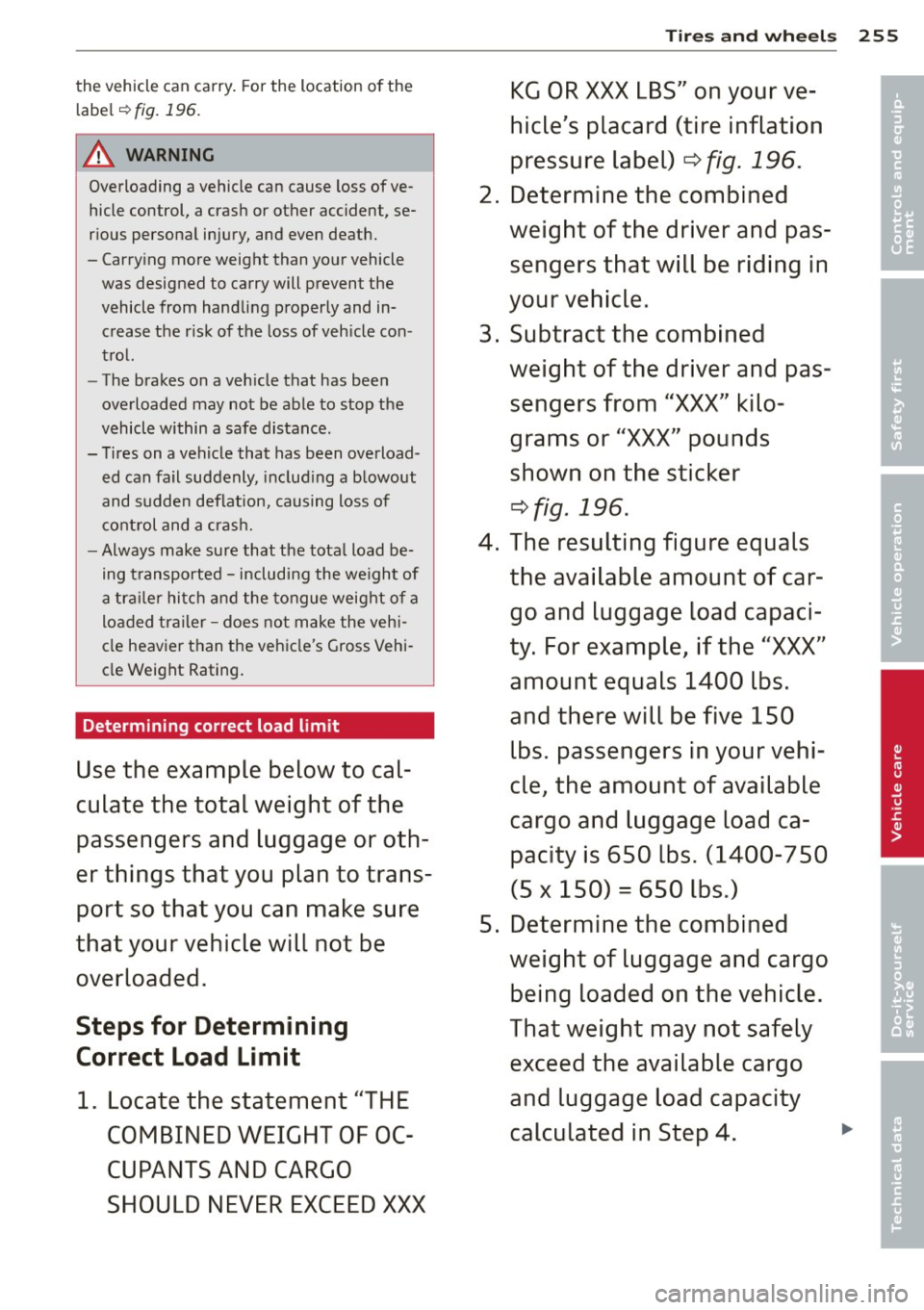

Tires and wheels 255
KG OR XXX LBS" on your ve­
hicle's placard (tire inflation
pressure label)
¢ fig. 196.
2. Determine the combined weight of the driver and pas­
sengers that will be riding in
your vehicle.
3. Subtract the combined
weight of the driver and pas­
sengers from
"XXX" kilo­
grams or
"XXX" pounds
shown on the sticker
¢ fig. 196.
4. The resulting figure equals
the available amount of car­
go and luggage load capaci­
ty. For example, if the "XXX"
amount equals 1400 lbs.
and there will be five 150
lbs. passengers in your vehi­
cle, the amount of available
cargo and luggage load ca­
pacity is 650 lbs. (1400-7 SO
(5
X 150) = 650 lbs.)
5. Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo
and luggage load capacity
calculated in Step 4.
•
•

256 Tires and wheels
6. If your vehicle will be towing
a trailer, load from your trail­
er will be transferred to your
vehi cle. Consult thi s manual
to determine how this re­
duces the available car go
and luggage lo ad capacity of
yo ur vehicle .
.,. Check the tire sidewall
(9 fig . 200 ) to de termine the
de signated load rating for a
s pe cifi c tir e.
Tire service life
The s ervi ce life of tires dep ends on a lot of
different things including proper installation
and balancing, correc t tire pressu re and driv­
ing style.
Fig. 198 Tire tread: tread wea r ind icators ( TWI)
Fi g. 1 99 Rotat ing t ires fo r m ore eve n wear
Tread W ear Indicator (TWI)
The o rigi na l t ires on your ve hicle have
1/16 inch (1.6 mm) high "wear indicators" ¢
fig. 198 r
u nning across the tread. Depend­
ing on the make, t here will be six to eight of
them even ly placed aro und the tire. Marks on
the tire sidewall (for examp le "TWI" or other
symbols) ind icate the positions of the tread
wear indicato rs . Wor n tires must be rep laced.
D iffere nt f igures may apply in othe r countr ies
Q ,&. .
Tire pressure
Incorrect t ire pressure ca uses premature wear
and can cause sudde n tire blow-out. For this
reason, tire pressure must be checked at least
o nce a month ¢
page 2 52.
Driving style
Driving fast around c urves, heavy acce lerat ion
and hard braking increase tire wear .
Rotating tires for more even wear
Fo r all four tires on your ve hicle to have the
same service life, we recommend that the
front and rear t ires a re rotated according to
the tire manu fact urer's suggested tire rota­
tion intervals. Please remember the follow­
ing :
- Tire rotation intervals may differ from t he
veh icle service interva ls outlined in your
Warranty
& M aintenance booklet.
- The longer one tire is used in one location
o n t he vehicle, the more it wears at certain
points; theref ore, we recommend t hat y ou
follow the tire manufacturer's suggested
tire rotation int ervals .
- Veh icles w ith front-wheel dr ive experience
more tread wear on the fro nt wheels com­
pa red to a ll-wheel drive ( quattro ®).
- Please rotate tires as shown¢
fig. 199.
- Extra care must be taken when rotating di-
rection-specific tires ¢
page 274.
Wheel balancing
The wheels on new ve hicles are balance d.
Howeve r, various s ituations during everyday
dr iv ing can cause them to become unba l­
anced, resulti ng in vibrations you can usually
feel th rough the steer ing wheel.
liJJ,-

Unbalanced whee ls must be rebalanced to
avoid excessive wea r on steering, suspension
and tires. A wheel must a lso be rebalanced
when a new tire is installed .
Incorrect wheel alignment
Incorrect whee l alignment can cause exces­
sive tire wear, impairing the safety o f the vehi­
cle. If tires show excess ive wear, have the
wheel alignment checked by an authorized
Audi dealer or qualified workshop .
All-wheel d rive
Vehicles w ith quattro ® must always have tires
of the same size, construction and tread type .
F or detai ls see
r=!:> page 201 .
A WARNING
Sudden tire failure can lead to loss of con­
trol, a crash and serious persona l injury!
- Never drive a veh icle when the tread on
any tire is worn down to the wear indica­
tors.
- Worn tires are a safety hazard, they do not grip well on wet roads and increase
your risk of"hydrop lan ing" and loss of
co ntrol.
- Always keep chemicals that can cause
tire damage, such as grease, oil , gasoline
and brake fluid away from t ires.
- Tires age eve n if they are not be ing used
and can fail suddenly, especially at high
speeds. T ires that are more than 6 years
o ld can only be used in an emergency
and then with spe cial care a nd at lower
s peeds.
- Never mount used ti res on yo ur vehicle if
yo u a re not s ure of their "prev ious histo­
ry." Old used ti res may have been dam­
aged even though the damage cannot be
seen that can lead to s udden tire failure
and loss of vehicle control. Tires and wheels 25
7
New tires and replacing tires and wheels
New tires and wheels have to be broken in .
Fig. 20 0 Tir e spec ificat io n codes on t he s idewall o f a
tire
No. De sc ription
CD Passenger car tire (where applicable)
@ Nomina l w idth of t ire in mill imeters
® Ratio of height to width (aspect ratio)
© Rad ial
® Rim diameter code
® Load index and speed rating
(f) U.S. DOT tire identification number
® Aud i Origina l tire
® Sever snow conditions
@ T ire ply composition and mater ials
used
@ Maximum load rating
@ Treadwear, traction and temperat ure
grades
@ Maximum permissible inflation pres-
sure
T he tires and rims are essential parts o f the
vehicle's design . The ti res and rims app roved
by Audi a re spec ia lly matched to the charac­
teris tic s of the ve hicl e and can m ake a major .,.
•

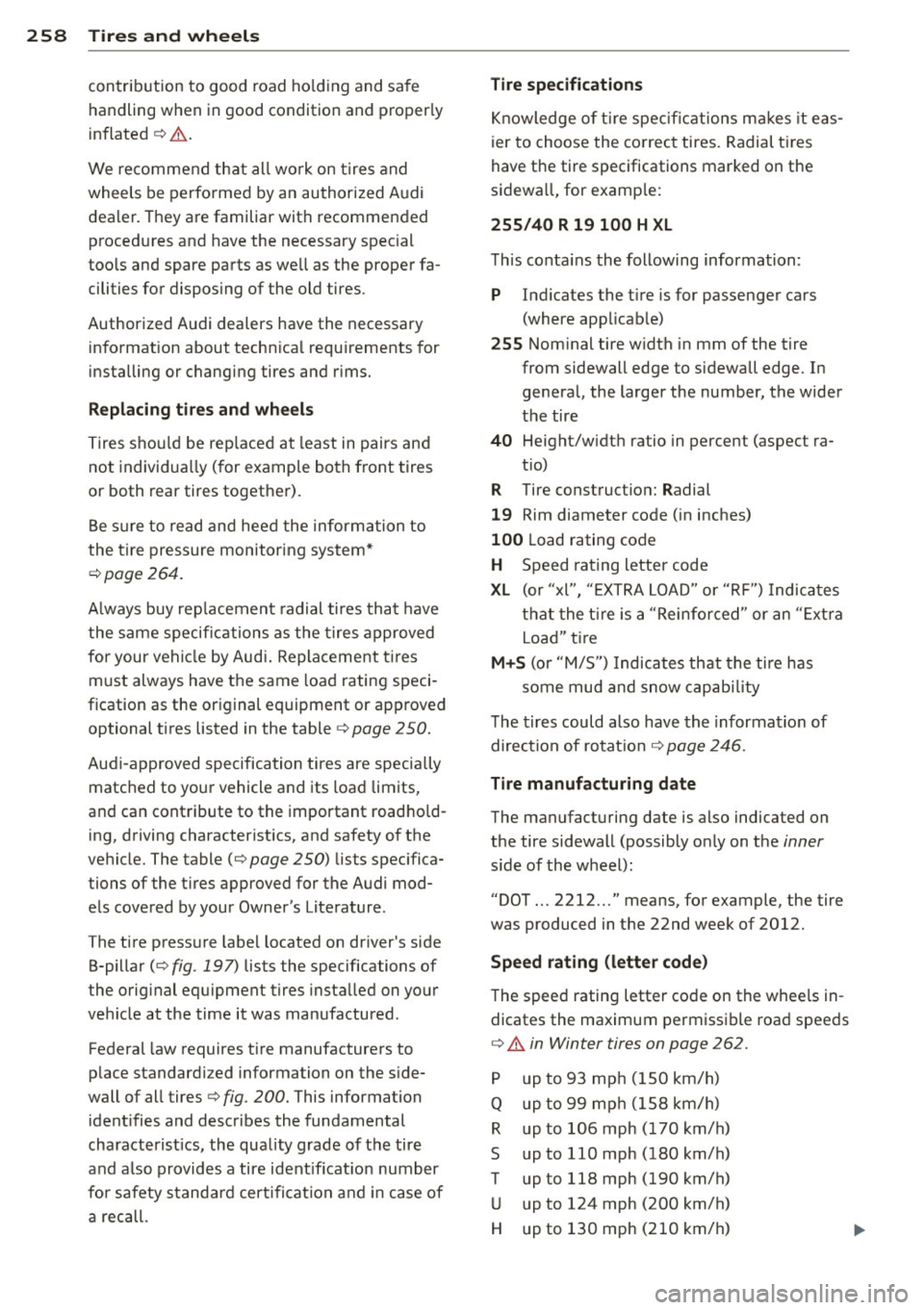

258 Tires and wheels
contribution to good road ho lding and safe
handling when in good condition and properly
inflated
¢ ,& .
We recommend that all work on tires and
wheels be performed by an authorized Audi
dealer. They are familiar with recommended
procedures and have the necessary spec ial
too ls and spare parts as well as the proper fa­
cilities for disposing of the old tires.
Authorized Audi dealers have the necessary information about technical requ irements for
installing or changing tires and rims.
Replacing tires and wheels
Tires should be rep laced at least in pairs and
not individually (for example both front tires
or both rear tires together).
Be sure to read and heed the information to
the tire pressure monitoring system*
¢pa ge 264.
Always buy rep lacement radial tires that have
the same specifications as the tires approved
for your vehicle by Audi. Replacement t ires
must always have the same load rating speci­
fication as the original equipment or approved
optional tires listed in the table
c:> page 250.
Aud i-approved specification ti res are specially
matched to your vehicle and its load limits,
and can contribute to the important road hold­
ing, driving characteristics, and safety of the
vehicle. The table
(c:>page 250) lists specifica­
tions of the tires approved for the Audi mod­
els covered by your Owner's Literature .
The tire pressure label located on driver's side
B-pillar
(c:> fig. 197) lists the specifications of
the orig inal equipment tires installed on your
vehicle at the time it was manufactured.
Federal law requires tire manufacturers to
place standardized information on the s ide­
wall of all tires
c:> fig. 200. This information
identifies and describes the fundamental
characterist ics, the quality grade of the tire
and also provides a tire ident ificat ion number
fo r safety standard certificat ion and in case of
a recall.
Tire specifications
Knowledge of tire specifications makes it eas­
ier to choose the correct tires. Radial ti res
have the tire specifications marked on the
sidewa ll, for examp le:
255/40 R 19 100 H XL
This conta ins the following information:
P Indicates the tire is for passenger cars
(where app licable)
255 Nominal tire width in mm of the tire
from sidewall edge to sidewall edge. In general, the larger the number, the wider
the tire
40 Height/w idth ratio in percent (aspect ra-
t io)
R Tire construct ion: Radial
19 Rim diameter code (in inches)
100 Load rating code
H Speed rating letter code
XL (or "xl", "E XTRA LOAD" or "RF") Indica tes
that the tir e is a "Reinforced" or an "Ext ra
Load" t ire
M+S (or "M/5") Indicates that the tire has
some mud and snow capability
The tires could also have the information of
direction of rotat io n
¢ page 246.
Tire manufacturing date
The manufacturing date is also indicated on
the tire sidewall (possibly on ly on the
inner
side of the wheel):
"DOT ... 2212 ... " means, for example, the tire
was produced in the 22nd week of 2012.
Speed rating (letter code)
The speed rating letter code on the whee ls in ­
dicates the maximum permissible road speeds
c:> & in Winter tires on page 262.
p up to 93 mph (150 km/h)
Q up to 99 mph (158 km/h)
R up to 106 mph (170 km/h)
s up to 110 mph (180 km/h)
T up to 118 mph (190 km/h)
u up to 124 mph (200 km/h)
H up
to 130 mph (210 km/h)
