AUDI A7 2013 Repair Manual

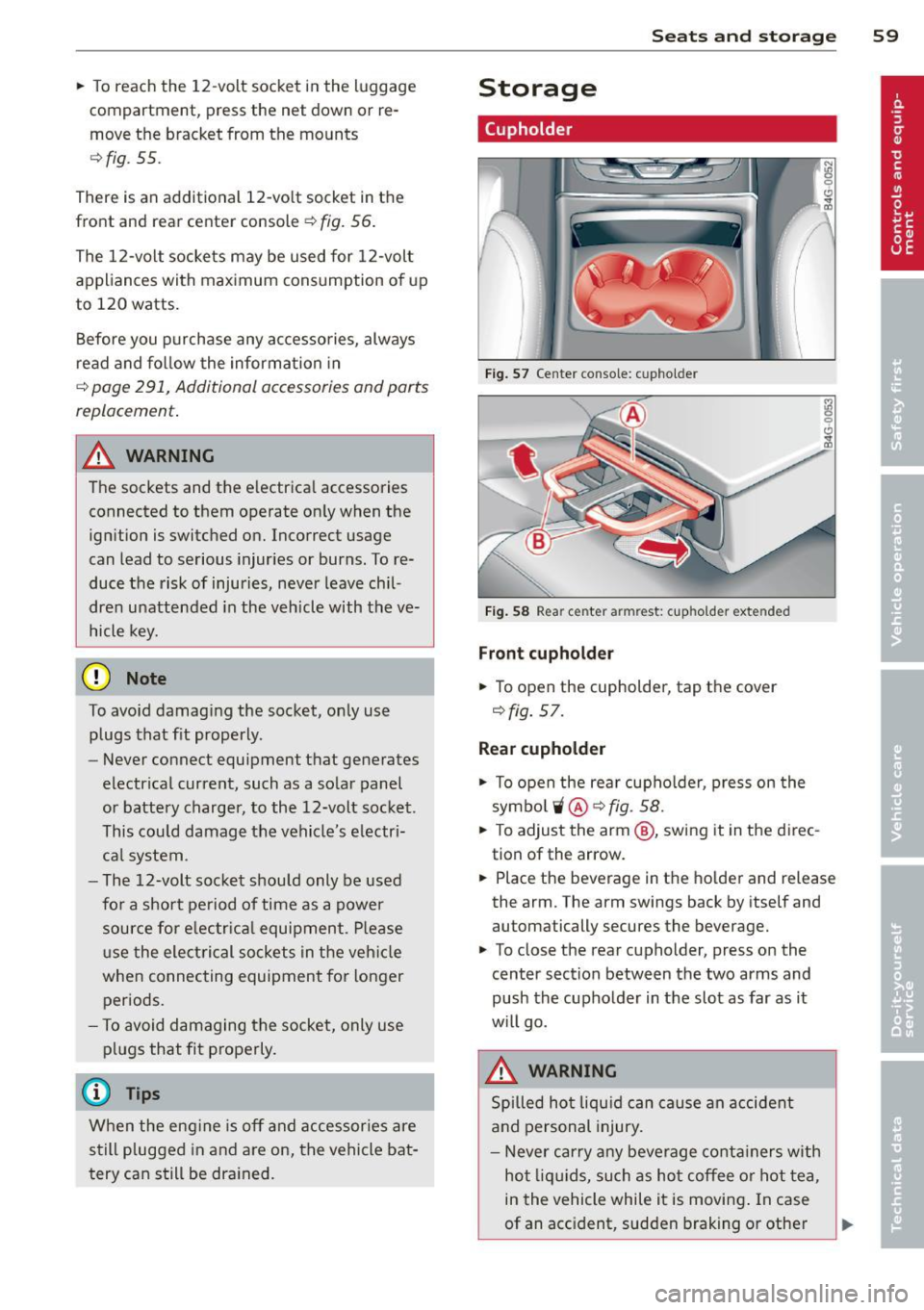

.. To reach the 12-volt socket in the luggage
compartment, press the net down or re­
move the bracket from the mounts
c:>fig. 55.
There is an additional 12-vo lt socket in the
front and rear center console
c:> fig. 56.
The 12-volt sockets may be used for 12-volt
appliances with maximum consumption of up
to 120 watts.
Before you purchase any accessories, always
read and fol low the information in
cc> page 291, Additional accessories and parts
replacement .
A WARNING
-
The sockets and the electrica l accessories
connected to them operate only when the
ign ition is switched on. Incorrect usage
can lead to serious injuries or burns. To re­
duce the risk of injuries, never leave chil ­
dren unattended in the vehicle with the ve­
hicle key.
{CT) Note
To avoid damag ing the socket, only use
plugs that fit properly .
- Never connect equipment that generates
electrical current, such as a so lar panel
or battery charger, to the 12-volt socket.
This could damage the vehicle's e lectr i­
ca l system .
- The 12-volt socket should only be used
fo r a short period of time as a power
sour ce for e lectr ica l equipment. P lease
u se the elect rical so ckets in the veh icle
when connec ting equipment for longer
periods.
- To avoid damaging the socket, only use
pl ugs that fit properly.
@ Tips
When the eng ine is off and accessor ies are
still plugged in and are on, the vehicle bat­
t ery can still be dra ined .
Sea ts a nd s to rage 59
Storage
(upholder
Fig. 57 Center console: cupho lder
F ig . 58 Rear center armrest: cupholder extended
Front cupholder
.. To open the cupholder, tap the cover
c:>fig. 57 .
Rear cupholder
(

.. To open the rear cupho lder, press on the
symbo lii @ c:>fig.
58.
.. To adjust the arm @, swing it in the direc ­
tion of the arrow.
.. Place the beverage in the holder and release
the arm. The arm swings back by itself and
automatically secures the beverage.
.. To close the rear cupholder, press on the
center section between the two arms and
push the cupholder in the slot as far as it
w ill go.
A WARNING
Spilled ho t liqu id can cause an accident
and personal injury.
- Never carry any beve rage conta iners with
hot liq uids, such as hot coffee or hot tea,
in the vehicle while it is moving . In case
of an acc ident, sudden braking o r other
Ill-

60 Seats and st o rage
vehicle movement, hot liqu id could spill,
causing scalding burns. Spilled hot liqu id
can also cause an accident and personal
injury .
- Use only soft cups in the cupholder. Hard
cups and glasses can cause inju ry in an
acc ident .
- Never use the cupholder or adapter as an
ashtray- risk of fire.
([) Note
Only drink containers with lids should be
carried in the cupho lder. Liqu id could spill
out and damage your veh icle's e lectronic
equ ipment or stain the upholste ry, etc.
Cooled glove compartment
Ap plies to vehicles: with coole d glove compa rtm ent
The cooled glove compartment only functions
when the AIC system is switched on.
Fig. 59 Glove compa rtment: switc hin g cooling mode
o n/off
~ Turn the knob@ counterclockwise to
switch cooling on. The symbols on the knob
indicate the correct pos ition.
~ Turn the knob @ clockwise to switch cool-
ing off .
The glove compartment cooli ng mode only
functions when the vehicle A/C system is
switched on .
If the heating is switched on,
switch ing the glove compartment cooling
mode off is recommended .
_& WARNING
Always leave the lid on the glove compart­
men t cover close d while driving to reduce
t he risk of in jury.
Additional storage
The re are a var iety of storage compartmen ts
and fas teners in various pl aces in the veh icle.
- Storage compartments in the doors
- Compartment in the glove compartment
(coo led*) . The glove compartment can be
locked using the mechan ical key
r::;, page 33.
- Storage compartment for (sun)glasses* in
the roof (near the interior mirro r)
- Storage compartments under the center
armrests
- Storage compartment on the rear side of
the front seat* . The compartment can hold a
maximum weight of 1 kg .
- Compartments* on the back of the front
seat backrests
- Garment hooks on the sides of the pillars in
the rear of the vehicle and in the rear grab
handles
- Compartment in the rear center armrest
- Storage in the trim panels in the luggage
compartment
_& WARNING
-
- Always remove objects from the instru­
ment panel. Any items not stored could
slide around inside the vehicle while dr iv­
ing or when acce le rat ing or whe n app ly­
ing the brakes o r when driving around a
corne r.
- When you are driving make su re that
anyth ing you may have placed in the cen­
t er conso le or other storage locations
cannot fall out into the footwe lls . I n case
of sudden braki ng you would not be able
to brake or accelerate.
- Always keep the lid of the compartment
for (sun)glasses" closed wh ile driving to
reduce the risk of i njury during a su dden
braking maneuver or in the event of an
accident .
- Any articles of clothing that you have
hung up must not interfere with the driv­
er's view. The coat hooks are des igned
only for lightwe ight cloth ing. Neve r hang
-
any cloth ing with hard, pointed or heavy ..,_

objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially if the airbag is deployed -
these objects could injure any passen­
gers inside the vehicle .
- To reduce the risk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driv ing .
- Read and fo llow all WARNINGS
Q page 171, Important safety instruc­
tions on the side airbag system .
- Hang clothes in such a way that they do
not impair the dr iver's v is ion .
- The coat hooks must only be used for
lightwe ight cloth ing. Do not leave any
heavy o r sharp edged objects in the pock­
ets which may interfere with the side cur­
tain a irbag deployment and can cause
persona l injury in a cras h.
- Do not use coat hangers for hanging
clothing on the coat hooks as this can in­
terfere with proper deployment of the
side curtain airbags in an accident .
- Do not hang heavy objects on the coat hooks, as they cou ld cause persona l in ­
jury in a sudden stop.
(D Note
Ob je cts located on the rear shelf that rub
aga inst the rear w indow cou ld damage the
heating wires for the rear window defog­
ger .
Sea ts a nd s to rage 61
Roof rack
Description and mounting locations
Additional cargo can be carried with a roof
luggage rack.
Fi g. 60 Roof r ack attac hmen t po ints
.,. Always read and follow the instructions pro­
vided by the roof rack man ufacturer when
installing the roof rack system .
If Luggage or cargo is to be carried on the
roof, yo u must observe the following:
- Only use roof racks approved for your vehi­
cle. These approved roof racks a re the basis
for a complete roof rack system. Add it ional
attachments or ca rr ier systems a re needed
to transport luggage and sports equipment .
We recommend using roof racks from the
Audi original accessories program.
- When installing the roof rack, make sure it is only mounted on the designated locations
on the roof
Q fig. 60.
- We recommend that you keep the installa­
tion instructions for your roof rack system
together with your Owner's literature in the
veh icle.
When should th e roof rack be removed?
- Before going through an automatic car wash
(it is best to ask the car wash operator for
advice).
- When not in use, to reduce fuel consump­ tion, wind noise and to guard aga inst theft.
A WARNING
- Use of an unapproved roof rack or incor­
rect mounting of an approved roof rack

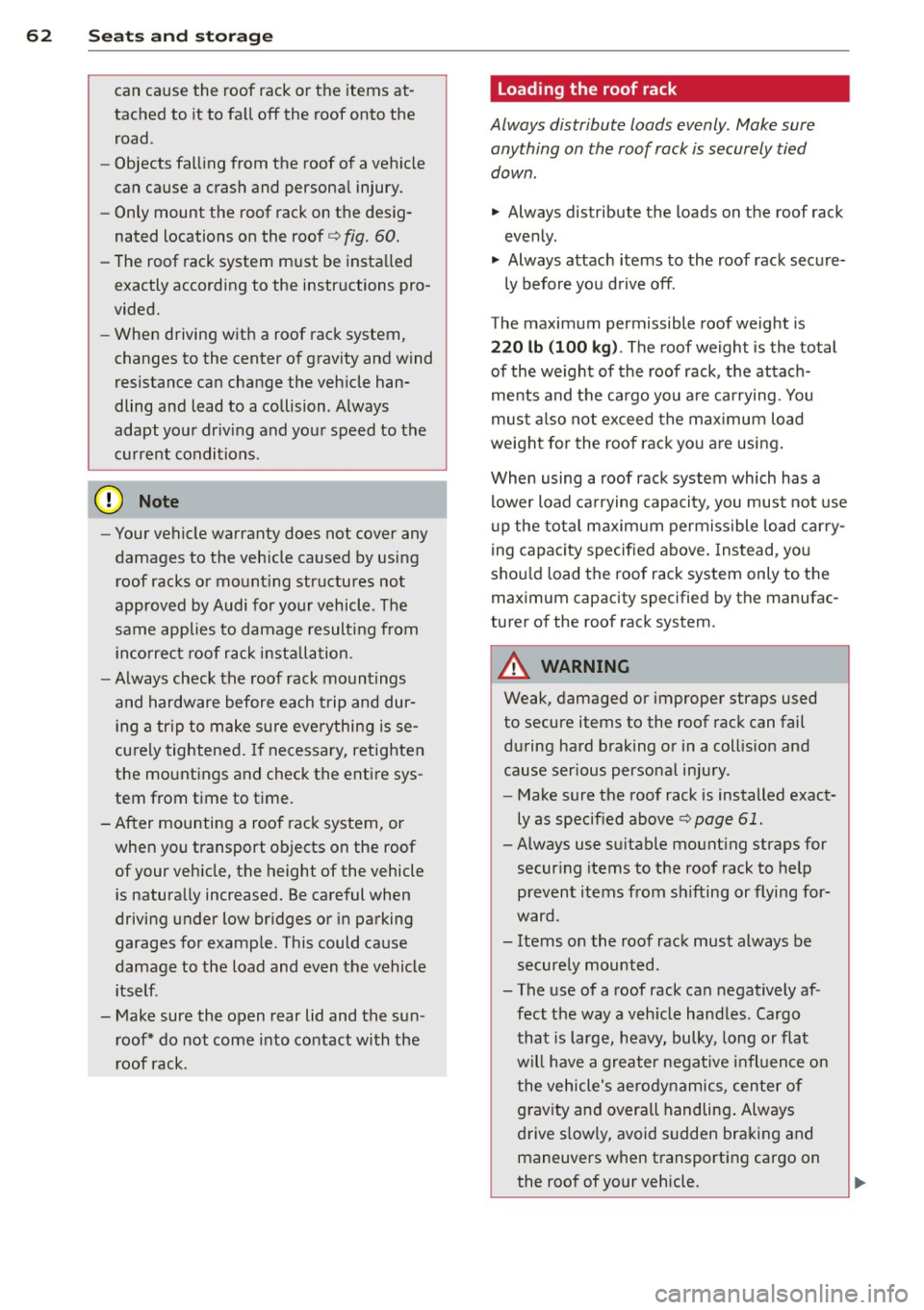

62 Seat s a nd s tor ag e
can cause the roof rack or the items at­
tached to it to fall off the roof onto the road .
- Objects falling from the roof of a vehicle
can cause a crash and personal injury .
- Only mount the roof rack on the desig­
nated locations on the roof
c> fig. 60.
-The roof rack system must be insta lled
exactly according to the instructions pro­
vided.
- When driving with a roof rack system,
changes to the center of gravity and wind
resistance can change the veh icle han­
dling and lead to a collision . Always
adapt your driv ing and your speed to the
cu rrent conditions .
@ Note
-Your vehicle warranty does not cover any
damages to the veh icle caused by using
r oof racks or mount ing structures not
approved by Audi for your vehicle . The
same applies to damage resulti ng from
i n co rrec t roof rack installation .
- Always check the roof rack mountings
and hardware before each t rip and dur­
i ng a tr ip to make sure eve rything is se­
cu rely tightened . If necessary, retighten
the mo untings and check the entire sys­
tem from time to time.
- After mounting a roof rack system, or when you transport objects on the roof
of your ve hicle, the height of the vehicle
i s natura lly increased. Be careful when
driving under low br idges or i n parking
garages for examp le . This could cause
damage to the load and even the vehicle i tse lf.
- Make sure the open rear lid and the sun ­
r oof* do not come into contact with the
r oof rack .
Loading the roof rack
Always distribute loads evenly. Make sure
anything on the roof rack is securely tied
down .
.. Always distribu te the loads on the roof rack
eve nly .
.. Always attach items to the roof rack sec ure-
ly before yo u drive off.
The maximum permissible roof weight is
2 20 lb (100 kg ). The roof we ight is the total
of the we ight of the roof rack, t he attach­
ments and the cargo you a re ca rrying. You
must also not exceed the max imum load
weight for the roof rack yo u are using .
When using a roof rack system which has a lower load ca rrying capaci ty, you must not use
u p the tot al maxim um permiss ible load car ry­
ing capacity specif ied above . Ins tead, you
sho uld load the roof rack system only to the
maximum capacity specified by the manufac ­
turer of the roof rack system .
A WARNING
-Weak, damaged or improper straps used
to secure items to the roof rack can fail
during hard braking or in a coll is io n and
cause ser ious personal inju ry .
- Make sure the roof rack is installed exact­
ly
as specified above i:> page 61.
-Always use su itable mount ing straps for
secur ing items to the roof rack to help
p revent items from sh ifting or flying for­
ward .
- Items on the roof rack must always be securely mounted .
- The use of a roof rack can negatively af ­
fect the way a veh icle hand les . Cargo
that is large, heavy, bulky, long or flat
will h ave a greater negat ive i nfl uence on
t he vehicle's aerodynamics, center of
grav ity and overall handling . Always
drive s lowly, avoid sudden braking and
maneuvers when t ransporting cargo on
the roof of your vehicle .
ll>-

-Never exceed the maximum permissible
load carry ing capacity of the roof of your
vehicle, the perm issible axle weights and
the permiss ible total weight of your veh i­
cle
c;, page 285, Weights.
@ For the sake of the environment
As a result of the increased wind resist­ ance created by a roof rack, your vehicle is
using fue l unnecessarily. So remove the
roof rack after using it.

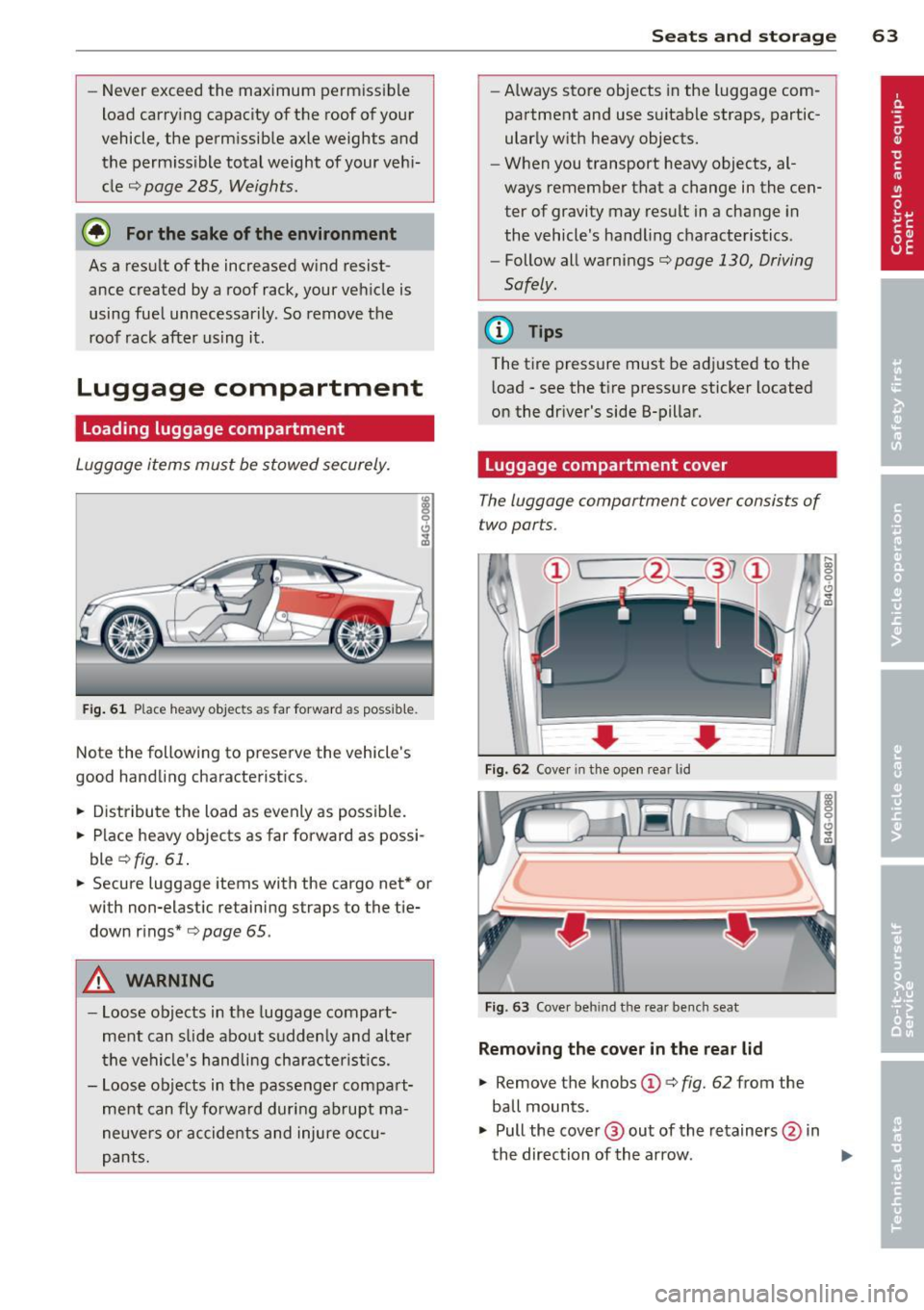

Luggage compartment
Loading luggage compartment
Luggage items must be stowed securely.
Fig . 61 Place heavy objects as far forward as possib le.
Not e the following to preserve the vehicle's
good handling characterist ics .
.. Distribute the load as evenly as possible .
.. Place heavy objects as far forward as possi ­
ble
c;, fig. 61 .
.. Secure luggage items with the cargo net* or
with non-elastic retaining straps to the tie­
down rings*
c;, page 65.
A WARNING
-Loose objects in the luggage compart­
ment can slide about suddenly and alter
the vehicle's handling characterist ics.
- Loose objects in the passenger compart­
ment can fly forward during abrupt ma­
neuvers or accidents and injure occu­
pants.
Seats and storage 63
-Always store objects in the luggage com­
partment and use suitable straps, partic­
ularly with heavy objects.
- When you transport heavy objects, al­
ways remember that a change in the cen­
ter of gravity may result in a change in
the vehicle's handling characteristics.
- Follow all warnings
c;, page 130, Driving
Safely.
(D Tips
The tire pressure must be adjusted to the
load - see the tir e pressure sticker located
on the driver's side 8-pillar.
Luggage compartment cover
The luggage compartment cover consists of
two parts.
... ...
Fig. 62 Cover in the open rear lid
Fig. 63 Cove r behind the rear bench seat
Removing the cover in the rear lid
.. Remove the knobs (D c;, fig. 62 from the
ball mounts .
.. Pull the cover @ out of the retainers @ in
the direction of the arrow.
~

64 Seat s a nd s tor ag e

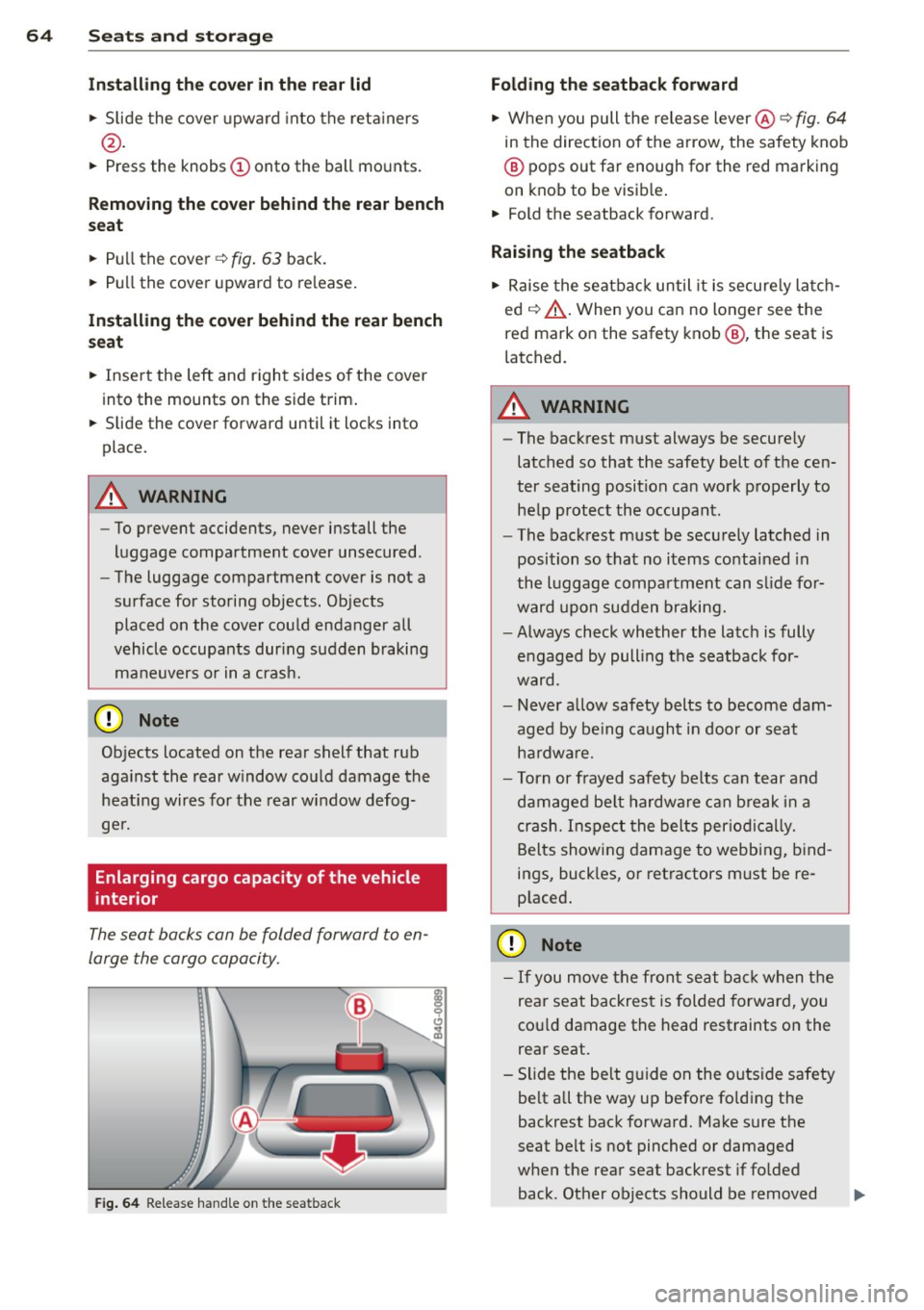

In sta ll ing th e co ve r in th e rear lid
.. Slide the cover upwa rd into the retainers
@ .
.. Press the knobs(!) onto the ball mounts.
Rem oving the co ver behind th e rear bench
s eat
.. Pull the cover~ fig. 63 back .
.. Pu ll the cover upward to re lease.
Inst all ing th e cover beh ind the r ear bench
se at
.. Insert the left and right sides of the cover
into the mounts on the side trim .
.. Slide the cover forward until it locks into
place.
A WARNING
- To prevent accidents, never install the
luggage compartment cover unsecured .
- The luggage compartment cover is not a
surface for storing objects. Objects
placed on the cover could endanger all
vehicle occupants dur ing sudden braking
maneuvers or in a crash.
@ Note
Objects located on the rea r shelf that rub
aga inst the rear w indow could damage the
heating wires for the rear window defog­
ger.
Enlarging cargo capacity of the vehicle
interior
The seat backs can be folded forward to en­
large the cargo capacity.
Fig . 64 Re lease hand le on the seatback
Folding the seatback for ward
.. When you pull the release lever@~ fig. 64
in the direction of the arrow, the safety knob
@ pops out far enough for the red marking
on knob to be visible .
.. Fold the seatback forward.
Rai sing th e seatback
.. Raise the seatback until it is secure ly latch­
ed ~,&. .When you can no longer see the
red mark on the safety knob @, the seat is
latched .
A WARNING
-
-The backrest must always be secure ly
latched so that the safety belt of the cen­
ter seating position can work properly to
help protect the occupant.
- The backrest must be securely latched in
position so that no items contained in
the luggage compartment can s lide for­
ward upon sudden braking.
- Always check whether the latch is fully
engaged by pull ing the seatback for­
ward .
- Never allow safety belts to become dam­
aged by be ing caught in door or seat
ha rdwa re.
- Torn or frayed safety belts can tear and
damaged be lt hardware can b reak in a
crash. Inspect the belts per iodically.
Belts show ing damage to webbing, bind­
ings, buck les, or retractors must be re­
p laced .
(D Note
-If you move the front seat back when the
rear seat backrest is folded forward, you
cou ld damage the head restraints on the
rear seat.
- Slide the be lt g uide on the outside safety
belt all the way up before folding the
backrest back forward. Make sure the
seat belt is not pinched or damaged
when the rear seat backrest if folded
back . Other objects should be removed

from the rear seat bench to protect the
seatback from damage.

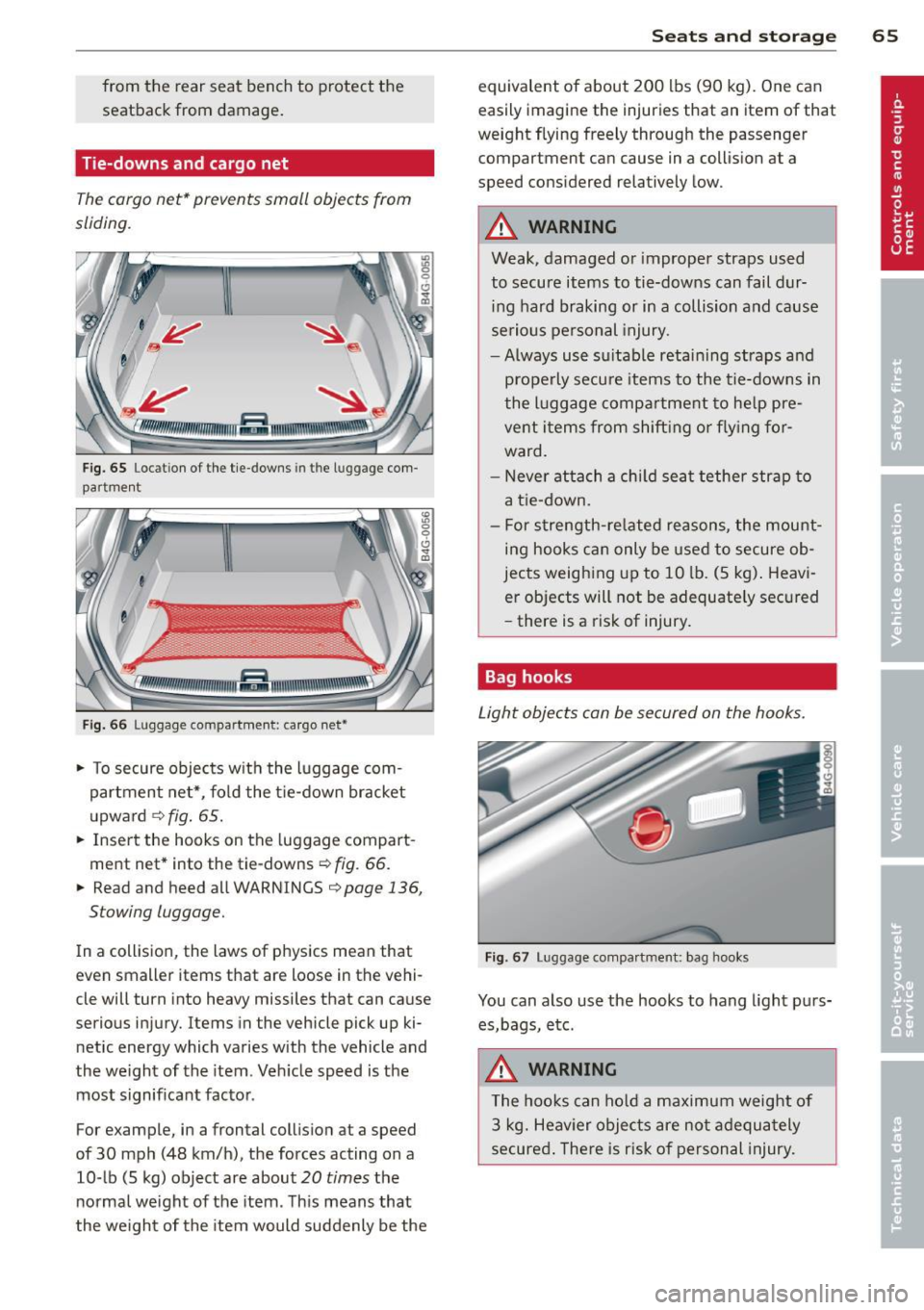

Tie-downs and cargo net
The cargo net* prevents small objects from
sliding.
Fig. 65 Locat ion of the tie-downs in the luggage com­
partment
Fig. 66 Luggage compartment: cargo net*
.. To secure objects w ith the luggage com­
partment net*, fo ld the t ie-down bracket
u pward
¢ fig. 65 .
.. Insert the hooks on the luggage compart­
ment net* into the tie-downs
¢ fig. 66 .
.. Read and heed all WARNINGS
¢page 136,
Stowing luggage.
In a collision, the laws of physics mean that
even smaller items that are loose in the vehi­
cle will turn into heavy missiles that can cause
serious injury. Items in the vehicle pick up ki­
netic energy which varies with the vehicle and
the we ight of the item . Veh icle speed is the
most significant factor.
For example, in a frontal collision at a speed
of 30 mph (48 km/h), the forces acting on a
10-lb (S kg) object are about
20 times the
normal weight of the item . T his means that
the weight of the item would suddenly be the
S ea ts a nd s to rage 65
equivalent of about 200 lbs (90 kg). One can
easily imagine the injuries that an item of that
weight flying freely through the passenger
compartment can cause in a collision at a
speed considered relatively low.
A WARNING
Weak, damaged or improper straps used
to secure items to tie-downs can fail dur­
ing hard braking or in a collision and cause
serious personal injury.
- Always use su itab le retaining straps and
prope rly secure items to the tie-downs in
the l uggage compartment to he lp pre­
vent items from shift ing o r fly ing for­
ward .
- Never attach a chi ld seat tether str ap to
a tie-down.
- For strength-re lated reasons, the mount­
ing hooks can only be used to secure ob­
jects weighing up to 10 lb. (5 kg) . Heavi­
er objects will not be adequately secured
- there is a risk of injury.
Bag hooks
Light objects can be secured on the hooks.
Fig. 67 Luggag e co mpa rtment: bag hooks
You can also use the hooks to hang light purs­
es,bags, etc.
A WARNING
The hoo ks can ho ld a maximum weight of
3 kg. Heav ier objects are not adequa tely
secured . There is risk of personal injury.

66 Seats and st o rage

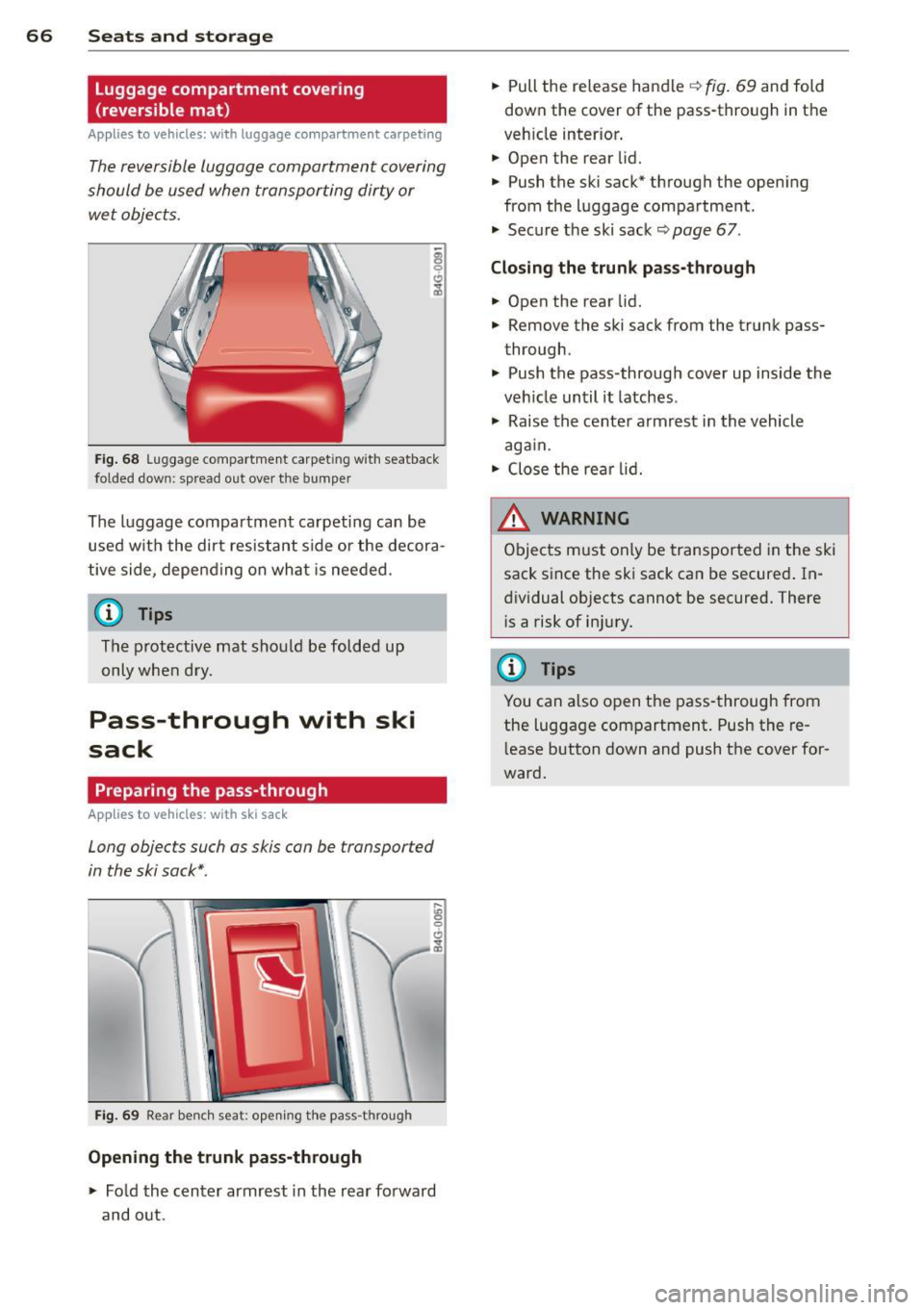

Luggage compartment cover ing
(reversible mat )
Applies to vehicles: with luggage compartment carpeting
The reversible luggage compartment covering
should be used when transporting dirty or
wet objects.
Fig . 68 Luggage compartment carpet ing with seatback
folded down: spread out over the bumper
The luggage compartment carpeti ng can be
used w ith the dirt resistant s ide or the decora­
tive side, depe nding on what is needed.
@ Tips
The protective mat should be folded up
only whe n dry.
Pass-through with ski
sack
Preparing the pass-through
App lies to vehicles: with ski sack
Long objects such as skis can be transported
in the ski sack*.
Fig . 69 Rear be nch seat: opening th e pass -through
Opening the trunk pass-through
.,. Fold the center armrest in the rear fo rward
and o ut. .,.
Pull the release handle
q fig . 69 and fold
down the cover of the pass-through in the
veh icle inter ior .
.,. Open the rear lid.
.,. Push the ski sack* through the opening
from the luggage compartment.
"' Secure the ski sack¢
page 67.
Closing the trun k pass -through
.,. Open the rear lid .
.,. Remove the ski sack from the trunk pass­
through.
"' Push the pass-through cover up inside the
veh icle until it latches .
"' Raise the center armrest in the vehicle
aga in.
.,. Close the re ar lid.
A WARNING ~
Objects must only be transported in the ski
sack since the ski sack can be secured . In­
dividual objects cannot be secured. There
i s a risk of in jury.
(D Tips
You can also open the pass -through from
the luggage compartment . Push the re­
l ease button down and push the cover for­
ward.

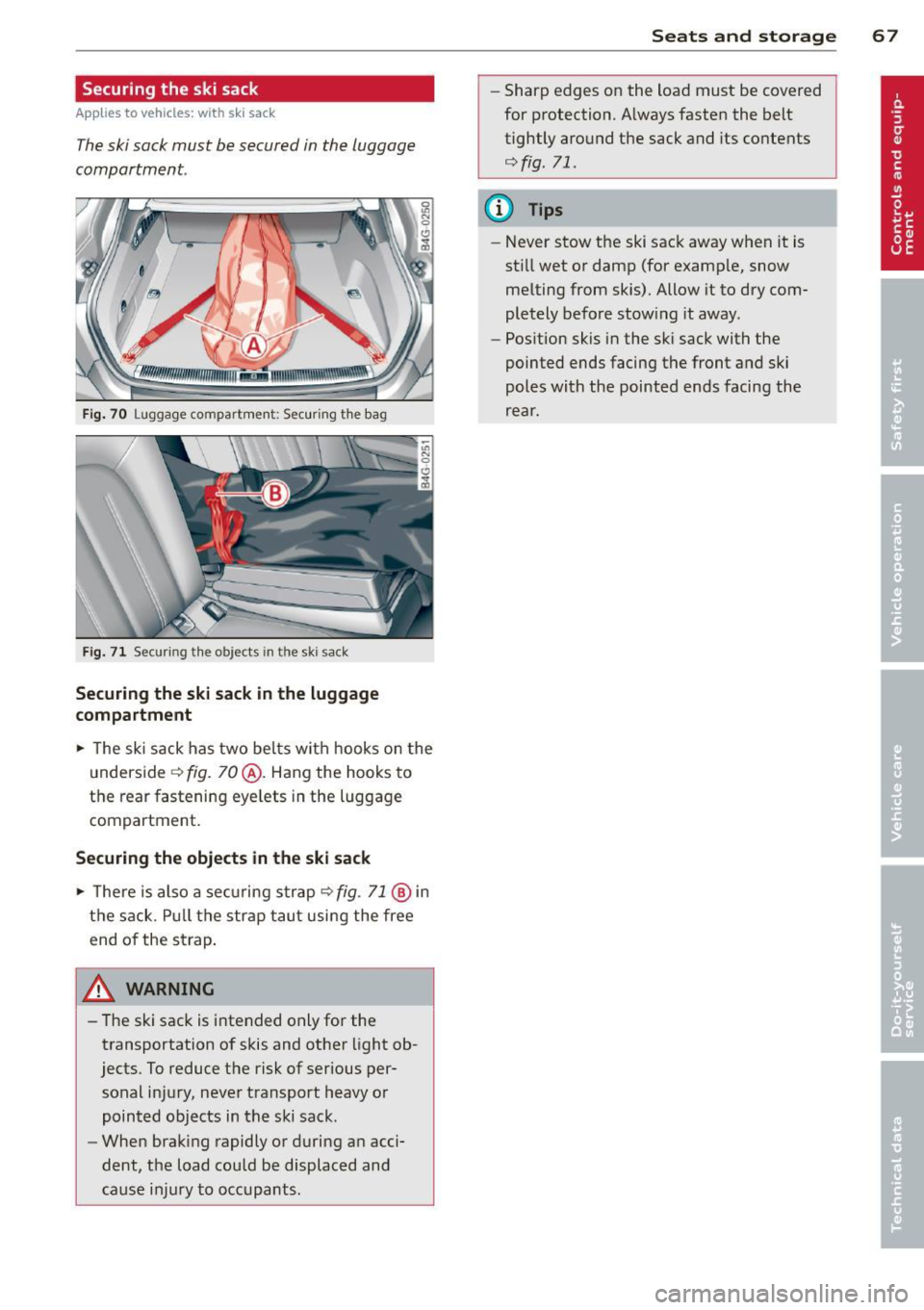

Securing the ski sack
Applies to vehicles: with sk i sack
The ski sack must be secured in the luggage
compartment.
Fi g. 70 Luggage compartmen t: Securing th e bag
Fig . 71 Securing th e objects in the ski sack
Securing the ski sack in the luggage
compartment
.,. The ski sack has two bel ts w it h h ooks on the
u nderside
c:> fig. 70@. Hang the hooks to
the rear fastening eye lets in the luggage
compartment.
Securing the objects in the ski sack
.,. The re is al so a se cur ing s trap c:> fig. 71 @ in
th e s ack. Pull t he str ap tau t usi ng the free
end of the st rap .
A WARNING
-
-The ski sack is i ntended only for the
transportation of skis and other light ob­
jects. To reduce t he risk of serious per­
sonal inj ury, neve r transport heavy or
pointed objects in t he ski sack.
- When brak ing rapidly or during a n acci ­
dent, t he load could be displaced and
ca use i njur y to occupants.
Seats and storage 67
-Sharp edges on the load must be covered
for protection. A lways fasten the belt
tightly aro und the sack and its co ntents
c:>fig. 71.
(D Tips
-Never stow the ski sac k away when it is
st ill wet or damp (for examp le, sn ow
me lting from skis). Allow it to dry com­
pletely before stow ing it away.
- Pos ition skis in the ski sack with the
pointed ends facing the front a nd ski
p oles with the pointed ends facing the
r e ar.

68 Warm and cold
Warm and cold Climate controls
Description
A pplies to vehicles: with three-zone cl imate cont ro l or
four-zone a uto mat ic climate contro l
The climate control system warms, cools and
adds humidity to the a ir in the ve hicle interior.
It is the most effect ive when the windows and
sun roof * are closed .
If the tempe rature i nside
the par ked veh icle becomes very warm, open ­
i ng the w indow br ie fly will speed up the cool­
ing process.
I n all heating mode f unctio ns except
defrost,
the blower on ly sw itches to a h ighe r speed
once the engine coo lan t has reached a ce rtain
temperature.
Condensat ion from the cooling system can
d rip and form a puddle of wate r under the ve­
h icle. This is normal and does no t mean there
is a lea k.
Pollutant filter
The pollutant filte r removes pollutants such
as dust and po llen from the air.
The air pollutants filter must be changed at
the intervals spec ified in you r Warranty
&
Maintenance boo klet, so that the air condi­
tioner can prope rly work .
If you drive your vehicle in an area with h igh
a ir po llution, the fi lter may need to be
changed more freq uently than specified in
your Aud i Wa rranty & Ma intenance booklet. If
i n doubt, as k your author ized A udi Se rvice Ad­
visor for adv ice.
K ey coded settings
Three-zone climate control: T he b lower set­
ting and air distribution are stored automati ­
cally and ass igned to the remote control key
that is i n use.
Four-zone automatic climate control: The cli­
mate control settings are automat ica lly stor­
ed and assigned to the remote control key
that is i n use.
A WARNING
Reduced visibility is dangerous and can
cause accidents.
-
- For safe driving it is very important that
all windows be free of ice, snow and con­
densat ion .
- Comp lete ly fam iliarize yourse lf with the
proper use and funct ion of the heat ing
and ve nti lation system and especially
how to defog and defrost the w indows.
- Never use the windshield wiper/washer system in freez ing weathe r unt il you
have wa rmed the windshie ld first, using
the heating and ventilation system. The
washer sol ution may freeze o n the w ind­
shie ld and re duce visib ility.
(D Note
- If you suspect that the air conditioner
has been damaged, sw itch the sys tem
off to avoid further d amage and have i t
inspected by a q uali fied dealership .
- Repairs to the Audi air conditioner re­
quire speci al technical know ledge and
special tools. Contact an autho rized Audi
dea ler fo r ass istance.
@ For the sake of the environment
B y reducing the amou nt of f uel you use,
you also red uce the amount of pollutants
emitted into the air.
(D Tips
- Keep the air intake s lo ts (in front o f the
windshield) free from ice, snow and de ­
br is in order to maintain the proper func­
tion of the climate control system.
- The energy management system may
switch the seat heating* or rear window
defroster off temporar ily. These systems
are available again as soon as the energy
balance has been restored .
-Air escapes through vents under the rear window. When plac ing items of cloth ing
on the luggage compartment cover, en­
sure that the openings are no t covered.
