Checking and filling Engine hood
Releasing the engine hood
The engine hood is released from inside the
vehicle .
Fig. 191 Dr iver footwell: release lever
Fig. 192 Rocker switch under the hood
Make sure the wiper arms are not raised up
from the w indshield. Otherw ise the paint
could be damaged.
.. Pull the lever under the instrument panel in
the d irect ion of the arrow
~ fig. 191.
.. Raise the hood slightly~ &-
.. Press the rocker switc h under the hood up­
ward
~ fig. 192. This re leases the catch .
.. Open the hood .
A WARNING
Hot engine coo lant can burn you.
- To reduce the r isk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment . Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood.
Checkin g and fillin g 22 7
Working in the engine compartment
Be especially careful whenever you work in
the engine compartment.
Wh ene ve r y ou must p erform an y wor k in the
e ng ine com pa rtm ent , for e xample checking
a nd filling diff ere nt fluids, th ere is a risk of
inju ry, burn s and accid ent s. To pr eve nt per­
so nal injury alwa ys observ e the foll owing
WARNING S. The engin e compartment of an y
v e hicle i s a h az a rdou s are a
~ ,&.
h WARNING
To help avoid injury, before yo u check any ­
thing under the hood:
- Turn off the engine.
- Sw itch off the ignition.
- Apply the parki ng brake.
- Move selector leve r to P (Park).
- Always let the engine cool down. Hot
components w ill burn skin on contact .
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coo la nt escaping from the engine
compa rtment. Wait unt il no steam or
coolant can be seen o r heard before care­
fu lly opening the hood.
- Keep ch ildren away from the engine com­
pa rtment.
- Never sp ill fluids on hot engine compo­
nents . They can cause a fire .
- Never touch the rad iator fan. The auxili­
ary electric fan is temperat ure controlled
a nd can sw itch on suddenly .
- Never open the coolant reservoir cap
when the engine is still warm. The cool­
a nt system is p ressu rized and hot cool­
a nt cou ld spray o ut.
- Protect your face, hands and arm from
steam or hot engine coolant by plac ing a
thick rag ove r the cap when you open the
coo lant rese rvoir.
- Do not remove the engine cover under
any circumstances. This inc reases the
ris k of burns.
- If work on the fue l system o r the elec tri ­
cal system is necessary:

228 Check ing and filling
- Always disconnect the battery.
- Never smoke or wor k near heaters or
open flames . Fluids in the engine com­
partment could start a fire.
- Keep an approved fire extinguisher im­
mediately available.
- To avoid electrical shock and persona l in ­
jury while the engine is running or being started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
- If you must perform a check or repa ir
with the engine running:
- Fi rst, fully apply the parking brake,
move se lec tor lever to P (Pa rk) .
- Always use extreme caution to prevent
clot hing, jewe lry, or long ha ir from ge t­
ting caught in the radiator fan, V -belts
or other moving parts, or from contact­ ing hot parts . Tie back hair before
start ing, and do not wear cloth ing that
will hang or droop into the eng ine .
- Minimize exposure to emission and chemica l ha zards¢ ,&..
A WARNING
California Propos ition 65 Warning:
- Engine exhaust, some of its constituents,
and certa in veh icle components conta in
or emit chemicals known to the State of
Califor nia to cause cancer and b irth de­
fects a nd reproduct ive ha rm. In addition ,
certain fluids conta ined in vehicles and
certa in prod ucts of co mponent wear co n­
ta in or emi t chemicals known to the
State o f Ca lifornia to cause can cer and
birth defects or other reproductive harm . -
Battery posts, terminals and re lated ac­
cessories conta in lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive harms. Wash hands after handling .
(D Note
When adding flu ids, always make sure that
they are poured into the proper conta iner
or f iller opening, otherwise serious dam­
age to vehicle systems w ill occur.
® For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly. If
you see spots from oil or other ve hicle flu­
i ds, have yo ur vehicle inspected by a n au­
thori zed Audi dea le r.
Closing the engine hood
.,. Pull the hood down un til the pressure from
the struts is reduced.
.,. Let the hood
drop down and latch in p lace .
Do not try to push it shut; it may fail to en­
gage ¢&_ .
A WARNING
-
A hood that is not completely latched
could fly up and b lock your view while dr iv ­
ing .
-When you close the engine hood, check it
to make sure the safety catch has p roper ­
ly engaged. The hood sho uld be flush
with the surrou nding vehicle body pa rts.
- If you notice while driv ing that the hood
is not s ecured prope rly, stop at onc e and
close it.

Checking and fillin g 229
Engine compartment
Engine compartment overview
These are the most important items that you can check.
Fig. 193 Typical l ayout for conta iners and engine o il filler cap
@ Jump start poin t(-) with hex
head screw .. ....... ... .. .. . 240, 276
@ Jump start point(+) under a cov-
®
©
®
©
er .. .. ... ..... ...... ...... 240, 276
Brake fl uid reservo ir
((0)) . . . . . 237
Engine oil filler cap
("1:::r.) . . . . . 232
Coolant expansion tank
(-L) .. .
Windshield/headlight washer
t . ('"') con ainer O ...... .... ... .
235
241
The engine oil filler neck (item@) may be lo­
cated in a d ifferent a rea depend ing o n the
ver­
sion of the eng ine.
Before you check anything in the engine
compartment, always read and heed all
WARNINGS
c::> &. in Working in the engine
compartment on page 227.
Engine oil
Engine oil specifications
The engine in your Audi needs the right kind
of oil.
The engine in your Audi is a sophisticated
powerplant that was built to exacting specifi­
cations. This eng ine needs the right k ind of
engine oil that meets specifications regarding
quality and viscosity so that it can r un
smooth ly and reliably. Choosing the right o il
and changing oil within the t ime and mileage
intervals p rin ted in you r vehicle's Wa rranty
&
Maintenance booklet matters a lot more to­
day than it did years ago . Audi has deve loped
a specia l quality sta ndard for engine oil that
will help assure that your vehicle's engine will
get the lubrication it needs for proper opera­
tion.

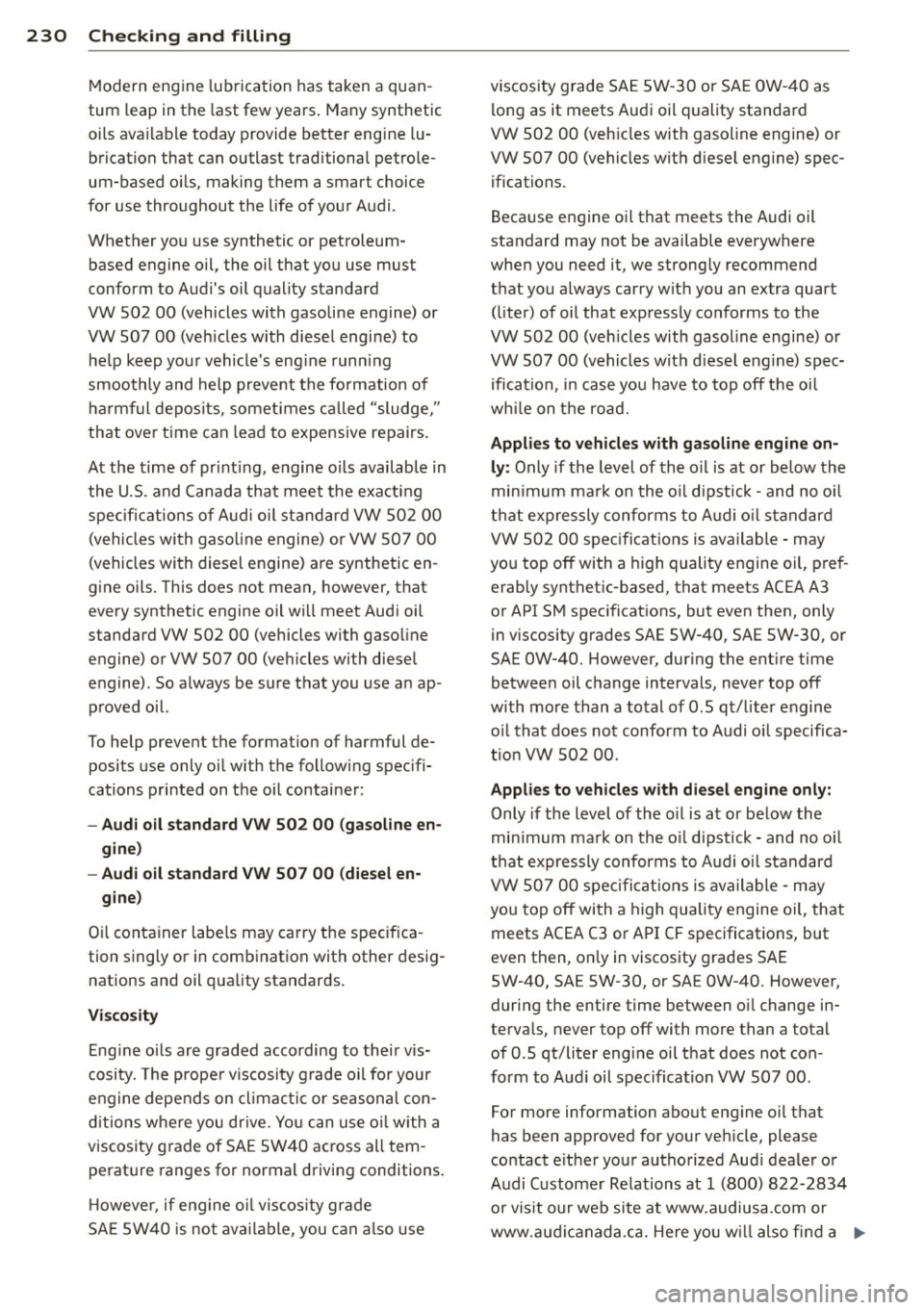

230 Check ing and filling
Mo dern engine lubrication has taken a quan­
tum leap in the last few years. Many synthetic
oils ava ilable today provide better engine lu­
brication that can outlast traditional petrole­
um-based oils, making them a smart choice
for use throughout the life of your Audi .
Whether you use synthetic or petroleum ­
based engine oil, the oil that you use must
conform to Audi 's oil quality standard
VW 502 00 (vehicles with gasoline engine) or
VW 507 00 (veh icles with diesel engine) to
he lp keep your vehicle's eng ine running
smoothly and help prevent the fo rmation of
harmf ul depos its , somet imes ca lled "sludge,"
that over t ime can lead to expensive repairs.
At the time of printing , engine oils availab le in
the U .S . and Canada that meet the exacting
specifi cations of A udi oi l st andard VW 502 00
(vehicles wi th gasoline engine) or VW 507 00
(vehicles with diesel engine) are synthetic en­
gine oils . This does not mean, however, that
every synthetic engine oil will meet Aud i oil
standard VW 502 00 (vehicles with gaso line
engine ) or VW 507 00 (veh icles w it h diese l
engine). So always be sure that you use an ap ­
proved oil.
To help prevent the format ion of harmful de­
posi ts use only oi l with the fo llow ing spec ifi­
cations printed on the oil containe r:
- Aud i oil standard VW 50 2 00 (ga soline en ­
gine )
- Audi oil sta nd ard VW 50 7 00 (diesel en -
gine )
Oil container labe ls may carry the specif ica ­
tion s ingly or i n comb ination with other desig­
nations and oil q ua lity standards.
Visco sity
Eng ine oi ls are graded according to thei r vis­
cosity. The prope r viscosity grade oil for your
engine depends on climac tic or seasonal con­
d itions whe re you drive. You can use oi l w ith a
viscosity g rade of SAE 5W40 across all tem ­
perat ure ranges for normal driving conditions .
H oweve r, if eng ine o il viscos ity grade
SAE 5W40 is not av ailable, you can a lso use viscosity grade SAE 5W-30 or SA
E OW-40 as
l ong as it meets Audi oil quality standard
VW 502 00 (veh icles with gasoline engine) or
VW 507 00 (vehicles with d iesel eng ine) spec­
ifications.
Beca use engine oi l that meets the Audi oil
standard may not be availab le everywhere
when you need it, we strong ly recommend
that you a lways carry with you an ex tra qua rt
( li ter) of oil that express ly conforms to the
VW 502 00 (veh icles with gasoline engine) or
VW 507 00 (vehicles w ith d iese l eng ine) spec­
ifica tion , in case you have to top off the oil
wh ile on t he road.
Applies to vehicle s with gasoline engine on­
l y:
Only if the level of the o il is at or be low the
min imum ma rk on the o il dipstick - and no oi l
t h at expressly conforms to A udi o il standard
VW 502 00 spec ificat ions is available -may
yo u top off with a high quality engine oi l, pre f­
erab ly synthetic-based, that meets ACEA A3
or AP I SM spec ificat ions, but even then, only
in v iscosity grades SAE 5W-40, SAE 5W-30, or
SAE OW-40. However, during the ent ire time
betwee n oil change intervals, never top off
with more than a total of 0 .5 qt/liter engine
o il that does not conform to Audi o il specifica­
t ion VW 502 00.
Applies to vehicle s with die sel engin e only:
Only if the level of the oil is at or below the
min imum ma rk on the o il dipstick - and no o il
t h at expressly conforms to Audi o il standard
VW 507 00 spec ificat ions is available -may
you top off with a high quality engine oil, that meets ACEA C3 or API CF specifications, but
even then , on ly in viscosity grades SAE
5W-40, SAE 5W-30, or SA E OW-40 . However,
during the entire time between o il change in­
terva ls, never top off wi th more than a total
of 0 .5 qt/liter engine oil that does not con -
fo rm to Aud i oil spec ification VW 50 7 00 .
For more info rmation about eng ine oi l that
has been approved for your veh icle, please
contact e ither your authorized Aud i dealer o r
Audi C ustome r Re lations at 1 (800) 822-2834
o r vis it our web site at www.audiusa .com or
www.aud icanada .ca. He re you w ill also find a .,.

current list of oils (manufacturers, brand
names etc.) that conform to Audi oil standard
VW 502 00 (vehicles with gasoline engine) or
VW 507 00 (vehicles with diesel engine).
C hanging the engine oil
The engine oil and oil filter must be changed
according to the mileage (kilomete rs) and
time intervals specified in your vehicle's War­
ranty
& Maintenance booklet. Do not exceed
these intervals -harmful deposits from old
engine oil can reduce engine performance and
can lead to expensive engine repairs .
Changing the oil at the recommended inter­
vals is so very important because the lubricat­
ing properties of oil decrease gradually during
normal vehicle use. If you are not sure when
you have your oil changed, ask your author­
ized Audi Service Advisor .
Under some circumstances the engine oil
should even be changed more frequently .
Change oil more often if you drive mostly
short distances, operate the vehicle in dusty
areas or mostly under stop-and-go traffic con­
ditions, or when you use your vehicle where
temperatures stay below freezing point for long periods.
Detergent addit ives in the oil will make fresh
oil look dark after the eng ine has been run­
ning for a short time. This is normal and is not
a reason to change the oil more often than
recommended.
Damage or malfunctions due to lack of
maintenance
It is essential that you change your oil at the
recommended intervals using only engine oil
that complies with Audi oil standard
VW 502 00 (vehicles with gasoline engine) or
VW 507 00 (vehicles with diesel engine). Your
Limited New Vehicle Warranty does not cover
damage or malfunctions due to failure to fol­
low recommended maintenance and use re­
quirements as set forth in the Audi Owner's
Manual and Warranty
& Maintenance booklet.
Your dealer will have to deny warranty cover­
age unless you present to the dealer proof in
Checking and filling 231
the form of Service or Repair Orders that all
scheduled maintenance was performed in a
timely manner.
Engine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all
of its moving parts.
In order to provide effective lubrication and
cooling of internal engine components, all in­
ternal combustion engines consume a certain
amount of oil. Oil consumption varies from engine to engine and may change significantly
over the life of the engine. Typically, engines
with a specified break-in period (see ¢
page 204) consume more oil during the
break-in period than they consume after oil
consumption has stabilized.
Under normal conditions, the rate of oil con­
sumption depends on the quality and viscosity
of the oil , the RPM (revolutions per minute) at
which the engine is operated, the ambient
temperature and road conditions . Further fac­
tors are the amount of oil dilution from water
condensation or fuel residue and the oxida­
tion level of the oil. As any engine is subject to
wear as mileage builds up, the oil consump­
tion may increase over time until replacement
of worn components may become necessary .
With all these variables coming into play, no
standard rate of oil consumption can be es­
tablished or specified. There is no alternative
to regular and frequent checking of the oil lev­
el, see
Note .
If the yellow engine oil level warning symbol
in the instrument cluster
II! lights up, you
should check the oil level as soon as possible
¢
page 232. Top off the oil at your earliest
convenience
9 page 232.
.&, WARNING
Before you check anything in the engine
compartment, always read and heed all
WARNINGS ¢.&.
in Working in the engine
comportment on page 22
7.
-
•
•

232 Checking and filling
(D Note
Driving with an insufficient oi l level is like­
ly to ca use seve re damage to the eng ine.
@ Tips
- The oil pressure warning display. i s
not an indicator of the oil level. Do not
r ely on it. Instead , check the oil level in
your engine at regular intervals, pref ­
erably each t ime you refuel, and always
before going on a long trip .
-If you have the impression your engine
consumes excessive amo unts of oi l, we
recommend that yo u consult your Audi
dealer to have the ca use of you r co nce rn
prope rly diagnosed. Keep in mind that
t h e accurate measure men t of oil con­
s u mp tion requires gre at ca re and may
ta ke some time. Your Audi dealer h as in ­
str uctions about how to measure oil con­
sumption accurate ly .
Checking the engine oil level
Fig . 194 Di splay: o il leve l in dicato r
... Pa rk your vehi cle on a leve l surfac e.
... Shu t the engine off when i t is wa rm.
... Swi tch on ly th e igni tion ba ck on.
... Wa it approxima tely two mi nutes .
... Se lect : ICAR !funct io n button>
(Car)* sy s­
tems
control button > Se rvicing & checks >
O il level.
... Check the oil leve l in t he display¢ fig. 194 .
Add engi ne oil if the bar of the oil level indi­
cator is n ear "m in"
¢ page 232.
Depending on the way the vehicle is driven
a nd the operating conditions, oil consumpt ion can be u
p to 1/2 quart pe r 60 0 miles (0.5 liter
per 1,000 km) . Con sumption may be hig he r
within the first 3,000 miles (5,000 km) .
(D Tips
The oil level indicator in t he MM I Disp lay is
o nl y an information display . If t he oil level
i s lo w, a min imum oil warn ing appears in
the instr ument cluster. Add oil
¢
page 232 . If the hood has been opened ,
the cur ren t oil leve l is s hown in the instru ­
m ent cluste r th e next t ime the ignit ion is
sw itc hed on.
Adding engine oil 'l:::7:
Fi g. 195 Eng in e compa rtm en t: cove r on t he e ng in e o il
fille r neck
B efo re y ou chec k anyt hing in the engine com­
par tmen t,
always read and heed all WARN­
INGS
¢ .&. in Working in the engine com part ­
ment on page 22
7 .
... Shu t the eng ine off .
... Uns crew the cap
"I".:::?-to the eng ine o il filling
hole
¢ fig . 195, ¢page 229, fig . 193 .
... Carefully top off with 0 . 5 quarts (0 .5 liters)
of the appropr iate oil
¢ page 229 .
... Check the oi l level again after two min utes
¢ page 232, Checking the engine oil level.
... Top off the o il aga in, if necessary .
... Screw the cap back on the fi lling hol e .
.&_ WARNING
=
- W hile toppi ng off, t he o il mu st not come
i n cont act wit h hot engi ne part s - fire
h aza rd !

-The oil filler cap must be properly se­
cured to prevent oil from being sprayed
on the hot engine and exhaust system
when the engine is running - fire hazard!
-If your skin has come in contact with the
engine oil, you must subsequently
cleanse it thoroughly .
@ Note
-Check the oil level using the MMI. If the
message
Please reduce oil level appears,
contact your authorized Audi dealer or
other qualified workshop to have excess
oil extracted if necessary .
-Audi does not recommend the use of oil
additives. They may damage the engine
and adversely affect your New Vehicle
Warranty.
@ For the sake of the environment
- Under no circumstances can the oil come
in contact with the sewage network or
the soil.
- Observe and follow legal regulations
when disposing of empty oil containers.
Changing the engine oil
We recommend that have your oil changed by
an authorized Audi dealer or a qualified serv­
ice station .
Before you check anything in the engine com ­
partment,
always read and heed all WARN­
INGS
~ .&. in Working in the engine compart­
ment on page 22
7.
T he engine oil must be changed according to
the intervals specified in your Warranty
&
Maintenance booklet . This is very important
because the lubricating properties of oil di­
minish gradually during normal vehicle use.
Under some circumstances the engine oil
should be changed more frequently . Change
oil more often if you drive mostly short dis­
tances , operate the vehicle in dusty areas or
under predominantly stop-and-go traffic con­
ditions , or have your vehicle where tempera-
Checking and filling 233
tu res remain below freezing for extended pe­
riods.
Detergent additives in the oil will make fresh
oil look dark after the engine has been run­ ning for a short time. This is normal and is not
a reason to change the oil more often than
recommended.
Because of the problem of proper disposal,
along with the special tools and necessary ex­
pertise requir ed, we strongly recommend that
you have your oil changed by an authorized
Audi dealer or a qualified service station.
If you choose to change your oil yourself,
please note the following important informa­
tion:
_& WARNING
To reduce the risk of personal injury if you
must change the engine oil in your vehicle
yourself:
- Wear eye protection.
- To reduce the risk of burns from hot en-
gine oil, let the engine cool down to the
touch.
- When removing the oil drain plug with
your fingers, stay as far away as possible.
Always keep your forearm parallel to the
ground to help prevent hot oil from run­
ning down your arm.
- Drain the oil into a container designed
for this purpose, one large enough to hold at least the total amount of oil in
your engine .
- Engine oil is poisonous. Keep it well out
of the reach of children.
- Continuous contact with used engine oil
is harmful to your skin. Always protect
your skin by washing oil
off thoroughly
with soap and water.
(D Note
Never mix oil additives with your engine
oil. These additives can damage your en­
gine and adversely affect your Audi Limit­
ed New Vehicle Warranty.
•
•

234 Check ing and filling
@ For the sake of the environment
- Before changing your oil , first make sure
you know where you can properly dispose
of the used o il.
- Always dispose of used engine oil proper­
l y. Do not dump it on garden soi l, wood­
ed areas, into open streams or down
sewage dra ins.
- Recycle used engine oil by taking it to a
used engine oil collection facility in your
area, or contact a service station .
Engine cooling system
Coolant
The engine coolant performs two functions: it
keeps the engine from overheating and it pro­ tects the engine from freezing in the winter.
The cooling system is sea led and generally re­
q uir es little attention .
The cooling system has been filled at the fac ­
tory with a pe rmanent coolant which does not
need to be c hanged. The coolant consists of a
mixture of spec ia lly conditioned water and the
manufacturer 's glyco l-b ased coo lant add i-
tive G l3 antifreeze with ant icorrosion addi ­
tives (50% for USA models ; 60% for Canadian
mod els). This mixture both assures the nec es­
sary frost protection and protects metal com­ ponents in the engine's cooling sys tem from
corrosion and scaling . It a lso raises the boil­
ing point of the coolant .
Do not red uce the concentration o f the coo l­
ant in the summer by adding plain water.
The
proportion of coolant add itive mu st be at
l e a st 50 % but not more than 60 %
to main­
tain antifreez e protection and cooling efficien­
cy . If the coolant frost prote ct ion is too low,
the coo lant cou ld freeze and damage the veh i­
cle hea ting and eng ine cooling system.
For yea r-round d riving, antifreeze is added at
the fac to ry for temperatures down to:
-- 31°F( -35°C)USA
- -40 °F ( -40 °C) Canada. If
you must add coolant, use a mixture o f wa ­
ter and coolant additive . Mixing the coo lant
additive with distilled water is recommended.
A WARNING
-
Before you c heck anything in the engine
compartment, always read and heed a ll
WAR NINGS
c::, & in Working in the engine
compartment on page 22
7 .
(D Note
- Before winter sets in, have the coo lant
checked to see if the coolant additive in
your vehicle is sufficient to meet the cli­ mate conditions . This is especia lly impor­
tan t if you live in a reg io n where the win­
t er is ex treme ly cold. If ne cessa ry, i n­
crease the pr opo rtion of coo lant add itive
t o 60%.
- Whe n adding coolant additive to yo ur
c oolin g sys tem, remembe r:
- We recommend using on ly coolant ad ­
d itive Gl2++ or Gl3 (check the label)
for your vehicle . This coolant additive is
ava ila ble at autho rized Aud i deale rs.
Other types of antifreeze ca n sig nifi­
ca ntly reduce co rr os io n protection. The
r es ult ing co rrosion c an c ause a los s o f
coolant and serious engine damage.
- Do not add any type of rad iator leak seal­
a n t to y our vehicle 's engine coolant.
Add ing radiator repai r fl uid may adverse ­
ly affect the function and performance of
your cooling system and co uld resu lt in
damage not covered by yo ur New Vehicle
Limited Warranty.
-

Checking the engine coolant level
The engine coolant level can be checked with
a quick glance .
Fig. 196 Eng ine compartment: cover on the coolant
expansion tank
Before you check anything in the engine com­
partment,
alwa ys read and hee d all W ARN­
ING S ¢.&. in Working in the engine compart­
ment on page 22
7 .
.,. Park your vehicle on a level surface.
.,. Switch off the ignit ion.
.,. Read the engine coolant level from the cool­
ant expansion tank¢
fig. 196, ¢ page 229 ,
fig. 193 .
With a cold engine, the coolant
level should be between the "min" and
"max" mar kings. When the engine is warm,
the leve l may be slightly above the "max"
marking.
The location of the coolant expansion tank
can be seen in the engine compartment illus­
tration¢
page 229 .
To obtain an accurate read ing, the eng ine
must be switched off.
The expans ion tank in you r vehicle is equipped
with an electric coolant level sensor .
When the coolant level is too low, the warning
light in the Auto -Check System ¢
page 17 will
illum inate u ntil you add coolant a nd the level
has been restored to normal. Even though
there is an electric coolant level sensor, we
still recommend you check the coolan t leve l
from time to time.
Coolant loss
Coolant loss may indicate a leak in the cool ing
system. In the event of coolant loss, the cool-
Checkin g and fillin g 235
ing system should be inspected immediately
by your authorized Audi dealer . It is not
enough merely to add coolant.
In a
s ea led system, losses can occur on ly if
the boiling point of the coo lant is exceeded as
a result of overheating.
A WARNING
The cooling system is under pressure and
can get very hot. Reduce the risk of scald­
ing from hot coolant by follow ing these
steps.
- Turn off the engine and allow it to cool
down.
- Protect your face, hands and arms from
escap ing f lu id and steam by cover ing the
cap with a la rge, th ick rag.
- Turn the cap slowly and very carefully in
a counter-clockwise d irect ion while ap­
plyi ng light, downward pressure on the
top of the cap .
- To avo id being burned, do not sp ill anti­
freeze or coolant on the exhaust system
or hot engine parts. Under certa in cond i­
tions, the ethylene gly col in engine coo l­
a nt can catch fire.
(D Note
Do not add any type of radiator leak sea L­
ant to your veh icle's engine coo lant . Add­
i ng radiato r repa ir flui d may adverse ly af­
fect the funct io n and performa nce o f your
cooling system and could result in damage
not covered by your New Vehicle Limited
War ranty.
Adding coolant
Be very careful when adding engine coolant .
Before you che ck anyth ing in the eng ine com­
partmen t,
alway s read and heed all WARN­
INGS ¢.&_ in Working in the engine compart­
ment on page
227 .
.,. Tur n off the engi ne.
.,. Let the engine cool down.

236 Check ing and filling
• Place a thick rag ov er the coolant expansion
tank ¢
page 235, fig . 196 and care fully
twist the cap counter-clockwise ¢ &_.
• Add coolant mixed in the correct ratio
¢ page 234, Coolant.
• Twist the cap on again tightly .
Replacement engine coolant must conform to
exact specifications ¢
page 234, Coolant .
We recommend using on ly coo lant addi-
tive
Gl2++, Gl3 or in an emergency Gl2 +. Do
not use a different additive. In an emergency
use plain water unt il you can get the correct
addit ive and can restore the correct ratio . This
should be done as soon as possible .
If you have lost a considerable amount of
coolant, then you should add cold antifree ze
and cold water only when the eng ine is co ld.
A lways use
new engine coolant when refi lling.
Do not fill coolant above the "MAX" mark. Ex­
cess coolant will be forced out t hrough the
press ure relief valve in the cap when the en­
gin e becom es hot.
A WARNING
- The coo ling system is under p ress ure and
can get very hot. Reduce the risk of
scalding from hot coolant by following
these steps .
- Tu rn o ff the eng ine a nd a llow i t to cool
down.
- Pr otect your f ace, hands and arms from
escaping f luid and steam by cover ing
the cap with a large, thick rag.
- Tu rn the cap slowly and very ca re fully
in a counte r-clockwise direct ion while
applying light, downwa rd p ress ure on
the top of the cap.
- To avoid being burned, do not spi ll an ­
tifreeze or coolant on the exhaust sys­
tem or hot engine parts. Under certa in
conditions, the ethylene glyco l in en­
g ine coolant can catch f ire.
- Antifreeze is poisonous. Always store an­
t ifreeze in its original container and well
out of the reach of children. -
If you drain the coo lant, it m ust be
caught and safely stored in a proper con­
tainer clearly marked "poison".
(D Note
- Coo lant poll utes the environment and
cou ld cause an engine fire . Excess cool­
ant will be forced out through the pres­
sure relief valve in the cap when the en­
gine becomes hot .
- If, in an emergency, only water can be
added, the correct ratio between water
and antifreeze ¢
page 234 must be re­
stored as soon as possible .
® For the sake of the environment
Drained coolant should not be reused. Al­
ways d ispose of used coolant while observ ­
i ng all environmental regulations .
Radiator fan
The radiator fan switches on automatically by
itself .
An auxiliary electric radiator fan switches on
and off depending on coolan t temperature
and othe r vehicle operat ing condit ions.
After you switch the engine off, the aux iliary
fan can continue running for up to 10 m inutes
- even w it h the ignition off. It can even switc h
o n aga in later by itself¢
A, if
- the temper ature of the engine coo lant rises
due to the heat build-up from the engine in
the engine compartment, or
- the engine compartment heats up because
the vehicle is parked in intense sunlig ht.
A WARNING
- To reduce the risk of personal injury nev­
er touch t he rad iator fan .
- The auxiliary electric fan is temperat ure
controlled and can sw itch on suddenly
even when the engine is not ru nning .
- The auxiliary radiator fan sw itches on a u­
tomatically when the engine coo la nt
reaches a certai n temperature and wi ll ..,.
